Isobutene Polymerization Using a Chelating Diborane Co-Initiator
Stewart P. Lewis,† Nicholas J. Taylor,‡ Warren E. Piers,§ and Scott Collins*,†
Department of Polymer Science, UniVersity of Akron, Akron, Ohio 44325-3909, Department of Chemistry,
UniVersity of Waterloo, Waterloo, Ontario, Canada N2L 3G1, Department of Chemistry, UniVersity of Calgary,
Calgary, Alberta, Canada T2V 2R3
Received August 3, 2003; E-mail: collins@polymer.uakron.edu
There is considerable interest in counteranion design and
synthesis in the context of olefin polymerization using single-site
metallocene catalysts.1 The counteranion influences catalyst activity/
stability, polymer MW, and tacticity in a manner that is reasonably
well understood. Less attention has been devoted to systematic
modification of the counteranion, despite its importance in chain
transfer processes,2 in cationic polymerization of isobutene (IB).
Previous work, which involved the use of weakly coordinating
counteranions (WCA)3 to hinder chain transfer in IB homo-/
copolymerization, has focused on various transition metal and main
group initiators paired with a WCA.4 The use of chelating diborane
1 (see Scheme 1) or related compounds5 as activators in olefin
polymerization has been explored,6 and chelated WCA derived from
such compounds {e.g., [Ph3C][1-(µ-X)] (X ) OMe, OC6F5 etc.)}
present advantages in ethylene polymerization over trityl activators
partnered with mononuclear WCA.6a We expected chelating di-
borane 1 might be effective in cationic polymerization of IB, and
this communication presents preliminary results to this effect.
Figure 1. (a) 1H NMR spectrum (400 MHz, CD2Cl2, -40 °C) and (b) 19
F
Scheme 1
NMR spectrum (376 MHz, CD2Cl2, -20 °C) of a mixture of diborane 1
(2.0 equiv) and CumCl (1.0 equiv). (c) 19F NMR spectrum (282 MHz,
CD2Cl2, 25 °C) of ion-pair 4. Signals due to ion-pair 2a are highlighted in
dark gray, while those due to 1 and indan 3 are in light gray. The peaks
marked with an asterisk are due to 2,3,5,6-tetrafluoro-p-xylene, n-hexane,
and toluene.
Scheme 2
We investigated the reaction of diborane 1 with cumyl chloride
(CumCl) and cumyl methyl ether (CumOMe) by variable-temper-
ature 1H and 19F NMR spectroscopy. As shown in Scheme 1,
ionization is observed at low T with either of these initiators and

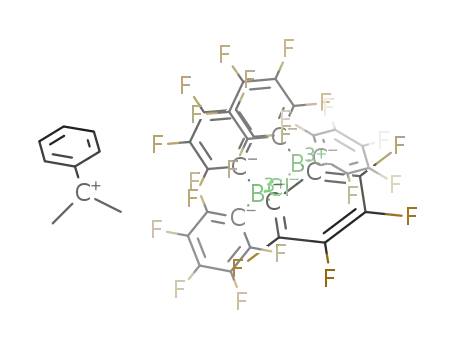

diborane 1 to form ion-pairs 2a-b in which the cumyl cation7
(Figure 1a) is partnered with symmetrical, counteranions as is
evident from the 19F NMR spectra (Figure 1b).
In the case of ion-pair 2b, the known [1(µ-OMe)] counteranion
is formed (see Supporting Information).6a By analogy, reaction with
CumCl forms ion pair 2a, featuring the unknown [1(µ-Cl)] anion
partnered with the cumyl cation. On the basis of the extent of
ionization, the Lewis acidity of 1 toward CumCl exceeds that of
BCl3 and is comparable to that of SbF5 where ionization is
essentially irreversible.8
other major byproducts of this decomposition (Scheme 1). A similar
process also ensues for 2b although competitive degradation of the
counteranion is observed as will be described in detail elsewhere.
As a model for ion-pair 2a we investigated the reaction of Ph3C-
Cl with diborane 1; the expected ion-pair 4 is quantitatively formed
in either benzene-d6 or CD2Cl2 solution at room temperature
(Scheme 2, 19F NMR spectrum in Figure 1c).9
The X-ray structure of this compound appears in Scheme 2.10
Notable features include a puckered, five-membered ring for the
chelated counteranion with marginally dissimilar B(1)-Cl(1) and
B(2)-Cl(1) bond lengths of 2.0329(16) and 2.0399(15) Å, respec-
tively. The B(1)-Cl(1)-B(2) angle is acute at 94.34(6)° so as to
accommodate the bridging Cl between the two B atoms. Even with
this feature and concomitant puckering of the ring, there is evidence
Ion-pair 2a is stable at -80 °C, but on warming, decomposition
to the known indan 38 occurs while diborane 1 and HCl are the
