Ruthenium Arene Derivatives with PN Hemilabile
Ligands. P-C Cleavage and Phosphine to Phosphinite
Transformation
Agust´ın Caballero,† Fe´lix A. Jalo´n,*,† Blanca R. Manzano,† Gustavo Espino,‡
Mercedes Pe´rez-Manrique,‡ Antonio Mucientes,§ Francisco J. Poblete,§ and
Miguel Maestro
Departamento de Quı´mica Inorga´nica, Orga´nica y Bioquı´mica, Facultad de Quı´micas,
Universidad de Castilla-La Mancha, Avenida Camilo J. Cela 10, 13071 Ciudad Real, Spain,
Departamento de Quı´mica, Facultad de Ciencias, Universidad de Burgos,
Plaza Misael Ban˜uelos s/n, 09001 Burgos, Spain, Departamento de Qu´ımica Fı´sica,
Facultad de Quı´micas, Universidad de Castilla-La Mancha, Avenida Camilo J. Cela 10,
13071 Ciudad Real, Spain, and Departamento de Qu´ımica Fundamental,
Facultade de Ciencias, Universidade da Corun˜a, Campus da Zapateira,
15071 A Corun˜a, Spain
Received July 23, 2004
Complexes of formula [RuCl2(arene)(κ1-dpim)] (dpim ) 2-(diphenylphosphino)-1-meth-
ylimidazole) (arene ) p-cymene, 1a; C6H6, 1b) were prepared by the reaction of [RuCl2(p-
cymene)]2 or [RuCl2(C6H6)(CH3CN)] with dpim. Complexes 1a and 1b were structurally
characterized by NMR spectroscopy and X-ray diffraction. The reaction of these precursors
-
with BF4 salts led, in dichloromethane, to cationic complexes of formula [RuCl(arene)(κ2-
dpim)]BF4 (arene ) p-cymene, 2a; C6H6, 2b). However, in methanol the products were
unexpected phosphinite derivatives of the type [RuCl(arene)(HImMe){κ1-PPh2(OMe)}]A (A
) BF4, arene ) p-cymene, 3a; C6H6, 3b; A ) BPh4, arene ) p-cymene, 3d) (ImMe )
methylimidazole). This transformation implies the existence of an easy P-C bond cleavage
and phosphine functionalization with methanol at room temperature. The precursors 1a,b
or the analogous derivative with 2-(diphenylphosphino)pyridine (PPh2py), [RuCl2(p-cymene)-
(κ1-PPh2py)], 1c, reacted with HBF4 to give cationic derivatives by protonation of the imidazole
or the pyridine fragment, [RuCl2(arene)(κ1-PNH)]BF4 (PNH ) dpimH, arene ) p-cymene,
4a; C6H6, 4b; PNH ) PPh2pyH, arene ) p-cymene, 4c). In these compounds the existence
of an asymmetric and bifurcated hydrogen bond NH‚‚‚Cl2 has been structurally determined
(even by X-ray studies for 4a,b). Complexes 2a and 4a also yield the corresponding and
analogous phosphinite derivatives in the presence of methanol-d4 but at a markedly slower
rate. NMR and spectrophotometric studies provided information concerning the formation
of the phosphinite derivatives. It was concluded that the phosphine is not functionalized if
it is not coordinated and that, very probably, a methanol solvatesintermediate between 1a
and 2asparticipates in the P-C bond cleavage and allows the aforementioned transforma-
tion. Some preliminary catalytic tests involving the transfer hydrogenation of cyclohexanone
and the hydrogenation of phenylacetylene have also been carried out.
Introduction
unique examples of reactivity.3 In recent years special
attention has been paid to the preparation and coordi-
nation of hemilabile P,O-donor ligands and, in particu-
lar, to phosphinoether compounds.4 Potential P,N-donor
molecules, although less frequently used, have received
increased attention in the past few years as hemilabile
ligands.2,5 An important application of complexes with
hemilabile ligands is in catalysis, and several different
processes have been analyzed.5a,6 Theoretical studies
concerned with this application have been performed.7
Arene complexes of ruthenium have been extensively
studied as catalyst precursors.5a,8 On the other hand,
the potentially hemilabile P,N ligand 2-(diphenylphos-
The concept of hemilability was first introduced by
Rauchfuss1 referring to the labile coordination of several
ligands bearing soft and hard donor atoms. These
ligands and their coordination chemistry2 have received
increased interest in recent years. In general, the hard
donor center is weakly coordinated and allowssby
decoordinationsthe binding of substrates that induce
† Departamento de Qu´ımica Inorga´nica, Orga´nica y Bioqu´ımica,
Universidad de Castilla-La Mancha.
‡ Universidad de Burgos.
§ Departamento de Qu´ımica F´ısica, Universidad de Castilla-La
Mancha.
Universidade da Corun˜a.
(3) Davies, J. A.; Hartley, F. R. Chem. Rev. 1979, 81, 2658.
(4) (a) Bader, A.; Lindner, E. Coord. Chem. Rev. 1991, 108, 27. (b)
Slone, C. S.; Weinggerger, D. A.; Mirkin, C. A. Prog. Inorg. Chem. 1999,
48, 233.
(1) Jeffrey, J. C.; Rauchfuss, T. B Inorg. Chem. 1979, 18, 2658.
(2) Braunstein, P.; Naud, F. Angew. Chem., Int. Ed. 2001, 40, 680-
699.
10.1021/om049438o CCC: $27.50 © 2004 American Chemical Society
Publication on Web 10/28/2004

Ruthenium Arene Derivatives
Chart 1
Organometallics, Vol. 23, No. 24, 2004 5695
to ascertain whether the presence of the free nitrogen
atom in the case of the monocoordinated ligand could
play a role similar to that of the added base in the case
of transfer hydrogenation.
Interestingly, during the course of the synthesis of
the new ruthenium derivatives we found an unexpected
reactivity of the ligand, which was transformed, by
reaction with methanol, into a diarylphosphinite. These
ligands are important in the field of asymmetric cataly-
sis,13 and their preparation usually requires multistep
and complicated procedures. A discussion concerning the
role played by phosphine coordination on the Ru center
and the possible mechanism of this transformation is
also included. We also investigated whether this behav-
ior was also exhibited by the similar complex containing
the more frequently used ligand 2-(diphenylphosphino)-
pyridine5a,b,14 (PPh2py) (see Chart 1).
phino)-1-methylimidazole, dpim (see Chart 1), has been
studied very little. This compound was first reported
in 1993,9 although a more convenient synthetic route
was subsequently published in 2001.10 Some complexes
of late transition metals with the dpim ligand have been
described,10,11 and we have reported new ruthenium
derivatives containing this ligand in the three possible
coordination modes: monodentate, bidentate chelate,
and bridge.12 When coordinated as a bidentate system,
the relative 1,3-positions of the donor atoms in the dpim
ligand are associated with a strained angle in the
metallacycle after κ2-coordination, a situation that could
favor partial decoordination of this ligand. When mono-
coordinated by the phosphorus atom, the ligand offers
a free nitrogen that, as a basic center, could help in the
activation of the substrates. With these ideas in mind,
we decided to synthesize and characterize new arene
ruthenium derivatives containing the dpim ligand and
to undertake an initial assessment of their catalytic
behavior in hydrogenation processes. It was of interest
Results and Discussion
Preparation of the New Complexes. The phos-
phine dpim (PN) was prepared in two steps basically
in accordance with the method reported by Nishikawa,10
i.e., the reaction of N-methylimidazole with n-BuLi and
reaction of the resulting salt with PClPh2. The ligand
dpim reacts with the dimeric compounds [RuCl2(arene)]2
(arene ) p-cymene, C6H6) to give complexes of formula
[RuCl2(arene)(κ1-PN)] (arene ) p-cymene, 1a; C6H6, 1b).
The poor solubility of the starting benzene derivative
lowers the yield of complex 1b, which is more con-
veniently prepared by the reaction of the phosphine with
the monomeric adduct [RuCl2(C6H6)(NCCH3)].15 Com-
plexes 1a and 1b were used as starting materials for
the preparation of other new complexes according to
Scheme 1.
The reactions of 1a,b with TlBF4 in dichloromethane

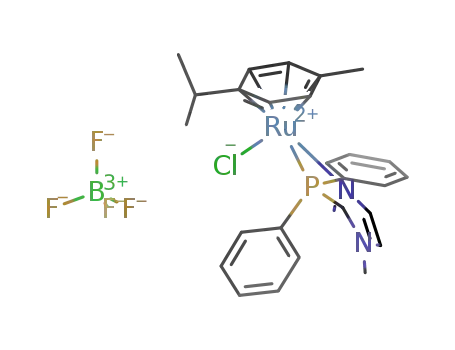

gave the cationic complexes [RuCl(arene)(κ2-dpim)]BF4
