FULL PAPER
Synthesis, Structures and Catalytic Properties of Bis(2-pyridylimino)-
isoindolatopalladium Complexes
Bettina Siggelkow,[a] Markus B. Meder,[a] Christian H. Galka,[a] and Lutz H. Gade*[a]
Keywords: Hydrogenation / N ligands / Palladium
Reaction of the bis(2-pyridylimino)isoindole derivatives (10-
Me)-BPI (1a), (11-Me)-BPI (1b), (11-Br)-BPI (1c), (4-Me)-BPI
(1d) and 4-Me-10-tBuBPI (1e) with [PdCl2(PhCN)2] and tri-
tallated with bis(benzonitrile)dichloropalladium(II) to yield

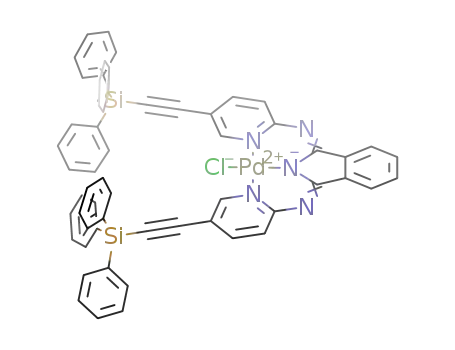

the PdII complexes [PdCl{11-(Me3SiCC)-BPI}] (5a), [PdCl{11-
(Ph3SiCC)-BPI}] (5b) and [PdCl{11-(PhCC)-BPI}] (5c), respec-
tively. The activity of 2b in the catalytic hydrogenation of C=
C double bonds was tested for the reaction with styrene, 1-
octene and cyclohexene. The stability of the palladium com-
plex, the reproducibility of the reaction kinetics, the different
behaviour towards the three olefins chosen as substrates, as
well as the possibility of isolating the non-decomposed cata-
lyst after several catalytic runs, provides circumstantial evi-
dence for molecular catalysis with the BPI-palladium comple-
xes.
ethylamine in benzene gave the square-planar palladium(II
)
complexes [PdCl{(10-Me)-BPI}] (2a), [PdCl{(11-Me)-BPI}]
(2b), [PdCl{(11-Br)-BPI}] (2c), [PdCl(4-MeBPI)] (2d) and
[PdCl(4-Me-10-tBuBPI)] (2e), respectively. Extraction of the
crude product 2b with aqueous sodium carbonate solution
led to the formation of the dinuclear carbonato-bridged com-
plex [{(11-Me-BPI)Pd}2(µ-CO3)] (3) which was characterized
by an X-ray structure analysis. Reaction of 11-Br-BPI (1c)
with a large excess (6 equiv.) of the acetylenes Me3SiCCH,
Ph3SiCCH and PhCCH under Sonogashira conditions gave
the alkynylated derivatives 11-(Me3SiCC)-BPI (4a), 11-
(Ph3SiCC)-BPI (4b) and 11-(PhCC)-BPI (4c), which were me-
( Wiley-VCH Verlag GmbH & Co. KGaA, 69451 Weinheim,
Germany, 2004)
Introduction
this formally protonated site is subsequently involved in the
elimination of the saturated reaction product.
Polydentate ligands have been widely used in the develop-
ment of homogeneous hydrogenation catalysts.[1] In most
cases phosphane or phosphane-heterodonor ligands have
been chosen due to the well-established capacity of the soft
phosphane ligators to stabilize the low-valent intermediates
in the catalytic cycle.[2] A practical disadvantage in the use
of phosphorus-based ligands is their propensity to be oxid-
ized if exposed to air over extended periods of time. This
has encouraged research into non-phosphorus-containing
hydrogenation catalysts which combine molecular stability
with sufficient activity to allow the catalytic hydrogenation
of alkenes at atmospheric dihydrogen pressure.[3]
Costa, Pelagatti et al. have recently studied the hydrogen-
ation activity of palladium() complexes stabilized by po-
lydentate PʝNʝO,[4,5] NʝNʝS,[6] and NʝNʝN ligands.[7]
In particular, the use of tridentate nitrogen donor ligands
gave rise to relatively efficient PdII hydrogenation catalysts.
The activation of dihydrogen is thought to involve the pro-
tonation of a basic site in the polydentate N-ligand and
In view of this work on palladium-catalyzed homo-
geneous hydrogenations we have studied the catalytic ac-
tivity of Pd complexes containing derivatives of the well-
established bis(2-pyridylimino)isoindolate (BPI) ligands
(A).[8Ϫ10] These ligands have been extensively studied in oxi-
dation catalysis;[11] however, there is as yet no report of
their application to other catalytic reactions. This class of
formally anionic ligands appeared to be promising for the
development of new palladium-based hydrogenation cata-
lysts due to their tendency to tautomerise and act as neutral
ligands AЈ, as has been recently established for the free li-
gand in solution and for the Cd complex B by X-ray diffrac-
tion.[12] Given the work by Costa, Pelagatti and co-
workers,[4Ϫ7] this capacity of the BPI ligands was thought
to favour homogeneous hydrogenation activity of their pal-
ladium() complexes.
There are only two previous reports in the literature of
the coordination of BPI ligands to divalent palladium,[13,14]
although with no further investigation of their reactivity. In
this work we report the synthesis and structural characteriz-
ation of several new BPI-Pd complexes, the first results of
the integration of the BPI-ligand unit into more elaborate
molecular architectures and, finally, a first study of the
hydrogenation activity of a BPI-Pd derivative towards sev-
eral alkenes.
[a]
Anorganisch-Chemisches Institut, Universität Heidelberg,
Im Neuenheimer Feld 270, 69120 Heidelberg, Germany
E-mail: lutz.gade@uni-hd.de
