Synthesis, spectroscopy, structures and photophysics of metal alkynyl
complexes and polymers containing functionalized carbazole spacers
b,
b
c
Li Liu a,b, Wai-Yeung Wong *, Jian-Xin Shi , Kok-Wai Cheah ,
b
b
Tik-Ho Lee , Louis M. Leung
a
Ministry of Education Key Laboratory for the Synthesis and Application of Organic Functional Molecules, Faculty of Chemistry and Chemical Engineering,
Hubei University, Wuhan 430062, PR China
b
Department of Chemistry and Centre for Advanced Luminescence Materials, Hong Kong Baptist University, Waterloo Road,
Kowloon Tong, Hong Kong, PR China
c
Department of Physics and Centre for Advanced Luminescence Materials, Hong Kong Baptist University, Waterloo Road,
Kowloon Tong, Hong Kong, PR China
Received 27 March 2006; received in revised form 5 June 2006; accepted 5 June 2006
Available online 15 June 2006
Abstract
A new class of soluble and thermally stable group 10 platinum(II) poly-yne polymers functionalized with 9-arylcarbazole moiety
trans-[-Pt(PBu3)2C„CRC„C-]n (R = 9-arylcarbazole-3,6-diyl; aryl = p-methoxyphenyl, p-chlorophenyl) were prepared in good yields
by the polycondensation polymerization of trans-[PtCl2(PBu3)2] with HC„CRC„CH under ambient conditions. The optical absorption
and emission properties of these polymetallaynes were investigated and compared with their bimetallic molecular model complexes trans-
[Pt(Ph)(PEt3)2C„CRC„CPt(Ph)(PEt3)2] as well as their group 11 gold(I) and group 12 mercury(II) neighbors [(PPh3)AuC„CRC„
CAu(PPh3)] and [MeHgC„CRC„CHgMe]. The structures of all the compounds were confirmed by spectroscopic methods and by
X-ray crystallography for selected model complexes. The influence of the heavy metal atom and the 9-aryl substituent of carbazole
on the evolution of lowest electronic singlet and triplet excited states is critically characterized. It was shown that the organic-localized
phosphorescence emission can be triggered readily by the heavy-atom effect of group 10–12 transition metals (viz., Pt, Au, and Hg) with
the emission efficiency generally in the order Pt > Au > Hg. These carbazole-based organometallic materials possess high-energy triplet
states of 2.68 eV or higher which do not vary much with the substituent of 9-aryl group.
ꢀ 2006 Elsevier B.V. All rights reserved.
Keywords: Acetylide; Carbazole; Gold; Mercury; Platinum; Phosphorescence
1. Introduction
tain a rigid biphenyl unit which can lead to a large band
gap with efficient blue emission, and the facile substitution
at the remote N-position offers the possibility of improving
the solubility and processability of polymers without
remarkably increasing the steric interactions in the polymer
backbone [1].
While developments based on the exploitation of
9-arylcarbazole as the building unit for the synthesis of
branched molecules, oligomers, polymers or even dendri-
mers have been extensive, most of them are restricted to
purely organic systems [10]. Carbazole-based coordina-
tion/organometallic compounds have been much less
explored [11]. To our knowledge, carbazole-containing
The use of carbazole chromophores offers exciting per-
spectives for the design of new molecular and polymeric
materials for various optoelectronic applications [1]. Many
carbazole derivatives have a sufficiently high triplet energy
to be able to host red [2–5], green [6,7], and in some cases
even blue [8,9] triplet emitters. Poly(carbazole) homopoly-
mers and their copolymers are highly promising materials
for applications in light-emitting devices because they con-
*
Corresponding author. Tel.: +852 3411 7074; fax: +852 3411 7348.
E-mail address: rwywong@hkbu.edu.hk (W.-Y. Wong).
0022-328X/$ - see front matter ꢀ 2006 Elsevier B.V. All rights reserved.
doi:10.1016/j.jorganchem.2006.06.006

L. Liu et al. / Journal of Organometallic Chemistry 691 (2006) 4028–4041
4029
metal alkynyl compounds are still scarce. Literature exam-
ples are exclusively confined to 2,7-diethynyl-9-buty-
lcarbazolediyl-spaced metal di-, oligo- and polymers [12].
However, there has been no report of 9-arylcarbazolyl-
derived metal complexes, and the chemistry of such com-
pounds would be interesting within the realm of materials
science and optoelectronics. There are also very few reports
in the sensitization of carbazole’s triplet emission using
heavy-metal effects [10h]. According to the energy gap
law, the rate of phosphorescence emission is increased by
interruption of the p-conjugation, i.e. a compound with
high-energy triplet state is desirable [13]. With this in mind,
we report here the synthesis, spectroscopic characteriza-
tion, crystal structures and photophysical properties of
some luminescent group 10–12 dinuclear and polynuclear
platinum(II), gold(I) and mercury(II) complexes function-
alized with some 9-arylcarbazole spacers. The influence of
the heavy metal center and the 9-aryl substituent of carba-
zole ring on the photoluminescence behavior will be eluci-
dated in this contribution.
[PtCl(Ph)(PEt3)2] with Ia or Ib at room temperature (r.t.),
respectively. The feed mole ratios of 2:1 and 1:1 for the
platinum chloride precursors and the diethynyl ligand were
adopted for the model complex and polymer syntheses,
respectively. Purification of the polymers 1a and 1b were
accomplished by silica column chromatography using
CH2Cl2 as the eluent whereas the diplatinum complexes
2a and 2b were isolated by preparative TLC on silica. We
have also prepared the d10 digold(I) diacetylide counter-
parts 3a and 3b by reaction of Au(PPh3)Cl with Ia or Ib
in a 2:1 stoichiometry in the presence of a base [17]. Simi-
larly, complexes 4a and 4b, the isoelectronic and isolobal
analogues of 3a and 3b, were synthesized by treatment of
Ia and Ib with two equivalents of MeHgCl under similar
basic medium [18]. The yields of these transformations
are generally high in each case. All the new complexes
and polymers are air-stable solids which can be stored
without demanding any special precautions. They display
good solubility in chlorocarbons such as CH2Cl2 and
CHCl3, but are insoluble in hydrocarbons. Estimates of
the molecular weights using gel permeation chromatogra-
phy (GPC) in THF indicate that the degrees of polymeriza-
tion calculated from Mw are 8–16 for 1a and 1b (Table 1).
It should be noted that the GPC method used does not give
absolute values of molecular weights but can only measure
the hydrodynamic volume. Rod-like polymers in solution
possess different hydrodynamic properties than flexible
polystyrene standard. So, calibration of the GPC with
polystyrene is likely to inflate the values of the molecular
weights of the poly-ynes to some extent.
2. Results and discussion
2.1. Synthesis
The synthesis of 3,6-diethynyl-9-arylcarbazole, Ia and
Ib, are outlined in Scheme 1. First, the N-arylation of
carbazole was achieved by the modified Ullmann conden-
sation between carbazole and the corresponding p-iodo-
arene under the CuI/phen/KOH catalytic medium [14].
The corresponding N-arylated 3,6-dibromocarbazole pre-
cursors were obtained in good yields by bromination of
9-arylcarbazole derivatives with N-bromosuccinimide
(NBS). An alternative synthetic method can also be used
to produce 3,6-dibromo-9-arylcarbazoles in a similar yield
by condensing the commercially available 3,6-dibromocar-
bazole with the corresponding p-iodoarene. The 3,
6-bis(trimethylsilylethynyl)-functionalized 9-arylcarbazole
compounds were formed from the Sonogashira-type cou-
pling reaction between the dibromo derivatives and tri-
methylsilylacetylene and they were then converted to the
diethynyl counterparts Ia and Ib in very good yields (88–
94%) using K2CO3 in MeOH as the deprotecting reagent
[15]. The crude products from these reaction mixtures were
purified by passage through silica gel column and were
recrystallized where necessary.
All the metal alkynyl complexes and polymers were
obtained in good yields by the general alkynylation routes
as described in Scheme 1. The diplatinum complexes can be
considered the geometrical molecular models for the long
chain organometallic polymers. Organic ligands Ia and Ib
were employed as versatile synthons in the present study
to form a series of group 10–12 metal acetylide complexes
and polymers by adaptation of the classical dehydrohalo-
genation procedures reported in the literature [16]. 1a, 1b,
2a and 2b were synthesized by CuI-catalyzed dehydrohalo-
genating coupling of trans-[PtCl2(PBu3)2] or trans-
2.2. Spectroscopic properties
The IR, NMR (1H, 13C and 31P) and fast-atom bom-
bardment (FAB) mass spectral data of our compounds
agree with their chemical structures. The solution IR spec-
tra are each characterized by a single sharp m(C„C)
absorption band at ca. 2092–2134 cmꢀ1. The IR spectrum
of each compound shows no m(„CH) band in the range
3200–3300 cmꢀ1, in line with the fact that Ia and Ib are
completely being capped by the metal groups via r bonds.
The single 31P{1H} NMR signals flanked by platinum sat-
ellites for 1a, 1b, 2a and 2b are consistent with a trans
geometry of the square-planar Pt unit. The room-tempera-
ture 31P NMR spectrum of 3a and 3b display a sharp sin-
glet at d 43.91, indicative of a symmetrical arrangement
of PAuC„C groups in solution. 1H NMR resonances aris-
ing from the protons of the organic and phosphine moieties
were clearly observed. The formulas of the model com-
plexes 1a, 1b, 3a, 3b, 4a and 4b were also characterized
by the presence of intense molecular ion peaks in their
respective positive FAB mass spectra.
2.3. Crystal structure analyses
The three-dimensional molecular structures of 2a, 3a
and 4b were analyzed by X-ray crystallography and are

4030
L. Liu et al. / Journal of Organometallic Chemistry 691 (2006) 4028–4041
X
X
N
X
H
N
(i)
(ii)
+
N
I
Br
Br
(X = OMe, Cl)
X
N
(iii)
Me Si
3
SiMe
3
(iv)
X
N
X
N
X
N
(v)
(vi)
Bu P
3
PEt
Ph
Et P
3
3
H
H
Pt
Pt
Ia (X = OMe)
Ib (X = Cl)
Ph
PBu
PEt
Et P
3
3
3
(vii)
n
(viii)

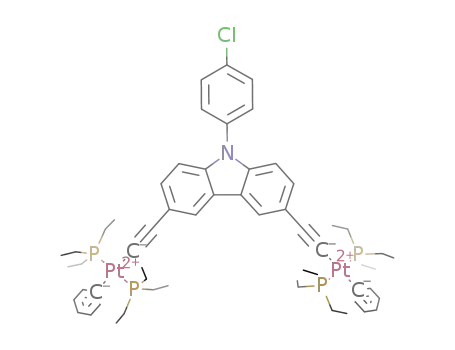

2a (X = OMe)
