Effect of Particle Wettability and Particle Concentration on the Enzymatic Dehydration of n-Octanaloxime in Pickering Emulsions

Article abstract of DOI:10.1002/anie.202013171

Pickering emulsion systems have emerged as platforms for the synthesis of organic molecules in biphasic biocatalysis. Herein, the catalytic performance was evaluated for biotransformation using whole cells exemplified for the dehydration of n-octanaloxime to n-octanenitrile catalysed by an aldoxime dehydratase (OxdB) overexpressed in E. coli. This study was carried out in Pickering emulsions stabilised solely with silica particles of different hydrophobicity. We correlate, for the first time, the properties of the emulsions with the conversion of the reaction, thus gaining an insight into the impact of the particle wettability and particle concentration. When comparing two emulsions of different type with similar stability and droplet diameter, the oil-in-water (o/w) system displayed a higher conversion than the water-in-oil (w/o) system, despite the conversion in both cases being higher than that in a “classic” two-phase system. Furthermore, an increase in particle concentration prior to emulsification resulted in an increase of the interfacial area and hence a higher conversion.

Full text of DOI:10.1002/anie.202013171

A Journal of the Gesellschaft Deutscher Chemiker
Angewandte
International Edition Chemie
www.angewandte.org
Accepted Article
Title: Effect of Particle Wettability and Particle Concentration on the
Enzymatic Dehydration of n-Octanaloxime in Pickering Emulsions
Authors: Bernard Paul Binks, Ana Maria Bago Rodriguez, Lukas
Schober, Alessa Hinzmann, and Harald Gröger
This manuscript has been accepted after peer review and appears as an
Accepted Article online prior to editing, proofing, and formal publication
of the final Version of Record (VoR). This work is currently citable by
using the Digital Object Identifier (DOI) given below. The VoR will be
published online in Early View as soon as possible and may be different
to this Accepted Article as a result of editing. Readers should obtain
the VoR from the journal website shown below when it is published
to ensure accuracy of information. The authors are responsible for the
content of this Accepted Article.
To be cited as: Angew. Chem. Int. Ed. 10.1002/anie.202013171
Link to VoR: https://doi.org/10.1002/anie.202013171

Angewandte Chemie International Edition
10.1002/anie.202013171
Effect of Particle Wettability and Particle Concentration on the Enzymatic
Dehydration of n-Octanaloxime in Pickering Emulsions
a
b
b
*[b]
Ana Maria Bago Rodriguez, Lukas Schober, Alessa Hinzmann, Harald Gröger and
Bernard P. Binks*[a]
Submitted to: Angewandte Chemie on 6.4.20; revised 26.10.20
Contains ESI
[
a] Dr. A.M. Bago Rodriguez and Prof. Dr. B.P. Binks
Department of Chemistry, University of Hull
Hull. HU6 7RX. (U.K.)
E-mail: b.p.binks@hull.ac.uk
[
b] L. Schober, A. Hinzmann and Prof. Dr. H. Gröger
Faculty of Chemistry, Bielefeld University
Universitätsstrasse 25, 33615 Bielefeld (Germany)
E-mail: harald.groeger@uni-bielefeld.de
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Abstract: Pickering emulsion systems have emerged as platforms for the synthesis of organic
molecules in biphasic biocatalysis. Herein, the catalytic performance was evaluated for
biotransformation using whole cells exemplified for the dehydration of n-octanaloxime to n-
octanenitrile catalysed by an aldoxime dehydratase (OxdB) overexpressed in E. coli. This study
was carried out in Pickering emulsions stabilised solely with silica particles of different
hydrophobicity. We correlate, for the first time, the properties of the emulsions with the
conversion of the reaction, thus gaining an insight into the impact of the particle wettability
and particle concentration. When comparing two emulsions of different type with similar
stability and droplet diameter, the oil-in-water (o/w) system displayed a higher conversion than
the water-in-oil (w/o) system, despite the conversion in both cases being higher than that in a
“classic” two-phase system. Furthermore, an increase in particle concentration prior to
emulsification resulted in an increase of the interfacial area and hence a higher conversion.
Introduction
Enzymes are efficient biocatalysts that, due to their high chemo-, regio- and stereo-
selectivity, play an important role in the synthesis of organic molecules under mild and
sustainable conditions.[1-3] Enzymes are commonly active in water, while at the same time often
organic substrates are poorly soluble in aqueous media. To increase the solubility of the
substrate in the aqueous phase, a co-solvent can be added. For very hydrophobic substrates a
second organic phase, which acts as a reservoir for the substrates, can be utilised to convert
higher amounts of material. For a sufficient mass transfer of the substrate from the organic
phase into the aqueous phase for conversion by the enzyme, stirring is needed. However,
mechanical stirring as well as long exposure to organic solvents often lead to enzyme
deactivation. As a result, low conversions are often obtained from conventional biphasic
systems.
To improve biphasic solvent systems for enzymatic transformations, co-solvents,[4]
[
5]
[6]
phase-transfer reagents and thermoregulated biphasic systems have been explored. These
methods, however, require the introduction of extra additives that can also be detrimental to
the enzyme activity and often hamper downstream-processing and product purification steps.
Emulsions have emerged as an effective vehicle to carry out catalytic reactions as they
drastically increase the interfacial area, compared to the biphasic system. Those stabilised by
[7]
solid particles, so-called Pickering emulsions, have gained particular attention as they show
2
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
various advantages compared to other emulsions. Unlike surfactants, solid particles due to their
high energy of detachment, may become irreversibly anchored at the interface of dispersed
drops creating a steric barrier that prevents or inhibits coalescence.[8] Moreover, as certain
particles are biologically compatible and environmentally friendly, they are especially relevant
in the field of biocatalysis as they do not inactivate the enzyme and simplify the separation and
purification of the product. In some cases, the solid particles act simultaneously as the
emulsifier and the catalyst[9-20] while in other cases they are separate entities[20-33]. The review
by Pera-Titus et al. refers to catalysis carried out in each of the previous systems as Pickering
interfacial catalysis (PIC) and Pickering-assisted catalysis (PAC), respectively.[34] Examples of
the use of Pickering emulsions to carry out both inorganic (with Pd, Rh, Al
2
3
O or
Fe
2
O
3
)[11,15,18,22,27,30] and biocatalytic[9,12-14,17,19,20,22-26,29,32,33] reactions have been extensively
reported in the literature. Moreover, this strategy has been applied in continuous flow
processes[21,22,24,29-31] and cascade reactions,[15,19,28,31] thus broadening the scope of
applications.
Aliphatic nitriles are attractive compounds from an industrial point of view as they are
widely used as solvents and key intermediates for the large-scale production of commodity
chemicals such as surfactants as well as fine chemicals, agrochemicals and pharmaceuticals.

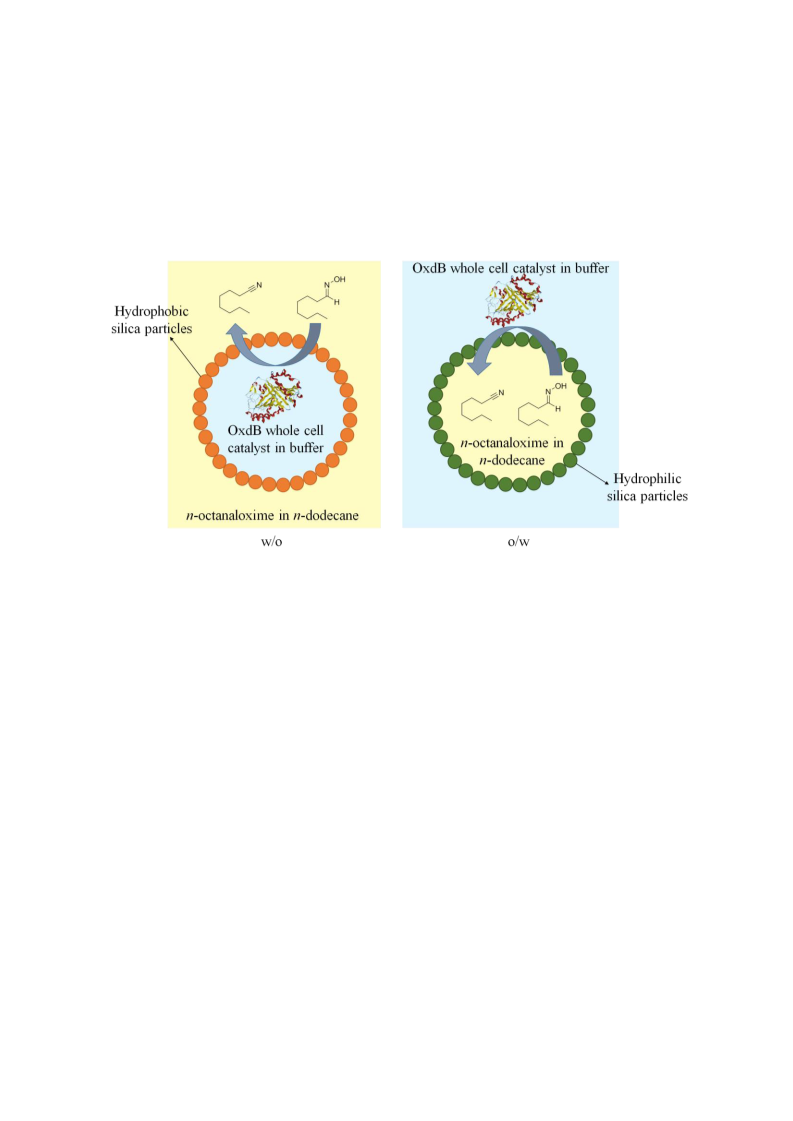

Here we report the enzymatic dehydration of n-octanaloxime to n-octanenitrile in Pickering
emulsions stabilised with silica particles of different wettability using E. coli cells containing
the aldoxime dehydratase OxdB (Scheme 1). This process was chosen as it allows the formation
of such desired aliphatic nitriles by means of an alternative, cyanide-free enzymatic
approach.[4,35-38] Besides the exciting properties of the enzyme for this purpose, the large-scale
availability of aldehydes (being, e.g., accessible by hydroformylation) as well as
hydroxylamine (used for Beckmann rearrangement and nylon production on an industrial scale)
is a further advantage which makes this biotransformation interesting also for technical
purposes. Oxd is a heme protein that catalyses the aldoxime-nitrile pathway through the
2
+
[39,40]
coordination of the nitrogen atom of the aldoxime to the ferrous (Fe ) heme.
Despite this
transformation already having been reported in bulk at high substrate loadings with high
conversions and yields using co-solvents,[4] here we carry out the reaction in Pickering
emulsions without adding further chemicals. In the Pickering emulsion system we suggest that
the reaction takes place in the aqueous phase as the enzyme, even if it is confined in a cellular
matrix, is really sensitive to organic solvents. Hinzmann et al. reported conversions lower than
1
0% for the same reaction with whole cells catalyst in pure organic media.[41] Therefore, this
3
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
implies first the diffusion of the substrate from the organic phase to the aqueous phase,
followed by the diffusion of the product back to the organic phase.
We correlate the properties of the emulsions with the conversion of the reaction, thus
gaining an insight into the impact of the effect of the particle wettability and particle
concentration. Silica particles possessing various silanol contents (%SiOH) spanning from
1
00% SiOH (most hydrophilic) to 15% SiOH (most hydrophobic) were used. Despite the fact
that the particle wettability can be tuned to stabilise the desired emulsion for the biphasic
reaction, this parameter has not been addressed systematically so far. In fact, to the best of our
knowledge, in the literature there is no such study that compares the conversion of a biocatalytic
reaction in both emulsion types (o/w and w/o) with the same particle type by gradually
changing the particle hydrophilicity. However, we acknowledge the work of various authors
who addressed this topic. Zhang et al. prepared two particle types of different hydrophilicity
by grafting methyl groups on the surface of hydrophilic TiO
particles loaded with Ru.[10] Each
2
of these particle types stabilised a different emulsion type that was used to study the selective
hydrogenation of benzene to cyclohexene. However, as the stability of each emulsion was not
equivalent, the conversion of the reaction was not comparable. Meng et al. have recently
prepared lipase-immobilized mesoporous silica particles with grafted alkyl silanes of different
chain lengths to obtain particles of various wettabilities that catalysed the hydrolysis of
tributyrin to butyric acid.[12] However, they were all partially hydrophobic and rendered w/o
emulsions. Finally, Chen et al. coated cells with a porous calcium phosphate mineral shell and
adsorbed various concentrations of a surfactant (sodium monododecyl phosphate) to obtain
particles of different wettabilities.[17] In this case, the particles were both the emulsifier and the
catalyst and stabilised both emulsion types. However, due to the surface modification, the
activity of the enzyme differed depending on the particle type used and the study of the
conversion of the reaction was only conducted with one emulsion type.[17]
Results and Discussion
n-Octanaloxime and n-octanenitrile are not surface-active at the n-dodecane-water
interface (Figure S1 and Figure S2, respectively) whereas E. coli cells can stabilise some oil
droplets in water at a concentration higher than 0.025 wt.% (Figure S3-S5). E. coli cells contain
both hydrophilic and hydrophobic moieties at the surface as the outer membrane is composed
mainly of lipopolysaccharide, phospholipid and protein.[42] As a result, it can be surface-active
at the oil-water interface. In fact, Röllig et al. reported the stabilisation of emulsions with E.
4
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
coli cells containing a lyase for the stereoselective carboligation of benzaldehyde to (R)-
benzoin.[43] Herein, however, we prefer silica particles to be the sole emulsifier. Therefore, a
low concentration of E. coli cells containing OxdB of 0.025 wt.% was selected to prepare
emulsions.
Emulsions were then prepared with silica particles of different hydrophobicity by keeping
the concentration of E. coli cells containing OxdB and n-octanaloxime in the emulsion constant
(0.025 wt.% and 0.082 wt.%, respectively. We show in Figure S6 that emulsions containing E.
coli cells behave the same with or without OxdB). The concentration of silica particles is 1.14
wt.% in all cases. Photos were taken one month after preparation (Figure 1(a)) and the emulsion
type was inferred from the drop test. Emulsions containing silica particles with a SiOH content
from 100% to 65% rendered o/w emulsions whereas w/o emulsions were obtained from the
most hydrophobic silica particles (SiOH content from 51% to 15%). In agreement with this
transitional phase inversion, the average droplet diameter decreases upon approaching the
inversion point (Figure 1(b) and Figure S7) as shown by Binks and Lumsdon.[44] The fraction
of aqueous and organic phase resolved from emulsions was measured one month after
preparation and they both also decrease approaching the point of phase inversion, in agreement
with ref. [44] (Figure 2). The stability of the prepared emulsions, in terms of the average droplet
diameter and the fraction of organic and aqueous phase resolved, remained unaltered for at
least 1 month. The energy of detachment of particles from the oil-water interface is several
orders of magnitude higher than their thermal energy (kT) and so particles are thought to be
irreversibly adsorbed at interfaces. Therefore, when creaming/sedimentation and coalescence
are halted emulsions remain unchanged for a long period of time. Hence no difference
regarding the emulsion stability was observed between the emulsions after 48 h and 1 month.
A second set of emulsions was prepared to study the conversion of the reaction therein. As
described in the experimental section, samples from the emulsion cream were withdrawn at
different times and the conversion of the reaction was measured by gas chromatography (GC).
In all cases, the conversion increases with time but the reaction becomes slower at long time
(
Figure 3(a)). In enzyme kinetics, Vmax is the theoretical maximal turnover rate. K
as the substrate concentration where Vmax/2 is reached and depends on the type of enzyme and
substrate. This means that even if the substrate concentration increases above approx. 2 x K
m
is defined
m
,
an increase of the turnover rate will not occur anymore. The observed decrease in the rate with
time in all our experiments could be due to either one or a combination of the following reasons:
(i) deactivation of the enzyme (due to the solvent, temperature or time), (ii) insufficient
5
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
diffusion of the substrate from the organic to the aqueous phase and (iii) low amount of
substrate available (as the reaction proceeds, the amount of n-octanaloxime might be too low
so the condition of 2 x K can no longer be reached in the aqueous phase). As observed in
m
Figure 3(a), the conversion in the Pickering emulsions is higher compared to the two-phase
control in all cases, apart from that obtained from the emulsion prepared with the most
hydrophilic silica particles which gave a similar result. Due to the large volume of aqueous
phase resolved, a high amount of E. coli cells containing OxdB might not be available for the
reaction. In the control experiment, the aqueous phase containing the enzyme was homogenised
for 2 min at 13,000 rpm and the two phases were left to stand undisturbed as the emulsions
were also not stirred while the reaction was taking place. The conversion reached with other
controls (with/without homogenisation of the aqueous phase and with/without stirring) is
shown in Figure S8. Stirring enhances the diffusion of the components and high conversions
are achieved as shown in Figure S8(a) by comparing the blue and grey points with the yellow
and orange points. The conversions obtained with and without homogenisation of the aqueous
dispersion containing the cells are similar both for the stirred (grey and blue points) and for the
non-stirred (yellow and orange points) case. Therefore, homogenisation does not seem to affect
the activity of the enzyme. However, when the two phases are homogenised together the
conversion is very low for both the stirred and non-stirred case (Figure S8(b)). This suggests
that the organic phase deactivates considerably the enzyme during homogenisation. It is
noteworthy that this deactivation effect does not occur when the two phases are homogenised
in the presence of silica particles as they protect the enzyme from the organic phase by forming
a protective layer of particles at the oil-water interface. n-Octanaloxime is slightly soluble in
water. Therefore, another control experiment was carried out in a monophasic system, where
-1
n-octanaloxime was placed as a solid in an aqueous phase containing the enzyme (0.44 g L )
and was stirred at 1,000 rpm. The conversion after 1, 4 and 24 h was as low as 2.9, 5.7 and
9
.7%, respectively. All these controls highlight the advantages of carrying out the reaction in
an emulsion system, in terms of achieving high conversions and protecting the enzyme from
the organic solvent.
Considering that the conversion at t = 0 is 0% an initial rate was calculated as described in
the ESI (section 1.2.5). As shown in Figure 3(b, filled circles), the plot of the initial rate follows
the same pattern as the plot of the conversion at t = 48 h versus %SiOH (Figure 3(b, empty
circles)). The highest conversion is obtained from the most stable emulsion to creaming and
coalescence that contains oil droplets with the smallest average droplet diameter (65% SiOH).
6
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Then, the degree of conversion decreases either by increasing or decreasing the particle
hydrophobicity. However, for the most hydrophobic silica particles, conversions are
comparable. A surprising result is the high conversion obtained in the w/o emulsion stabilised
with the most hydrophobic silica particles (15% SiOH), compared to that measured from the
w/o emulsion prepared with silica particles with 25% SiOH groups. Despite the fraction of
coalesced oil being higher and the average droplet diameter is about 10 times larger in the
former emulsion, the conversion measured is almost 10% higher. This could indicate that silica
particles of different hydrophobicity might interact in a different way with the E. coli cells and
this could finally influence the conversion of the reaction. The particle contact angle at the oil-
water interface varies depending on the particle hydrophobicity as shown in Figure S9(a) for
two partially hydrophobic silica particles. By increasing the particle hydrophobicity (lower
SiOH content) particles protrude more into the oil phase of the w/o Pickering emulsion. As a
result, the fraction of the particle surface in oil is higher for more hydrophobic particles. This
could explain the increase of the conversion detected in the w/o emulsions by increasing the
particle hydrophobicity. E. coli cells containing the enzyme in the water droplets may be more
protected from the organic environment with 15% SiOH silica particles than with 25% or 51%
SiOH silica particles. The average droplet diameter in this case would not be the main factor
governing the extent of the conversion as the diffusion of organic molecules across the interface
is expected to be high. This is not the case for the o/w emulsions as creaming is observed in
some cases. As a result, some E. coli cells containing the enzyme dispersed in the aqueous
phase released will not be accessible for reaction.
Forty-eight hours after emulsion preparation, emulsions were broken by centrifugation,
recovering the two incompatible phases together with a thin layer of emulsion cream that could
not be broken completely. The conversion of the reaction was measured in both phases by GC.
The conversions measured in the organic phases separated from the emulsions prepared with
silica particles of different hydrophobicity are shown in Figure S9(b) (empty circles). This is
referred to as the work-up of the organic phase (WU OP). The conversion of the reaction was
also measured in the aqueous phase as both n-octanaloxime and n-octanenitrile are slightly
soluble in water (calculated values using Advanced Chemistry Development Software V11.02
reported in SciFinder: Octanaloxime: logP = 2.927; Octanenitrile: logP = 2.723). Similar
conversions were measured in the aqueous phase which could imply that the partitioning of the
two molecules between the organic and the aqueous phases is similar. As expected, the areas
corresponding to both molecules in the aqueous phase were very low compared to the ones
7
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
measured in the organic phase so they have been neglected for the analysis. The conversion of
the reaction in the emulsion cream after 48 h (filled circles) is compared with that obtained
from the organic phase separated by centrifugation (empty circles) after the same period of
time (Figure S9(b)). In general, the two values are in good agreement and they match
completely for the emulsion prepared with silica particles of intermediate hydrophobicity (no
aqueous or organic phase resolved).
As mentioned in the introduction, this is the first time that the conversion of a
biocatalytic reaction is followed in Pickering emulsions prepared with the same particle type
(silica) by progressively increasing the particle hydrophobicity. One of the reasons that could
explain the absence in the literature of a systematic study could be that it is difficult to prepare
two emulsions differing in type with a similar stability and average droplet diameter. Zhang et
al. prepared two emulsion types with similar droplet diameters (ca. 60 m) but different
stabilities to study the hydrogenation of benzene to cyclohexene.[10] Despite the o/w emulsion
registering a slightly higher conversion, selectivity and yield compared to the biphasic system,
compared with the w/o emulsion the values are within the same range. Meng et al. prepared
lipase-immobilized mesoporous silica particles with grafted alkyl silanes of different chain
lengths.[12] The three-phase contact angle increased by increasing the silane carbon chain
length, but the particles were all slightly hydrophobic with contact angles between 95° and
1
45°. As in our case, emulsions prepared with particles of intermediate hydrophobicity with a
contact angle close to 90° display the highest emulsion stability with the lowest average droplet
diameter and in these cases the highest conversion was measured.[12] Unlike the previous
examples, due to the availability of a wide range of silica particles of different wettability, here
the emulsion stability can be tuned to a specific extent in order to fulfil all the requirements.
Emulsions stabilised with silica particles with 51% and 65% SiOH groups have similar
stabilities (no aqueous or organic phase resolved) and average droplet diameters (~ 25 m) but
render a w/o and o/w emulsion, respectively. The conversion of the reaction after 48 h is
considerably different in each case, being 65% and 92% for the w/o and o/w emulsion,
respectively. The reason for this remarkable difference is still under investigation. As pointed
out before, it could be related to the different interaction of E. coli cells with the silica particles
but it could also indicate that the confinement of the enzyme in water droplets of a w/o emulsion
could reduce the conversion compared to the o/w system where the enzyme diffuses freely
through the continuous phase. Moreover, as pointed out previously in the w/o emulsion
prepared with 51% SiOH silica particles, the particles protrude more into the organic phase.
8
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
On the contrary, in the o/w emulsion prepared with the 65% SiOH particles, particles are
slightly more wetted by the aqueous phase. Therefore, one would expect less deactivation of
the enzyme in the o/w emulsion as the interaction of the enzyme with the organic solvent is
slightly lower and hence a higher conversion can be achieved. However, none of these
hypotheses has been proven yet.
The influence of an increase of the interfacial area on the conversion of the reaction
carried out in Pickering emulsions was evaluated. Oil-in-water emulsions at a fixed
concentration of substrate and E. coli cells containing OxdB and different silica particle
concentrations (0.1, 0.2, 0.5, 0.7 and 0.9 wt.%) were prepared with 65% SiOH silica particles
(Figure 4(a)). From visual inspection after one month, the extent of creaming decreases by
increasing the particle concentration and coalescence is fully inhibited in all cases (Figure 5).
Optical microscope images were taken one day and one month after preparation (Figure S10).
The average droplet diameter decreases by increasing the concentration of particles following
the limited coalescence model of particle-stabilised emulsions (Figure 4(b)). This analysis is
described in the ESI (section 2.3).
Samples from the emulsion cream were taken at different times and the conversion of
the reaction was measured by GC. As shown in Figure 6(a), the conversion increases with time
for all the emulsions stabilised with 65% SiOH silica particles at different concentrations and
the values are higher compared with the control (two-phase system). Moreover, at any specific
time, the degree of conversion increases by increasing the particle concentration. The
conversion of the reaction measured from the emulsion prepared with 0.9 wt.% of particles
after 48 h is of the same order as the one obtained with 1.14 wt.%. This is explained by the fact
that both emulsions have the same average droplet diameter and they are stable to creaming
and coalescence. At high particle concentration the average diameter does not decrease further,
in agreement with the limited coalescence model. This behaviour was also reported by Meng
et al.[21], Sun et al.[19] and Zhang and co-workers[29]. In ref. [29], though, a reduction of the
catalytic efficiency was reported at high particle concentration due to a high particle coverage
that hindered the encounter of the reactants (in oil) with the catalyst (in water). Zhang et al.
reported the impact of the emulsion droplet diameter in the hydrogenation of benzene by
varying the stirring rate during emulsification.[10] The conversion, selectivity and yield
increased by decreasing the size of the oil droplets.
9
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
An initial reaction rate was calculated as in the previous section and it increases with
particle concentration (filled circles), following the same pattern as the plot for the conversion
in the emulsion after t = 48 h (empty circles) (Figure 6(b)). After 48 h, emulsions were
separated by centrifugation to recover the two phases and the conversion of the reaction in each
phase was measured by GC. The conversions in the organic phase after work-up as well as the
conversions in the emulsion cream after 48 h are included in Figure S11 and they are in
agreement, except for the emulsion prepared with 0.1 wt.% silica particles. Again, the
conversions measured from the aqueous phase are similar to those obtained from the organic
phase, which indicates a similar partitioning of both molecules between the two phases.
Moreover, the areas measured in the aqueous phase are considered negligible compared to
those measured from the organic phase.
Finally, the total interfacial area in emulsions prepared at different concentrations of 65%
SiOH silica particles was calculated as described in the ESI. Figure 7 shows the conversion of
the reaction against the total interfacial area in the emulsion and the average droplet diameter
and confirms that the increase in the conversion is due to the increase in the total interfacial
area. The low conversions measured from emulsions prepared at low particle loadings could
also be related to the fact that some enzyme is not available for the reaction as it remains in the
resolved aqueous phase after creaming.
Another important advantage of carrying out the reaction in Pickering emulsions is that
once the reaction is completed, the two phases can be separated by centrifugation. Thus, this
elegant type of phase separation also enables an efficient recycling of the aqueous phase
containing the biocatalyst (which often is difficult or even impossible when “standard
emulsions” or “classic” two-phase systems are used in biotransformations). The organic phase
containing the product can be removed easily and a fresh organic phase containing n-
octanaloxime can be added to carry out the next cycle after homogenisation. The recyclability
study was evaluated for 3 subsequent cycles in an emulsion stabilised with partially
hydrophobic silica particles (65% SiOH) and the conversion of the reaction measured after 1
hour is ~6.5% for all the cycles as shown in Table S5. The appearance of the emulsion and the
average droplet diameter do not change significantly after each cycle. Hence this system can
be recycled several times with no significant loss of activity, highlighting the positive effect of
silica particles to protect the enzyme from the organic solvent.
Conclusion
1
0
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Pickering emulsions have been demonstrated to be a promising tool to perform catalytic
reactions, thus representing an attractive alternative to the typical biphasic system. Here we
reported the enzymatic dehydration of n-octanaloxime to n-octanenitrile in Pickering
emulsions stabilised with silica particles of different hydrophobicity using E. coli cells with
OxdB enzyme. To the best of our knowledge, this is the first time the conversion of a reaction
is followed systematically in emulsions stabilised by the same particle type but of increasing
hydrophobicity. The highest conversion after 48 h was accomplished in an o/w Pickering
emulsion stabilised with silica particles of intermediate wettability. This precise control in
tuning the particle hydrophobicity enabled the preparation of two kinds of emulsion of different
type but with similar stability and droplet diameter. By comparing the conversion of the
reaction in these emulsions, it appears to be higher in an o/w (92%) than in a w/o (65%)
emulsion. However, in both cases the conversion was higher than that measured from a control
without homogenisation. Finally, by increasing the particle concentration upon the preparation
of the Pickering emulsions, emulsions with smaller average droplet diameters were prepared.
The consequent increase in the total interfacial area resulted in an increase in conversion.
Furthermore, in contrast to many traditional emulsions or two-phase systems used in
biotransformations, this Pickering emulsion system could be recycled several times without
significant loss of enzyme activity, proving the positive effect of silica particles in protecting
the enzyme from the organic solvent.
Acknowledgments
The authors kindly acknowledge funding by the H2020 FET-OPEN-2016-2017 program of the
European Commission (Grant agreement number: 737266-ONE FLOW). They also thank Prof.
Dr. T. Hellweg and P. Fandrich from the Biophysical Chemistry Group (PC3) of Bielefeld
University for sharing their optical microscope.
Keywords
Pickering emulsions, silica particles, biphasic catalysis, enzyme catalysis
[
7
1] Z. Chen, L. Zhou, W. Bing, Z. Zhang, Z. Li, J. Ren, X. Qu, J. Am. Chem. Soc. 2014, 136,
498–7504.
1
1
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
[
2
2] A. Schmid, J. S. Dordick, B. Hauer, A. Kiener, M. Wubbolts, B. Witholt, Nature 2001, 409,
58–268.
[
[
[
[
[
[
3] G. Carrea, S. Riva, Angew. Chem. Int. Ed. 2000, 39, 2226–2254.
4] A. Hinzmann, S. Glinski, M. Worm, H. Gröger, J. Org. Chem. 2019, 84, 4867–4872.
5] T. Hashimoto, K. Maruoka, Chem. Rev. 2007, 107, 5656–5682.
6] C. Liu, X. Li, Z. Jin, Catal. Today 2015, 247, 82–89.
7] S. U. Pickering, J. Chem. Soc. Trans. 1907, 91, 2001–2021.
8] R. Aveyard, B. P. Binks, J. H. Clint, Adv. Colloid Interface Sci. 2003, 100–102, 503–546.
[
9] X. Yang, Y. Wang, R. Bai, H. Ma, W. Wang, H. Sun, Y. Dong, F. Qu, Q. Tang, T. Guo, B.
P. Binks, T. Meng, Green Chem. 2019, 21, 2229–2233.
[
[
[
[
10] Y. Zhang, M. Zhang, H. Yang, ChemCatChem 2018, 10, 5224–5230.
11] J. Huang, H. Yang, Chem. Commun. 2015, 51, 7333–7336.
12] T. Meng, R. Bai, W. Wang, X. Yang, T. Guo, Y. Wang, Catalysts 2019, 7, 78.
13] Z. Chen, C. Zhao, E. Ju, H. Ji, J. Ren, B. P. Binks, X. Qu, Adv. Mater. 2016, 28, 1682–
1
688.
[
14] Y. Jiang, X. Liu, Y. Chen, L. Zhou, Y. He, L. Ma, J. Gao, Bioresour. Technol. 2014, 153,
78–283.
2
[
[
15] S. Crossley, J. Faria, M. Shen, D. E. Resasco, Science 2010, 327, 68–72.
16] W. Zhou, L. Fang, Z. Fan, B. Albela, L. Bonneviot, F. de Campo, M. Pera-Titus, J. M.
Clacens, J. Am. Chem. Soc. 2014, 136, 4869–4872.
[
[
[
17] Z. Chen, H. Ji, C. Zhao, E. Ju, J. Ren, X. Qu, Angew. Chem. Int. Ed. 2015, 54, 4904–4908.
18] P. Hao, D. K. Schwartz, J. W. Medlin, ACS Catal. 2018, 8, 11165–11173.
19] Z. Sun, U. Glebe, H. Charan, A. Böker, C. Wu, Angew. Chem. Int. Ed. 2018, 57, 13810–
1
3814.
[
20] Z. Wang, M. C. M. van Oers, F. P. J. T. Rutjes, J. C. M. van Hest, Angew. Chem. Int. Ed.
2
012, 51, 10746–10750.
[
21] Z. Meng, M. Zhang, H. Yang, Green Chem. 2019, 21, 627–633.
[
22] X. Zhang, Y. Hou, R. Ettelaie, R. Guan, M. Zhang, Y. Zhang, H. Yang, J. Am. Chem. Soc.
2
019, 141, 5220–5230.
1
2
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
[
4
23] S. Yu, D. Zhang, J. Jiang, Z. Cui, W. Xia, B. P. Binks, H. Yang, Green Chem. 2019, 21,
062–4068.
[
24] A. Heyse, C. Plikat, M. Ansorge-Schumacher, A. Drews, Catal. Today 2019, 331, 60–67.
[
25] L. Peng, A. Feng, S. Liu, M. Huo, T. Fang, K. Wang, Y. Wei, X. Wang, J. Yuan, ACS
Appl. Mater. Interfaces 2016, 8, 29203–29207.
26] L. Wei, M. Zhang, X. Zhang, H. Xin, H. Yang, ACS Sustainable Chem. Eng. 2016, 4,
[
6
838–6843.
[
[
[
27] H. Tan, P. Zhang, L. Wang, D. Yang, K. Zhou, Chem. Commun. 2011, 47, 11903–11905.
28] H. Yang, L. Fu, L. Wei, J. Liang, B. P. Binks, J. Am. Chem. Soc. 2015, 137, 1362–1371.
29] M. Zhang, L. Wei, H. Chen, Z. Du, B. P. Binks, H. Yang, J. Am. Chem. Soc. 2016, 138,
1
0173–10183.
[
30] L. Tao, M. Zhong, J. Chen, S. Jayakumar, L. Liu, H. Li, Q. Yang, Green Chem. 2018, 20,
1
88–196.
[
[
[
[
31] N. Xue, G. Zhang, X. Zhang, H. Yang, Chem. Commun. 2018, 54, 13014–13017.
32] H. Jiang, Y. Li, L. Hong, T. Ngai, Chem. Asian J. 2018, 13, 3533–3539.
33] C. Wu, S. Bai, M. B. Ansorge-Schumacher, D. Wang, Adv. Mater. 2011, 23, 5694–5699.
34] M. Pera-Titus, L. Leclercq, J.-M. Clacens, F. De Campo, V. Nardello-Rataj, Angew.
Chem. Int. Ed. 2015, 54, 2006–2021.
[
35] T. Betke, P. Rommelmann, K. Oike, Y. Asano, H. Gröger, Angew. Chem. 2017, 129,
1
2533–12538.
[
36] T. Betke, P. Rommelmann, K. Oike, Y. Asano, H. Gröger, Angew. Chem. Int. Ed. 2017,
5
6, 12361–12366.
[
37] T. Betke, M. Maier, H. Gruber-Wölfler, H. Gröger, Nat. Commun. 2018, 9, 5112.
[
38] T. Betke, J. Higuchi, P. Rommelmann, K. Oike, T. Nomura Y. Kato, Y. Asano, H. Gröger,
ChemBioChem 2018, 19, 768–779.
39] H. Sawai, H. Sugimoto, Y. Kato, Y. Asano, Y. Shiro, S. Aono, J. Biol. Chem. 2009, 284,
2089–32096.
40] J. Nomura, H. Hashimoto, T. Ohta, Y. Hashimoto, K. Wada, Y. Naruta, K.-I. Oinuma, M.
Kobayashi, Proc. Natl. Acad. Sci. U.S.A. 2013, 110, 2810–2815.
41] A. Hinzmann, N. Adebar, T. Betke, M. Leppin, H. Gröger, Eur. J. Org. Chem. 2019, 41,
911–6916.
[
3
[
[
6
[
42] B. Lugtenberg, Trends Biochem. Sci. 1981, 6, 262–266.
[
[
43] R. Röllig, C. Plikat, M.B. Ansorge-Schumacher, Angew. Chem. 2019, 131, 13094–13097.
44] B.P. Binks, S.O. Lumsdon, Langmuir 2000, 16, 8622–8631.
1
3
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Scheme 1. Bioenzymatic transformation of n-octanaloxime to n-octanenitrile carried out in
Pickering emulsions (w/o and o/w) stabilised by silica particles of different hydrophobicity.
Although the starting material and the final product are slightly soluble in the aqueous phase,
this has not been included for simplicity.
1
4
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Figure 1. (a) Appearance of emulsions prepared with silica particles of different
hydrophobicity (% SiOH) 1 month after preparation. Each emulsion is obtained upon mixing
equal volumes of an aqueous phase containing E. coli cells containing OxdB dispersed in 50
mM K
2
HPO
4
/KH
2
PO buffer (pH = 7) and an organic phase containing n-octanaloxime
4
dispersed in n-dodecane (10 mM). Silica particles with a SiOH content between 100% and 65%
were dispersed in the aqueous dispersion while silica particles with a SiOH content between
5
1% and 15% were dispersed in the organic phase. The concentration of the different
components in the emulsion are: 0.082 wt.% n-octanaloxime, 0.025 wt.% E. coli cells
containing OxdB and 1.14 wt.% silica particles. Scale bar = 1 cm. (b) Plot of the average droplet
diameter after 1 day and 1 month versus SiOH content for emulsions in (a).
(a)
w/o
o/w
interface
3
3
2
2
1
1
50
00
50
00
50
00
(b)
t = 1 day
t = 1 month
w/o
o/w
5
0
0
0
20
40
60
80
100
%
SiOH
1
5
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Figure 2. Plot of the fraction of organic and aqueous phase resolved after 1 month versus SiOH
content for emulsions in Figure 1.
1.0
0.8
0.6
0.4
0.2
0.0
1.0
0.8
0.6
0.4
0.2
0.0
w/o
o/w
0
20
40
60
80
100
%
SiOH
1
6
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Figure 3. (a) Plot of the conversion of the reaction of n-octanaloxime to n-octanenitrile versus
time for the emulsions in Figure 1 and control. The control is the two-phase system comprising
-1
of a 0.44 g L E. coli cells (containing OxdB) dispersion in 50 mM K
2
HPO
4
/KH
2
PO buffer
4
(pH = 7) and a 10 mM dispersion of n-octanaloxime in n-dodecane. The emulsion type and %
SiOH are given. (b) Plot of the initial rate of the reaction (filled circles) and conversion of the
reaction after 48 h (empty circles) versus SiOH content.
1
00
(a)
1
5
7
5%
1%
9%
25%
65%
100%
o/w
w/o
80
60
40
20
0
w/o
w/o
o/w
Control
o/w
0
10
20
30
40
50
time / h
(b)
1
0
9
8
7
6
5
4
3
2
1
0
100
90
80
70
60
50
40
30
20
10
0
w/o
o/w
0
20
40
60
80
100
SiOH content/%
1
7
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Figure 4. (a) Appearance of o/w emulsions prepared at different concentrations of 65% SiOH
silica particles (with respect to emulsion) 1 month after preparation. Each emulsion is made by
mixing equal volumes of an aqueous phase containing E. coli cells containing OxdB and silica
particles dispersed in 50 mM K
2
HPO
4
/KH
2
PO buffer (pH = 7) and an organic phase containing
4
n-octanaloxime dispersed in n-dodecane (10 mM). The concentration of the different
components in the emulsion are: 0.082 wt.% n-octanaloxime and 0.025 wt.% E. coli cells
containing OxdB. Scale bar = 1 cm. (b) Plot of the average droplet diameter versus particle
concentration in the emulsions in (a) 1 day and 1 month after preparation. Inset - inverse of
average droplet diameter as a function of the mass of 65% SiOH silica particles in the aqueous
dispersion.
(a)
(b)
7
6
5
4
3
2
1
00
00
00
00
00
00
00
0
500
400
300
200
100
0
y = 6323.6x - 44.458
R² = 0.9819
0
0.05
0.1
particle mass/g
t = 1 day
t = 1 month
0
0.2
0.4
0.6
0.8
1
1
[
particle]/wt.%
8
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Figure 5. Fraction of aqueous (empty circles) and organic (filled circles) phase resolved from
the o/w emulsions in Figure 4(a) prepared with different concentrations of 65% SiOH silica
particles 1 month after preparation.
1
0
0
0
0
0
.0
.8
.6
.4
.2
.0
1.0
0.8
0.6
0.4
0.2
0.0
0
0.2
0.4
0.6
0.8
1
[
particle]/wt.%
1
9
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Figure 6. (a) Plot of the conversion of the reaction of n-octanaloxime to n-octanenitrile versus
time for the o/w emulsions in Figure 4(a) prepared with different concentrations of 65% SiOH
-1
silica particles and control. The control is the two-phase system comprising of a 0.44 g L E.
coli cells (containing OxdB) dispersion in 50 mM K HPO /KH PO buffer (pH = 7) and a 10
mM dispersion of n-octanaloxime in n-dodecane. (b) Plot of the initial rate of the reaction
filled circles) and conversion of the reaction after 48 h (empty circles) versus particle
concentration in the emulsion.
2
4
2
4
(
1
00
(a)
0
0
.1 wt.%
.5 wt.%
0.2 wt.%
0.7 wt.%
Control
8
6
4
2
0
0
0
0
0
0.9 wt.%
0
10
20
30
40
50
time/h
1
2
0
8
6
4
2
0
100
(b)
1
8
6
4
2
0
0
0
0
0
0
.0
0.2
0.4
0.6
0.8
1.0
[
particle]/wt.%
2
0
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Figure 7. Plot of the conversion of the reaction in the organic phase recovered after
centrifugation (empty circles) and average droplet diameter (filled circles) versus the total
interfacial area in the o/w emulsions prepared with different concentrations of 65% SiOH silica
particles (Figure 4(a)). The dotted lines are used as a guide.
1
00
500
400
300
200
100
0
90
80
70
60
50
40
30
20
10
0
0
.E+00
3.E+11
6.E+11
total interfacial area/µm2
9.E+11
1.E+12
2
1
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202013171
Table of Contents
The dehydration of n-octanaloxime to n-octanenitrile catalysed by an aldoxime dehydratase
OxdB) overexpressed in E. coli is carried out in Pickering emulsions stabilised solely with
(
silica particles of different hydrophobicity. The effect of particle wettability and particle
concentration are evaluated with respect to the conversion of the reaction.
2
2
This article is protected by copyright. All rights reserved.
