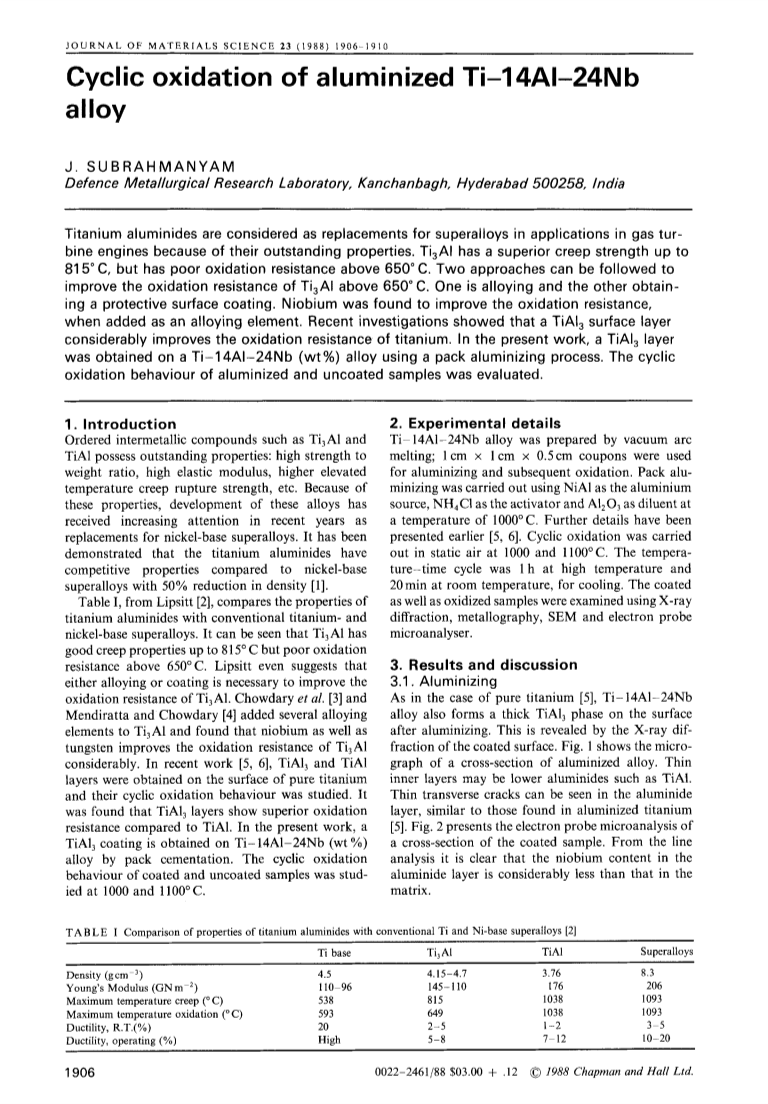

Journal of Materials Science p. 1906 - 1910 (1988)
Update date:2022-08-11
Topics:
Subrahmanyam

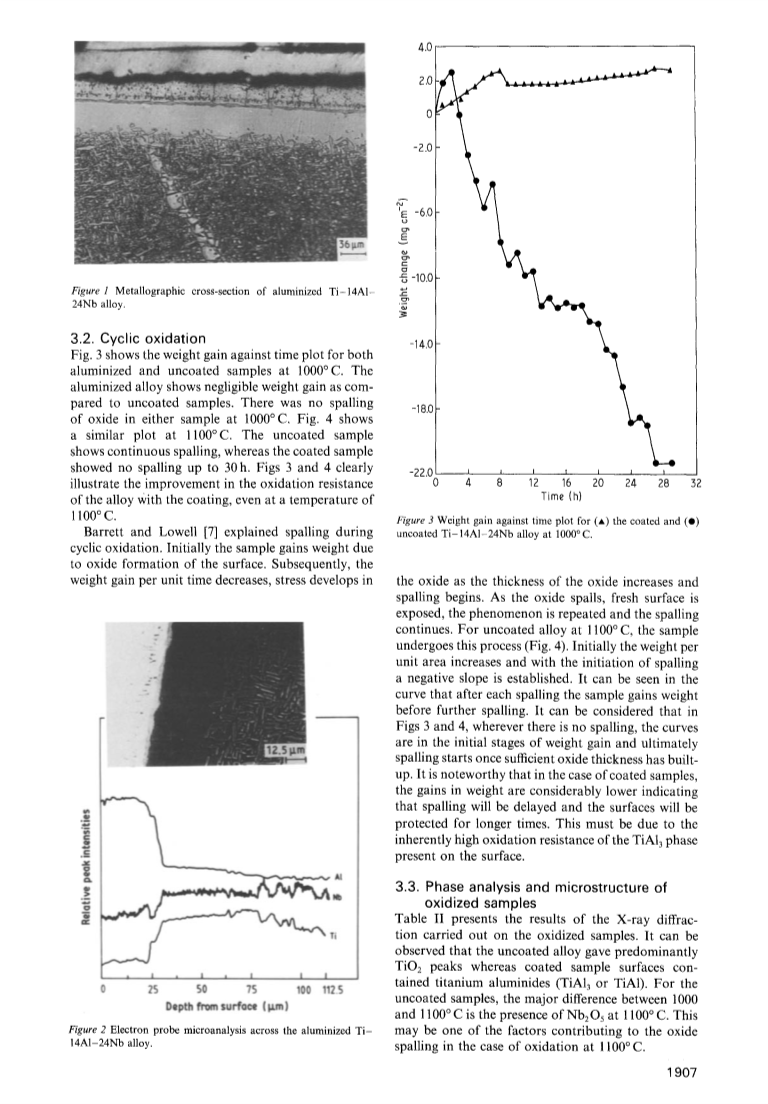

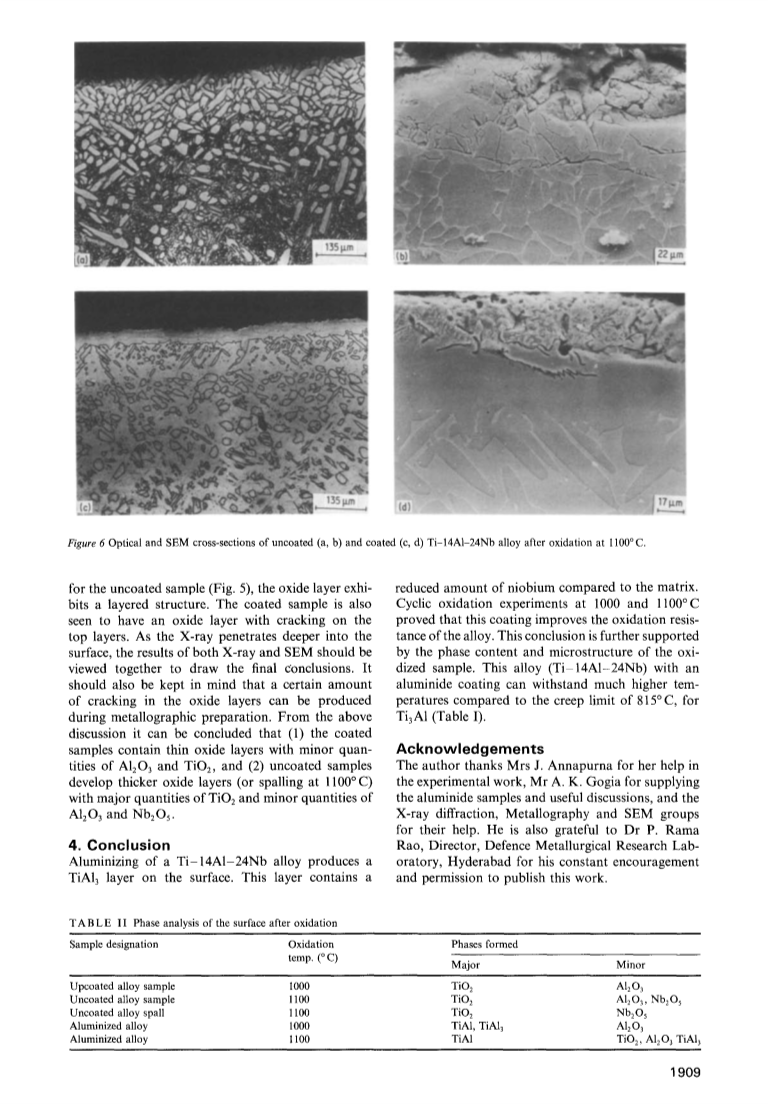

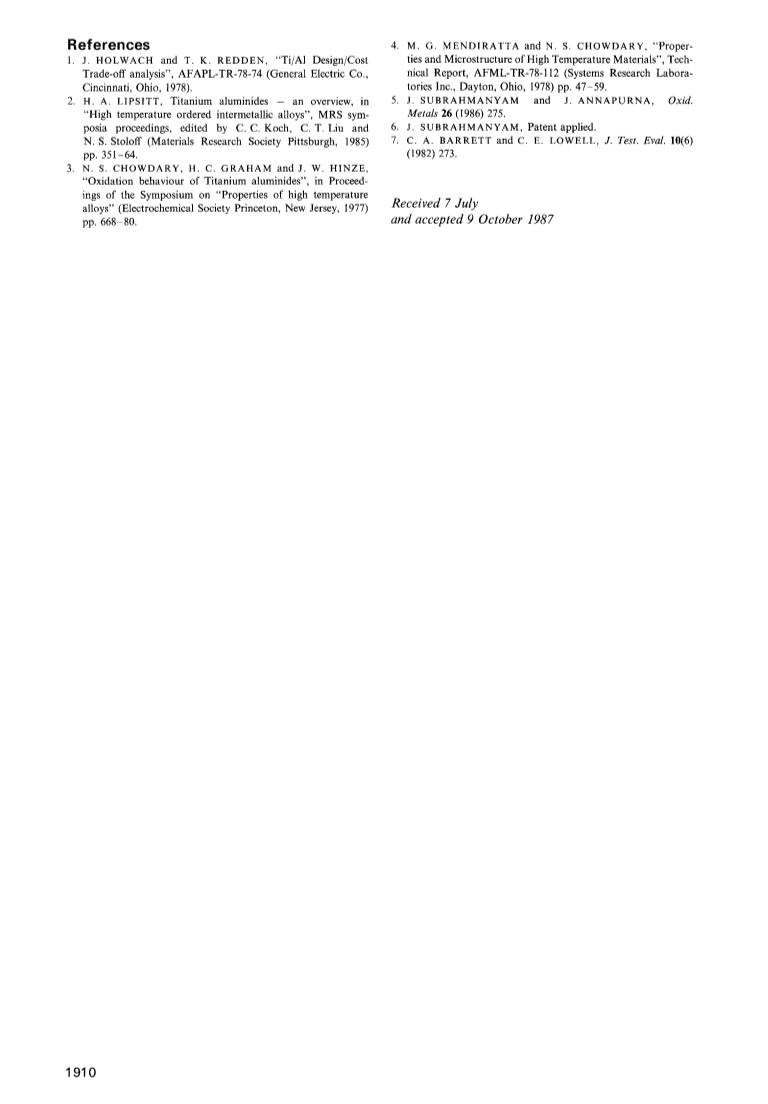

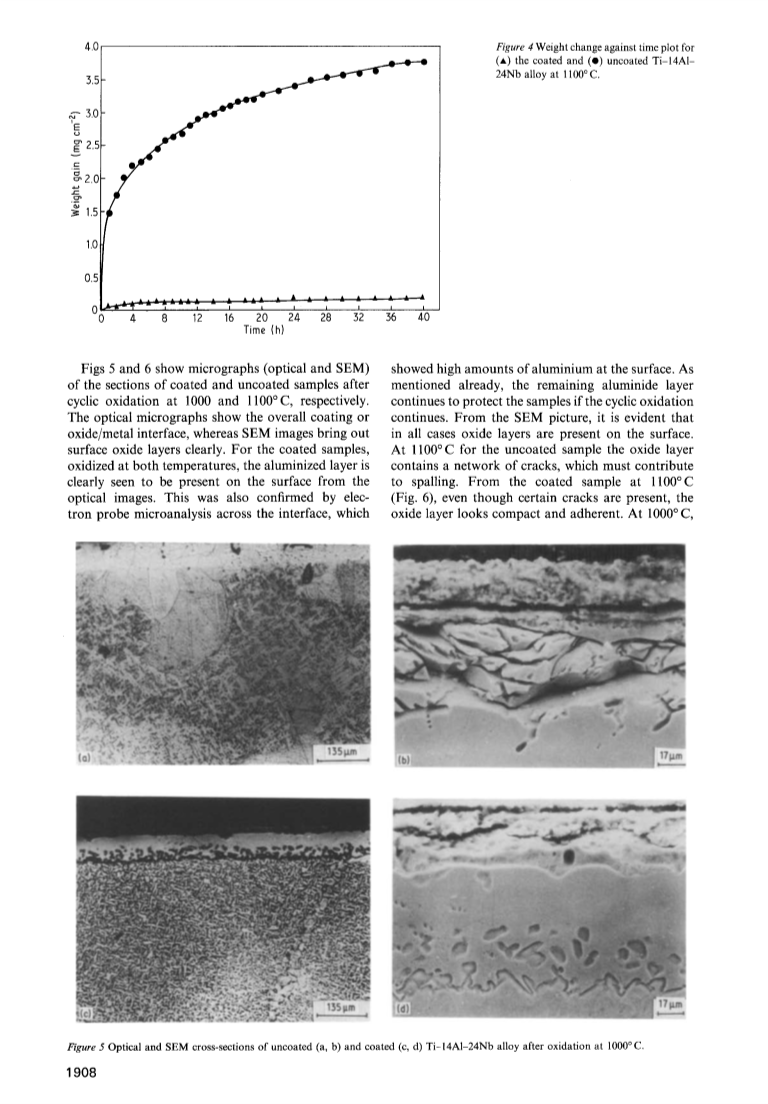

Titanium aluminides are considered as replacements for superalloys in applications in gas turbine engines because of their outstanding properties. Ti//3Al has a superior creep strength up to 815 degree C, but has poor oxidation resistance above 650 degree C. Two approaches can be followed to improve the oxidation resistance of Ti//3Al above 650 degree C. One is alloying and the other obtaining a protective surface coating. Niobium was found to improve the oxidation resistance, when added as an alloying element. Recent investigations showed that a TiAl//3 surface layer considerably improves the oxidation resistance of titanium. In the present work, a TiAl//3 layer was obtained on a Ti-14Al-24Nb (wt percent) alloy using a pack aluminizing process. The cyclic oxidation behaviour of aluminized and uncoated samples was evaluated.
Contact:+86 18616952870
Address:Area
website:http://www.alwaychem.com
Contact:+86-532-8586-4000, 8586-5000
Address:NO.51, TAIPING ROAD, QINGDAO, CHINA. 266001
Contact:86+21-56421993
Address:3F,BUILDING 10,NO.2889 JINKE ROAD, SHANGHAI.
Contact:86-571-86737118-8689
Address:No.69, 12 Street, HEDA, Hangzhou, Zhejiang, China
Dongguan Albiya Energy Science and Technology Co.,Ltd
Contact:+86-769-22181286
Address:Huanan Industial Park, Dongguan,China
Doi:10.1002/kin.10011
(2002)Doi:10.1021/jo00393a013
(1979)Doi:10.1039/b900807a
(2009)Doi:10.1007/BF02423598
(1923)Doi:10.1016/S0040-4039(01)96753-X
(1971)Doi:10.1021/acs.joc.7b02078
(2017)
