In situ hydrogenation of terminal halogen in poly(methyl methacrylate) by ruthenium-catalyzed living radical polymerization: Direct transformation of "polymerization catalyst" into "hydrogenation catalyst"

Article abstract of DOI:10.1021/ja0641507

An in situ, selective, and quantitative hydrogenation of the terminal chlorine (α-haloester) in living PMMA-Cl into PMMA-H was achieved via direct transformation of a "polymerization catalyst" into a "hydrogenation catalyst" in the Ru(II)-catalyzed living radical polymerization, where the polymerization mixture of MMA was directly treated in situ with K₂CO₃ as a base and 2-propanol as a hydrogen donor. The reaction terminated the polymerization and, more importantly, the terminal chlorine was quantitatively hydrogenated, as confirmed by SEC, ¹H NMR, and MALDI-TOF MS. Copyright

Full text of DOI:10.1021/ja0641507

Published on Web 08/09/2006
In Situ Hydrogenation of Terminal Halogen in Poly(methyl methacrylate) by
Ruthenium-Catalyzed Living Radical Polymerization: Direct Transformation of
“Polymerization Catalyst” into “Hydrogenation Catalyst”
Takaya Terashima, Makoto Ouchi, Tsuyoshi Ando, and Mitsuo Sawamoto*
Department of Polymer Chemistry, Graduate School of Engineering, Kyoto UniVersity, Katsura, Nishikyo-ku,
Kyoto 615-8510, Japan
Received June 22, 2006; E-mail: sawamoto@star.polym.kyoto-u.ac.jp.
The so-called “tandem catalysis”1 is an intriguing sequential or
concurrent catalysis where a single catalyst mediates at least two
Scheme 1. In Situ Hydrogenation of Terminal Halogen of Living
PMMA-Cl with Ru Catalysts
reactions in one-pot, requiring neither recovery of an intermediate
of the first step nor an additional use of another catalyst for the
subsequent reaction. Especially, in situ direct transformation of a
catalyst into another by simple ligand modification is attractive,
because sequential multistep reactions are thereby possible with a
single catalyst in a single vessel. Certain ruthenium alkylidene com-
plexes2 can in fact catalyze in tandem such reactions as olefin meta-
thesis and hydrogenation3 or olefin metathesis and isomerization.4
Living radical polymerization5 is another class of metal-catalyzed
reactions of significance, for which a variety of organometallic
catalysts, such as ruthenium, iron, copper, and nickel, have been
evolving (Scheme 1, upper line). Precision control of propagation
has now led to end-functionalized, block, star, and many other
designed polymers and materials.
A remaining subject for refinement thereof is the fact that the
products by definition carry a halogen terminal, because the catalysis
involves a reversible and homolytic cleavage of a carbon-halogen
bond in an initiator or a “dormant” polymer terminal originating
therefrom. While a requisite for fine reaction control, the terminal
halogen is chemically reactive and thermally unstable, possibly
resulting in undesirable reactions upon subsequent use of these poly-
mers, and should thus be removed or transformed.6 Few processes
are by now available, however, such as hydrogenation with possible
hazardous tin reagents and end-capping with expensive and exotic
silyl enolates, none of which seems to be practically versatile.7

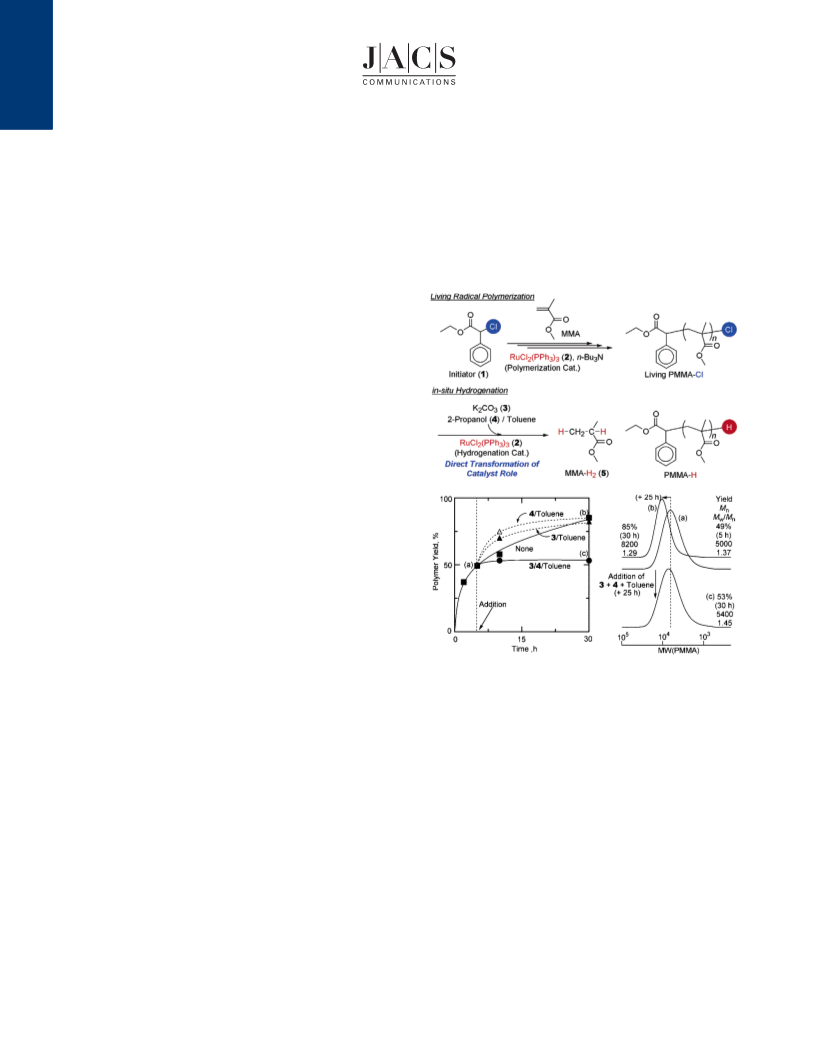

Figure 1. In situ hydrogenation of the terminal halogen of PMMA-Cl with
Given these backgrounds, this communication reports a novel
Ru catalysts: polymerization, [MMA]0/[1]0/[2]0/[n-Bu3N]0 ) 2000/20/10/
tandem Ru(II) catalysis for selective hydrogenation of the terminal
halogen in poly(methyl methacrylate) (PMMA) obtained in the
ruthenium-catalyzed living radical polymerization, via in-situ
transformation of a “polymerization catalyst” into a “hydrogenation
catalyst” (Scheme 1). To our knowledge, this is the first example
of halogen-hydrogenation in R-haloesters and their polymer ana-
logues with ruthenium complexes.
In Situ Hydrogenation via Tandem Ru(II) Catalysis. MMA
was polymerized with a ruthenium complex [RuCl2(PPh3)3 (2)]8
as a catalyst in conjunction with a chloride initiator (1: ethyl-2-
chloro-2-phenylacetate)9 and an amine additive (n-Bu3N)10 in
toluene at 80 °C (Figure 1). Monomer conversion reached 49% in
5 h to give PMMA of a controlled molecular weight and a narrow
molecular weight distribution (MWD) [Mn ) 5000; Mw/Mn ) 1.37;
by size-exclusion chromatography (SEC); Figure 1a].
40 mM in toluene at 80 °C; treatment, [3]add ) 125 mM in 4/toluene;
polymer solution/added solution ) 1/4 v/v; final conditions, [MMA]/[1]/
[2]/[n-Bu3N]/[3] ) 400/4/2/8/100 mM in 4/toluene (1/1, v/v).
catalyst (Supporting Information, Figure 1; see the discussion
below). The polymer, recovered after an additional stirring for 25
h, had a molecular weight and an MWD (Mn ) 5400, Mw/Mn )
1.45, Figure 1c) virtually the same as those of a control sample (a)
isolated before the K2CO3 treatment. Without such quenching, the
polymerization proceeded undisturbed to a 85% conversion in 30
h, to give a living PMMA with higher molecular weights (Mn )
8200, Mw/Mn ) 1.29, Figure 1b). In separate runs with addition 3
or 4 alone, the polymerization was not disturbed (Figure 1; see
also Support Information, Figure 2 and Table 1), indicating that
the combination of 3 and 4 is mandatory.
Direct 1H NMR analysis of the polymerization mixture after the
treatment with a 3/4 pair also showed the in-situ generation of
hydrogenated MMA (5) from the remaining MMA (44% in 5 h
and 47% in 25 h, with n-octane as an internal standard). Presumably,
such a fast and concurrent hydrogenation of unreacted MMA is
one of the essential factors for the efficient quenching of the
polymerization.
At this point, the polymerization solution (unquenched) was
added into a K2CO3 (3) solution in a 2-propanol (4)/toluene
mixture11 at 80 °C under an inert gas atmosphere. The originally
red-brown solution immediately turned red-purple and then yellow
upon continuous stirring for ca. 5 min. The color change indicates
the formation of a Ru(II) hydride(s), known as a hydrogenation
9
11014
J. AM. CHEM. SOC. 2006, 128, 11014-11015
10.1021/ja0641507 CCC: $33.50 © 2006 American Chemical Society

C O M M U N I C A T I O N S
2C: the same sample for Figure 2A), consistent with the chlorine-
capped PMMA to be formed in the living polymerization.6
Accordingly, the mass difference between spectra C and D was
34.7, close to the mass difference (34.5) between chlorine and
hydrogen.
Reaction Mechanism. The mechanism of the in situ hydrogena-
1
tion13 was further investigated by H NMR model reactions. For
example, treatment of the Ru dichloride complex (2) with 3 in
4/toluene gave signals at -7 and -10 ppm characteristic of the
hydride RuH2(PPh3)3 and also at -18 ppm of RuHCl(PPh3)3.
Simultaneously, the signal due to acetone via reduction of 4 was
also observed. When deuterated 2-propanol (d8) was used instead
of 4 in the polymer treatment, the signal intensity of the ω-end
methine proton decreased, which suggests 2-propanol is the
hydrogen source (Supporting Information, Figure 4). From these
results, the proposed mechanism is as follows: the Ru hydride
complexes are first generated directly from the polymerization
catalyst 2 by the K2CO3-mediated hydrogen transfer from 2-pro-
panol (solvent), and these hydride complexes hydrogenate the
terminal chlorine of dormant PMMA-Cl and MMA. The details
are now under investigation.
In conclusion, a selective, quantitative, and in situ hydrogenation
of the chlorine terminals in PMMA-Cl was achieved in the Ru-
catalyzed living radical polymerization, via direct transformation
of a polymerization catalyst into a hydrogenation catalyst with
K2CO3 and 2-propanol.
Figure 2. 1H NMR (A and B in CD2Cl2 at 25 °C) and MALDI-TOF-MS
(C and D) spectra of PMMA-Cl and PMMA-H. The asterisks (*) indicate
satellite peaks. The two samples (A/C and B/D) were fractionated to remove
the catalyst residues; see main text and Supporting Information for molecular
weight data.
Acknowledgment. This work was supported by the Japan
Society for the Promotion of Sciences for Young Scientists.
Supporting Information Available: Experimental details for the
polymerization, hydrogenation, the characterization data, and 1H NMR
and spectra. This material is available free of charge via the Internet at
http://pubs.acs.org.

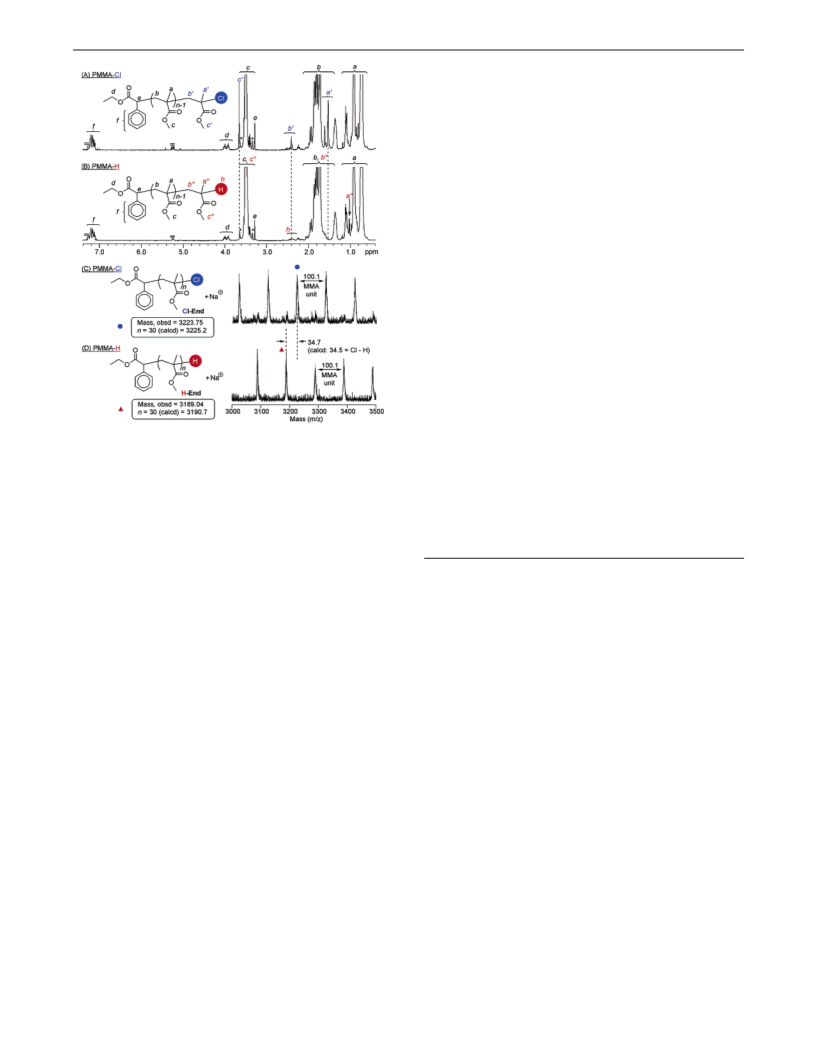

Polymer Characterization. The terminal structure of the
polymers was analyzed by 1H NMR (Figure 2A,B) after purification.6a
The control sample (a), without the 3/4 treatment, exhibited the
characteristic signals of a PMMA main chain and the terminal
MMA unit adjacent to the ω-end C-Cl bond, methyl (a′: 1.6 ppm),
methylene (b′: 2.4 ppm), and methoxy (c′: 3.7 ppm), along with
the methylene (d: 4.0 ppm) and methine (e: 3.3 ppm) protons
derived from the initiator, indicating the formation of a chlorine-
capped PMMA-Cl (Figure 2A).
References
(1) (a) De Meijere, A.; von Zezschwitz, P.; Bra¨se, S. Acc. Chem. Res. 2005,
38, 413. (b) Wasilke, J.-C.; Obrey, S. J.; Barker, R. T.; Bazan, G. C.
Chem. ReV. 2005, 105, 1001. (c) Ajamian, A.; Gleason, J. L. Angew.
Chem., Int. Ed. 2004, 43, 3754. (d) Lee, J. M.; Na, Y.; Han, H.; Chang,
S. Chem. Soc. ReV. 2004, 33, 302. (e) Schmidt, B. Eur. J. Org. Chem.
2004, 1865.
In contrast, PMMA obtained with the 3/4 mixture was completely
free from these three characteristic signals (a′, b′, and c′) but showed
new absorptions indicative of an ω-end hydrogen (Figure 2B): a
multiplet (h) at 2.4 ppm for the terminal hydrogen itself, as well as
a methine and a doublet (a′′) at 1.0 ppm assignable to the methyl
protons of the hydrogenated MMA terminal unit. No other signals
were observed, such as olefin and those indicative of the ester
exchange between MMA and 2-propanol. As calculated from the
signal intensity ratio of the R-end methylene (d) to the pendent
methoxy (c) of the main chain, the Mn (NMR) of samples (A) and
(B) both agreed with those by SEC [Mn (SEC)] (see Supporting
Information). The number-average R-end functionality (Fn) for the
initiator fragment, Mn (SEC)/Mn (NMR), was close to unity,
indicating the absence of side reactions during the hydrogenation
as well as the preceding polymerization.
(2) (a) Schwab, P. E.; Grubbs, R. H.; Ziller, J. W. J. Am. Chem. Soc. 1996,
118, 100. (b) Scholl, M.; Ding, S.; Lee C. W.; Grubbs, R. H. Org. Lett.
1999, 1, 953.
(3) Louie, J.; Bielawski, C. W.; Grubbs, R. H. J. Am. Chem. Soc. 2001, 123,
11312.
(4) Sutton, A. E.; Seigal, B. A.; Finnegan, D. F.; Snapper. M. L. J. Am. Chem.
Soc. 2002, 124, 13390.
(5) (a) Kamigaito, M.; Ando, T.; Sawamoto, M. Chem. ReV. 2001, 101, 3689.
(b) Matyjaszewski, K.; Xia, J. Chem. ReV. 2001, 101, 2921. (c) Kamigaito,
M.; Ando. T.; Sawamoto, M. Chem. ReV. 2004, 4, 159.
(6) (a) Ando, T.; Kamigaito, M.; Sawamoto, M. Macromolecules 1998, 31,
6708. (b) Tokuchi, K.; Ando, T.; Kamigaito, M.; Sawamoto, M. J. Polym.
Sci., Part A: Polym. Chem. 2000, 38, 4735.
(7) (a) Matyjaszewski, K.; Coessens, V. Macromol. Rapid Commun. 1999,
20, 66. (b) Scho¨n, F.; Hartenstein, M.; Mu¨ller, A. H. E. Macromolecules
2001, 34, 5394. (c) Sadhu, V. B.; Pionteck, J.; Voigt, D.; Komber, H.;
Fischer, D.; Voit, B. Macromol. Chem. Phys. 2004, 205, 2356.
(8) Kato, M.; Kamigaito, M.; Sawamoto, M.; Higashimura, T. Macromolecules
1995, 28, 1721.
(9) Baek, K.-Y.; Kamigaito, M.; Sawamoto, M. J. Polym. Sci., Part A: Polym.
Chem. 2002, 40, 4735.
The in situ, selective, and quantitative hydrogenation was also
confirmed by MALDI-TOF MS12 (Figure 2D; the same sample for
Figure 2B). The end-capped sample gave only a single major series
of peaks, regularly separated by the molar mass of MMA monomer
(ca 100.1). The absolute mass of each peak is equal to that expected
for the PMMA with one hydrogen atom at the ω-end and one
initiator fragment at the R-end, plus a sodium ion from the externally
added salt for ionization. On the other hand, the control sample (a)
without hydrogenation gave an entirely different MS series (Figure
(10) Hamasaki, S.; Kamigaito, M.; Sawamoto, M. Macromolecules 2002, 35,
2934.
(11) (a) Wang, G.-Z.; Ba¨ckvall, J.-E. J. Chem. Soc., Chem. Commun. 1992,
337. (b) Terashima, T.; Kamigaito, M.; Beak, K.-Y.; Ando, T.; Sawamoto,
M. J. Am. Chem. Soc. 2003, 125, 5288.
(12) Nonaka, H.; Ouchi, M.; Kamigaito, M. Sawamoto, M. Macromolecules
2001, 34, 2083.
(13) (a) Sasson, Y.; Rempel, G. L. Tetrahedron Lett. 1974, 36, 3221. (b) Xie,
S.; Georgiev, E. M.; Roundhill, D. M. J. Organomet. Chem. 1994, 482,
39.
JA0641507
9
J. AM. CHEM. SOC. VOL. 128, NO. 34, 2006 11015
