Air-stable, solution-processable n-channel and ambipolar semiconductors for thin-film transistors based on the indenofluorenebis(dicyanovinylene) core

Article abstract of DOI:10.1021/ja802266u

We present here the synthesis, characterization, and field-effect performance of a novel n-channel semiconducting molecule TIFDMT and of the corresponding thiophene-based copolymer P-IFDMT4 based on the indenofluorenebis(dicyanovinylene) core. TIFDMT-based field-effect transistors fabricated by spin-coating exhibit high electron mobilities of 0.10-0.16 cm²/V s in air, low turn-on voltages (～0 to +5 V), and high on/off ratios of 10⁷-10⁸. These devices also exhibit excellent air stability over a prolonged time of storage in ambient conditions. P-IFDMT4-based devices exhibit the first example of an air-stable ambipolar polymer processable from solution. Copyright

Full text of DOI:10.1021/ja802266u

Published on Web 06/11/2008
Air-Stable, Solution-Processable n-Channel and Ambipolar Semiconductors for
Thin-Film Transistors Based on the Indenofluorenebis(dicyanovinylene) Core
Hakan Usta, Antonio Facchetti,* and Tobin J. Marks*
Department of Chemistry and the Materials Research Center, Northwestern UniVersity, 2145 Sheridan Road,
EVanston, Illinois, 60208
Received March 27, 2008; E-mail: a-facchetti@northwestern.edu; t-marks@northwestern.edu
The development of solution-processable small-molecule and
polymeric semiconductors for field-effect transistors (FETs) exhibit-
ing high carrier mobility and good ambient stability is crucial to

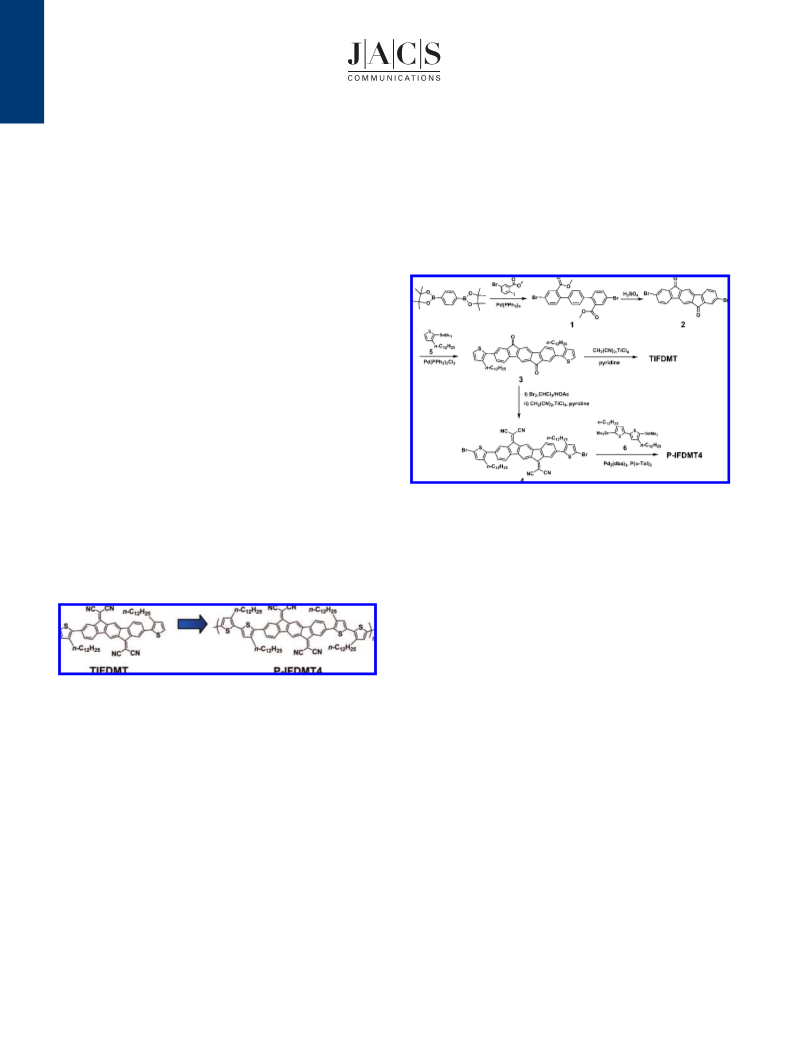

Scheme 1. Synthetic Routes to TIFDMT and Polymer P-IFDMT4
1
realizing low-cost and mechanically flexible printed electronics.
During the past decade, intense research efforts have yielded a
2
number of air-stable p-channel (hole-transporting) and n-channel
3
(
electron-transporting) semiconductors. Nevertheless, very few
3
solution-processable, air-stable n-channel materials are known.
Furthermore, known examples generally exhibit modest FET
-
5
2
-1 -1 4
performance (µ
e
≈ 0.01-10 cm V
s ) versus the corre-
2
-1 -1
sponding vacuum-deposited films (µ
e
≈ 0.64-0.01 cm V
s ),
likely reflecting microstructural irregularities in the solution-
processed films. Realization of air-stable, solution-processable,
3
n-channel molecules and polymers is important for p-n junctions,
bipolar transistors, organic complementary circuitry (CMOS), and
1
,5
for stimulating fundamental research on OFET charge transport.
Recently, a solution-processable dicyanomethylene-substituted ter-
2
thienoquinoid derivative was reported to exhibit µ
e
≈ 0.16 cm
yield). Intramolecular Friedel-Crafts acylation of 1 is achieved by
SO treatment at 120 °C (91% yield). Pd(PPh Cl -catalyzed
Stille coupling of 2 and 5 in DMF then yields compound 3 (35%
yield) which undergoes reaction with excess malononitrile in the
4
presence pyridine and TiCl to afford TIFDMT in 40% yield.
Polymer building block 4 is prepared in 45% yield by bromination
of compound 3, followed by condensation with malononitrile.
Monomer 4 and TIFDMT are very soluble in common organic
solvents, allowing convenient purification by flash chromatography.
Monomer 4 is copolymerized with 6 via microwave-assisted
-
1
-1
V
s
in air, however it suffers from a low Ion/Ioff ratio (ca.
H
2
4
3
)
2
2
3
4
2
-1 -1
1
0 -10 ) and µ
e
drops to ca. 0.01 cm
V
s
over time in
6
ambient conditions. Importantly, the paucity of air-stable n-channel
polymers has significantly hindered utilizing the superior rheological
7
properties of polymers in printing processes.
2 3 3
Pd (dba) /P(o-Tol) -catalyzed Stille coupling. The resulting polymer
is purified by multiple dissolution/precipitation (60% yield). Final
1
13
products are characterized by H and C NMR, EA, IR, GPC,
and MS.
The above considerations prompted us to pursue new polymer-
izable, electron-deficient architectures and to investigate their
properties as semiconducting polymer building blocks. In this
Communication, we report the synthesis, characterization, and field-
effect response of a novel n-channel semiconducting molecule
TIFDMT and of the corresponding thiophene-based copolymer
P-IFDMT4. In these structures, the highly electron-deficient, ladder-
type indenofluorenebis(dicyanovinylene) skeleton is utilized to
depress LUMO energies, providing ambient stability to the gate
field-induced electron carriers. Furthermore, the donor-acceptor
backbone enhances core rigidity and π-conjugation, affording low
band gap semiconductors. We report here that solution-processed
Thin-film cyclic voltammetry reveals five reversible reductions
red-1
for TIFDMT with the first half-wave potential (E1/2
) at -0.12
V, whereas P-IFDMT4 exhibits six reversible reductions and one
red-1
ox-1
oxidation (E1/2
) -0.29 V and E1/2
) 1.07 V; Supporting
Information, Figure S1). Thin-film optical band gaps are estimated
from the low energy band edges in the optical spectra as 1.52 and
1.36 eV for TIFDMT and P-IFDMT4, respectively (Figure S2).
Consequently, the solid-state HOMO/LUMO energy levels are at
-5.84/-4.32 eV for TIFDMT and -5.51/-4.15 eV for P-
9
IFDMT4. The combined low LUMO energies and small band gaps
are indicative of the highly electron-deficient and π-conjugated
nature of these new structures. These are among the lowest LUMO
energies reported to date for a semiconducting polymer, approaching
those of air-stable n-channel core-cyanated perylene-, anthracene-,
2
-1 -1
TIFDMT FETs exhibit µ
e
) 0.10-0.16 cm V
s
in ambient,
while P-IFDMT4-based devices are interestingly ambipolar, having
-
4
2
-1 -1
electron and hole mobilities of ca. 2 × 10 cm V
s . To the
3
best of our knowledge, this is the first ambipolar OFET polymer
and naphthalene-based small molecule semiconductors.
8
which operates in air.
Top-contact FETs were fabricated by spin-coating TIFDMT or
The syntheses of TIFDMT and P-IFDMT4 are shown in
Scheme 1. Suzuki coupling of 1,4-benzenediboronic acid dipinacol
ester with methyl 5-bromo-2-iodobenzoate yields compound 1 (89%
P-IFDMT4 solutions in CHCl
3
(5.0 mg/mL) on OTS (octadecyl-
trichlorosilane) treated p -Si/SiO (300 nm) substrates. Next, the
semiconductor films (60-65 nm) were annealed at 150 °C for 30
+
2
8
580 9 J. AM. CHEM. SOC. 2008, 130, 8580–8581
10.1021/ja802266u CCC: $40.75  2008 American Chemical Society

C O M M U N I C A T I O N S
textured thin films, and large film grain sizes. Furthermore, the
preferential “edge-on” molecular orientation doubtless favors in-
10
plane source-to-drain (S f D) transport. The excellent air-stability
of TIFDMT and P-IFDMT4 is likely related to the low LUMO
3
energies (-4.15 and -4.32 eV). The unique electronic structure
of the present polymer provides a very small band gap (1.36 eV),
rendering the HOMO level (-5.51 eV) accessible for hole injection
by Au contacts, thus enhancing p-channel operation.
In summary, we report the synthesis and characterization of new
air-stable molecular and polymeric semiconductors based on
indenofluorenebis(dicyanovinylene). Solution-processed FETs ex-
hibit high electron mobility with excellent ambient stability. The
first example of an air-stable, ambipolar polymer (P-IFDMT4) is
reported. Studies are underway to further optimize the polymer
architecture and device-processing characterisitics.

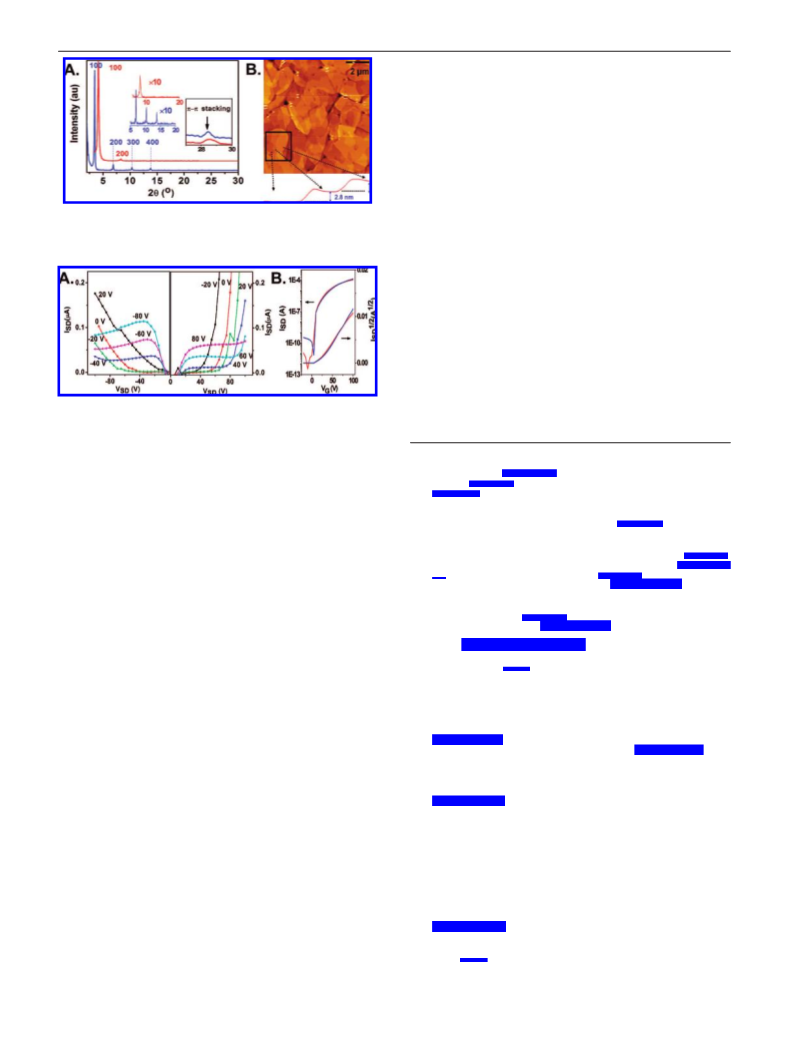

Figure 1. (A) θ-2θ XRD and grazing-incidence XRD (inset) scans for
spin-coated TIFDMT (blue line) and P-IFDMT4 (red line) films; (B)
tapping mode AFM image of a spin-coated TIFDMT film.
Acknowledgment. We thank ONR (N00014-05-1-0766) and
Polyera for support of this research, and the NSF-MRSEC program
through the Northwestern University MRSEC (DMR-0520513) for
providing characterization facilities. We thank Dr. E. Szuromi and
Prof. R. F. Jordan for hospitality with GPC measurements.
Supporting Information Available: Synthetic procedures for 1-6,
device fabrication details; UV-vis/electrochemical/FET/AFM data;
Figures S1-S5. This material is available free of charge via the Internet
at http://pubs.acs.org.
Figure 2. OFET plots of devices measured in air. (A) Output curves as a
function of gate bias for P-IFDMT4-based devices; (B) transfer curve (VSD
)
100 V) for fresh TIFDMT-based device (red line) and after 5 months
storage in air (blue line).
References
(
1) (a) Facchetti, A. Mater. Today 2007, 10, 28. (b) Murphy, A. R.; Frechet,
J. M. J. Chem. ReV. 2007, 107, 1066. (c) Zaumseil, J.; Sirringhaus, H.
Chem. ReV. 2007, 107, 1296. (d) Vardeny, Z. V., Heeger, A. J.,
Dodabalapur, A., Eds. Summary of the Fundamental Research Needs in
Organic Electronic Materials; Elsevier B.V.: Amsterdam, 2005. (e)
Dimitrakopoulos, C. D.; Malenfant, P. R. L. AdV. Mater. 2002, 14, 99.
min under vacuum, followed by Au electrode (50 nm) deposition.
Thin-film microstructural order was assayed by out-of plane θ-2θ
XRD and grazing-incidence X-ray diffraction (GIXRD) scans. As
shown in Figure 1A, TIFDMT and P-IFDMT4 thin films are
highly crystalline, exhibiting Bragg reflections up to the fourth (400)
and second (200) order, respectively. Primary reflections are
observed at 2θ ) 3.46° (d-spacing ) 25.6 Å) for TIFDMT and at
(2) (a) McCulloch, I.; Heeney, M.; Bailey, C.; Genevicius, K.; Macdonald, I.;
Shkunov, M.; Sparrowe, D.; Tierney, S.; Wagner, R.; Zhang, W. M.;
Chabinyc, M. L.; Kline, R. J.; Mcgehee, M. D.; Toney, M. F. Nat. Mater.
2006, 5, 328. (b) Usta, H.; Lu, G.; Facchetti, A.; Marks, T. J. J. Am. Chem.
Soc. 2006, 128, 9034. (c) Anthony, J. E. Chem. ReV. 2006, 106, 5028. (d)
Ong, B. S.; Wu, Y. L.; Liu, P.; Gardner, S. J. Am. Chem. Soc. 2004, 126,
3378.
2
θ ) 4.12° (d-spacing ) 21.4 Å) for polymer P-IFDMT4. These
data are consistent with well-organized lamellar microstructures
(
3) (a) Schmidt, R.; Ling, M. M.; Oh, J. H.; Winkler, M.; K o¨ nemann, M.;
Bao, Z.; W u¨ rthner, F. AdV. Mater. 2007, 19, 3692. (b) Wang, Z.; Kim, C.;
Facchetti, A.; Marks, T. J. J. Am. Chem. Soc. 2007, 129, 13362. (c) Jones,
B. A.; Ahrens, M. J.; Yoon, M. H.; Facchetti, A.; Marks, T. J.; Wasielewski,
M. R. Angew. Chem., Intl. Ed. Engl. 2004, 43, 6363. (d) Katz, H. E.;
Lovinger, A. J.; Johnson, J.; Kloc, C.; Seigrist, T.; Li, W.; Lin, Y.-Y.;
Dodabalapur, A. Nature 2000, 404, 478.
having the common preferential molecular/chain “edge-on” orienta-
2
d,10
tion relative to the substrate surface (Figure S3).
The assigned
π-π stacking repeat distance is 3.1 Å (2θ ) 28.5°, inset Figure
1
A), significantly smaller than typically observed for oligo-/
1
,10
polythiophenes (3.4-3.8 Å).
As shown in Figure 1B, AFM
4) A solution-processed electron mobility of 0.21 cm V s-1 (on/off ratio
2
-1
(
characterization of TIFDMT films reveals very large plate-like
grains (3-5 µm sizes) of terraced islands with step heights of ∼2.8
nm, corresponding to the d-spacing along the lamellar layers. In
contrast, P-IFDMT4 films exhibit small grains (<0.1 µm sizes;
Figure S4).
5
)
10 ) was reported, however the device only operates in vacuum: Letizia,
J. A.; Facchetti, A.; Stern, C. L.; Ratner, M. A.; Marks, T. J. J. Am. Chem.
Soc. 2005, 127, 13476.
(
(
5) Chesterfield, R. J.; McKeen, J. C.; Newman, C. R.; Ewbank, P. C.; da
Silva Filho, D. A.; Br e´ das, J.-L.; Miller, L. L.; Mann, K. R.; Frisbie, C. D.
J. Phys. Chem. B 2004, 108, 19281.
6) Handa, S.; Miyazaki, E.; Takimiya, K.; Kunugi, Y. J. Am. Chem. Soc. 2007,
FET device characteristics were measured in ambient conditions.
Typical transfer and output plots for TIFDMT are shown in Figure
1
29, 11684.
(7) A mobility of 0.1 cm V s-1 (on/off ratio ca. 5-10) has been reported
for an n-type polymer, processed from methanesulfonic acid, a solvent
which is not attractive for large-scale applications: Babel, A.; Jenekhe, S. A.
J. Am. Chem. Soc. 2003, 125, 13656.
(8) Ambipolar behavior was reported for several polymers by using various
gate dielectric surface treatments, but measurements were carried out under
nitrogen: Chua, L. L.; Zaumseil, J.; Chang, J. F.; Ou, E. C. W.; Ho, P. K. H.;
2
-1
2
0
and S5. These devices exhibit n-channel operation with µ )
e
2 -1 -1 7 8
.10-0.16 cm V
s
, Ion/Ioff ) 10 -10 , and V ) 0 to ca. +5
T
V. Note that these devices exhibit negligible variations in TFT
characteristics after 5 months storage in air without exclusion of
light or humidity (Figure 2B). Interestingly, P-IFDMT4-based FETs
are ambipolar in ambient conditions and exhibit similar electron
Sirringhaus, H.; Friend, R. H. Nature 2005, 434, 194.
red-1
(
9) ELUMO is calculated as-(E1/2
+ 4.44 eV) assuming that Koopmans’
red
theorem holds (EA ≈-ELUMO). SCE energy level is taken to be-4.44
-
4
2
-1 -1
and hole mobilities (∼2 × 10 cm V
s
) and Ion/Ioff ratios
eV below the vacuum level. E is calculated from: HOMO ) LUMO-
HOMO
4
g
E (estimated from optical absorption spectra). Bard, A. J. Faulkner, L. R.
(
∼10 ; Figure 2A and S5) with V
T
values of ca. +5 V (n-channel)
Electrochemical Methods-Fundamentals and Applications; Wiley: New
and ca. -10 V (p-channel). Although the present unoptimized
mobilities are moderate, to the best of our knowledge this is the
very first example of an air-stable, highly soluble ambipolar
semiconducting polymer.
York, 1984.
(10) (a) Facchetti, A.; Yoon, M.-H.; Stern, C. L.; Hutchison, G. R.; Ratner, M.
J. Am. Chem. Soc. 2004, 126, 13480. (b) Sirringhaus, H.; Brown, P. J.;
Friend, R. H.; Nielsen, M. M.; Bechgaard, K.; Langeveld-Voss, B. M. W.;
Spiering, A. J. H.; Janssen, R. A. J.; Meijer, E. W.; Herwig, P.; de Leeuw,
D. M. Nature 1999, 401, 685.
The observed high mobility for TIFDMT probably reflects a
combination of enhanced intermolecular π-orbital overlap, highly
JA802266U
J. AM. CHEM. SOC. 9 VOL. 130, NO. 27, 2008 8581
