X-Ray diffraction (XRD): XRD analysis was performed on BRUKER D8
ADVANCE instrument from 5 to 90 2 theta degrees and an increment of
0.01 degrees.

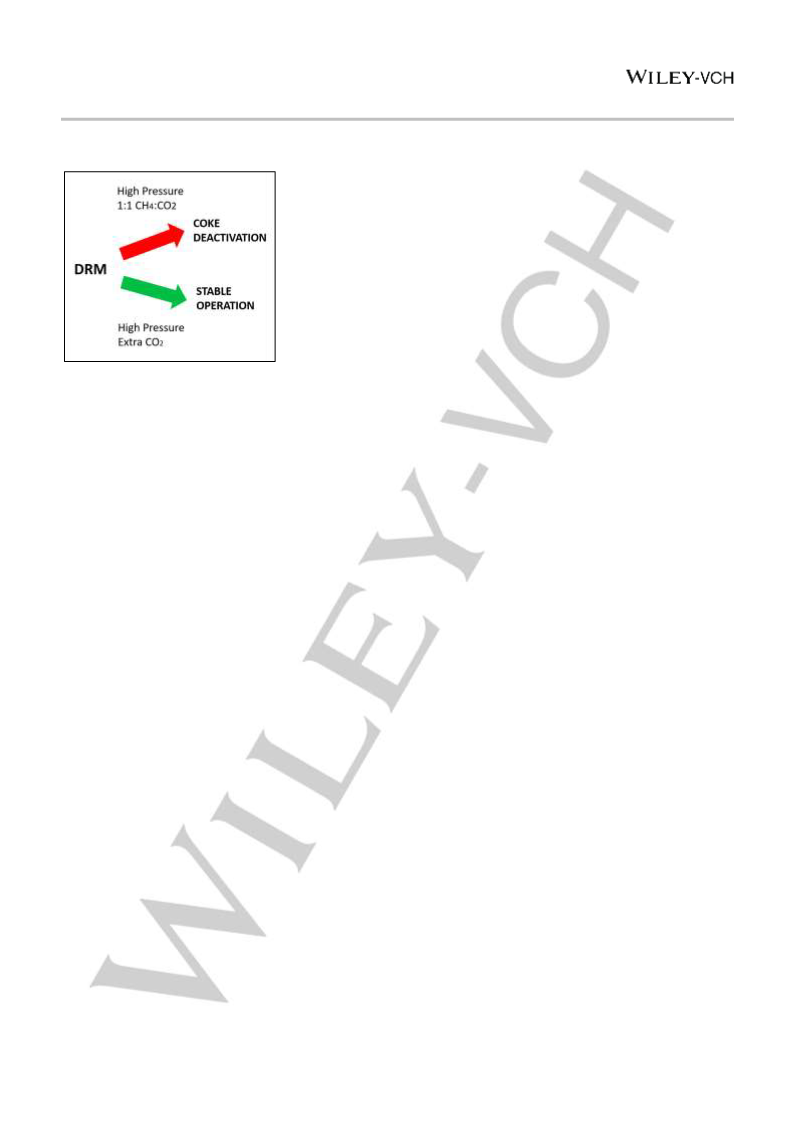

studied in parallel. We hope that these results encourage
researchers to study the industrial relevant high pressure
applications of DRM with the ultimate goal of a carbon neutral
economy.
Nitrogen adsorption: Nitrogen physisorption measurements were
performed on an ASAP2420 MICROMERITICS instrument. Prior to
obtaining the isotherm the samples were dried under vacuum with a ramp
rate of 10 ºCmin-1 up to 90 ºC for 60 min followed by a final heat treatment
at 300 Cº for 720 min. After weighing the dried samples they were
additionally degassed under vacuum at 90 ºC for 120 min at the analysis
ports of the instrument prior to acquirement of isotherm by stepwise dosing
of N2 at 77 K. As last the correct free space values were obtained by
performing additionally 1 point measurement using N2 and exposing the
sample to Helium.
Experimental Section
Chemicals: Magnesium Oxide (MgO, Sigma Aldrich) was used as received.
Catalyst preparation: Catalyst samples with different compositions, based
on Ni, Mo or Rh oxides supported on either Alumina, MgO or GDC
(Gadolinium doped Ceria)were provided by Saudi Aramco. All samples
were sieved between 150 and 250 µm before used.
Process simulations and thermodynamic calculations: Process simulations
were carried out with steady-state simulation models developed in Aspen
Plus V8.8 software. Economic analysis was carried out with the Economics
Solver extension of Aspen Plus. The selected property method was
Redlich-Kwong-Soave. The Wegstein method was used for flowsheet
convergence with a mass balance closure of the system better than 0.0001.
The total flow is 100 tons/hour of Syngas (CO:H2 1:1) with a target
pressure of 50 bars. The feed stream was compressed by 4 four isentropic
compressors (C1 to C4 in FigureS1) with intercooling heat exchangers
(HX1 to HX3 in Figure S1) to cool down the pressurized streams.

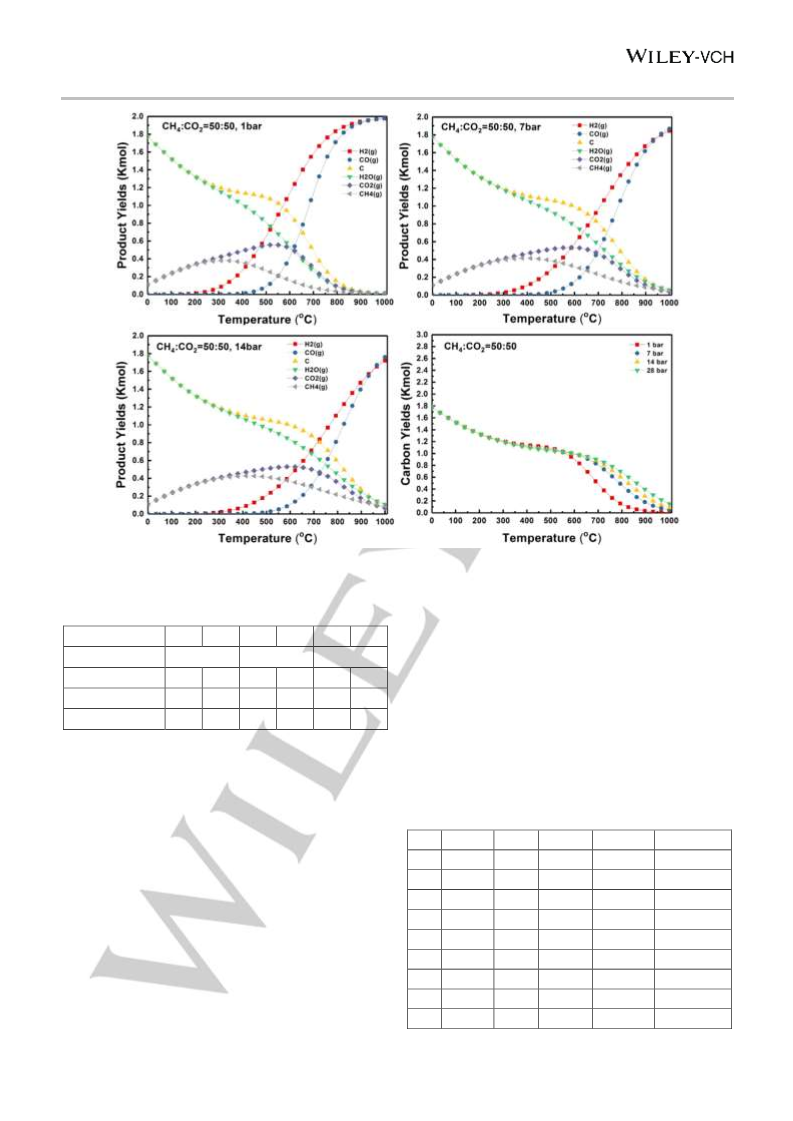

Thermodynamic equilibrium was calculated by using HSC 5.1 chemistry
software with a method of Gibbs free energy minimization. Same feed
compositions of reactants as the experimental conditions were used and
calculated with varying pressures and temperatures. In order to investigate
carbon formation, solid carbon was considered to be one of the products
as well as gaseous H2, CO, and H2O. Thermodynamic equilibrium results
were used as reference data to compare the experimental results.

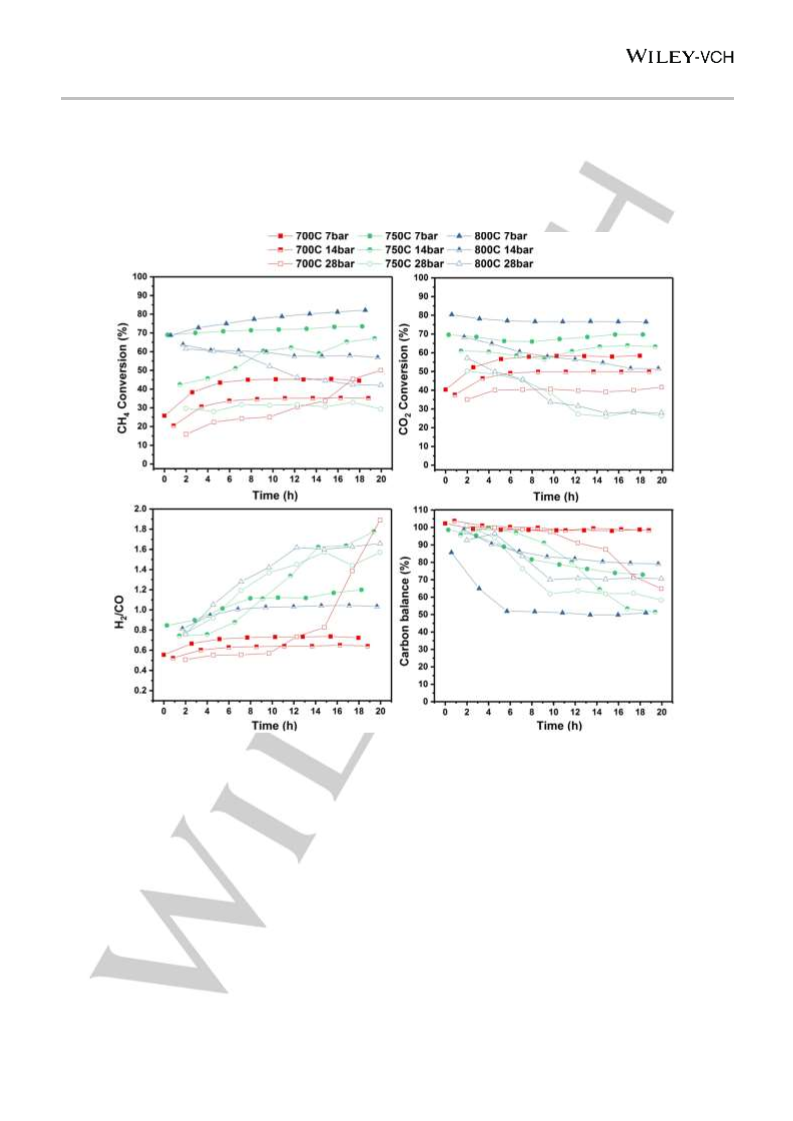

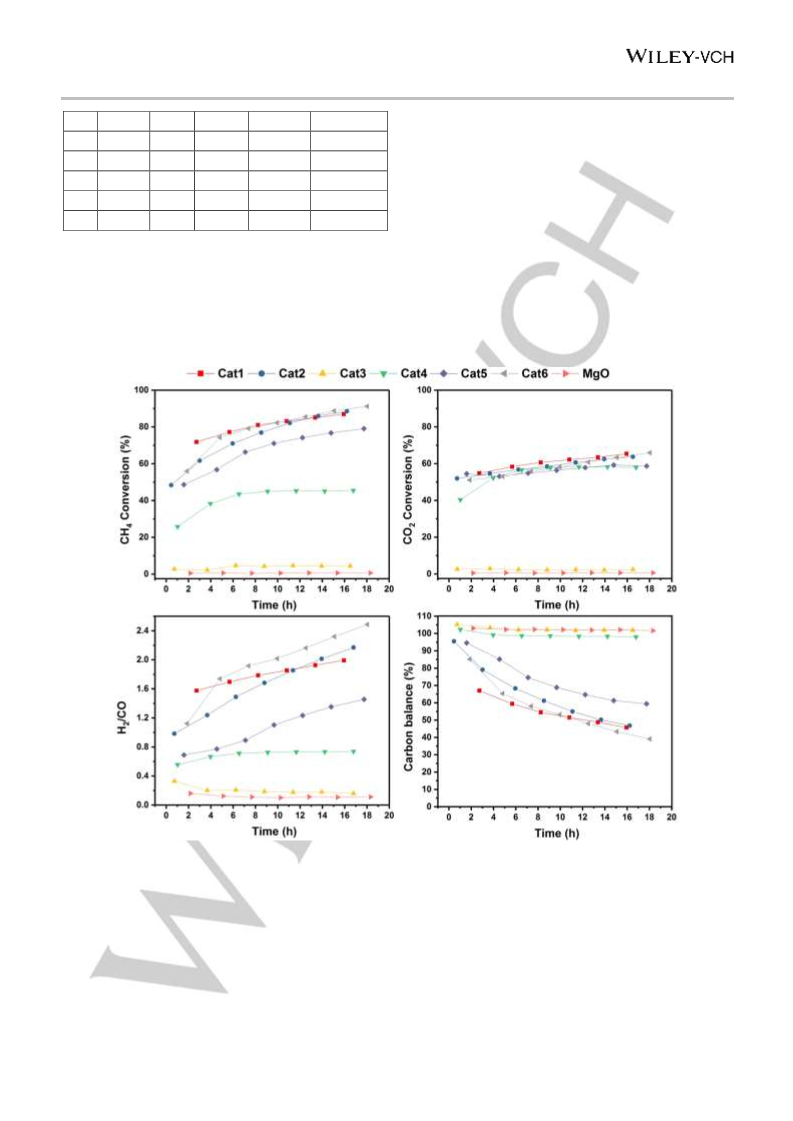

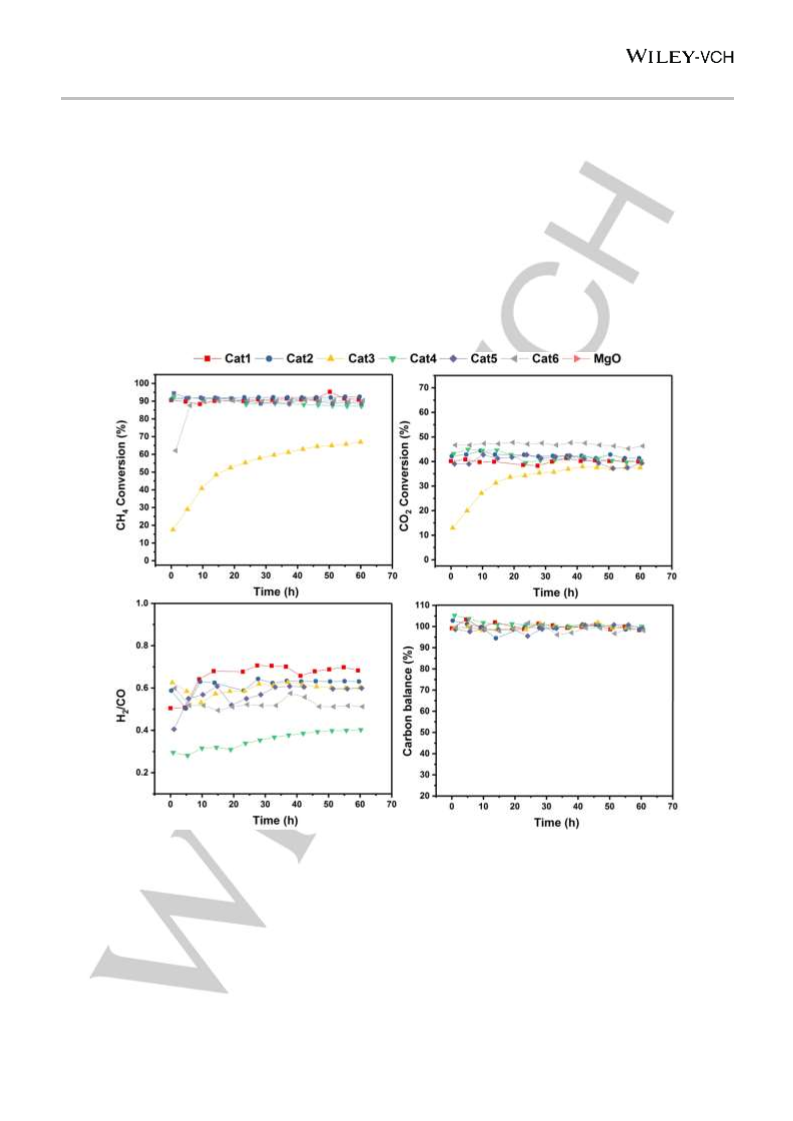

Catalytic tests: Catalytic tests were executed in a 16 channel Flowrence®
from Avantium. 125 µL of catalyst sample was typically used. The reactors
are 300 mm long quartz tubes inserted in a furnace. The outside and inside
diameters of the tubes are 3 and 2 mm, respectively. One reactor was
always used without catalyst as a blank. The reactor design allows the use
of quartz reactors at high pressures (see Figure S3). The 46 ml/min of
mixed feed had a composition CH4:CO2:N2 = 1:1:1. In addition, 4 ml/min of
He were mixed with the feed as internal standard. We aimed to have 1500
h-1 GHSV per channel. One of the 16th channels was always used without
catalyst as blank. Prior to feeding the reaction mixture all samples were
pretreated in-situ with a pure H2 atmosphere for 4 hours at 800°C. The
tubes were then pressurized using a membrane pressure controller.
GC is an Agilent 7890B with two sample loops. After flushing the loops for
24 min, the content is injected. One sample loop goes to TCD channel with
2 Haysep pre-column and MS5A, where He, H2, CH4 and CO are
separated. Gases that have longer retention times than CO2 on the
Haysep column (Column 4 Haysep Q 0.5 m G3591-80023) are back-
flushed. Further separation of permanent gases is done on another
Haysep column (Column 5 Haysep Q 6 Ft G3591-80013) to separate CO2
before going to MS5A. Another sample loop goes to an Innowax pre-
column (5m, 0.20mm OD, 0.4 µm film), first 0.5 min of the method the
gases coming from pre-column are sent to Gaspro column (Gaspro 30M,
0.32 mm OD) followed by FID. After 0.5 min, valve is switched and gases
are sent to Innowax column (45 m, 0.2 mm OD, 0.4 µm) followed by FID.
Gaspro column separates C1-C8, paraffins and olefins. Innowax separates
larger hydrocarbons (>C9) and aromatics BTX and C9+ aromatics. No C2+
products were detected in any of the performed tests. Conversions (X, %)
and carbon balance are defined as follows:
Acknowledgements
Funding for this work was provided by Saudi Aramco and King
Abdullah University of Science and Technology (KAUST).
Keywords: Dry Reforming • CO2 • CH4 • Hydrogen • Syngas •
Pressure
[1]
[2]
[3]
[4]
N. Mac Dowell, P. S. Fennell, N. Shah, G. C. Maitland, Nat
Clim Change 2017, 7, 243-249.
C. F. Shih, T. Zhang, J. H. Li, C. L. Bai, Joule 2018, 2, 1925-
1949.
R. Dittmeyer, M. Klumpp, P. Kant, G. Ozin, Nature
Communications 2019, 10, 1818.
A. Alvarez, A. Bansode, A. Urakawa, A. V. Bavykina, T. A.
Wezendonk, M. Makkee, J. Gascon, F. Kapteijn, Chem Rev
2017, 117, 9804-9838.
퐶푂2푖푛
퐶푂2표푢푡
⁄
−
⁄
퐻푒표푢푡
퐻푒푖푛
퐶표푛푣퐶푂2 (%) =
퐶표푛푣퐶퐻4 (%) =
× 100
퐶푂2푖푛
⁄
퐻푒푖푛
퐶퐻4푖푛
퐶퐻4표푢푡
⁄
−
⁄
퐻푒
퐻푒푖푛
표푢푡 × 100
퐶퐻4푖푛
⁄
퐻푒푖푛
퐶표푢푡
∑
⁄
퐻푒
표푢푡 × 100
퐶퐵푎푙푎푛푐푒(%) =
[5]
[6]
[7]
[8]
G. Centi, E. A. Quadrelli, S. Perathoner, Energ Environ Sci
2013, 6, 1711-1731.
A. Dokania, A. Ramirez, A. Bavykina, J. Gascon, Acs
Energy Lett 2019, 4, 167-176.
C. O. Hawk, P. L. Golden, H. H. Storch, A. C. Fieldner, Ind
Eng Chem 1932, 24, 23-27.
N. A. K. Aramouni, J. G. Touma, B. Abu Tarboush, J.
Zeaiter, M. N. Ahmad, Renew Sust Energ Rev 2018, 82,
2570-2585.
퐶푖푛
∑
⁄
퐻푒푖푛
where Ciin and Ciout, are the concentrations determined by GC analysis in
the blank and in the reactor outlet respectively.
Thermogravimetric analysis (TGA): TGA Analysis was performed with a
METTLER TOLEDO TGA/DSC 1 instrument. Approximately 10 mg of
sample was weighed inside an alumina crucible. In order to remove any
volatile species, samples were heated from RT to 200 ºC with an ramp of
10 Cmin-1 under a flow of N2 (50 mLmin-1) followed by an isothermal step
of 60 min. The temperature was again increased up to 800 ºC with a ramp
of 10 Cmin-1 in order to pyrolyze the coked samples. The sample was kept
at 800 ºC under a flow of N2 (50 mLmin-1) for 30 min before switching the
gas to Air (50 mlmin-1) in order to oxidized the coked sample.
