Synthesis, crystal structure, Hirshfeld surface analysis and DNA binding studies of 1-((E)-3-(4-bromophenyl)-1-phenylallylidene)-2-(m-tolyl)hydrazine

Article abstract of DOI:10.1016/j.molstruc.2019.04.025

1-((E)-3-(4-bromophenyl) -1-phenylallylidene)-2-(m-tolyl)hydrazine (4) was synthesized and characterized for structural elucidation by spectroscopy (FT-IR, ¹H NMR, and ¹³C NMR) and single crystal X-ray diffraction. In the title compo

Full text of DOI:10.1016/j.molstruc.2019.04.025

Accepted Manuscript
Synthesis, Crystal Structure, Hirshfeld Surface Analysis and DNA Binding Studies of
1-((E)-3-(4-bromophenyl)-1-phenylallylidene)-2-(m-tolyl)hydrazine
Rabail Ujan, Nasima Arshad, Aamer Saeed, Pervaiz Ali Channar, Shahid Iqbal
Farooqi, Parvez Ali Mahesar, Fayaz Ali Larik, Mahboob Ali Rind, Tuncer Hökelek,
Ulrich Flörke
PII:
S0022-2860(19)30420-X
DOI:
https://doi.org/10.1016/j.molstruc.2019.04.025
MOLSTR 26397
Reference:
To appear in: Journal of Molecular Structure
Received Date: 7 February 2019
Revised Date: 3 April 2019
Accepted Date: 5 April 2019
Please cite this article as: R. Ujan, N. Arshad, A. Saeed, P.A. Channar, S.I. Farooqi, P.A. Mahesar, F.A.
Larik, M.A. Rind, T. Hökelek, U. Flörke, Synthesis, Crystal Structure, Hirshfeld Surface Analysis and
DNA Binding Studies of 1-((E)-3-(4-bromophenyl)-1-phenylallylidene)-2-(m-tolyl)hydrazine, Journal of
Molecular Structure, https://doi.org/10.1016/j.molstruc.2019.04.025.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT
Graphical abstract:
A new compound 1-((E)-3-(4-bromophenyl) -1-phenylallylidene)-2-(m-tolyl)hydrazine was
synthesized and studied for X-ray, Hirshfeld surfaces, DFT and DNA binding analysis.

ACCEPTED MANUSCRIPT
Highlights:
•
1-((E)-3-(4-bromophenyl) -1-phenylallylidene)-2-(m-tolyl)hydrazine - A new chalcone
Schiff base
•
Crystal structure determination
•
Hirshfeld surface analysis
•
DFT and experimental studies for DNA binding

ACCEPTED MANUSCRIPT
Synthesis, Crystal Structure, Hirshfeld Surface Analysis and DNA Binding
Studies of 1-((E)-3-(4-bromophenyl)-1-phenylallylidene)-2-(m-tolyl)hydrazine
a
b,*
c,*
c
b
Rabail Ujan , Nasima Arshad , Aamer Saeed , Pervaiz Ali Channar , Shahid Iqbal Farooqi ,
d
c
a
e
f
Parvez Ali Mahesar , Fayaz Ali Larik , Mahboob Ali Rind , Tuncer Hökelek , Ulrich Flörke
a
M. A. Kazi Institute of Chemistry, University of Sindh, Jamshoro -76080, Pakistan
b
Department of Chemistry Allama Iqbal Open University-44000, Islamabad, Pakistan
c
Department of Chemistry Quaid-i-Azam University-45320, Islamabad, Pakistan
d
Institute of Chemistry, Shah Abdul Latif University, Khairpur- 66020, Pakistan
e
Department of Physics, Faculty of Engineering, Hacettepe University-06800 Beytepe-Ankara,
Turkey
f
Department Chemie, Fakultätfür Naturwissenschaften, Universität Paderborn,
Warburgerstrasse -100, 33098 Paderborn, Germany
_
____________________________________________________________________________________________
*
Corresponding author;
Email: nasimaa2006@yahoo.com; nasima.arshad@aiou.edu.pk
Phone: +92-51-905-7756
Co-corresponding author;
E mail: aamersaeed@yahoo.com
Tel: +92-51-9064-2128
1

ACCEPTED MANUSCRIPT
Abstract
-((E)-3-(4-bromophenyl) -1-phenylallylidene)-2-(m-tolyl)hydrazine (4) was synthesized and
1
1
13
characterized for structural elucidation by spectroscopy (FT-IR, H-NMR, and C-NMR) and
single crystal X-ray diffraction. In the title compound, the benzene rings A, B, C were oriented at
dihedral angles {A/B = 82.92(3)°, A/C = 24.12(3)°and B/C = 75.90(3)°}. Crystal structure
showed that intermolecular C—H···O and C—H···N hydrogen bonds linked the molecules,
2
2
enclosing R
structure indicated that the most important contributions for the crystal packing were from HꢀꢀꢀH
46.0%), HꢀꢀꢀC/CꢀꢀꢀH (17.6%), HꢀꢀꢀBr/BrꢀꢀꢀH (12.4%), HꢀꢀꢀO/OꢀꢀꢀH (8.5%) and CꢀꢀꢀC (6.6%)
2
(10) and R
2
(16) ring motifs. The Hirshfeld surface analysis of the crystal
(
interactions. Hydrogen bonding and van der Waals contacts were the dominant interactions in the
crystal packing. Compound’s interaction with DNA was further investigated theoretically by
DFT and experimentally by UV-visible spectroscopy and cyclic voltammetry. DFT analysis in
terms of geometry optimization and computed parameters revealed reactive nature of 4 and the
possibility of planar phenyl rings to intercalate within the DNA base pairs. Spectral and
voltammetric analysis and related binding parameters suggested intercalation as a possible mode
for 4 – DNA binding which was further verified by viscosity measurements
.
Keywords: Chalcone Schiff base, X-ray single crystal, Hirshfeld surface analysis, DFT studies,
DNA binding by UV & CV, Viscosity measurement
1
. Introduction
α-β-unsaturated ketones are commonly known as chalcones; this class of compounds had
exhibited diverse biological activates. Most importantly, anti-HIV, anti-cancer, anti-viral, anti-
2

ACCEPTED MANUSCRIPT
inflammatory, anti-fungal, anti-oxidant, anti-convulsant, anti-hypertensive, anti-filarial,
antiprotozoal, anti-bacterial and anti-malarial activities have been reported in recent literature

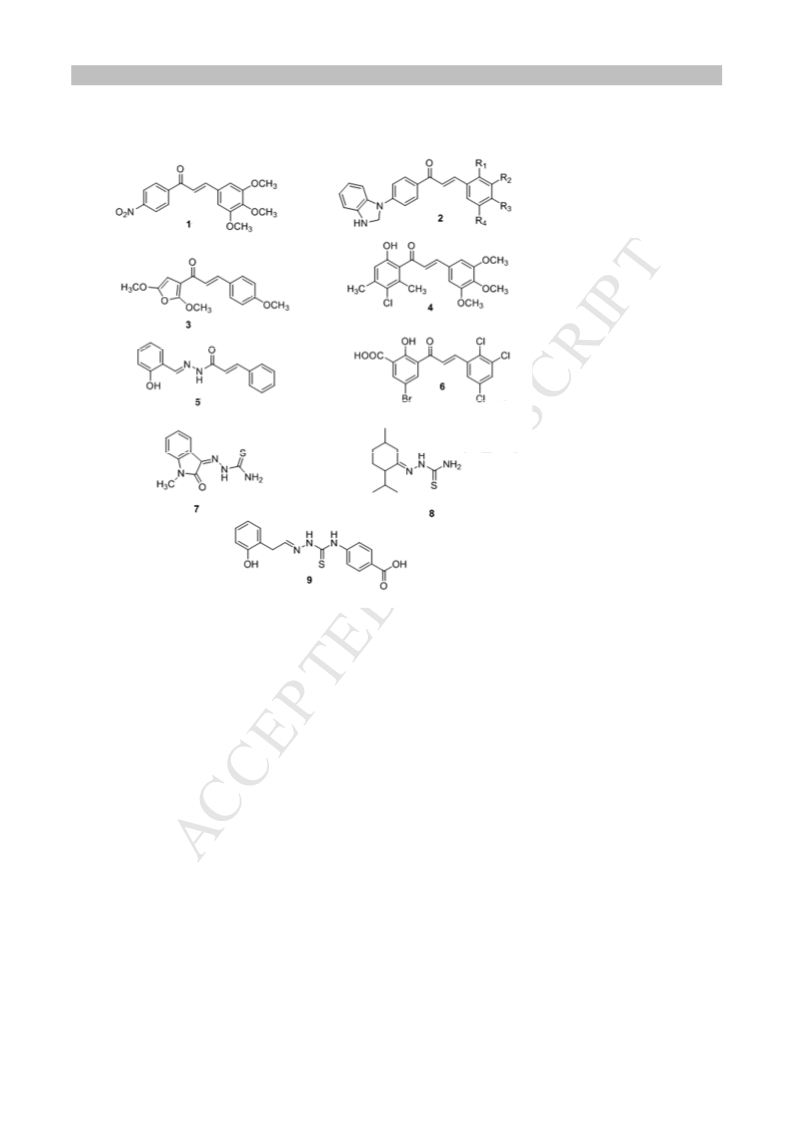

[1]. Following important compounds of same nature are illustrated, as anti-cancer 1, anti-
malarial 2, anti-bacterial 3, anti-inflammatory 4, anti-protozoal 5, anti-HIV 6, in Fig.1, [2-7].
The different methods of chalcones’ synthesis and their derivatives were reported in the
literature [8-11]. Thiosemicarbazones are formed due to the condensation reaction between
aldehyde or ketone with thiosemicarbazide [12]. This class has already been taken numerous
attentions of the world due to a broad category of biological activities such as Marboran 7
exhibit antiviral [13], menthone thiosemicarbazone 8 possesses anti-HIV and 9 contain the
broad-spectrum anticancer activity [14,15], Fig. 1. Such α-β-unsaturated ketone based
thiosemicarbazone is a novel skeleton and a new entry to organic compounds and possessing
some important biological activities.
In the body; DNA damaging occurs mainly due to oxidative stress and exposure to the toxic
environment. Many abnormal changes in the DNA could lead to genomic instability and
mutation that may further be resulted in several types of cancers [16, 17]. Although the drugs
available in the market prohibit the proliferation process which causes the death of cancer cells;
most of them have severe side effects on healthy organs of a body [18].
Among non-covalent and covalent binding of a drug with the DNA; the later one mode
results in the irreversible contact of the compound with DNA which also harms the healthy cell
[19-21]. However, non-covalent binding is a reversible type binding and is considered
comparatively safer with less or no side effect. A compound could bind reversibly with DNA via
intercalation between the DNA base pairs, electrostatic interactions and via major/or minor
grooves. So an effort to investigate and design a drug with minimal side effects is continuously a
3

ACCEPTED MANUSCRIPT
focus of interest of chemical, biological and pharmacological researchers [21, 22]. In this
respect, several new compounds have been explored, by in vitro experimental and theoretical
studies for reversible DNA binding interactions, to probe their potency as therapeutic agents [23-
2
9].
In this paper, we are reporting a novel single crystal 1-((E)-3-(4-bromophenyl) -1-
phenylallylidene)-2-(m-tolyl)hydrazine (4) for crystal structure analysis and intermolecular
interactions. The compound was further investigated for its binding with DNA.
Fig.1
2
. Experimental Section
2
.1. Material and methods
All chemicals and reagents used in experimental work are of analytical grade. Solvent
purification and drying were done using standard methods and stored over molecular sieves. For
monitoring of the synthetic reactions; thin layer chromatography (TLC) was conducted on 0.25
mm silica gel plates (60 F254, Merck). Visualization of chromatogram was made under UV-
f
lamp at 365 and 254 nm. R value was calculated using a solvent system of petroleum ether:
ethyl acetate in 4:1 ratio. The yield (%) given was on the basis of 1.0 mM of each precursor used.
Falcon protocol was used for the extraction of double-strand (ds) DNA from calf thymus (ct-
DNA) gland. Double distilled autoclaved water and autoclaved apparatus were used in total
extraction procedure. DNA threads were collected by using a glass hook and dissolved in
autoclaved water. A stock solution of DNA was further diluted and its purity was monitored by
using UV-visible spectrophotometer. The absorbance ratio of ct-DNA at A260/A280 was evaluated
in between 1.8 – 1.9, which assured its sufficient purity with no protein contamination [29]. The
4

ACCEPTED MANUSCRIPT
DNA concentration was determined by using the value of molar extinction coefficient ε260
=
-1
-1
6
600 cm M in Beer’s law. The stock solution of the compound 4 was prepared in 50%
-4
buffered ethanol having pH 4.7. The concentration of 4 was optimized to 3.45 × 10 M for all
DNA binding investigations.
2
.2. Instrumentations
Melting points were recorded using a digital Gallenkamp (SANYO) model MPD.BM 3.5
1
13
apparatus and are uncorrected. H-NMR and C-NMR spectra were determined at 300 MHz
using a Bruker AM-300 spectrophotometer. FTIR spectra were recorded on a Bio-Rad-Excalibur
Series Mode FTS 3000 MX spectrophotometer. Mass Spectra (EI, 70eV) on a GC-MS, Agilent
Technologies 6890N elemental analyses were conducted using a LECO-183 CHNS analyzer. A
Vortex machine and Hettich EBA20 Portable Centrifuge C 2002 having maximum speed up to
6
000 per minute were used during the ct-DNA extraction procedure. Temperature controller
Shimadzu 1800 spectrophotometer having 1 cm quartz cells and AUTOLAB PGSTAT-302
potentiostat/galvanostat with the electrochemical software package GPES version 4.9 (Eco
Chemie, Utrecht, Netherlands) was used for DNA binding experiments. Dr. Bob cell (double
walled; 1-30 mL capacity) was used for electrochemical experiment and attached to water
circulating bath to achieve the required temperature of the samples within the cell. The cell was
prepared by dipping into the sample solution a glassy carbon (GCE; d = 3 mm), saturated
calomel (SCE; 3.5 M KCl) and a Pt wire as working, reference and counter electrode,
respectively. In order to avoid the ohmic drop; a reference electrode was placed in lugging
capillary which provides proper sensing point for the reference electrode near the working
electrode. The glassy carbon electrode was polished with α-alumina powder, washed,
5

ACCEPTED MANUSCRIPT
ultrasonicated for 30 seconds and dried before used. An automated Schott Gerate viscometer
(Model; AVS 310) was used in viscometric experiments.
2
2
.3. General procedure for the synthesis
.3.1. Synthesis of (E)-3-(4-bromophenyl)-1-phenylprop-2-en-1-one (3)
The Chalcone (E)-3-(4-bromophenyl)-1-phenylprop-2-en-1-one (3) was synthesized by base
catalyzed Claisen‐Schmidt condensation reaction of acetophenone and 4-bromobenzaldehyde by
the known literature method [30]. Thus, a mixture of 4-bromobenzaldehyde (1) (0.01 mol) and
acetophenone (2) (0.01 mol) was dissolved in 10 ml ethanol in a 250 ml round‐bottomed flask
equipped with a reflux condenser. To the stirred reaction mixture, 10 ml NaOH solution (1g in
1
0 ml H O) was added dropwise while the reaction temperature was maintained between 20‐25
2
o
C. After vigorous stirring for 4 hours, the reaction mixture was neutralized by 0.2 N HCl
whereby the precipitation occurred. On filtration, the solid obtained was recrystallized from
aqueous ethanol to afford chalcone (3) as colorless crystals.
2
.3.2. 1-((E)-3-(4-bromophenyl)-1-phenylallylidene)-2-(m-tolyl)hydrazine (4)
-((E)-3-(4-bromophenyl)-1-phenylallylidene)-2-(m-tolyl)hydrazine (4) was synthesized in
the laboratory by reflux method. 3-methylbenzohydrazide (0.5g, 3.65 mmol) was dissolved in
5ml of absolute alcohol. (E)-3-(4-bromophenyl)-1-phenylprop-2-en-1-one (3.70 mmol) was
1
1
added with constant stirring in the presence of catalytic amount of acetic acid. The reaction
mixture was refluxed for 4-6 hours and the completion of the reaction was monitored by TLC
(petroleum ether; ethyl acetate 4:1). The reaction mixture was cooled and the resulting solid was
6

ACCEPTED MANUSCRIPT
filtered, washed with cold ethanol and finally recrystallized from aqueous ethanol to afford (4) as
yellowish crystals.
2
.4. Characterization data of 4
Yield:70%: m.p 268°C R : 0.57; Petroleum ether : ethylacetate (4:1) FTIR; (KBr, cm ):
-1
f
2
1
3
348 (NH), 3189 (sp CH), 1646 (C=N), 1540 (Ar-C=C), H NMR (300 MHz, DMSO-d ): δ
6
(ppm): 11.1 (s, 1H, NH), 7.42 (d, 2H, ArH), 7.19 (d, 2H, ArH), 6.75-7.41 (m, ,4H Ar-H), 7.20-
1
3
6
.91 (m, 5H, Ar-H); 7.25 (d -CH=CH
): δ (ppm):. 158.4 (C=N), 143.9, 141.3, 138.6, 137.9, 134.5, 133.2, 132.5, 130.2,
29.8, 129.0, 128.5, 125.4, 122.4, 120.5, 116.8, 113.5, 22.5. Anal. Calcd. For C H BrN C,
- - 3
) 6.50 (d -CH=CH ) 2.51 (s, 3H, CH ); C NMR (75
MHz, DMSO-d
6
1
6
2
2
19
2
7.53; H, 4.89; N, 7.16 Found: C, 67.50; H, 4.82; N, 7.14.
2
.5. Crystal structure determination and refinement
The intensity data were recorded using a Bruker AXS SMART APEX CCD area-detector
diffractometer with graphite monochromated MoK radiation (λ = 0.71073 Å) at T = 130(2) K.
α
Direct methods were employed to solve the structure and its refinement was done by full-matrix
2
least squares against F [31, 32]. All non H-atoms were refined anisotropically. Hydrogen atoms
were clearly located in a difference Fourier maps and then refined at idealized positions riding on
the carbon atoms with isotropic displacement parameters U (H) = 1.2U (C) or 1.5U (-CH ) &
iso
eq
eq
3
(
C-H) 0.95-0.98 Å, H(N) was refined freely. All CH hydrogen atoms were allowed to rotate but
3
not to tip. Crystallographic data for the structure reported in this paper have been deposited with
the Cambridge Crystallographic Data Centre as supplementary publication no. CCDC-1831398.
Copies of available material can be obtained free of charge via www.ccdc.cam.ac.uk.
7

ACCEPTED MANUSCRIPT
2
.6. Hirshfeld surface calculations
Crystal Explorer program 17.5 was employed to carry out the Hirshfeld surface analysis
33]. The structural input file was obtained in the CIF format. Hirshfeld surface distance from the
nearest nucleus inside and outside the surface was measured and represented by d and d ,
[
i
e
respectively, while a normalized contact distance was represented as dnorm. White, red and blue
colors have been selected for the visualization of dnorm
.
2
.7. DFT calculations
Theoretical DFT analysis of 4 for its structure and reactivity was done by using Gaussian 09
software at DFT/ B3LYP/ basis set (6-31G) level. The geometry of 4 was optimized and
quantum parameters were computed.
2
.8. DNA binding experiments
DNA binding experiments for 4 at UV- visible spectrophotometer and an electrochemical
instrument were run by adjusting the temperature of sample holders of both instruments (cell
o
cuvette & Dr. Bob cell) at 37 C. Initially, the compound at its fixed concentration was run
separately for UV- and CV and then titrations were performed with DNA concentrations under
o
physiological pH (Stomach; 4.7) and temperature (37 C). During titration experiments, ct-DNA
-4
was added gradually from 10 – 90 µM into the solution of 4 (3.45 × 10 M). Before starting next
titration; sample solution was allowed to stay for a few minutes so that an equilibrium between
compound and DNA could be achieved. For UV- visible experiments wavelength was adjusted
within the range of 200 – 400 nm, while the potential range of +1.5 – -1.5 V was used in CV
8

ACCEPTED MANUSCRIPT
experiments. In order to avoid oxygen in the sample solution, bubbling for 10 – 15 minutes and
jacketing of argon gas (99.999% pure) was done before each CV experiment. The scan rate was
adjusted to 100 mV/s. Conversely, in viscosity experiments, DNA concentration was kept
constant to 10 µM and the compound was added gradually in its increasing concentration from
(10 – 80 ꢁM).
3
. Results and Discussion
3
.1. Chemistry
The synthesis of target Schiff base 4 was carried out according to Scheme 1. 3-
methylbenzohydrazide in dry ethanol was allowed to react with (E)-3-(4-bromophenyl)-1-
phenylprop-2-en-1-one in the presence of acetic acid as catalyst, to obtain the desired compound
(4) in good yield. The compound obtained was purified by recrystallization from aqueous
-1
-1
ethanol. The appearance of C=N at 1646 cm , Ar-C=C at 1540 cm and stretching around 3348
-1
1
cm indicated the presence of NH moiety in the title compound. In H NMR spectrum, the
appearance of a singlet at 11.1 was noticed for NH. The characteristic of alkene protons was
1
13
observed in the range of 7.25 – 6.50 ppm in H NMR spectra. In C NMR spectra, the signals at
1
2
58.4 (C=N) confirmed the formation of the 4 {1-((E)-3-(4-bromophenyl)-1-phenylallylidene) -
-(m-tolyl) hydrazine}.
Scheme 1
3
.2. Description of the crystal structure
The single crystal X-ray structural determination of the title compound confirms the
assignment of its structure from spectroscopic data. The experimental details including the
9

ACCEPTED MANUSCRIPT
crystal data, data collection and refinement are summarized in Table 1. The hydrogen-bond
geometry, the selected interatomic distances, and the selected bond lengths, bond angles together
with the torsion angles are given in Tables 2, 3 and 4, respectively. The molecular structure
along with the atom-numbering scheme is depicted in Fig. 2. Atoms C7, C8, C9, C17, and Br1
are 0.0660(3), 0.0347(3), -0.0650(2), 0.0501(3) and 0.0491(3) Å away from the mean planes of
the adjacent benzene rings A (C1-C6), B (C10-C15) and C (C18-C23), respectively. So, atoms
C7 and C8, C9, and C17 and Br1 are co-planar with the adjacent benzene rings A, B, and C,
respectively. The benzene rings, A, B, and C, are oriented at dihedral angles of A/B = 82.92(3)°,
A/C = 24.12(3)° and B/C = 75.90(3)°.
In the crystal structure, intermolecular C—H ··· O and C—H ··· N hydrogen bonds (Table 2)
2
2
2
link the molecules into infinite chains, enclosing R (10) and R (16) ring motifs, Fig. 3, [34].
2
Hydrogen bonding and van der Waals contacts are the dominant interactions in the crystal
packing. No significant π ··· π and C—H ··· π interactions are observed.
Table 1 – 4, Fig. 2&3
3
.3. Hirshfeld surface analysis
In order to visualize the intermolecular interactions in the crystal of the title compound;
Hirshfeld surface (HS) analysis is carried out to investigate the locations of atoms ··· atom short
contacts with potential to form hydrogen bonds and the quantitative ratios of these interactions
besides of the π-stacking interactions [35-37]. The normalized contact distance, dnorm, enable the
identification of the regions of particular importance to intermolecular interactions. In the HS
plotted over dnorm, Fig. 4, the white surface indicated contacts with distances equal to the sum of
van der Waals radii, and the red and blue colors indicate distances shorter (in close contact) or
longer (distinct contact) than the van der Waals radii, respectively [38]. The bright-red spots
10

ACCEPTED MANUSCRIPT
appearing near O1, N2 and hydrogen atoms H1A and H15A indicate their roles as the respective
donors and acceptors in the dominant C–H ··· N and C–H ··· O hydrogen bonds; they also
appear as blue and red regions, respectively, corresponding to positive and negative potentials on
the HS mapped over electrostatic potential as shown in Fig. 5, [37, 39]. The blue regions indicate
the positive electrostatic potential (hydrogen-bond donors), while the red regions indicate the
negative electrostatic potential (hydrogen-bond acceptors).
The shape-index of the HS is a tool to visualize the π ··· π stacking by the presence of
adjacent red and blue triangles; if there are no adjacent red and/or blue triangles, then there are
no π ··· π interactions. Fig. 6 clearly suggests that there are no π ··· π interactions in the title
compound. The intermolecular interactions present in the structure are also visible on the two-
dimensional fingerprint plot, where one molecule acts as a donor, d > d , and the other as an
e
i
acceptor, d > d . The combination of d and d in the form of a two-dimensional fingerprint plot
i
e
e
i
provides a summary of the intermolecular contacts in the crystal. The overall two-dimensional
fingerprint plot, Fig. 6a and those delineated into HꢀꢀꢀH, HꢀꢀꢀC/CꢀꢀꢀH, HꢀꢀꢀBr/BrꢀꢀꢀH, HꢀꢀꢀO/OꢀꢀꢀH,
CꢀꢀꢀC, HꢀꢀꢀN/NꢀꢀꢀH, NꢀꢀꢀC/CꢀꢀꢀN and C…Br/Br…C contacts [40] are illustrated in Figs. 6 b-i,
respectively, together with their relative contributions to the Hirshfeld surface. In the fingerprint
plot delineated into H···H contacts Fig. 6b, the 46.0% contribution to the HS is viewed as widely
scattered points of high density due to the large hydrogen content of the molecule. The single
spike with the tip at d = d ~ 1.07 Å is due to the short interatomic H···H contacts, Table 3.
e
i
In the absence of C–H ··· π interactions in the crystal, the forceps-like pair of characteristic
wings resulting in the fingerprint plot delineated into H···C/C···H contacts, Fig. 7c, have an
asymmetric distribution of points, where C···H interactions have a larger contribution (10.2%)
than their HꢀꢀꢀC counterparts (7.4%). Thus, the sum of H···C/C···H interactions has a 17.6%
11

ACCEPTED MANUSCRIPT
e i
contribution to the total HS area of the molecule and is viewed with the tips at d + d ~ 2.66 Å
result from short interatomic H···C/C···H contacts (Table 3). In the fingerprint plot delineated
into HꢀꢀꢀBr/BrꢀꢀꢀH contacts in the structure with 12.4% contribution to the HS have also an
asymmetric distribution of points Fig. 7d, where Br···H interactions have a larger contribution
(8.1%) than their HꢀꢀꢀBr counterparts (4.3%), and are viewed as distinct pair of spikes with the
tips at d + d ~ 2.91 Å result from short interatomic H···Br/Br···H contacts (Table 3). The
e
i
…
…
symmetrical distribution of points in the fingerprint plot delineated into H O/O H contacts, Fig.
e, the 8.5% contribution to the overall crystal packing is viewed as a pair of spikes with the tips
at d + d ~ 2.34 Å result from short interatomic H···O/O···H contacts, Table 3. In the fingerprint
7
e
i
plot delineated into C··· C contacts, Fig. 7f, the 6.6% contribution to the HS arises from the
interatomic C···C contacts listed in Table 3, and is viewed as a spoon-like spike with the tip at de
=
di ~ 1.77 Å. The symmetrical distributions of points in the fingerprint plots delineated into
…
…
H N/N H (Figs. 7g) and N···C/C···N (Figs. 7h) contacts, the 3.1% contributions to the overall
…
…
crystal packing are viewed as pairs of spikes with the tips at d + d ~ 2.40 Å (for H N/N H
e
i
e i
contacts) and d + d ~ 3.21 Å (for N···C/C···N contacts) result from short interatomic
H···N/N···H and N···C/C···N contacts (Table 3). Finally, the symmetrical distribution of points
in the fingerprint plot delineated into C···Br/Br···C contacts, Fig. 7i, the 2.4% contribution to the
overall crystal packing is viewed as a pair of spikes with the tips at d + d ~ 3.54 Å result from
e
i
short interatomic C···Br/Br···C contacts (Table 3).
The individual intermolecular interactions, together with their quantitative contributions,
described above can also be visualized by the different Hirshfeld surface representations with the
function dnorm plotted onto the surface, and they are shown for H···H, H···C/C···H, H···Br/Br···H,
…
…
H···O/O···H, C···C, H···N/N···H, N···C/C···N and C Br/Br C interactions in Fig. 8 a—h,
12

ACCEPTED MANUSCRIPT
confirming that the Hirshfeld surface analysis provides a full understanding of the intermolecular
interactions in a facile and immediate way.
The Hirshfeld surface analysis confirms the importance of H-atom contacts in establishing
the packing. The large number of H···H, H···O/O···H and H···C/C···H interactions suggest that
van der Waals interactions and hydrogen bonding play the major roles in the crystal packing
[41] .
Fig. 4 - 8
3
.4. Computational DFT studies
DFT computational analysis is considered the most reliable for theoretical investigations on
compound’s reactivity and the binding possibilities for the compound’s interaction with DNA.
The optimized geometry, an electrostatic potential map for a maximum charge distribution and
HOMO-LUMO orbitals of the title compound are given in Fig. 9 and computed parameters are
provided in Table 5. Optimized structure indicated the presence of two phenylene rings and one
phenyl ring; hence 4 showed the possibility that it could intercalate through insertion
/
intercalation of these planar rings into the DNA base pairs. Least electron density site in
electrostatic potential map indicated the most electron deficient hydrogen which can accept the
lone pair of electrons from the electron rich parts of bases i.e., NH NH, =O etc of the DNA.
2
,
This caused hydrogen bonding which resulted in the stability of 4 – DNA adduct.
Stability, polarizability and the binding tendency of a compound could be justified on the
basis of computed ꢂE (HOMO – LUMO energy gap). The evaluated ꢂE value for 4 was found
very small, Table 5, which indicated that the compound is unstable and hence reactive in nature.
A high negative value of binding energy, the greater value of dipole moment and a small value of
13

ACCEPTED MANUSCRIPT
hardness, as presented in Table 5, further authenticated instability and greater tendency 4
towards binding with DNA [28].
Fig. 9, Table 5
3
.5. DNA-binding studies by UV- visible spectroscopy
DNA binding studies are considered the most significant way to investigate the binding
potentials of compounds that could act as anti-cancer drugs. UV- visible spectroscopy is the
most frequently employed and appropriate technique for DNA binding analysis of
compounds.
-4
Initially, UV- visible spectrum of 4 was run at its fixed concentration of 3.45 × 10 M
o
under physiological conditions (pH 4.7; Temp. 37 C) and shown in Fig. 10 (left; the topmost
spectrum). Two absorbance peaks appeared in the spectrum of 4; one with λmax of 226 nm
and the other with λmax of 327 nm. The peaks at higher and lower wavelengths could be
designated to appear due to low energetic π ··· π and high energetic n ··· π* transitions,
respectively. Then, compound’s spectra were recorded in the presence of varying ct-DNA
concentrations, Fig.10 (left; along the arrow direction). Upon addition of DNA from 10 – 90
µM into the sample solution; a prominent hyporchromism was observed along with redshift.
The % drop in the absorbance peak was evaluated 34.5 % while peak shift towards longer
wavelength was found 3.5 nm. This pronounced hypochromic effect with bathochromic (red)
shift as well as planarity in the compound’s structure clearly indicated that the 4 – DNA
interaction has occurred via intercalation of 4 into the DNA base pairs [42]. Further, two
isosbestic points also appeared in the UV-visible spectra which showed that an equilibrium
14

ACCEPTED MANUSCRIPT
mixture of 4 and DNA was present in the sample; hence the possibility of species other than
4
and DNA could be ignored.
Benesi-Hildebrand and classical Van’t Hoff's equation was used to calculate the intrinsic
binding constant (K ) and Gibbs free energy change (ꢂG), respectively [23-29].
b
Ao
εG
εG
εG ε H −G
1
=
+
(1)
(2)
A − Ao ε H −G
−
−
εG Kb
[
DNA
]
ꢂG = -RT lnK
Where, A
respectively; ɛ and ɛ are molar extinction coefficient of pure compound and compound –
b
o
and A are compound’s absorption in the absence and presence of ct-DNA,
G
H-G
DNA bound complex, respectively. By plotting A /A-A vs.1/[DNA], the value of binding
o
o
constant K was obtained from the intercept to slope ratio, Fig. 2 (right). The calculated value of
b
3
-1
the binding constant was found to 4.1 × 10 M . By using the value of K in Eq. 2; free energy
b
-1
change (ꢂG) was evaluated and the value was found to -21.44 kJ mol , which showed
spontaneity in the 4 – DNA binding.
Fig.10
3
.6. DNA binding studies by cyclic voltammetry
Cyclic voltammetry is a technique that has gained the parallel importance as UV-visible
spectroscopy for DNA binding studies. Experimental results obtained from both techniques are
helpful to elucidate kinetic and thermodynamic parameters. These parameters together with
instrumental responses are quite informative to investigate compound–DNA binding.
The cyclic voltammetric experiments were run on a glassy carbon electrode within the
potential scan range of -1.5 – 1.5 V and a scan rate of 100 mV/s. In 50% buffered ethanol (pH
15

ACCEPTED MANUSCRIPT
o
4
.7); compound’s voltammograms were scanned at 37 C without and in the presence of varying
DNA concentrations (10 – 50 ꢁM) and shown in Fig.11 (left). The voltammogram of 4 showed
two irreversible reduction peaks at -0.772 V and -0.048V. Significant changes in the
electrochemical responses of 4 after the addition of varying DNA concentrations was only
observed for a peak at a more negative potential. Upon DNA additions; a gradual decrease in
peak current was observed along with the peak shift towards less negative potential. The
magnitude of the current drop was evaluated 22.7% which showed that the concentration of free
compound has decreased. On the other hand, 4 have interacted with DNA via formation of the
compound – DNA complex.
Variation in current responses was further used in the following equation to determine the
binding constant of 4 after DNA interaction [23-29, 43].
1
2
2
2
2
I
=
( I
− I ) + I
p
− [ D N A ]
(3)
p
p
p
o
o
K [ D N A ]
b
p
In the equation, Ipo and I represent peak current of 4 alone and after DNA addition,
2
p
2
2
p
respectively. A plot of I
vs. Ipo - I
/ [DNA] gave a straight line with a slope equal to the
reciprocal of binding constant, K , Fig.11 (right). The binding constant of compound–DNA
b
3
-1
complex was calculated to be 5.62 × 10 M while using K value in Eq. 2; ꢂG was evaluated to
b
-1
-
22.25 kJ mol .
th
The K value was found in 1000 order of magnitude with both UV and CV studies and the
b
3
-1
same order has been reported for an intercalator isoxazocucumine (6.3 × 10 M ) [43]; hence on
the basis of structure, spectral / voltammetric responses and binding data; the investigated
compound could be predicted to have affinity with DNA via intercalation into its base pairs.
Fig.11
16

ACCEPTED MANUSCRIPT
3
.7. Viscometric studies
The more comprehensive and simple way to verify the binding of a compound with DNA is to
measure the viscosity of DNA after the addition of compound’s concentrations. DNA
lengthening is resulted due to insertion of a compound’s planar portions into the base pairs; as a
result, enhancement in the viscosity of DNA solution is observed. Hence this method could act
as a verification tool for DNA binding studies. The viscosity of DNA fixed concentration (10
ꢁ
M) before and after the addition of varying concentrations of 4 (10 – 80 µM) was measured. A
1
/3
graph was plotted between relative specific viscosity (η/η
o
)
vs. [compound]/[DNA]
concentration ratio and showed a linear rise in the relative specific viscosity of DNA in the
presence of 4, Fig. 12. The observed change in DNA viscosity is an indication that 4 has bound
with DNA via insertion of phenyl rings between the base pairs of DNA. This increase in the
viscosity not only indicated intercalative binding but it also authenticated the hypochromism and
redshift observed in UV- visible spectroscopy [23, 44].
Fig.12
4
. Conclusions
A novel Schiff base- 1-((E)-3-(4-bromophenyl) -1-phenylallylidene)-2-(m-tolyl)hydrazine (4)
was synthesized and characterized by spectroscopic techniques. Single crystal X-ray structure
determination of the title compound was confirmed by assignment of its structure from
spectroscopic data and clarified in detail. Intermolecular close contacts in the crystal structure of 4
by Hirshfeld surface analysis were visualized and quantified. HS analysis showed excessive
H···H, H···C/C···H, HꢀꢀꢀBr/BrꢀꢀꢀH, H···O/O···H and CꢀꢀꢀC interactions which confirmed the major
role of van der Waals and hydrogen bonding in the crystal packing. Geometry optimization and
17

ACCEPTED MANUSCRIPT
quantum parameters by DFT analysis revealed the reactive nature of 4 and the possibility for its
binding with DNA. Responses and data analysis by both spectroscopic and voltammetric
experiments were complimentary and indicated that 4 could interact with DNA base pairs via
insertion into the DNA duplex. Enhancement in the viscosity of DNA solution in the presence of
4
justified the theoretical and experimental findings and further disclosed that the test compound
has a tendency to bind with DNA via intercalation. However, some more in-vivo/vitro
experiments in biology and pharmaceutics may be needed for further verification of 4 as a
potential anticancer drug agent.
Acknowledgments
The authors would like to thanks all the mentioned departments of national and international
universities/institutes for the accomplishment of research explored in this paper.
Conflicts of Interest
Authors declare no conflict of interest.
References
1
2
. P. Singh, A. Anand, V. Kumar, Eur. J. Med. Chem.2014,85, 758–777.
. B.P. Bandgar, S.S. Gawande, R.G. Bodade, J.V. Totre, C.N. Khobragade, Bioorg. Med.
Chem. 2010, 18, 1364–1370.
3
. N. Yadav, S.K. Dixit, A. Bhattacharya, L.C. Mishra, M. Sharma, S.K. Awasthi, V.K.
Bhasin Biol. Drug Des.2012,80, 340–347.
18

ACCEPTED MANUSCRIPT
4
5
6
. M. Subramanian, G. Vanangamudi, G. Thirunarayanan, Spectrochim. Acta A: Mol.
Biomol. Spectrosc. 2013,110, 116–123.
. S. Bano, K. Javed, S. Ahmad, I.G. Rathish, S. Singh, M. Chaitanya, K.M. Arunasree, M.S.
Alam, Eur. J. Med. Chem.2013,65, 51–59
. S.A.Carvalho, L.O.Feitosa, M. Soares, T.E.M.M.Costa, M.G.Henriques, K.Salomao,
S.L.D.Castro, M.Kaiser, R.Brun, J.L.Wardell, S.M.S.V.Wardell, G.H.G.Trossini,
Andricopulo, E.F.D.Silva, C.A.M.Fraga, Eur. J. Med. Chem.2012, 54, 12–522.
.H. Sharma, S. Patil, T.W. Sanchez, N. Neamati, R.F. Schinazi, J.K. Buolamwini, Bioorg.
Med. Chem. 2011, 19, 2030–2045.
7
8
9
1
.A. Guida, M.H. Lhouty, D. Tichit, F Figueras, P. Geneste, Appl. Catal. A: Gen. 1997,164 ,
2
51–264.
. G. Romanelli, G. Pasquale, Á. Sathicq, H. Thomas, J. Autino, P. Vázquez, J. Mol.Catal.
A: Chem.2011,340, 24–32
0. S. Eddarir, N. Cotelle, Y. Bakkour, C. Rolando, Tetrahedron Lett. 2003,44, (28)5359–
5
363.
1
1
1
1
1. D.N. Dhar, The chemistry of chalcones and related compounds. John Wiley & Sons. 1981
2. J.S. Casas, M.S. Garcıa-Tasende, J. Sordo, Coord. Chem. Rev.2000,209 (1)197–261.
3. C. Debra Quenelle , A. Kathy Keith, R. Earl Kern. / Antiviral Research 71 (2006) 24–30
4. V. Mishra, S.N. Pandeya, C. Pannecouque, M. Witvrouw, E. De Clercq,. Arch. Pharm.
Pharm. Med. Chem. 2002, 5, 183–186
1
1
5. U. Kulandaivelu, V.G. Padmini, K. Suneetha, B. Shireesha, J.V. Vidyasagar, T.R. Rao, A.
Basu V. Jayaprakash, Archiv der Pharmazie, 2011,344, 84-90.
6. E.C. Friedberg, Nature 2003,421, 436–440.
19

ACCEPTED MANUSCRIPT
1
7. E.C. Friedberg, G.C. Walker, W. Siede, R.D. Wood, eds., American Society for
Microbiology Press. 2005,
1
1
2
2
8. M.Tascilar, F.A. de Jong, J.Verweij, R.H. Mathijssen, Oncologist2006,11, 732–741.
9. M. Sirajuddin, S. Ali, A. Badshah, J. Photochem. Photobiol. B: Biol.2013, 124, 1–19.
0. V. Brabec, O. Nováková, Drug Resist. Updat. 2006, 9 (3) 111–122.
1. L.F. Liu, S.D. Desai, T.K. LI, Y. Mao, M.E.I. Sun, S.P. SIM, Ann. NY. Acad. Sci.2000.
9
22, 1–10.
2
2
2. R. Martinez, L. Chacon-Garcia, Curr. Med. Chem.2005,12, 127–151.
3. N. Arshad, N.Abbas, M.H. Bhatti, N.Rashid, M.N.Tahir, S.Saleem, B. Mirza, J.
Photochem. Photobiol. B: Biol.2012,117, 228–239.
2
2
2
2
2
2
3
4. N. Arshad, S.I. Farooqi, M.H. Bhatti, S. Saleem, B. Mirza, J.Photochem. Photobiol. B:
Biol. 2013,125, 70–82.
5. N. Arshad, M. Ahmad, M.Z. Ashraf, H. Nadeem, J. Photochem. Photobiol. B: Biol.2014,
1
38, 331–346.
6. N. Arshad, M.H. Bhatti, S.I. Farooqi, S. Saleem, B. Mirza, Arab. J. Chem.2016,9, 451–
62.
4
7. N. Arshad, F. Perveen, A. Saeed, P.A. Channar, S.I. Farooqi, F.A. Larik, H. Ismail, B.
Mirza, J. Mol. Struct. 2017, 1139, 371– 380
8. N. Arshad, P.A. Channar, A. Saeed, S.I. Farooqi, A. Javed, F.A. Larik, W.A. Abbasi, U.
Flörke, J. Saudi Chem. Soc.2018,22, 1003-1013.
9. S.I. Farooqi, N. Arshad, P.A. Channar, F. Perveen, A. Saeed, F.A. Larik, A. Javeed,
J.Photochem. Photobiol. B: Biol.2018, 189,104–118.
0. A.N. Choudhary, V. Juyal, Int. J .Pharm. Pharmaceut. Sci. 2011, 3,125–128.
20

ACCEPTED MANUSCRIPT
3
1. Bruker SMART (Version 5.63), SAINT (Version 6.02). Bruker AXS Inc., Madison,
Wisconsin, USA. 2002.
3
3
2. G.M. Sheldrick, Acta Cryst. 2008,64, 112–122.
3. M. J.Turner, J. J. McKinnon, S. K. Wolff, D. J. Grimwood, P. R. Spackman, D. Jayatilaka,
M. A. Spackman, CrystalExplorer17. The University of Western Australia. 2017.
4. J. Bernstein, R.E. Davis, L. Shimoni, N.L. Chang, Chem. Int. Ed. Engl.1995,34, 1555–
3
1
573.(33)
3
3
3
3
5. F.L. Hirshfeld, Theor.Chim. Acta. 1977, 44, 129–138.
6. M.A. Spackman, D. Jayatilaka, Cryst. Eng. Comm.2009,11, 19–32.
7. M.A. Spackman, J.J. McKinnon, D. Jayatilaka, Cryst. Eng. Comm. 2008,10, 377–388.
8. P. Venkatesan, S. Thamotharan, A. Ilangovan, H. Liang, T. Sundius, Spectrochim. Acta
Part A, 2016, 153, 625–636.
3
9. D. Jayatilaka, D. J. Grimwood, A. Lee, A. Lemay, A. J. Russel, C. Taylor, S. K. Wolff,
P. Cassam-Chenai, A. Whitton, 2005.
4
4
0. J.J. McKinnon, D. Jayatilaka, M.A. Spackman, Chem. Commun. 2007, 37, 3814–3816.
1. V.R. Hathwar, M. Sist, M.R. Jørgensen, A.H. Mamakhel, X.Wang, C.M. Hoffmann,
K. Sugimoto, J. Overgaard, B.B. Iversen, IUCrJ, 2015, 2 (5) 563–574.
2. N.Raman, R. Mahalakshmi, M. Packiaraj, Inorg. Chem. Commun. 2014, 47, 20–26.
3. N. Shahabadi, A. Fatahi, J. Mol. Struct. 2010,970 (1-3) 90–95.
4. X.L. Wang, H. Chao, H. Li, X.L. Hong, Y.J. Liu, L.F. Tan, L.N. Ji, J. Inorg.
Biochem.2004, 98, 1143–1193.
4
4
4
21

ACCEPTED MANUSCRIPT
Figure captions
Fig. 1: Examples of some biological active α-β-unsaturated ketones derivatives.
Fig. 2. The molecular structure of the title compound.
Fig. 3. A partial view of the crystal packing of the title compound. The C—H ··· O and C—H ···
N hydrogen bonds are shown as dashed lines (see Table 2), and only H atoms involved in those
interactions have been included for clarity.
Fig. 4. View of the three-dimensional Hirshfeld surface of the title compound plotted over dnorm
in the range -0.1794 to 1.5932 a.u.
Fig. 5. View of the three-dimensional Hirshfeld surface of the title compound plotted over
electrostatic potential energy in the range -0.0500 to 0.0500 a.u. using the STO-3G basis set at
.
..
...
the Hartree–Fock level of theory. The C—H O and C—H N hydrogen-bond donors and/or
acceptors are viewed as blue and red regions around the atoms corresponding to positive and
negative potentials, respectively.
Fig. 6. Hirshfeld surface of the title compound plotted over shape-index.
Fig. 7. The full two-dimensional fingerprint plots for the title compound, showing (a) all
interactions, and delineated into (b) H···H, (c) H···C/C···H, (d) H···Br/Br···H, (e) H···O/O···H, (f)
…
…
C···C, (g) H···N/N···H, (h) N···C/C···N and (i) C Br/Br C interactions. The d and d values are
i
e
the closest internal and external distances (in Å) from given points on the Hirshfeld surface
contacts
Fig. 8. The Hirshfeld surface representations with the function dnorm plotted onto the surface for
(a) H···H, (b) H···C/C···H, (c) H···Br/Br···H, (d) H···O/O···H, (e) C···C, (f) H···N/N···H, (g)
…
…
N···C/C···N and (h) C Br/Br C interactions.
22

ACCEPTED MANUSCRIPT
Fig. 9. The frontier molecular orbital density distribution of 4 after optimization at DFT/
B3LYP/6-31G level. The figure includes optimized structure, electrostatic potential map,
bonding molecular orbital (HOMO), anti-bonding molecular orbital (LUMO).
Fig. 10. UV-visible absorption spectrum in the absence and presence of increasing
-1
concentrations of ct-DNA from 10 - 90 µM (left) and plot of A /A-A vs. 1/[DNA] (M) for the
o
o
determination of binding constant-K and free energy change-∆G (right).
b
Fig. 11. Cyclic voltammogram in the absence and presence of increasing concentrations of ct-
-1
DNA from 10 – 50 µM (left) and plot of A
0 0
/A-A vs. 1/[DNA](µM) for the determination of
binding constant-K and free energy change-∆G (right).
b
Fig. 12. The plot of relative specific viscosity against Compound–DNA concentrations ratio on
adding increasing concentrations of compound (10 – 80 µM) into the fixed concentration of
DNA (10µM) at physiological temperature (37 °C).
23

ACCEPTED MANUSCRIPT
Fig. 1: Examples of some biological active α-β-unsaturated ketones derivatives.
2
4

ACCEPTED MANUSCRIPT
Scheme 1. Synthesis of 1-((E)-3-(4-bromophenyl) -1-phenylallylidene)-2-(m-tolyl)hydrazine.
25

ACCEPTED MANUSCRIPT
Fig. 2. The molecular structure of the title compound.
26

ACCEPTED MANUSCRIPT
Fig. 3. A partial view of the crystal packing of the title compound. The C—H ··· O and C—H ···
N hydrogen bonds are shown as dashed lines (see Table 2), and only H atoms involved in those
interactions have been included for clarity.
27
