Biocompatible organic coatings based on bisphosphonic acid RGD‐derivatives for PEO‐modified titanium implants

Article abstract of DOI:10.3390/molecules25010229

Currently, significant attention is attracted to the problem of the development of the specific architecture and composition of the surface layer in order to control the biocompatibility of implants made of titanium and its alloys. The titanium surface properties can be tuned both by creating an inorganic sublayer with the desired morphology and by organic top coating contributing to bioactivity. In this work, we developed a composite biologically active coatings based on hybrid molecules obtained by chemical crosslinking of amino acid bisphosphonates with a linear tripeptide RGD, in combination with inorganic porous sublayer created on titanium by plasma electrolytic oxidation (PEO). After the addition of organic molecules, the PEO coated surface gets nobler, but corrosion currents increase. In vitro studies on proliferation and viability of fibroblasts, mesenchymal stem cells and osteoblastlike cells showed the significant dependence of the molecule bioactivity on the structure of bisphosphonate anchor and the linker. Several RGDmodified bisphosphonates of β–alanine, γ–aminobutyric and ε–aminocaproic acids with BMPS or SMCC linkers can be recommended as promising candidates for further in vivo research.

Full text of DOI:10.3390/molecules25010229

molecules
Article
Biocompatible Organic Coatings Based on
Bisphosphonic Acid RGD-Derivatives for
PEO-Modified Titanium Implants
Lyudmila V. Parfenova 1,
*
, Elena S. Lukina 1, Zulfia R. Galimshina 1, Guzel U. Gil’fanova 1,
Veta R. Mukaeva 2, Ruzil G. Farrakhov 2, Ksenia V. Danilko 3, Grigory S. Dyakonov 4 and
Evgeny V. Parfenov 2
1
Institute of Petrochemistry and Catalysis of Russian Academy of Sciences, 141, Prospekt Oktyabrya,
450075 Ufa, Russia; elenlykina@mail.ru (E.S.L.); zgalimshina@mail.ru (Z.R.G.);
gilfanova.guzel@gmail.com (G.U.G.)
Department of Theoretical Basis of Electrical Engineering, Ufa State Aviation Technical University,
2
12 Karl Marx Street, 450008 Ufa, Russia; veta_mr@mail.ru (V.R.M.); frg1982@mail.ru (R.G.F.);
evparfenov@mail.ru (E.V.P.)
Bashkir State Medical University, 3 Lenin Street, 450000 Ufa, Russia; kse-danilko@yandex.ru
3
4
Institute of Physics of Advanced Materials, Ufa State Aviation Technical University, 12 Karl Marx Street,
450008 Ufa, Russia; dgr84@mail.ru
*
Correspondence: luda_parfenova@ipc-ras.ru; Tel.: +7-347-284-3527
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editor: Derek J. McPhee
Received: 26 November 2019; Accepted: 1 January 2020; Published: 6 January 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: Currently, significant attention is attracted to the problem of the development of the specific
architecture and composition of the surface layer in order to control the biocompatibility of implants
made of titanium and its alloys. The titanium surface properties can be tuned both by creating an
inorganic sublayer with the desired morphology and by organic top coating contributing to bioactivity.
In this work, we developed a composite biologically active coatings based on hybrid molecules
obtained by chemical cross-linking of amino acid bisphosphonates with a linear tripeptide RGD,
in combination with inorganic porous sublayer created on titanium by plasma electrolytic oxidation
(PEO). After the addition of organic molecules, the PEO coated surface gets nobler, but corrosion
currents increase. In vitro studies on proliferation and viability of fibroblasts, mesenchymal stem cells
and osteoblast-like cells showed the significant dependence of the molecule bioactivity on the structure
of bisphosphonate anchor and the linker. Several RGD-modified bisphosphonates of
-aminobutyric and -aminocaproic acids with BMPS or SMCC linkers can be recommended as
promising candidates for further in vivo research.
β-alanine,
γ
ε
Keywords: titanium implants; plasma electrolytic oxidation; RGD peptide; bisphosphonic acid;
in vitro tests; fibroblasts; mesenchymal stem cells; human osteosarcoma cells
1. Introduction
Traumatology and orthopedics generate high demand in implants for osseosynthesis, and,
according to market forecasts, this demand will increase due to the spread of extreme activities and the
aging of the population. Currently, various biomimetic approaches that ensure the biocompatibility of
the implants are developed [1]. As a rule, they suggest changes in the architecture and composition
of the surface layer so that the devices gain the properties of the bone tissue and cell membranes.
In current medical practice, preference is given to implants made of titanium and its alloys, due to
their bioinert properties and high corrosion resistance [2]. The modification of the titanium surface is
achieved both through inorganic coatings that approximate the phase composition and morphology of
Molecules 2020, 25, 229; doi:10.3390/molecules25010229
www.mdpi.com/journal/molecules

Molecules 2020, 25, 229
2 of 21
the human bone and by introduction of organic molecules containing functional fragments actively
interacting with the proteins of the extracellular matrix (ECM). These approaches should provide both
biomechanical and biochemical compatibility of the implants, their corrosion resistance, and, therefore,
should successfully initiate the metal device osseointegration into the bone tissue.
Currently, significant attention is attracted to the biomimetic coatings based on the method of
plasma electrolytic oxidation (PEO) [
titania (rutile and anatase) tightly attached to the surface [
and cations of the electrolyte into the coating; this provides Ca-, P- containing bioactive crystalline
phases within the coating: hydroxyapatite, tricalciumphosphate, tetracalciumphosphate, perovskite [ ].
3
,4]. The inorganic parts of the PEO coatings contain stable
5
]. PEO helps to incorporate the anions
6
Nevertheless, medical implants, once introduced into a biological system, get covered by nonspecific
proteins within a few seconds. The adsorbed layer initiates a foreign body reaction of the organism;
this causes the formation of a vascular fibrous capsule isolating the implant from the target tissue [7].
Consequently, current state-of-the-art includes the development of biocompatible bifunctional organic
top coatings, which, on one hand would mask the implant, on the other hand, would initiate the implant
osseointegration. These modern materials include: non-fouling coatings based on polysaccharides;
hydrophilic self-assembled monolayers or polyethylene glycol, also in combination with oligopeptides
(OP); bioactive coatings based on the extracellular matrix proteins (e.g., fibronectin, collagen, laminin,
and osteopontin), having both long and short sequences of the amino acids [8–12]. The combination of
the PEO inorganic sublayer and the organic top coating appears to be a promising direction for the
development of implants with enhanced osseointegration [13–15].
Among relatively short bioactive peptide sequences, special attention is paid to RGD
(arginine-glycine-aspartic acid), which is a tripeptide fragment appearing in numerous extracellular
matrix proteins, and to which the cells attach using specific receptors on their surface [16]. Its discovery
led to the identification of a large family of the cell surface adhesion receptors, called integrins, which
recognize RGD-specific sequences in certain proteins of the extracellular matrix. The literature survey
shows significant research efforts put into the application of the RGD-containing oligopeptides for the
titanium surface modification. Various methods of the deposition have been developed: silanization
of the surface by aminosilanes (including APTES) followed by the binding with RGD-containing
oligopeptide via various linkers [17
and natural biopolymers [35 39]; oligopeptides attachment to the titanium via CDI [40
chloride [42] surface activation; immobilization of OP on Ti via electrodeposited poly(ethyleneglycol)
(PEG) [43 45]; physicochemical adsorption of oligopeptides as well as SH-ended derivatives [23 46 51
and 3,4-dihydroxyphenylalanine (DOPA) functionalized OP [52] from solutions; physicochemical
adsorption of OP with a phosphonate anchor [22 23 36 51 53 58]. The strategy of the phosphonate
anchors appears to be very attractive when bonding the inorganic oxide sublayer with the organic
top coating. As shown elsewhere [59 61], phosphonate groups have high affinity to metal ions and
their oxides, and they are almost not prone to hydrolytic cleavage, unlike siloxanes [62 63]. The
–
30]; oligopeptide- functionalized synthetic polymers [31
–34]
–
,41] or tresyl
–
,
–
]
,
, , , –
–
,
introduction of gem-bisphosphonic group into the molecules increases their affinity to the oxidized
surfaces compared to monophosphonates, and this increases their aqueous solubility due to the
changing of the molecule polarity [64,65].
Plasma electrolytic oxidation currently is a well-developed electrochemical technique used to
produce ceramic coatings with improved adhesion over the surface of valve metals such as titanium,
magnesium, aluminum and zirconium [66–68]. Due to the unique surface morphology of the porous
coating, PEO provides better biocompatibility of the surface and for the cell proliferation [69]. The PEO
process is an expansion of the traditional anodizing into high voltages of up to 600 V; these voltages
promote microdischarges within the coating; this results in its resoldifying and intensive growth [70].
The process mechanism includes electrochemical oxidation and numerous melting and crystallizing
events at the microdischarge sites. This coating formation mechanism helps to develop coatings with
regulated porosity, with the pore size from 0.1 to 10
µm and roughness Ra from 1 to 10 µm; the wide
network of the pores forms a fractal-like structure, with the pore size increasing to the top of the

Molecules 2020, 25, 229
3 of 21
coating [71]. The high surface area of the PEO coating allows deposition of various functional organic
components, and the PEO coating acts as a sublayer increasing adhesion, and as the organic substance
carrier [72–76].
Our recent study [15] showed that the combination of the PEO coating and RGD-modified
bisphosphonic acid on nano-Ti gives a 45% increase in the number of proliferated cells compared to
uncoated nano-Ti, and 66% compared to coarse grain Ti.
In the presented study, we expanded the number of hybrid RGD-functionalyzed molecules in
order to uderstand how the structure of the bisphosphonate anchors and linkers (BMPS, EMCS, SMCC)
affects the biological activity of the composite coatings based on inorganic porous PEO sublayer on
titanium; moreover, the biological effect of the synthesized organic molecules was studied in vitro
on a larger set of cell lines (mesenchymal stem cells, fibroblasts and osteoblast-like cells). Therefore,
the aim of this work is to synthesize the hybrid molecules by chemical cross-linking of amino acid
bisphosphonates with a linear RGD tripeptide through linkers that differ in length and structure for
effective use in combination with inorganic porous PEO sublayer on titanium, and to identify the most
promising options for the design of the proposed biomimetic coatings.
2. Results and Discussion
The experimental design concerns the variation of the anchors and linkers to attach the RGD
peptide to the titanium implant. For the sake of the clarity, the following sample identification
is used: Ti—for the metal substrate; Ti-PEO—for the inorganic PEO coating over the substrate;
Ti-PEO-RGD—for the PEO coating soaked in the RGD aqueous solution; Ti-PEO-(number)-RGD—for
the PEO coating soaked in the aqueous solution of the RGD-modified bisphosphonic acids, where the
(number) indicates the compound in accordance with the reaction Scheme 1 and the corresponding
description in Section 3.2. As a result, this sample identification shows the structures of the proposed
composite coatings.
2.1. Synthesis of Bioactive Bifunctional Molecules
As a base for the design of the RGD-containing self- assembled monolayers on the PEO-modified
meal surface, we synthesized aminoacid bisphosphonates 1–3 via the reaction of the corresponding
amino acids (β-alanine, γ-aminobutyric and ε-aminocaproic acids) with PCl3 in methanesulfonic acid
(Scheme 1). We found that carrying out the synthesis at elevated temperature (85–90 ◦C) decreases
the reaction time to 4–5 h, and, along with the separation of the products at pH = 6, increases the
resulting yield of the amino bisphosphonates up to 85–89%. The N-maleimidosuccinimide linkers
(BMPS, EMCS and SMCC)
N–hydroxysuccinimide and aminocarboxylic acids in DMF [77
4
–
6
were obtained in yields of 60–89% via the reaction of maleic anhydride,
78]. The N-maleimido derivatives 14
,
7–
for further modification by the oligopeptide were obtained by interaction of amino bisphosphonates
with N-maleimidosuccinimide linkers. The application of acetone instead of dioxane as the solvent
used elsewhere [79] helped to avoid the formation of relatively heavy side products whose appearance
is an inevitable consequence of the dioxane cycle modification. Target RGD-modified amino acid
bisphosphonates 15
–22 were obtained by the reaction of the corresponding derivatives 7–14 with
RGDC in an aqueous medium at pH = 7 by Michael reaction.
The structure of the RGD-modified aminoacid bisphosphonates was confirmed by mass-spectrometry
MALDI TOF/TOF, 1D (1H, 13C, 31P) and 2D NMR spectroscopy. In the MALDI TOF/TOF mass spectra
of the hybrid molecules, the peaks with m/z corresponding to the molecular ions were detected. The
31P-NMR spectra exhibited single resonance lines at δP 17–18 ppm, characteristic to bisphosphonate
groups. Signals corresponding to fragments of amino bisphosphonate, linker, and RGDC were
observed in 1H- and 13C-NMR spectra. The formation of compounds 15
–22 was accompanied by the
disappearance of the signal of double bond protons of the N-maleimido fragment in derivatives
7–14
at δH 6–7 ppm in the 1H-NMR spectrum.

Molecules 2020, 25, 229
4 of 21

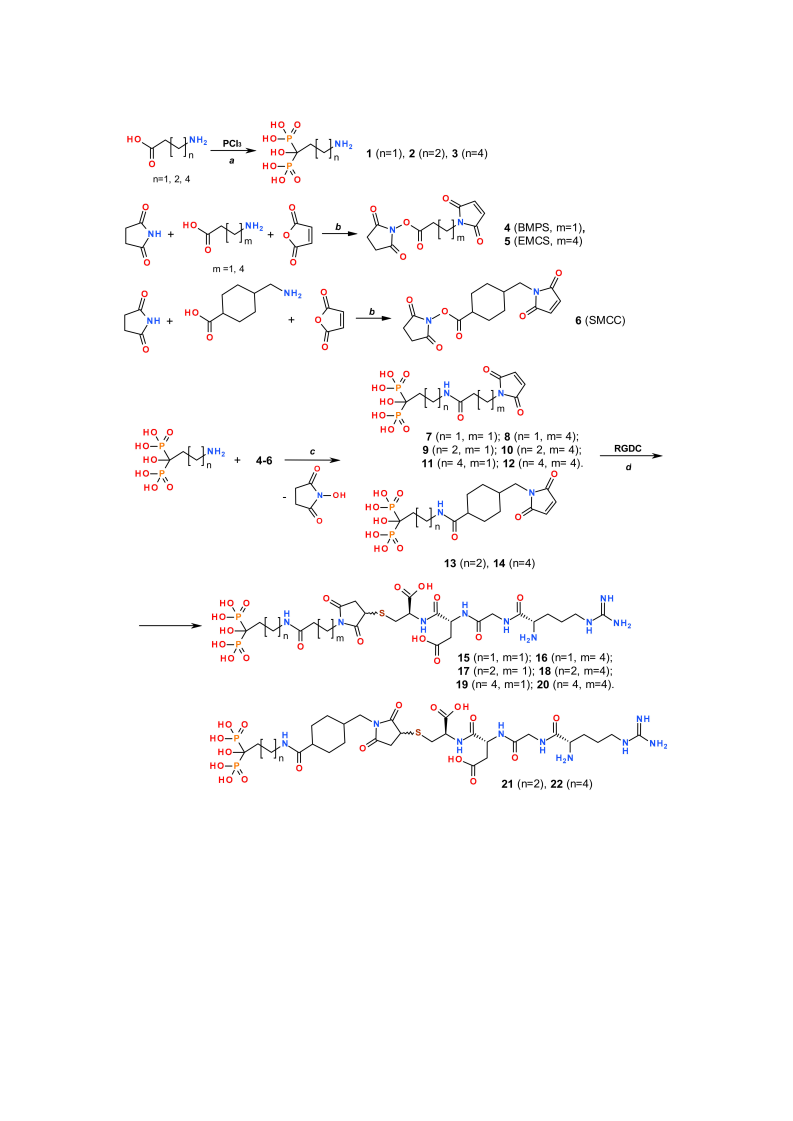

Scheme 1. Reagents and conditions: (
a
) MeSO3H, 4–5 h, 85–90 ◦C; (
b
) DMF, 3–16 h, 0
→
25 ◦C; (
c) H2O:
acetone = 1:1, pH = 8–9, 1 h, 38–40 ◦C; (d) H2O, pH = 7, 1–1.5 h, 38–40 ◦C.
2.2. PEO Coating Characterization
Figure 1 shows the top view and cross-section of the PEO coating. The coating exhibits a porous
morphology, with porosity evaluated as 18.2 2.5%. The coating thickness is 19.3 1.5 m, surface
roughness 1.5 0.2 m. This type of morphology contributes towards cell proliferation, and it supplies
a well-developed surface for the introduction of the organic compounds with bisphosphonate anchors
into the resulting composite coating [15]. The coating surface porosity is 9.5 0.8%; the real 3D
structure of this well-developed network of pores can be seen elsewhere for a similar PEO coating [80].
±
±
µ
±
µ
±

Molecules 2020, 25, 229
5 of 21
Figure 1. SEM images of the PEO coating: (a) Top view; (b) Cross-section.
As follows from Figure 2, the PEO coating consists of crystalline titania in two phase
modifications—rutile and anatase (49 and 51% respectively). Also, the XRD pattern shows the
peaks belonging to α-Ti substrate. This coating composition and morphology provides sufficient
surface passivation for the implant prolonged operation in the corrosive fluids of a human body [81].
Also, this type of coating exhibits exceptional adhesion to the titanium surface as summarized
elsewhere [5].
Figure 2. XRD pattern of the PEO coating with the labeled peaks and SemiQuant results.
2.3. XPS Analysis of the Composite PEO Coating Functionalized with RGD Derivatives
Since the introduction of the RGD derivatives into the inorganic PEO coating was performed
at a low concentration of 10−3 M, it falls below the capabilities of the SEM and XRD techniques to
detect organic compounds on the titania surface. Therefore, XPS studies were employed in order to
verify the presence of the RGD derivatives within the coating; a typical survey spectrum is shown in
Figure 3. In details the XPS spectra are presented in the Supplementary Materials. The survey XPS
spectra collected from the PEO-coated titanium samples indicate typical Ti 2p, Ti 3s O 1s, C 1s, P 2p, N
1s, O KLL and Ti LMM Auger peaks. The spectra of the RGD-modified samples confirm changes in the
surface layer chemistry compared to the unmodified PEO sample.

Molecules 2020, 25, 229
6 of 21
Figure 3. Survey XPS spectra of the Ti-PEO coating.
As follows from the high-resolution XPS spectra, the organic molecules attached to the surface
affect the relative content of nitrogen, phosphorus, carbon, oxygen, and sulfur (Table 1). The most
notable differences appear for the Ti2p, C1s and N1s peaks. The Ti2p signal decreased after the RGD
modification, and the N1s and C1s signals increased. Also, the RGD-modified surface shows the
presence of S2p signals, whereas for the Ti-PEO surface this signal does not appear. The changes in
the atomic ratio (Ti2p/C1s) and (Ti2p/P2p) show that the titanium signal decreases for all the RGD
modified types of the surface. This is consistent with the observations made elsewhere [27,82,83].
Table 1. Atomic composition and atomic ratio derived from XPS high-resolution spectra for the Ti-PEO
samples with and without RGD modification.
XPS Atomic Composition (at %)
Atomic Ratio
Ti2p/C1s Ti2p/P2p
Sample
N1s
P2p
C1s
O1s
Ti2p
S2p
Ti-PEO
1.48
5.43
4.87
2.37
5.86
2.88
2.35
3.57
6.96
4.60
6.06
3.01
3.52
6.00
7.00
70.49
67.25
60.59
65.20
57.20
67.96
67.36
17.36
6.72
16.39
10.79
7.50
0.00
0.30
0.00
0.00
0.50
0.21
0.00
2.48
0.50
1.21
0.70
0.29
0.78
0.35
4.86
0.97
3.56
1.78
2.49
3.15
1.05
Ti-PEO-15-RGD
Ti-PEO-16-RGD
Ti-PEO-17-RGD
Ti-PEO-18-RGD
Ti-PEO-19-RGD
Ti-PEO-20-RGD
13.34
13.54
15.48
25.92
14.32
18.03
11.10
6.27
2.4. Electrochemical Behavior of the Composite PEO Coating Functionalized with RGD Derivatives
The electrochemical behavior of the composite PEO coating functionalized with RGD derivatives
was studied using compounds 15–18 as examples. The polarization curves (Figure 4) show notable
differences among the surface having PEO and various RGD treatments. As expected, after the PEO,
the surface passivates, and the Ecorr becomes nobler; the corrosion current icorr decreases, which is
followed by an order of magnitude increase in the polarization resistance Rp (Figure 5). All the RGD
functionalized coatings show the surface, nobler than that of the Ti-PEO sample. The cathodic parts of
the polarization curves do not show significant differences compared to Ti and Ti-PEO samples. This
indicates that cathodic corrosion processes are not influenced by this type of coating since the cathodic

Molecules 2020, 25, 229
7 of 21
Tafel parts show almost similar slopes. However, the anodic behavior is significantly influenced by the
coating. Ti-PEO sample shows a passivation region above 0.1 V(AgCl). The introduction of the RGD-
modified bisphosphonates depassivates the surface; the corrosion current increases compared to that
of Ti-PEO and Ti samples (Figure 5). The depassivation region belongs to the range 0.1 to 0.1 V (AgCl)
−
−
and ends with a pitting current tip followed by a passivation region above 0.1 V (AgCl). The changes
in the anodic kinetics rise the Ecorr, and this is followed by the increase of the icorr. This indicates that
the RGD functionalization increases the exchange currents, and this icorr behavior is supported by the
decrease of Rp.
Figure 4. Polarization curves in Ringer’s solution for the Ti samples, with PEO coating, and
RGD modification.
2.5. In Vitro Test Results Supporting The Efficiency of Proposed PEO Coating Functionalized with
RGD Derivatives
As follows from the literature analysis, the application of RGD-containing bisphosphonates to the
titanium surface leads to the increase in cell adhesion, proliferation and mineralization [22
The cell adhesion appeared to be sensitive to the anchor used [57,59].
,23,51,53].
The in vitro results presented in Figure 6 show that the different cell lines give dissimilar reactions
to the same type of coating. The biological response also depends on the structure of the source amino
bisphosphonate and the linker. It was shown that RGDC-oligopeptide itself introduced into the PEO
coating without the anchor does not affect the cell life activity on the surface.
A significant (up to 30–40%) increase in the fibroblast proliferation was observed when using
the organic molecules with relatively short linkers and aminobisphosphonate fragments BMPS-
(Ti-PEO-15-RGD) and BMPS- (Ti-PEO-17-RGD). Moreover, the sample Ti-PEO-15-RGD based on
-alanine bisphosphonate with the short BMPS linker and RGD peptide has shown the best adhesion
β
γ
β
for the osteoblast-like cells MG-63 compared to the other samples.
The derivatives containing EMCS linker (Ti-PEO-16-RGD and Ti-PEO-18-RGD) lead to a decrease
in the proliferation of MG-63 on the PEO-modified surface. The same tendency was found in the case
of mesenchymal stem cells then the long-chained molecules containing EMCS linker (Ti-PEO-16-RGD,
Ti-PEO-18-RGD, and Ti-PEO-20-RGD) or derivative of ε-aminocaproic acid (Ti-PEO-19-RGD) were
applied. In contrast, SMCC-linked compounds (Ti-PEO-21-RGD and Ti-PEO-22-RGD) provide the
increasing of the cell growth up to 20% on the surface.

Molecules 2020, 25, 229
8 of 21
Figure 5. Electrochemical properties in Ringer’s solution for the Ti samples, with PEO coating, and RGD
modification: (a) Corrosion potential Ecorr; (b) Corrosion current icorr; (c) Polarization resistance Rp.

Molecules 2020, 25, 229
9 of 21
Figure 6. Optical density showing viability and proliferation of fibroblasts (FLECH-104), human
osteoblast-like cells (MG-63) and mesenchymal stem cells (MSC) cultured on the surface of Ti-PEO
functionalized by RGD-derivatives (15 22) after 7 days (metal samples were kept for 1 h at room
–
temperature in the solutions of compounds 15
–
22 with concentrations 1.3
×
10−3–1.8
×
10−3 M/L and
then dried).
Summarizing the in vitro studies, we can conclude that RGD functionalized hybrid molecules 15
,
17
,
21, 22 appear to be promising organic top coatings for modulation of the biological activity of the
PEO modified surface of titanium implants. The differences in the cell behavior depending on the
compound structure can be caused by their cytotoxicity and orientation on the PEO surface during
adsorption; this requires further studies that are currently conducted in our research group.
3. Materials and Methods
3.1. General Information
The following reagents were used for the synthesis: methanesulfonic acid (98%, Acros Organics,
Geel, Belgium), PCl3 (98%, Acros Organics),
Acros Organics) and -aminocaproic acid (
(98+%, Acros Organics), N-hydroxysuccinimide (98+%, Acros Organics), dicyclohexylcarbodiimide
(DCC, 99%, Acros Organics) and RGDC oligopeptide (Arg-Gly-Asp-Cys trifluoroacetate, Bachem,
Bubendorf, Switzerland).
β
-alanine (97%, Acros Organics),
γ-aminobutanoic (99+%,
ε
≥
98.5%, Merk, Darmstadt, Germany), maleic anhydride
Spectroscopic studies were performed by 1H, 13C and 31P-NMR on an AVANCE-500 spectrometer
(Bruker, Rheinstetten, Germany; operating frequency 500.17 MHz (1H), 125.78 MHz (13C) and
202.48 MHz (31P)). D2O and CDCl3 were used as internal standards and solvents. 31P-NMR chemical
shifts are given relative to the standard, an 85% solution of H3PO4 in H2O (δP 0 ppm). Samples were
prepared in a standard tube with a diameter of 5 mm. The chemical shifts of carbon and hydrogen
atoms are given on the scale δ (ppm) with respect to TMS, the KCCB values (J) are given in Hz. One
and two-dimensional NMR spectra (COSY HH, HSQC, HMBC, NOESY) were recorded using standard
pulse sequences. Mass spectra were obtained on MALDI-TOF/TOF Autoflex III system (Bruker) using
2,5-dihydroxybenzoic acid (2,5-DHB) or α-cyano-4-hydroxycinnamic acid (CHCA) as matrices.

Molecules 2020, 25, 229
10 of 21
3.2. Synthesis of RGD-Functionalized Derivatives
3.2.1. Synthesis of Amino-1-hydroxyalkan-1,1-diyl-bisphosphonic acids 1–3
The synthesis of aminobisphosphonic acids was basd on a literature method [84] somewhat
modified by us. A portion of the amino acid (0.025 mol) ( –alanine, –butanoic acid, –aminocaproic
β
γ
ε
acid) is dissolved in 10 mL of methanesulfonic acid (MSA) in a flask with intensive stirring. Then,
7.0 mL (0.080 mol) of phosphorus (III) chloride is slowly added dropwise to the solution over 15 min.
The contents of the flask are stirred under heating (80–85 ◦C) for 4–6 h, then cooled to room temperature.
After cooling, 12 mL (0.67 mol) of water are added, and the reaction mixture is hydrolyzed at 105 ◦C
for 4 h. After cooling, the pH of the solution is adjusted to 6–7 by adding to the mixture 12 mL of 50%
aqueous sodium hydroxide solution. Then the reaction mass precipitated with 40 mL of MeOH. The
precipitate is separated on the Schott filter. The crude product is dissolved in 20 mL of water, stirred at
50–70 ◦C for 30 min, then cooled and precipitated with 40 mL of MeOH. The solid phase is separated
using a Schott filter.
(3-Amino-1-hydroxypropane-1,1-diyl)-bisphosphonic acid (
1
). Yield 5.3 g (85%). IR (
ν
, cm−1): 3448, 1613
: 2.18 (sept,
(OH), 1526, 916 (NH2), 1377, 1171 (P=O), 2726, 2675, 1281 (CH2). 1H-NMR (D2O)
δ
3J = 6.1 Hz, 2H, C2H2), 3.24 (t, 3J = 6.5 Hz, 2H, C3H2). 13C-NMR (D2O) δ: 30.52 (C2), 36.12 (C3), 72.64
(t, 1JC-P = 133.8 Hz, C1). 31P-NMR (D2O)
δ
: 17.04. MALDI-TOF/TOF m/z 234.018 [M
−
H]+, calc. for
C3H10NO7P2 235.069.
(4-Amino-1-hydroxybutane-1,1-diyl)-bisphosphonic acid (
2
). Yield 5.5 g (88%). IR (
ν
, cm−1): 3460, 1651
δ: 1.77–1.94 (m, 4H,
1
(OH), 1538, 907 (NH2), 1376, 1149 (P=O), 2526, 2435, 1272 (CH2). H-NMR (D2O)
C2H2, C3H2), 2.82 (t, 3J = 6.1 Hz, 2H, C4H2). 13C-NMR (D2O)
δ
: 31.90 (C2), 23.93 (t, 3JC-P = 5.5 Hz, C3),
40.56 (C4), 73.3 (t, 1JC-P = 134.1 Hz, C1). 31P-NMR (D2O)
δ: 17.93. MALDI TOF/TOF m/z: 247.086 [M
−
2H]+, 269.069 [M − 2H + Na]+, 285.036 [M − 2H + K]+, calc. for C4H13NO7P2 249.016.
(6-Amino-1-hydroxyhexane-1,1-diyl)-bisphosphonic acid (
3
). Yield 6.2 g (89%). IR (
ν
, cm−1): 3433, 1636
δ: 1.76–1.89 (m, 2H,
1
(OH), 1547, 910 (NH2), 1376, 1167 (P=O), 2723, 2671, 1282 (CH2). H-NMR (D2O)
C2H2), 1.63 (quint., 3J = 7.3 Hz, 2H, C5H2), 1.33 (quint., 3J = 7.3 Hz, 2H, C4H2), 1.47–1.58 (m, 2H, C3H2),
2.94 (t, 3J = 7.3 Hz, 2H, C6H2). 13C-NMR (D2O) : 22.87 (t, 3JC-P = 5.6 Hz, C3), 26.17 (C4), 26.33 (C5),
δ
33.35 (C2), 39.27 (C6), 74.07 (t, 1JC-P = 134.7 Hz, C1). 31P-NMR (D2O)
299.193 [M—H + Na]+, calc. for C6H17NO7P2 277.048.
δ: 18.48. MALDI TOF/TOF, m/z:
3.2.2. Synthesis of (N-Maleimidoalkyl)succinimide Esters (4–6)
The synthesis of compounds was carried out according to the method described in [77,78].
A portion of 3 mmol of an amino acid is added to a solution of maleic anhydride (0.3 g, 3 mmol) in 4 mL
of DMF, stirred for 2 h at room temperature. After complete dissolution, at a temperature of 0 ◦C, 0.43 g
(3.75 mmol) of N-hydroxysuccinimide (NHS) and 1.24 g (6 mmol) of dicyclohexylcarbodiimide (DCC)
are added to the solution. The reaction mass is stirred in an ice bath 5–10 min and then incubated at
room temperature for a day. The formation of a white precipitate of dicyclohexylurea is observed.
The precipitate is washed with 20 mL of water and 20 mL of methylene chloride. The organic layer
is treated with 10 mL of water, extracted with methylene chloride, then 10 mL of 5% NaHCO3 are
added and extracted with methylene chloride (the procedure is carried out three times). The organic
layer was dried over Na2SO4, the solution was filtered and the solvent was evaporated at the reduced
pressure. The residue was purified by column chromatography on SiO2 with CHCl3/MeOH (from 1:0
to 100:1) as an eluent to give compounds 4–6.
1
(2,5-Dioxopyrrolidin-1-yl)-3-(2,5-dioxopyrrol-1-yl)propanoate (BMPS) (
4
). Yield 0.47 g (60%). H-NMR
1
spectrum matches the one reported in [85]. H-NMR (CDCl3)
δ
: 2.84 (s, 4H, NHS), 3.04 (t, J = 6.5 Hz,
2H, CH2C=O), 3.85 (t, J = 6.5 Hz, 2H, CH2N), 6.79 (s, 2H, CH=CH).

Molecules 2020, 25, 229
11 of 21
(2,5-Dioxopyrrolidin-1-yl)-6-(2,5-dioxopyrrol-1-yl)hexanoate (EMCS) (
5
). Yield 0.55 g (60%). The 1H-NMR
spectrum corresponds to the one reported in [86] 1H-NMR (CDCl3)
δ: 1.29 (quint, J = 7.6 Hz, 2H, CH2),
1.54 (quint, J = 7.6 Hz, 2H, CH2), 1.67 (quint, J = 7.2 Hz, 2H, CH2), 2.63 (t, J = 7.2 Hz, 2H, CH2C=O),
2.86 (s, 4H, NHS), 3.45 (d, J = 6.8 Hz, 2H, CH2N), 6.75 (s, 2H, CH=CH).
(2,5-Dioxopyrrolidin-1-yl)-4-[(2,5-dioxopyrrol-1-yl)methyl]cyclohexanecarboxylate (SMCC) (6). Yield 0.89 g
1
1
(89%). H-NMR spectrum corresponds to the literature data [85,87]. H-NMR (CDCl3) δ: 1.01–1.14 (m,
2H, cyclohexyl CH2ax), 1.47–1.61 (m, 2H, cyclohexyl COCHCH2ax), 1.60–1.75 (m, 1H, cyclohexyl CH),
1.76–1.85 (m, 2H, cyclohexyl CH2eq), 2.11–2.22 (m, 2H, cyclohexyl COCHCH2eq), 2.55–2.64 (m, 1H,
cyclohexyl COCH), 2.83 (s, 4H, NHS), 3.40 (d, J = 7.3 Hz, 2H, CH2N), 6.72 (s, 2H, CH=CH).
3.2.3. Synthesis of Conjugates of Aminobisphosphonic Acids with Maleimidosuccinimide
Linkers 7–14
The synthesis described in [79] was modified. Bisphosphonates
0.6 mL of water, the pH of the solution is adjusted to 8–9 with 0.1 N NaOH solution (~150
good stirring, an equimolar amount of linker (0.04 mmol) dissolved in 0.6 mL of acetone is added to
the resulting solution. The reaction mass is stirred at room temperature for 15–30 min, then neutralized
1–3
(0.04 mmol) are dissolved in
µL). With
4–6
to pH = 7 with a 0.1 N HCl solution and concentrated under reduced pressure. Compounds 7–14 are
obtained as white powders.
(3-{[3-(2,5-Dioxo-2,5-dihydro-1H-pyrrol-1-yl)propanoyl]amino}-1-hydroxypropane-1,1-diyl)-bis-(phosphonic
1
acid) (BMPS-
β) (7
). Yield 0.009 g (60%). H-NMR (D2O): 1.93–2.09 (m, 2H, C2H2), 2.42 (t, 3J = 6.5 Hz,
2H, C5H2), 3.35 (t, 3J = 7.8 Hz, 2H, C3H2), 3.71 (t, 3J = 6.0 Hz, 2H, C6H2), 6.78 (s, HC=CH). 13C-NMR
(D2O): 32.61 (C2), 34.37 (C6), 34.77 (C5), 35.57 (t, JC-P = 7.8 Hz, C6), 72.87 (t, JC-P = 133.7 Hz, C1),
134.43 (C8), 172.65 (C4), 173.01 (C7). 31P-NMR (D2O): 17.68. MALDI-TOF/TOF m/z 446.093 [M + Na +
K]+, 468.063 [M + 2Na + K]+, calc. for C10H16N2O10P2 386.189.
3
1
(3-{[6-(2,5-Dioxo-2,5-dihydro-1H-pyrrol-1-yl)hexanoyl]amino}-1-hydroxypropane-1,1-diyl)-bis-(phosphonic
acid) (EMCS-
bis(phosphonic acid) (BMPS-
β
) (
8
). (4-{[3-(2,5-Dioxo-2,5-dihydro-1H-pyrrol-1-yl)propanoyl]amino}-1-hydroxybutane-1,1-diyl)
γ
) (
9
). Yield 0.014 g (88%). 1H-NMR (D2O): 1.63–1.76 (m, 2H, C3H2),
1.77–1.89 (m, 2H, C2H2), 2.42 (t, J = 6.4 Hz, 2H, C6H2), 3.06 (t, J = 6.8 Hz, 2H, C4H2), 3.71 (t,
3J = 6.6 Hz, 2H, C7H2), 6.78 (s, HC=CH). 13C-NMR (D2O): 23.18 (t, 3JC-P = 6.8 Hz, C3), 31.03 (C2), 34.46
(C6), 34.70 (C7), 40.14 (C4), 73.78 (t, 1JC-P = 134.8 Hz, C1), 134.47 (C9), 172.66 (C8), 173.37 (C5). 31P-NMR
(D2O): 18.20. MALDI-TOF/TOF m/z 400.080 [M]+, calc. for C11H18N2O10P2 400.215.
3
3
(4-{[6-(2,5-Dioxo-2,5-dihydro-1H-pyrrol-1-yl)hexanoyl]amino}-1-hydroxybutane-1,1-diyl)bis(phosphonic acid)
1
(EMCS-
γ
) (10). Yield 0.014 g (79%). H-NMR (D2O): 1.12–1.28 (m, 2H, C8H2), 1.41–1.58 (m, 4H, C7H2,
C9H2), 1.66–1.80 (m, 2H, C3H2), 1.80–1.95 (m, 2H, C2H2), 2.14 (t, J = 7.5 Hz, 2H, C6H2), 3.11 (t,
3J = 6.8 Hz, 2H, C4H2), 3.42 (t, 3J = 6.9 Hz, 2H, C10H2), 6.76 (s, 2H, HC=CH). 13C-NMR (D2O): 23.36
(C3), 24.87 (C7), 25.26 (C8), 27.43 (C9), 31.06 (C2), 35.61 (C6), 37.34 (C10), 39.98 (C4), 73.81 (t, 1JC-P = 134.1
Hz, C1), 134.26 (C12), 173.41 (C11), 176.80 (C5). 31P-NMR (D2O): 18.21. MALDI-TOF/TOF m/z 440.322
[M − 2H]+, calc. for C14H24N2O10P2 442.295.
3
(6-{[3-(2,5-Dioxo-2,5-dihydro-1H-pyrrol-1-yl)propanoyl]amino}-1-hydroxyhexane-1,1-diyl)bis(phosphonic acid)
1
(BMPS-
ε
) (11). Yield 0.013g (79%). H-NMR (D2O): 1.11–1.22 (m, 2H, C4H2), 1.32–1.43 (m, 2H, C5H2),
1.42–1.56 (m, 2H, C3H2), 1.76–1.91 (m, 2H, C2H2), 2.41 (t, 3J = 6.0 Hz, 2H, C8H2), 3.04 (t, 3J = 6.8 Hz, 2H,
C6H2), 3.71 (t, 3J = 6.4 Hz, 2H, C9H2), 6.82 (s, 2H, C11H2), 13C-NMR (D2O): 23.23 (t, 3JC-P = 5.8 Hz, C3),
27.00 (C4), 27.97 (C5), 33.56 (C2), 34.55 (C9), 34.83 (C8), 39.41 (C6), 74.18 (s, 1JC-P = 134.5 Hz, C1), 134.53
(C11), 172.60 (C10), 173.21 (C7). 31P-NMR (D2O): 18.50. MALDI-TOF/TOF m/z 428.086 [M]+, calc. for
C13H22N2O10P2 428.270.
(6-{[6-(2,5-Dioxo-2,5-dihydro-1H-pyrrol-1-yl)hexanoyl]amino}-1-hydroxyhexane-1,1-diyl)bis(phosphonic acid)
(EMCS-
ε
) (12). Yield 0.014 g (75%). 1H-NMR (D2O): 1.13–1.21 (m, 2H, C10H2), 1.20–1.31 (m, 2H,
C4H2), 1.38–1.52 (m, 2H, C5H2), 1.44–1.57 (m, 6H, C3H2, C9H2, C11H2), 1.78–1.92 (m, 2H, C2H2), 2.13 (t,

Molecules 2020, 25, 229
12 of 21
3J = 7.2 Hz, 2H, C8H2), 3.09 (t, 3J = 6.7 Hz, 2H, C6H2), 3.42 (t, 3J = 6.8 Hz, 2H, C12H2), 6.76 (s, 2H, C14H2).
13C-NMR (D2O): 23.23 (t, 3JC-P = 6.0 Hz, C3), 24.90 (C9), 25.33 (C10), 26.92 (C4), 27.26 (C11), 28.12 (C5),
33.55 (C2), 35.57 (C8), 37.46 (C12), 39.29 (C6), 74.21 (t, 1JC-P = 133.6 Hz, C1), 134.27 (C14), 173.41 (C13),
176.66 (C7). 31P- NMR (D2O): 18.52. MALDI-TOF/TOF m/z: 470.391 [M]+, calc. for C16H28N2O10P2
470.348.
{4-[({4-[(2,5-Dioxo-2,5-dihydro-1H-pyrrol-1-yl)methyl]cyclohexyl}carbonyl)amino]-1-hydroxybutane-1,1-diyl}
1
bis(phosphonic acid) (SMCC-
γ
) (13). Yield 0.017 g (93%). H-NMR (D2O): 0.86–1.00, 1.60–1.71 (m, 4H,
C8H2), 1.16–1.34, 1.71–1.81 (m, 4H, C7H2), 1.48–1.65 (m, 1H, C9H), 1.64–1.78 (m, 2H, C3H2), 1.80–1.92
(m, 2H, C2H2), 2.06–2.16 (m, 1H, C6H), 3.10 (t, 3J = 6.7 Hz, 2H, C4H2), 3.28 (d, 3J = 7.0 Hz, 2H, C10H2),
6.75 (s, 2H, CH=CH). 13C-NMR (D2O): 23.46 (t, 3JC-P = 6.2 Hz, C3), 28.33 (C7), 29.14 (C8), 31.15 (C2),
36.05 (C9), 39.95 (C4), 43.47 (C10), 44.86 (C6), 73.83 (t, 1JC-P = 132.3, C1), 134.17 (C12), 173.58 (C11), 179.68
(C5). 31P-NMR (D2O): 18.25.
{6-[({4-[(2,5-Dioxo-2,5-dihydro-1H-pyrrol-1-yl)methyl]cyclohexyl}carbonyl)amino]-1-hydroxyhexane-1,1-diyl}
1
bis(phosphonic acid) (SMCC-
ε
) (14). Yield 0.018 g (90%). H-NMR (D2O): 0.86–1.00, 1.61–1.70 (m, 4H,
C10H2), 1.20–1.30 (m, 2H, C4H2), 1.23–1.34, 1.70–1.80 (m, 2H, C9H2), 1.38–1.52 (m, 2H, C5H2), 1.44–1.56
(m, 2H, C3H2), 1.48–1.64 (m, 1H, C8H), 1.77–1.90 (m, 2H, C2H2), 2.04–2.16 (m, 1H, C8H), 3.09 (t, 3J = 6.8
Hz, 2H, C6H2), 3.28 (d, 3J = 7.3 Hz, 2H, C12H2), 6.75 (s, 2H, CH=CH). 13C-NMR (D2O): 23.40 (t, 3JC-P
=
5.8 Hz, C3), 26.90 (C4), 28.20 (C9), 28.34 (C5), 29.14 (C10), 33.73 (C2), 36.04 (C11), 39.18 (C6), 43.46 (C12),
44.78 (C8), 74.26 (t, 1JC-P = 131.3 Hz, C1), 134.18 (C14), 173.58 (C13), 179.56 (C7). 31P-NMR (D2O) 18.60.
MALDI-TOF/TOF m/z: 499.066 [M + 3H]+, calc. for C18H30N2O10P2 496.137.
3.2.4. Synthesis of RGDC Derivatives 15–22
According to [79], 5 mg (0.01 mmol) of RGDC was dissolved in 1.45 mL of bidistilled water, the
pH was adjusted to 7 by addition of 0.1 N NaOH (~120 µL). An equivalent amount of compounds 7–14
(0.01 mmol) was added to the solution. The reaction mixture was stirred for 1–2 h at 38–40 ◦C until a
pinkish-violet tint appeared, and then the solvent was removed under reduced pressure. Compounds
15–22 were obtained in quantitative yield as pink-white powders.
1
RGD-BMPS-
β
(
15). H-NMR (D2O)
δ
: 1.55–1.68 (m, 2H, C23H2), 1.74–1.84 (m, 2H, C22H2), 1.96–2.10
(m, 2H, C2H2), 2.38–2.45 (m, 2H, C5H2), 2.52 (dd, 3J = 8.4 Hz, 2J = 16.0 Hz, 1H, C16HH), 2.66 (dd, 3J =
4.9 Hz, 2J = 16.0 Hz, 1H, C16HH), 2.94 (dd, 3J = 8.5 Hz, 2J = 14.0 Hz, 2H, C11H2), 3.11–3.20 (m, 3H,
C24H2, C11HH), 3.31–3.43 (m, 2H, C3H2), 3.70 (t, 3J = 7.0 Hz, 2H, C6H2), 3.70–3.80 (m, 1H, C21H), 3.87
(d, 1H, 2J = 16.9 Hz, C19HH), 4.02 (d, 2J = 16.9 Hz, 1H, C19HH), 4.40 (dd, 3J = 4.1 Hz, 3J = 8.5 Hz, 1H,
C12H), 4.58–4.70 (m, 1H, C15H). 13C-NMR (D2O): 23.77 (C23), 29.49 (C22), 32.97 (C2), 34.79 (C5), 35.84
(C6), 36.07 (C3), 38.21 (C16), 39.95 (C11), 40.59 (C24), 42.48 (19), 51.39 (C15), 53.20 (C21), 54.39 (C12), 156.76
(C25), 170.81 (C18), 172.54 (C14), 172.64 (C4), 173.82 (C20), 176.43 (C13), 178.03 (C17), 178.91 (C7, C10).
31P-NMR (D2O): 17.93. MALDI-TOF/TOF m/z: 836.169 [M + H]+, calc. for C25H43N9O17P2S 835.671.
RGD-EMCS-β (16). NMR and mass spectrometry data correspond to those reported in [15].
1
RGD-BMPS-
γ
(
17). H-NMR (D2O)
δ
: 1.58–1.70 (m, 2H, C24H2), 1.66–1.77 (m, 2H, C3H2), 1.80–1.91
(m, 2H, C2H2), 1.85–1.94 (m, 2H, C23H2), 2.40–2.46 (m, 2H, C6H2), 2.62–2.84 (m, 2H, C17H2), 2.98 (dd,
3J = 8.3 Hz, 2J = 14.0 Hz, 1H, C12HH), 3.01–3.12 (m, 2H, C4H2), 3.10–3.20 (m, 1H, C12HH ), 3.14–3.20 (m,
2H, C25H2), 3.68–3.75 (m, 2H, C7H2), 3.85–3.97 (m, 1H, C20HH), 3.98–4.08 (m, 2H, C20HH), 3.99–4.09
(m, 1H, C22H), 4.39–4.46 (m, 1H, C13H), 4.66–4.73 (m, 1H, C16H). 13C-NMR (D2O): 23.22 (C3), 23.46
(C24), 27.84 (C23), 31.01 (C2), 33.62 (C6), 35.82 (C7), 36.60 (C17), 40.14 (C12), 40.32 (C4, C25), 42.31 (C20),
50.53 (C16), 52.82 (C22), 54.21 (C13), 156.76 (C26), 169.98 (C19), 172.01 (C15, C21), 172.89 (C5), 175.97 (C14),
176.14 (C18), 178.31 (C8, C11). 31P-NMR (D2O): 18.17. MALDI-TOF/TOF m/z: 849.15 [M]+, calc. for
C26H45N9O17P2S 849.698.

Molecules 2020, 25, 229
13 of 21
1
RGD-EMCS-
γ
(
18). H NMR (D2O)
δ
: 1.16–1.31 (m, 2H, C8H2), 1.38–1.55 (m, 4H, C7H2, C9H2), 1.53–1.67
(m, 2H, C27H2), 1.61–1.77 (m, 2H, C26H2), 1.66–1.77 (m, 2H, C3H2), 1.77–1.90 (m, 2H, C2H2), 2.05–2.20
(m, 2H, C6H2), 2.52 (dd, 3J = 8.4 Hz, 2J = 16.2 Hz, 1H, C20HH), 2.65 (dd, 3J = 4.8 Hz, 2J = 16.2 Hz, 1H,
C20HH), 2.93 (dd, 3J = 8.5 Hz, 2J = 14.0 Hz, 1H, C15HH), 3.16 (dd, 3J = 4.0 Hz, 2J = 14.0 Hz, 1H, C15HH),
3.08–3.15 (m, 2H, C4H2), 3.10–3.18 (m, 2H, C28H2), 3.42 (t, 3J = 7.0 Hz, 2H, C10H2), 3.54 (t, 3J = 6.1 Hz,
1H, C25H), 3.86 (d, 3J = 16.8 Hz, 1H, C23HH), 4.01 (d, 3J = 16.8 Hz, 1H, C23HH), 4.40 (dd, 3J = 4.0 Hz, 3J
= 8.5 Hz, 1H, C16H), 4.59–4.68 (m, 1H, C19H). 13C-NMR (D2O): 23.73 (C3), 23.98 (C27), 25.45 (C8), 25.67
(C7), 27.73 (C9), 30.53 (C26), 31.48 (C2), 35.70 (C6), 38.20 (C20), 38.72 (C10), 39.75 (C4), 39.82 (C15), 40.71
(C28), 42.45 (C23), 51.37 (C19), 53.79 (C25), 54.32 (C16), 156.75 (C29), 170.95 (C22), 172.61 (C18), 175.85
(C17), 176.44 (C24), 176.96 (C5), 178.01 (C21). 31P-NMR (D2O): 18.24. MALDI-TOF/TOF m/z: 910.533 [M
− 4H + Na]+, 926.498 [M − 4H + K]+, calc. for C29H51N9O17P2S 891.778.
RGD-BMPS-ε ( δ
19). 1H-NMR (D2O) : 1.18–1.32 (m, 2H, C4H2), 1.38–1.46 (m, 2H, C5H2),1.46–1.58
(m, 2H, C3H2), 1.57–1.72 (m, 2H, C26H2), 1.80–1.93 (m, 2H, C2H2), 1.84–1.96 (m, 2H, C25H2), 2.42 (t,
3J = 6.7 Hz, 2H, C8H2), 2.72–2.89 (m, 2H, C19H2), 2.94–3.02 (m, 1H, C14HH), 3.00–3.10 (m, 2H, C6H2),
3.10–3.20 (m, 1H, C14HH), 3.14–3.20 (m, 2H, C27H2), 3.67–3.75 (m, 2H, C9H2), 3.87–4.09 (m, 2H, C22H2),
3.98–4.08 (m, 1H, C24H), 4.40–4.51 (m, 1H, C15H), 4.65–4.77 (m, 1H, C18H). 13C-NMR (D2O): 23.19 (C3),
23.42 (C26), 26.99 (C4), 27.89 (C5, C25), 33.58 (C2), 33.71 (C8), 35.75 (C9), 35.93 (C19), 39.50 (C6, C14), 40.35
(C27), 42.29 (C22), 50.32 (C18), 52.81 (C24), 53.88 (C15), 156.76 (C28), 170.08 (C23), 170.74 (C21), 171.93
(C17), 172.75 (C7), 174.32 (C16), 174.80 (C20), 177.71 (C10, C13). 31P-NMR (D2O): 18.65. MALDI-TOF/TOF
m/z: 879.242 [M + 2H]+, calc. for C28H49N9O17P2S 877.751.
RGD-EMCS-ε ( δ
20). 1H-NMR (D2O) : 1.15–1.30 (m, 4H, C4H2, C10H2), 1.41–1.53 (m, 2H, C5H2),
1.42–1.50 (m, 2H, C3H2), 1.45–1.61 (m, 4H, C9H2, C11H2), 1.54–1.65 (m, 2H, C29H2), 1.64–1.74 (m, 2H,
C28H2), 1.74–1.90 (m, 2H, C2H2), 2.13 (t, 3J = 7.4 Hz, 2H, C8H2), 2.48–2.72 (m, 2H, C22H2), 2.88–2.99
(m, 1H, C17HH), 3.12–3.29 (m, 1H, C17HH), 3.06–3.17 (m, 2H, C6H2), 3.10–3.18 (m, 2H, C30H2), 3.42
3
(t, J = 7.10 Hz, 2H, C12H2), 3.45–3.52 (m, 1H, C27H), 3.82–3.92(m, 1H, C25HH), 3.93–4.04 (m, 1H,
C25HH), 4.40 (dd, 3J = 4.0 Hz, 3J = 8.6 Hz, 1H, C18H), 4.56–4.72 (m, 1H, C21H). 13C-NMR (D2O): 23.55 (t,
3JC-P = 6.0 Hz, C3), 24.03 (C29), 25.48 (C9), 26.15 (C10), 26.36 (C4, C11), 30.89 (C28), 33.97 (C2), 35.61 (C8),
38.23 (C22), 38.94 (C12), 39.40 (C6, C17), 40.72 (C30), 42.40 (C25), 51.43 (C21), 53.93 (C27), 54.64 (C18), 74.37
(C1), 156.74 (C31), 171.03 (C24), 172.61 (C20), 177.92 (C23), 176.46 (C19), 176.56 (C7, C26), 180.08 (C13, C16).
31P-NMR (D2O): 18.71. MALDI-TOF/TOF m/z: 920.398 [M + H]+, calc. for C31H55N9O17P2S 919.831.
1
RGD-SMCC-
γ
(
21). H-NMR (D2O)
δ
: 0.83–0.99 (m, 2H, C8HH), 1.19–1.30 (m, 2H, C7HH), 1.37–1.50
(m, 1H, C9H), 1.52–1.65 (m, 2H, C27H2), 1.55–1.72 (m, 2H, C26H2), 1.67–1.77 (m, 2H, C3H2), 1.68–1.77
(m, 2H, C8HH), 1.77–1.85 (m, 2H, C7HH), 1.78–1.87 (m, 2H, C2H2), 1.96–2.06 (m, 1H, C6H), 2.53 (dd,
3J = 8.2 Hz, 2J = 16.0 Hz, 1H, C22HH), 2.66 (dd, 3J = 4.8 Hz, 2J = 16.0 Hz, 1H, C22HH), 2.99–3.05 (m, 2H,
C10H2), 2.93 (dd, 3J = 8.6 Hz, 2J = 14.0 Hz, 1H, C15HH), 3.17 (dd, 3J = 4.1 Hz, 2J = 14.0 Hz, 1H, C15HH),
3.08–3.12 (m, 2H, C4H2), 3.11–3.16 (m, 2H, C28H2), 3.41 (t, 3J = 6.0 Hz, 1H, C25H), 3.85 (d, 2J = 16.8 Hz,
1H, C23HH), 4.00 (d, 2J = 16.8 Hz, 1H, C23HH), 4.40 (dd, 3J = 4.1 Hz, 3J = 8.6 Hz, 1H, C16H), 4.63 (dd,
3J = 4.8 Hz, 3J = 8.2 Hz, 1H, C19H). 13C-NMR (D2O): 23.86 (C3), 24.13 (C27), 29.25 (C7), 29.53 (C8), 29.56
(C2), 31.25 (C26), 36.71 (C9), 38.27 (C20), 39.71 (C15), 40.17 (C4), 40.83 (C28), 42.45 (C23), 45.41 (C10), 46.98
(C6), 51.36 (C19), 54.06 (C25), 54.32 (C16), 156.74 (C29), 171.11 (C22), 172.63 (C18), 176.49 (C17), 177.91
(C21), 178.01 (C24). MALDI-TOF/TOF m/z: 941.786 [M + H + Na]+, calc. for C31H53N9O17P2S 917.275.
1
RGD-SMCC-
ε
(
22). H-NMR (D2O)
δ
: 0.84–1.00 (m, 2H, C10HH), 1.18–1.32 (m, 2H, C9HH), 1.20–1.30
(m, 2H, C4H2), 1.37–1.52 (m, 1H, C11H), 1.41–1.52 (m, 2H, C5H2), 1.48–1.56 (m, 2H, C3H2), 1.55–1.66 (m,
2H, C29H2), 1.66–1.80 (m, 2H, C10HH), 1.66–1.82 (m, 2H, C28H2), 1.79–1.85 (m, 2H, C9HH), 1.77–1.87 (m,
2H, C2H2), 1.96–2.06 (m, 1H, C8H), 2.53 (dd, 3J = 8.4 Hz, 2J = 16.0 Hz, 1H, C22HH), 2.67 (dd, 3J = 5.0 Hz,
2J = 16.0 Hz, 1H, C22HH), 2.99–3.05 (m, 2H, C12H2), 2.94 (dd, 3J = 8.5 Hz, 2J = 14.0 Hz, 1H, C17HH),
3.18 (dd, 3J = 4.1 Hz, 2J = 14.0 Hz, 1H, C17HH), 3.10 (t, 3J = 6.7 Hz, 2H, C6H2), 3.13–3.19 (m, 2H, C30H2),
3.58–3.66 (m, 1H, C27H), 3.87 (d, 2J = 16.9 Hz, 1H, C25HH), 4.02 (d, 2J = 16.9 Hz, 1H, C25HH), 4.41 (dd,

Molecules 2020, 25, 229
14 of 21
3J = 4.1 Hz, 3J = 8.5 Hz, 1H, C18H), 4.64 (dd, 3J = 50 Hz, 3J = 8.4 Hz, 1H, C21H). 13C-NMR (D2O): 23.61
(C3), 23.92 (C29), 27.01 (C4), 28.29 (C5), 29.26 (C9), 29.54 (C10), 30.19 (C28), 34.22 (C2), 36.77 (C11), 38.25
(C22), 39.26 (C6), 39.86 (C17), 40.69 (C30), 42.48 (C25), 45.45 (C12), 46.92 (C8), 51.38 (C21), 53.67 (C27),
54.36 (C18), 156.75 (C31), 172.59 (C20), 175.44 (C26), 176.46 (C19), 178.03 (C23), 179.85 (C7). 31P-NMR
(D2O): 18.77.
3.3. Metal Sample Preparation and PEO Coating
The metal samples 10 mm in diameter were cut using a wire-EDM out of a commercially pure
Cp-Ti sheet, 0.5 mm thick. Further, the disk samples were polished on a SiC grit to achieve the surface
roughness Ra < 0.1 µm. Before the plasma electrolytic oxidation, the samples were washed with
deionized water and ultrasonically cleaned in isopropanol for 5 min. To achieve a good contact both
the for the PEO and consequent electrochemical tests, a copper wire was attached into a small hole
drilled at the sample edge. The contact place and the copper wire were coated with an epoxy resin
which could withstand the electrochemical treatments. In order to produce the samples for the in vitro
tests, a titanium screw holder was used to supply current to the sample. The holder was PEO coated to
form a dielectric layer over its surface except the contact points prior to the treatment of the samples.
The plasma electrolytic oxidation was processed in a 10-L glass vessel equipped with a stainless
steel heat exchanger arranged around its walls inside the electrolyte which comprised 20 g/L aqueous
solution of Na3PO4
·
12H2O of puris grade. The electrolyte temperature was maintained at 20
±
1 ◦C
using microcontroller regulation. The PEO process was run in a pulsed bipolar mode under the voltage
regulation; the positive pulse was 470 V, negative 40 V; the frequency was 300 Hz. The positive pulse
duration was 1.7 ms, the negative pulse was 0.87 ms; both separated with pauses of 0.38 ms. The PEO
treatment duration was 5 min.
3.4. Surface Characterization
The PEO coating was studied using a JSM-6490LV scanning electron microscope (JEOL, Tokyo,
Japan) at accelerating voltage of 10 kV. Both top view and cross-sections were examined. The coating
thickness was measured using a Positector 6000 eddy current gauge (Defelsko, Ogdensburg, NY, USA)
of N-type. The surface roughness was measured with TR-220 profilometer. In order to evaluate the
coating porosity, the SEM images were processed using ImageJ software using the technique described
elsewhere [88]. By adjusting the threshold in the grayscale images, the relative surface area taken
by the objects of interest being darker than the neighboring places was calculated by the program
in percents. The phase composition of the surface layer was characterised by an Ultima IV X-ray
diffractometer (Rigaku, Tokyo, Japan) in Cu K
α radiation at 40 kV and 40 mA using 0.02 deg. step scan
with 2 s exposure, from 20 to 80 degrees 2 . Further, the XRD spectra were processed using the X’Pert
θ
Highscore Plus software (Philips) with PDF2 pattern database and a built-in SemiQuant algorithm was
employed to quantify the amounts of the crystalline phases in the coating.
XPS spectra were obtained using a JEOL JPS 9010MX spectrometer equipped with an (Mg Kα)
X-ray source. The pressure in the analytical chamber during the spectral acquisition was less than
7
×
10−8 Pa. The survey spectra were collected from 0 to 1000 eV with a pass energy of 50 eV, and
high-resolution spectra were collected for each detected element of interest (C, N, O, P, S, and Ti) with a
pass energy of 10 eV. The JEOL SpecSurf Program V. 1.9.2 was used to identify the characteristic peaks,
to calculate the elemental compositions, and to fit the peaks of the high-resolution spectra.
3.5. Electrochemical Tests
The electrochemical tests were carried out in Ringer’s solution (0.86 wt% NaCl, 0.03 wt% KCl,
0.033 wt% CaCl2, pH 7.4) at temperature 37.0
Moscow, Russia). After the open circuit potential (OCP) was settled within
the potentiodynamic polarization (PDP) test was run from 350 mV to +350 mV with respect to the
settled OCP at a rate of 0.25 mV/s. The reference electrode was a silver chloride electrode filled with
±
0.2 ◦C using a P-5X electrochemical system (Elins,
±
20 mV for at least 30 min,
−

Molecules 2020, 25, 229
15 of 21
3.5M KCl. The counter electrode was a platinum rod. The PDP results were processed using Tafel
analysis [89]. For the PDP curves having linear Tafel regions at 200 mV overpotentials, both anodic
±
and cathodic slopes were used; for those having only cathodic linear Tafel regions, only cathodic
slopes were used. The corrosion current icorr was evaluated at the intersection of cathodic and anodic
(if available) tangent lines with the level of Ecorr. The polarization resistance Rp was evaluated as a
slope of the polarization curve at±10 mV overpotentials for all the samples [90].
3.6. In Vitro Assessment
The PEO coated Ti samples were ultrasonically cleaned for 10 min in 95% ethanol and finally
washed with deionized water, dried on air and sterilized by autoclaving at 134 ◦C. This temperature
does not affect the PEO coating. In order to deposit the organic pore filler, the PEO coated Ti samples
were put into a Petri dish with 10−3 M solutions of the RGD-derivatives, which were preliminarily
sterilized by filtration with CA 0.22 µm filter. In 1 h the samples were dried on air in a laminar box.
Then, all the samples were put into a plastic 24-well tissue culture plate.
Human embryonic lung fibroblasts (FLECH-104) and mesenchymal stem cells of human fat tissue
(MSC) were purchased from BIOLOT (Saint Petersburg, Russia), human osteosarcoma cells (MG-63)
were obtained from Russian cellular collection, Institute of Cytology RAS (Saint Petersburg, Russia).
The cells were cultured in Dulbecco’s modified Eagle’s medium (DMEM) (Sigma) containing 10% fetal
bovine serum (FBS) (BioWest) and gentamicin, in 25-cm2 culture flasks (SPL life Sciences, Pocheon-si,
South Korea) in a humidified 5% CO2 atmosphere. The medium was changed twice a week. After
reaching a monolayer, the cells were detached using 0.25% trypsine solution (PanEco, Moscow, Russia)
and counted using automated cell counter TC20 (BioRad, Hercules, CA, USA).
The FLECH-104, MSC or MG-63 cells suspension was placed into each well of the plate with the
samples (0.8 mL containing 20
103 cells). The cells in the wells with uncoated Ti+PEO samples were
·
treated as a control. The culture plates were incubated for 7 days in the standard conditions (37 ◦C,
5 vol% CO2). The culture plate itself (polystyrene) was used as a blank.
The cell proliferation was determined by EZ4U assay (Biomedica, Vienna, Austria), a modification
of MTT test, which evaluates the cell metabolic activity is proportional to the number of adherent
cells. Three samples of each type were transferred after the incubation into another 24-well plate with
0.8 mL of fresh DMEM medium. Then 80 µL of activated EZ4U solution was added to every well and
incubated at 37 ◦C, 5 vol% CO2 for 3.5 h. Optical absorbance was measured using microplate reader
(Spark10M, Tecan, Männedorf, Switzerland) at 450 nm with a reference wavelength of 620 nm. The
optical density per mm2 was calculated as:
(a − ablank
)
OD(%) =
·100%
(1)
(A − ablank
—absorbance of the test sample at 450 nm minus absorbance at 620 nm;
)
where
a
A
—absorbance of the
control sample at 450 nm minus absorbance at 620 nm;
DMEM with no cells at 450 nm and at 620 nm.
ablank—the absorbance of the blank solution of
The mean value and the standard deviation for four measurements of the optical density were
calculated with respect to the control.
4. Conclusions
We have synthesized a set of RGD-derivatives of amino bisphosphonates, obtained from
β-alanine,
γ
-aminobutyric and -aminocaproic acids, containing various linkers (BMPS, EMSC, SMCC) and used
ε
them as organic top coatings on porous PEO layer on titanium. The compounds can be introduced into
the PEO coating pores due to the presence of bisphosphonate groups that facilitate physicochemical
adsorption. Electrochemical studies showed that after RGD functionalization, the PEO surface gets
slightly nobler, but the corrosion currents notably increase; also, the anodic PDP curves of the PEO
surface lose the passivation region after the introduction of the RGD-derivatives, so their presence

Molecules 2020, 25, 229
16 of 21
can be assessed by indirect electrochemical tests. The presence of organic molecules in the coating
was confirmed by XPS spectroscopy. The appearance of compounds 15 20 on the surface provided
–
a decrease in the Ti 2p line intensity and an increase of N1s and C1s line intensities; in addition,
a significant decrease in the ratio of Ti 2p/C 1s and Ti 2p/P 2p was observed.
In vitro studies on proliferation and viability of fibroblasts, mesenchymal stem cells and
osteoblast-like cells showed the dependence of the molecule bioactivity on the structure of the
anchor and linker. In particular, RGD derivatives with relatively short bisphosphonate anchors
and BMPS linker, as well as molecules containing a linker with a cyclohexyl fragment, increase cell
proliferation on the surface of PEO-modified titanium. RGDC without anchor on Ti-PEO does not affect
the cell proliferation. RGD-functionalyzed
β-BMPS, γ-BMPS, γ-SMCC, ε-SMCC can be recommended
as promising candidates for further in vivo research.
Supplementary Materials: The following are available online. Figures S1–S27: NMR and mass-spectra of
compounds 1–22, Figure S28: XPS spectra of Ti-PEO modified by compounds 15–20.
Author Contributions: Conceptualization, L.V.P., and E.V.P.; investigation, E.S.L., Z.R.G., G.U.G., V.R.M., R.G.F.,
K.V.D., and G.S.D.; writing—original draft preparation, L.V.P.; writing—review and editing, E.V.P.; supervision,
L.V.P. and E.V.P.; project administration, E.S.L. All authors have read and agreed to the published version of
the manuscript.
Funding: The authors are grateful to the financial support received through RFBR project No. 17-03-01042. The
part of the research was carried out in accordance with federal program № AAAA-A19-119022290012-3.
Acknowledgments: The structural studies of compounds (1)–(22) were carried out at the Center for Collective
Use “Agidel” at the Institute of Petrochemistry and Catalysis, Russian Academy of Sciences. The authors also
thank Nanotech Centre at Ufa State Aviation Technical University for the surface characterisation.
Conflicts of Interest: The authors declare no conflict of interest. The funders had no role in the design of the
study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to
publish the results.
References
1.
2.
3.
Wu, S.; Liu, X.; Yeung, K.W.K.; Liu, C.; Yang, X. Biomimetic porous scaffolds for bone tissue engineering.
Mater. Sci. Eng. R Rep. 2014, 80, 1–36. [CrossRef]
Geetha, M.; Singh, A.K.; Asokamani, R.; Gogia, A.K. Ti based biomaterials, the ultimate choice for orthopaedic
implants—A review. Prog. Mater. Sci. 2009, 54, 397–425. [CrossRef]
Mohedano, M.; Guzman, R.; Arrabal, R.; Lõpez Lacomba, J.L.; Matykina, E. Bioactive plasma electrolytic
oxidation coatings—The role of the composition, microstructure, and electrochemical stability. J. Biomed.
Mater. Res. Part B Appl. Biomater. 2013, 101, 1524–1537. [CrossRef] [PubMed]
4.
Cordeiro, J.M.; Nagay, B.E.; Ribeiro, A.L.R.; da Cruz, N.C.; Rangel, E.C.; Fais, L.M.G.; Vaz, L.G.; Barão, V.A.R.
Functionalization of an experimental Ti-Nb-Zr-Ta alloy with a biomimetic coating produced by plasma
electrolytic oxidation. J. Alloy. Compd. 2019, 770, 1038–1048. [CrossRef]
5.
6.
Sharifi, H.; Aliofkhazraei, M.; Darband, G.B.; Shrestha, S. A review on adhesion strength of peo coatings by
scratch test method. Surf. Rev. Lett. 2018, 25. [CrossRef]
Qadir, M.; Li, Y.; Munir, K.; Wen, C. Calcium phosphate-based composite coating by micro-arc oxidation
(MAO) for biomedical application: A review. Crit. Rev. Solid State Mater. Sci. 2018, 43, 392–416. [CrossRef]
Anderson, J.M. Biological responses to materials. Ann. Rev. Mater. Sci. 2001, 31, 81–110. [CrossRef]
7.
8.
Shekaran, A.; García, A.J. Extracellular matrix-mimetic adhesive biomaterials for bone repair. J. Biomed.
Mater. Res. Part A 2011, 96A, 261–272. [CrossRef]
9.
Meyers, S.R.; Grinstaff, M.W. Biocompatible and bioactive surface modifications for prolonged in vivo
efficacy. Chem. Rev. 2012, 112, 1615–1632. [CrossRef]
10. Tejero, R.; Anitua, E.; Orive, G. Toward the biomimetic implant surface: Biopolymers on titanium-based
implants for bone regeneration. Prog. Polym. Sci. 2014, 39, 1406–1447. [CrossRef]
11. Mas-Moruno, C. 3-Surface functionalization of biomaterials for bone tissue regeneration and repair. In
Peptides and Proteins as Biomaterials for Tissue Regeneration and Repair; Barbosa, M.A., Martins, M.C.L., Eds.;
Woodhead Publishing: Amsterdam, The Netherlands, 2018.

Molecules 2020, 25, 229
17 of 21
12. Park, J.M.; Koak, J.Y.; Jang, J.H.; Han, C.H.; Kim, S.K.; Heo, S.J. Osseointegration of anodized titanium
implants coated with fibroblast growth factor-fibronectin (FGF-FN) fusion protein. Int. J. Oral Maxillofac.
Implant. 2006, 21, 859–866.
13. Kazek-Ke˛sik, A.; Jaworska, J.; Krok-Borkowicz, M.; Gołda-Ce˛pa, M.; Pastusiak, M.; Brzychczy-Włoch, M.;
Pamuła, E.; Kotarba, A.; Simka, W. Hybrid oxide-polymer layer formed on Ti-15Mo alloy surface enhancing
antibacterial and osseointegration functions. Surf. Coat. Technol. 2016, 302, 158–165. [CrossRef]
14. Zaporozhets, T.S.; Puz’, A.V.; Sinebryukhov, S.L.; Gnedenkov, S.V.; Smolina, T.P.; Besednova, N.N.
Biocompatibility of modified osteoinductive calcium-phosphate coatings of metal implants. Bull. Exp. Biol.
Med. 2017, 162, 366–369. [CrossRef] [PubMed]
15. Parfenov, E.V.; Parfenova, L.V.; Dyakonov, G.S.; Danilko, K.V.; Mukaeva, V.R.; Farrakhov, R.G.; Lukina, E.S.;
Valiev, R.Z. Surface functionalization via PEO coating and RGD peptide for nanostructured titanium implants
and their in vitro assessment. Surf. Coat. Technol. 2019, 357, 669–683. [CrossRef]
16. Ruoslahti, E. RGD and other recognition sequences for integrins. Annu. Rev. Cell Dev. Biol. 1996, 12, 697–715.
[CrossRef] [PubMed]
17. Xiao, S.J.; Textor, M.; Spencer, N.D.; Wieland, M.; Keller, B.; Sigrist, H. Immobilization of the cell-adhesive
peptide Arg–Gly–Asp–Cys (RGDC) on titanium surfaces by covalent chemical attachment. J. Mater. Sci.
Mater. Med. 1997, 8, 867–872. [CrossRef]
18. Rezania, A.; Johnson, R.; Lefkow, A.R.; Healy, K.E. Bioactivation of metal oxide surfaces. 1. surface
characterization and cell response. Langmuir 1999, 15, 6931–6939. [CrossRef]
19. Zreiqat, H.; Akin, F.; Howlett, C.; Markovic, B.; Haynes, D.; Lateef, S.; Hanley, L. Differentiation of human
bone-derived cells grown on GRGDSP-peptide bound titanium surfaces. J. Biomed. Mater. Res. 2003, 64,
105–113. [CrossRef]
20. Barber, T.A.; Gamble, L.J.; Castner, D.G.; Healy, K.E. In vitro characterisation of peptide-modified
p(AAm-co-EG/AAc) IPN-coated titanium implants. J. Orthop. Res. 2006, 24, 1366–1376. [CrossRef]
21. Barber, T.A.; Golledge, S.L.; Castner, D.G.; Healy, K.E. Peptide-modified p(AAm-co-EG/AAc) IPNs grafted
to bulk titanium modulate osteoblast behavior in vitro. J. Biomed. Mater. Res. Part A 2003, 64A, 38–47.
[CrossRef]
22. Gawalt, E.S.; Avaltroni, M.J.; Danahy, M.P.; Silverman, B.M.; Hanson, E.L.; Midwood, K.S.; Schwarzbauer, J.E.;
Schwartz, J. Bonding organics to Ti alloys: Facilitating human osteoblast attachment and spreading on
surgical implant materials. Langmuir 2003, 19, 200–204. [CrossRef]
23. Pallu, S.; Bourget, C.; Bareille, R.; Labrug
ère, C.; Dard, M.; Sewing, A.; Jonczyk, A.; Vernizeau, M.; Christine
Durrieu, M.; Am e-Vilamitjana, J. The effect of cyclo-DfKRG peptide immobilization on titanium on the
édé
adhesion and differentiation of human osteoprogenitor cells. Biomaterials 2005, 26, 6932–6940. [CrossRef]
[PubMed]
24. Bagno, A.; Piovan, A.; Dettin, M.; Chiarion, A.; Brun, P.; Gambaretto, R.; Fontana, G.; Di Bello, C.; Palu, G.;
Castagliuolo, I. Human osteoblast-like cell adhesion on titanium substrates covalently functionalized with
synthetic peptides. Bone 2007, 40, 693–699. [CrossRef] [PubMed]
25. Secchi, A.G.; Grigoriou, V.; Shapiro, I.M.; Cavalcanti-Adam, E.A.; Composto, R.J.; Ducheyne, P.; Adams, C.S.
RGDS peptides immobilized on titanium alloy stimulate bone cell attachment, differentiation and confer
resistance to apoptosis. J. Biomed. Mater. Res. Part A 2007, 83, 577–584. [CrossRef]
26. Kaemmerer, P.; Heller, M.; Brieger, J.; Klein, M.; Al-Nawas, B.; Gabriel, M. Immobilisation of linear and cyclic
RGD-peptides on titanium surfaces and their impact on endothelial cell adhesion and proliferation. Eur. Cell
Mater. 2011, 21, 364–372. [CrossRef]
27. Ryu, J.-J.; Park, K.; Kim, H.-S.; Jeong, C.-M.; Huh, J.-B. Effects of anodized titanium with Arg-Gly-Asp (RGD)
peptide immobilized via chemical grafting or physical adsorption on bone cell adhesion and differentiation.
Int. J. Oral Maxillofac Implant. 2013, 28, 963–972. [CrossRef]
28. Lin, W.; Junjian, C.; Chengzhi, C.; Lin, S.; Sa, L.; Li, R.; Yingjun, W. Multi-biofunctionalization of a titanium
surface with a mixture of peptides to achieve excellent antimicrobial activity and biocompatibility. J. Mater.
Chem. B 2015, 3, 30–33. [CrossRef]
29. Heller, M.; Kumar, V.; Pabst, A.; Brieger, J.; Al-Nawas, B.; Kaemmerer, P. Osseous response on linear and
cyclic RGD-peptides immobilized on titanium surfaces in vitro and in vivo: RGD-peptides influence osseous
healing. J. Biomed. Mater. Res. Part A 2018, 106, 419–427. [CrossRef]

Molecules 2020, 25, 229
18 of 21
30. Ortiz-Hernandez, M.; Rappe, S.K.; Molmeneu, M.; Mas-Moruno, C.; Guillem-Marti, J.; Punset, M.;
Caparros, C.; Calero, J.; Franch, J.; Fernandez-Fairen, M.; et al. two different strategies to enhance
osseointegration in porous titanium: Inorganic thermo-chemical treatment versus organic coating by peptide
adsorption. Int. J. Mol. Sci. 2018, 19, 2574. [CrossRef]
31. Tosatti, S.; Schwartz, Z.; Campbell, C.T.; Cochran, D.L.; VandeVondele, S.; Hubbell, J.A.; Denzer, A.; Simpson, J.;
Wieland, M.; Lohmann, C.; et al. RGD-containing peptide GCRGYGRGDSPG reduces enhancement of
osteoblast differentiation by poly(l-lysine)-graft-poly(ethylene glycol)-coated titanium surfaces. J. Biomed.
Mater. Res. 2004, 68A, 458–472. [CrossRef]
32. Maddikeri, R.R.; Tosatti, S.; Schuler, M.; Chessari, S.; Textor, M.; Richards, R.G.; Harris, L.G. Reduced medical
infection related bacterial strains adhesion on bioactive RGD modified titanium surfaces: A first step toward
cell selective surfaces. J. Biomed. Mater. Res. Part A 2008, 84A, 425–435. [CrossRef] [PubMed]
33. Petrie, T.; Raynor, J.E.; Reyes, C.D.; Burns, K.L.; Collard, D.M.; García, A. The effect of integrin-specific
bioactive coatings on tissue healing and implant osseointegration. Biomaterials 2008, 29, 2849–2857. [CrossRef]
[PubMed]
34. Bell, B.F.; Schuler, M.; Tosatti, S.; Textor, M.; Schwartz, Z.; Boyan, B. Osteoblast response to titanium surfaces
functionalized with extracellular matrix peptide biomimetics. Clin. Oral Implant. Res. 2011, 22, 865–872.
[CrossRef] [PubMed]
35. Schliephake, H.; Scharnweber, D.; Dard, M.; Roessler, S.; Sewing, A.; Meyer, J.; Hoogestraat, D. Effect of RGD
peptide coating of titanium implants on periimplant bone formation in the alveolar crest. Clin. Oral Implant.
Res. 2002, 13, 312–319. [CrossRef] [PubMed]
36. Rammelt, S.; Illert, T.; Bierbaum, S.; Scharnweber, D.; Zwipp, H.; Schneiders, W. Coating of titanium implants
with collagen, RGD peptide and chondroitin sulfate. Biomaterials 2006, 27, 5561–5571. [CrossRef] [PubMed]
37. Chua, P.-H.; Neoh, K.-G.; Kang, E.-T.; Wang, W. Surface functionalization of titanium with hyaluronic
acid/chitosan polyelectrolyte multilayers and RGD for promoting osteoblast functions and inhibiting bacterial
adhesion. Biomaterials 2008, 29, 1412–1421. [CrossRef]
38. Huang, Y.; Luo, Q.; Li, X.; Zhang, F.; Zhao, S. Fabrication and in vitro evaluation of the collagen/hyaluronic
acid PEM coating crosslinked with functionalized RGD peptide on titanium. Acta Biomater. 2012, 8, 866–877.
[CrossRef]
39. Jin, C.; Ren, L.-F.; Ding, H.-Z.; Shi, G.-S.; Lin, H.-S.; Zhang, F. Enhanced attachment, proliferation, and
differentiation of human gingival fibroblasts on titanium surface modified with biomolecules. J. Biomed.
Mater. Res. Part B Appl. Biomater. 2012, 100, 2167–2177. [CrossRef]
40. Zhao, B.; Tian, W.; Feng, H.; Lee, I.-S.; Cui, F. Effects of RGD peptide grafting to titanium dental implants on
the adhesion of human gingival fibroblasts and epithelial cells. Curr. Appl. Phys. 2005, 5, 407–410. [CrossRef]
˙
41. Karaman, O.; Kelebek, S.; Demirci, E.A.; iBIS¸, F.; Ulu, M.; Ercan, U. Synergistic Effect of Cold Plasma
Treatment and RGD Peptide Coating on Cell Proliferation over Titanium Surfaces. Tissue Eng. Regener. Med.
2017, 15, 13–24. [CrossRef]
42. Yamamichi, N.; Pugdee, K.; Chang, W.-J.; Lee, S.-A.; Yoshinari, M.; Hayakawa, T.; Abiko, Y. Gene expression
monitoring in osteoblasts on fibronectin derived peptide coated titanium. Dent. Mater. J. 2008, 27, 744–750.
[CrossRef] [PubMed]
43. Oya, K.; Tanaka, Y.; Saito, H.; Kurashima, K.; Nogi, K.; Tsutsumi, H.; Tsutsumi, Y.; Doi, H.; Nomura, N.;
Hanawa, T. Calcification by MC3T3-E1 cells on RGD peptide immobilized on titanium through
electrodeposited PEG. Biomaterials 2009, 30, 1281–1286. [CrossRef] [PubMed]
44. Park, J.-W.; Kurashima, K.; Tustusmi, Y.; An, C.-H.; Suh, J.-Y.; Doi, H.; Nomura, N.; Noda, K.; Hanawa, T.
Bone healing of commercial oral implants with RGD immobilization through electrodeposited poly(ethylene
glycol) in rabbit cancellous bone. Acta Biomater. 2011, 7, 3222–3229. [CrossRef] [PubMed]
45. Hoyos-Nogués, M.; Buxadera-Palomero, J.; Ginebra, M.-P.; Manero, J.M.; Gil, F.J.; Mas-Moruno, C. All-in-one
trifunctional strategy: A cell adhesive, bacteriostatic and bactericidal coating for titanium implants. Colloids
Surf. B Biointerfaces 2018, 169, 30–40. [CrossRef]
46. Okamoto, K.; Matsuura, T.; Hosokawa, R.; Akagawa, Y. RGD peptides regulate the specific adhesion scheme
of osteoblasts to hydroxyapatite but not to titanium. J. Dent. Res. 1998, 77, 481–487. [CrossRef]
47. Ferris, D.M.; Moodie, G.D.; Dimond, P.M.; Giorani, C.W.D.; Ehrlich, M.G.; Valentini, R.F. RGD-coated
titanium implants stimulate increased bone formation in vivo. Biomaterials 1999, 20, 2323–2331. [CrossRef]

Molecules 2020, 25, 229
19 of 21
48. Elmengaard, B.; Bechtold, J.E.; Soballe, K. In vivo study of the effect of RGD treatment on bone ongrowth on
press-fit titanium alloy implants. Biomaterials 2005, 26, 3521–3526. [CrossRef]
49. Reyes, C.D.; Petrie, T.A.; Burns, K.L.; Schwartz, Z.; Garcia, A.J. Biomolecular surface coating to enhance
orthopaedic tissue healing and integration. Biomaterials 2007, 28, 3228–3235. [CrossRef]
50. Pallu, S.; Fricain, J.C.; Bareille, R.; Bourget, C.; Dard, M.; Sewing, A.; Amédée, J. Cyclo-DfKRG Peptide
Modulates In Vitro and In Vivo Behavior of Human Osteoprogenitor Cells on Titanium Alloys. Acta Biomater.
2009, 5, 3581–3592. [CrossRef]
51. Mas-Moruno, C.; Dorfner, P.; Manzenrieder, F.; Neubauer, S.; Reuning, U.; Burgkart, R.; Kessler, H. Behavior
of primary human osteoblasts on trimmed and sandblasted Ti6Al4V surfaces functionalized with integrin
αvβ3-selective cyclic RGD peptides. J. Biomed. Mater. Res. Part A 2013, 101A, 87–97. [CrossRef]
52. Yuran, S.; Dolid, A.; Reches, M. Resisting bacteria and attracting cells: Spontaneous formation of a
bifunctional peptide-based coating by on-surface assembly approach. ACS Biomater. Sci. Eng. 2018, 4,
4051–4061. [CrossRef]
53. Auernheimer, J.; Zukowski, D.; Dahmen, C.; Kantlehner, M.; Enderle, A.; Goodman, S.L.; Kessler, H. Titanium
implant materials with improved biocompatibility through coating with phosphonate-anchored cyclic RGD
peptides. ChemBioChem 2005, 6, 2034–2040. [CrossRef] [PubMed]
54. Zorn, G.; Gotman, I.; Gutmanas, E.Y.; Adadi, R.; Salitra, G.; Sukenik, C.N. Surface Modification of Ti45Nb
Alloy with an Alkylphosphonic Acid Self-Assembled Monolayer. Chem. Mater. 2005, 17, 4218–4226.
[CrossRef]
55. Bly, R.A.; Cao, Y.; Moore, W.A.; Soboyejo, W. Investigation of the effects of alkane phosphonic acid/RGD
coatings on cell spreading and the interfacial strength between human osteosarcoma cells and Ti–6Al–4V.
Mater. Sci. Eng. C 2007, 27, 83–89. [CrossRef]
56. Heijink, A.; Schwartz, J.; Zobitz, M.E.; Nicole Crowder, K.; Lutz, G.E.; Sibonga, J.D. Self-assembled monolayer
films of phosphonates for bonding RGD to titanium. Clin. Orthop. Relat. Res. 2008, 466, 977–984. [CrossRef]
[PubMed]
57. Guillou-Buffello, D.; Bareille, R.; Gindre, M.; Sewing, A.; Laugier, P.; Amédée, J. Additive Effect of RGD
Coating to Functionalized Titanium Surfaces on Human Osteoprogenitor Cell Adhesion and Spreading.
Tissue Eng. Part A 2008, 14, 1445–1455. [CrossRef] [PubMed]
58. Beuvelot, J.; Portet, D.; Lecollinet, G.; Moreau, M.F.; Baslé, M.F.; Chappard, D.; Libouban, H. In vitro kinetic
study of growth and mineralization of osteoblast-like cells (Saos-2) on titanium surface coated with a RGD
functionalized bisphosphonate. J. Biomed. Mater. Res. Part B Appl. Biomater. 2009, 90B, 873–881. [CrossRef]
59. Queffélec, C.; Petit, M.; Janvier, P.; Knight, D.A.; Bujoli, B. Surface modification using phosphonic acids and
esters. Chem. Rev. 2012, 112, 3777–3807. [CrossRef]
60. Goura, J.; Chandrasekhar, V. Molecular metal phosphonates. Chem. Rev. 2015, 115, 6854–6965. [CrossRef]
61. Bujoli, B.; Queffelec, C. Fine-Tuning the Functionality of Inorganic Surfaces Using Phosphonate Chemistry.
In Tailored Organic-Inorganic Materials; John Wiley & Sons: New York, NY, USA, 2015; pp. 299–318.
62. Gawalt, E.S.; Avaltroni, M.J.; Koch, N.; Schwartz, J. Self-assembly and bonding of alkanephosphonic acids on
the native oxide surface of titanium. Langmuir 2001, 17, 5736–5738. [CrossRef]
63. Silverman, B.M.; Wieghaus, K.A.; Schwartz, J. Comparative properties of siloxane vs. phosphonate
monolayers on a key titanium alloy. Langmuir 2005, 21, 225–228. [CrossRef] [PubMed]
64. Portet, D.; Denizot, B.; Rump, E.; Lejeune, J.-J.; Jallet, P. nonpolymeric coatings of iron oxide colloids for
biological use as magnetic resonance imaging contrast agents. J. Colloid Interface Sci. 2001, 238, 37–42.
[CrossRef] [PubMed]
65. Lecollinet, G.; Delorme, N.; Edely, M.; Gibaud, A.; Bardeau, J.F.; Hindré, F.; Boury, F.; Portet, D. Self-assembled
monolayers of bisphosphonates: Influence of side chain steric hindrance. Langmuir 2009, 25, 7828–7835.
[CrossRef] [PubMed]
66. Yerokhin, A.L.; Nie, X.; Leyland, A.; Matthews, A.; Dowey, S.J. Plasma electrolysis for surface engineering.
Surf. Coat. Technol. 1999, 122, 73–93. [CrossRef]
67. Han, Y.; Hong, S.H.; Xu, K. Structure and in vitro bioactivity of titania-based films by micro-arc oxidation.
Surf. Coat. Technol. 2003, 168, 249–258. [CrossRef]
68. Walsh, F.C.; Low, C.T.J.; Wood, R.J.K.; Stevens, K.T.; Archer, J.; Poeton, A.R.; Ryder, A. Plasma electrolytic
oxidation (PEO) for production of anodised coatings on lightweight metal (Al, Mg, Ti) alloys. Trans. Inst.
Met. Finish. 2009, 87, 122–135. [CrossRef]

Molecules 2020, 25, 229
20 of 21
69. Jung, O.; Smeets, R.; Kopp, A.; Porchetta, D.; Hiester, P.; Heiland, M.; Friedrich, R.E.; Precht, C.; Hanken, H.;
Gröbe, A.; et al. PEO-generated surfaces support attachment and growth of cells in vitro with no additional
benefit for micro-roughness in Sa (0.2–4 µm). In Vivo 2016, 30, 27–33.
70. Parfenov, E.V.; Yerokhin, A.; Nevyantseva, R.R.; Gorbatkov, M.V.; Liang, C.J.; Matthews, A. Towards smart
electrolytic plasma technologies: An overview of methodological approaches to process modelling. Surf.
Coat. Technol. 2015, 269, 2–22. [CrossRef]
71. Yerokhin, A.; Parfenov, E.V.; Matthews, A. In situ impedance spectroscopy of the plasma electrolytic oxidation
process for deposition of Ca- and P-containing coatings on Ti. Surf. Coat. Technol. 2016, 301, 54–62. [CrossRef]
72. Gnedenkov, S.V.; Sharkeev, Y.P.; Sinebryukhov, S.L.; Khrisanfova, O.A.; Legostaeva, E.V.; Zavidnaya, A.G.;
Puz’, A.V.; Khlusov, I.A.; Opra, D.P. Functional coatings formed on the titanium and magnesium alloys
as implant materials by plasma electrolytic oxidation technology: Fundamental principles and synthesis
conditions. Corros Rev. 2016, 34. [CrossRef]
73. Santos-Coquillat, A.; Gonzalez Tenorio, R.; Mohedano, M.; Martinez-Campos, E.; Arrabal, R.; Matykina, E.
Tailoring of antibacterial and osteogenic properties of Ti6Al4V by plasma electrolytic oxidation. Appl. Surf.
Sci. 2018, 454, 157–172. [CrossRef]
74. Uezono, M.; Takakuda, K.; Kikuchi, M.; Suzuki, S.; Moriyama, K. Hydroxyapatite/collagen
nanocomposite-coated titanium rod for achieving rapid osseointegration onto bone surface. J. Biomed.
Mater. Res. Part B Appl. Biomater. 2013, 101, 1031–1038. [CrossRef] [PubMed]
75. Kazemzadeh-Narbat, M.; Noordin, S.; Masri, B.A.; Garbuz, D.S.; Duncan, C.P.; Hancock, R.E.W.; Wang, R.
Drug release and bone growth studies of antimicrobial peptide-loaded calcium phosphate coating on
titanium. J. Biomed. Mater. Res. Part B Appl. Biomater. 2012, 100 B, 1344–1352. [CrossRef]
76. Gnedenkov, S.V.; Sinebryukhov, S.L.; Zavidnaya, A.G.; Egorkin, V.S.; Puz’, A.V.; Mashtalyar, D.V.;
Sergienko, V.I.; Yerokhin, A.L.; Matthews, A. Composite hydroxyapatite–PTFE coatings on Mg–Mn–Ce alloy
for resorbable implant applications via a plasma electrolytic oxidation-based route. J. Taiwan Inst. Chem. Eng.
2014, 45, 3104–3109. [CrossRef]
77. Nielsen, O.; Buchardt, O. Facile Synthesis of Reagents Containing a Terminal Maleimido Ligand Linked to
an Active Ester. Synthesis 1991, 1991, 819–821. [CrossRef]
78. Ede, N.J.; Tregear, G.W.; Haralambidis, J. Routine preparation of thiol oligonucleotides: Application to the
synthesis of oligonucleotide-peptide hybrids. Bioconjugate Chem. 1994, 5, 373–378. [CrossRef]
79. Tyler, P.C.; Young, R.N.; Rodan, G.A.; Ruel, R. Prostaglandin Analog for Treating Osteoporosis. US Patent
No. 5,409,911, 1995.
80. Moon, S.; Arrabal, R.; Matykina, E. 3-Dimensional structures of open-pores in PEO films on AZ31 Mg alloy.
Mater. Lett. 2015, 161, 439–441. [CrossRef]
81. Diamanti, M.V.; Del Curto, B.; Pedeferri, M. Anodic oxidation of titanium: From technical aspects to
biomedical applications. J. Appl. Biomater. Biomech. 2011, 9, 55–69. [CrossRef]
82. Zorn, G.; Gotman, I.; Gutmanas, E.Y.; Adadi, R.; Sukenik, C.N. Surface modification of Ti45Nb alloy by
immobilization of RGD peptide via self assembled monolayer. J. Mater. Sci. Mater. Med. 2007, 18, 1309–1315.
[CrossRef]
83. Zoulalian, V.; Zürcher, S.; Tosatti, S.; Textor, M.; Monge, S.; Robin, J.J. Self-assembly of poly (ethylene
glycol)-poly (alkyl phosphonate) terpolymers on titanium oxide surfaces: Synthesis, interface characterization,
investigation of nonfouling properties, and long-term stability. Langmuir 2010, 26, 74–82. [CrossRef]
84. Kovács, R.; Grün, A.; Németh, O.; Garadnay, S.; Greiner, I.; Keglevich, G. The synthesis of pamidronic
derivatives in different solvents: An optimization and a mechanistic study. Heteroat. Chem. 2014, 25, 186–193.
[CrossRef]
85. Paterson, M.J.; Eggleston, I.M. Convenient preparation of N-maleoyl amino acid succinimido esters using
N-trifluoroacetoxysuccinimide. Synth. Commun. 2008, 38, 303–308. [CrossRef]
86. Song, H.Y.; Ngai, M.H.; Song, Z.Y.; MacAry, P.A.; Hobley, J.; Lear, M.J. Practical synthesis of maleimides and
coumarin-linked probes for protein and antibody labelling via reduction of native disulfides. Org. Biomol.
Chem. 2009, 7, 3400–3406. [CrossRef] [PubMed]
87. Leonard, N.M.; Brunckova, J. One-pot synthesis of succinimidyl-4-(N-maleimidomethyl)cyclohexane-1-
carboxylate (SMCC). Org. Prep. Proced. Int. 2012, 44, 180–183. [CrossRef]
88. Abràmoff, M.D.; Magalhães, P.J.; Ram, S.J. Image processing with imageJ. Biophoton. Int. 2004, 11, 36–41.

Molecules 2020, 25, 229
21 of 21
89. Chung, F.H. Quantitative interpretation of X-ray diffraction patterns of mixtures. I. Matrix-flushing method
for quantitative multicomponent analysis. J. Appl. Crystallogr. 1974, 7, 519–525. [CrossRef]
90. Scully, J.R. Polarization resistance method for determination of instantaneous corrosion rates. Corrosion 2000
,
56, 199–218. [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
