Aryl diazonium chemistry for the surface functionalization of glassy biosensors

Article abstract of DOI:10.3390/bios6010008

Nanostring resonator and fiber-optics-based biosensors are of interest as they offer high sensitivity, real-time measurements and the ability to integrate with electronics. However, these devices are somewhat impaired by issues related to surface modification. Both nanostring resonators and photonic sensors employ glassy materials, which are incompatible with electrochemistry. A surface chemistry approach providing strong and stable adhesion to glassy surfaces is thus required. In this work, a diazonium salt induced aryl film grafting process is employed to modify a novel SiCN glassy material. Sandwich rabbit IgG binding assays are performed on the diazonium treated SiCN surfaces. Fluorescently labelled anti-rabbit IgG and anti-rabbit IgG conjugated gold nanoparticles were used as markers to demonstrate the absorption of anti-rabbit IgG and therefore verify the successful grafting of the aryl film. The results of the experiments support the effectiveness of diazonium chemistry for the surface functionalization of SiCN surfaces. This method is applicable to other types of glassy materials and potentially can be expanded to various nanomechanical and optical biosensors.

Full text of DOI:10.3390/bios6010008

biosensors
Article
Aryl Diazonium Chemistry for the Surface
Functionalization of Glassy Biosensors
Wei Zheng 1, Remko van den Hurk 1, Yong Cao 2, Rongbing Du 2, Xuejun Sun 3, Yiyu Wang 4,
Mark T. McDermott 2 and Stephane Evoy 1,
*
1
Department of Electrical and Computer Engineering, University of Alberta, Edmonton, Alberta,
AB T6G 2V4, Canada; wzheng2@ualberta.ca (W.Z.); Remko@ualberta.ca (R.v.d.H.)
Department of Chemistry and National Institute for Nanotechnology, University of Alberta, Edmonton,
Alberta, AB T6G 2G2, Canada; yong2@ualberta.ca (Y.C.); rdu@ualberta.ca (R.D.);
mmcdermo@ualberta.ca (M.T.M.)
Department of Experimental Oncology, Cross Cancer Institute, University of Alberta, Edmonton, Alberta,
AB T6G 1Z2, Canada; xuejun.sun@ualberta.ca
Department of Chemical and Materials Engineering, University of Alberta, Edmonton, Alberta, AB T6G 1H9,
Canada; yiyu@ualberta.ca
2
3
4
*
Correspondence: sevoy@ualberta.ca; Tel.: +1-780-492-6192
Academic Editor: Ebrahim Ghafar-Zadeh
Received: 2 February 2016; Accepted: 9 March 2016; Published: 14 March 2016
Abstract: Nanostring resonator and fiber-optics-based biosensors are of interest as they offer high
sensitivity, real-time measurements and the ability to integrate with electronics. However, these
devices are somewhat impaired by issues related to surface modification. Both nanostring resonators
and photonic sensors employ glassy materials, which are incompatible with electrochemistry.
A surface chemistry approach providing strong and stable adhesion to glassy surfaces is thus required.
In this work, a diazonium salt induced aryl film grafting process is employed to modify a novel SiCN
glassy material. Sandwich rabbit IgG binding assays are performed on the diazonium treated SiCN
surfaces. Fluorescently labelled anti-rabbit IgG and anti-rabbit IgG conjugated gold nanoparticles
were used as markers to demonstrate the absorption of anti-rabbit IgG and therefore verify the
successful grafting of the aryl film. The results of the experiments support the effectiveness of
diazonium chemistry for the surface functionalization of SiCN surfaces. This method is applicable
to other types of glassy materials and potentially can be expanded to various nanomechanical and
optical biosensors.
Keywords: biosensors; glasses; optical fibers; nanostrings; diazonium; surface linkers
1. Introduction
Biological detection is of importance in many fields such as disease biomarker diagnosis and
monitoring, drug discovery, and molecular identification [1–7]. For instance, the multiplexed
assaying of proteins enables the understanding and diagnosis of complex diseases where traditional
genomic assays are somewhat inadequate. Prions play a significant role in diseases, such as the
Creutzfeldt-Jakob disease and transmissible spongiform encephalopathies [
such as the amyloid-beta (A ), are recognized causative agent of degenerative conditions such as
Alzheimer’s disease [ 11]. Protein microarrays enable multiplexed assays and have been employed
to quantify cancer cells and biomarkers [12 13]. In addition, protein misfolding cyclic amplification is
8,9]. In turn, peptides,
β
9–
,
used for the testing of prions and the diagnosis of related diseases [14–17]. The technique however
involves multiple steps and is inappropriate for large scale screening.
Label-free biosensors have been looked upon as alternative platforms for such assays [18
,19].
Such biosensors typically integrate a bio-recognition probe with a transduction system, as well
Biosensors 2016, 6, 8; doi:10.3390/bios6010008
www.mdpi.com/journal/biosensors

Biosensors 2016, 6, 8
2 of 14
as electronic systems such as signal amplifiers, processors, and display. Transduction platforms,
such as quartz crystal microbalance (QCM) [20 23], micromechanical resonators [24 30], flow
cytometry [18 31 33], amperometry [34 38], surface plasmon resonance (SPR) [39 46], and planar
optical waveguides [47 49], have been investigated. In turn, numerous biological probes such
as DNA [50], RNA [51], monoclonal [52 53] polyclonal antibodies [54], bacteriophages [35 55 59
and their binding proteins [58 60] have been leveraged to impart specificity to the transduction.
–
–
,
–
–
–
–
,
, – ]
,
Most of these sensing platforms involve the immobilization of the probe/target system onto a
metallic or semiconducting surface. The last few years have however seen the emergence of alternate
transduction mechanisms that rather involve the interaction of the analyte with an optical field
propagating in glassy waveguides [61
–70]. More specifically, fiber-optic sensors offer the advantages
of miniaturization, multiple detection, low loss remote monitoring, and large information contents [69].
Further, advancement in the nanomachining of glasses [71,72] has enabled the realization glassy
sensing nanostrings [73,74] as narrow as 8 nm [75].
The use of stable interfacial moieties offering strong adhesion, biocompatibility, protection
against corrosion and long term stability is crucial to the realization of reliable biosensors [76 78].
–
Chemical bonding is usually preferred over simple physisorption as it provides better coverage and
more stable linkage. Electrochemistry is commonly employed to insure optimal coverage and reliability.
Electrochemical approaches are however only suitable for conductive and semi-conductive materials
and are thus not applicable to the functionalization of insulating glasses. Electrochemistry also
requires complex apparatus, can involve harsh chemicals and lead to the deterioration of the biological
system [79,80]. Hence, a simpler, milder, versatile and biocompatible process for the linking of
biomolecules onto glasses would be required.
A recently reported diazonium salt reduction induced aryl film grafting process represents a
potent candidate for such applications [79,80]. This diazonium chemistry involves a single salt redox
process, is implemented in aqueous solution at room temperature and does not require complicated
equipment. The mild conditions involved insure process compatibility with pre-existing biological
layers. Furthermore, diaznonium chemistry forms covalent bonding onto the surface, thus offers high
thermal, mechanical and ambient stability. Moreover, this chemical modification is applicable to all
types of materials, from metals to insulator, organic to inorganic.
We here report a diazonium salt induced aryl film grafting process to modify a novel SiCN
glassy material [28
,72
,81
,82] (Figure 1). Various surfaces, ranging from metal [83], semi-conductor [84
]
carbon [85 86] and non-conductive materials [79
,
,80] can be modified by the reduction of aryldiazonium
salts by either electrochemically or chemically. As shown in Figure 1, the surface modification is based
on radical reactions. Reduction of diazonium salts generates reactive aryl radicals, which then bind to
SiCN surfaces. This attachment of the aryl film on substrate surface is very stable [83]. The covalent
interface bonding on carbon [87
surfaces has thus been reported.
–89], graphene [90,91], silicon [92,93], copper [94], and gold [95–97]

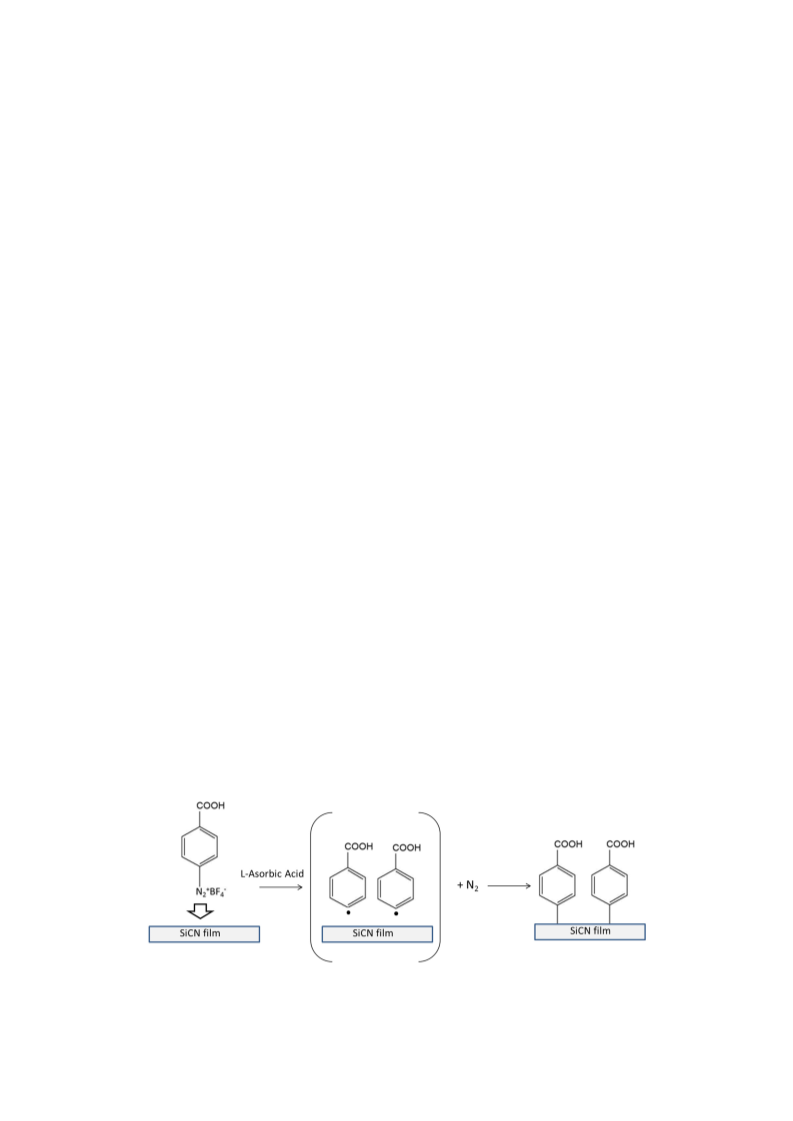

Figure 1. Diagram of diazonium aryl functionalization of SiCN surfaces.

Biosensors 2016, 6, 8
3 of 14
In a prior report, we employed such grafting process for the functionalization of resonant SiCN
nanostrings [98]. In that work, the grafting was employed to covalently attach anti-rabbit IgG as a
molecular probe. Specific enumeration of rabbit IgG was successfully performed through observation
of downshifts of the resonant frequencies. In the work reported here, a similar grafting process is
rather used to enable a sandwhich assay. More specifically, rabbit IgG binding assays are performed
on the diazonium treated SiCN surface. Fluorescently-labelled rabbit IgG and gold nanoparticles
(AuNPs) conjugated with rabbit IgG were used individually as markers to demonstrate the absorption
of anti-rabbit IgG and further verify the successful use of aryl films for the functionalization of SiCN
surfaces (Figure 2).
Figure 2. Schematic diagram of rabbit IgG sandwich assay onto SiCN surfaces. (
groups, as described in Figure 1; ( ) activation of carboxyl groups and attachment of anti-rabbit IgG
and BSA blocking layer; ( ) specific capture of rabbit IgG; ( ) tagging using FITC-labelled anti-rabbit
a) grafting of aryl
b
c
d
IgG; (e) tagging using gold nanoparticles functionalized with anti-rabbit IgG.
2. Results and Discussion
2.1. SiCN Film Composition
Figure 3 displays an X-ray photoelectron spectroscopy (XPS) survey of a typical SiCN film.
Significant binding energy peaks are observed for silicon, carbon and nitrogen. Data analysis yields
the quantitative elemental composition of the films (Table 1). The atomic Si:C:N composition ratio was
roughly 4:3:3.
Table 1. Element composition analysis of SiCN film.
Element
Atomic Concentration %
Mass Concentration %
N 1s
C 1s
Si 2p
29.69
30.87
39.46
21.94
19.57
58.49

Biosensors 2016, 6, 8
4 of 14

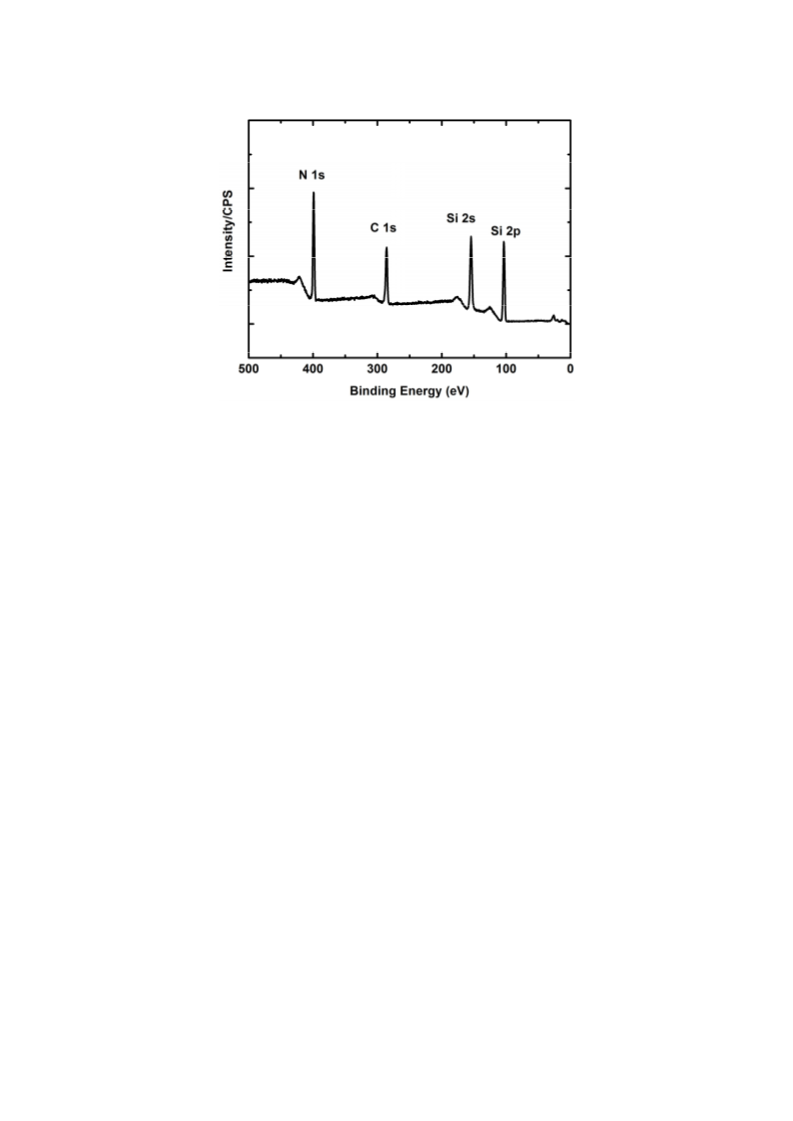

Figure 3. XPS survey of SiCN film.
2.2. SEM and EDX of AuNPs
Figure 4 shows scanning electron microscope (SEM) images of AuNPs on sample A1 (Figures 3B
and 4A) and control chip C1 (Figure 4C,D). The images show a dense and roughly uniform distribution
of AuNPs over the surface. Almost no AuNP were observed on the control chip C1. It is noteworthy
that these results were obtained using high concentrations of anti-rabbit IgG-conjugated AuNPs.
To exclude the possibility of non-specific binding by saturation, a 1:3 dilution of anti-rabbit IgG
conjugated AuNPs solution was applied to sample chip B1 and control chip D1. The results are shown
in Figure 4. Sample B1 shows a roughly uniform coverage of AuNP but at a lower distribution density
compared to that of A1. Very small amounts of AuNP are present on control chip D1, again pointing
to a negligible level of non-specific binding to the surface. This minimal amount of non-specific
binding is likely caused by the interaction between the polyclonal goat anti-rabbit IgG and the goat
IgG. The interaction of the AuNPs themselves to the IgG molecules on the substrate may however be
caused by other factors. No AuNP are shown under magnification of 20,000x. The contrast of AuNP
density between samples and negative controls observed in both experiments (i.e., Figures 4 and 5)
therefore points to a high selectivity of binding of anti-rabbit IgG conjugated AuNPs onto the surface.
Figure 6 compares the density of AuNPs on chips A1 and B1. Under 50,000x and 200,000x
magnification, the ratio of AuNP of A1 to B1 is around 3:1 which is consistent with the relative
concentrations of anti-rabbit IgG conjugated AuNP solutions concentration employed in the two
experiments. Figure 7 shows the EDX analysis of SiCN substrate immobilized with sandwich rabbit
IgG structure. The point analysis of the particle (panel B) shows significant peaks for elements gold,
silicon, carbon and nitrogen, which further supports the attachment of AuNPs onto the SiCN substrate.
The elements map shows their relative proportions on and off the particle. In spite of background
noise of sparse gold distribution of the particle, the contrast of gold density on and off particle is high
enough to conclusively establish the presence of discrete AuNPs on the surface (panel C). Panels D,
E, F show less silicon, a bit more carbon and almost the same amount of nitrogen on the particle,
which agrees with the fact that anti-rabbit IgG conjugated AuNPs contains carbon and nitrogen, but
no silicon. The shape of elements mapping are slightly distorted due to the electron astigmation at
high magnification but they still reflects the concentrations of elements distribution effectively.

Biosensors 2016, 6, 8
5 of 14

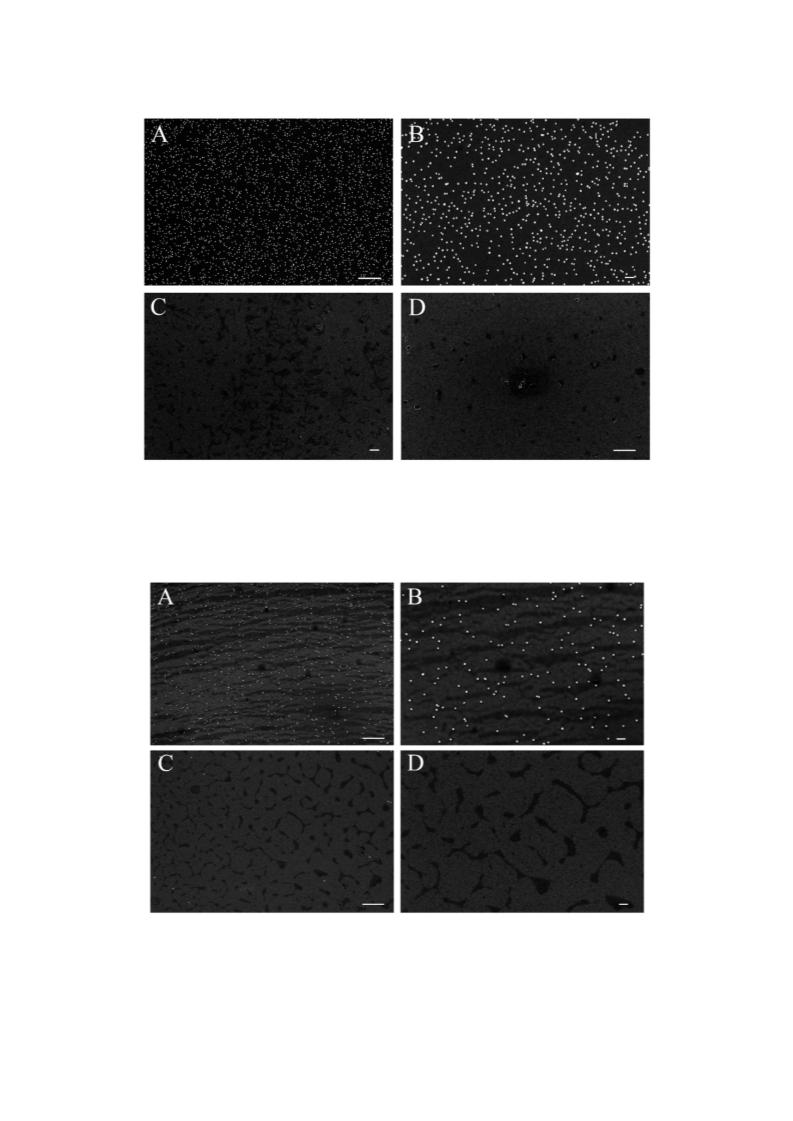

Figure 4. Comparison of presence of AuNP on the surface of sample chip A1 and negative control chip
C1: ( ) AuNP distribution on chip A1 under 10,000x magnification, scale bar length is 1 m; ( ) AuNP
distribution on chip A1 under 20,000x magnification, scale bar length is 200 nm; ( ) AuNP distribution
) AuNP distribution on chip C1
A
µ
B
C
on chip C1 under 10,000x magnification, scale bar length is 1
under 20,000x magnification, scale bar length is 200 nm.
µm; (D
Figure 5. Comparison of presence of AuNPs on the surface of sample chip B1 and negative control
chip D1: ( ) AuNP distribution on chip B1 under 10,000 times magnification, scale bar length 1 m;
) AuNP distribution on chip B1 under 20,000 times magnification, scale bar length 200 nm; ( ) AuNP
) AuNP
A
µ
(B
C
distribution on chip D1 under 10,000 times magnification, scale bar length is 1
distribution on chip D1 under 20,000 times magnification, scale bar length is 200 nm.
µm; (D

Biosensors 2016, 6, 8
6 of 14

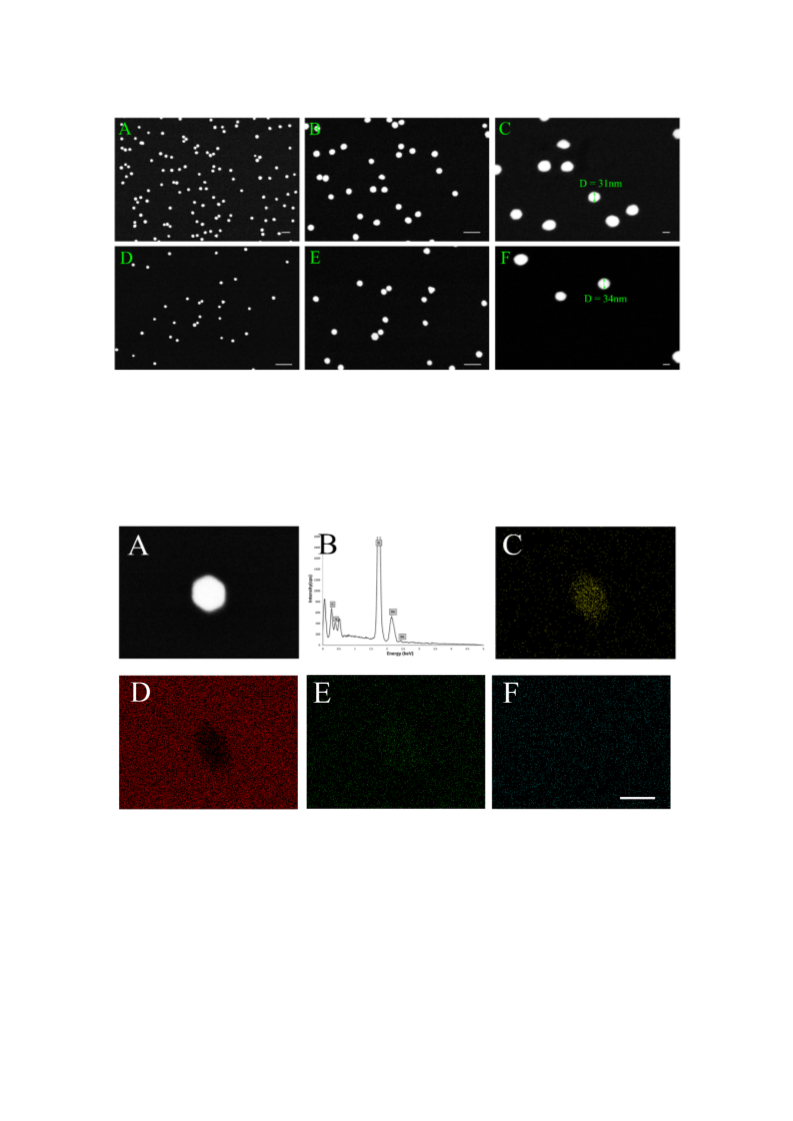

Figure 6. Comparison of presence and density of AuNP on the surface of chips A1 and B1 under high
magnification: ( ) AuNP distribution on chip A1 under 50,000 times magnification, scale bar stands
for 100 nm; (B) AuNP distribution on chip A1 under 100,000 times magnification, scale bar stands for
100 nm; ( ) AuNP distribution on chip A1 under 200,000 times magnification, scale bar stands for
20 nm; ( ) AuNP distribution on chip B1 under 50,000 times magnification, scale bar stands for 200 nm;
) AuNP distribution on chip B1 under 100,000 times magnification, scale bar stands for 100 nm;
(F) AuNP distribution on chip B1 under 200,000 times magnification, scale bar stands for 20 nm.
A
C
D
(
E
Figure 7. EDX analysis of substrate immobilized with AuNP: (
spectrum of a point of the particle, showing peaks of gold, silicon, carbon and nitrogen; (
of distribution and relative intensity of gold in scanned area; ( ) EDX map of distribution and relative
intensity of silicon in scanned area; ( ) EDX map of distribution and relative intensity of carbon in
scanned area; ( ) EDX map of distribution and relative intensity of element nitrogen in scanned area.
A) SEM image of AuNP; (B) EDX
C) EDX map
D
E
F
Scale bar stands for 50 nm.
2.3. Fluorescence Imaging
As seen in Figure 8, the fluorescein-5-Isothiocyanate (FITC) fluorescent marker was present only
in chips A2 and B2 but not in negative control chips C2 and D2. The FITC fluorescent intensity is clearly
stronger in A2 than it is in B2, while almost no difference exists between C2 and D2. Table 2 tabulates

Biosensors 2016, 6, 8
7 of 14
the mean fluorescent intensity and signal to noise ratio for those samples. The signal to noise ratios of
185 and 105 under FITC dilution of 1:200 and 1:400, respectively, conclusively establishes the selective
absorption of FITC-conjugated anti-rabbit IgG to the target molecule rabbit IgG. The fluorescence
intensity of A2 is 47% larger than that of B2, suggesting non-saturation binding of FITC conjugated
anti-rabbit IgG to substrate. The intensities from negative control samples C2 and D2 are almost the
same for both FITC concentration, further pointing to an almost inexistent binding of FITC conjugated
anti-rabbit IgG to substrate. Hence, these results conclusively establish that the chemical bonding of
probe molecule anti-rabbit IgG to the aryl film on SiCN substrate induced by diazonium modification
has been accomplished.
Figure 8. Comparison of presence of FITC on the surface of sample chip A2, B2 and control chip C2,
D2: (A) FITC distribution on chip A2; (B) FITC distribution on chip B2; (C) FITC distribution on chip
C2; (D) FITC distribution on chip D2. Scale bar stands for 2 µm.
Table 2. Mean optical intensity of FITC on the surface of sample chip A2, B2 and control chip C2, D2.
Dilution Ratio of FITC
Conjugated Anti-Rabbit IgG
Sample
Intensity (AU)
Signal to Noise Ratio
A2
C2
37,967
205
185
105
1:200
B2
D2
25,791
245
1:400
3. Materials and Methods
3.1. SiCN Film Deposition
A previously reported deposition technique was employed to deposit the thin film [28,72].
More specifically, a single-crystal (100) silicon wafer was subjected to a 15 min piranha clean (3:1
H2SO4:H2O2) to eliminate surface organics, and immediately followed by a 3 min buffered oxide etch
(BOE, 10:1 HF:NH4F) to strip the native oxide. The SiCN film was deposited onto the clean silicon
wafer by plasma enhanced chemical vapor deposition (PECVD). First, the PECVD chamber (Trion
Orion) was pre-conditioned at a mixed gases flow of 25 sccm DES, 40 sccm NH3, 55 sccm N2 at a

Biosensors 2016, 6, 8
8 of 14
˝
temperature of 300 C, a pressure of 500 mTorr, and a power of 50 W for 1200 s. The silicon wafer was
then loaded in the reactor. The chamber was purged by 55 sccm N2 at a pressure of 500 mTorr and a
˝
temperature of 300 C for 10 s. The chamber was prepared for the deposition by a mixed gases flow of
25 sccm DES, 40 sccm NH3, 55 sccm N2 at a temperature of 300 ˝C, a pressure of 500 mTorr for 10 s.
A SiCN thin film was deposited with at a mixed gases flow of 25 sccm DES, 40 sccm NH3, 55 sccm N2
˝
at a temperature of 300 C, a pressure of 500 mTorr, and a power of 50 W for 125 s. The wafer was then
˝
annealed in a 3-zone Minibrute tube furnace at 525 C for 2 h.
3.2. XPS Element Analysis
Surface XPS analyses were performed to characterize the elemental composition of the deposited
film, namely the ratio of silicon, carbon and nitride. The XPS was performed in a Kratos Axis Ultra
spectrometer using a monochromatic Al Kα source (hν = 1486.6 eV). Instrument base pressure was
lower than 5 ˆ 10´8 Pa. The survey scans were acquired out with a pass energy of 160 eV.
3.3. Diazonium Modification of SiCN
Aryl diazonium salt was synthesized from the corresponding anilines using a previously reported
procedure [86]. Briefly, 0.1 moles 4-Aminobenzoic acid (Sigma-Aldrich) was dissolved in 50 mL
floroboric acid (48%, Sigma-Aldrich) and then cooled in an ice water bath. After cooling the solution
to 0 ˝C, Sodium nitrite (10 g, Sigma-Aldrich) dissolved in DI water (20 mL) was added drop by drop
with stirring. The reaction mixture was further cooled in ice water bath and stirred for another 1 h.
The resultant precipitate was filtered in a Buchner funnel and washed with cold anhydrous ether
(Sigma-Aldrich).
The SiCN surface was modified by diazonium salt reduction induced aryl film grafting process as
per the following procedure. A piranha and BOE etch similar to the one described previously was first
employed to clean the SiCN surface from organic contaminants. Indeed, the SiCN films were batch
deposited on multiple wafers at a time, with individual wafers often stored for months prior to use.
A re-cleaning of the SiCN film surface prior to aryl grafting was thus deemed compulsory in the light
of this extensive storage. Following this cleaning, the SiCN chips were incubated in 2:1 volume ratio of
0.05 M 4-carboxybenzenediazonium tetrafluoroborate (COOH
´
C6H4 N2BF4) and 0.05 M L-ascorbic
´
acid (VC) (Sigma-Aldrich) for 60 min. The chips were then successively rinsed in water, ethanol, and
acetone followed by a 5 min sonication in dimethylformamide (DMF) (Sigma-Aldrich). The presence of
grafted aryl film onto the SiCN film after sonication in DMF was verified with XPS analysis. For such
verification, a Br terminated diazonium salt 4-bromobenzenediazonium tetrafluoroborate was rather
used. Bromium was used as elemental marker as it is otherwise absent from the SiCN film surface.
Related XPS spectra clearly indicated the presence of the Br groups following the sonication step in
DMF, confirming the stability of the grafting [98].
Carboxyl groups were activated by incubating the chips in a 1:1 volume ratio of 0.4 M EDC
(N-(3-dimethylaminopropyl)-N1-ethylcarbodiimide hydrochloride) (Sigma-Aldrich) and 0.1 M NHS
(N-hydroxysuccinimide) (Sigma-Aldrich) solution for 30 min.
3.4. Gold Nanoparticle Labelled Sandwich Rabbit IgG Assay
In this AuNP labelled sandwich rabbit IgG assay, anti-rabbit IgG was used as the
recognition bioreceptor, rabbit IgG was the target and anti-rabbit IgG conjugated AuNP served
as detection markers.
3.4.1. Immobilization of AuNP Labelled Sandwich Rabbit IgG
Immobilization of recognition bioreceptor: Four SiCN chips (A1, B1, C1, D1) baring activated carboxyl
groups were incubated in 100 µg/mL goat anti-rabbit IgG solution (polyclonal, Sigma-Aldrich) at
room temperature for 2 h. The chips were rinsed with PBST (Phosphate Buffered Saline Tween-20) and
then incubated in 5% BSA (bovine serum albumin) at room temperature for 1 h to block non-specific
binding sites. The chips were then rinsed once again in PBST.

Biosensors 2016, 6, 8
9 of 14
Immobilization of target: Two chips (A1 and B1) were immobilized with the detection target by
incubating in 200 g/mL rabbit IgG solution (polyclonal, Sigma-Aldrich) at room temperature for 1 h.
As parallel control experimnent, the other two chips (C1 and D1) were incubated in 200 g/mL goat
µ
µ
IgG solution (polyclonal, Sigma-Aldrich) at room temperature for 1 h. The chips were then rinsed once
again in PBST.
Immobilization of detection marker: Chips A1 and C1 were immersed in 40 nm AuNP
(
4.5 ˆ 1011 /mL) conjugated anti-rabbit IgG solution (10
µg/mL, Ted Pella) at room temperature
for 1 h. Chips B1 and D1 were immersed in 1:3 diluted solution of 40 nm AuNP conjugated anti-rabbit
IgG at room temperature for 1 h. Following incubation, the chips were water rinsed and dried under
nitrogen flow. Table 3 summarizes the conditions under which each sample was prepared.
Table 3. Description of Samples.
Sample
Control Type
Dilution Ratio
Label
A1
B1
C1
D1
A2
B2
C2
D2
positive
positive
negative
negative
positive
positive
negative
negative
1:1
1:3
1:1
AuNP
AuNP
AuNP
AuNP
FITC
FITC
FITC
FITC
1:3
1:200
1:400
1:200
1:400
3.4.2. SEM and EDX
A high resolution field emission scanning electron microscopy (Zeiss Sigma FE-SEM) was used to
observe the presence of the gold nanoparticles on the surface of chips A1, B1, C1 and D1. Images were
obtained at magnifications ranging from 10,000x to 200,000x using an acceleration voltage of 15 KV, and
using a secondary electron (SE) in-lens and backscattered electron (BSE) detector. An energy-dispersive
X-ray detection instrument (EDX) was used to identify the elemental composition of surfaces of chips
A1, B1, C1 and D1. An Oxford Instruments X-MaxN 150 mm2 Silicon Drift Detector (SDD) detector
was used for such point analysis and mapping of elemental spatial distributions.
3.5. FITC Labelled Sandwich Rabbit IgG Assay
The FITC labelled sandwich rabbit IgG assay was similar to the AuNP labelled sandwich rabbit
IgG assay with the exception that FITC conjugated anti-rabbit IgG was used as the detection marker.
3.5.1. Immobilization of FITC Labelled Sandwich Rabbit IgG
The procedure for immobilization of bioreceptor and target is similar to the one described in
section 4.4.1. Four diazonium modified SiCN chips (A2, B2, C2, D2) were incubated in 100
goat anti-rabbit IgG solution (polyclonal, Sigma-Aldrich) for 2 h, and 5% BSA (bovine serum albumin)
for 1 h at room temperature. Chips A2 and B2 were incubated in 200 g/mL rabbit IgG solution
(polyclonal, Sigma-Aldrich) for 1 h whereas chips C2 and D2 were subject to 200 g/mL goat IgG
µg/mL
µ
µ
solution (polyclonal, Sigma-Aldrich) as control for 1 h at room temperature. Chips A2 and C2 were
immersed in 1:200 diluted FITC conjugated anti-rabbit IgG solution (Sigma-Aldrich) while Chips B2
and D2 were immersed in 1:400 diluted FITC conjugated anti-rabbit IgG solution at room temperature
for 1 h.
3.5.2. Confocal Microscopy Imaging
Chips A2, B2, C2, D2 were individually imaged on a Zeiss LSM 710 Laser scanning confocal
microscope mounted on an Axio-observer inverted microscope (ZEN 2011, Jena, Germany) with a
plan Apochromat 20x (NA 0.8) dry lens. Fluorescence signal was collected with a 488 nm laser and

Biosensors 2016, 6, 8
10 of 14
with an emission wavelength ranging from 492 nm to 590 nm. Images were digitized at 16 bit with a
Nyquist sampling rate using a pinhole size of one airy unit. The average intensity of individual images
were calculated using the imageJ software (National Institutes of Health).
Acknowledgments: This work was supported by that Natural Sciences and Engineering Research Council of
Canada through its Discovery Grant program, as well as by the National Research Council of Canada via the
National Institute for Nanotechnology. The authors acknowledge the University of Alberta Nanofab staff for their
technical support, more specifically Shihong Xu and Les Schowalter.
Author Contributions: All authors contributed to the conception and design of the experiments; Wei Zheng
deposited the SiCN films and Rongbing Du performed the reagent synthesis; Wei Zheng, Rongbing Du, and
Yong Cao performed the surface functionalization; Wei Zheng analyzed the data with assistance of Xuejun Sun
and Yiyu Wang; Wei Zheng wrote the paper, which was edited and reviewed by all authors.
Conflicts of Interest: The authors declare no conflict of interest. The founding sponsors had no role in the design
of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the
decision to publish the results.
Abbreviations
The following abbreviations are used in this manuscript:
NEMS
AuNP
SEM
Nano-electromechanical Systems
Gold nanoparticle
Scanning electron microscopy
X-ray photoelectron microscopy
Phosphate Buffered Saline Tween-20
Plasma enhanced chemical vapor deposition
Fluorescein-5-Isothiocyanate
XPS
PBST
PECVD
FITC
References
1.
Haes, A.J.; Chang, L.; Klein, W.L.; Van Duyne, R.P. Detection of a biomarker for alzheimer’s disease from
synthetic and clinical samples using a nanoscale optical biosensor. J. Am. Chem. Soc. 2005, 127, 2264–2271.
[CrossRef] [PubMed]
2.
3.
4.
5.
6.
Tothill, I.E. Biosensors for cancer markers diagnosis. Semin. Cell Dev. Biol. 2009, 20, 55–62. [CrossRef]
[PubMed]
Giuliano, K.A.; Taylor, D.L. Fluorescent-protein biosensors: New tools for drug discovery. Trends Biotechnol.
1998, 16, 135–140. [CrossRef]
Keusgen, M. Biosensors: New approaches in drug discovery. Naturwissenschaften 2002, 89, 433–444.
[CrossRef] [PubMed]
Cooper, M.A. Optical biosensors in drug discovery. Nat. Rev. Drug Discov. 2002, 1, 515–528. [CrossRef]
[PubMed]
Gartia, M.R.; Braunschweig, B.; Chang, T.-W.; Moinzadeh, P.; Minsker, B.S.; Agha, G.; Wieckowski, A.;
Keefer, L.L.; Liu, G.L. The microelectronic wireless nitrate sensor network for environmental water
monitoring. J. Environ. Monit. 2012, 14, 3068–3075. [CrossRef] [PubMed]
Liao, J.C.; Mastali, M.; Gau, V.; Suchard, M.A.; Møller, A.K.; Bruckner, D.A.; Babbitt, J.T.; Li, Y.; Gornbein, J.;
Landaw, E.M. Use of electrochemical DNA biosensors for rapid molecular identification of uropathogens in
clinical urine specimens. J. Clin. Microbiol. 2006, 44, 561–570. [CrossRef] [PubMed]
Edgeworth, J.A.; Farmer, M.; Sicilia, A.; Tavares, P.; Beck, J.; Campbell, T.; Lowe, J.; Mead, S.; Rudge, P.;
Collinge, J.; et al. Detection of prion infection in variant creutzfeldt-jakob disease: A blood-based assay.
Lancet 2011, 377, 487–493. [CrossRef]
7.
8.
9.
Jucker, M.; Walker, L.C. Pathogenic protein seeding in alzheimer disease and other neurodegenerative
disorders. Ann. Neurol. 2011, 70, 532–540. [CrossRef] [PubMed]
10. Stohr, J.; Watts, J.C.; Mensinger, Z.L.; Oehler, A.; Grillo, S.K.; DeArmond, S.J.; Prusiner, S.B.; Giles, K. Purified
and synthetic alzheimer’s amyloid beta (a beta) prions. PNAS 2012, 109, 11025–11030. [CrossRef] [PubMed]
11. Rushworth, J.V.; Ahmed, A.; Griffiths, H.H.; Pollock, N.M.; Hooper, N.M.; Millner, P.A. A label-free electrical
impedimetric biosensor for the specific detection of alzheimer's amyloid-beta oligomers. Biosens. Bioelectron.
2014, 56, 83–90. [CrossRef] [PubMed]

Biosensors 2016, 6, 8
11 of 14
12. Sreekumar, A.; Nyati, M.K.; Varambally, S.; Barrette, T.R.; Ghosh, D.; Lawrence, T.S.; Chinnaiyan, A.M.
Profiling of cancer cells using protein microarrays: Discovery of novel radiation-regulated proteins.
Cancer Res. 2001, 61, 7585–7593. [PubMed]
13. Woodbury, R.L.; Varnum, S.M.; Zangar, R.C. Elevated hgf levels in sera from breast cancer patients detected
using a protein microarray elisa. J. Proteome Res. 2002, 1, 233–237. [CrossRef] [PubMed]
14. Saborio, G.P.; Permanne, B.; Soto, C. Sensitive detection of pathological prion protein by cyclic amplification
of protein misfolding. Nature 2001, 411, 810–813. [CrossRef] [PubMed]
15. Castilla, J.; Saa, P.; Soto, C. Detection of prions in blood. Nat. Med. 2005, 11, 982–985. [CrossRef] [PubMed]
16. Chen, B.A.; Morales, R.; Barria, M.A.; Soto, C. Estimating prion concentration in fluids and tissues by
quantitative pmca. Nat. Methods 2010, 7, U519–U547. [CrossRef] [PubMed]
17. Moudjou, M.; Sibille, P.; Fichet, G.; Reine, F.; Chapuis, J.; Herzog, L.; Jaumain, E.; Laferriere, F.; Richard, C.A.;
Laude, H.; et al. Highly infectious prions generated by a single round of microplate-based protein misfolding
cyclic amplification. mBio 2013, 5. [CrossRef] [PubMed]
18. Abdel-Hamid, I.; Ivnitski, D.; Atanasov, P.; Wilkins, E. Flow-through immunofiltration assay system for
rapid detection of e. Coli o157:H7. Biosens. Bioelectron. 1999, 14, 309–316. [CrossRef]
19. Lazcka, O.; Del Campo, F.J.; Munoz, F.X. Pathogen detection: A perspective of traditional methods and
biosensors. Biosens. Bioelectron. 2007, 22, 1205–1217. [CrossRef] [PubMed]
20. Fung, Y.S.; Wong, Y.Y. Self-assembled monolayers as the coating in a quartz piezoelectric crystal
immunosensor to detect salmonella in aqueous solution. Anal. Chem. 2001, 73, 5302–5309. [CrossRef]
[PubMed]
21. Chang, Y.P.; Liu, W.C.; Tseng, M.C.; Chu, Y.H. Ionic liquids tailored for reaction-based gas sensing on quartz
crystal microbalance. Rev. Anal. Chem. 2015, 34, 77–86. [CrossRef]
22. Wang, Z.; Yang, M.; He, J.; Yang, Q. Progress of different sensing materials modified qcm gas sensors.
Prog. Chem. 2015, 27, 251–266.
23. Guo, H. Progress of quartz crystal microbalance in chiral analysis. J. Nanosci. Nanotechnol. 2014, 14, 1884–1897.
[CrossRef]
24. Ilic, B.; Czaplewski, D.; Zalalutdinov, M.; Craighead, H.G.; Neuzi, P.; Campagnolo, C.; Batt, C. Single cell
detection with micromechanical oscillators. J. Vac. Sci. Technol. B 2001, 19, 2825–2828. [CrossRef]
25. Ilic, B.; Yang, Y.; Craighead, H.G. Virus detection using nanoelectromechanical devices. Appl. Phys. Lett.
2004, 85, 2604–2606. [CrossRef]
26. Poshtiban, S.; Singh, A.; Fitzpatrick, G.; Evoy, S. Bacteriophage tail-spike protein derivitized microresonator
arrays for specific detection of pathogenic bacteria. Sens. Actuators B Chem. 2013, 181, 410–416. [CrossRef]
27. Campbell, G.A.; Medina, M.B.; Mutharasan, R. Detection of staphylococcus enterotoxin b at picogram levels
using piezoelectric-excited millimeter-sized cantilever sensors. Sens. Actuators B Chem. 2007, 126, 354–360.
[CrossRef]
28. Fischer, L.M.; Wright, V.A.; Guthy, C.; Yang, N.; McDermott, M.T.; Buriak, J.M.; Evoy, S. Specific detection of
proteins using nanomechanical resonators. Sens. Actuators B Chem. 2008, 134, 613–617. [CrossRef]
29. Quitoriano, N.J.; Belov, M.; Evoy, S.; Kamins, T.I. Single-crystal, si nanotubes, and their mechanical resonant
properties. Nano. Lett. 2009, 9, 1511–1516. [CrossRef] [PubMed]
30. Bausells, J. Piezoresistive cantilevers for nanomechanical sensing. Microelectron. Eng. 2015, 145, 9–20.
[CrossRef]
31. Abdel-Hamid, I.; Ghindidlis, A.L.; Atanasov, P.; Wilkins, E. Development of a flow-through immunoassay
system. Sens. Actuators B 1998, 49, 202–210. [CrossRef]
32. Adan, A.; Alizada, G.; Kiraz, Y.; Baran, Y.; Nalbant, A. Flow cytometry: Basic principles and applications.
Crit. Rev. Biotechnol. 2016, 36. [CrossRef] [PubMed]
33. Mross, S.; Pierrat, S.; Zimmermann, T.; Kraft, M. Microfluidic enzymatic biosensing systems: A review.
Biosens. Bioelectron. 2015, 70, 376–391. [CrossRef] [PubMed]
34. Gau, J.J.; Lan, E.H.; Dunn, B.; Ho, C.M.; Woo, J.C. A MEMS based amperometric detector for E. coli bacteria
using self-assembled monolayers. Biosens. Bioelectron. 2001, 16, 745–755. [CrossRef]
35. Gervals, L.; Gel, M.; Allain, B.; Tolba, M.; Brovko, L.; Zourob, M.; Mandeville, R.; Griffiths, M.; Evoy, S.
Immobilization of biotinylated bacteriophages on biosensor surfaces. Sens. Actuators B Chem. 2007, 125,
615–621. [CrossRef]

Biosensors 2016, 6, 8
12 of 14
36. Xu, Y.; Xie, X.; Duan, Y.; Wang, L.; Cheng, Z.; Cheng, J. A review of impedance measurements of whole cells.
Biosens. Bioelectron. 2016, 77, 824–836. [CrossRef] [PubMed]
37. Chillawar, R.R.; Tadi, K.K.; Motghare, R.V. Voltammetric techniques at chemically modified electrodes.
J. Anal. Chem. 2015, 70, 399–418. [CrossRef]
38. Amatore, C.; Delacotte, J.; Guille-Collignon, M.; Lemaître, F. Vesicular exocytosis and
microdevices-microelectrode arrays. Analyst 2015, 140, 3687–3695. [CrossRef] [PubMed]
39. Taylor, A.D.; Yu, Q.; Chen, S.; Homola, J.; Jiang, S. Comparison of E. coli O157:H7 preparation methods used
for detection with surface plasmon resonance sensor. Sens. Actuators B 2005, 107, 202–208. [CrossRef]
40. Liu, X.; Hu, Y.; Zheng, S.; Liu, Y.; He, Z.; Luo, F. Surface plasmon resonance immunosensor for fast, highly
sensitive, and in situ detection of the magnetic nanoparticles-enriched Salmonella enteritidis. Sens. Actuators
B Chem. 2016, 230, 191–198. [CrossRef]
41. Arya, S.K.; Singh, A.; Naidoo, R.; Wu, P.; McDermott, M.T.; Evoy, S. Chemically immobilized t4-bacteriophage
for specific escherichia coli detection using surface plasmon resonance. Analyst 2011, 136, 486–492. [CrossRef]
[PubMed]
42. Singh, A.; Arya, S.K.; Glass, N.; Hanifi-Moghaddam, P.; Naidoo, R.; Szymanski, C.M.; Tanha, J.; Evoy, S.
Bacteriophage tailspike proteins as molecular probes for sensitive and selective bacterial detection.
Biosens. Bioelectron. 2010, 26, 131–138. [CrossRef] [PubMed]
43. Butet, J.; Brevet, P.F.; Martin, O.J.F. Optical second harmonic generation in plasmonic nanostructures: From
fundamental principles to advanced applications. Acs. Nano. 2015, 9, 10545–10562. [CrossRef] [PubMed]
44. Langer, J.; Novikov, S.M.; Liz-Marzán, L.M. Sensing using plasmonic nanostructures and nanoparticles.
Nanotechnology 2015, 26. [CrossRef] [PubMed]
45. Nguyen, H.H.; Park, J.; Kang, S.; Kim, M. Surface plasmon resonance: A versatile technique for biosensor
applications. Sensors 2015, 15, 10481–10510. [CrossRef] [PubMed]
46. Wang, P.; Bo, L.; Semenova, Y.; Farrell, G.; Brambilla, G. Optical microfibre based photonic components and
their applications in label-free biosensing. Biosensors 2015, 5, 471–499. [CrossRef] [PubMed]
47. Buswell, S.C.; Wright, V.A.; Buriak, J.M.; Van, V.; Evoy, S. Specific detection of proteins using photonic crystal
waveguides. Opt. Express 2008, 16, 15949–15957. [CrossRef] [PubMed]
48. Mukundan, H.; Kubicek, J.Z.; Holt, A.; Shively, J.E.; Martinez, J.S.; Grace, K.; Grace, W.K.; Swanson, B.I.
Planar optical waveguide-based biosensor for the quantitative detection of tumor markers. Sens. Actuators
B Chem. 2009, 138, 453–460. [CrossRef]
49. Schmitt, K.; Schirmer, B.; Hoffmann, C.; Brandenburg, A.; Meyrueis, P. Interferometric biosensor
based on planar optical waveguide sensor chips for label-free detection of surface bound bioreactions.
Biosens. Bioelectron. 2007, 22, 2591–2597. [CrossRef] [PubMed]
50. Liao, W.C.; Ho, J.A.A. Attomole DNA electrochemical sensor for the detection of escherichia coli o157.
Anal. Chem. 2009, 81, 2470–2476. [CrossRef] [PubMed]
51. Joung, H.A.; Lee, N.R.; Lee, S.K.; Ahn, J.; Shin, Y.B.; Choi, H.S.; Lee, C.S.; Kim, S.; Kim, M.G. High
sensitivity detection of 16s rrna using peptide nucleic acid probes and a surface plasmon resonance biosensor.
Anal. Chim. Acta 2008, 630, 168–173. [CrossRef] [PubMed]
52. Taylor, A.D.; Yu, Q.M.; Chen, S.F.; Homola, J.; Jiang, S.Y. Comparison of E coli o157:H7 preparation methods
used for detection with surface plasmon resonance sensor. Sens. Actuators B Chem. 2005, 107, 202–208.
[CrossRef]
53. Oh, B.K.; Lee, W.; Chun, B.S.; Bae, Y.M.; Lee, W.H.; Choi, J.W. The fabrication of protein chip based on surface
plasmon resonance for detection of pathogens. Biosens. Bioelectron. 2005, 20, 1847–1850. [CrossRef] [PubMed]
54. Taylor, A.D.; Ladd, J.; Yu, Q.M.; Chen, S.F.; Homola, J.; Jiang, S.Y. Quantitative and simultaneous detection of
four foodborne bacterial pathogens with a multi-channel spr sensor. Biosens. Bioelectron. 2006, 22, 752–758.
[CrossRef] [PubMed]
55. Balasubramanian, S.; Sorokulova, I.B.; Vodyanoy, V.J.; Simonian, A.L. Lytic phage as a specific and
selective probe for detection of staphylococcus aureus—A surface plasmon resonance spectroscopic study.
Biosens. Bioelectron. 2007, 22, 948–955. [CrossRef] [PubMed]
56. Wan, J.H.; Johnson, M.L.; Guntupalli, R.; Petrenko, V.A.; Chin, B.A. Detection of bacillus anthracis spores
in liquid using phage-based magnetoelastic micro-resonators. Sens. Actuators B Chem. 2007, 127, 559–566.
[CrossRef]

Biosensors 2016, 6, 8
13 of 14
57. Singh, A.; Arutyunov, D.; Szymanski, C.M.; Evoy, S. Bacteriophage based probes for pathogen detection.
Analyst 2012, 137, 3405–3421. [CrossRef] [PubMed]
58. Singh, A.; Arutyunov, D.; McDermott, M.T.; Szymanski, C.M.; Evoy, S. Specific detection of campylobacter
jejuni using the bacteriophage nctc 12673 receptor binding protein as a probe. Analyst 2011, 136, 4780–4786.
[CrossRef] [PubMed]
59. Tawil, N.; Sacher, E.; Mandeville, R.; Meunier, M. Surface plasmon resonance detection of E. coli and
methicillin-resistant s. Aureus using bacteriophages. Biosens. Bioelectron. 2012, 37, 24–29. [CrossRef]
[PubMed]
60. Chibli, H.; Ghali, H.; Park, S.; Peter, Y.A.; Nadeau, J.L. Immobilized phage proteins for specific detection of
staphylococci. Analyst 2014, 139, 179–186. [CrossRef] [PubMed]
61. Ray, S.; Mehta, G.; Srivastava, S. Label-free detection techniques for protein microarrays: Prospects, merits
and challenges. Proteomics 2010, 10, 731–748. [CrossRef] [PubMed]
62. Cho, H.; Lee, B.; Liu, G.L.; Agarwal, A.; Lee, L.P. Label-free and highly sensitive biomolecular detection
using sers and electrokinetic preconcentration. Lab Chip 2009, 9, 3360–3363. [CrossRef] [PubMed]
63. Xu, D.X.; Densmore, A.; Delâge, A.; Waldron, P.; McKinnon, R.; Janz, S.; Lapointe, J.; Lopinski, G.;
Mischki, T.; Post, E.; et al. Folded cavity soi microring sensors for highsensitivity and real time measurement
ofbiomolecular binding. Opt. Express 2008, 16, 15137–15148. [CrossRef] [PubMed]
64. Xu, D.X.; Vachon, M.; Densmore, A.; Ma, R.; Delâge, A.; Janz, S.; Lapointe, J.; Li, Y.; Lopinski, G.; Zhang, D.;
et al. Label-free biosensor array based on silicon-on-insulator ring resonators addressed using a WDM
approach. Opt. Lett. 2010, 35, 2771–2773. [CrossRef] [PubMed]
65. Liu, G.L.; Lee, L.P. Nanowell surface enhanced raman scattering arrays fabricated by soft-lithography for
label-free biomolecular detections in integrated microfluidics. Appl. Phys. Lett. 2005, 87, 074101. [CrossRef]
66. Furuki, M.; Kameoka, J.; Craighead, H.G.; Isaacson, M.S. Surface plasmon resonance sensors utilizing
rnicrofabricated channels. Sens. Actuators B Chem. 2001, 79, 63–69. [CrossRef]
67. Cui, Y.; Wei, Q.Q.; Park, H.K.; Lieber, C.M. Nanowire nanosensors for highly sensitive and selective detection
of biological and chemical species. Science 2001, 293, 1289–1292. [CrossRef] [PubMed]
68. Wang, X.D.; Wolfbeis, O.S. Fiber-optic chemical sensors and biosensors (2008–2012). Anal. Chem. 2013, 85,
487–508. [CrossRef] [PubMed]
69. Mehrvar, M.; Bis, C.; Scharer, J.M.; Moo-Young, M.; Luong, J.H. Fiber-optic biosensors—Trends and advances.
Anal. Sci. 2000, 16, 677–692. [CrossRef]
70. Wang, Y.-M.; Pang, X.-F.; Zhang, Y.-Y. Recent advances in fiber-optic DNA biosensors. J. Biomed. Sci. Eng.
2009, 2, 312–317. [CrossRef]
71. Sekaric, L.; Carr, D.W.; Evoy, S.; Parpia, J.M.; Craighead, H.G. Nanomechanical resonant structures in silicon
nitride: Fabrication, operation and dissipation issues. Sens. Actuators A Phys. 2002, 101, 215–219. [CrossRef]
72. Fischer, L.M.; Wilding, N.; Gel, M.; Evoy, S. Low-stress silicon carbonitride for the machining of
high-frequency nanomechanical resonators. J. Vac. Sci. Technol. B 2007, 25, 33–37. [CrossRef]
73. Verbridge, S.S.; Craighead, H.G.; Parpia, J.M. A megahertz nanomechanical resonator with room temperature
quality factor over a million. Appl. Phys. Lett. 2008, 92. [CrossRef]
74. Southworth, D.R.; Barton, R.A.; Verbridge, S.S.; Ilic, B.; Fefferman, A.D.; Craighead, H.G.; Parpia, J.M. Stress
and silicon nitride: A crack in the universal dissipation of glasses. Phys. Rev. Lett. 2009, 102. [CrossRef]
[PubMed]
75. Mohammad, M.A.; Dew, S.K.; Evoy, S.; Stepanova, M. Fabrication of sub-10 nm silicon carbon nitride
resonators using a hydrogen silsesquioxane mask patterned by electron beam lithography. Microelectron. Eng.
2011, 88, 2338–2341. [CrossRef]
76. Grieshaber, D.; MacKenzie, R.; Voros, J.; Reimhult, E. Electrochemical biosensors-sensor principles and
architectures. Sensors 2008, 8, 1400–1458. [CrossRef]
77. Gopel, W.; Heiduschka, P. Interface analysis in biosensor design. Biosens. Bioelectron. 1995, 10, 853–883.
[CrossRef]
78. Credou, J.; Volland, H.; Dano, J.; Berthelot, T. A one-step and biocompatible cellulose functionalization
for covalent antibody immobilization on immunoassay membranes. J. Mater. Chem. B 2013, 1, 3277–3286.
[CrossRef]

Biosensors 2016, 6, 8
14 of 14
79. Mevellec, V.; Roussel, S.; Tessier, L.; Chancolon, J.; Mayne-L'Hermite, M.; Deniau, G.; Viel, P.; Palacin, S.
Grafting polymers on surfaces: A new powerful and versatile diazonium salt-based one-step process in
aqueous media. Chem. Mater. 2007, 19, 6323–6330. [CrossRef]
80. Mesnage, A.; Esnouf, S.; Jegou, P.; Deniau, G.; Palacin, S. Understanding the redox-induced polymer grafting
process: A dual surface-solution analysis. Chem. Mater. 2010, 22, 6229–6239. [CrossRef]
81. Guthy, C.; Das, R.M.; Drobot, B.; Evoy, S. Resonant characteristics of ultranarrow SiCN nanomechanical
resonators. J. Appl. Phys. 2010, 108, 014306. [CrossRef]
82. Guthy, C.; Belov, M.; Janzen, A.; Quitoriano, N.J.; Singh, A.; Wright, V.A.; Finley, E.; Kamins, T.I.; Evoy, S.
Large-scale arrays of nanomechanical sensors for biomolecular fingerprinting. Sens. Actuators B Chem. 2013
187, 111–117. [CrossRef]
,
83. Shewchuk, D.M.; McDermott, M.T. Comparison of diazonium salt derived and thiol derived nitrobenzene
layers on gold. Langmuir 2009, 25, 4556–4563. [CrossRef] [PubMed]
84. El Hadj, F.A.; Amiar, A.; Cherkaoui, M.; Chazalviel, J.N.; Ozanam, F. Study of organic grafting of the silicon
surface from 4-nitrobenzene diazonium tetrafluoroborate. Electrochim. Acta 2012, 70, 318–324. [CrossRef]
85. Young, J.; Su, Y.; Lee, S.; Pak, C.; Kim, H. Enhanced durability of linker-containing carbon nanotube
functionalized via diazonium reaction. Electrochim. Acta 2015, 154, 63–69.
86. Solak, A.O.; Eichorst, L.R.; Clark, W.J.; McCreery, R.L. Modified carbon surfaces as “organic electrodes” that
exhibit conductance switching. Anal. Chem. 2003, 75, 296–305. [CrossRef] [PubMed]
87. Combellas, C.; Kanoufi, F.; Pinson, J.; Podvorica, F.I. Time-of-flight secondary ion mass spectroscopy
characterization of the covalent bonding between a carbon surface and aryl groups. Langmuir 2005, 21,
280–286. [CrossRef] [PubMed]
88. Assresahegn, B.D.; Brousse, T.; Bélanger, D. Advances on the use of diazonium chemistry for functionalization
of materials used in energy storage systems. Carbon 2015, 92, 362–381. [CrossRef]
89. Menanteau, T.; Benoît, C.; Breton, T.; Cougnon, C. Enhancing the performance of a diazonium-modified
carbon supercapacitor by controlling the grafting process. Electrochem. Commun. 2016, 63, 70–73. [CrossRef]
90. Bouša, D.; Pumera, M.; Sedmidubský, D.; Šturala, J.; Luxa, J.; Mazánek, V.; Sofer, Z. Fine tuning of graphene
properties by modification with aryl halogens. Nanoscale 2016, 8, 1493–1502. [CrossRef] [PubMed]
91. González, M.C.R.; Orive, A.G.; Salvarezza, R.C.; Creus, A.H. Electrodeposition of gold nanoparticles on
aryl diazonium monolayer functionalized hopg surfaces. Phys. Chem. Chem. Phys. 2016, 18, 1953–1960.
[CrossRef] [PubMed]
92. Stewart, M.P.; Maya, F.; Kosynkin, D.V.; Dirk, S.M.; Stapleton, J.J.; McGuiness, C.L.; Allara, D.L.; Tour, J.M.
Direct covalent grafting of conjugated molecules onto si, gaas, and pd surfaces from aryidiazonium salts.
J. Am. Chem. Soc. 2004, 126, 370–378. [CrossRef] [PubMed]
93. Bengamra, M.; Khlifi, A.; Ktari, N.; Mahouche-Chergui, S.; Carbonnier, B.; Fourati, N.; Kalfat, R.;
Chehimi, M.M. Silanized aryl layers through thiol-yne photo-click reaction. Langmuir 2015, 31, 10717–10724.
[CrossRef] [PubMed]
94. Hurley, B.L.; McCreery, R.L. Covalent bonding of organic molecules to cu and al alloy 2024 t3 surfaces via
diazonium ion reduction. J. Electrochem. Soc. 2004, 151, B252–B259. [CrossRef]
95. Laurentius, L.; Stoyanov, S.R.; Gusarov, S.; Kovalenko, A.; Du, R.; Lopinski, G.P.; McDermott, M.T.
Diazonium-derived aryl films on gold nanoparticles: Evidence for a carbon–gold covalent bond. Acs Nano
2011, 5, 4219–4227. [CrossRef] [PubMed]
96. Chevalier, C.L.; Landis, E.C. Electrochemical attachment of diazonium-generated films on nanoporous gold.
Langmuir 2015, 31, 8633–8641. [CrossRef] [PubMed]
97. Neal, S.N.; Workie, B.; McCandless, B.E.; Mohamed, A.A. Gold-organic thin films from the reductive grafting
of diazonium gold(III) salts. J. Electroanal. Chem. 2015, 757, 73–79. [CrossRef]
98. Zheng, W.; Du, R.B.; Cao, Y.; Mohammad, M.A.; Dew, S.K.; McDermott, M.T.; Evoy, S. Diazonium chemistry
for the bio-functionalization of glassy nanostring resonator arrays. Sensors 2015, 15, 18724–18741. [CrossRef]
[PubMed]
©
2016 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons by Attribution
(CC-BY) license (http://creativecommons.org/licenses/by/4.0/).
