Multi-colour electrochromic materials based on polyaromatic esters with low driving voltage

Article abstract of DOI:10.1039/c9tc02919b

Low-cost single molecular electrochromic (EC) materials with low toxicity are desirable for EC displays and photonic devices. In this study, new EC materials based on phthalates, an inexpensive class of benzoate materials with relatively simple molecular structure, are designed and prepared. Despite being good candidates for EC devices due to clear colour changes when reduced, devices fabricated using phthalate derivatives (PDs) suffer from a high driving voltage. Herein, we propose a facile strategy of replacing the benzene core with polyaromatic esters to enlarge the conjugated area and to synthesise PDs to lower the driving voltage in EC devices. Additionally, devices show good memory effect (hundreds of seconds), the ability to undergo multiple colour changes and enhanced stability, dependent on the size of the conjugated bridge between the two sides of the molecule. The fabricated EC devices based on polyaromatic esters demonstrate a low driving voltage (-2.6 V). We have shown that the number of aromatic ester rings in the conjugated area is very critical to obtain different colours in this new class of EC materials. This series of EC materials has promising potential for future industry applications due to the vivid colour change upon electrochemical stimulation at a low driving voltage.

Full text of DOI:10.1039/c9tc02919b

View Article Online
View Journal
Journal of
Materials Chemistry C
Materials for optical, magnetic and electronic devices
Accepted Manuscript
This article can be cited before page numbers have been issued, to do this please use: P. Zhang, X. Xing,
Y. Wang, I. Murtaza, Y. He, J. Cameron, S. Ahmed, P. Skabara and H. Meng, J. Mater. Chem. C, 2019, DOI:
10.1039/C9TC02919B.
Volume
Number
6
5
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
7
February 2018
Pages 911-1266
Journal of
Materials Chemistry C
Materials for optical, magnetic and electronic devices
rsc.li/materials-c
Accepted Manuscripts are published online shortly after acceptance,
before technical editing, formatting and proof reading. Using this free
service, authors can make their results available to the community, in
citable form, before we publish the edited article. We will replace this
Accepted Manuscript with the edited and formatted Advance Article as
soon as it is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes to the
text and/or graphics, which may alter content. The journal’s standard
Terms & Conditions and the Ethical guidelines still apply. In no event
shall the Royal Society of Chemistry be held responsible for any errors
or omissions in this Accepted Manuscript or any consequences arising
from the use of any information it contains.
ISSN 2050-7526
PAPER
Nosang V. Myung, Yong-Ho Choa et al.
A
noble gas sensor platform: linear dense assemblies of
a multi-layered
single-walled carbon nanotubes (LACNTs) in
ceramic/metal electrode system (MLES)
rsc.li/materials-c

Page 1 of 17
Journal of Materials Chemistry C
View Article Online
DOI: 10.1039/C9TC02919B
Multi-colour Electrochromic Materials Based on Polyaromatic Esters with
Low Driving Voltage
Pengfei Zhang,a Xing Xing,b Yueyi Wang,a Imran Murtaza,c Yaowu He,a Joseph Cameron,d Ahmed Shuja,e Peter J.
Skabarad and Hong Meng*a
aSchool of Advanced Materials, Peking University Shenzhen Graduate School, Shenzhen, 518055,
China.
bResearch & Development Institute of Northwestern Polytechnical University (Shenzhen),
Northwestern Polytechnical University, Shenzhen 518057, China
cDepartment of Physics, International Islamic University, Islamabad 44000, Pakistan.
dUniversity of Glasgow, School of Chemistry, Joseph Black Building, University Place, Glasgow,
G12 8QQ, United Kingdom.
eCentre for Advanced Electronics & Photovoltaic Engineering (CAEPE), International Islamic
University, Islamabad 44000, Pakistan
ABSTRACT
Low-cost single molecular electrochromic (EC) materials with low toxicity are desirable
for EC displays and photonic devices. In this study, new EC materials based on phthalates, an
inexpensive class of benzoate materials with relatively simple molecular structure are designed and
prepared. Despite being good candidates for EC devices due to clear colour change when reduced,
devices fabricated using phthalate derivatives (PDs) suffer from a high driving voltage. Herein, we
propose a facile strategy of replacing the benzene core with polyaromatic esters to enlarge the
conjugated area and to synthesis PDs to lower the driving voltage in the EC devices. Additionally,
the devices show a good memory effect, the ability to undergo multiple colour changes and
enhanced stability, dependent on the size of the conjugated bridge between the two sides of the
molecule. The fabricated EC devices based on polyaromatic esters demonstrate low driving voltage
(-2.6V) and good memory effect (hundreds of seconds). We have shown that the number of
aromatic ester rings in the conjugated area is very critical to obtain different colours in this new
class of EC materials. This series of EC materials has a promising potential for future industry
applications due to the vivid colour change upon electrochemical stimulation at a low driving
voltage.
Key words: Electrochromic, stability, low driving voltage, multi-colour, memory effect.
1 / 16

Journal of Materials Chemistry C
Page 2 of 17
View Article Online
DOI: 10.1039/C9TC02919B
1.1 INTRODUCTION
Organic electrochromic (OEC) materials have provoked great interest in the past few decades,
because of their low energy consumption, vivid and facile colour change through molecular design
and large-scale integration.1-5 Electrochromic materials constitute either conducting polymers3, 5, 6
or small molecular materials.1, 2 While devices made using electrochromic polymers (ECPs)
generally show better stability and lower driving voltage, a colourless transparent state and
widening the colour gamut are more easily achieved in small molecular OEC materials.,
Additionally, small molecules are inexpensive due to their facile synthesis.2 Since the first report
of viologens by Schoot et al. in 1973,7 many single molecular OECs have been developed, including
phthalates,8 thiophenes9 and anthraquinones.10, 11 Among them, phthalate derivatives (PDs) are
extremely low-cost and environmentally friendly compared to other candidates. In 1987, a series
of PDs reported showed vivid colour change in response to a change in voltage.8 However, it was
not until 2008 that this was further studied by Sharmoukh et al. It was proposed that the
electrochromism in isophthalates occurs via one-electron reduction, to form radical anions12 as well
as through a two-electron reduction, to form di-anions, which makes them more stable than single
anionic radical species.13 Their work enriched the colour gamut, but the driving voltage was still
high for practical application. Therefore, the development of PDs based devices with low driving
voltage remains a challenge which needs to be addressed.
One of the most effective methods to reduce the driving voltage of PDs based devices is
utilisation of a polymer electrolyte instead of solution,14 in addition to four other reported methods:
(i) introducing heterocycle compounds, such as: thiophene,15 Azo16 or pyridine,17 which usually
bring colour to the neutral state of PDs. (ii) Grafting them to microspheres or modified electrode,
which impacts the colour switching performance18. (iii) The introduction of ferrocene to the
solution19 and (iv) the use of a modified electrodes.14 However, there is still a great need to work
on the molecular design aspect of new PDs.
2 / 16

Page 3 of 17
Journal of Materials Chemistry C
View Article Online
In this study, we propose a facile molecular design strategy for PDs, to lower the drDivOiI:n1g0.1v0o39l/tCa9gTeC,02919B
increase the stability with good memory effect (hundreds of seconds) and induce multicolour
switching. The strategy is to combine aromatic (Ar) units to increase the conjugated area of the
molecule.13 In particular, Polyaromatic esters are prepared easily by the reaction of polyaromatic
anhydride and ethanol, in the presence of concentrated sulfuric acid as a catalyst, or the reaction of
polyaromatic anhydride and 1-bromobutane, in the presence of aqueous sodium hydroxide solution
acid and trioctylmethylammonium chloride. The electrochromic colours can be tuned by variation
in the conjugated areas of polyaromatic group, enabling rich and multi-electrochromism in the
reduced state and transparent colourless appearance in the neutral state. Additionally, the stability,
memory effect and driving voltage of the PDs with larger conjugated areas is better than those with
the smaller area.
1.2 Experimental section:
Synthesis routes：
Cl
O
O
EtOH
O
O
H2SO4
O
O Cl
Scheme 1. The synthesis route of DTP
Synthesis of diethyl terephthalate (DTP) (Scheme 1): Benzoyl chloride (0.01 mol) was slowly
added to a stirred solution of ethanol (100 mL), and 5 ml of H2SO4 was added dropwise. The
mixture was stirred at room temperature for 6 hours. After completion of the reaction, a saturated
NaHCO3(aq) solution was added. Then the product was extracted by ethyl acetate and washed with
deionised water, then the organic phase was treated with anhydrous Na2SO4 to remove water. The
solution was filtered and solvent evaporated to obtain the product as a white powder. (2.0 g, yield:
90%).1H NMR (400 MHz, DMSO-d6) δ 8.08 (s, 4H), 4.35 (q, J = 7.1 Hz, 4H), 1.34 (t, J = 7.1 Hz,
3 / 16

Journal of Materials Chemistry C
Page 4 of 17
View Article Online
6H). 13C NMR (101 MHz, DMSO-d6) δ 165.00, 133.72, 129.42, 61.24, 38.95, 14.09.DHOIR: 10M.10S39(/EC9STCI)02919B
m/z: [M + H ].+ (calcd for C22H15 O4, 223.0970; found, 223.0964). Data consistent with literature.20
Scheme 2. The synthesis route of TBTC

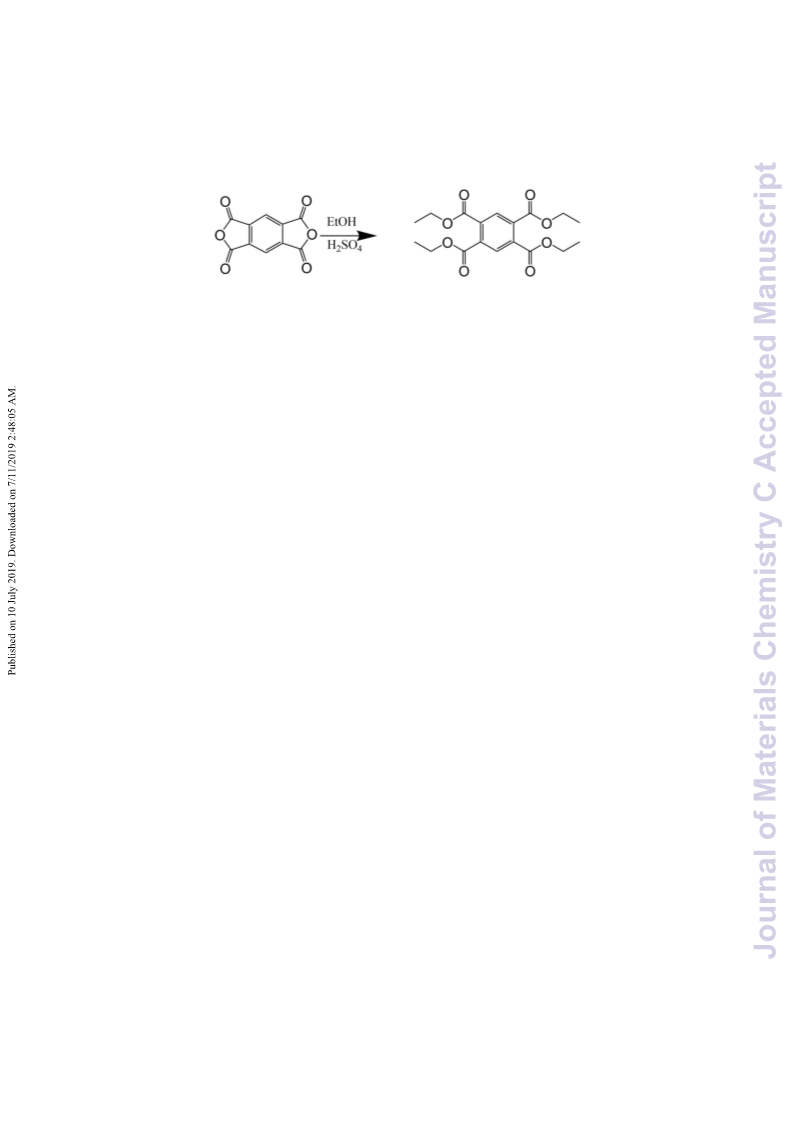

Synthesis of tetraethyl benzene-1,2,4,5-tetracarboxylate (TBTC) (Scheme 2): 2.2 g (0.01 mol)
of pyromellitic dianhydride was added to 50 ml of ethanol in a round bottom flask with condenser
under stirring. The solution was then heated to 100 °C, and 5 ml of H2SO4 was added to the mixture
dropwise for 4 hours before allowing the mixture to cool down to room temperature. A saturated
solution of NaHCO3(aq) was then added to the mixture until no bubbles were present. The product
was then extracted with ethyl acetate, washed with deionised water and treated with anhydrous
Na2SO4 to remove water. The solvent was removed on a rotary evaporator to give the product as
a white solid. (2.5 g, yield: 68%). 1H NMR (500 MHz, DMSO-d6) δ 8.07 (s, 2H), 4.32 (d, J = 7.1
13
Hz, 8H), 1.30 (t, J = 7.1 Hz, 12H). C NMR (101 MHz, DMSO-d6) δ 165.27, 133.93, 129.05,
62.06 , 13.79. HRMS (ESI) m/z: [M + Na]+ (calcd for C18H22NaO8, 389.1213; found, 389.1205).
4 / 16

Page 5 of 17
Journal of Materials Chemistry C
View Article Online
DOI: 10.1039/C9TC02919B
Scheme 3. The synthesis route of TNTC and TPTC

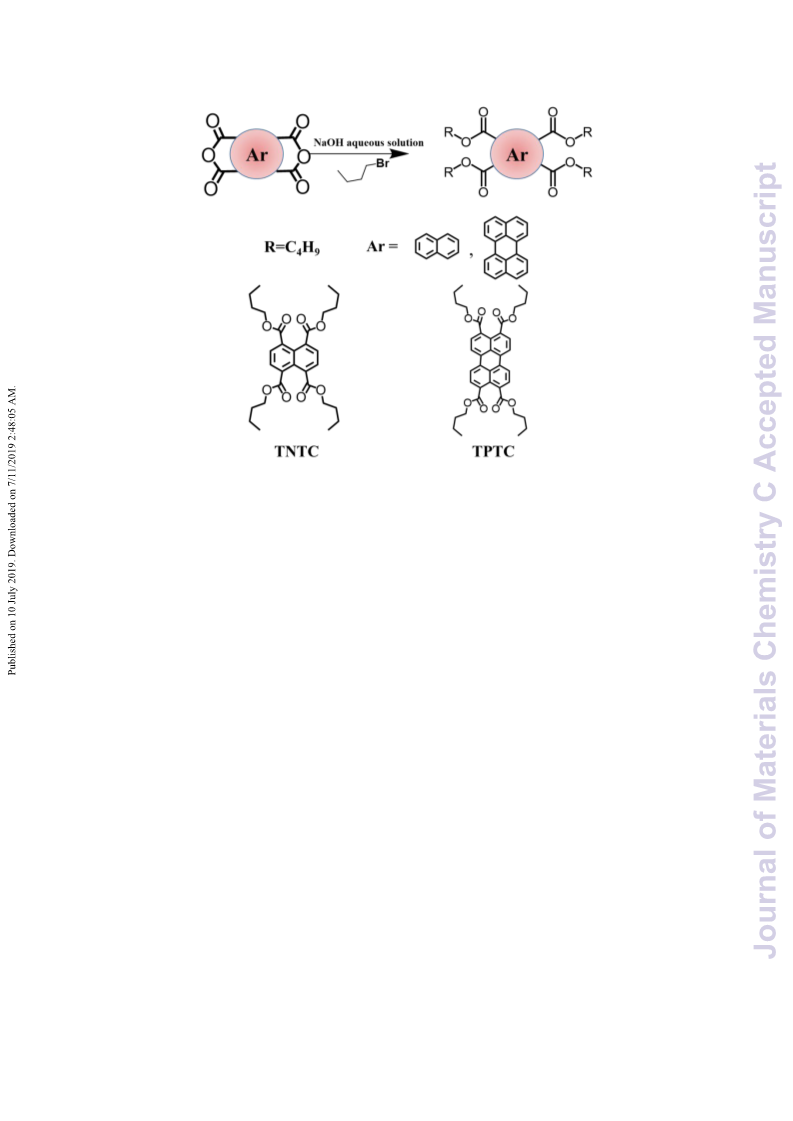

Synthesis of tetrabutyl naphthalene-1,4,5,8-tetracarboxylate (TNTC) (Scheme 3): 2.68 g (0.01
mol) of 1,4,5,8-Naphthalenetetracarboxylic dianhydride was added to 100 ml of NaOH (1 M), and
after stirring for 5 minutes, the round bottom flask was heated to 100 °C, stirred for 0.5 hour to
completely dissolve the solvents, and then 1-bromobutane (10 g, 0.073 mol) and
trioctylmethylammonium chloride (2 g. 0.05 mol) was added to the mixture. The mixture was
heated to 140 °C and allowed to react for 4 hours before being cooled to room temperature. The
resulting precipitate was filtered and washed with deionised water. Elution with ethyl acetate and
ethanol and subsequent evaporation gave pale yellow crystals (3.9 g, yield:74%). 1H NMR (500
MHz, DMSO-d6) δ 8.08 (s, 4H), 4.25 (t, J = 6.7 Hz, 8H), 1.68 (p, J = 6.9 Hz, 8H), 1.47 – 1.32 (m,
8H), 0.92 (t, J = 7.4 Hz, 12H). 13C NMR (126 MHz, DMSO-d6) δ 167.10, 133.03, 129.22, 127.87,
65.20, 39.04, 29.97, 18.63, 13.57. HRMS (ESI) m/z: [M + Na]+ (calcd for C30H40NaO8, 551.2615;
found, 551.2617).
Synthesis of tetrabutyl perylene-3,4,9,10-tetracarboxylate (TPTC) (Scheme 3): 3,4,9,10-
Perylenetetracarboxylic dianhydride, 3.9 g (0.01 mol), was added into 100 ml of NaOH (1M)
5 / 16

Journal of Materials Chemistry C
Page 6 of 17
View Article Online
DOI: 10.1039/C9TC02919B
under stirring in a round bottomed flask and heated to 100 °C under constant stirring for 0.5 h to
totally dissolve the constituents. Then, 1-bromobutane (10 g, 0.073 mol) and
trioctylmethylammonium chloride (2 g, 0.05 mol) were added, respectively, into this mixture. The
mixture was heated to 140 °C and allowed to react for 4 h. After allowing the mixture to cool
down to room temperature, the precipitate was filtered and washed using deionized water, ethyl
1
acetate and ethanol to obtain orange powder. (4.8 g, yield:74%). H NMR (500 MHz, Benzene-
d6) δ 8.02 (d, J = 7.8 Hz, 4H), 7.58 (d, J = 7.9 Hz, 4H), 4.42 (t, J = 6.8 Hz, 8H), 1.81 – 1.60 (m,
8H), 1.44 – 1.31 (m, 8H), 0.86 (t, J = 7.4 Hz, 12H). 13C NMR (126 MHz, Benzene-d6) δ168.55,
133.30, 131.33, 130.55, 129.58, 129.22, 121.64, 65.30, 31.09, 19.63, 13.94. HRMS (ESI) m/z: [M
+ Na]+ (calcd for C40H44NaO8, 675.2934; found, 675.2948).
UV-Vis-NIR absorption spectra were recorded using a UV-Vis-NIR Perkin Elmer LAMBDA
750 spectrophotometer in a quartz cuvette. CV electrochemistry experiments were performed
using a Gamry Interface 1000E potentiostat/galvanostat.
1.3 RESULTS AND DISCUSSION
1.3.1 EC behaviour of DTP, TBTC, TNTC and TPTC solutions:

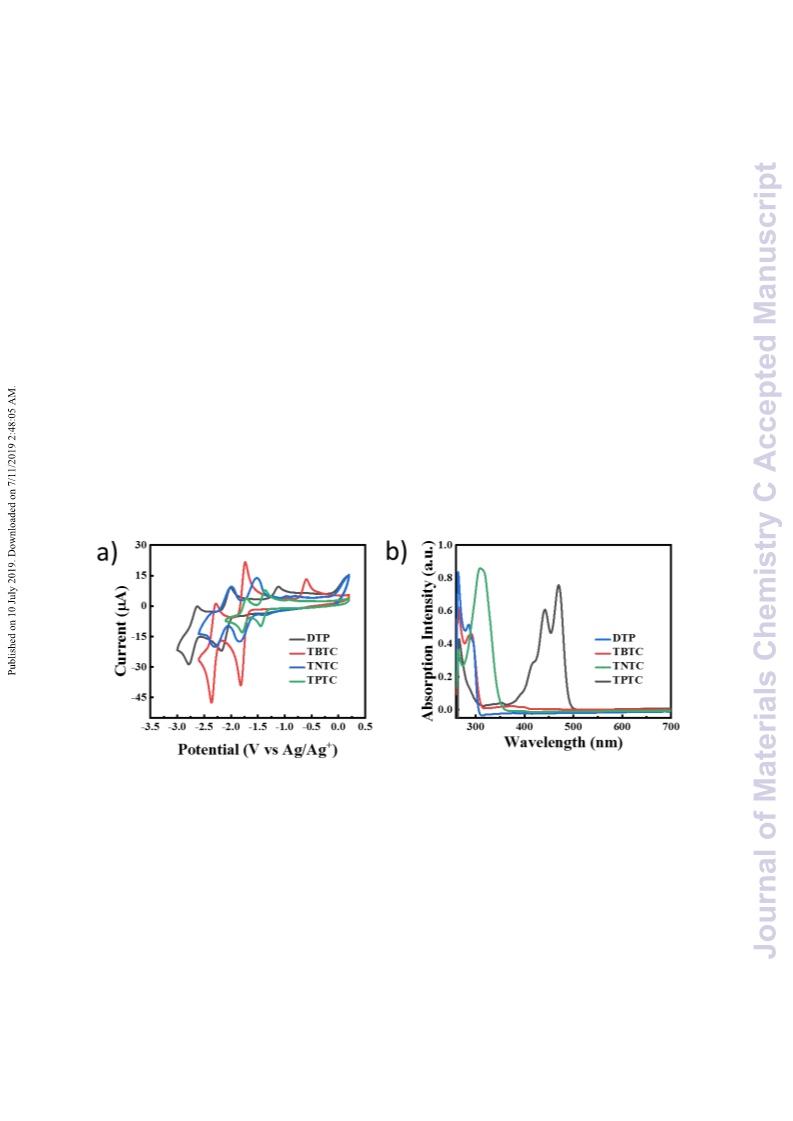

Firstly, the novel materials were characterised using cyclic voltammetry and UV/Vis
spectroscopy. The cyclic voltammograms in Figure 1 (a) show reversible redox waves between +0.2
and -3.0 V vs. Ag/Ag+. Two reversible and separated redox peaks are observed for all the four
synthesised compounds, suggesting all of them have the potential to possess a multicolour switching
characteristic. Meanwhile, the applied redox potentials of TBTC, TNTC and TPTC are lower than
the reported isophthalate-based EC compound(2.0-2.7V as Table S1 shows).12 TBTC, TNTC and
TPTC all show the two-step reduction processes with the first one-electron reversible reduction
peaks at -1.87, -1.92 and -1.50 V, and the second two-electron reversible reduction peaks at -2.42, -
2.37 and -1.84 V, respectively.
6 / 16

Page 7 of 17
Journal of Materials Chemistry C
View Article Online
DOI: 10.1039/C9TC02919B
The designed and synthesised polyaromatic ester derivatives, TBTC, TNTC and TPTC are
based on conjugated rings of benzene, naphthalene and perylene, respectively, in order to determine
the influence of the size of conjugated core on the electrochromic properties. Depending on the size
of the conjugated area, as shown in Figure 1 (b), the three compounds show different colours in their
neutral states. Benzene and naphthalene being smaller in size, as compared to perylene, show a
colourless neutral state whereas the perylene derivative, TPTC, shows a yellow neutral state. Based
on the CV scans and UV-Vis spectroscopy, different parameters related to the optoelectronic
properties of all four compounds were calculated and summarised in table 1. The results show that
our facile design strategy has been successful to obtain deeper LUMO levels and lower reduction
potentials, for TBTC, TNTC and TPTC compared to DTP, which is desirable for good OEC
materials. The schematic of the solution test process is shown in S2.
Figure 1. (a) Cyclic voltammograms and (b) UV-Vis absorption spectra of DTP, TBTC, TNTC and
TPTC. (CV: three-electrode system: WE-glassy carbon electrode; CE-Pt wire; RE-Ag/Ag+, scan
speed: 100 mV/s, solution: 0.1 mM anhydrous DMF with 0.15 M TBAPF6); (UV-vis: Anhydrous
DMF solution)
7 / 16

Journal of Materials Chemistry C
Page 8 of 17
View Article Online
Table 1. Optical and Electrochemical Properties and Corresponding Energy Levels oDfODI: T10P.10,3T9/BC9TTCC0,2919B
TNTC and TPTC. (Three-electrode system: WE-glassy carbon electrode; CE-Pt wire; RE-Ag/Ag+)
Reduction Potentiald)
Energy gap
between two
reduced state (V)
(CV)
Ere,
onset
(V, vs. Fc/Fc+(Ag/Ag+))
a)
b)
c)
λmax [nm]
in DMF
λonset
Eg
[eV]
ELUMO
[eV]
[nm]
First
Second
(ON2)
[V]
(ON1)
-2.25
(-2.19)
-1.87
(-1.81)
-1.92
(-1.86)
-1.50
(-1.44)
-2.86
(-2.80)
-2.42
(-2.36)
-2.37
(-2.31)
-1.84
(-1.78)
DTP
286/264
291/264
309/263
313
415
370
520
3.96 -2.00 -2.80
2.99 -1.66 -3.14
3.35 -1.57 -3.23
2.38 -1.33 -3.47
0.61
0.55
0.45
0.34
TBTC
TNTC
TPTC
470/441/
266
a) Measured in anhydrous DMF solution,; b) Eg = 1240/λ onset ; c) ELUMO = - (Ere,onset + 4.8)
eV; d) Redox potential vs Fc/Fc+, 0.15 M Tetra-n-butylammonium hexafluorophosphate as
supporting electrolyte in DMF, Ag/Ag+ as reference electrode, glassy carbon as the working
electrode and platinum as the counter electrode.
The EC behaviours of the four compounds (DTP, TBTC, TNTC and TPTC) were initially tested
using solution-state spectroelectrochemistry (Figure 2a – d). The applied potentials are reported with
respect to Ag wire quasi-reference electrode as a Ag/Ag+ reference electrode is not compatible with
the experimental setup of the spectrophotometer. In the neutral state, the four compounds, tested in
anhydrous DMF solution, show a strong absorption around 264 nm (UV region) which is consistent
with the absorption spectra of methyl benzoate,21 as this absorption corresponds to the benzene
bands:1Lb 1A (
휆푚푎푥
(1Lb) = 256 nm, ε = 200 M-1 cm-1, showing a regular vibrational structure.
←
The other absorption peaks for TBTC and DTP appear at 286 nm. Where there is a naphthalene core
instead of benzene, the absorption peak shows a bathochromic shift to 309 nm and its intensity is
also enhanced. For the perylene derivative there is a further bathochromic shift to around 470 nm.
The applied potential is gradually increased for DTP until at -1.5 V, a new absorption peak
arises at 538 nm, due to the reduction of DTP, and the solution becomes pink. In TBTC, absorption
peaks emerge at 536 and 375 nm with the application of a lower potential (-1.1 V). This is due to
formation of its first reduced state, and the solution becomes magenta in colour. At a higher potential
8 / 16

Page 9 of 17
Journal of Materials Chemistry C
View Article Online
DOI: 10.1039/C9TC02919B
(-1.7 V), an absorption peak arises at 430 nm and the intensities of the peaks at 536 and 375 nm
decrease as TBTC is further reduced to a second reduced state and the solution turns yellow. The
first reduced state of DTP and TBTC have a similar absorption peak suggesting that the same core
influences this peak. However, TBTC has a stronger intensity of low energy peak compared to that
of DTP, so we can attribute the absorption at 536 nm to the radical anion while the peak at 375 nm
is characteristic of the benzene core. Therefore, the increased number of ester groups in TBTC causes
an increase in the intensity of the absorption peak at 536 nm. And the colour of TBTC appears more
red than DTP.
The first reduced state of TNTC occurs at a lower potential of -1.1 V and absorption peaks are
observed at 533 and 438 nm, giving the solution a yellow colour. When the applied potential is
increased, the absorption at 533 nm is enhanced, causing the solution to become red. At a higher
potential (-1.6V), the absorption peak at 402 nm and a broad absorption in the range 600 - 750 nm
is observed. The absorption peaks at 533 and 438 nm gradually decrease as the applied potential
increases due to formation of the second reduced state of TNTC and the solution shows a dark red
colour.
TPTC shows a strong absorption in the range 370 - 496 nm. Therefore, the absorption spectra
were recorded in much more diluted solution of TPTC (10 M), to explore the evolution of this peak
μ
as a function of applied potentials as shown in Figure S2, through the set up as shown in Figure S4.
It shows at different potential, the absorption intensity from 400 nm to 500 nm has little change,
meaning the electrochromic phenomenon of TPTC mainly depends on the evolution of the
absorption around 650 nm as shown in Figure 2d. At -0.3V, an absorption peak exists at 637 nm,
which is attributed to the first reduced state of TPTC, and the solution shows a bright green colour.
At a higher potential of -2.1V (Figure S3), the absorption peak intensity at 637 nm begins to decrease,
due to formation of the second reduced state of TPTC with the solution turning to orange. A further
increase in applied potential, the solution causes stronger absorption in the visible region, resulting
9 / 16

Journal of Materials Chemistry C
Page 10 of 17
View Article Online
DOI: 10.1039/C9TC02919B
dark-yellow colour being formed. All the materials have a longer absorption wavelength at the first
reduced state than that at the second reduced state. The strong absorption peak and the PL emission
peak of TPTC are stable, when applied potential is changing. Moreover, it is clearly observed that
an increase in the area of the conjugated ester causes a decrease in the driving voltage, which is an
important finding of this study.

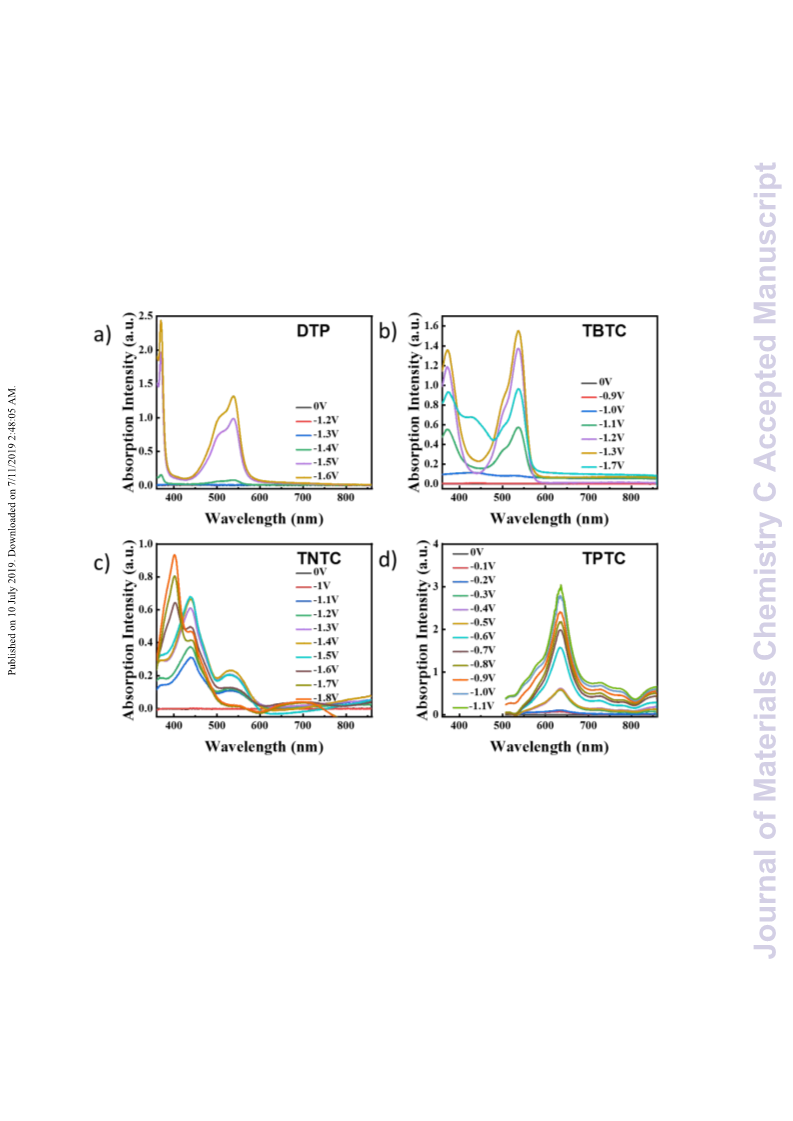

Figure 2. Spectroelectrochemistry of DTP, TBTC, TNTC and TPTC in anhydrous DMF solution (1
mM DTP, TBTC, TNTC and TPTC; TBAP(Tetra-n-butylammonium perchlorate) (5 mM)) (UV-
Vis spectra were taken at 0 V as background for all tests). Three-electrode system: WE-Pt-mesh;
CE-Pt wire; RE-Ag wire.
10 / 16

Page 11 of 17
Journal of Materials Chemistry C
View Article Online
DOI: 10.1039/C9TC02919B
O
O
O
+e
-e
O
+e
-e
O
O
O
DTP
O
O
O
O
O
O
O
O
O
O
O
O
O
O
+e
-e
+e
-e
O
O
O
O
O
O
O
O
O
O
O
O
TBTC
O
O
O
O O
O O
O O
O O
O O
O O
O
O
O
O
O
O
O
O
O
+e
-e
+e
-e
TNTC
TPTC
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
+e
-e
+e
-e
O
O
O O
O O
O O
Figure 3. Structures of the reduced forms of DTP, TBTC, TNTC and TPTC.
The structures of the reduced species of the four molecules are shown in Figure 3. Compared
with DTP, the new compounds, TBTC, TNTC and TPTC, have two colourful reduced states, due to
their tetra-ester structure. This endows multicolour characteristics to the three newly designed
compounds.
1.3.2 Electrochromic Devices:

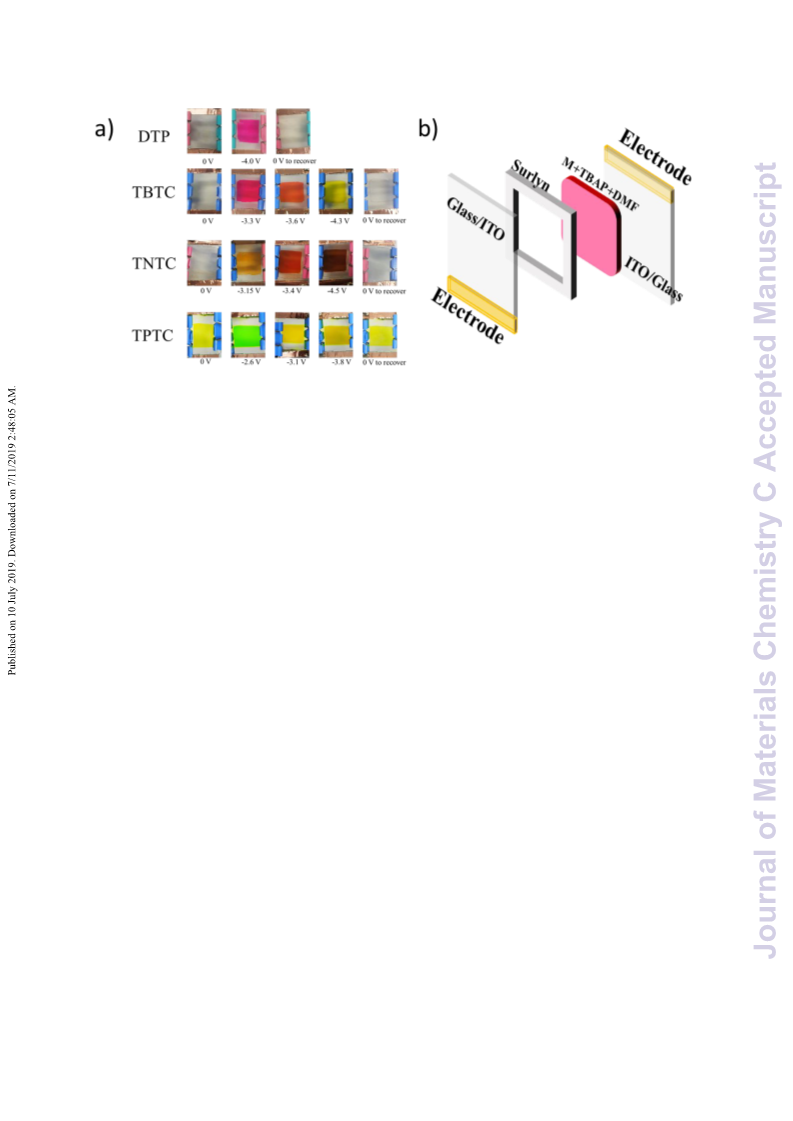

Figure 4a shows the photographs of the colour displayed by all the synthesised compounds at
different voltages and the simple structure of the fabricated electrochromic cell is shown in Figure
4b. The electrochromic cells were fabricated by injecting the respective anhydrous solutions of the
EC materials in between the two ITO-coated glass electrodes, secured with Surlyn® tape. Four
solutions were obtained by dissolving the respective compounds (25 mM for DTP, TBTC, TNTC
and 2mM for TPTC) and tetrabutlammonium hexafluorophosphate (TBAP) (50 mM) in anhydrous
DMF. Figure 4a demonstrates that along with the increase in the conjugation of the three compounds,
the driving voltage decreases significantly. TPTC displays a bright green colour when applied
potential is only -2.6 V. Furthermore, all the EC materials completely recover their original state
when the applied potential is removed. Additionally, the enlargement in the conjugated area causes
enhanced memory effect of EC materials, just as molecular design prediction and it has been
recorded in a short video (supplementary videos). It is observed that the memory effect improves
with increases conjugation area. Interestingly, Sharmoukh and co-workers13 reported a series of
11 / 16

Journal of Materials Chemistry C
Page 12 of 17
View Article Online
molecules where the memory effect reduced with increasing conjugation length. ThDeOdI:i1f0f.1e0r3e9/nCc9eTCi0n2919B
these observations can be explained due to the structural differences. In the Sharmoukh series of
molecules, the bis-isophthalate derivative was shown to form a relatively stable, flat, quinoidal
structure. However, it is likely that with increasing phenylene chain length some twisting will occur
even in the dianion form, making the species more short-lived. However, the novel materials we
have reported are rigid, fused systems. Therefore, from these observations we propose that
increasing the conjugation area of PDs leads to improved memory effect with stabilisation of the
dianionic species due to the planar fused core and though resonance. Additionally, the position of
the ester groups in the path of conjugation will contribute to the stabilisation.
12 / 16

Page 13 of 17
Journal of Materials Chemistry C
View Article Online
DOI: 10.1039/C9TC02919B
Figure 4. (a) Photographs of the displayed colours of DTP, TBTC, TNTC and TPTC at different
applied potential. (b) Schematic diagram of the Simple device structure of the electrochromic cells.
Device size: 20 mm × 20 mm × 1 mm. solution for TPTC: 2 mM TPTC+50 mM TBAP in anhydrous
DMF solution. Other materials: 25 mM W+ 50 mM TBAP in anhydrous DMF solution.
1.3.3 Electrochromic memory effect and stability:
The charge transfer behaviour in DTP, TBTC, TNTC and TPTC solutions was analysed by the
change in transmission, as shown in Figure S5, S6, S7 and S8. Continuous changes of pulse width
were given to DTP, TBTC, TNTC and TPTC solutions and their respective transmittance changes
at 538 nm, 536 nm, 438 nm and 637 nm were monitored, respectively. The contrast of these materials,
in solution in the visible region, is summarised in Table S2. The overall trends show that, compared
to DTP, the three compounds TBTC, TNTC and TPTC have a good memory effect which increases
with larger conjugation area, although this contributes to a lower colouring efficiency. The stability
and memory effects were calculated for the first reduced state so the discussion is focused
accordingly. The increased number of electron withdrawing ester groups in TBTC assists in
stabilisation of the reduced form. Furthermore, the increase in conjugated area of TNTC and TPTC
leads to further stabilisation.
The stability of TBTC, TNTC and TPTC increases with the enlargement in their conjugated areas.
As shown in Figure S9, the transmittance stability tests of DTP, TBTC, TNTC and TPTC solutions
13 / 16

Journal of Materials Chemistry C
Page 14 of 17
View Article Online
in air were performed over 80 cycles, indicating that the stability increases with increaDsOinI:g10m.10o39l/eCc9uTCla0r2919B
size. Additionally, TPTC, TNTC and TBTC, which are tetra-esters, are more stable than DTP, a
normal double-ester. This proves that extending the conjugated areas and replacing the double-ester
with tetra-esters are effective ways to achieve better stability.
The stability of the solutions was also tested in a dry box to eliminate any instability that can
be attributed to air or moisture. Each compound was analysed by repeating the reduction cycle up to
1000 times (Figure 5). The reference compound, DTP showed significant changes to the reduction
waves after only 400 cycles, highlighting the instability of this compound to repeated cycling.
However, compounds TBTC, TNTC and TPTC all exhibit excellent stability to repeated cycling
with no changes to the reduction profiles after 1000 repeated cycles. This emphasises that these
materials are excellent candidates for stable electrochromic devices.

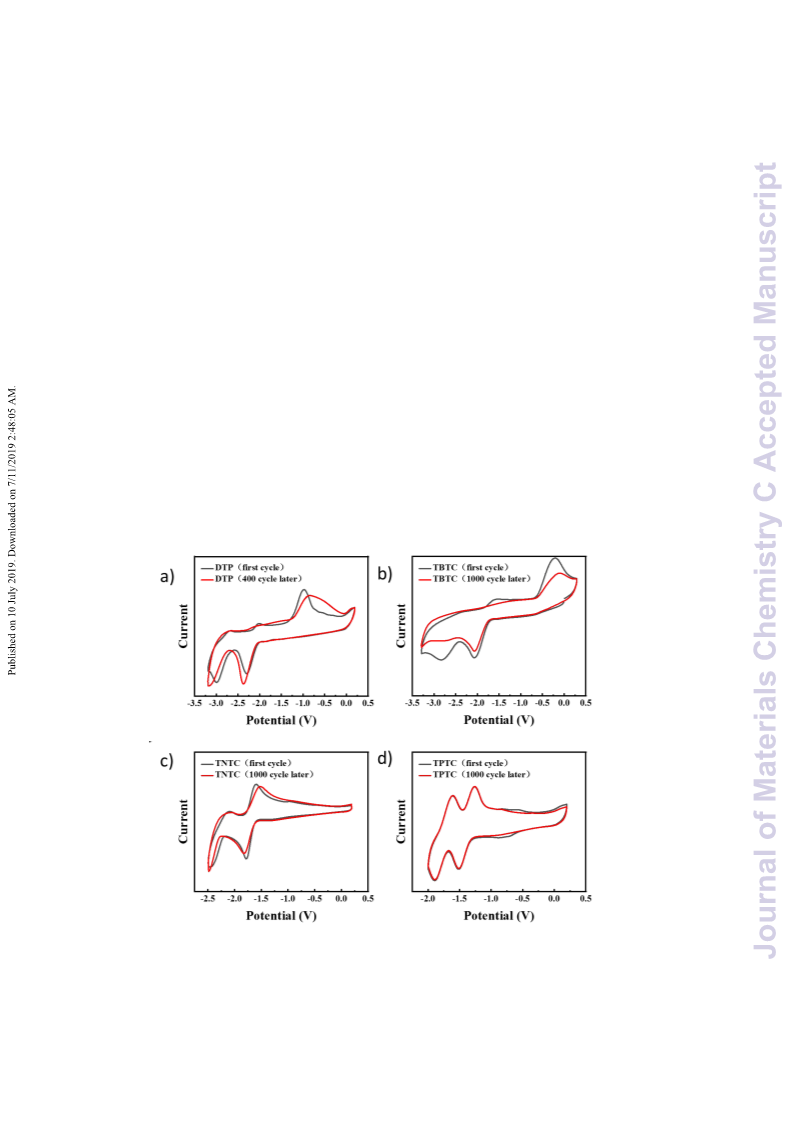

Figure 5. Stability of DTP, TBTC, TNTC and TPTC (1 mM and 5 mM TPAP) in anhydrous DMF
solution showing cyclic voltammograms. (CV: three-electrode system: WE-glassy carbon electrode;
CE-Pt wire; RE-Ag/Ag+, scan speed: 100 mV/s)
14 / 16

Page 15 of 17
Journal of Materials Chemistry C
View Article Online
DOI: 10.1039/C9TC02919B
1.4 Conclusions
New electrochromic single molecular systems, based on phthalates, were designed and
synthesised based on a simple and scalable synthetic procedure. When tested by
spectroelectrochemistry or used in EC devices the novel compounds showed vivid and reversible
electrochromic behaviour with two separate reduction processes. Our study makes a breakthrough
in lowering the driving potential (-2.6 V) of phthalate-based materials which also exhibit multicolour
change characteristics, a good memory effect (over 400 s), which can reduce the power required for
electrochromism, and good stability. Interestingly, the area of the conjugated core of the molecules
plays a critical role in obtaining different colours between redox states. We believe that our proposed
design strategy can be the basis for development of further multi-electrochromic materials and the
merits of phthalate series materials indicate their promising utilisation in industrial applications such
as smart windows.
1.5 Acknowledgement
This work was financially supported by National Natural Science Foundation of China (51873002),
the NSFC-PSF International Collaboration Project (51761145101), the NSFC-RS International
Exchanges Project (5181102182), PSF-NSFC-II/Eng/C-IIUI (06), Royal Society/NSFC
International Exchanges China Programme, IEC\NSFC\181564, Shenzhen Peacock Plan
(KQTD2014062714543296), Shenzhen Engineering Laboratory (Shenzhen development and reform
commission [2016]1592), the Shenzhen Science and Technology research grant
(JCYJ20170818085627721, JCYJ20170818085627903, JCYJ20160510144254604)
15 / 16

Journal of Materials Chemistry C
Page 16 of 17
View Article Online
DOI: 10.1039/C9TC02919B
References
1.
K. Madasamy, D. Velayutham, V. Suryanarayanan, M. Kathiresan and K.-C. Ho, J. Mater. Chem. C, 2019, 7,
3.
4.
J. Zeng, H. Li, Z. Wan, L. Ai, P. Liu and W. Deng, Sol. Energy Mater. Sol. Cells, 2019, 195, 89-98.
J. H. Ko, H. Lee, J. Choi, J. Y. Jang, S. M. Lee, H. J. Kim, Y.-J. Koc and S. U. Son, Polym. Chem., 2019, 10, 455-
459.
5.
1, 58-63.
6.
A. Chaudhary, D. K. Pathak, M. Tanwar, P. Yogi, P. R. Sagdeo and R. Kumar, ACS Appl. Electron. Mater., 2019,
P. Shi, C. M. Amb, E. P. Knott, E. J. Thompson, D. Y. Liu, J. Mei, A. L. Dyer and J. R. Reynolds, Adv. Mater.,
2010, 22, 4949-4953.
7.
8.
9.
10.
11.
12.
C. Schoot, J. Ponjee, H. Van Dam, R. Van Doorn and P. Bolwijn, Appl. Phys. Lett., 1973, 23, 64-65.
K. Nakamura, Y. Oda, T. Sekikawa and M. Sugimoto, Jpn. J. Appl. Phys., 1987, 26, 931.
G. Guirado, C. Coudret, M. Hliwa and J.-P. Launay, J. Phys. Chem. B, 2005, 109, 17445-17459.
B. Yao, F. Chen, H. Jiang, J. Zhang and X. Wan, Electrochim. Acta, 2015, 166, 73-81.
W. Qiao, J. Zheng, Y. Wang, Y. Zheng, N. Song, X. Wan and Z. Y. Wang, Org. Lett., 2008, 10, 641-644.
W. Sharmoukh, K. C. Ko, J. H. Ko, H. J. Nam, D.-Y. Jung, C. Noh, J. Y. Lee and S. U. Son, J. Mater. Chem., 2008,
18, 4408-4413.
13.
W. Sharmoukh, K. C. Ko, S. Y. Park, J. H. Ko, J. M. Lee, C. Noh, J. Y. Lee and S. U. Son, Org. Lett., 2008, 10,
5365-5368.
14.
K. Imaizumi, Y. Watanabe, K. Nakamura, T. Omatsu and N. Kobayashi, Phys. Chem. Chem. Phys., 2011, 13,
11838-11840.
15.
16.
17.
18.
19.
20.
21.
Z. Wan, J. Zeng, H. Li, P. Liu and W. Deng, Macromol. Rapid Commun., 2018, 39, 1700886.
Q. Tang, L.-h. He, Y.-h. Yang, J.-f. Long, X.-K. Fu and C.-b. Gong, Org. Electron., 2016, 30, 200-206.
J.-f. Long, Q. Tang, Z. Lv, C.-r. Zhu, X.-k. Fu and C.-b. Gong, Electrochim. Acta, 2017, 248, 1-10.
S. Tanaka, Y. Watanabe, T. Nagashima and N. Kobayashi, Sol. Energy Mater. Sol. Cells, 2009, 93, 2098-2101.
N. Kobayashi, S. Miura, M. Nishimura and H. Urano, Sol. Energy Mater. Sol. Cells, 2008, 92, 136-139.
E. D. Chenot, D. Bernardi, A. Comel and G. Kirsch, Synth. Commun., 2007, 37, 483-490.
M. Aleksiejew and J. R. Heldt, J. Lumin., 2007, 126, 665-676.
16 / 16

Page 17 of 17
Journal of Materials Chemistry C
View Article Online
DOI: 10.1039/C9TC02919B
TOC Entry

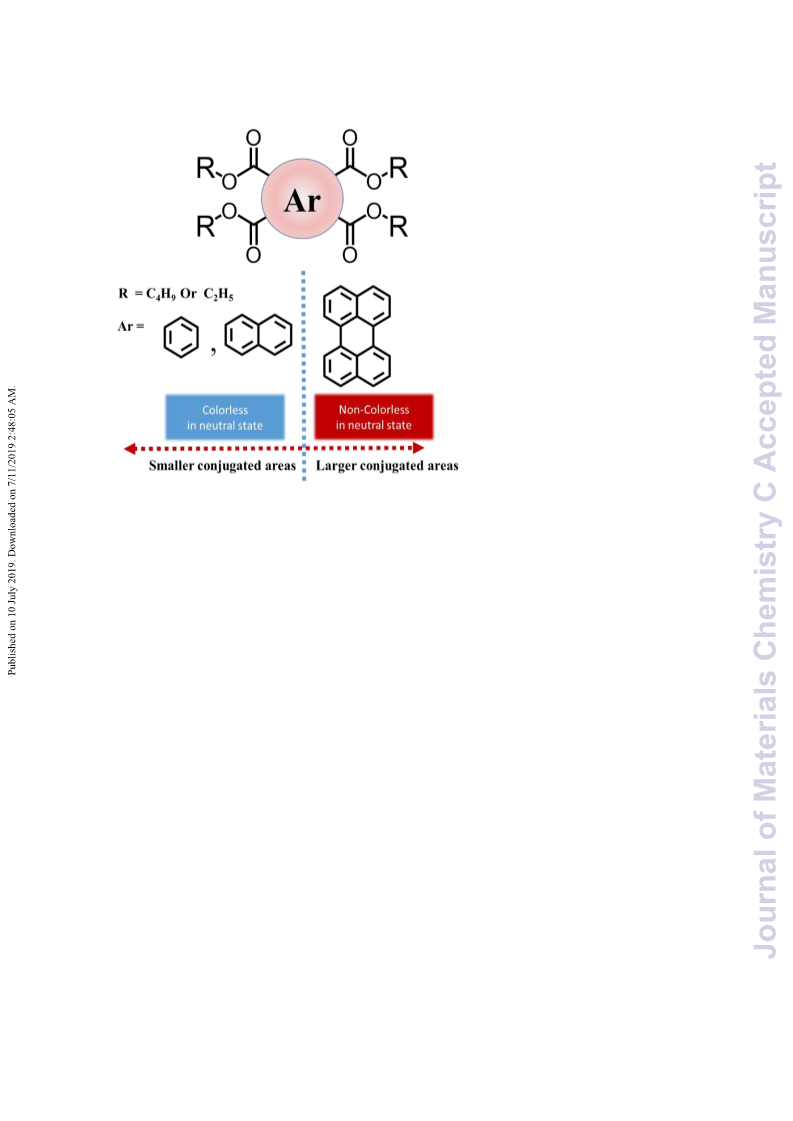

TOC. Design strategy of polyaromatic esters
