232
A.V. Simakin et al. / Chemical Physics Letters 332 (2000) 231±235
contains the mixture of benzene vapors and gas-
eous products of reaction [5], and the pressure in
the bubble drops with its expansion from several
kbars to ambient one.
The luminescence of the remaining liquid was
registered using a pulsed excitation at 532 nm.
Below the critical temperature, the medium in
the cell is very inhomogeneous due to evaporation
of the liquid and its condensation on the glass
window as small drops. Upon further increase of
temperature, the liquid passes through the stage of
critical opalescence, and then the medium becomes
quite transparent. No detectable decomposition of
benzene is observed without laser irradiation at
temperature 300±310°C during 2 h. We conclude
that the possible catalytical action of steel walls of
the cell on decomposition of the hydrocarbon can
be neglected. The decomposition starts immedi-
ately upon laser exposure of the Si wafer. The
observation of the process on a screen shows that
decomposition of the hydrocarbon commences in
the bulk of the cell after several minutes of the
irradiation. This is due, undoubtedly, to the ac-
cumulation of carbon particles in the gas.
One might expect new features of laser decom-
position of aromatic hydrocarbons upon transi-
tion to supercritical conditions. In a sense, this
process should be close to laser-induced chemical
vapor deposition (LCVD), though the latter is
carried out typically at low pressure of the pre-
cursor, up to 1 Torr. On the other hand, the crit-
ical pressure of benzene is about pcr 40 atm at
Tcr 288°C, so that the density of the benzene
molecules may greatly exceed that during the de-
composition at ambient pressure. The elevated
pressure may change the kinetics of aggregation of
carbon clusters in laser-exposed area of the sub-
strate compared to normal pressure conditions.
High density of benzene and, eventually, of car-
bonaceous species in supercritical conditions is
also characteristic for carbon deposition via abla-
tion of a graphitic target with a high repetition rate
ps laser [7], though the source of carbon in our
case are the benzene molecules. In case of laser
ablation, the resulting carbon consists of cluster-
assembled carbon nanofoam. This Letter describes
our preliminary results on morphological features
of carbon deposited by laser pyrolysis of super-
critical benzene.
The carbon deposit on the Si wafer has an is-
land-like structure (see Fig. 1). The lateral dimen-
sions of each island are much smaller than the laser
spot on the wafer (5±8 against 50 lm). The
adherence of the deposit to Si surface is fairly good.
A signi®cant amount of carbon is formed also
in the bulk of the supercritical benzene. After
A stainless steel cell with a glass window was
®lled with several cm3 of liquid benzene of ana-
lytical purity. A single crystal Si wafer was placed
on the bottom of the cell, the latter was heated
from the bottom by the external heater. The tem-
perature of the cell was controlled by a calibrated
thermocouple. The beam of a copper vapor laser
(wavelength of 510.6 nm, pulse duration of 20 ns,
repetition rate of 10 kHz) was introduced into the
cell through the glass window with a 10 cm focal
distance lens. Typical laser ¯uence on a Si surface
was 0:5 J=cm2. To irradiate the extended area of
the Si wafer, the cell was mounted on a computer-
driven X±Y stage allowing its displacement under
the laser beam with controlled scanning velocity in
the range 0.3±3 mm/s. The samples of Si with de-
posited carbon were characterized by scanning
electron microscopy (SEM), Raman spectroscopy,

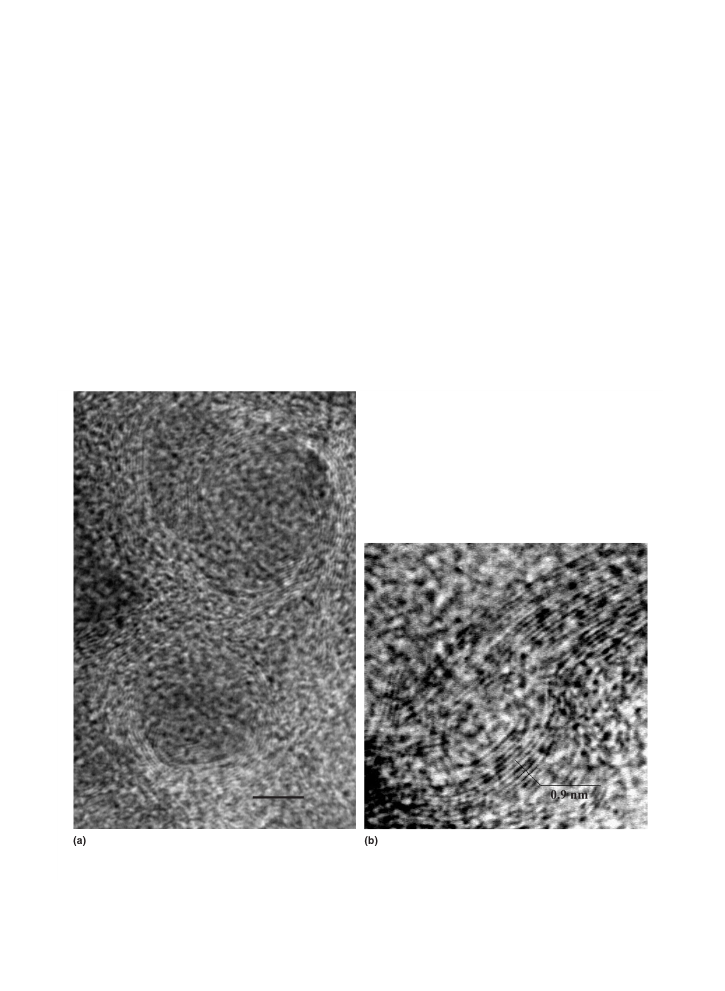

high-resolution electron microscopy (HRTEM).

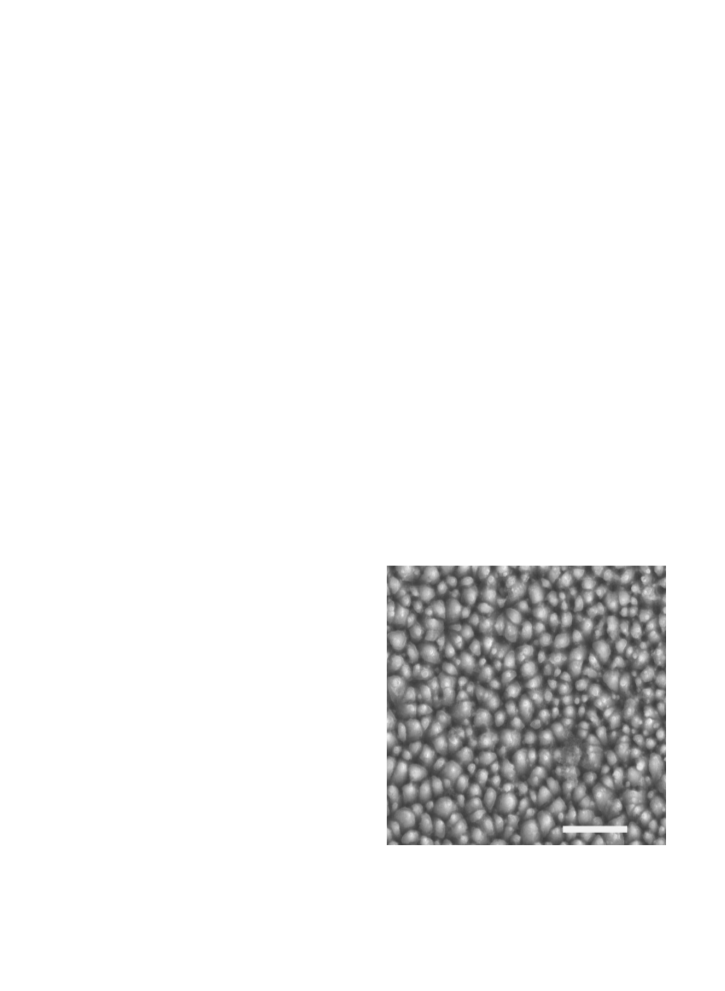

Fig. 1. SEM view of carbon deposit on Si. Scale bar denotes
20 lm.
