Bio-based chemicals: 1,2,4-benzenetriol, selective deuteration
and dimerization to bifunctional aromatic compounds
Caelan Oliver Randolph, Ciaran Lahive, Selim Sami, Remco
W. A. Havenith, Hero Jan Heeres, and Peter J. Deuss
Org. Process Res. Dev., Just Accepted Manuscript • DOI: 10.1021/acs.oprd.8b00303 • Publication Date (Web): 09 Nov 2018
Downloaded from http://pubs.acs.org on November 12, 2018
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 28
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
Bio-based chemicals: 1,2,4-benzenetriol, selective
deuteration and dimerization to bifunctional
aromatic compounds
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Caelan Randolph, † Ciaran W. Lahive, † Selim Sami, ‡,§ Remco W. A. Havenith, ‡,§,∥ Hero J.
Heeres, † Peter J. Deuss†*
† Department of Chemical Engineering, ENTEG, University of Groningen, Nijenborgh 4, 9747
AG Groningen, The Netherlands.
‡ Theoretical Chemistry, Zernike Institute for Advanced Materials and Stratingh Institute for
Chemistry, University of Groningen, Nijenborgh 4, 9747 AG Groningen, The Netherlands
§ Stratingh Institute for Chemistry, University of Groningen, Nijenborgh 4, 9747 AG Groningen,
The Netherlands
∥
Ghent Quantum Chemistry Group, Department of Inorganic and Physical Chemistry, Ghent
University, Krijgslaan 281 (S3), B-9000 Gent, Belgium
1
ACS Paragon Plus Environment

Organic Process Research & Development
Page 2 of 28
1
2
3
4
TOC entry:
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2
ACS Paragon Plus Environment

Page 3 of 28
Organic Process Research & Development
1
2
3
4
Keywords: Bio-based chemicals, dimerization, hydroxybenzenes, deuteration, hydroxy-quinone
5
6
7
8
9
Abstract: 1,2,4-benzenetriol (BTO), sourced from the carbohydrate derived platform chemical
5-hydroxylmethylfurfural (HMF), is an interesting starting point for the synthesis of various bio-
based aromatic products. However, BTO readily undergoes dimerization and other reactions at
mild conditions, making analysis and isolation challenging. In order to both control and utilize
the reactivity of BTO to produce bio-based building blocks, its reactivity needs to be better
understood. Here, it was found that specific BTO aromatic C-H bonds are reactive towards
deuterium exchange with D2O, which appears pronounced under acidic conditions at room
temperature and can lead to selective formation of BTO with an aromatic ring that contains one
or two deuterium atoms, the first at the 5 and the second at the 3 position. By exposure to air it
was shown that BTO forms a 5,5’-linked BTO dimer [1,1'-biphenyl]-2,2',4,4',5,5'-hexaol (1) and
subsequently a hydroxyquinone containing dimeric structure 2',4,4',5'-tetrahydroxy-[1,1'-
biphenyl]-2,5-dione (2). Additionally, condensed dimer dibenzo[b,d]furan-2,3,7,8-tetraol (3) can
be relatively easily accessed. The controlled formation of these symmetric and asymmetric
multifunctional dimers illustrates diverse possibilities for BTO to be converted to valuable bio-
based aromatic compounds. Deuterium exchange was attributed to electrophilic aromatic
substitution since this reactivity was found to be independent of oxygen and acid mediated. On
the other hand the dimerization was dependent on the presence of oxygen and thus likely
involves radical intermediates. Thus, this report overall displays different accessible reaction
pathways for BTO that can be exploited for the production of BTO derived compounds.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Introduction
3
ACS Paragon Plus Environment

Organic Process Research & Development
Page 4 of 28
1
2
3
4
5
6
7
8
9
Many valuable chemicals are derived from finite fossil resources and thus useful renewable
alternatives are needed to create a sustainable chemical industry. Therefore, the production of
renewable chemicals from lignocellulosic biomass such as wood and crop residues is of major
interest.1 A significant role has been allocated to 5-hydroxymethylfurfural (HMF), a renewable
platform chemical that can be obtained in good yields from carbohydrates and can be converted
into many interesting chemicals, like levulinic acid, adipic acid, 1,6-hexanediol, caprolactam,
caprolactone, and a number of furanic compounds.2 The production of C6-aromatic compounds
from HMF is also of high interest.3 Recently, we have shown that HMF under aqueous
(sub)supercritical conditions in the presence of Lewis acidic metal salts can be converted to
1,2,4-benzenetriol (BTO, Scheme 1).4 Historically, BTO was identified as an undesired side
product in many reactions that involve HMF as product or starting material, especially under
hydrothermal conditions.5 However, there are only a limited number of reports that target the
production of BTO from HMF.4,6 This is also partly due to its reported instability, hindering
adequate product analysis.5a,c Our initial findings showed that the main reaction pathway for
BTO is symmetric dimerization to give [1,1'-biphenyl]-2,2',4,4',5,5'-hexaol (1) which occurs
readily at room temperature when exposed to air (Scheme 1).4
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
4
ACS Paragon Plus Environment

Page 5 of 28
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 1. Overview of previously reported formation of BTO4 and subsequent BTO chemistry
discussed in this work.
In addition to the formation of 1, we here report further oxidation of 1 to a hydroxyquinone
containing dimer 2',4,4',5'-tetrahydroxy-[1,1'-biphenyl]-2,5-dione (2, Scheme 1). Also discussed

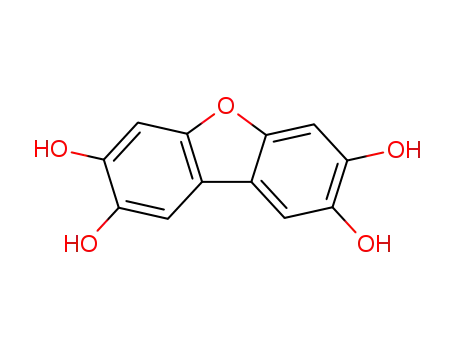

is the synthesis of the condensed dibenzo[b,d]furan-2,3,7,8-tetraol dimer (3), which is a rigid
symmetric dimer of BTO. In particular the symmetric BTO dimers are interesting as these
provide a canvas for symmetric modification and di-functionalization to obtain bifunctional
molecules with potential use as building blocks for polymeric products. Additionally, during
these studies the selective deuteration of the aromatic C-H’s of BTO with D2O at room
temperature was explored which was readily achieved under acidic conditions to obtain BTO-D4
and BTO-D5.
Results and Discussion
Dimer 1 forms from BTO under aerobic conditions in water (Scheme 1).4 A crystal structure was
obtained, confirming the C-C bridged structure on the 5 position of both BTO molecules
5
ACS Paragon Plus Environment

Organic Process Research & Development
Page 6 of 28
1
2
3
4
5
6
7
8
9
involved in the reaction, confirming previously suggested structures.7 Under mild conditions the
formation of 1 is relatively slow, but since the product tends to precipitate or crystallize from
water, this can hamper accurate analysis of solutions containing BTO.4,5c The formation of 1 and
other dimers and oligomers is associated with significant darkening of the clear BTO solution as
illustrated by the UV-vis spectra of the isolated compounds (Figure S1). For the purpose of
controlling the reaction of BTO to 1, we aimed to study its reactivity under varying conditions in
order to either prevent or promote its formation.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Initial studies on the dimerization of BTO were performed in a range of conditions (acid, base,
air, light) in D2O by following the reactions in time using NMR with an internal standard (Figure
1a). From these experiments the effect of temperature, and the addition of acids and base was
evident. All of these were found to increase the rate of BTO conversion significantly compared
to BTO conversion at room temperature and neutral pH. Analysis by mass spectroscopy (ES+)
showed that under the acidic conditions and increased temperature 1 is the major product, whilst
basic conditions promoted the formation of a range of products including 1, trimers and possibly
higher oligomers (Figure S2).
6
ACS Paragon Plus Environment

Page 7 of 28
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. a) Decomposition of BTO (TCI) in D2O (0.125 M) as a function of time under
different conditions (acidic: pH 1, basic: pH 10) monitored by 1H-NMR via the signal of the 5-
Ar-H compared to an internal standard (for illustration lines are added obtained through fitting a
1
second order exponential decay). b) Series of H-NMR spectra of BTO in acidic (H2SO4) D2O.
7
ACS Paragon Plus Environment

Organic Process Research & Development
Page 8 of 28
1
2
3
4
5
6
7
8
9
c) Relative decrease of different signal integrals compared to integrals at t0 for different aromatic
protons of BTO and d) for 1. e) Repeat of spectra series of BTO (Aldrich) in acid (H2SO4) and
D2O at short time-scale. f) Relative decrease of different signal integrals compared to integrals at
t0 for different aromatic protons of BTO at shorter time-scale.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
While following these reactions in D2O by NMR a unexpected phenomenon was observed which
did effect analysis of BTO conversion to its dimer 1, namely deuterium exchange of BTO’s
aromatic C-H’s to generate BTO-D4 and BTO-D5 (Scheme 2). This is in addition to the
expected exchange at the Ar-OH signals which instantly generates BTO-D3. This could clearly
be observed by tracking the ratios of the Ar-H signals that started fluctuating in time even before
significant formation of the dimer 1. This is represented in Figure 1b by the change in intensity
of the different signals of BTO as shown by NMR monitoring over an extended time period.
When the integrals of the Ar-H signals are individually monitored against the internal standard
Figure 1c is obtained showing the different rates of signal-loss associated with deuteration for
3
4
BTO. The signal for the 5-Ar-H ( 6.40 ppm, dd, JHH = 8.7 Hz, JHH = 2.8 Hz) decreased
relatively rapidly under acidic conditions, already seeing a significant decrease after 1 h. By the
time the subsequent sample was taken, after 70 h, the signal 5-Ar-H had already almost
completely disappeared, transforming the doublets for the protons at the 6 and 3 positions ( 6.84
3
4
ppm, d, JHH = 8.7 Hz and  6.53 ppm, JHH = 2.8 Hz respectively) to singlets by loss of
coupling to the neighboring hydrogen. These singlets were also relatively broad due to H-D
coupling. This indicated that at this stage BTO-D4 was nearly exclusively present in solution.
The singlet for the 3-Ar-H of BTO decreased compared to the 6-Ar-H over time. After 500 h,
this signal had also completely disappeared, showing the selective formation of BTO-D5. The
8
ACS Paragon Plus Environment

Page 9 of 28
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
signal of 6-Ar-H also weakened in time compared to the internal standard, however this is more
likely associated with the formation of 1, which could be shown by an increase of the respective
signal for H6 and H6’ ( 6.80 ppm, s). The deuterium exchange was also visible for the 3 and 3’
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
position of 1 ( 6.62 ppm, s), with a clear decrease of this signal in time compared to the H6-6’
2
signal. The deuteration of the 3 and 5 position of BTO could also be observed when a H-NMR
spectrum was recorded (Figure S3). In a separate experiment it was determined that the
deuterium exchange at 5 position is actually completed after 24 h and thus relatively fast (Figure
1e and 1f). This reaction is remarkable as it involves selective deuterium exchange of aromatic
C-H’s at room temperature in acidic D2O and was even observed at neutral pH in D2O. Such
reactions are typically only reported under more forcing conditions by for example application of
strong bases and acids, elevated temperatures or transition metal catalysts.8
Scheme 2. Selective sequential deuteration of BTO.
Further experiments to investigate BTO reactivity were conducted in non-deuterated water to
avoid deuterium exchange effects aiming to specifically investigate the formation of dimer 1
1
(Scheme 3). This compound is clearly identified in the H-NMR spectrum in DMSO-d6 by the
proton signals of the 3-Ar-H and 6-Ar-H at  6.33 and  6.51 ppm respectively and is already
present in small amounts in most commercial samples of BTO (SI section 1). In order to
demonstrate the stability of BTO solutions upon exclusion of oxygen, an experiment was set-up
9
ACS Paragon Plus Environment

Organic Process Research & Development
Page 10 of 28
1
2
3
4
5
6
7
8
9
at 400 mg scale and monitored in time, whilst alongside comparable experiments were
performed where the solution was left to stand exposed to air with and without exclusion of light.
Samples were taken and subsequently analyzed by NMR over a time period of 5000 h by
removal of the solvent from the collected aliquot and solvation of the dried material in DMSO-
d6. BTO and 1 were quantified using average integration of all Ar-H signals against dimethyl
sulfone, which was used as internal standard (Figure 2). The reaction in the absence of air did
indeed show that BTO is completely stable for at least 5 months when stored under exclusion of
air (Figure 2a, Figure S5). No further formation of the 5,5-dimer 1 was observed apart from the
5,5’-dimer 1 that already appeared to be present in the commercial sample used in this study
(Figure S10). When a solution with the same concentration of BTO was exposed to air and
monitored a completely different picture arose (Figure 2b, Figure 3). Complete conversion of
BTO is observed after nearly three months. Here BTO is converted into its 5-5’-linked dimer 1.
A similar reactivity pattern was observed for BTO that was excluded from light and left to stand
in air (Figure 2c, Figure S6). This demonstrated that exposure to air is the sole requirement for
the conversion BTO at room temperature and only protection from light is not effective for
longer storage of BTO solutions.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 3. Formation of the 5-5’ linked BTO dimer 1 under exposure to air.
10
ACS Paragon Plus Environment

Page 11 of 28
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

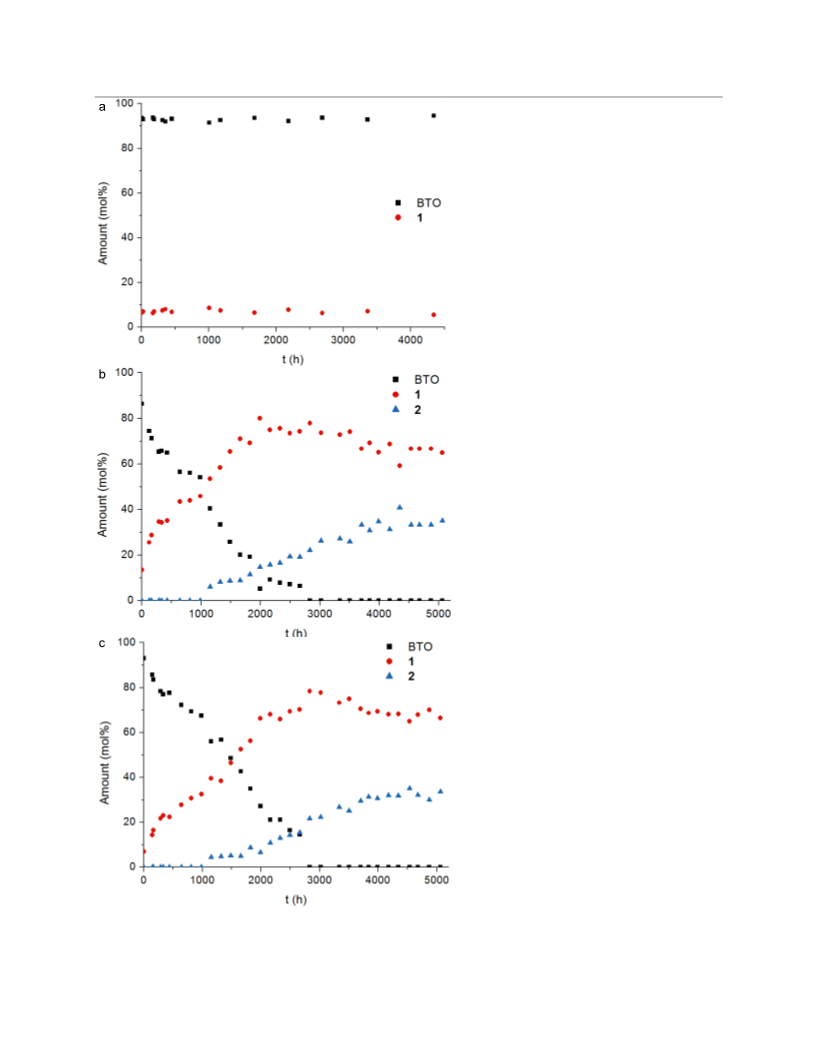

Figure 2. Aqueous BTO stability and dimer formation in time. a) Under exclusion of air. b)
11
ACS Paragon Plus Environment

Organic Process Research & Development
Page 12 of 28
1
2
3
4
open to air. c) open to air with exclusion of light (160 mM initial BTO concentration, monitored
5
6
1
by H-NMR by using dimethyl sulfone as internal standard. Note: after the levels of 1 became
7
8
9
relatively high (>40%) precipitate could be clearly observed. Before sampling some effort was
taken to solubilize this precipitate using sonication, but the formation of some precipitate as well
as different efficiency at solubilizing the material could be the reason for the fluctuations
sometimes observed in these graphs.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The dimerization of BTO was shown not to be completely selective toward 1. Interestingly, at
long exposure to air (1000+ h) an additional set of signals appeared in the 1H-NMR (signals C in
Figure 3), which did not correlate to oligomeric BTO structures earlier observed under stronger
oxidative or basic conditions.4 These signals were assigned to a hydroxyquinone containing
dimeric structure 2 (scheme 3). Based on the reaction profile, 2 seemed to form from 1 over time.
The structural characterization was performed by NMR analysis of 2 in a mixture containing 1
1
(Figure S16-18). The H-NMR showed 4 singlets in and the absence of J-coupling partners,
which indicates hydrogens in para-positions. The 13C-NMR displayed 12 carbon signals
including two in the region above  180 ppm indicating carbonyls. Overall, the number of
1
signals in H-NMR and 13C-NMR suggested an asymmetric structural version of 1. HMBC-
NMR (Figure 4) analysis on a sample obtained after 5982 h helped to verify the hydroquinone-
dimer structure of 2 by showing that the carbonyls are located on the same ring. The NMR
signals of the hydroxyquinone part of 2 were comparable to those reported for other substituted
hydroxyquinones found in literature, supporting the proposed structure.9 The remaining set of
signals were similar to those of 1. The formation of 2 was suggested in literature from the 1960’s
but never confirmed.10 Oxidation leading to other (hydroxy)quinones has been reported in
12
ACS Paragon Plus Environment

Page 13 of 28
Organic Process Research & Development
1
2
3
4
5
literature for related structures, including BTO.7,11 Additionally, hydroxyquinones are known
intermediates in the biodegradation of phenolic compounds.12
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1
Figure 3. Series of H-NMR spectrums in dmso-d6 obtained by sampling an aqueous BTO
solution in time. A: 1,2,4-benzenetriol (BTO); B: dimer 1; C: hydroquinone dimer 2. This
spectrum series was used to generate Figure 2b.
13
ACS Paragon Plus Environment

Organic Process Research & Development
Page 14 of 28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

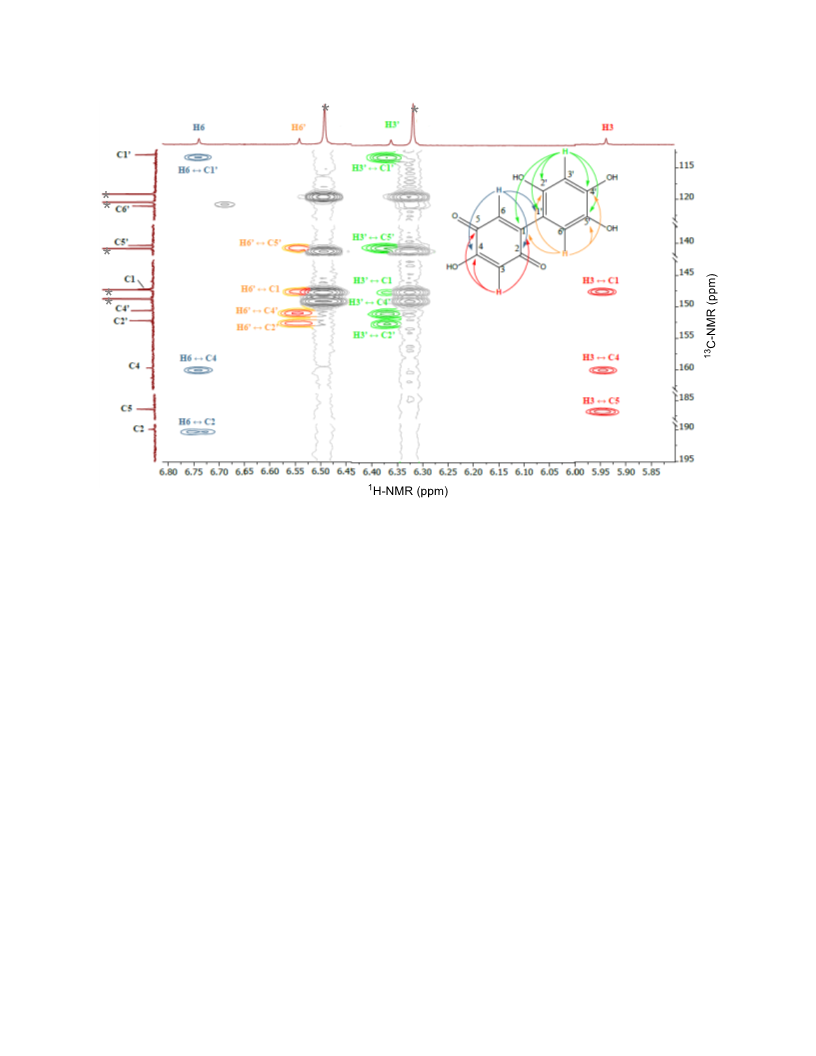

Figure 4: Selected area of the HMBC-NMR spectrum in dmso-d6 of a sample (after 5982 hours)
containing the hydroxyquinone motif containing dimer 2 (Grey signals labeled with * belong to
the 5,5’-BTO dimer 1).
The formation of the dimeric structure 1 from BTO by exposure to oxygen was initially
identified as a undesired degradation pathway that can hamper accurate analysis. Nevertheless,
due to the symmetric functionalized nature of 1, it can also be viewed as an interesting starting
material for polymeric materials and other applications. As previously discussed, the formation
of 1 was slow at room temperature, taking 2000+ h under neutral conditions to reach full
conversion as evidenced by Figure 3. Therefore, we investigated more convenient conditions for
the synthesis of 1. It was already shown in the first section that increasing the temperature and
addition of acid and bases did cause significant BTO conversion, although this was partly
14
ACS Paragon Plus Environment

Page 15 of 28
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
obscured by deuterium exchange. Basic conditions afforded a range of side products, including
oligomeric structures, and were thus deemed unsuitable. Different conditions using acids and
increased temperature (up to 100 °C) significantly increased BTO conversion up to 70% in 20 h
(Table S1). However, these reactions gave inconsistent results due to partial precipitation of
products from the solution at different stages of the reaction, causing the formation of undesired
side-products. Higher conversion of BTO to 1 could be achieved by performing the reaction
without solvent. It was found that by melting BTO (mp = 140.5 ºC)13 in aerobic conditions
resulted in the rapid formation of dimer 1 in short reaction times (2 h). The obtained solid
contained 1 in 80% purity with some unreacted BTO, which could readily be removed by
subsequent washings with cold water. This fast synthesis technique is detailed in the SI Section
7. In general, it was found that although BTO conversion could be improved by prolonged
reactions times or application of harsher conditions, this was at the expense of BTO to dimer 1
selectivity, due to the formation of side products like 2, 3 (see below) and other oligomers. Low
selectivity was highly undesirable, as dimer 1 was difficult to separate from such side products.
However, the separation of 1 from BTO was straightforward, and thus running reactions at lower
conversion with high selectivity was preferred. A mixture of BTO and 1 could be separated by
addition of cold water and centrifugation to settle the dimer. This technique allowed one to
obtain pure samples of 1 from mixtures of BTO and 1. Nevertheless, due to low conversion, only
48% yield could be achieved in water, with 44% isolated yield of 1 (92% purity, NMR).
Subsequently, 1 can be crystallized from a solution containing leftover BTO, however yields are
low to moderate.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
15
ACS Paragon Plus Environment

Organic Process Research & Development
Page 16 of 28
1
2
3
4
5
6
7
8
9
One interesting side product that was encountered from the attempts to form 1 in water was
condensed dimer 3 (Scheme 4, Figure S19-22 for NMR spectra). This product was initially
identified from an attempt to purify 1 by sublimation under high vacuum, in which small
amounts of a pure condensed solid were identified as 3 (Figure S8). Thus, 3 can be formed from
1 by expelling water, as was suggested more than a century ago14 but never confirmed by more
advanced analytical techniques, such as NMR. Like 1, 3 is obtained as a black solid and has
significant absorption in the visible region in aqueous solution (Figure S1). 3 can be directly
accessed from BTO by refluxing BTO in an acidic aqueous solution at elongated reactions times.
By boiling a solution of BTO (0.2 M) in an aqueous H2SO4 solution (0.1 M) for 60 hours while
exposed to air, near quantitative yield of 3 was obtained (Scheme 4). 3 could subsequently be
obtained as dark brown solid by solvent extraction. Refluxing the solution proved important, as
the reaction at 95 ºC showed only 8% yield of 3 after 65 h at 34% conversion of BTO with the
remainder being dimer 1 and other unidentified products. Interestingly, HCl was shown to be
completely ineffective for the formation of 3, as only trace amounts were detected when the
reaction was performed with this acid instead of H2SO4. Summarizing, it was thus demonstrated
that both dimers 1 and 3 can be readily obtained from BTO. The synthesis of 3 was found to be
more straightforward compared to that of 1, which is likely due to the high resistance of 3 to
further reactions to form trimers and higher oligomers. This set of reactions allows for the
development of more effective methods for producing these interesting symmetric polyphenolic
compounds.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
16
ACS Paragon Plus Environment

Page 17 of 28
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 4. Synthesis of 3 from BTO.
Overall, two types of reactivity were found for BTO in this work, oxidation and deuterium
exchange. Firstly, the oxidation of BTO by air to form 1. Subsequently, 1 can be further oxidized
to 2 by air. The first oxidation step is likely to proceed via a two-electron oxidation step with
radical intermediates that are recombined to form 1 (Scheme 5a). The regioselectivity for the
formation of the 5-5’ dimer is the result of the relative stability of radicals on the 5 and 3
positions over the 6 position of the aromatic ring due to the superior stabilization of having two
phenolic groups in the ortho/para or ortho/ortho positions respectively. This is combined with
reduced steric hindrance at the 5 position compared to the 3 position, leading to increased
reactivity for the coupling reaction. Indeed, we previously reported that creating more forcing
conditions by addition of hydrogen peroxide afforded 3-5 coupling.4 The oxidation of 1 to 2
seems more favored compared to 3-3 or 3-5 coupling at room temperature upon exposure to air.
Also, this reaction likely proceeds by a two-electron oxidation, generating water from oxygen.
No formation of hydroxyquinone was observed directly from BTO, indicating that the formation
1 is preferred from BTO, while for 1 hydroxyquinone formation is preferred over further C-C
bond formation. Secondly, the observed deuteration of the aromatic CH’s is likely to proceed via
deuteration of the aromatic ring of BTO-D3 to D-BTO-D3 and subsequent re-aromatization to
BTO-D4 (Scheme 5b). Quantum mechanical (QM) calculations revealed pKa values15 for D-
BTO-D3 with conjugate bases BTO-D3 and BTO-D4 of -4.13 and -5.66, respectively. This is in
17
ACS Paragon Plus Environment

Organic Process Research & Development
Page 18 of 28
1
2
3
4
5
6
7
8
9
line with the reported pKa of -3.37 determined for protonated 1,3,5-benzenetriol16, which is
expected to be slightly less acidic due to the positions of the hydroxyl groups compared to 1,3,4-
benzenetriol. In this deuteration pathway the reactivity pattern of the aromatic C-H’s will be the
same as for electrophilic aromatic substitution.17 The observed selectivity is due to the preferred
location of the carbocation. Resonance stabilization is more effective at positions 2, 4 and 6
compared to positions 1, 3 and 5 due to the positioning of the oxygens. Position 5 is more
reactive for deuteration compared to position 3 due to steric effects, but after longer reaction
times, the latter is also deuterated via the same mechanism. Additionally, the formation of BTO-
D4 is energetically preferred over BTO-D3 (Table S2) due to lower zero-point vibrational
energy, which, together with the excess D2O, shifts the equilibrium towards BTO-D4 and BTO-
D5. In principle, the deuteration of BTO can also be explained by the radical initiation shown for
the formation of 1. However, deuteration was still observed under exclusion of air with no
apparent change in reaction rates or reactivity (Figure S4).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
18
ACS Paragon Plus Environment

Page 19 of 28
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 5. Proposed mechanism for a) the dimerization and b) deuterium exchange reaction
observed for BTO in this work.
Conclusions
Bio-based 1,2,4-benzenetriol, an aromatic product attainable from 5-hydroxymethylfurfural
(HMF), can be used as a polyphenolic building block. In this study it is shown that BTO
possesses interesting reactivity. Although this reactivity can provide challenges for accurate
analysis of BTO in studies where its reactivity is not carefully considered, here it was shown that
this reactivity can lead to formation of bio-based compounds that can have potential as chemical
intermediates. Firstly, it was shown that previously reported 5-5’-linked BTO dimer [1,1'-
biphenyl]-2,2',4,4',5,5'-hexaol (1) is formed exclusively under aerobic conditions at room
temperature, which likely proceeds via a radical intermediate. Furthermore, 1 can be
subsequently oxidized to afford a hydroxyquinone-containing dimeric structure, 2',4,4',5'-
tetrahydroxy-[1,1'-biphenyl]-2,5-dione (2), under the same conditions. It was also demonstrated
19
ACS Paragon Plus Environment

Organic Process Research & Development
Page 20 of 28
1
2
3
4
5
6
7
8
9
that dimer 1, as well as a condensed dimer dibenzo[b,d]furan-2,3,7,8-tetraol (3), can be readily
produced from BTO. The symmetric nature of these two dimeric products provide a potential
platform for bio-based polymeric products, as for example bisphenol A18 replacements. This is
one of the future directions that will be explored in our group. Additionally, it was shown that
the specific sequential deuterium exchange of the aromatic C-H’s of BTO is readily achieved
under acidic conditions at room temperature. Deuterium incorporation first occurs at the 5
position followed by the 3 position to yield BTO with 4 and 5 deuterium atoms respectively,
which is likely to proceed through electrophilic aromatic substitution. These studies exemplify
two types of reactivity that BTO can be involved in, which should be considered when working
with this compound and which can also be exploited for accessing bio-based compounds from
BTO.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Experimental
Sequential BTO deuteration in acidic D2O
A NMR tube was charged with BTO (10 mg, 0.08 mmol) and dmso as internal standard (4 mg,
0.05 mmol). A measured amount of D2O (0.5 mL) was added as solvent. D2O was acidified to
pH 1 using concentrated H2SO4 (non-deuterated). The reaction was kept at the desired
temperature. NMR spectra were collected at defined time points, and the signal intensities of the
1
BTO protons were determined by integration relative to the signal of the internal standard. H-
NMR δ/ppm (400MHz, D2O); BTO - 6.84 (d, 1H, 3JHH = 8.7 Hz, C6-H ), 6.53 (d, 1H, 4JHH = 2.8
Hz, C3-H), 6.40 (dd, 1H, 4JHH = 2.8, Hz, 3JHH = 8.7 Hz, C5-H).
20
ACS Paragon Plus Environment

Page 21 of 28
Organic Process Research & Development
1
2
3
4
BTO stability in H2O
5
6
7
8
9
A clarified polypropylene centrifuge tube (50 mL) was charged with BTO (400 mg, 3.2 mmol)
and H2O (20 mL). For the experiment with exclusion of air, the H2O was degassed by repeateded
freeze-pump-thaws under argon atmosphere and the contents were added under an argon
atmosphere. For the experiment with exclusion of light the tube was wrapped in aluminum foil.
To sample each solution, an aliquot was abstracted from each reaction vessel , weighed (about
0.2-0.4 g), and placed in a centrifuge tube (1.5 mL). The sample was frozen in liquid nitrogen
and freeze-dried to remove all moisture. Dimethyl sulfone of known quaintly was added to each
centrifuge tube containing dry substrate as an internal standard, and dmso-d6 was used to solvate
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1
all contents. The dmso-d6 solution was transferred to an NMR tube and quantitative H-NMR
was recorded (32 scans 2s delay). The solution constituents were quantified by integration
against internal standard dimethyl sulfone using the average of integration for the signals
corresponding to the aromatic C-H’s. For the experiment run under exclusion of air, all these
steps were performed under an argon atmosphere. Due to the water insolubility of the dimeric
products, extensive shaking or sonication was necessary before each sampling. Observed NMR
1
signals for the different quantified species: BTO - H-NMR δ/ppm (400MHz, dmso-d6); 8.65
3
(s,1H, C4-OH), 8.47 (s,1H, C2-OH), 8.01 (s,1H, C1-OH), 6.48 (d, 1H, JHH = 8.5 Hz, C6-H ),
6.20 (d, 1H, 4JHH = 2.8 Hz, C3-H), 6.00 (dd, 1H, 4JHH = 2.8, Hz, 3JHH = 8.5 Hz, C5-H); 13C NMR
δ/ppm (100 MHz, dmso-d6); 150.2 (C4), 145.7 (C2), 137.6 (C1), 115.8 (C6), 105.1 (C5), 103.5
(C3); 1 - 1H-NMR δ/ppm (400MHz, dmso-d6); 8.71 (s, 2H, C4,4’-OH), 8.50 (s, 2H, C2,2’-OH),
8.20 (s, 2H, C1,1’-OH), 6.51 (s, 2H, C6,6’-H), 6.33 (s, 2H, C3,3’-H); 13C NMR δ/ppm (100
MHz, dmso-d6); 146.4 (C4,4’), 145.0 (C2,2’), 138.5 (C1,1’), 118.1 (C6,6’), 116.8 (C5,5’), 104.6
21
ACS Paragon Plus Environment

Organic Process Research & Development
Page 22 of 28
1
2
3
4
(C3,3’); T-FTMS – p ESI (m/z): calculated for C12H10O6 [M – H+]: 249.0394; found: 249.0398. 2
5
6
-
1H-NMR δ/ppm (400MHz, dmso-d6); 11.3 (s, Ar-OH), 9.30 (s, Ar-OH), 9.10 (s, Ar-OH),
7
8
9
8.36 (s, Ar-OH), 6.75 (s, C6-H), 6.56 (s, C6’-H), 6.38 (s, C3’-H), 5.95 (s, C3-H). 13C NMR
δ/ppm (100 MHz, dmso-d6); 187.2 (C2), 183.7 (C5), 157.0 (C4), 149.5 (C2’), 148.0 (C4’), 144.8
(C1), 137.7 (C5’), 130.0 (C3), 118.4 (C6’), 110.3 (C1’), 108.9 (C6), 103.8 (C6’). T-FTMS – p
ESI (m/z): calculated for C12H8O6 [M – H+]: 247.0231; found: 247.0245.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Typical synthesis and purification of 1 by reflux in H2O
BTO (149 mg, 1.18 mmol) and H2O (6.9 mL) were weighed into 50 mL round bottom flask
fitted with a straight tube condenser. BTO appeared as an off-white beige powder, and in
aqueous media afforded a golden solution. The solution was stirred and heated to reflux in a sand
bath (set to 110 °C) for 20 hours. The solution, which appeared black with black precipitate, and
appeared to stain the glass, was left to cool to room temperature and subsequently freeze-dried.
The dry material collected was brown in color. This material was sampled for 1H-NMR analysis
in dmso-d6. Products were identified and compared via integral analysis to determine product
composition. Analysis showed a 52.9% BTO, 43.7% 1, and 3.4% 3 yield. By washing the solid
with cold water, dimer 1 could be isolated with a 92% purity. Further purification could be
achieved by crystallization from water described previously4, but only in low yield. Analysis
data see above.
Typical synthetic procedure for 3
22
ACS Paragon Plus Environment

Page 23 of 28
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
BTO (521 mg, 4.13 mmol), H2SO4 (56.5 mg, 0.58 mmol), and H2O (21 mL) were mixed into a
50 mL round bottom flask fitted with a straight tube condenser. The solution was stirred and
refluxed in a sand bath (set to 110 °C) for 91 hours. The obtained black solution with visible
precipitate on the flask surface was left to cool to room temperature (NMR at this stage shows
>90% 3). Tetrahydrofuran (THF) was added to dissolve all dimeric and monomer compounds
and phase-separated by addition of NaCl to obtain a saturated aqueous phase. The organic layer
was collected and THF removed in vacuo. The obtained product was freeze-dried, yielding 317.0
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1
mg (1.36 mmol, 66%) of isolated 3 as a brown powder. Dimer 3: H-NMR δ/ppm (400MHz,
dmso-d6); 9.15 (s, 2H, H4,4’), 8.76 (s, 2H, H3,3’), 7.14 (s, 2H, H2,2’), 6.90 (s, 2H, H5,5’). 13C
NMR δ/ppm (100 MHz, dmso-d6): 149.6 (C1,1’), 144.6 (C3,3’), 141.9 (C4,4’), 115.4 (C6,6’),
105.0 (C2,2’), 98.4 (C5,5’). T-FTMS – p ESI (m/z): calculated for C12H8O5 [M – H+]: 231.0299;
found: 231.0298.
ASSOCIATED CONTENT Supporting Information. Contains general information on
materials and methods, UV-Vis data for BTO, 1 and 3, mass-spectroscopy data, additional data
1
on the deuterium exchange, all H-NMR data for BTO stability in time, dimer 1 synthesis in
water and without solvent, decomposition of 1 and formation of 3, details on the QM
calculations to obtain the theoretical pKa’s and NMR spectra for BTO from different supplies, 1,
2 and 3.
AUTHOR INFORMATION
Corresponding Author
P. J. Deuss (p.j.deuss@rug.nl)
Funding Sources
23
ACS Paragon Plus Environment

Organic Process Research & Development
Page 24 of 28
1
2
3
4
5
6
7
8
9
C. W. Lahive acknowledges Topconsortia voor Kennis en Innovatie (TKI Biobased Economy)
and Syncom for funding (BBE1712). S. Sami and R. W. A. Havenith acknowledge the research
programme of the Foundation of Fundamental Research on Matter (FOM), which is part of the
Netherlands Organisation for Scientific Research (NWO). This contribution is part of the FOM-
focus Group ‘Next Generation Organic Photovoltaics’, participating in the Dutch Institute for
Fundamental Energy Research (DIFFER).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACKNOWLEDGMENT
The authors would like to thank Qingqing Yuan, Tiemersma Wegman, and Hans van der
Velde for their technical and analytical support.
REFERENCES
1 (a) Holladay, J. E.; White, J. F.; Bozell, J. J.; Johnson, D. In Top Value-Added Chemicals from
Biomass Vol. II-Results of Screening for Potential Candidates from Biorefinery Lignin; U.S.
Department of Energy (DOE) by PNNL: Richland, WA, 2007; PNNL-16983; (b) Alonso, D. M.;
Hakim, S. H.; Zhou, S.; Won, W.; Hosseinaei, O.; Tao, J.; Garcia-Negron, V.; Motagamwala, A.
H.; Mellmer, M. A.; Huang, K.; Houtman, C. J.; Labbé, N.; Harper, D. P.; Maravelias, C. T.;
Runge, T.; Dumesic, J. A. Increasing the revenue from lignocellulosic biomass: Maximizing
feedstock utilization. Sci. Adv. 2017, 3, e1603301; (c) Clark, J. H.; Luque, R.; Matharu, A. S.
Green Chemistry, Biofuels, and Biorefinery. Annu. Rev. Chem. Biomol. Eng. 2012, 3, 18.
2 (a) van Putten, R. J.; van der Waal, J. C.; de Jong, E.; Rasrendra, C.B.; Heeres, H. J.; de Vries,
J. G. Hydroxymethylfurfural, A VersatilePlatform Chemical Made From Renewable Resources.
Chem. Rev. 2013, 113, 1499; (b) Kucherov, F. A.; Romashov, L. V.; Galkin, K. I.; Ananikov, V.
P. Chemical Transformations of Biomass-Derived C6-Furanic Platform Chemicals for
24
ACS Paragon Plus Environment

Page 25 of 28
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
Sustainable Energy Research, Materials Science, and Synthetic Building Blocks. ACS
Sustainable Chem. Eng. 2018, 6, 8064; (c) Bozell, J. J. Technology development for the
production of bio-based products from biorefinery carbohydrates-The US Department Energy’s
‘Top10’ revisited. Green Chem. 2010, 12, 539
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3 (a) Settle, A. E.; Berstis, L.; Rorrer, N. A.; Roman-Leshkóv, Y.; Beckham, G. T.; Richards, R.
M.; Vardon, D. R. Heterogeneous Diels–Alder catalysis for biomass-derived aromatic
compounds. Green Chem. 2017, 19, 3468; (b) Bruijnincx, P. C. A.; Weckhuysen, B. M. Shale
Gas Revolution: An Opportunity for the Production of Biobased Chemicals? Angew. Chem., Int.
Ed. 2013, 52, 11980; (c) Pacheco, J. J.; Davis, M. E. Synthesis of terephthalic acid via Diels-
Alder reactions with ethylene and oxidized variants of 5-hydroxymethylfurfural. Proc. Natl.
Acad. Sci. U. S. A. 2014, 111, 8363; (d) Thiyagarajan, S.; Genuino, H. C.; van der Waal, J. C.; de
Jong, E.; Weckhuysen, B. M.; van Haveren, J.; Bruijnincx, P. C. A.; van Es, D. S. A Facile
Solid-Phase Route to Renewable Aromatic Chemicals from Biobased Furanics. Angew. Chem.,
Int. Ed., 2016, 55, 1368.
4
Kumalaputri, A. J.; Randolph, C.; Otten, E.; Heeres, H. J.; Deuss, P. J. Lewis Acid Catalyzed
Conversion of 5-Hydroxymethylfurfural to 1,2,4-Benzenetriol, an Overlooked Biobased
Compound. ACS Sustainable Chem. Eng. 2018, 6, 3419.
5
(a) Srokol, Z.; Bouche, A. G.; van Estrik, A.; Strik, R. C. J.;Maschmeyer, T.; Peters, J. A.
Hydrothermal upgrading of biomass to biofuel: studies on some monosaccharide model
compounds. Carbohydr. Res. 2004, 339, 1717; (b) Kimura, H.; Nakahara, M.; Matubayasi, N.
Solvent Effect on Pathways and Mechanisms for D-Fructose Conversion to 5-Hydroxymethyl-
2-furaldehyde: In Situ 13C NMR Study, J. Phys. Chem. A 2013, 117, 2102; (c) Chuntanapum, A.;
25
ACS Paragon Plus Environment

Organic Process Research & Development
Page 26 of 28
1
2
3
4
5
6
7
8
9
Matsumura, Y. Formation of Tarry Material from 5-HMF in subcritical and supercritical water.
Ind. Eng. Chem. Res. 2009, 48, 9837; (d) van Zandvoort, I.; Wang, Y.; Rasrendra, C. B.; van
Eck, E. R. H.; Bruijnincx, P. C. A.; Heeres, H. J.; Weckhuysen, B. M. Formation, Molecular
Structure, and Morphology of Humins in Biomass Conversion: Influence of Feedstock and
Processing Conditions. ChemSusChem 2013, 6, 1745.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
6
(a) Luijkx, G. C. A.; van Rantwijk, F.; van Bekkum, H. Formation of 1,2,4-benzenetriol by
hydrothermal treatment of carbohydrates. Recl. Trav. Pay-Bas 1991, 110, 343; (b) Luijkx, G. C.
A.; van Rantwijk, F.; van Bekkum, H. Hydrothemal formation of 1,2,4-benzenetriol from 5-
hydroxymethyl-2-furaldehyde and D-fructose. Carbohydr. Res. 1993, 242, 131.
7
Li, X.; Cubbage, J. W.; Tetzlaff, T. A.; Jenks, W. S. Photocatalytic Degradation of 4-
Chlorophenol. 1. The Hydroquinone Pathway. J. Org. Chem. 1999, 64, 8509.
8 (a) Junk, T.; Catallo, W. J. Hydrogen isotope exchange reactions involving C–H (D, T) bonds.
Chem. Soc. Rev. 1997, 26, 401; (b) Atzrodt, J.; Derdau, V.; Fey, T.; Zimmermann, J.
TheRenaissanceofH/DExchange. Angew. Chem. Int. Ed. 2007, 46, 7744; (c) Banijamali, A. R.;
Charalambous, A.; van der Schyf, C. J.; Makriyannis, A. Specific deuteration of phenols and
aromatic ethers using boron trifluoride and deuterium oxide. J. Label. Compd. Radiopharm.
1987, 24, 1479; (d) Zhan M.; Xu, R.; Tian, Y.; Jiang, H.; Zhao, L.; Xie, Y.; Chen, Y. A Simple
and Cost‐Effective Method for the Regioselective Deuteration of Phenols. Eur. J. Org. Chem.
2015, 2015, 3370; (e) Murai, Y.; Wang, L.; Masuda, K.; Sakihama, Y.; Hashidoko, Y.;
Hatanaka, Y.; Hashimoto, M. Rapid and Controllable Hydrogen/Deuterium Exchange on
Aromatic Rings of α-Amino Acids and Peptides. Eur. J. Org. Chem. 2013, 23, 5111.
26
ACS Paragon Plus Environment

Page 27 of 28
Organic Process Research & Development
1
2
3
9
Jameson, G. N. L.; Kudryavtseva, A. B.; Linerta, W. The oxidation of 6-hydroxydopamine in
4
5
6
7
8
aqueous solution. Part 1. The formation of three metastable quinones at low pH. J. Chem. Soc.,
Perkin Trans. 2, 2001, 0, 557
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
van Dijk, H.; Ter Haar, H. E. A Polarographic Study of the Oxidation of some
Polyhydroxybenzenes with Atmospheric Oxygen. Recl. Trav. Chim. Pays-Bas 1961, 80, 1207.
11
(a) Spyroudis, S. Hydroxyquinones: Synthesis and Reactivity. Molecules 2000, 5, 1291; (b)
Forrest, J.; Overell, B. G.; Petrow, V.; Stephenson, O. Some Observations on the Inhibition of
the Action of Hyaluronidase on Hyaluronic Acid by Gentisic Acid and its Oxidation Products, J.
Pharm. Pharmacol. 1952, 4, 231; (c) Gui, Y.; Kuwana, T. Long optical Path Length Thin-Layer
Spectroelectrochemistry. Catalytic Oxidation of Hydroxyquinones by Oxygen at Platinum.
Chem. Lett. 1987, 16, 231
12
(a) Boyd, D. R.; Sharma, N. D.; Malone, J. F.; McIntyre, P. B. A.; McRoberts, C.; Floyd, S.;
Allen, C. C. R; Gohil, A.; Coles, S. J.; Horton, P. N.; Stevenson, P. J. Toluene Dioxygenase-
Catalyzed Synthesis and Reactions of cis-Diol Metabolites Derived from 2- and 3‑
Methoxyphenols. J. Org. Chem. 2015, 80, 3429; (b) Lam, L. K. M.; Zhang, Z.; Board, P. G.;
Xun, L. Reduction of Benzoquinones to Hydroquinones via Spontaneous Reaction with
Glutathione and Enzymatic Reaction by S-Glutathionyl-Hydroquinone Reductases. Biochemistry
2012, 51, 5014.
13
Teuber, H. J.; Staiger, G. Reactions with nitrosodisulfonate. VIII. o-Benzoquinones and
phenazines. Chem. Ber. 1955, 88, 802.
14 Brezina, E. Über die Alkylierung des Oxyhydrochinons, Monatsh. Chem. 1901, 22, 590.
27
ACS Paragon Plus Environment

Organic Process Research & Development
Page 28 of 28
1
2
3
4
5
6
7
8
9
15 Liptak, M. D.; Shields, G. C. Accurate pK(a) calculations for carboxylic acids using Complete
Basis Set and Gaussian-n models combined with CPCM continuum solvation methods. J Am
Chem. Soc. 2001, 123, 7314.
16
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Kresge, A. J.; Chiang, Y. Aromatic Protonation. III. Kinetic Hydrogen Isotope Effects on
Acid-Catalyzed Aromatic Hydrogen Exchange in 1,3,5-Trimethoxybenzene. J. Am. Chem. Soc.
17
1967, 89, 4411. Giles, R.; Kim, I.; Chao, W. E.; Moore, J.; Jung, K. W. Dual Studies on a
Hydrogen–Deuterium Exchange of Resorcinol and the Subsequent Kinetic Isotope Effect. J.
Chem. Educ. 2014, 91, 1220.
18
Rochester, J. R. Bisphenol A and human health: A review of the literature. Reproductive
Toxicol. 2013, 42, 132.
28
ACS Paragon Plus Environment
