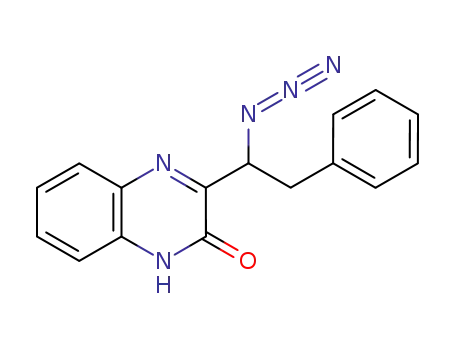

3-(α-azidoalkyl)quinoxalin-2(1H)-ones and related alkylquinoxalinyl ketones

Article abstract of DOI:10.1007/s10593-007-0067-0

A convenient method has been developed for the synthesis of 3-alkanoyl-and 3-benzoyl-2-oxo-1,2-dihydroquinoxalines from the corresponding 3-(α-azidoalkyl)quinoxalines using acetic acid.

Full text of DOI:10.1007/s10593-007-0067-0

Chemistry of Heterocyclic Compounds, Vol. 43, No. 4, 2007
3-(α-AZIDOALKYL)QUINOXALIN-2(1H)-ONES
AND RELATED ALKYLQUINOXALINYL KETONES
V. A. Mamedov1, D. F. Saifina1, and E. A. Berdnikov2
A convenient method has been developed for the synthesis of 3-alkanoyl- and 3-benzoyl-2-oxo-1,2-
dihydroquinoxalines from the corresponding 3-(α-azidoalkyl)quinoxalines using acetic acid.
Keywords: 3-alkanoylquinoxalines, 3-(α-azidoalkyl)quinoxalines, Kornblum reaction.
The presence of a β-dicarbonyl and α-iminocarbonyl fragments in combination with other functional
groups in 3-alkanoylquinoxalin-2(1H)-one molecules makes them promising key compounds in the synthesis of
condensed heterocyclic systems via annelation of different heterocycles on the a and b sides of the quinoxaline
[1-8]. The availability of alkanoylquinoxalin-2(1H)-ones containing in position 3 different alkyl fragments
readily transformed to other functional groups opens up novel possibilities for the use of these hetaryl ketones in
the synthesis of more complex and diverse pharmacologically interesting heterocycles.
The classical Kornblum reaction [9-11] is the oxidative dehydrohalogenation of primary and secondary
alkyl halides to form the corresponding aldehydes or ketones in DMSO in the presence of bicarbonate,
carbonate, or sodium acetate trihydrate. It is hindered when changing from iodides to chlorides and from primary
derivatives to secondary [12] and is accompanied by side reactions [13] causing lowering of the yields of the
target products. Hence to achieve good results nitrates [11] and tosylates [10, 13] were used instead of halides.
Cl
O
N
Ph
N
Ph
( )n
( )n
i
N
H
O
N
H
O
3a–c
1a–c
iii
ii
n = 1
OH
O
N3
O
N
Ph
N
Ph
( )n
N
H
N
H
2a–c
3b
i Na2CO3, DMSO; ii NaN3, DMSO; iii AcOH, 1–3 a n = 0, b n = 1, c n = 2
__________________________________________________________________________________________
1A. E. Arbuzov Institute of Organic and Physical Chemistry, Kazan Science Center, Kazan 420088;
2
e-mail: mamedov@iopc.knc.ru. Kazan State University, Kazan 420008, Russia. Translated from Khimiya
Geterotsiklicheskikh Soedinenii, No. 4, pp. 574-577, 2007. Original article submitted April 19, 2006.
470
0009-3122/07/4304-0470©2007 Springer Science+Business Media, Inc.

The use of this reaction in the synthesis of alkyl hetaryl ketones was not crowned with success (in
contrast to the synthesis of aryl hetaryl ketones where high yields of the target products are achieved [14]).
Independently of the 3-(α-chloroalkyl)quinoxaline used the reaction occurs to form many side and hard to
separate products along with the target compound. Hence with the aim of preparing alkyl hetaryl ketones we
have used not the 3-(α-haloalkyl)quinoxalines 1 but the 3-(α-azidoalkyl)quinoxalines 2 assuming that these
compounds (similarly to 3-(α-azidobenzyl)quinoxaline 2a [14]) are converted under the thermolysis conditions
to the corresponding imines which subsequently hydrolyze with water present in AcOH to give ketones. We
have found that refluxing 3-(α-azidoalkyl)quinoxalines 2 in glacial acetic acid or in a mixture of acetic
anhydride and acetic acid (1 : 2) where traces of water are excluded gives high yields of the target ketones
without any kind of admixture.
The formation of the alkylhetaryl ketones via refluxing the 3-(α-azidoalkyl)quinoxalin-2(1H)-ones 2a-c in
glacial acetic acid can be represented in the following way:
Me
..
O
H2N
NH
( )n
O
N
Ph
N
AcOH
( )n
Ph
2a–c
– N2
N
H
O
N
H
O
B
A
–
H
N
O
O
Me
Me
+
H2N
N
H
O
O
Ph
Ph
N
( )n
( )n
3a–c
– MeCONH2
N
O
N
H
O
H
D
C
The reaction of AcOH with the intermediately formed imine A leads to the unstable quinoxaline
derivative C containing 1,3-oxaazetidine ring. The intermediate C gives compound D, which eliminates a
molecule of acetamide to form the target compounds 3a-c.
Compound 3b exists as a mixture of two tautomeric forms. As evident from the intensities of the
1
methylene signals (ketone form) and olefin (enol form) protons in the H NMR spectrum, the olefin
predominates in this mixture (ratio of enol to keto forms 4 : 1). This is possibly due to stabilization of the given
structure in DMSO-d6 solution by intramolecular hydrogen bonding involving the carbamoyl oxygen atom to
form a chelated structure with a six-membered ring I or of the imine nitrogen atom to form a chelated structure
with a five-membered ring II.
Ph
H
O
N
N
Ph
O
H
3b
N
H
O
N
O
H
I
II
471

The oxidative cleavage of 3-(α-azidobenzyl)quinoxalin-2(1H)-one 2a in glacial acetic acid or its mixture
with acetic anhydride occurs similarly but in this case the reaction product 3-benzoylquinoxalin-2(1H)-one (3a)
precipitates from the reaction mixture cooled to room temperature as shining needle-like crystals with a
yellowish coloration.
EXPERIMENTAL
The IR spectra of all of the compounds were recorded on a Bruker Vector-22 spectrometer using
1
vaseline oil. H NMR spectra were taken on a Bruker MSL-400 (400 MHz) spectrometer or Bruker AVANCE-
600 (600 MHz) spectrometer. Chemical shifts are presented in ppm relative to TMS using it or residual signals
from the corresponding solvent as internal standard. Melting points for the reaction products were taken on a
Boetius block.
3-(α-Azidophenethyl)quinoxalin-2(1H)-one (2b). Sodium azide (0.26 g, 4.0 mmol) was added to a
solution of 3-(α-chlorophenethyl)quinoxalin-2(1H)-one (1 g, 3.5 mmol) in DMSO (20 ml) and stirred at 35-40ºC
for 4 h. The mixture was held at room temperature for about 15 h and then treated with distilled water. The
precipitated crystals were filtered off. Yield 0.97 g (95%); mp 157-159ºC. IR spectrum (vaseline oil), ν, cm-1:
1
487, 593, 889, 1143, 1438, 1496, 1560, 1663, 2118, 2715, 3061, 3100, 3154. H NMR spectrum (CDCl3 +
DMSO-d6), δ, ppm (J, Hz): 3.16 (1H, Jab = 14.0, Jax = 9.2, CH2C6H5); 3.38 (1H, Jab = 14.0, Jbx = 5.3, CH2C6H5);
5.12 (1H, Jax = 9.2, Jbx = 5.3, CHN3); 7.24-7.39 (7H, m, C6H5 + H-6,8); 7.59 (1H, dd, J = 8.3, J = 7.0, H-7); 7.83
(1H, d, J = 8.3, H-5); 12.54 (1H, br. s, NH). Found, %: C 65.65; H 4.31; N 24.15. C16H13N5O. Calculated, %:
C 65.97; H 4.50; N 24.04.
3-(α-Azido-γ-phenylpropyl)quinoxalin-2(1H)-one (2c). Sodium azide (0.22 g, 3.3 mmol) was added to
a solution of 3-(α-chloro-γ-phenylpropyl)quinoxalin-2(1H)-one (1 g, 3.3 mmol) in DMSO (20 ml) with gentle
heating and stirring over 4 h. The mixture was held for about 15 h at room temperature and treated with distilled
water in the ratio 1 : 5. The precipitated crystals were filtered off. Yield 0.95 g (93%); mp 211-213ºC. IR
spectrum (vaseline oil), ν, cm-1: 472, 593, 692, 713, 739, 760, 865, 907, 915, 1022, 1219, 1266, 1316, 1334,
1
1350, 1498, 1559, 1609, 1664, 2114, 2717, 3028, 3064, 3086. H NMR spectrum (DMSO-d6), δ, ppm (J, Hz):
2.12-2.33 (m); 2.69-2.95 (4H, m, CH2CH2); 4.80-4.85 (1H, m, CHN3); 7.10-7.35 (7H, m, C6H5 + H-6,8); 7.55
(1H, dd, J = 7.1, J = 6.8, H-7); 7.78 (1H, d, J = 7.1, H-5); 12.50 (1H, br. s, NH). Found, %: C 66.45; H 4.52;
N 23.27. C17H15N5O. Calculated, %: C 66.87; H 4.95; N 22.94.
Tautomeric Mixture of 3-(β-Hydroxystyryl)- and 3-Phenylacetylquinoxalin-2(1H)-ones (3b). A
solution of the azido ketone 2b (0.4 g, 1.4 mmol) in acetic acid (35 ml) was refluxed for 3 h. The precipitated
1
crystals were filtered off. Yield 0.29 g (81%). The ratio of the ketone to enol form was calculated from the H
NMR spectrum using the integrated intensities of the methylene group protons (0.35) and the enol form vinyl
proton (0.70). Mp 214-216ºC. M = 264. IR spectrum (vaseline oil), ν, cm-1: 593, 689, 754, 1186, 1337, 1395,
1527, 1636, 1662, 3088, 3266. 1H NMR spectrum (DMSO-d6), δ, ppm (J, Hz): 4.36 (2H, s, CH2); 7.57 (1H, dd,
J = 7.8, J = 7.3, H-7); 7.60 (1H, dd, J = 7.6, J = 7.6, H-7 ketone form); 7.65 (1H, s, C(OH)=CH); 7.23-7.40 (m),
7.83-7.90 (16H, m, 2C6H5, 2H-5, 2H-6, 2 H-8); 9.72 (1H, s, C(OH)=CH); 12.77 (1H, br. s, NH enol form); 12.78
(1H, br. s, NH ketone form). Found, %: C 72.52; H 4.31; 10.19. C16H12N2O2. Calculated, %: C 72.72; H 4.58; N
10.60.
3-Phenylpropanoylquinoxalin-4(5H)-one (3c). A solution of the azido ketone 2c (1 g, 3.3 mmol) in
acetic acid (35 ml) was refluxed for 3 h. The precipitated crystals were filtered off. Yield 0.58 g (64%). IR
spectrum (vaseline oil), ν, cm-1: 573, 587, 699, 753, 770, 920, 962, 945, 1147, 1293, 1402, 1495, 1609, 1656,
1
1717. H NMR spectrum (DMSO-d6), δ, ppm (J, Hz): 3.00 (2H, t, J = 7.5, CH2C6H5); 3.39 (2H, t, J = 7.5,
CH2CO); 7.20-7.40 (7H, m, C6H5 and H-6,8); 7.66 (1H, dd, J = 8.6, 7, H-7); 7.86 (1H, d, J = 8, H-5); 11.9 (1H,
br. s, NH). Found, %: C 73.04; H 5.00; N 9.91. C17H14N2O2. Calculated, %: C 73.37; H 5.07; N 10.07.
472

3-Benzoylquinoxalin-2(1H)-one (3a). A solution of 3-(α-azidobenzyl)quinoxalin-2(1H)-one (0.5 g,
1.8 mmol) in acetic acid (35 ml) or a mixture of acetic acid (15 ml) and acetic anhydride (15 ml) was refluxed
for 3 h and left overnight. The precipitated crystals were filtered off and dried in air to give compound 3a
(0.42 g, 93%). All of the characteristics were identical to literature data [14, 15].
REFERENCES
1.
2.
3.
4.
V. A. Mamedov, A. A. Kalinin, E. A. Gorbunova, I. Bauer, and V. D. Khabiker, Zh. Org. Khim., 40,
1082 (2004).
V. A. Mamedov, A. A. Kalinin, A. T. Gubaidullin, I. A. Litvinov, and Ya. A. Levin, Khim. Geterotsikl.
Soedin., 101 (2003). [Chem. Heterocycl. Comp., 39, 96 (2003)].
V. A. Mamedov, A. A. Kalinin, A. T. Gubaidullin, I. Kh. Rizvanov, A. V. Chernova, G. M. Doroshkina,
I. A. Litvinov, and Ya. A. Levin, Zh. Org. Khim., 39, 145 (2003).
V. A. Mamedov, A. A. Kalinin, A. T. Gubaidullin, A. V. Chernova, I. A. Litvinov, Ya. A. Levin, and
R. R. Shagidullin, Izv. Akad. Nauk, Ser. Khim., 159 (2004).
5.
6.
7.
8.
9.
A. Atfah, M. Y. Abu-Shuheil, and J. Hill, Tetrahedron, 46, 6483 (1990).
K. Matoba, K. Iton, K. Kondo, T. Yamazaki, and M. Nagata, Chem. Pharm. Bull., 29, 2442 (1981).
K. Matoba, T. Terada, M. Sugiura, and T. Yamazaki, Heterocycles, 26, 55 (1987).
F. Eiden and G. Bachmann, Arch. Pharm., 306, 876 (1973).
N. Kornblum, J. W. Powers, G. J. Anderson, W. J Jones, H. O. Larson, O. Levand, and W. M. Weaver,
J. Amer. Chem. Soc., 79, 6562 (1957).
10.
11.
12.
13.
14.
N. Kornblum, W. J. Jones, and G. J. Anderson, J. Am. Chem. Soc., 81, 4113 (1959).
N. Kornblum and H. W. Frazier, J. Am. Chem. Soc., 88, 865 (1966).
M. Baizer, J. Org. Chem., 25, 670 (1960).
D. N. Jones and M. A. Saeed, J. Chem. Soc., 10, 4657 (1963),
V. A. Mamedov, A. A. Kalinin, A. T. Gubaidullin, I. A. Litvinov, and Ya. A. Levin, Khim. Geterotsikl.
Soedin., 1704 (2002). [Chem. Heterocycl. Comp., 38, 1504 (2002).
15.
V. A. Mamedov, A. A. Kalinin, I. Kh. Rizvanov, N. M. Azancheev, Yu. Ya. Efremov, and Ya. A. Levin,
Khim. Geterotsikl. Soedin. 1279 (2002). [Chem. Heterocycl. Comp., 38, 1121 (2002)].
473
