Three-component reactions with 3-phenyl-1-azabicyclo[1.1.0]butane, dimethyl dicyanofumarate, and primary aromatic amines

Article abstract of DOI:10.3987/COM-09-S(S)91

The three-component reaction of 3-phenyl-1-azabicyclo[1.1.0]butane (1a) with 2,3-dicyanofumarates (DCFM) and primary aromatic amines in dichloromethane at room temperature yielded mixtures of (Z)-2-arylamino-3-cyanofumarates (7) and the corresponding (E)-

Full text of DOI:10.3987/COM-09-S(S)91

HETEROCYCLES, Vol. 80, No. 2, 2010
1091
HETEROCYCLES, Vol. 80, No. 2, 2010, pp. 1091 - 1102. © The Japan Institute of Heterocyclic Chemistry
Received, 31st July, 2009, Accepted, 15th September, 2009, Published online, 16th September, 2009
DOI: 10.3987/COM-09-S(S)91
THREE-COMPONENT REACTIONS WITH 3-PHENYL-1-AZA-
BICYCLO[1.1.0]BUTANE, DIMETHYL DICYANOFUMARATE, AND
PRIMARY AROMATIC AMINES
Grzegorz Mlostoꢀa* and Heinz Heimgartnerb*
a: University of ꢀódꢁ, Department of Organic and Applied Chemistry,
Narutowicza 68, PL-90-136 ꢀódꢁ, Poland: e-mail: gmloston@uni.lodz.pl
b: University of Zurich, Institute of Organic Chemistry, Winterthurerstrasse 190,
CH-8057 Zurich, Switzerland; e-mail: heimgart@oci.uzh.ch
Dedicated to Professor Emeritus Akira Suzuki on the occasion of his 80th birthday
Abstract – The three-component reaction of 3-phenyl-1-azabicyclo[1.1.0]butane
(1a) with 2,3-dicyanofumarates (DCFM) and primary aromatic amines in
dichloromethane
at
room
temperature
(7) and
yielded
the
mixtures
of
(Z)-2-arylamino-3-cyanofumarates
corresponding
(E)-2-(azetidin-1-yl)-3-cyanomaleates (6) and (9). In the case of anisidine (8d),
higher oligomers containing three or four azetidine residues, e.g. 10a, were also
formed. With more nucleophilic aliphatic amines, only 1:1 adducts of type 7 were
obtained. The reaction course can be rationalized by the formation of
intermediate zwitterions (11) via addition of the N-nucleophiles onto DCFM. The
results show that the nucleophilicity of 1a toward DCFM is lower than that of
aliphatic amines but exceeds that of aromatic amines.
INTRODUCTION
Reactions of 1-azabicyclo[1.1.0]butanes (1) leading to azetidine derivatives are of continual interest.1,2 In
some of our recent papers, reactions of 1 with diverse electrophiles, such as sulfanyl and sulfinyl
chlorides3 as well as chlorodithioformates,4 were described. In analogy to other reactions of 1 with
electrophilic agents, e.g. azido and chloroformates,5 the only products obtained were azetidine derivatives
of type 2–4 (Scheme 1). On the other hand, the reaction with the electron deficient dicyanofumarates
yielded a mixture of stereoisomeric 1-azabicyclo[2.1.1]hexane dicarboxylates (5).6 In this case, the

1092
HETEROCYCLES, Vol. 80, No. 2, 2010
reaction was shown to occur via an intermediate zwitterion which was trapped quantitatively with
methanol or morpholine to give enamines of type 6.7,8
Scheme 1
Ar
X
Ar
R
Cl
N
N
S
RSCl
XCO2Me
O
OMe
4
2
X = Cl, N3
Ar
O
S
RO2C
NC
CN
N
R
Cl
1
CO2R
Ar
Ar
R
Cl
O
CO2R
CN
RO2C
CN
N
S
NuH
Nu
CO2R
N
NC
CO2R
Ar
CN
3
5
N
CN
CO2R
6 (Nu = MeO, O(CH2CH2)2N
RO2C
The successful trapping reactions evidence that 3-phenyl-1-azabicyclo[1.1.0]butane (1a) exceeds both
methanol and morpholine in the nucleophilicity towards the electron poor C=C bond. Whereas methanol
does not react with dicyanofumarates at room temperature, a Michael type addition of morpholine, and
also of other secondary and primary amines, followed by elimination of HCN to give enamines of type 7
was observed under the same conditions.8 Interestingly, N-methylaniline did not react with dimethyl
dicyanofumarate even at elevated temperature. Furthermore, a three-component reaction with equimolar
amounts of 1a, cyclohexylamine (8a), and dimethyl dicyanofumarate (DCFM)9 resulted in the formation
of only a 1:1 product, i.e., the enamine (7a)7 (Scheme 2), and not even traces of the expected 1:1:1 product
of type 6 were observed. This result suggests that 8a reacts faster with DCFM than 1a and prompted us to
examine analogous three-component reactions with less nucleophilic primary aromatic amines.

HETEROCYCLES, Vol. 80, No. 2, 2010
1093
Scheme 2
Ph
NC
CO2Me
NH R
NC
CO2Me
CN
1a
RNH2
+
+
+
N
MeO2C
MeO2C
1a
8a R = cHex
b R = PhCH2
7a R = cHex (88%)
b R = PhCH2 (85%)
RESULTS AND DISCUSSION
In the first series of three-component reactions, a mixture of equimolar amounts of 1a and the
corresponding primary amine, e.g. cyclohexylamine (8a), in dichloromethane at room temperature was
treated with one mole equivalent of DCFM, dissolved in the same solvent. As depicted in Scheme 2, the
mixture contained the enamine (7a) along with unchanged 1a. After chromatographic purification, the
already described compound (7a)8 was obtained in 88% yield. The replacement of cyclohexylamine (8a)
in the reaction mixture by benzylamine (8b) gave also an enamine (7b)10 as the sole product of this
reaction. Similarly to the case with 8a, the yield of the enamine (7b), being the product of the
two-component reaction, was high and was determined to 85%. Product (7b) was also obtained in the
two-component reaction of 8b with DCFM (94%). The results of the experiments with 8a and 8b showed
that aliphatic primary amines with high nucleophilicity react faster with DCFM than 1a, and no
competition of the two nucleophiles, present in the solution in identical mol ratios, was observed.
1
The analogous reaction with aniline (8c) led to a more complex mixture and, according to the H-NMR
analysis, 1a was completely consumed. The chromatographic separation gave three fractions. The
compound isolated from the least polar fraction in 9% yield was identified as the enamine (7c).8 The
second fraction contained the 1:1:1 product (6b) as the major component (31%) of the reaction. Its
1H-NMR spectrum was characterized by the presence of two MeO signals at 3.73 and 3.91 ppm and two
AB systems at 4.38/4.63 ppm with J = 10.1 Hz and 4.91/4.96 ppm with J = 11.3Hz, respectively, for two
CH2 groups of the azetidine ring. In addition, a set of multiplets of 10 aromatic H-atoms confirmed the
structure of 6b (Scheme 3). The most polar fraction gave a colorless solid (9a) in 5% yield, which
displayed a similar 1H-NMR spectrum as 6b, but differed by the presence of an additional AB system for
two azetidine CH2 groups located at 3.5/3.7 ppm. Furthermore, the integration of the aromatic H-atoms
confirmed the presence of three Ph residues.
The ESI-MS revealed the [M+Na]+ peak of 6b at m/z 414 and for 9a at m/z 545, thus confirming the
structures of a 1:1:1 and 1:2:1 product of type 6 and 9, respectively. The configuration of the C=C bonds
of 6 and 9 is described as (E) based on the assumption presented in note 10. The simultaneous formation
of 6b and 9a suggests that the secondary step of the reaction occurs via competitive attack of aniline

1094
HETEROCYCLES, Vol. 80, No. 2, 2010
versus 1a onto the initially formed zwitterion. The low yield of 7c in comparison with 6b + 9a evidences
that 1a is a more prone nucleophile in the reaction with DCFM.
Scheme 3
NH2
Ph
NC
CO2Me
NH
NC
CO2Me
CN
CH2Cl2
rt
+
+
+
N
MeO2C
R
MeO2C
R
7c R = H (9%)
d R = MeO (10%)
e R = CF3 (16%)
1a
8c R = H
d R = MeO
e R = CF3
Ph
H
N
R
Ph HN
R
Ph
N
+
N
N
CN
CO2Me
MeO2C
CN
MeO2C
CO2Me
9a R = H (5%)
6b R = H (31%)
b R = MeO (11%)
c R = CF3 (6%)
c R = MeO (53%)
d R = CF3 (27%)
Similar to aniline, the three-component reaction with anisidine (8d) led to the complete conversion of 1a,
and the separation of the mixture gave the corresponding products (7d), (6c) and (9b) (Scheme 3) in a
ratio comparable with that observed in the case of aniline (8c).11 With the aim of increasing the yield of
the ‘oligoazetidine’ (9b), the stoichiometry of the reaction was modified, and a twofold (Procedure B) as
well as a threefold amount (Procedure C) of 1a was used in the following two experiments. In both cases,
1
the formation of the 1:1 product (7d) was completely suppressed and, according to the H-NMR spectra
of the crude mixtures, significant amounts of 1a were still present. The chromatographic separation
yielded in each case 6c along with 9b and a third, even more polar fraction. In comparison with the results
of the reaction with equimolar amounts of starting materials, the yields of the isolated products were
increased in favor of 9b. The most polar fraction, after additional purification, was analyzed by means of
1H-NMR spectroscopy, and the data obtained confirm the structure of the ‘oligoazetidine’ (10a).12

HETEROCYCLES, Vol. 80, No. 2, 2010
1095
Ph
Ph
Me
N
N
HN
OMe
Ph
N
Ph
Ph
N
N
CN
CN
MeO2C
MeO2C
CO2Me
CO2Me
6e
10a
In order to examine the scope of the three-component reactions with 1a, DCFM, and an aromatic amine,
the 4-trifluoromethyl- (8e) and 4-nitroaniline were included in the study. In spite of the fact that the
basicity of the former is significantly lower when compared with aniline (pKBH+ = 2.5 versus 4.6), the
results of the reaction with equimolar amounts of reactants was comparable with that obtained for aniline,
i.e. products (7e), (6d) and (9c) were isolated after chromatographic workup. In contrast, the reaction with
+
4-nitroaniline (pKBP = 1.0) led to a complex mixture. After 30 min, 1a was no more present in the
mixture, but after attempted chromatographic separation, apart from 4-nitroaniline no defined product
could be isolated.
As already mentioned, N-methylaniline did not react with DCMF.8 However, the three-component
reaction with 1a, carried out in the typical manner, led to a single product. After isolation in 96% yield,
its structure was elucidated as the 1:1:1 product (6e). In this case, neither the 1:1 nor the 1:2:1 product
was formed.
Scheme 4
Ph
Ph
N
N
CN
CN
CO2Me
CN
NC
MeO2C
MeO2C
CO2Me
12
11
CONCLUSIONS
The present study showed that the reactivity of 3-phenyl-1-azabicyclobutane (1a) as a Michael donor
towards DCFM is comparable with that of primary aromatic amines. On the other hand, cyclohexylamine

1096
HETEROCYCLES, Vol. 80, No. 2, 2010
(8a) reacts much faster with DCFM, and in a competition experiment, neither the 1:1:1 product nor higher
‘oligomers’ 9 or 10 were formed. The reactivity of benzylamine (8b) is comparable with that of
cyclohexylamine (8a). As evidenced in earlier studies, the reaction of 1a with DCFM occurs via a
zwitterion 11, which can be trapped by a nucleophile followed by elimination of HCN.7 On the other hand,
elimination of CN– from 11 could lead to the cation 12 (Scheme 4), which than can be intercepted by the
nucleophile. Depending on the type of the nucleophile, the trapping product stabilizes by deprotonation
(with methanol, primary and secondary amines) or, in the case of 1a as the nucleophile, an
oligomerization of the azetidine unit occurs. In each step of this oligomerization, 1a and the aromatic
amine compete as nucleophiles. A similar oligomerization was reported for the reactions of 3-ethyl and
3-phenyl-1-azabicyclo[1.1.0]butanes with tosyl azide.13,14
EXPERIMENTAL
General remarks. Melting points were determined in a capillary using a MEL-TEMP II apparatus
(Aldrich) and are uncorrected. IR spectra were recorded with a FT-IR NEXUS instrument as KBr pellets
or as films, and the positions of absorption bands are given in cm–1. 1H-NMR and 13C-NMR spectra were
recorded on a BRUKER-AC-300 (1H at 300 MHz and C at 75 MHz) instrument in CDCl3 solutions
13
13
using TMS (ꢀ = 0 ppm) as an internal standard; chemical shifts (ꢀ) in ppm. The multiplicity of the C
signals was deduced from DEPT spectra. MS spectra were recorded on a LKB-2091 or Finnigan SSQ-700
spectrometer using electrospray (ESI) method; m/z (rel. %). ESI-HR-MS on Finnigan MAT-95.
Elemental analyses were performed in the Analytical Laboratory of the University of Zurich or in the
Laboratory of the Polish Academy of Sciences (CBMiM) in ꢀódꢁ.
Starting materials. For the preparation of the starting materials, known procedures were applied:
3-phenyl-1-azabicyclo[1.1.0]butane (1c),15 and dimethyl 2,3-dicyanofumarates (DCFM).9 Amines 8a–e
were used as commercial reagents and purified before usage according to standard procedures.
Reactions of dimethyl dicyanofumarate (DCFM) with amines 8b, 8d and 8e. – General procedure.
To a magnetically stirred solution of DCFM (184 mg, 1 mmol) in 2 mL of the appropriate solvent (MeOH
or CH2Cl2), the corresponding amine 8 (1.1 mmol) was added in small portions at rt. The stirring was
continued at rt and the progress of the reaction was monitored by TLC and 1H-NMR spectroscopy. When
the amine 8 was completely consumed, the solvent was evaporated and the product 7 was isolated by
means of preparative layer chromatography on plates coated with SiO2 using a mixture of petroleum ether
and CH2Cl2 (1:9) or petroleum ether and AcOEt (8:2) as the eluent. Additional crystallization afforded
analytically pure sample. Reported yields refer to the product isolated after chromatography. In the case

HETEROCYCLES, Vol. 80, No. 2, 2010
1097
of 7b, crystalline product was also obtained by crystallization of the crude material from MeOH.
Dimethyl (Z)-2-benzylamino-3-cyanobutanedioate (7b). Solvent used for the reaction: CH2Cl2; reaction
time: 30 min. Yield: 258 mg (94%). Colorless crystals, mp 102–104 ºC (MeOH). IR (KBr): 3257m (NH),
2956w, 2215vs (CꢀN), 1747vs (C=O), 1687vs (C=O), 1598vs (C=C), 1451br.m, 1274vs, 1255s, 1198m,
1159w, 1063m, 1008w, 788s, 749m, 698m. 1H-NMR (CDCl3): 9.70 (br.s, NH); 7.10–7.50 (m, 5 arom. H);
4.45 (d, 2JH,H = 7.5 Hz, CH2); 3.90, 3.76 (2s, 2 MeO). 13C-NMR (CDCl3): 168.1, 161,3, 161.0 (3s, 2 C=O,
=C(2)); 135.2 (s, 1 arom. C); 128.9, 128.4, 127.4 (3d, 5 arom. CH); 116.3 (s, CN); 71.1 (s, =C(3)); 53.6,
51.8 (2q, 2 MeO); 49.7 (t, CH2). ESI-MS: 298 (16), 297 (100, [M+Na]+), 275 (6, [M+1]+). Anal. Calcd for
C14H14N2O4: C, 61.31; H 5.14; N 10.21. Found: C, 61.31; H, 5.03; N, 10.25.

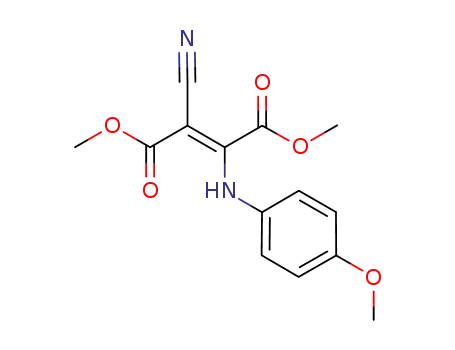

Dimethyl (Z)-3-cyano-2-[(4-methoxyphenyl)amino]butanedioate (7d). Solvent used for the reaction:
CH2Cl2; reaction time: 4 d. Yield: 127 mg (44%). Colorless crystals, mp 93–95 ºC (MeOH). IR (KBr):
2215vs (CꢀN), 1745vs (C=O), 1682vs (C=O), 1598vs (C=C), 1581s, 1510s, 1436m, 1275br.s (C–O),
1
1255br.s (C–O), 1035s, 849w, 778m. H-NMR (CDCl3): 10.90 (br.s, NH); 7.06, 6.88 (AB, J = 9 Hz, 4
arom. H); 3.85, 3.81, 3.78 (3s, 3 MeO). 13C-NMR (CDCl3): 168.2, 161.4, 159.5, 159.0 (4s, 2 C=O, =C(2),
1 arom. C); 129.9 (s, 1 arom. C); 125.0, 114.8 (2d, 4 arom. CH); 116.0 (s, CN); 73.5 (s, =C(3)); 55.5, 53.7,
52.3 (3q, 3 MeO). ESI-MS (MeOH): 314 (18), 313 (100, [M+Na]+), 292 (10), 291 (62, [M+1]+), 259 (52),
245 (14), 231 (11). HR-ESI-MS: 313.0793 (calcd. 313.0795 for C14H14N2NaO5, [M+Na]+), 291.0973
(calcd. 291.0976 for C14H15N2O5, [(M+1]+). Anal. Calcd for C14H14N2O5: C, 57.93; H 4.86; N 9.65. Found:
C, 57.43; H, 4.80; N, 9.46.
Dimethyl (Z)-3-cyano-2-[(4-trifluoromethylphenyl)amino]butanedioate (7e). Solvent used for the
reaction: MeOH; reaction time: 8 d. Yield: 138 mg (42%). Colorless crystals, mp 117–119 ºC (MeOH).
IR (KBr): 2218s (CꢀN), 1751s (C=O), 1686s (C=O), 1609s, 1579vs (C=C), 1442m, 1325vs, 1275vs
1
(C–O), 1120s, 1068s, 1027w, 850w, 798w. H-NMR (CDCl3): 11.20 (br.s, NH); 7.63, 7.20 (AB, J = 8.5
13
Hz, 4 arom. H); 3.88, 3.86 (2s, 2 MeO). C-NMR (CDCl3): 167.8, 161.2, 157.8 (3s, 2 C=O, =C(2));
1
3
140.2 (s, 1 arom. C); 124.4 (q, JC,F = 398 Hz, CF3); 127.1 (q, JC,F = 3.6 Hz, 2 arom. CH); 122.4 (d, 2
arom. CH); 126.7 (q, 2JC,F = 166.7 Hz, 1 arom. C); 115.2 (s, CN); 76.7 (s, =C(3)); 54.0, 52.7, 52.3 (3q, 3
MeO). Anal. Calcd for C14H11F3N2O4: C, 51.23; H 3.37; N 8.53. Found: C, 51.00; H, 3.33; N, 8.38.
Three component reactions with 1a, DCFM and variable amounts of amine 8. – General procedure.
To a magnetically stirred solution of 1a (131 mg, 1 mmol) and the corresponding amine (1 mmol
(procedure A), 2 mmol (procedure B) or 3 mmol (procedure C)) in 3 mL of abs. CH2Cl2, the powdered,

1098
HETEROCYCLES, Vol. 80, No. 2, 2010
crystalline DCFM (194 mg, 1 mmol) was added in small portions. Stirring was continued for 30 min to
complete the reaction. Subsequently, the solvent was evaporated to dryness and the mixture obtained was
1
controlled by H-NMR spectroscopy. In all cases, no diagnostic multiplets of 1a (2.79–2.76 and
1.54–1.51 ppm for 2 CH2) were found in the spectra evidencing thereby full conversion of the starting
material. Mixtures of products were separated chromatographically on SiO2 columns or preparative plates
coated with SiO2. Mixtures of petroleum ether with AcOEt (8:2) or CH2Cl2 and MeOH (99:1) were used
as eluents. The isolated solid products were additionally purified by crystallization.
Reaction with cyclohexylamine (8a) (procedure A). Column chromatography (SiO2, CHCl3) afforded
crystalline 7a as a sole product.
Dimethyl (Z)-3-cyano-2-(cyclohexylamino)butanedioate (7a). Yield: 235 mg (88%). Colorless crystals,
mp 102–105 ºC (MeOH) (ref.8: mp 100–104 ºC).
Reaction with benzylamine (8b) (procedure A). Separation was achieved by column chromatography
(SiO2, CH2Cl2).
Dimethyl (Z)-2-benzylamino-3-cyanobutanedioate (7b). Yield: 233 mg (85%). Colorless crystals, mp
102–104 °C.
Reaction with aniline (8c) (procedure A). Separation was achieved on preparative plates coated with
SiO2; a mixture of CH2Cl2 and MeOH (99:1) was used as the eluent.
Dimethyl (Z)-3-cyano-2-(phenylamino)butanedioate (7c). Isolated as the least polar fraction. Yield: 24
1
mg (9%). Colorless crystals, mp 89–92 °C (ref.8: mp 90–92 °C). IR and H-NMR data fit well with that
described in the literature.8
Dimethyl (E)-3-cyano-2-[3-phenyl-3-(phenylamino)azetidin-1-yl]butanedioate (6b). Isolated as the more
polar fraction. Yield: 159 mg (31%). Colorless crystals, mp 181–183 °C (MeOH). IR (KBr): 3365s (NH),
2953w, 2201m (CꢀN), 1750s (C=O), 1707s (C=O), 1572vs (C=C), 1496w, 1435m, 1294s, 1269s, 1190m,
1146m, 1021w, 754m, 699m. 1H-NMR (CDCl3): 7.60–6.65 (m, 8 arom. H); 6.29 (d, 2JH,H = 8.0 Hz, 2 arom.
2
H); 4.85 (br.s, NH); 4.97, 4.90 (AB, JH,H = 11.3 Hz, CH2); 4.62, 4.38 (AB, JH,H = 11.3 Hz, CH2); 3.91,
2
13
3.73 (2s, 2 MeO). C-NMR (CDCl3): 161.9, 161.7, 158.4 (3s, 2 C=O, =C(2)); 143.6, 140.6 (2s, 2 arom.
C); 129.2, 129.1, 128.0, 125.1, 118.7, 114.3 (6d, 10 arom. CH); 116.6 (s, CN); 70.9 (s, =C(3)); 67.6, 65.8

HETEROCYCLES, Vol. 80, No. 2, 2010
1099
(2t, 2 CH2); 59.0 (s, Cq); 53.7, 52.1 (2q, 2 MeO). ESI-MS (MeOH): 415 (23), 414 (100, [M+Na]+), 352
(39), 299 (9), 230 (11). Anal. Calcd for C22H21N3O4: C, 67.51; H 5.41; N 10.73. Found: C, 66.98; H, 5.19;
N, 10.68.
Dimethyl (E)-3-cyano-2-{3-phenyl-3-[3-phenyl-3-(phenylamino)azetidin-1-yl]azetidin-1-yl}butanedioate
(9a). Isolated as the most polar fraction. Yield: 29 mg (5%). Colorless solid, mp 125–130 °C (MeOH). IR
(KBr): 3397br.m (NH), 2952w, 2206m (CꢀN), 1748s (C=O), 1707s (C=O), 1603m, 1566vs (C=C), 1497m,
1447br.m, 1308m, 1260br.s, 1195m, 1133s, 1025w, 760s, 700s. 1H-NMR(CDCl3): 7.60–6.60 (m, 13 arom.
2
2
H); 6.27 (d, JH,H = 8.0 Hz, 2 arom. H); 4.93, 4.92 (AB, JH,H = 15 Hz, CH2); 4.45 (br.s, CH2); 3.92, 3.74
13
(2s, 2 MeO); 3.70 (m, 2H); 3.50 (m, 2H). C-NMR (CDCl3): 164.9, 161.7, 158.2 (3s, 2 C=O, =C(2));
144.6, 142.8, 137.8 (3s, 3 arom. C); 128.9, 128.7, 128.5, 128.2, 127.0, 126.5, 125.4, 117.7, 114.2 (9d, 15
arom. CH); 116.6 (s, CN); 70.6 (s, =C(3)); 61.0, 60.9, 60.7, 60.2 (4t, 4 CH2); 65.9, 63.2 (2s, 2 Cq); 53.6,
52.1 (2q, 2 MeO). ESI-MS (MeOH): 546 (16), 545 (48, [M+Na]+), 524 (39), 523 (100, [M+1]+), 431 (10),
430 (33), 299 (13), 298 (65). HR-ESI-MS: 545.2159 (calcd. 545.2159 for C31H30N4NaO4, [M+Na]+),
523.2340 (calcd. 523.2340 for C31H31N4O4, [(M+1]+).
Reaction with anisidine (8d) (procedures A, B and C). Separation of the crude mixture was achieved
on preparative plates coated with SiO2; a mixture of CH2Cl2 and AcOEt (7:3) was used as the eluent.
Dimethyl (Z)-3-cyano-2-[(4-methoxyphenyl)amino]butanedioate (7d). Isolated as the least polar fraction.
Yield: 29 mg (10%) (procedure A), traces (procedure B), and not found (procedure C). Colorless crystals,
mp 93–95 °C (MeOH) ; according to IR and 1H-NMR data identical with the substance isolated form the
two-component reaction.
Dimethyl (E)-3-cyano-2-{3-phenyl-3-[(4-methoxyphenyl)amino]azetidin-1-yl}butanedioate (6c). Isolated
as the second polar fraction. Yield: 225 mg (53%) (procedure A), 96 mg (23%) (procedure B), and 124
mg (29%) (procedure C). Colorless crystals, mp 106–109 ºC (dec.) (MeOH). IR (KB): 3406m (NH),
2952w, 2207m (CꢀN), 1747s (C=O), 1705s (C=O), 1566vs (C=C), 1513s, 1457m, 1436m, 1278br.vs,
1196m, 1135m, 1037m, 823m, 764m, 702w. 1H-NMR (CDCl3): 7.60–7.25 (m, 5 arom. H); 6.76, 6.29 (AB,
2
2
3JH,H = 8.5 Hz, 4 arom. H); 4.95, 4.80 (AB, JH,H = 11.5 Hz, CH2); 4.55, 4.35 (AB, JH,H = 10.5 Hz, CH2);
13
3.90, 3.70, 3.65 (3s, 3 MeO). C-NMR (CDCl3): 164.9, 161.7, 158.5 (3s, 2 C=O, =C(2)); 153.0, 140.9,
137.3 (3s, 3 arom. C); 129.1, 128.0, 125.3, 116.0, 114.9 (5d, 10 arom. CH); 116.5 (s, CN); 71.0 (s,
=C(3)); 67.5, 65.9 (2t, 2 CH2); 56.6 (s, Cq); 55.6, 53.8, 52.2 (3q, 3 MeO). ESI-MS (MeOH): 445 (37), 444
(100, [M+Na]+), 393 (9), 225 (14). Anal. Calcd for C23H23N3O5: C, 65.55; H 5.50; N 9.97. Found: C,

1100
HETEROCYCLES, Vol. 80, No. 2, 2010
65.45; H, 5.28; N, 9.60.
Dimethyl
(E)-3-cyano-2-{3-phenyl-3-[3-(4-methoxyphenyl)amino-3-phenylazetidin-1-yl]azetidin-
1-yl}butanedioate (9b). Isolated as the third polar fraction. Yield: 60 mg (11%) (procedure A), 64 mg
(12%) (procedure B), and 95 mg (17%) (procedure C). Colorless crystals, mp 111–116 °C (dec.) (MeOH).
IR (neat): 3393m (NH), 2951w, 2205m (CꢀN), 1748s (C=O), 1706s (C=O), 1566vs (C=C), 1512s, 1447m,
1
1307m, 1249br.s, 1132m, 1030m, 910w, 822w, 763w, 734w, 701w. H-NMR (CDCl3): 7.60–7.10 (m, 10
3
arom. H); 6.65, 6.25 (AB, JH,H = 7.5 Hz, 4 arom. H); 4.95, 4.45 (2 br.s, 2 CH2); 3.90, 3.73, 3.65 (3s,
MeO); 3.66, 3.52 (AB, 2JH,H = 6.5 Hz, 2 CH2). 13C-NMR (CDCl3): 165.0, 161.8, 158.3 (3s, 2 C=O, =C(2));
152.4, 138.6, 137.9 (3s, 3 arom. C); 128.8, 128.6, 128.3, 127.1, 126.5, 125.6, 115.8, 114.6 (8d, 10 arom.
CH); 116.6 (s, CN); 70.8 (s, =C(3)); 61.8, 60.6 (2t, 2 CH2); 61.0 (t, 2 CH2), 60.3, 55.6 (2s, 2 Cq); 54.8,
53.7, 52.1 (3q, 3 MeO). ESI-MS (MeOH): 575 (11, [M+Na]+), 554 (36), 553 (100, [M+1]+), 430 (31).
HR-ESI-MS: 575.2259 (calcd. 575.2265 for C32H32N4NaO5, [M+Na]+), 553.2442 (calcd. 553.2446 for
C32H33N4O5, [(M+1]+).
Dimethyl
(E)-3-cyano-2-(3-phenyl-3-{[3-(4-methoxyphenyl)amino-3-phenylazetidin-1-yl]-3-
phenylazetidin-1-yl}azetidin-1-yl)butanedioate (10a). Isolated as the most polar fraction. Yield: not
observed (procedure A), traces (procedure B), 21 mg (3%) (procedure C). Colorless, viscous oil. IR
(neat): 3382m (NH), 2980s, 2206s (CꢀN), 1747vs (C=O), 1705vs (C=O), 1559vs (C=C), 1512s, 1447br.m,
1374m, 1249br.vs, 1134s, 927w, 842m, 762m, 736s, 701s. 1H-NMR (CDCl3): 7.70–7.10 (m, 15 arom. H);
3
6.63, 6.22 (AB, JH,H = 9.0 Hz, 4 arom. H); 4.90, 4.40 (2br.s, 2 CH2); 3.89, 3.74, 3.66 (3s, 3 MeO);
3.70–3.20 (m, 4 CH2). ESI-MS (MeOH): 816 (14), 815 (25), 706 (6, [M+Na]+), 685 (41), 684 (100,
[M+1]+), 551 (18), 529 (13), 444 (16), 422 (12). HR-ESI-MS: 815.3903 (calcd. 815.3916 for C50H51N6O5,
[M(10a)+1a+1]+), 684.3174 (calcd. 684.3181 for C41H42N5O5, [(M(10a)+1]+).
Reaction with 4-(trifluoromethyl)phenylamine (8e) (procedure A). Separation of the crude mixture
was achieved on preparative plates coated with SiO2; a mixture of petroleum ether and AcOEt (8:2) was
used as the eluent.
Dimethyl (Z)-3-cyano-2-[(4-trifluoromethylphenyl)amino]butanedioate (7e). Isolated as the least polar
fraction. Yield: 53 mg (16%). Colorless crystals, mp 117–119 °C (MeOH).
Dimethyl (E)-3-cyano-2-{3-phenyl-3-[(4-trifluoromethylphenyl)amino]azetidin-1-yl}butanedioate (6d).
Isolated as the second fraction. Yield: 123 mg (27%). Colorless crystals, mp 167–169 °C (MeOH or

HETEROCYCLES, Vol. 80, No. 2, 2010
1101
diisopropylether). IR (KBr): 3366m (NH), 2955w, 2204m (CꢀN), 1747s (C=O), 1709s (C=O), 1618m,
1567vs (C=C), 1460m, 1438m, 1327vs, 1287s (C–F), 1261s (C–F), 1194m, 1134br.s, 1067s, 1015br.w,
930w, 830m, 763m, 701m. 1H-NMR (CDCl3): 7.60–7.15 (m, 5 arom. H); 7.35, 6.35 (AB, 3JH,H = 9.0 Hz, 4
arom. H); 4.85 (br.s, NH); 4.95 (br.s, CH2); 4.45 (br.s, CH2); 3.90, 3.70 (2s, 2 MeO). 13C-NMR (CDCl3):
164.8, 161.6, 158.5 (3s, 2 C=O, =C(2)); 164.5, 139.8 (2s, 2 arom. C); 124.5 (q,1JC,F = 270 Hz, CF3); 120.4
2
3
(q, JC,F = 32.8 Hz, 1 arom. C); 129.3, 128.4, 125.0, 113.6 (4d, 7 arom. CH); 126.7 (q, JC,F = 3.7 Hz, 2
arom. CH); 116.6 (s, CN); 71.3 (s, =C(3)); 67.6, 65.6 (2t, 2 CH2); 56.0 (s, Cq); 53.9, 52.3 (2q, 2 MeO).
ESI-MS (MeOH): 483 (37), 482 (100, [M+Na]+), 460 (5, [M+1]+), 459 (3, M+). Anal. Calcd for
C23H20F3N3O4: C, 60.13; H 4.39; N 9.15. Found: C, 59.68; H, 4.16; N, 8.92.
Dimethyl (E)-3-cyano-2-{3-phenyl-3-[3-(4-trifluoromethylphenyl)amino-3-phenylazetidin-1-yl]
azetidin-1-yl}butanedioate (9c). Isolated as the third, most polar fraction. Yield: 32 mg (6%). Colorless
crystals, mp 97–100 °C (dec.) (MeOH). IR (KBr): 3393m (NH), 2955w, 2207m (CꢀN), 1748vs (C=O),
1707s (C=O), 1617s, 1568vs (C=C), 1456br.m, 1325s, 1262br.s, 1191w, 1168w, 1114s, 1066m, 830m,
1
3
763m, 701m. H-NMR (CDCl3): 7.60–7.15 (m, 10 arom. H); 7.40, 6.40 (AB, JH,H = 9.0 Hz, 4 arom. H);
5.55 (br.s, NH); 5.95 (br.s, CH2); 4.70, 4.40 (AB, 2JH,H = 9.8 Hz, CH2); 3.90, 3.70 (2s, 2 MeO); 3.70, 3.50
2
13
(AB, JH,H = 7.5 Hz, 2 CH2). C-NMR (CDCl3): 165.0, 161.8, 158.3 (3s, 2 C=O, =C(2)); 147.4.5, 141.9,
137.5 (3s, 3 arom. C); 124.9 (q,1JC,F = 270 Hz, CF3); 126.4 (q, 3JC,F = 3.7 Hz, 2 arom. CH); 127.4 (q, 2JC,F
= 31.0 Hz, 1 arom. C); 129.4, 128.9, 128.8, 127.4, 126.5, 126.0, 125.4, 113.5 (7d, 12 arom. CH); 114.9 (s,
CN); 71.4 (s, =C(3)); 68.6, 67.6 (2t, 2 CH2); 66.2 (t, 2 CH2); 60.9, 60.5 (2s, 2 Cq); 53.7, 52.2 (2q, 2 MeO).
ESI-MS (MeOH): 629 (22, [M+K]+), 614 (34), 613 (100, [M+Na]+), 592 (31), 591 (87, [M+1]+), 509 (28),
488 (11), 482 (13), 449 (27), 430 (28). HR-ESI-MS: 613.2026 (calcd. 613.2033 for C32H29F3N4NaO4,
[M+Na]+), 591.2208 (calcd. 591.22214 for C32H30F3N4O4, [(M+1]+).
Reaction with N-methylaniline (8f). Separation of the crude material was achieved on PLC plates (SiO2)
using a mixture of CH2Cl2 and MeOH (99:1) as an eluent and gave 6e as the sole product. The experiment
was carried out using 1a, 8f and DCFM in the molar ratio 1:1:1 (procedure A).
Dimethyl (E)-3-cyano-2-{3-[(methyl)(phenyl)amino]-3-phenylazetidin-1-yl}butanedioate (6e). Yield:
387 mg (96%). Colorless crystals, mp 98–100 ºC (dec.) IR (KBr): 2952w, 2206m (CꢀN), 1750m (C=O),
1
1708m (C=O), 1568vs (C=C), 1503m, 1456m, 1436m, 1267br.s, 1135s, 753m, 701m. H-NMR (CDCl3):
7.43–7.20 (m, 5 arom. H); 7.17 (t-like, 2 arom. H); 6.78 (t-like, 1 arom. H); 6.37 (d-like, 2 arom. H); 5.10,
4.88 and 4.58, 4.38 (2 AB, J = 11 and 10 Hz, resp., 2 CH2); 3.93, 3.76 (2s, 2 MeO); 3.12 (s, MeN).
13C-NMR (CDCl3): 165.0, 161.7, 158.0 (3s, 2 C=O, =C(2)); 146.4, 140.7 (2s, 2 arom. C); 129.23, 129.17,

1102
HETEROCYCLES, Vol. 80, No. 2, 2010
128.2, 125.3, 118.5, 114.6 (6d, 10 arom. CH); 116.5 (s, CN); 71.3 (s, =C(3)); 66.0, 65.3 (2t, 2 CH2); 61.5
(s, Cq); 53.8, 52.2 (2q, 2 MeO); 36.9 (q, MeN). ESI-MS (MeOH): 429 (26), 428 (100, [M+Na]+), 406 (10,
[M+1]+). HR-ESI-MS: 428.1579 (calcd. 428.1581 for C23H23N3NaO4, [M+Na]+).
ACKNOWLEDGEMENTS
The authors thank Ms Maꢀgorzata Celeda (University of ꢁódꢂ) for her skilful assistance in the laboratory
work. Financial support by the Rector of the University of ꢁódꢂ (Grant # 505/712) (to G. M.) and F.
Hoffmann-La Roche AG, Basel (to H. H.) is acknowledged.
REFERENCES AND NOTES
1.
Y. Ikee, K. Hashimoto, M. Kamino, M. Nakashima, K. Hayashi, S. Sano, M. Shiro, and Y. Nagao,
Chem. Pharm. Bull., 2008, 56, 346.
2.
3.
K. Hayashi, E. Kujime, H. Katayama, S. Sano, and Y. Nagao, Heterocycles, 2009, 78, 1777.
G. Mlostoꢃ, M. Woꢂnicka, J. Drabowicz, A. Linden, and H. Heimgartner, Helv. Chim. Acta, 2008,
91, 1419.
4.
5.
6.
7.
8.
9.
10.
M. Woꢂnicka, K. Urbaniak, G. Mlostoꢃ, and H. Heimgartner, Heterocycles, 2006, 69, 351.
R. Bartnik, S. Leꢄniak, G. Mlostoꢃ, and J. Romaꢃski, Pol. J. Chem., 1994, 68, 1347.
G. Mlostoꢃ and H. Heimgartner, Helv. Chim. Acta, 2006, 89, 442.
G. Mlostoꢃ, M. Celeda, A. Linden, and H. Heimgartner, Heterocycles, 2009, 77, 389.
G. Mlostoꢃ, M. Celeda, A. Linden, and H. Heimgartner, Helv. Chim. Acta, 2009, 92, 1520.
C. J. Ireland and J. S. Pizey, J. Chem. Soc., Chem. Commun., 1972, 4.
The configuration of 7b was assigned as (Z) based on the comparison with the analogous product
obtained with aniline.8 The (E)-configuration of 6b was assigned in analogy to the structure of the
corresponding product (6a) (Ar = Ph, Nu = O(CH2CH2)2N, R = Me) formed with morpholine.8
Compounds (7d) and (7e) were prepared in 44% and 42% yield, respectively, in the
two-component reactions of DCFM with 8d and 8e.
11.
12.
The ESI-MS of 10a showed an additional peak at higher mass with m/z 815. According to the
HR-ESI-MS, the molecular formula of this minor product corresponds with the next higher
oligomer of 10a containing an additional unit of 1a.
13.
A. P. Marchand, G. V. M. Sharma, D. Rajagopal, R. Shukla, G. Mlostoꢃ, and R. Bartnik, J.
Heterocycl. Chem., 1996, 33, 837.
14.
15.
A. P. Marchand, S. Alihod iꢅ, R. Bartnik, and G. Mlostoꢃ, Heterocycles, 1999, 50, 131.
A. G. Hortmann and D. A. Robertson, J. Am. Chem. Soc., 1972, 94, 2758.
