Synthesis, crystal structure and surface photo-electric property of a series
of Co(II) coordination polymers and supramolecules
⇑
Jing Jin, Dan Li, Lei Li, Xiao Han, Shengmei Cong, Yuxian Chi, Shuyun Niu
School of Chemistry and Chemical Engineering, Liaoning Normal University, Dalian 116029, PR China
a r t i c l e i n f o
a b s t r a c t
Article history:
Received 7 July 2011
Received in revised form 2 September 2011
Accepted 16 September 2011
Available online 22 September 2011
Four new Co(II) coordination complexes, [Co(o-phta)(pz)2]n 1, [Co(PTA)2(Imh)2]ꢀ(HPTA)ꢀH2O 2, {[Co(pd-
c)2(H2O)]ꢀ(ppz)ꢀ2H2O}n 3, [K2Co2(ox)(btec)(CH3OH)2]n 4, (H2phta = o-phthalic acid, pz = pyrazole, HPTA =
p-toluic acid, ppz = piperazine, Imh = imidazole, H2pdc = pyridine-2,5-dicarboxylic acid, H2(ox) = oxalic
acid, H4btec = 1,2,4,5-benzenetetracarboxylic acid), were hydrothermally synthesized and characterized
by X-ray single crystal diffraction, IR, UV–Vis absorption spectrum, TG analysis and elemental analysis.
The surface photovoltage properties of the four Co(II) complexes were investigated by the surface photo-
voltage spectroscopy (SPS). The structural analyses indicate that complexes 1 and 3 are 1D coordination
polymers and complex 2 is a mononuclear molecular complex. Complexes 1, 2 and 3 are connected into
2D supramolecules by hydrogen bonds, respectively. Complex 4 is a coordination polymer with 3D struc-
ture, exhibiting a 4-nodal(4,5,6,12)-connected topology with a Schläfli symbol of (410)2(424ꢀ632ꢀ810)(45ꢀ6)2
(49ꢀ65ꢀ8). The results of SPS show the four complexes exhibit obvious photovoltaic responses in 300–
800 nm, which indicates they all possess photo-electric conversion properties. By the comparative
analysis of the SPS, it is found that structure of the complex, species of ligand and coordination micro-
environment of the Co(II) ion affect the SPS. The relationships between SPS and UV–Vis absorption
spectra are discussed.
Keywords:
Co(II) coordination polymer
Synthesis
Structure
Surface photo-electric property
Ó 2011 Elsevier B.V. All rights reserved.
1. Introduction
phthalocyanine complexes. In fact, some special functions of
transition metal complexes are associated with their electron
The extensive studies of transition metal complexes with the li-
gands of aromatic carboxylic acid indicate that they possess poten-
tial applications in materials, medicine synthesis, electrochemistry,
biochemistry and many other fields. Therefore, in recent years, the
studies on the design, synthesis, structural analysis and property of
carboxylic acid coordination polymers have been becoming a very
active comprehensive subject [1–6]. Cobalt complexes aroused
extensive attentions in the coordination chemistry due to the var-
iable oxidation states and coordination geometries of cobalt ions,
and cobalt complexes possess important academic significance
and wide applications in magnetism, catalysis, biochemistry, etc.
In the recent years, many cobalt complexes were reported. For
example, Pochodylo et al. [7] reported a 2D coordination polymer
{[Co3(tBuip)2 (HtBuip)2(bpmp)]ꢀbpmp}n with ferromagnetic prop-
erties. Ma et al. [8] reported the structure of [Co3(NCS)6(admtrz)4
(H2O)2]ꢀ2H2O and found that there is weak antiferromagnetic
interaction between the Co(II) ions. Losse et al. [9] reported a series
of cobalt complexes and studied the catalytic properties. Nas et al.
[10] reported the antibacterial biological activity of the Co(II)
behaviors. For instance, the electrons transfer between different
components of complexes can cause oxidation and reduction pro-
cesses, which may be correlated with catalytic function. The
change of electron arrangement, coupling and exchange may give
rise to different magnetic properties. The separation and transfer
of photogenerated charges under light-inducement may lead to
the voltage or current on the solid surface, which is photo-electric
conversion. Obviously, ascertaining surface electron behaviors of
complexes is very significant for deep research on properties and
exploiting applications of transition metal complexes. Surface
photovoltage spectroscopy (SPS) is a high sensitive detection tool
and it not only relates to the charge transition process under light
inducement but also reflects directly the separation and transition
of photogenerated charges. This technique has been successfully
applied in the study of the charge transfer in photo-stimulated sur-
face interactions, dye sensitization processes, photo-catalysis and
the process of charge transition between surfaces and inter-phases
of solid materials [11–17]. Recently, our group has reported the
surface electron behaviors and photo-electric conversion proper-
ties of transition metal complexes involving nickel, manganese,
iron and cobalt. Some preliminary results have been obtained
[18–27]. In order to compare and study photo-electric property
⇑
Corresponding author. Tel.: +86 411 82159044; fax: +86 411 82158977.
E-mail address: syniu@sohu.com (S. Niu).
0020-1693/$ - see front matter Ó 2011 Elsevier B.V. All rights reserved.
doi:10.1016/j.ica.2011.09.040

J. Jin et al. / Inorganica Chimica Acta 379 (2011) 44–55
45
of cobalt complexes with different aromatic carboxylic acid li-
gands, the four Co(II) coordination complexes were synthesized
in this paper and the influence of ligand and structure on surface
photo-electric properties was discussed by SPS.

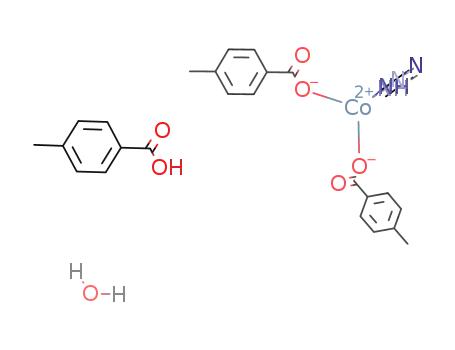

2.2.2. [Co(PTA)2(Imh)2]ꢀ(HPTA)ꢀH2O 2
A solution of Co(NO3)2ꢀ6H2O (0.15 g, 0.50 mmol) in water
(10 mL) was added to an ethanol (5 mL) and water (10 mL) solu-
tion of HPTA (0.28 g, 2.0 mmol), and then a water (8 mL) solution
of Imh (0.07 g, 1.0 mmol) was added into the above solution. The
color of the solution turned to purple, and pH value is 5.0. The mix-
ture was then transferred into a Teflon-lined stainless steel vessel
that was sealed and heated to 110 °C for 5 days. Cooled to room
temperature, purple crystals of complex 2 were collected (0.12 g;
Yield, 40% based on Co). Anal. Calc. for C30H32N4O7Co: C, 58.16;
H, 5.21; N, 9.04; Co, 9.51. Found: C, 57.90; H, 5.22; N, 9.02; Co,
2. Experimental
2.1. Materials and apparatus
All chemicals were of A.R. grade without further purification.
Single-crystal X-ray diffraction data were collected with Bruker
Smart APEX II CCD diffractometer. SPS were performed on a
home-built surface photovoltage spectrophotometer in the 300–
800 nm. IR spectra were recorded as KBr pellets with a JASCO
FT-IR/480 spectrophotometer in the 4000–220 cmꢁ1 region and
UV–Vis diffuse reflectance spectra were recorded with a JASCO
V-570 UV–Vis–NIR spectrophotometer in the 200–2500 nm. The
elemental analyses were detected on a PE-240C Analyzer and
TLASMA-II ICP instrument. Thermogravimetric (TG) analyses were
performed under N2 atmosphere on a Perkin–Elmer Pyris Diamond
9.35%. IR (KBr, cmꢁ1): 3246(
2957, 2920( C–H); 2860, 2626(
m
O–H); 3151(
O–Hꢀ ꢀ ꢀO); 2514(
1557(masðCOO Þ); 1389(msðCOO Þ); 1610, 1594, 1500(mC C); 1329,
m
N–H); 3066, 3031(
m
Ar–H);
m
ꢁ
m
m
N–Hꢀ ꢀ ꢀO); 1678(
mC@O);
ꢁ
. . .
•
1309(dN–H); 1285, 1212(dC–H); 1176, 1137, 1170(mC–C
953, 849(dN–Hꢀ ꢀ ꢀO); 656, 623, 756, 695(dAr–H); 566, 526, 470(
417, 374( Co–N).
,
mC–O
,
m
C–N);
m
Co–O);
m
2.2.3. {[Co(pdc)2(H2O)]ꢀ(ppz)ꢀ2H2O}n
3
A solution of CoCl2ꢀ6H2O (0.12 g, 0.50 mmol) in water (10 mL)
was added to a solution of H2pdc (0.09 g, 0.50 mmol) and NaOH
(0.08 g, 2.0 mmol) in water (10 mL), then an ethanol (5 mL) solu-
tion of ppz (0.09 g, 0.50 mmol) was added into the above solution.
The color of the solution turned deep pink, and the pH value was
adjusted to 6.0. Then the mixture was transferred into a Teflon-
lined stainless steel vessel, and the vessel was sealed and heated
to 120 °C for 5 days. Cooled to room temperature, pink crystals of
complex 3 were collected (0.10 g; Yield, 36% based on Co). Anal.
Calc. for C18H22N4O11Co: C, 40.84; H, 4.19; N, 10.58; Co, 11.13.
Found: C, 40.68; H, 4.20; N, 10.53; Co, 10.96%. IR (KBr, cmꢁ1):
TG/DTA instrument with a heating rate of 10 °Cminꢁ1
.
2.2. Synthesis of complexes 1, 2, 3 and 4
2.2.1. [Co(o-phta)(pz)2]n
1
A solution of Co(NO3)2ꢀ6H2O (0.15 g, 0.50 mmol) in water
(10 mL) was added to a methanol (2.5 mL) and water (7.5 mL) solu-
tion of H2-phta (0.20 g, 1.0 mmol), and then a methanol (5 mL) and
water (5 mL) solution of pz (0.14 g, 2.0 mmol) was added into the
above solution. The color of the solution turned to purple, and pH
value is 5.0. The mixture was then transferred into a Teflon-lined
stainless steel vessel that was sealed and heated to 160 °C for
4 days. Cooled to room temperature, purple crystals of complex 1
were collected (0.07 g; Yield, 39% based on Co). Anal. Calc. for
3389(
2514, 2465(
m
O–H); 3225(
mN–H); 3013 (mAr–H); 2817, 2756 (mC–H); 2601,
ꢁ
ꢁ
m
O–Hꢀ ꢀ ꢀO); 1581(masðCOO Þ); 1404(msðCOO Þ); 1602, 1543,
1476, 1458(mC C); 1354(dC–H); 1331, 1307(dN–H); 1169, 1092,
. . .
1033(mC–C
,
mC–O
,
•mC–N); 835, 759, 690(dAr–H); 570, 523, 453(
mCo–O);
415, 374(mCo–N).
C
14H12N4O4Co: C, 46.81; H, 3.37; N, 15.60; Co, 16.41. Found: C,
46.68; H, 3.38; N, 15.53; Co, 16.20%. IR (KBr, cmꢁ1): 3202
2.2.4. [K2Co2(ox)(btec)(CH3OH)2]n
4
(
m
N–Hꢀ ꢀ ꢀO); 3148, 3121(
m
N–H); 3073, 3014(
m
Ar–H); 2944(
m
C–H); 1604,
A
solution of CoCl2ꢀ6H2O (0.12 g, 0.50 mmol) and K2C2O4
ꢁ
ꢁ
1559(mC C); 1583(masðCOO Þ); 1399(msðCOO Þ); 1517, 1488(dN–H);
(0.18 g, 1.0 mmol) in water (5 mL) was added to a solution of
H4btec (0.13 g, 0.50 mmol) in methanol (5 mL). The color of the
solution turned to pink, and the pH value was adjusted to 6.0.
The mixture was transferred into a Teflon-lined stainless steel
. . .
•
1478, 1446(dC–H); 1167, 1142, 1085, 1070, 1047(mC–C
777, 752, 706, 654, 619, 607(dAr–H); 566, 482(
360( Co–N).
,
m
mC–O
Co–O); 455,
,
m
C–N);
m
