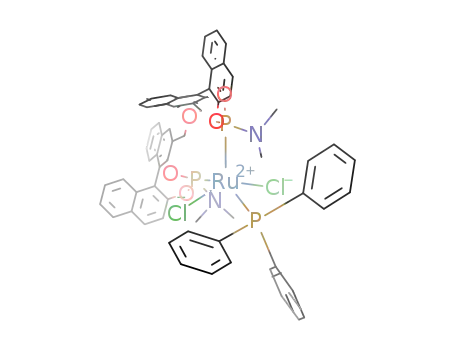

The transmetalation between RuCl2(PPh3)((R,R)-Me-bipam)
and ArBFn(OH)(3ꢀn) generated by the reaction of ArB(OH)2
and KF may provide the arylruthenium(II) intermediate
RuCl(Ar)(PPh3)((R,R)-Me-bipam), which is analogous to a Ph–Cl
exchange between PhB(OH)2 and [RuCl2(p-cymene)(PPh3)].17
Although isolation of the intermediate RuCl(Ph)(PPh3)((R,R)-
Me-bipam) failed, the reaction of phenylboronic acid and
RuCl2(p-cymene)(PPh3)18 in the presence of KF gave RuCl(Ph)-
(p-cymene)(PPh3) in 61% yield (eqn (2)).17b,19 The enantio-
selectivity is determined at insertion of the C–O double bond into
the C–Ru bond of RuCl(Ar)(PPh3)((R,R)-Me-bipam) complex.
F. Naud, F. Spindler, M. Studer and H.-U. Blaser, Adv. Synth.
Catal., 2004, 346, 842–848; (c) Y. Sun, X. Wan, J. Wang, Q. Meng,
H. Zhang, L. Jiang and Z. Zhang, Org. Lett., 2005, 7, 5425–5427;
(d) S. Diezi, S. Reimann, N. Bonalumi, T. Mallat and A. Baiker,
J. Catal., 2006, 239, 255–262; (e) Q. Meng, Y. Sun,
V. Ratovelomanana-Vaidal, J. P. Genet and Z. Zhang, J. Org.
+
+ +
Chem., 2008, 73, 3842–3847; (f) K. Balazsik, K. Szori, G. Szollosi
and M. Bartok, Chem. Commun., 2011, 47, 1551–1552.
6 (a) M. Bandini, A. Melloni and A. Umani-Ronchi, Angew. Chem.,
Int. Ed., 2004, 43, 550–556; (b) T. B. Poulsen and K. A. Jørgensen,
Chem. Rev., 2008, 108, 2903–2915; (c) S.-L. You, Q. Cai and
M. Zeng, Chem. Soc. Rev., 2009, 38, 2190–2201.
7 (a) N. Gathergood, W. Zhuang and K. A. Jørgensen, J. Am. Chem.
Soc., 2000, 122, 12517–12522; (b) Y. Yuan, X. Wang, X. Li and
K. Ding, J. Org. Chem., 2004, 69, 146–149; (c) S. V. Malhotra and
Y. Xiao, Aust. J. Chem., 2006, 59, 468–472; (d) C. Zhu, C. Yuan
and Y. Lv, Synlett, 2006, 1221–1224; (e) M. Souedan, J. Collin and
R. Gil, Tetrahedron Lett., 2006, 47, 5467–5470; (f) H. Li,
Y.-Q. Wang and L. Deng, Org. Lett., 2006, 8, 4063–4065;
(g) H.-M. Dong, H.-H. Lu, L.-Q. Lu, C.-B. Chen and
W.-J. Xiao, Adv. Synth. Catal., 2007, 349, 1597–1603;
(h) J. Kwiatkowski, J. Majer, P. Kwiatknowski and J. Jurczak,
Synlett, 2008, 3237–3244; (i) J. Majer, P. Kwiatkowski and
J. Jurczak, Org. Lett., 2008, 10, 2955–2958; (j) J. Majer,
P. Kwiatkowski and J. Jurczak, Org. Lett., 2009, 11, 4636–4639;
(k) M. Willot, J.-C. Chen and J. Zhu, Synlett, 2009, 577–580.
8 (a) E. J. Ebbers, G. J. A. Ariaans, A. Bruggink and
B. Zwanenburg, Tetrahedron: Asymmetry, 1999, 10, 3701–3718;
(b) A. Sakakura, S. Uemura and K. Ishihara, Synlett, 2009,
1647–1650; (c) S. K. Alamsetti and G. Sekar, Chem. Commun.,
2010, 46, 7235–7237.
9 (a) S. Oi, M. Moro, H. Fukuhara, T. Kawanishi and Y. Inoue,
Tetrahedron, 2003, 59, 4351–4361; (b) I. N. Francesco, A. Wagner
and F. Colobert, Eur. J. Org. Chem., 2008, 5692–5695;
(c) T. Yamamoto, M. Iizuka, H. Takenaka, T. Ohta and Y. Ito,
J. Organomet. Chem., 2009, 694, 1325–1332; (d) K. Aikawa, Y. Hioki
and K. Mikami, Chem.–Asian J., 2010, 5, 2346–2350; (e) L. Yang,
C. A. Correia and C.-J. Li, Adv. Synth. Catal., 2011, 353, 1269–1273.
10 Y. Yamamoto, T. Nishikata and N. Miyaura, J. Synth. Org.
Chem., Jpn., 2006, 64, 1112–1121.
11 (a) Y. Yamamoto, T. Nishikata and N. Miyaura, Pure Appl. Chem.,
2008, 80, 807–817; (b) N. Miyaura, Synlett, 2009, 2039–2050.
12 (a) Y. Yamamoto, K. Kurihara and N. Miyaura, Angew. Chem.,
Int. Ed., 2009, 48, 4414–4416; (b) Y. Yamamoto, T. Shirai,
M. Watanabe, K. Kurihara and N. Miyaura, Molecules, 2011,
16, 5020–5034.
13 (a) Y. Yamamoto, K. Kurihara, N. Sugishita, K. Oshita, D. Piao
and N. Miyaura, Chem. Lett., 2005, 1224–1225; (b) K. Kurihara,
N. Sugishita, K. Oshita, D.-G. Piao, Y. Yamamoto and
N. Miyaura, J. Organomet. Chem., 2007, 692, 428–435.
14 K. Kurihara, Y. Yamamoto and N. Miyaura, Tetrahedron Lett.,
2009, 50, 3158–3160.
ð2Þ
In conclusion, we have developed a RuCl2(PPh3)3/(R,R)-
Me-BIPAM catalyst as an efficient catalytic system for asymmetric
addition of arylboronic acids to glyoxylate. With this catalyst
system, optically active mandelic acids were easily prepared in up
to 99% ee. To elucidate the enantioselection in the mechanism,
characterization of the catalyst and the intermediate is in progress.
This work was supported in part by the Global COE Program
(Project No. B01, Catalysis as the Basis for Innovation in
Materials Science) from the Ministry of Education, Culture,
Sports, Science and Technology, Japan.
Notes and references
1 (a) Comprehensive Asymmetric Catalysis, ed. E. N. Jacobsen,
A. Pfaltz and H. Yamamoto, Springer, Berlin, Germany, 1990;
(b) Catalytic Asymmetric Synthesis, ed. I. Ojima, John Wiley &
Sons, Hoboken, New Jersey, 2010.
2 (a) K. Mori and H. Akao, Tetrahedron, 1980, 36, 91–96;
(b) M. A. K. Patterson, R. P. Szajewski and G. M. Whitesides,
J. Org. Chem., 1981, 46, 4682–4685; (c) K. Miyamoto and H. Ohta,
J. Am. Chem. Soc., 1990, 112, 4077–4078; (d) S. Tsuchiya,
K. Miyamoto and H. Ohta, Biotechnol. Lett., 1992, 14, 1137–1142;
(e) D. Basavaiah and P. R. Krishna, Tetrahedron, 1995, 51,
2403–2416; (f) M. M. Kayser, M. D. Mihovilovic, J. Kearns,
A. Feicht and J. D. Stewart, J. Org. Chem., 1999, 64, 6603–6608;
(g) W. Zhang and P. G. Wang, J. Org. Chem., 2000, 65, 4732–4735;
(h) G. DeSantis, Z. Z. William, A. Greenberg, K. Wong, J. Chaplin,
S. R. Hanson, B. Farwell, L. W. Nicholson, C. L. Rand, D. P. Winer,
D. E. Robertson and M. J. Burk, J. Am. Chem. Soc., 2002, 124,
9024–9025; (i) W. Yang, J.-H. Xu, Y. Xie, Y. Xu, G. Zhao and
G.-Q. Lin, Tetrahedron: Asymmetry, 2006, 17, 1769–1774.
3 (a) K. Maruyama, Y. Murakami, K. Yoda, T. Nashino and
A. Nishinaga, J. Chem. Soc., Chem. Commun., 1992, 1617–1618;
(b) A. E. Russel, S. P. Miller and J. P. Morken, J. Org. Chem.,
2000, 65, 8381–8383; (c) K. Ishihara, T. Yano and M. Fushimi,
J. Fluorine Chem., 2008, 129, 994–997; (d) E. Schmitt, I. Schiffers
and C. Bolm, Tetrahedron Lett., 2009, 50, 3185–3188.
15 (a) K. Kurihara, Y. Yamamoto and N. Miyaura, Adv. Synth.
Catal., 2009, 351, 260–270; (b) Y. Yamamoto, Y. Takahashi,
K. Kurihara and N. Miyaura, Aust. J. Chem., 2011, 64, 1447–1453.
16 (a) C. W. Jung, P. E. Garrou, P. R. Hoffman and K. G. Caulton,
Inorg. Chem., 1984, 23, 726–729; (b) K. S. MacFarlane,
A. M. Joshi, S. J. Rettig and B. R. James, Inorg. Chem., 1996,
35, 7304–7310.
17 (a) E. J. Farrington, J. M. Brown, C. F. Barnard and E. Rowsell,
Angew. Chem., Int. Ed., 2002, 41, 169–171; (b) E. J. Farrington,
C. F. J. Barnard, E. Rowsell and J. M. Brown, Adv. Synth. Catal.,
2005, 347, 185–195.
18 (a) R. A. Zelonka and M. C. Baird, Can. J. Chem., 1972, 50,
3063–3072; (b) E. Hodson and S. J. Simpson, Polyhedron, 2004, 23,
2695–2707.
19 A. S. K. Hashmi and L. Molinari, Organometallics, 2011, 30,
3457–3460.
4 (a) H. C. Brown and G. G. Pai, J. Org. Chem., 1985, 50,
1384–1394; (b) J. W. Yang and B. List, Org. Lett., 2006, 8,
5653–5655; (c) J. M. Aizpurua, C. Palomo, R. M. Fratila,
P. Ferron and J. I. Miranda, Tetrahedron, 2010, 66, 3187–3194.
5 (a) J.-F. Carpentier and A. Mortreux, Tetrahedron: Asymmetry,
1997, 8, 1083–1099; (b) F. Cederbaum, C. Lamberth, C. Malan,
c
This journal is The Royal Society of Chemistry 2012
Chem. Commun., 2012, 48, 2803–2805 2805
