Molecules 2012, 17, 10026-10045; doi:10.3390/molecules170910026
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Synthesis of Oligonucleotides Carrying Thiol Groups Using a
Simple Reagent Derived from Threoninol
Sonia Pérez-Rentero 1,2, Santiago Grijalvo 1,2, Rubén Ferreira 1,2 and Ramon Eritja 1,2,
*
1
Institute for Research in Biomedicine (IRB Barcelona), Baldiri Reixac 10, E-08028 Barcelona,
Spain; E-Mails: sonia.perez@irbbarcelona.org (S.P.-R.); santiago.grijalvo@irbbarcelona.org (S.G.);
ruben.ferreira@irbbarcelona.org (R.F.)
2
Institute for Advanced Chemistry of Catalonia (IQAC), CSIC, CIBER-BBN Networking Centre on
Bioengineering, Biomaterials and Nanomedicine, Jordi Girona 18, E-08034 Barcelona, Spain
* Author to whom correspondence should be addressed; E-Mails: recgma@cid.csic.es or
ramon.eritja@irbbarcelona.org; Tel.: +34-93-403-9942; Fax: +34-93-204-5904.
Received: 27 June 2012; in revised form: 3 August 2012 / Accepted: 14 August 2012 /
Published: 24 August 2012
Abstract: Oligonucleotides carrying thiol groups are useful intermediates for a remarkable
number of applications involving nucleic acids. In this study, DNA oligonucleotides
carrying tert-butylsulfanyl (t-BuS) protected thiol groups have been prepared. A building
block derived from threoninol has been developed to introduce a thiol group at any
predetemined position of an oligonucleotide. The resulting thiolated oligonucleotides have
been used for the preparation of oligonucleotide conjugates and for the functionalization of
gold nanoparticles using the reactivity of the thiol groups.
Keywords: DNA; solid-phase synthesis; threoninol; thiols; gold nanoparticles
1. Introduction
Modified oligonucleotides containing thiol groups are being used profusely in several fields and
especially in the DNA nanobiotechnology field. Thus, thiolated oligonucleotides were first synthesized
to facilitate the introduction of biotin, fluorescent compounds and other nonradioactive labels [1,2].
Later, thiolated oligonucleotides were used to produce oligonucleotide-peptide conjugates using
post-synthetic protocols [3,4] and oligonucleotide-protein conjugates [5–7]. The preparation of
conformationally restricted DNA structures were achieved by crosslinking thiolated oligonucleotides

Molecules 2012, 17
10027
by disulfide bond formation [8,9]. More recently, thiolated oligonucleotides were used for the
immobilization of DNA onto gold surfaces [10–12] and the preparation of DNA-functionalized gold
nanoparticles [13–16].
We are interested in the incorporation of thiol groups into two-dimensional DNA lattices [17] by
introducing a single thiol group per DNA unit. Thiol groups have a strong affinity for gold surfaces
and as well they can be used for the introduction of non-radioactive labels and peptides functionalized
with maleimido or iodo- or bromoacetamide groups. Previous work has demonstrated that
bidimensional DNA arrays carrying thiolated nucleobases at the apex of the topological markers can
be deposited on gold surfaces [17] or reacted with the appropriate maleimido derivatives to generate
functionalized DNA bidimensional arrays [18,19]. We become interested in the preparation of similar
building blocks using an inexpensive non-nucleoside residue as starting material. Here, we describe a
straightforward synthesis of a threoninol derivative carrying the (t-butyldisulfanyl)ethyl group which
allows the introduction of a protected thiol group at any position of an oligonucleotide. The utility of
the new derivative is demonstrated with the preparation of several oligonucleotide conjugates using the
specific reactivity of the thiol group.
2. Results and Discussion
2.1. Synthesis of the Threoninol Derivatives Needed for Oligonucleotide Synthesis
In order to incorporate functional groups at any predetermined position of oligonucleotides it is
convenient to select a building block with two hydroxyl groups which would allow the use of the
phosphoramidite strategy developed for the synthesis of oligonucleotides. We selected an acyclic
scaffold such as L-threoninol to incorporate a 3-mercaptopropionic acid derivative conveniently
protected with a tert-butylsulfanyl group [4,9,20] into DNA as depicted in Scheme 1. Threoninol has
been used previously to introduce several units such as Methyl Red moieties [21], photoactive
azobenzenes [22], DNA-binding drugs [23] and tetrathiafulvalene derivatives [24,25] into
oligonucleotides. Recently, siRNA derivatives carrying aromatic groups linked through threoninol at
their 3'-end were prepared to modulate the binding of a passenger strand to the RISC complex [26].
The tert-butylsulfanyl group [4,9,20] was selected for the protection of the thiol group.
Other groups such as the S-trityl [1], acetyl [27], benzoyl [28], 2,4-dinitrophenylethyl [29],
N-trifluoroacetamidoethylsulfanyl [30] and 2-nitrobenzyl [31] have been described for the preparation
of thiolated oligonucleotides. We selected this protecting group because is compatible with the
oligonucleotide synthesis conditions and can be removed in the presence of reducing agents
independently of the final ammonia deprotection.
3-Mercaptopropionic acid was reacted with di-tert-butyl 1-(tert-buylthio)-1,2-hydrazine-
dicarboxylate [20] to yield the t-BuS-protected derivative 1. The amino group of threoninol was
reacted with the t-BuS-protected 3-mercaptopropanoic acid derivative yielding the threoninol amide 2

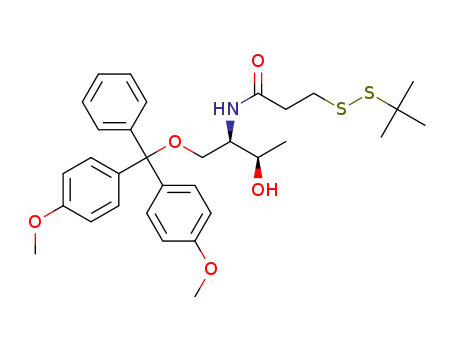

(Scheme 1). Then, the primary hydroxyl group was protected with the 4,4'-dimethoxytrityl (DMT)
group. Finally, the secondary alcohol was used to prepare either the phosphoramidite 6 or the
hemisuccinate 4. The hemisuccinate was further used to functionalize controlled pore glass (CPG)

Molecules 2012, 17
10028
solid support (5). Derivatives 5 and 6 were used for the assembly of oligonucleotides using solid-phase
methods [25,26].
Scheme 1. Synthesis of the phosphoramidite and functionalized solid support needed for
the synthesis of oligonucleotides bearing thiol groups.
O
StBu
S
StBu
a
b
HN
S
HOOC
HOOC
SH
1
HO
2
OH
c
O
O
O
StBu
StBu
HN
S
HN
S
DMT
O
f
DMTO
3
6
O
OH
P
CN
N
d, e
O
O
StBu
O
HN
S
DMTO
CPG
N
H
O
5
Reagents and conditions: (a) Di-tert-butyl-1-(tert-buthylthio)-1,2-hydrazinecarboxylate,
triethylamine, DMF; (b) L-threoninol, EDCI, 1-hydroxybenzotriazole, diisopropylethylamine,
DMF; (c) dimethoxytrityl chloride, pyridine; (d) succinic anhydride, N,N-dimethylaminopyridine,
pyridine; (e) long chain amino alkyl-controlled pore glass (LCAA-CPG), TBTU, triethylamine,
ACN; (f) 2-cyanoethyl-N,N-diisopropylaminochlorophosphine, diisopropylethylamine, CH2Cl2.
2.2. Oligonucleotide Synthesis
Oligonucleotide sequences (Table 1) carrying the disulfide group at 3' and 5'-ends as well as in
internal positions were assembled using the appropriate chemicals including the solid support 5 and
phoshoramidite 6. Previous work described the oxidation of the t-BuS group on a 5-methylcytidine
derivative when standard iodine solution was used [19]. This side reaction yielded sulfonic acid
derivatives and it was minimized by replacing the commercially available iodine solution used for the
phosphite oxidation by a tert-butyl hydroperoxide solution [19]. For this reason we first analyzed the
effect of both solutions on the stability of the disulfide moiety. Then two syntheses of oligothymidine
7 were carried out. One was achieved using a 10% tert-butyl hydroperoxide solution in ACN and the
other one using the standard 0.02 M iodine solution. Figure 1 shows the HPLC profiles obtained after
ammonia cleavage (1 h, room temperature). In both cases a main peak was observed (tR = 8.0 min),
which was collected and characterized by mass spectrometry, corresponding to oligonucleotide 7.

Molecules 2012, 17
10029
In addition some extra peaks between 4–6 min were observed in the HPLC profiles, especially when
the tert-butyl hydroperoxide solution was used as oxidant. These products were assigned to
degradation products deriving from the oxidation of the t-BuS group to sulfonic acids [19] although we
could not obtain a clear mass spectrum from this HPLC fraction. We concluded that the best result was
obtained when the iodine solution was used as oxidant. For this reason, standard iodine oxidation
conditions were used for the preparation of the rest of the DNA sequences (Table 1).
Table 1. Oligonucleotide sequences prepared in this study.
HPLC
(min) 2
8.5
MS,
(expected)
3,931.6
4,095.7
3,923.6
4,005.7
6,134.0
MS,
[M−H]− (found)
3,931.4
#
Sequence (5'-3') 1
7
8
9
TTTTTTTTTTTT-X(t-Bu)
AAAAGGGCAAGG-X(t-Bu)
TTCCA-X(t-Bu)-ATTACCG
8.0
4,093.1
6.5
3,925.4
10 X(t-Bu)-ACTATCCAGGAAA
7.7
6.1 3
4,004.6
11 CTGTTGGCTT-X(t-Bu)-TGCCAACAG
GCAGTCGCACGACCTGGCGTCTGTTGGCTT-X
12 (t-Bu)-TGCCAACAGTTTGTACTACGCAATCC
TGCCGTATCGACG
6,132.8
6.3 3
21,513.9
A−12: 1,792.9 4
13 CGGAGGTACATTCGACTTGA-X(t-Bu)
14 Fluoresceine-CGGAGGTACATTCGACTTGA-X(t-Bu)
15 AAAAGGGCAAGG-X
7.8
6.1
6,496.0
7,019.0
4,007.6
4,201.8
6,487.3
7,023.8
3,995.6
4,207.9
4.5
16 AAAAGGGCAAGG-X(Nan)
5.9
10.8,
11.0
5.4
17 AAAAGGGCAAGG-X(Py)
4,302.9
4,307.8
18 TTTTTTTTTTTT-X
n.d.
4,037.7
n.d.
n.d.
4,041.4
n.d.
19 TTTTTTTTTTTT-X(Nan)
20 CGGAGGTACATTCGACTTGA-X
6.6
4.7
21 Fluoresceine-CGGAGGTACATTCGACTTGA-X
5.6
n.d.
n.d.
1
X(t-Bu) = N-[2-(tert-butyldisulfanyl)ethylcarbonyl]-L-threoninol; X = N-(mercaptoethyl-
carbonyl)-L-threoninol; X(Nan) = 2-hydroxy-5-nitroacetaniline derivative; X(Py) = Pyrenyl
maleimido derivative (see Scheme 2). The underlined bases in sequences 11 and 12 are involved in
the formation of the hairpin; 2 Retention time values obtained in the HPLC analysis (see conditions
in experimental part); 3 Temperature of the HPLC column was 60 °C to avoid secondary structures;
4 mass measured from the M12− by electrospray (Synapt HDMS system); n.d.: not determined.
Oligonucleotides 7 and 8 bearing the disulphide group at the 3'-end position were prepared using
the functionalized solid support 5. The phosphoramidite 6 was used to prepare oligonucleotides 9 and
10 carrying the disulfide moiety in the middle of the sequence and at the 5'-end position respectively.
In all cases the modified oligonucleotides 7–10 were obtained as the major compounds (Figure S1,
supplementary information). The main products were collected and analyzed by mass spectrometry
(MALDI-TOF). The results are summarized in Table 1. In addition to the expected compound we have
observed the presence of variable amounts of side compounds with shorter retention time (tR around
4 min). When oligonucleotide 7 (prepared with iodine) was treated with the ammonia solution for
several hours at 55 °C we observed as well the presence of these side products in the HPLC profiles

Molecules 2012, 17
10030
(data not shown). Then we reasoned that these side compounds are related with the ammonia treatment
required for the cleavage and deprotection of nucleobases and phosphate groups. We observed as well
that the extension of the side reaction depended on the position where the modified residue was placed.
For instance, the amount of these side products detected in the HPLC profile of crude compound 9
(threoninol derivative located in the middle of the sequence), represented less than 5%. On the other
hand, HPLC profiles of crude oligonucleotides 8 and 10 (threoninol derivative attached at the ends of
each sequence) showed higher amounts (15–25%). MS analysis of the main side compound showed
the loss of 104 mass units from the expected molecular mass. We hypothesized that this loss may be
due to the removal of the t-BuSS group (121 mass units) and to the subsequent addition of a NH2
group. This compound may be formed by direct nucleophilic displacement of the t-BuSS group or by
β-elimination of the t-BuSS group followed by ammonia addition to the resulting olefin (Scheme S1,
supplementary information). This side reaction was produced when the treatment with ammonia was
extended to 12 h at 55 °C for the removal of the isobutyryl group of guanine and it was mainly
observed in oligonucleotides carrying the disulfide group at terminal positions. The use of milder
protecting groups for guanine such as dimethylformamidino group may help to avoid the elimination
of the t-BuSS group.
Figure 1. HPLC profiles of crude oligonucleotide 7 using different oxidants: (A) 10%
tert-butyl hydroperoxide solution in ACN and (B) standard 0.02 M iodine solution. In both
cases ammonia cleavage was performed at r. t. for 1 h.
A)
B)
2,5
2,0
1,5
1,0
0,5
0,0
Oxidant: I
2
Oxidant: t-BuOOH
0,6
0,4
0,2
0,0
-2
0
2
4
6
8
10
12
14
16
-2
0
2
4
6
8
10
12
14
16
t (minutes)
t (minutes)
Next we synthesized two long hairpin oligonucleotides 11,12 carrying one disulfide group in the
middle of the loop (Table 1, Scheme 2). Oligonucleotide 12 corresponds to one of the five
oligonucleotides described by the group of Seeman for the preparation of bidimensional DNA arrays
by the “tile system” [32]. Specifically this sequence carries a topological marker in the form of a
protruding DNA hairpin which has been used to incorporate thiol groups able to anchor bidimensional
DNA arrays into gold surfaces [17]. Oligonucleotide 11 corresponds to the protruding hairpin
part of oligonucleotides 12 without the single-stranded parts which pair with the corresponding
complementary sequences designed to form a DNA tile. Both thiolated oligonucleotides were prepared
using the phosphoramidite derivative 6 obtaining the desired compounds. The characterization of

Molecules 2012, 17
10031
oligonucleotide 12 was carried out by electrospray mass spectrometry (Synapt HDMS system,
Waters-Micromass). The molecular mass of such a long oligonucleotide was obtained from the
A−12 (1,792.9) and A−11 (1,958.5) ions.
Finally we have prepared oligonucleotides 13 and 14. These oligonucleotides are 20 mer that will
be used for the functionalization of gold nanoparticles. Both oligonucleotides have the same DNA
sequence and carry the threoninol derivative at the 3'-end but, in addition, oligonucleotide 14 bears a
fluoresceine derivative at the 5'-end to quantify the degree of functionalization of the resulting
nanoparticles. Both oligonucleotides were obtained in good yields. Additionally, we cleaved the t-BuS
group of both disulphide oligonucleotides to obtain the corresponding thiol oligonucleotides 20 and 21.
Preparing both disulfide and thiol analogues allow for comparison of stability and surface coverage of
the resulting conjugates. For comparison purposes we have also prepared the 20-mer oligonucleotide
sequences carrying the commercially available 3'-thiol modifier (see Supplementary Information).
Scheme 2. Structures of the threoninol derivatives prepared in this study. The broken lines
indicate H or the oligonucleotide chain.
O
O
StBu
HN
SH
HN
S
O
O
O
X
O
X(tBu)
O
OH
O
O
H
N
O
O
N
HN
S
O
HN
S
O
O
O
X(Nan)
X(Py)
NO2
2.3. Denaturation Studies on Duplexes Carrying the Tert-Butylsulfanyl Threoninol Derivative
In order to assess the influence of the threoninol derivative in the duplex structure, we performed
melting experiments with the modified oligonucleotides 8, 9 and 10. Table 2 shows the melting
temperatures of several duplexes carrying the tert-butylsulfanyl protected threoninol derivative and the
corresponding non modified duplexes. As expected, the presence of the threoninol derivative either at
the 3'-end (entry 1) or at the 5'-end (entry 3) of a duplex had very little effect in the stability compared
with the corresponding non modified duplex (entries 2 and 4 respectively). The comparison of entries
4 and 5 indicates that the introduction of the tert-butylsulfanyl protected threoninol derivative in the
middle of the DNA sequence induces a remarkable destabilizing effect (6.3 °C).
Finally the effect of the modification placed in the middle of the loop of the hairpin 11 was studied.
To this end, an unmodified version of the hairpin was synthesized replacing the threoninol derivative
by a thymidine. The melting temperatures obtained from the denaturation curves were very similar in

Molecules 2012, 17
10032
both cases (entries 7 and 8). Then we conclude that the presence of the threoninol derivative in the
loop do not induce any significant change in the denaturation process of the hairpin.
Table 2. Melting temperatures of duplexes carrying the tert-butylsulfanyl threoninol derivative.
Entry
Duplex
Tm (°C)
52.3 1
53.0 1
43.9 1
43.4 1
42.2 1
48.5 1
75.2 2
75.4 2
Tm (°C)
−0.7
--
1
2
3
4
5
6
7
8
5'-AAAAGGGCAAGG-X(t-Bu)-3' (8)/3'-TTTTCCCGTTCC-5'
Unmodified 5'-AAAAGGGCAAGG-3'/3'-TTTTCCCGTTCC-5'
5'-X(t-Bu)-ACTATCAGGAAA-3' (10)/3'-TGATAGTCCTTT-5'
Unmodified 5'-ACTATCAGGAAA-3'/3'-TGATAGTCCTTT-5'
5'-TTCCA-X(t-Bu)-ATTACCG-3' (9)/3'-AAGGTTAATGGC-5'
Unmodified 5'-TTCCAATTACCG-3'/3'-AAGGTTAATGGC-5'
Hairpin 5'-CTGTTGGCTT-X(t-Bu)-TGCCAACAG-3' (11)
+0.5
--
−6.3
--
−0.2
--
Unmodified hairpin 5'-CTGTTGGCTTTTGCCAACAG-3'
1
2
Conditions: 0.3 M NaCl, 10 mM phosphate buffer pH 7.0; conditions: 50 mM NaCl, 10 mM
phosphate buffer pH 7.0; Tm is the difference in Tm between the non modified duplex and the
corresponding modified duplex. The underlined bases in sequence 11 are involved in the formation
of the hairpin.
2.4. Functionalization of Thiol Oligonucleotides
Oligonucleotides bearing thiol groups are important intermediates for the introduction of
fluorescent compounds and other non-radioactive labels into oligonucleotides [1,2]. To this end, we
studied the preparation of oligonucleotide conjugates by reaction of the thiolated oligonucleotides with
maleimido and 2-bromoacetamide compounds. Oligonucleotides 7 and 8 were used to perform
reactions with N-(1-pyrenyl)maleimide and 2-bromo-2'-hydroxy-5'-nitroacetaniline. The first step
consisted in the cleavage of the t-BuS group. An aqueous solution of oligonucleotide 8 was treated
with a solution of tris(2-carboxyethyl)phosphine (TCEP) at 55 °C. The removal of the t-BuS group
was monitored by HPLC (Figure S4, supporting information). Under these conditions the complete
deprotection of the thiol was achieved in four hours. The resulting oligonucleotide 15 was isolated and
characterized by mass spectrometry (Table 1).
Then, oligonucleotide 15 was reacted either with 2-bromo-2'-hydroxy-5'-nitroacetaniline and
N-(1-pyrenyl)maleimide overnight. Both conjugates (16 and 17) were obtained in good yields, ranging
from 80 to 85% as depicted in Figure 2 (conjugation yields were determined by HPLC analysis of the
crudes). In both cases the main compounds were collected and analyzed by mass spectrometry. The
results are summarized in Table 1. The reaction with N-(1-pyrenyl)maleimide yielded two main
products (Figure 2B) sharing the same mass once analyzed by mass spectrometry. These compounds
may correspond to the two possible isomers coming from the reaction of the thiol group with the
maleimide group.
A conjugation assay was performed as well with the oligothymidine thiol sequence.
Oligonucleotide 7 once treated with a TCEP solution yielded the deprotected oligonucleotide 18,
which was reacted with 2-bromo-2'-hydroxy-5'-nitroacetaniline. The desired conjugate 19 was obtained in
good yield (81%, conjugation yield was determined by HPLC analysis of the crude, Figure S5
supplementary information).

Molecules 2012, 17
10033
Figure 2. HPLC profiles of the mixtures obtained after the reaction of oligonucleotide 15
with (A) 2-bromo-2'-hydroxy-5'-nitroacetaniline to yield compound 16 and (B) with
N-(1-pyrenyl)maleimide to yield compound 17 (▼ stands for the thiol oligonucleotide 15
and ♦ stands for the resulting oligonucleotide conjugates).
A)
B)
0.7
1.2
0.6
1.0
0.5
0.8
0.4
0.3
0.2
0.1
0.0
-0.1
0.6
0.4
0.2
0.0
-2
0
2
4
6
8
10
12
14
16
-2
0
2
4
6
8
10
12
14
16
t (minutes)
t (minutes)
2.5. Nanoparticle Functionalization and Stability Measures
We studied as well the functionalization of gold nanoparticles with thiolated oligonucleotides. For
this purpose, oligonucleotide 13, carrying a disulfide modification at the 3'-end was prepared. The thiol
oligonucleotide (compound 20) was prepared by treating oligonucleotide 13 with TCEP as described
above. Immobilization of the thiolated oligonucleotides on 10 nm citrate-reduced gold nanoparticles
was carried out using standard protocols [33]. The resulting functionalized gold nanoparticles were
characterized by UV-vis spectroscopy (Figure 3A). After modification only a small shift in the surface
plasmon band was observed (λmax 519 to 525 for 13-AuNp and λmax 519 to 522 for 20-AuNp). The
effect of the disulfide and thiol modified oligonucleotides on the stability of the conjugates was
investigated following procedures described in the literature [34,35]. Each conjugate were treated with
DTT (10 mM) at 40 °C and left to aggregate and the UV-vis spectra were recorded at 1 min interval
(Figure 3B,C). Stability was evaluated by measuring the increment of absorbance at 675 nm that
resulted from gold nanoparticle aggregation (Figure 3D). The half-time t1/2 (the time required to reach
half the value for complete aggregation) was calculated from the curves. This parameter was
determined by taking the midpoint in the absorbance change at 675 nm as a function of time. For
conjugates obtained with oligonucleotide 13 (13-AuNp) the t1/2 was less than 2 min and for the
conjugates obtained with oligonucleotide 20 (20-AuNP) the half-life was around 16 min (Table 3). The
result obtained for 13-AuNp is in good agreement with other gold nanoparticle conjugates
functionalized with commercially available disulfide oligonucleotides [35]. Conjugation of AuNp with
the 20-mer functionalized with the commercial 3'-thiol modifier gave similar results (supplementary
information). Moreover, we found some discrepancies when we compared the stability results obtained
for 20-AuNp with other gold nanoparticle conjugates functionalized with commercially available
alkanethiol oligonucleotides [34,35]. In our opinion, these discrepancies may be attributed to
methodological differences that we introduced to obtain our conjugates. In our case the saline

Molecules 2012, 17
10034
concentration of the buffers we used was lower (we used 0.15 M NaCl instead of 0.30 M NaCl). The
other aspect to consider is the compound we used for the disulfide reduction (we used TCEP instead of
DTT). In any case, the gold nanoparticles resulting from the reaction with thiol-oligonucleotide 20
under our experimental conditions have higher stability to DTT solutions than the gold nanoparticles
resulting from the reaction with disulfide oligonucleotide 13.
Figure 3. (A) UV-vis spectra of the initial gold nanoparticle solution and the
functionalized gold nanoparticles with oligonucleotides 13 and 20. Time evolution of
UV-Vis spectra of gold nanoparticle conjugates in 10 mM DTT. (B) Disulfide
oligonucleotide 13. (C) Thiol oligonucleotide 20. (D) Absorbance changes monitored with
time at 675 nm for both conjugates.
B)
A)
13-AuNp conjugate
0,8
0,7
0,6
0,5
0,4
0,3
0,2
0,1
0,0
0 min
1 min
2 min
3 min
4 min
5 min
6 min
0,6
0,5
0,4
0,3
0,2
0,1
0,0
Gold Colloid
13-AuNp
20-AuNp
400
500
600
700
800
400
500
600
700
800
(nm)
(nm)
C)
D)
0 min
1 min
2 min
8 min
13 min
18 min
23 min
29 min
32 min
20-AuNp conjugate
0,5
0,4
0,3
0,2
0,1
0,0
0,6
0,5
0,4
0,3
0,2
0,1
0,0
13-AuNp conjugate
20-AuNp conjugate
0
10
20
30
40
400
500
600
700
800
t (min.)
(nm)
t (minutes)
The degree of functionalization of gold nanoparticles conjugates was investigated using the
fluoresceine-labelled oligonucleotides 14 and 21 (disulfide and thiol oligonucleotide, respectively)
following a method described by Mirkin et al. [35,36]. The resulting functionalized gold nanoparticles
14-AuNp and 21-AuNp were characterized by UV-vis spectroscopy (Figure S6A, Supplementary
Information). After functionalization only a small shift in the surface plasmon band was observed
(max 519 to 522 for both conjugates). Aliquots of 14-AuNp and 21-AuNp were treated with a DDT
solution at room temperature for two hours. The surface coverage was obtained from the fluorescent
intensity of the released oligonucleotides. By measuring the concentration of oligonucleotides and gold
nanoparticle conjugates of each sample (three times, two sets of samples), an average number of
oligonucleotides per particle was calculated (Table 3). It was found that 14-AuNp has less surface
coverage (~37 pmol/cm2) than the thiol oligonucleotide-gold nanoparticle conjugate 21-AuNp
(~54 pmol/cm2). Conjugation of AuNp with the 20-mer functionalized with the commercial 3'-thiol

Molecules 2012, 17
10035
modifier gave similar results (supplementary information). The results obtained are in the range
of thiol oligonucleotides-gold nanoparticle conjugates commercially available described in the
literature [32,33,35–37]. We registered as well the fluorescence spectra of a functionalized gold
nanoparticle sample (14-AuNP) before treatment with DTT and the fluorescence intensity of the
released oligonucleotides once the sample was treated with DTT (Figure S6B, Supporting
Information). Comparing both spectra we observed that the fluorescence from the bounded
oligonucleotides was quenched by more than 98% by the gold nanoparticles.
Table 3. Half-lives and surface coverage data for oligonucleotide-gold nanoparticle conjugates.
Surface coverage
Conjugate name
t1/2 (min)
Strands/particle
----
pmol/cm2
13-AuNp
20-AuNp
14-AuNp
21-AuNp
1.8
14.5
----
----
----
----
63.0 ± 4.1
97.4 ± 6.8
37.4 ± 2.8
53.9 ± 5.5
----
Finally, hairpin oligonucleotide (11) carrying one disulfide group in the middle of the loop was
deprotected with TCEP (55 °C, o.n.) and the resulting thiol-oligonucleotide was reacted with 10 nm
citrate-stabilized AuNp. The resulting functionalized AuNps were characterized by UV-vis
spectroscopy, showing similar properties to the AuNp obtained with 5'- or 3'-thiolated oligonucleotides
(Supplementary Information). This result shows the usefulness of the new thiol reagent developed in
this work allowing the functionalization of AuNp of hairpin oligonucleotides using the loop positions.
These interesting functionalized nanoparticles can not be produced with commercially available reagents.
3. Experimental
3.1. General
All reagents were purchased from Sigma-Aldrich or Fluka and were used without further
purification. Dry solvents were purchased as well from Sigma-Aldrich or Fluka and used as supplied.
All the standard phosphoroamidites and ancillary reagents used for oligonucleotide synthesis were
purchased from Applied Biosystems or Link Technologies. Flash column chromatography was carried
out on silica gel SDS 0.063–0.2 mm/70–230 mesh.
1H- and 13C-NMR spectra were recorded at 25 °C on a Varian Mercury 400 MHz spectrometer and
the 31P-NMR spectra were recorded on a Varian Inova 300 MHz spectrometer using CDCl3.
1
Tetramethylsilane (TMS) was used as an internal reference (0 ppm) for H spectra and the residual
13
31
signal of the solvent (77.16 ppm) for C and P. Chemical shifts are reported in part per million
(ppm) in the δ scale, coupling constants in Hz and multiplicity as follows: s (singlet), d (doublet),
t (triplet), q (quadruplet), m (multiplet), br (broad signal). HPLC separations were performed using a
Waters 2695 Separations Module with a Waters 2998 Photodiode Array Detector. UV analyses and
melting curves were performed using a Jasco V-650 instrument equipped with a thermoregulated cell
holder. Fluorescent measures were performed using a Jasco FP-6200 spectrofluorometer as well
equipped with a thermoregulated cell holder. Electrospray ionization mass spectra (ESI-MS) of

Molecules 2012, 17
10036
compounds 1–3 and 6 were recorded on a Micromass ZQ instrument with single quadrupole detector
coupled to a Waters Alliance 2696 HPLC. Matrix-assisted laser desorption ionization time-of-flight
(MALDI-TOF) mass spectra of oligonucleotides were recorded either on a Voyager-DETM RP
spectrometer (Applied Biosystems) or in a Perseptive Biosystems Voyager DE-RP instrument
(Applied Biosystems) in negative mode by using 2,4,6-trihydroxyacetophenone (THAP)/ammonium
citrate (1:1) (THAP-CA as matrix and additive respectively). The mass spectra analysis of
oligonucleotide 12 was performed in the negative ion mode on Synapt G1 HDMS travelling wave ion
mobility mass spectrometer (Waters-Micromass). The experiment was performed using a 384 well
plate and introduced by automated chip-based nanoelectrospray using a Triversa NanoMate
(Advion BioSciences).
3-(tert-Butyldisulfanyl)propanoic Acid (1). A solution of 3-mercaptopropanoic acid (0.34 mL,
3.9 mmol) and triethylamine (1.1 mL 7.8 mmol) in anhydrous dimethylformamide (DMF) (15 mL)
was prepared under argon. Di-tert-butyl-1-(tert-butylthio)-1,2-hydrazinedicarboxylate (2.5 g 7.8 mmol)
was dissolved in anhydrous DMF (10 mL) and added dropwise to the stirred solution. The reaction
mixture was stirred at room temperature overnight, and the reaction was complete as judged by TLC.
The solvent was evaporated under reduced pressure. In order to remove the remaining DMF, the
residue was dissolved in toluene and evaporated under reduced pressure. The procedure was repeated
three times. We used two different methodologies to purify the carboxylic acid. Method 1: The
resulting crude was dissolved with 100 mL 10% aqueous solution of sodium hydroxide and washed
three times with 50 mL of hexane. The aquerous solution was acidified with hydrochloric acid fuming
37% until pH = 2–3, and then was extracted with 50 mL of ethyl acetate (×3). The extracts were
combined, dried over MgSO4 and concentrated to dryness under reduced pressure. The desired product
(pale yellow oil) was obtained with 57% yield (0.36 g). Method 2: The product was purified by
chromatography on silica gel. The column was packed with silica gel using a 1% triethylamine
solution in ethyl acetate. The byproducts were eluted with a gradient of ethyl acetate to ethyl
acetate/methanol 100:10. Then, the product was eluted using a 1% acid acetic solution in ethyl
acetate/methanol 100:10. The pure fractions were combined and the solvent was eliminated under
reduced pressure. The resulting residue was dissolved with 100 mL of ethyl acetate and the organic
phase was washed with 50 mL of water and 50 mL of a saturated NaCl aqueous solution. The organic
phase was dried over anhydrous magnesium sulphate and concentrated to dryness under reduced
pressure. The desired product (pale yellow oil) was obtained with 34% yield (0.26 g). TLC (ethyl
1
acetate) Rf = 0.35; H-NMR, H (CDCl3): 2.92 (t, J = 7 Hz, 2H), 2.78 (t, J = 7 Hz, 2H), 1.34 (s, 9H);
13C-NMR, C (CDCl3): 178.20 (CO), 48.27 (C), 34.58 (CH2), 34.26 (CH2), 30.16 (CH3); ESI-MS m/z
(negative mode) [M−H]− = 193.04, (M = 194.04 g/mol calculated for C7H14O2S2).
N-[2-(tert-Butyldisulfanyl)ethylcarbonyl]-L-threoninol (2). A solution of compound 1 (300 mg,
1.54 mmol), L-threoninol (162 mg, 1.54 mmol), 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide
(EDCI) (413 mg, 2.31 mmol), hydroxybenzotriazole (HOBt) (313 mg, 2.31 mmol), and
N,N-diisopropylethylamine (0.40 mL, 2.31 mmol) in anhydrous DMF (15 mL) was prepared under
argon. After stirring the reaction mixture at room temperature overnight, the reaction was complete as
judged by TLC and then concentrated to dryness under reduced pressure. In order to remove the

Molecules 2012, 17
10037
remaining DMF, the residue was dissolved in toluene and concentrated to dryness under reduced
pressure (×3). The residue was dissolved in 100 mL of dichloromethane (DCM) and the organic phase
was washed with 50 mL 10% NaCO3H aqueous solution (×2) and 50 mL of a saturated NaCl aqueous
solution. The organic phase was dried over anhydrous magnesium sulphate and concentrated to
dryness under reduced pressure. The pure compound was obtained as a white solid (346 mg, 80%
1
yield). TLC (ethyl acetate) Rf = 0.19. H-NMR, H (CDCl3): 6.41 (d, J = 6.8 Hz, 1H), 4.19 (qd,
J = 6.4 and 1.6 Hz, 1H), 3.88–3.82 (m, 3H), 2.98 (t, J = 7.0 Hz, 2H), 2.66 (t, J = 7.0 Hz, 2H), 1.34 (s,
9H), 1.23 (d, J = 6.4 Hz, 3H). 13C-NMR, C (CDCl3): 172.23 (CO), 68.72 (CH), 64.86 (CH2),
55.12 (CH), 48.47 (C), 36.25 (CH2), 35.82 (CH2), 30.18 (CH3), 20.71 (CH3). ESI-MS m/z (positive
mode) [M+H]+ = 282.13, (M = 281.11 g/mol calculated for C11H23NO3S2).
O1-(4,4'-Dimethoxytriphenylmethyl)-N-[2-(tert-butyldisulfanyl)ethylcarbonyl]-L-threoninol (3). Compound
2 (242 mg, 0.86 mmol) was dried by evaporation of anhydrous acetonitrile (ACN) under
reduced pressure and then dissolved in anhydrous pyridine (10 mL) under argon.
4,4'-Dimethoxytriphenylmethyl chloride (320 mg, 0.94 mmol) was added with stirring and exclusion
of moisture, and the reaction was allowed to proceed at room temperature overnight. Then the reaction
was quenched with methanol (0.5 mL). The solvent was removed under reduced pressure, and the
residue was dissolved in DCM (75 mL). The organic phase was washed with 5% aqueous NaCO3H
solution (30 mL) and with saturated NaCl solution (30 mL). The organic phase was dried over
anhydrous magnesium sulphate and filtered. After filtration and removal of the solvent under reduced
pressure, the product was purified by chromatography on silica gel. The column was packed with silica
gel using a 1% triethylamine solution in ethyl acetate/hexane 1:1. The product was eluted with a
gradient of hexane/ethyl acetate (1:1) to 100% ethyl acetate. The pure compound was obtained as
1
white foam (309 mg, 62%). TLC (ethyl acetate/hexane 2:1) Rf = 0.35. H-NMR, H (CDCl3):
7.39–6.83 (m, 13H), 6.16 (d, J = 8.8 Hz, 1H), 4.07 (qd, J = 6.4 Hz and 1.6 Hz, 1H), 3.95–3.91 (m, 1H),
3.79 (s, 6H), 3.44 (dd, J = 9.6 Hz and 4.2 Hz, 1H), 3.28 (dd, J = 9.6 Hz and 3.2 Hz, 1H), 2.99–2.95 (m,
13
2H), 2.64–2.61 (m, 2H), 1.34 (s, 9H), 1.13 (d, J = 6.4 Hz, 3H). C-NMR, C (CDCl3): 171.39 (CO),
158.87 (CH), 158.86 (CH), 144.54 (C), 135.69 (C), 135.50 (C), 130.14 (CH), 128.26 (CH),
128.15 (CH), 127.26 (C), 113.56 (CH), 87.07 (C), 68.91 (CH), 65.52 (CH2), 55.46 (CH3), 53.64 (CH),
48.33 (C), 36.33 (CH2), 35.73 (CH2), 30.20 (CH3), 20.13 (CH3). ESI-MS m/z (negative mode)
[M−H]− = 582.24, (M = 583.24 g/mol calculated for C32H41NO5S2).
3.2. Synthesis of CPG Support 5 Functionalized with Compound 3
Compound 3 was incorporated on a long-chain alkylamine-controlled pore glass support
(LCAA-CPG) following the standard methodology using the hemisuccinate derivative 4. Compound 3
(50 mg, 0.09 mmol) was dried by evaporation of anhydrous ACN under reduced pressure. Then,
compound 3 was dissolved in anhydrous pyridine (5 mL) under argon. Succinic anhydride (21 mg,
0.21 mmol) and 4-dimethylaminopyridine (DMAP) (6 mg, 0.05 mmol) were added to the solution.
After four hours of magnetic stirring at room temperature, the reaction was complete as judged by TLC
(5% methanol in ethyl acetate, Rf = 0.10). The solvent was removed under reduced pressure and the
residue was dissolved in dichloromethane (20 mL). The solution was washed with saturated aqueous

Molecules 2012, 17
10038
sodium chloride (15 mL). After drying the organic phase with magnesium sulphate and filtered, the
solvent was evaporated under reduced pressure. The monosuccinate derivative 4, which was used in
the next step without further purification, was obtained as a white foam.
Commercial LCAA-CPG (CPG Inc., Lincoln Park, NJ, USA, 300 mg, 73 µmol amino/g) was
placed into a polypropylene syringe fitted with a polypropylene disc and washed sequentially with
DMF, methanol, THF, DCM, and ACN. Then, a solution of O1-(4,4'-dimethoxytriphenylmethyl)-N-[2-
(tert-butyldisulfanyl)ethyl-carbonyl]-O3-(succinyl)-L-threoninol (4) (28 mg 0.045 mmol) and
triethylamine (26 µL, 0.36 mmol) in 0.5 mL of anhydrous ACN was prepared. The solution was
added to the resin and then a solution of 2-(1H-benzotriazole-1-yl)-1,1,3,3-tetramethyluronium
tetrafluoroborate (TBTU) (59 mg 0.36 mmol) in 0.3 mL of anhydrous ACN was incorporated to the
mixture and left to react for 30 min. The resin was washed with DMF, methanol, DCM and ACN. The
incorporation of compound 4 was determined by DMT quantification. The coupling procedure was
repeated once more time and the functionality of the resin was determined by DMT quantification
(f = 22 µmol/g). Then, the resin treated with 500 µL of Ac2O/DMF 1:1 to cap free amino groups.
O1-(4,4'-Dimethoxytriphenylmethyl)-N-[2-(tertbutyldisulfanyl)ethyl-carbonyl]-O3-[2-cyanoethyl-N,N-
diisopropylaminophosphinyl]-L-threoninol (6). Compound 3 (180 mg 0.31 mmol) was dried
by evaporation of anhydrous ACN under reduced pressure. Then, compound 3 and
N,N-diisopropylethylamine (215 µL, 1.23 mmol) were dissolved in anhydrous DCM (10 mL) under
argon. The solution was cooled on ice and 2-cyanoethoxy-N,N'-diisopropylaminochlorophosphine
(112 µL, 0.46 mmol) was added dropwise with a syringe. Afterward, the solution was stirred at room
temperature for 1 h and 30 min. After this time the reaction was complete as judged by TLC. Then,
10 mL of DCM were added and the organic layer was washed with 5% NaCO3H aqueous solution
(20 mL) and with saturated NaCl aqueous solution (20 mL). The organic phase was dried over
magnesium sulphate and filtered, and the solvent was evaporated under reduced pressure. The residue
was dissolved in a small amount of ethyl acetate/hexane 1:1 and purified by chromatography on silica
gel. The column was packed with silica gel using a 5% triethylamine solution in ethyl acetate/hexane
1:1. The product was eluted with ethyl acetate/hexane 1:1. The pure compound was obtained as pale
yellow foam (123 mg 56%). TLC (ethyl acetate/hexane 1:1) Rf = 0.48 and 0.38. 31P-NMR, P (CDCl3,
81 MHz): 148.13 and 147.93, two isomers. 1H-NMR, H (CDCl3): 7.42–6.80 (m, 13H), 5.88 and 5.72
(2d, J = 8.8 Hz and 9.2 Hz, respectively, two isomers, 1H), 4.39–4.31 (m, 1H), 4.25–4.11 (m, 1H),
3.79 and 3.78 (2s, two isomers, 6H), 3.57–3.46 (m, 2H), 3.26–3.08 (m, 2H), 3.02–2.90 (m, 2H),
13
2.60–2.55 (m, 4H), 2.41–2.36 (m, 2H), 1.32 (s, 9H), 1.25–0.99 (m, 15H). C-NMR, C (CDCl3):
170.96 (C), 158.67 (CH), 145.07 and 144.99 (C, two isomers), 136.34 (C), 136.25 and 136.24 (C, two
isomers), 130.37 (CH), 130.32 and 130.27 (CH, two isomers), 128.50 and 128.41 (CH, two isomers),
128.00 (CH), 127.00 and 126.96 (C, two isomers), 118.04 (C), 113.33 (CH), 113.30 and 113.28 (CH,
two isomers), 86.37 and 86.29 (C, two isomers), 69.73 and 68.96 (CH, 2d, J = 14.4 and 16.4 Hz
respectively, two isomers), 63.16 and 62.84 (CH2, two isomers), 58.48 and 58.09 (CH2, 2d,
J = 19.5 and 19.5 Hz, respectively, two isomers), 55.44 and 55.41 (CH3, two isomers), 54.46 and 54.16
(CH, 2d, J = 4.9 and 6.3 Hz, respectively, two isomers), 48.25 and 48.21 (C, two isomers), 43.37 and
43.29 (CH, 2d, J = 12.3 and 12.5 Hz, respectively, two isomers), 36.51 and 36.43 (CH2, two isomers),
35.90 and 35.87 (CH2, two isomers), 30.17 (CH3), 24.93 and 24.91 (CH3, 2d, J = 7.7 and 7.8 Hz,

Molecules 2012, 17
10039
respectively, two isomers), 24.76 and 24.57 (CH3, 2d, J = 6.8 and 7.1 Hz, respectively, two isomers),
20.66 and 20.53 (CH3, 2d, J = 6.9 and 6.7 Hz, respectively, two isomers), 19.85–19.79 (CH2, m,
two isomers). ESI-MS m/z (positive mode) [M+Na]+ = 806.34, (M = 783.35 g/mol calculated
for C41H58N3O6PS2).
3.3. Synthesis of Oligonucleotides
The unmodified oligonucleotides were synthesized on a DNA synthesizer (Applied Biosystems
3400) using 200-nmol scale LV200® polystyrene supports and commercially available chemicals. The
benzoyl (Bz) group was used for the protection of the amino group of C and A, and the isobutyryl
(iBu) group for the protection of G. The coupling yields were >97%. The last DMT group was
removed at the end of the synthesis. Each solid support was treated with aqueous concentrated
ammonia at 55 °C for 12 h to cleave the products from the supports and remove the benzoyl and
isobutyryl groups. The mixtures were filtered and ammonia solutions were concentrated to dryness.
Unmodified oligonucleotides were desalted with Sephadex G-25 (NAP-10 column) G-25 (NAP-10
column) and analyzed by HPLC. Column: XBridgeTM OST C18 (4.6 × 50 mm, 2.5 µm). Solvent A: 5%
ACN in 100 mM triethylammonium acetate (TEAA) (pH = 7) and solvent B: 70% ACN in 100 mM
TEAA (pH = 7). Flow rate: 1 mL/min. Conditions: 10 min of linear gradient from 0 to 30% B. The
resulting oligomers were analyzed by mass spectrometry (MALDI-TOF) and UV/Vis spectroscopy (data
not shown) and used without further purification. The yields obtained ranged from 72 to 87%.
The oligonucleotide sequences containing the threoninol derivative at the 3'-end (7, 8, 13 and 14)
were synthesized on a 0.5 µmol scale using the solid support 5. Oligonucleotide sequence 7 was
prepared using a tert-butyl hydroperoxide or the standard 0.02 M iodine solution for the oxidation of
phosphites. Because better results were obtained using the standard 0.02 M iodine solution, all
sequences were prepared in that way. The last DMT group was removed at the end of the synthesis.
Each solid support was treated with aqueous concentrated ammonia at 55 °C for 12 h to cleave the
products from the supports and remove the benzoyl and isobutyryl groups, except the support coming
form the synthesis of oligonucleotide 7 that was treated with aqueous concentrated ammonia at room
temperature for 1 h due to the absence of base protecting groups. Work-up was similar as described
above. Oligonucleotide 7 (synthesis performed with iodine solution) was used without further
purification after it was desalted with Sephadex G-25 (NAP-10 column), (74% yield, 36.2 OD260).
Compound 8, 13 and 14 were purified by HPLC on a Nucleosil 120C18 (10 μm, 200 × 10 mm)
column. Solvent A: 5% ACN in 100 mM of TEAA (pH = 7) and solvent B: 70% ACN in 100 mM
TEAA (pH = 7). Flow rate: 3 mL/min. Conditions: 20 min linear gradient from 0–50% B
(oligonucleotides 8 and 13), 20 min linear gradient from 15–38% B (oligonucleotide 14). The resulting
products were desalted with Sephadex G-25 (NAP-10 column) and analyzed by HPLC. Column:
XBridgeTM OST C18 (4.6 × 50 mm, 2.5 μm). Solvent A: 5% ACN in 100 mM TEAA (pH = 7) and
solvent B: 70% ACN in 100 mM TEAA (pH = 7). Flow rate: 1 mL/min. Conditions: 10 min linear
gradient from 0–30% B, then 5 min. linear gradient from 30–100% B (oligonucleotides 7, 8 and 13),
4 min linear gradient from 0–12% B, then 1 min linear gradient from 12–40% B, then 5 min linear
gradient from 40–45% B, then 5 min linear gradient from 45–100% B (oligonucleotide 14). After
HPLC purification the yields obtained ranged from 32 to 48%.

Molecules 2012, 17
10040
The oligonucleotide sequence 9 (threoninol modification at the 5'-end) and sequences 10–12
(threoninol modification in the middle), were synthesized on a 200 nmol scale employing LV200®
polystyrene supports as described above. Phosphoramidite 6 was used to incorporate the threoninol
derivative at the 5'-end and in the middle of the corresponding oligonucleotides. The protected
phosphoramidite was dissolved in anhydrous DCM instead of ACN to obtain a 0.1 M solution and was
allowed to react for 300 s instead of 30 s used for an unmodified phosphoramidite. The DMT
determination showed that the efficiency of coupling of the phosphoramidite was >90%. The last DMT
group was removed at the end of the synthesis. Each resin was treated with aqueous concentrated
ammonia at 55 °C for 12 h to cleave the products from the supports and remove the benzoyl and
isobutyryl groups. In the case of oligonucleotide 12 only a small amount of the solid support was
treated with ammonia for characterization purposes. Work-up was similar as described above.
Oligonucleotide 9 was used without further purification after once desalted with Sephadex G-25
(NAP-10 column), (82% yield, 18.7 OD260). Compound 10–12 were purified by HPLC on a
XBridgeTM OST C18 semipreparative column (10 × 50 mm, 2.5 μm). Solvent A: 5% ACN in 100 mM
TEAA (pH = 7) and solvent B: 70% ACN in 100 mM TEAA (pH = 7). Flow rate: 3 mL/min.
Conditions: 10 min linear gradient from 0–30% B, then 5 min linear gradient 30–100% B, at room
temperature for oligonucleotide 10 and at 60 °C for oligonucleotides 11 and 12. The resulting products
were desalted with Sephadex G-25 (NAP-10 column) and analyzed by HPLC. Column: XBridgeTM
OST C18 (4.6 × 50 mm, 2.5 μm) using the conditions described above except the flow rate that was
1 mL/min. All the purified oligonucleotides were analyzed as well by mass spectrometry. After HPLC
purification 12.9 OD260 (50% yield) of compound 10 and 14.5 OD260 (42% yield) of compound 11
were obtained.
3.4. Removal of StBu Group and Conjugation of the Resulting Thiol Oligonucleotides
Oligonucleotides 7 and 8 (1–3 OD260) were dissolved in 300 μL of an aqueous solution 0.1 M
TEAA (pH = 7). Then, 34 μL of an aqueous solution of 0.1 M TCEP were added to the solution and
allowed to react at 55 °C. Different samples were analyzed by HPLC at different times of reaction (1 h,
3 h and 4 h) (Figure S4, Supplementary Information). Column: X-BridgeTM OST C18 (2.5 μm
4.6 × 50 mm). Solvent A: 100 mM TEAA (pH = 7) and solvent B: 70% ACN in 100 mM TEAA
(pH = 7). Flow rate: 1 mL/min. Conditions: 10 min linear gradient from 0–30% B, then 5 min linear
gradient from 30–100% B. The oligonucleotide carrying a free thiol 15 was collected and analyzed by
mass spectrometry (MALDI-TOF). The resulting thiol oligonucleotides 15 and 18 were purified with
Sephadex G-10 (NAP-5 column). The oligonucleotide was eluted with 1 mL of sterile water.
Conjugation with 2-bromo-2'-hydroxy-5'-nitroacetanilide: The solution from the NAP column was
concentrated to 500 μL and 60 μL of an aqueous solution 1 M of hydrogen carbonate (pH = 9) were
added. Then, 100 μL of a solution 2.25 mM of 2-bromo-2'-hydroxy-5'-nitroacetanilide in DMF were
added and allowed to react at room temperature overnight. The reaction mixtures were desalted on a
NAP-5 column. The DNA fractions were analyzed by HPLC. The main compounds were isolated and
analyzed by mass spectrometry. Results are summarized in Table 1.
Conjugation with N-(1-pyrenyl)maleimide: The solution was concentrated to 500 μL and 60 μL of
an aqueous solution 1 M TEAA (pH = 7) were added. Then, 100 μL of a solution 2.25 mM of

Molecules 2012, 17
10041
N-(1-pyrenyl)maleimide in DMF were added and allowed to react at room temperature overnight. The
reaction mixture was desalted on a NAP-5 column. The DNA fractions were purified by HPLC.
The main compounds were isolated and analyzed by mass spectrometry and UV/Vis spectroscopy
(λmax = 256 and 342 nm). Results are summarized in Table 1.
3.5. Preparation of Oligonucleotide-Gold Nanoparticle Conjugates
Citrate stabilized gold nanoparticles (9.7 nm) were purchased from BBI Life Sciences and used as
received. To prepare the conjugates, 5 nmol (1 OD260 unit) of disulfide modified-oligonucleotide (13
and 14) were added to 1 mL of the gold nanoparticle solution (9.4 nM). Disulphide oligonucleotides 13
and 14 were converted to their corresponding thiol oligonucleotides (20 and 21 respectively) by
reaction with TCEP and as well were used to functionalize gold nanoparticles. Then, 20 nmol (4 OD260)
of each oligonucleotide were deprotected following the conditions described above. The resulting thiol
oligonucleotides were desalted on a NAP-5 column. Freshly deprotected oligonucleotides (5 nmol, 250 μL)
were added to a 1 mL of gold colloid. The mixture was shaken for 16–20 h prior to salt stabilization.
Then the solution was brought to a final concentration of 10 mM sodium phosphate (pH = 7.2). The
mixture was then allowed to equilibrate for 30 min before bringing the concentration to 0.15 M NaCl
over a 7 h 30 min period in a stepwise manner (0.05 M NaCl increments each 2 h 30 min). The solutions
were sonicated for 20 s. before each addition to keep the particles dispersed during the salting
procedure. The salting process was followed by incubation overnight at room temperature. Finally, to
remove all unbound oligonucleotides, the solution was centrifuged at 13,200 rpm (16,100 × g) for
30 min. The supernatant was removed and the reddish solid at the bottom of the centrifuge tube was
dispersed in 1 mL of a 0.15 M, 10 mM sodium phosphate buffer (pH = 7.2). This procedure was
repeated three times. Approximately 20–30% of the original nanoparticle concentration may be lost
during centrifugation and work-up. As we wanted to compare stabilities of conjugates obtained with
disulfide and thiol oligonucleotides (13-AuNp and 20-AuNp) disulfide and thiol oligonucleotides we
dispersed the reddish residue in 500 μL of 0.15 M NaCl, 10 mM sodium phosphate (pH = 7.2), 0.1%
NaN3 solution. Then, each solution was analyzed by UV-visible absorption spectroscopy and the
concentration of gold nanoparticle conjugates was adjusted to 7.0–7.2 nM by adding the required
volume of buffer. The conjugates obtained with the fluorescent oligonucleotides (14-AunP and
21-AuNp) were directly resuspended in 1 mL of a 0.15 M NaCl, 10 mM sodium phosphate (pH = 7.2),
0.1% NaN3 solution. The extinction coefficient used was the same as that used for unmodified
nanoparticles (ε520 = 7.6 × 107 M−1cm−1, data provided by the manufacturer). Each solution was then
stored in the fridge (4 °C) prior to use.
3.6. Stability Tests of Oligonucleotide-Gold Nanoparticle Conjugates
The effect of the disulphide or thiol moieties on the stability of oligonucleotide-nanoparticle
conjugates was assessed by treating the conjugates with DTT (10 mM final concentration) at 40 °C.
UV-vis spectra were recorded for both thiolated conjugates (13 and 20) at 1 min intervals. To give an
indication of the durability of the oligonucleotide conjugates, absorbance at 675 nm was monitored
against time. Then, the half-life (time to reach half the value for complete aggregation) was calculated
for each conjugate.

Molecules 2012, 17
10042
3.7. Measuring Oligonucleotide Loading on Gold Nanoparticles
To determine the number of oligonucleotides loaded on each particle, the concentration of
nanoparticles and the concentration of fluorescent DNA in each sample were measured. The
fluorescent oligonucleotides were displaced from the nanoparticle surface using DTT. Then 200 μL of
the gold nanoparticle conjugate solution was treated with 200 μL of a 1 M DTT solution in 0.18 M
sodium phosphate buffer, (pH = 8) at room temperature for two hours. The sample was centrifuged to
remove the sediment from the supernatant and the fluorescence spectra was recorded (conditions:
λEx = 495 nm and λEm = 510–550 nm). For each gold nanoparticle conjugate five different aliquots
were prepared. Standard curves were prepared with known concentrations of the fluorescein disulfide
oligonucleotide 14 using the same buffer, salt and DTT concentrations were prepared. The fluorescents
values when correlated with the standard calibration curve gave a concentration for the fluorescent
oligonucleotide in solution. The average number of oligonucleotides per particle was obtained by
dividing the measured oligonucleotide molar concentration by the original conjugate gold nanoparticle
concentration. Normalized surface coverage values were calculated by dividing by the surface area of
the sphere which can be easily converted to pmol/cm2.
3.8. Denaturation Studies
Oligonucleotide duplexes (Table 2, entries 1–6) were dissolved in 0.3 M NaCl, 10 mM sodium
phosphate buffer (pH = 7.0). The melting experiments were performed in duplicate at 3.5 μM
concentration of oligonucleotide. The samples were heated at 90 °C for 5 min, allowed to cool slowly
to room temperature to induce annealing and then kept overnight in a refrigerator at 4 °C. The melting
curves were recorded by heating the samples with a temperature controller from 5 to 75 °C at a
constant rate of 1 °C/min and monitoring the absorbance at 260 nm. Denaturation curves for hairpin
oligonucleotides 11 and the corresponding unmodified hairpin were performed in duplicate at 2.8 μM
oligonucleotide concentration in a 50 mM NaCl, 10 mM sodium phosphate buffer (pH = 7.0) (entries 7
and 8). The melting curves were recorded by heating the samples with a temperature controller from
20 to 85 °C at a constant rate of 1 °C/min and monitoring the absorbance at 260 nm. During the
experiment, when the temperature was below 25 °C, argon was flushed to prevent water condensation
on the cuvettes. The melting experiments were recorded in 1 cm path-length cells. The Tm values were
calculated with the Meltwin 3.2 software [38].
4. Conclusions
In summary, the preparation of novel monomer units for the introduction of thiol groups in
oligonucleotides is described. The phosphoramidite derivative and functionalized solid support are
easily prepared and allow the introduction of thiol group at terminal and internal positions of
oligonucleotides. The monomers are made from simple and commercially available building blocks:
L-threoninol and 3-mercaptopropionic acid. Several oligonucleotides of different lengths carrying thiol
groups were prepared and obtained in good yields demonstrating the utility of the novel monomer
units. During the optimization of solid-phase synthesis protocols we observed that standard iodine
solution is preferred to tert-butyl hydroperoxide solution and that ammonia treatment at 55 °C for

Molecules 2012, 17
10043
extended time can be detrimental for the integrity of the novel thiol derivative. The use of mild
protecting groups is recommended to minimize this last side reaction although the extension of the side
reaction is not high. The resulting thiol-oligonucleotides react specifically and efficiently with
molecules bearing maleimido- and bromoacetamido- groups and they can be used for the
functionalization of gold nanoparticles. The new reagent allows the introduction of thiol group at any
position of the sequence and, for this reason; it was possible to demonstrate the modification of gold
nanoparticles through the reaction of the thiol group located in the middle of the oligonucleotide.
Acknowledgments
This work was supported by the Spanish Ministry of Education (CTQ2010-20541-C03-01), the
EECC (FUNMOL, FP7-NMP-213382-2), the AECID (A1/038984/11) and the Generalitat de
Catalunya (2009/SGR/208). CIBER-BBN is an initiative funded by the VI National R&D&i Plan
2008–2011, Iniciativa Ingenio 2010, Consolider Program, CIBER Actions and financed by the
Instituto de Salud Carlos III with assistance from the European Regional Development Fund. RF is
recipient of a FPI contract from the Spanish Ministry of Science. We are thankful to Alejandra V.
Garibotti for the analysis and purification of oligonucleotide 12 and Marta Vilaseca for the
measurement of the mass of oligonucleotide 12 by electrospray.
Supplementary Materials
Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/17/9/10026/s1.
References
1. Connolly, B.A. Chemical synthesis of oligonucleotides containing a free suphydryl group and
subsequent attachment of thiol specific probes. Nucleic Acids Res. 1985, 13, 4485–4502.
2. Beaucage, S.L.; Iyer, R.P. The functionalization of oligonucleotides via phosphoramidite
derivatives. Tetrahedron 1993, 49, 1925–1963.
3. Eritja, R.; Pons, A.; Escarceller, M.; Giralt, E.; Albericio, F. Synthesis of defined peptide-
oligonucleotide hybrids containing a nuclear transport signal sequence. Tetrahedron 1991, 47,
4113–4120.
4. Gottschling, D.; Seliger, H.; Tarrasón, G.; Piulats, J.; Eritja, R. Synthesis of oligodeoxynucleotides
containing N4-mercaptoethylcytosine and their use in the preparation of oligonucleotide-peptide
conjugates carrying c-myc tag sequence. Bioconjug. Chem. 1998, 9, 831–837.
5. Zuckermann, R.N.; Schultz, P.G. A hybrid sequence selective ribonuclease. J. Am. Chem. Soc.
1988, 110, 6592–9594.
6. Kukolka, F.; Lovrinovic; Wacker, R.; Niemeyer, C.M. Covalent coupling of DNA
oligonucleotides and streptavidin. In Methods in Molecular Biology. Bioconjugation Protocols:
Strategies and Methods; Niemeyer, C.H., Ed.; Humana Press Inc.: Totowa, NJ, USA, 2004;
Volume 283; Chapter 12, pp. 181–196.
7. Corey, D.R. 48000-fold acceleration of hybridization by chemically modified oligonucleotides.
J. Am. Chem. Soc. 1995, 117, 9373–9374.

Molecules 2012, 17
10044
8. Ferentz, A.E.; Keating, T.A.; Verdine, G.L. Synthesis and characterization of disulfide
cross-linked oligonucleotides. J. Am. Chem. Soc. 1993, 115, 9006–9014.
9. Osborne, S.E.; Cain, R.J.; Glick, G.D. Structure and dynamics of disulfide cross-linked DNA
triple helixes. J. Am. Chem. Soc. 1997, 119, 1171–1182.
10. Steele, A.B.; Levicky, R.L.; Herne, T.M.; Tarlov, M.J. Immobilization of nucleic acids at solid
surfaces: Effect of the oligonucleotide length on layer assembly. Biophys. J. 2000, 79, 975–981.
11. Mourougou-Candoni, N.; Naud, C.; Thibaudau, F. Adsorption of thiolated oligonucleotides on
gold surfaces: An atomic force microscopy study. Langmuir 2003, 19, 682–686.
12. Manning, B.; Eritja, R. Use of oligonucleotides carrying photolabile groups for the control of the
deposition of nanoparticles in surfaces and nanoparticle association. Int. J. Mol. Sci. 2011, 12,
7238–7249.
13. Elghanian, R.; Storhoff, J.J.; Mucic, R.C.; Letsinger, R.L.; Mirkin, C.A. Selective colorimetric
detection of polynucleotides based on the distance-dependent optical properties of gold
nanoparticles. Science 1997, 277, 1078–1081.
14. Mirkin, C.A.; Letsinger, R.L.; Mucic, R.C.; Storhoff, J.J. A DNA-based method for rational
assembling nanoparticles into macroscopic materials. Nature 1996, 382, 607–609.
15. Alivisatos, A.P.; Johnsson, K.P.; Peng, X.G.; Wilson, T.E.; Loweth, C.J.; Bruchez M.P., Jr.;
Schultz, P.G. Organization of “nanocrystal molecules” using DNA. Nature 1996, 382, 609–611.
16. Wen, Y.; McLaughlin, C.K.; Lo, P.K.; Yang, H.; Sleiman, H.F. Stable gold nanoparticle
conjugation to internal DNA positions: Facile generation of discrete gold nanoparticle-DNA
assemblies. Bioconjug. Chem. 2010, 21, 1413–1416.
17. Garibotti, A.V.; Sisquella, X.; Martínez, E.; Eritja, R. Assembly of two-dimensional DNA crystals
carrying N4-[2-(tert-butyldisulfanyl)ethyl]-cytosine residues. Helv. Chim. Acta 2009, 92, 1466–1472.
18. Garibotti, A.V.; Pérez-Rentero, S.; Eritja, R. Functionalization and self-assembly of DNA
bidimensional arrays. Int. J. Mol. Sci. 2011, 12, 5641–5651.
19. Pérez-Rentero, S.; Garibotti, A.V.; Eritja, R. Solid-phase synthesis of oligodeoxynucleotides
carrying N4-[2-t-butyldisulfanyl)ethyl]-5-methylcytosine. Molecules 2010, 15, 5692–5707.
20. Wünsch, E.; Moroder, L.; Romani, S. 1-(tert-Buthylthio)-1,2-hydrazinedicarboxylic acid
derivatives. Hope-Seyler’s Z. Physiol. Chem. 1982, 363, 1461–1464.
21. Asanuma, H.; Shirasuka, K.; Takarada, T.; Kashida, H.; Komiyama, M. DNA-dye conjugates for
controllable H* aggregation. J. Am. Chem. Soc. 2003, 125, 2217–2223.
22. Kashida, H.; Liang, X.; Asanuma, H. Rational design of functional DNA with a non-ribose
acyclic scaffold. Curr. Org. Chem. 2009, 13, 1065–1084.
23. Aviñó, A.; Navarro, I.; Farrera-Sinfreu, J.; Royo, M.; Aymamí, J.; Delgado, A.; Llebaria, A.;
Albericio, F.; Eritja, R. Solid-phase synthesis of oligomers carrying several chromophore units
linked by phosphodiester backbones. Bioorg. Med. Chem. Lett. 2008, 18, 2306–2310.
24. Schnippering, M.; Zahn, A.; Liu, S.X.; Leumann, C.; Decurtins, S. Synthesis and electrochemical
properties of TTF modified oligodeoxynucleotides. Chem. Commun. 2009, 45, 5552–5554.
25. Pérez-Rentero, S.; Gállego, I.; Somoza, A.; Ferreira, R.; Janousek, J.; Belohradsky, M.; Stara, I.;
Stary, I.; Eritja, R. Interstrand interactions on DNA duplexes modified by TTF units at the 3' or
5'-ends. RSC Adv. 2012, 2, 4069–4071.

Molecules 2012, 17
10045
26. Somoza, A.; Terrazas, M.; Eritja, R. Modified siRNAs for the study of the PAZ domain.
Chem. Commun. 2010, 46, 4270–4272.
27. Kiujpers, W.H.A.; van Boeckel, C.A.A. A new strategy for the solid-phase synthesis of
5'-thiolated oligodeoxynucleotides. Tetrahedron 1993, 49, 10931–10944.
28. Glick, G.D. Synthesis of a conformationally restricted DNA hairpin. J. Org. Chem. 1991, 56,
6746–6747.
29. de La Torre, B.G.; Aviñó, A.; Escarceller, M.; Royo, M.; Albericio, F.; Eritja, R. Use of a
base-labile protected of 6-mercaptohexanol for the preparation of oligonucleotides containing a
thiol group at the 5'-end. Nucleosides Nucleotides 1993, 12, 993–1005.
30. Manning, B.; Pérez-Rentero, S.; Garibotti, A.V.; Ramos, R.; Eritja, R. Modified oligonucleotides
for biosensing applications. Sens. Lett. 2009, 7, 774–781.
31. Takada, T.; Kawano, Y.; Nakamura, M.; Tamana, K. Photo-triggered generation of a free thiol
group on DNA: Application to DNA conjugation. Tetrahedron Lett. 2012, 53, 78–81.
32. Winfree, E.; Liu, F.; Wenzler, L.A.; Seeman, N.C. Design and self-asembly of two-dimensional
DNA crystals. Nature 1998, 394, 539–544.
33. Hurst, S.J.; Lytton-Jean, A.K.R.; Mirkin, C.A. Maximizing DNA loading on a range of gold
nanoparticle sizes. Anal. Chem. 2006, 78, 8313–8318.
34. Li, Z.; Jin, R.; Mirkin, C.A.; Letsinger, R.L. Multiple thiol-anchor capped DNA-gold nanoparticle
conjugates. Nucleic Acids Res. 2002, 30, 1558–1562.
35. Dougan, J.A.; Karlsson, C.; Smith, W.E.; Graham, D. Enhanced oligonucleotide-nanoparticle
conjugate stability using thioctic acid modified oligonucleotides. Nucleic Acids Res. 2007, 35,
3668–3675.
36. Demers, L.M.; Mirkin, C.A.; Mucic, R.C.; Reynolds, R.A., III; Letsinger, R.L.; Elghanian, R.;
Viswanadham, G. A fluorescence-bases method for determining the surface coverage and
hybridization efficiency of thiol-capped oligonucleotides bound to gold thin films and
nanoparticles. Anal. Chem. 2000, 72, 5535–5541.
37. Sandström, P.; Boncheva, M.; Åkerman, B. Nonspecific and thiol-specific binding of DNA to
gold nanoparticle. Langmuir 2003, 19, 7537–7543.
38. McDowell, J.A.; Turner, D.H. Investigation of the structural basis for thermodynamic stabilities
of tandem GU mismatches: Solution structure of (rGAGGUCUC)2 by two-dimensional NMR and
simulated annealing. Biochemistry 1996, 35, 14077–14089.
Sample Availability: Samples of the compounds 1–6 are available from the authors.
© 2012 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
