2
N. Gumrukcuoglu et al.
1
capacity to protect organisms and cells from damage
induced by oxidative stress during metabolism.
In this present study, we have synthesized some new
1,2,4-bis triazole compounds and radical scavenging and
antioxidant activities for the newly synthesized com-
pounds are evaluated using four antioxidant method-
ologies. Moreover, the new synthesized compounds were
screened as urease-elastase inhibitors and antibacterial
activity.
(aromatic ring); H-NMR (DMSO-d6) δ (ppm): 1.19 (t,
12H, CH3), 1.92 (bs, 8H, CH2), 2.68–2.73 (m, 4H, OCH2),
4.16 (bs, 4H, OCH2), Ar-H: [7.09–7.12 (m, 4H), 7.83–7.88
(m, 4H)], (8.73 (s, 2H, N=CH); 13C-NMR (DMSO-d6) δ
(ppm): 166.87 (2C, N=CH), 152.11 (4C, triazole C3, C5),
Ar-C: [132.49 (4CH), 131.55 (4CH), 125.08(2C), 115.82
(2C)], 68.26 (2C, OCH2), 25.85 (2C, OCH2), 18.73 (4C,
CH2), 11.68 (4C, CH3). ESI-MS(TOF) (M+H)+:543.3313
Anal. Calc. For (C30H38N8O2):542.7082.
Synthesis of reduced compounds 4a-b
Materials and methods
e corresponding compound 3a-b (0.005 mol) was dis-
solved in dried methanol (50 mL) and NaBH4 (0.01 mol)
was added in small portions to this solution. e mixture
was refluxed for 20 min and then allowed to cool. After
evaporation at 30–35°C under reduced pressure, the
solid residue was washed with cold water. After drying
in vacuo, the solid product was recrystallized from an
appropriate solvent (1:1 ethanol-water, unless otherwise
noted) to afford the desired compound.
General
All chemicals and solvents are commercially available
and were used after distillation or treatment with drying
agents. Mp: cap. melting-point apparatus (Barnstead-
Electrothermal 9200, Iowa USA); uncorrected. IR Spectra:
solns in KBr pellets with a Perkin-Elmer 100 FTIR
spectrometer (Cambridge, England). H- and 13C- NMR
1
spectra (in DMSO): 200 (50) MHz Varian spectrometer
(Danbury, CT); δ in ppm; Me4Si as the internal standard.
Mass spectra: Agilent 6230 TOF (ESI-MS) (CA, USA).
Antioxidant activities of samples were determined in a
spectrophotometer (UV-1240, Shimadzu, Japan).
N,N’-(2,2’-(butane-1,4-diylbis(oxy))bis(2,1-phe-
nylene)bis(methylene)bis(3,5-diethyl-4H-1,2,4-triazol-
4-amine) (4a):Yield (0.39 g, 50%); m.p. 102–103°C; IR:
3239 (NH), 1600 (C=N), 1237 (C-O), 752 cm−1 (aromatic
1
ring); H-NMR (DMSOd6) δ (ppm): 1.16 (t, 12H, CH3),
Synthesis of bis-aldehydes 1a-b and amino
compound 2
1.88 (s, 8H, CH2), 4.02 (s, 4H, OCH2), 4.52 (s, 4H, OCH2),
4.78 (bs, 4H, NH-CH2), 6.45 (t, 2H, NH), Ar-H: [6.89–6.93
(m, 4H), 7.15–7.19 (m, 2H), 7.37 (d, 2H)]; 13C-NMR
(DMSO-d6) δ (ppm): 155.99 (4C, triazole C3, C5), Ar-C:
[130.84 (2CH), 130.43 (2CH), 129.25 (2CH), 128.65 (2C),
121.67 (2C), 115.83 (2CH)], 67.85 (2C, OCH2), 54.10 (2C,
NH-CH2), 26.28 (2C, OCH2), 23.70 (4C, CH2), 11.96 (4C,
CH3). ESI-MS(TOF) (M+H)+:547.3521 Anal. Calc. For
(C30H42N8O2):546.7398.
Bis-aldehydes 1a-b9 and 4-Amino-3,5-diethyl-4H-1,
2,4-triazole(2)10 were prepared by using literature
procedures.
Synthesis of bis-schiff bases 3a-b
e corresponding bis-aldehyde (0.01 mol) was added
to a solution of compound 3 (0.005 mol) in glacial acetic
acid (20 mL) and the mixture was refluxed for 16 h. After
cooling, the mixture was poured into a beaker containing
ice-water (100 mL). e precipitate formed was filtered.
After drying in vacuo, the product was recrystallized
from 1:2 benzene-petroleum ether to give the desired
compound.
N,N’-(4,4’-(butane-1,4-diylbis(oxy))bis(4,1-phe-
nylene))bis(methylene)bis(3,5-diethyl-4H-1,2,4-triazol-
4-amine) (4b): Yield (0.25 g, 49.5%); m.p. 130–131°C; IR:
3193 (NH), 1611 (C=N), 1249 (C-O), 830 cm−1 (aromatic
ring); 1H-NMR (DMSOd6) δ(ppm): 1.16 (t, 12H, CH3), 1.84
(s, 8H, CH2), 3.96 (s, 4H, OCH2), 4.00 (s, 4H, OCH2), 4.92
(bs, 4H, NH-CH2), 6.62 (bs, 2H, NH), Ar-H: [6.85–6.88 (m,
4H), 7.12–7.21 (m, 4H)]; 13C-NMR (DMSO-d6) δ (ppm):
151.46 (4C, triazole C3, C5), Ar-C: [135.87 (2C), 130.59
(2CH), 129.76 (2CH), 128.83 (2CH), 122.04 (2C), 114.21
(2CH)], 68.10 (2C, OCH2), 55.77 (2C, NH-CH2), 27.09 (2C,
OCH2), 24.13 (4C, CH2), 11.76 (4C, CH3). ESI-MS(TOF)
(M+H)+:547.3533 Anal. Calc. For (C30H42N8O2):546.7398.
Antibacterial activity was measured using the stan-
dard method of diffusion disc plates on agar11. Elastase
activity was examined by using N-succinyl-Ala-Ala-Ala-
p-nitroanilide (STANA) as a substrate and by the mea-
suring the release of p-nitroaniline at 410nm. Urease
inhibitory activity was determined according to Van Slyke
and Archilbald12. e DPPH (1,1-diphenyl-2-picrylhydra-
zyl) radical scavenging activity of the triazole derivatives
was measured according to the procedure described by
Brand-Williams13. e ABTS radical scavenging activity
of the triazole derivatives was measured according to the
(N,N’,N,N’)-N,N’-(2,2’-(butane-1,4-diylbis(oxy))
bis(2,1-phenylene)bis(methan-1-yl-1-ylidene)bis (3,5-
diethyl-4H-1,2,4-triazol-4-amine)(3a):Yield(0,93g,65%);
m.p. 100–101 °C; IR: 1600 (C=N), 1249 (C-O), 751cm−1
1
(aromatic ring); H-NMR (DMSO-d6) δ (ppm): 1.18 (t,
12H, CH3), 1.98 (bs, 8H, CH2), 2.65–2.69 (m, 4H, OCH2),
4.20 (bs, 4H, OCH2), Ar-H: [7.02–7.06 (m, 2H), 7.18–7.22
(m, 2H), 7.59–7.66 (m, 4H)], 8.89 (s, 2H, N=CH); 13C-NMR
(DMSO-d6) δ (ppm): 166.31 (2C, N=CH), 152.26 (4C,
triazole C3, C5), Ar-C: [137.05 (2CH), 135.68 (2C), 128.36
(2CH), 125.18 (2C), 121.25 (2CH), 114.20 (2CH)], 68.68
(2C, OCH2), 23.94 (2C, OCH2), 18.92 (4C, CH2), 11.84
(4C, CH3). ESI-MS(TOF) (M+H)+:543.3646 Anal. Calc. For
(C30H38N8O2):542.7082.

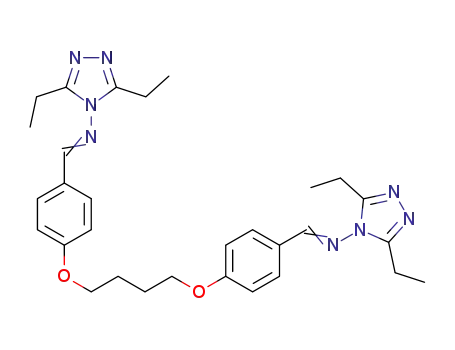

(N,N’,N,N’)-N,N’-(4,4’-(butane-1,4-diylbis(oxy))
bis(4,1-phenylene)bis(methan-1-yl-1-ylidene)bis (3,5-
diethyl-4H-1,2,4-triazol-4-amine) (3b): Yield (0.79, 55%);
m.p. 101–102°C IR: 1605 (C=N), 1251 (C-O), 831 cm−1
GENZ 636359
Journal of Enzyme Inhibition and Medicinal Chemistry
