Lipase-immobilized magnetic chitosan nanoparticles for kinetic resolution of (R,S)-ibuprofen

Article abstract of DOI:10.1016/j.molcatb.2013.04.008

Chitosan (CS)-poly[N-benzyl-2-(methacryloxy)-N,N-dimethylethanaminium bromide] coated magnetic nanoparticles were prepared by co-precipitation method via epichlorohydrin CS cross-linking reaction and were used in the kinetic resolution of (R,S)-ibuprofen by enantioselective esterification. Enzyme immobilized onto the surface of the new magnetic supports with the use of N-(3- dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride (EDC)/N-hydroxysulfo-succinimide sodium salt (sulfo-NHS) procedure demonstrated high catalytic activity that enabled us to obtain (S)-methyl ester of ibuprofen with high enantioselectivity (E = 50.6). The chiral compounds that resulted from the application of magnetic nanoparticles were analyzed with the use of chiral stationary phases. It should be emphasized that the main advantage of the support is the possibility to magnetically recovery and effective separation (even up to 5 s) from the reaction mixture with the use of magnet. The properties of magnetic particles allow for better optimization and may reduce the total costs of the esterification reaction of ibuprofen. Moreover, the application of lipase-immobilized magnetic supports enables to maintain high enantioselective activity after repeated use.

Full text of DOI:10.1016/j.molcatb.2013.04.008

Accepted Manuscript
Title: Lipase-immobilized magnetic chitosan nanoparticles for
kinetic resolution of (R,S)-ibuprofen
´
Author: Tomasz Siodmiak Marta Ziegler-Borowska Michał
Piotr Marszałł
PII:
S1381-1177(13)00107-0
DOI:
Reference:
http://dx.doi.org/doi:10.1016/j.molcatb.2013.04.008
MOLCAB 2667
To appear in:
Journal of Molecular Catalysis B: Enzymatic
Received date:
Revised date:
Accepted date:
14-12-2012
8-4-2013
15-4-2013
´
Please cite this article as: T. Siodmiak, M. Ziegler-Borowska, M.P. Marszałł,
Lipase-immobilized magnetic chitosan nanoparticles for kinetic resolution
of (R,S)-ibuprofen, Journal of Molecular Catalysis B: Enzymatic (2013),
http://dx.doi.org/10.1016/j.molcatb.2013.04.008
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

*Research Highlights
Highlights
-Chitosan – poly [N-benzyl-2-(methacryloxy)-N,N -dimethyl-ethanaminium bromide] coated
magnetic nanoparticles were prepared
- High enantioselectivity of kinetic resolution of (R,S)-ibuprofen was obtained with the use of
lipase-immobilized chitosan magnetic nanoparticles
- The sulfo-NHS/EDC-activated magnetic particles provide easy recovery and reuse of lipase.
- Baseline resolution obtained for all analyzed compounds using chiral stationary phases
Page 1 of 28

*Graphical Abstract (for review)
Graphical abstract
Page 2 of 28

*Manuscript
1
Lipase-immobilized magnetic chitosan nanoparticles for kinetic resolution
2
3
4
5
6
of (R,S)-ibuprofen
Tomasz Siódmiaka, Marta Ziegler-Borowskab, Michał Piotr Marszałła*
a
7
8
9
10
11
12
13
Department of Medicinal Chemistry, Collegium Medicum in Bydgoszcz, Faculty of Pharmacy, Nicolaus
Copernicus University, Dr. A. Jurasza 2, 85-089 Bydgoszcz, Poland
Chair of Chemistry and Photochemistry of Polymers, Faculty of Chemistry, Nicolaus Copernicus University,
Gagarina 7, 87-100 Toruń, Poland
b
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
*Corresponding author. Tel.: +48 52 5853540; fax: +48 525853529; e-mail address:
mmars@cm.umk.pl (M.P. Marszałł); work address: Collegium Medicum in Bydgoszcz,
Jurasza 2, 85-089 Bydgoszcz, Poland
1
Page 3 of 28

51
52
53
54
Abstract
Chitosan (CS) – poly [N-benzyl-2-(methacryloxy)-N,N –dimethylethanaminium bromide]
coated magnetic nanoparticles were prepared by co-precipitation method via epichlorohydrin
CS cross-linking reaction and were used in the kinetic resolution of (R,S)-ibuprofen by
enantioselective esterification. Enzyme immobilized onto the surface of the new magnetic
supports with the use of N-(3-dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride
(EDC)/N-hydroxysulfo-succinimide sodium salt (sulfo-NHS) procedure demonstrated high
catalytic activity that allowed to obtain (S)-methyl ester of ibuprofen with high
enantioselectivity (E=50.6). The chiral compounds resulted from the application of magnetic
nanoparticles were analyzed with the use of chiral stationary phases. It should be emphasized,
that the main advantage of the support is the possibility to magnetically recovery and effective
separation (even up to 5 sec.) from the reaction mixture with the use of magnet. The
properties of magnetic particles allow for better optimization and may reduce the total costs of
the esterification reaction of ibuprofen. Moreover, the application of lipase-immobilized
magnetic supports enables to maintain high enantioselective activity after repeatedly use.
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
Keywords
70
71
Keywords: Candida rugosa lipase; chitosan magnetic nanoparticles; (R,S)-ibuprofen;
immobilization; kinetic resolution.
72
73
74
75
76
1. Introduction
The development a new strategies for synthesis of enantiomerically pure compounds is
still an open challenge in the chemical and pharmaceutical industry [1]. The biotechnology is
an alternative approach offering more environmentally and economically attractive way to
obtain bioactive and valuable compounds. Lipases are very suitable enzymes for organic
synthesis because of their capacity of catalysing different reactions such as asymmetric
esterification, asymmetric transesterifiaction and asymmetric hydrolysis [2,3]. These enzymes
have been used in the resolution of racemic mixture for the preparation of optically pure
compounds [4-8]. Because of their low stability the application of lipases in the industry is
limited. Therefore, many lipase immobilization techniques have been employed [9-11]. The
most important factors that should be taken into account in the selection of the immobilization
strategy include: good catalytic activity, stability and reusability of the enzymes. Numerous
77
78
79
80
81
82
83
84
85
86
2
Page 4 of 28

87
88
reports on the immobilization of lipase techniques onto different supports have been
published so far [12-18]. The main advantage of using lipase-immobilized magnetic particles
is the ability to recover them from the reaction medium and thus reduce the costs of the
reaction, which might be of special importance for the chemical and pharmaceutical industry
[19-21]. Most recently, the magnetic particles technology has been found to be a convenient
tool for separation of any molecule or protein that has an affinity for the immobilized material
onto the surface of magnetic supports [22-24].
89
90
91
92
93
94
Triiron tetraoxide magnetic nanoparticles, with their potential application for enzyme
immobilization have attracted much attention because of their interesting and preferable
physical and chemical properties, such as stability, biocompatibility and superparamagnetism.
The special importance is that the surface properties can be modified depending on the
immobilized enzyme and reaction medium [25,26]. Polymeric coatings on magnetite
nanoparticles have a high potential in several areas of applications especially for organic
catalysis and bio-separation. One of the most interesting polymer for magnetic nanoparticles
coating is chitosan, a product obtained by partial deacetylation of chitine in alkaline
conditions [27]. It is a polycationic polymer with a specific structure and properties. Its
biocompatibility and the presence of readily functionalizable groups (amino and hydroxyl)
allows such material to be used in biomedical and synthetic applications.
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
2-Arylpropionic acids (profens) are known as major nonsteroidal anti-inflammatory
drugs (NSAID) used in the treatment of headache, rheumatoid arthritis, cephalgia, muscular
strain [28-30]. All those profen drugs have the chiral carbon atom within the propionic acid
moiety. Kinetic resolution of profens is important from the pharmacological point of view
because enantiomers of these drugs demonstrate different therapeutic activities. One of the
most frequently used drugs within this therapeutic group is (R,S)- ibuprofen. The (S)-
enantiomer of this drug is 160 times more active than its (R)- enantiomer in the in vitro
inhibition of prostaglandin synthesis. Additionally, the latter contributes to increased side
effects affecting to the gastrointestinal tract, normal lipids metabolism and membrane
function [31,32].
In the present study, lipase-immobilized magnetic nanoparticles for the resolution of
(R,S)-ibuprofen and its esters have been studied. The tested “enzyme magnetic supports” were
assessed as potential technique to obtain (S)- esters of ibuprofen. Superparamagnetic triiron
tetraoxide nanoparticles grafted with chitosan and amphiphilic polymer have been synthesized
by co-precipitation of iron oxide in the presence of these polymers. The optimization of
immobilization conditions of lipase onto EDC/sulfo-NHS-activated chitosan magnetic
3
Page 5 of 28

121
122
123
124
125
126
nanoparticles was performed as well as the amount and activity of immobilized lipase was
determined. The chiral compounds obtained as a result of the application of magnetic supports
were analyzed with the use of chiral stationary phases. The optimization of chiral
chromatographic conditions involved the selection of stationary phases, mobile phase
composition, flow rate, volume of injected analytes and temperature of chromatographic
process.
127
128
129
130
131
2. Material and methods
2.1. Chemicals
(R,S)-ibuprofen, (S)-ibuprofen, N-(3-dimethylaminopropyl)-N′-ethylcarbodiimide
hydrochloride (EDC), N-hydroxysulfo-succinimide sodium salt (sulfo-NHS), n-hexane, iron
(II) chloride tetrahydrate, iron (III) chloride hexahydrate, chitosan (low molecular weight),
acetic acid, sodium hydroxide, benzyl bromide, 2-(dimethylamino)ethylmethacrylate and
Bradford reagent were purchased from Sigma-Aldrich Co. (Stainhaim, Germany). 2-propanol,
cyclohexane, sodium sulphate anhydrous, sodium sulphate decahydrate, molecular sieves 4Å,
sodium phosphate dibasic dehydrate, orthophosphoric acid solution, sodium, other solvents,
were purchased from POCH S.A. (Gliwice, Poland). Gum Arabic and olive oil were
purchased from local source. The (R)- and (S)-esters of ibuprofen were obtained by the
products of standard esterification reaction of (R,S)-ibuprofen and (S)-ibuprofen with
appropriate alcohols (methanol, ethanol, n-propanol, n-butanol) using sulphuric acid (H2SO4)
as catalyst [33]. Lipase OF from Candida rugosa (activity 380,000 units/g solid) was a gift
from Meito Sangyo Co., LTD. (Japan). AIBN (2,2′-Azobis(2-methylpropionitrile) was
recrystallized from ethanol before use. All supernatants were separated from magnetic
nanoparticles using a magnetic separator Dynal MPC-S (Invitrogen Corporation, Carlsbad,
CA, USA). Water used in the study was prepared using a Milli-QWater Purification System
(Millipore, Bedford, MA, USA). All incubations were performed at adjusted temperature and
number of rotations (600 rpm) in Thermomixer comfort (Eppendorf Co, Germany).
Experiments with air and moisture sensitive materials were carried under nitrogen
atmosphere. Glassware was oven dried for several hours, assembled hot, and cooled in a
stream of nitrogen.
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
4
Page 6 of 28

156
157
158
2.2. Instrumentation
The Shimadzu HPLC system (Japan) equipped with solvent delivery pump LC-20AD
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
combined with gradient systems, UV-VIS detector model SPD-20A, degasser model DGU-
20A5, an autosampler model SIL-20ACHT and a column oven model CTO-10ASVP. Lux
Cellulose-1 (LC-1) (4.6mm x 250 mm x 5μm) column with cellulose tris(3,5-
dimethylphenylcarbamate) stationary phase, Lux Cellulose-2 (LC-2) (4.6mm x 250 mm x
5μm) column with cellulose tris(3-chloro-4-methylphenylcarbamate) stationary phase, Lux
Cellulose-3 (LC-3) (4.6mm x 250 mm x 5μm) column with cellulose tris(4-methylbenzoate)
stationary phase, Lux Amylose-2 (LA-2) (4.6mm x 250 mm x 5μm) column with amylose
tris(5-chloro-2-methylphenylcarbamate) stationary phase and Guard Cartridge System model
KJO-4282 were purchased from Phenomenex Co. Bradford protein assay method was used
with the use of U-1800 Spectrophotometer (Hitachi, Japan).
The Fourier Transform Infrared (FTIR) absorption spectra were recorded on Spectrum
2000 Perkin Elmer spectrometer in KBr. Melting points were determined with a Büchi SMP
32 and Barnstead-Thermolyne Mel-Temp II apparatus in open capillaries and are uncorrected.
1
Scaning electron microscope (SEM) 1430 VP LEO Electron Microscopy Ltd., was used. H
and 13 C NMR spectra were recorded at room temperature with Bruker Avance III 700 and 400
MHz spectrometers. Chemical shifts (in ppm) were determined relative to TMS.
176
177
178
2.3. Chromatographic conditions
The most appropriate chromatographic conditions for (R)- and (S)-ibuprofen and their
esters were optimized with n-hexane/2-propanol/acetic acid (99.6/0.4/0.15 v/v/v) mobile
phase at a flow rate of 1 mL/min. Four types of chiral stationary phases were tested, including
Lux Cellulose-1, Lux Cellulose-2, Lux Cellulose-3 and Lux Amylose-2 with respect to the
peak shape and the chiral resolution. The Lux Cellulose-1 (4.6mm x 250 mm x 5μm) HPLC
column was chosen as an optimal one for the separation of (R)- and (S)-ibuprofen and their
esters. The chromatographic process was operated at 20°C. The detection UV wavelength was
set at 254 nm. The enantiomeric excess of the substrate (ees) and the product (eep) as well
as the conversion (c), enantioselectivity (E) and resolution values (Rs) were calculated
using the equations described in the literature [34-36].
179
180
181
182
183
184
185
186
187
188
189
2.4. Preparation of chitosan – poly [N-benzyl-2-(methacryloxy)-N,N –dimethylethanaminium
190
bromide] coated magnetic nanoparticles
5
Page 7 of 28

191
192
2.4.1. Synthesis of N-benzyl-2-(methacryloyloxy)-N,N-dimethylethanaminium bromide (1)
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
A 2-(dimethylamino)ethyl methacrylate (0.79g, 5mmol) was added dropwise to a
solution of benzyl bromide (0.8 g, 5 mmol) in THF (20 mL) with stirring for 20 min at room
temperature. A white precipitate formed almost immediately. Next, the mixture was separated
by filtration, washed with acetone (3 x 10 mL) and dried under vacuum to gave white solid
(mp. 139-142°C) with 95% yield (1.51g).
1H NMR,DMSOd-6, δ (ppm); 1.92 (s, 3H, CH3), 3.06 (s, 6H, CH3), 3.76 (t, J = 4.7 Hz, 2H,
CH2), 4.63 (m, 2H, CH2), 4.69 (m, 2H, CH2), 5.77 (s,1H, CH), 6.11 (s,1H, CH), 7.51- 7.61
(m, 5H, CHAr).
13C NMR, DMSOd-6, δ (ppm); 18.40, 49.99, 58.63, 62.82, 67.40, 127.12, 128.46, 129.37,
130.78, 133.59, 135.85, 166.35.
2.4.2. Synthesis of poly [N-benzyl-2-(methacryloxy)-N,N –dimethylethanaminium] bromide
(PQ)
AIBN (40 mg, 0.2 mmol) was added carefully in 3 portions to a solution of 1 (1.57g, 5
mmol) in dry acetonitryle (20mL) at 60°C under nitrogen atmosphere. The mixture was
stirred at 60°C under nitrogen for 120h. Insoluble polymer was separated by filtration and
washed with methanol (3 x 10 mL) and dried under vacuum at 30°C for 24h to gave polymer
with almost 80% yield (1.79g)
1H NMR,DMSOd-6, δ (ppm); 1.25 (m. 2H, polym. chain), 1.92 (s, 3H, CH3), 2.20 (s, 6H, N-
CH3), 2.93 (br, 2H, CH2), 3.40 (m, 2H, CH2), 4.69 (br, s, 2H, CH2), 7.51- 7.61 (m, 5H,
CHAr).
2.4.3. Fe3O4 – CS - PQ magnetic nanoparticles
0.2 g of poly [N-benzyl-2-(methacryloxy)-N,N –dimethylethanaminium] bromide was
added into solution of chitosan (0.2 g) in 1% acetic acid (20 mL) and mechanically stirred at
room temperature for 60 min. Iron (II) chloride tetrahydrate (0.74g, 3.7 mmol), iron (III)
chloride hexahydrate (2.02g, 7.5 mmol) were added (1:2 molar ratio) and the resulting
solution was chemically precipitated at room temperature by adding dropwise 30% solution of
NaOH (7mL). To the black mixture epichlorohydrin (0.2 g, 2.5 mmol) was added and the
mixture was mechanically stirred at 50°C for 120 min. The resulting magnetic material were
6
Page 8 of 28

225
226
recovered from the suspension by applying a magnet, washed three times with deionized
water and dried under vacuum at 50°C for 24 h.
227
228
229
230
2.5. Preparation of lipase-immobilized magnetic nanoparticles
2.5.1. Covalent coupling of lipase using EDC and sulfo-NHS onto chitosan magnetic
nanoparticles
231
232
233
The immobilization of lipase onto the surface of chitosan magnetic nanoparticles was
performed by the formation of an amide bond between the carboxyl group of lipase and the
primary amino group of the nanoparticle (Scheme 1). The preparation procedure was similar
with slightly modifications to previously described method of the immobilization of melanin
onto magnetic beads [22]. The 50 mg chitosan magnetic nanoparticles were placed into each
of the four 2 mL centrifuge tubes and rinsed three times with 50 mM phosphate buffer (pH
6.4). Next, the four solutions of 36.5 mg lipase OF in 1.0 mL of 50 mM phosphate buffer (pH
6.4) were prepared. To each of the tubes with lipase the 50 μL EDC solution in phosphate
buffer (2mg/50 μL) were added. The solutions were incubated at 21°C and shaken for 1 h.
After that time 50 μL of sulfo-NHS solution in phosphate buffer (2.4 mg/50 μL) was added to
each of the tubes containing of lipase and EDC. The solutions were also incubated at 21°C 1 h
and shaken. Then, all prepared solutions were transferred into separate centrifuge tubes along
with the previously rinsed chitosan magnetic nanoparticles. Next, the resulting mixtures were
shaken at 600 rpm in a thermomixer for 2 h at 21°C. At last, lipase-immobilized chitosan
nanoparticles were rinsed three times with 0.5 mL of water and were dried overnight at 30°C.
The resulted lipase-immobilized magnetic supports were used in the esterification reaction.
The amount of immobilized lipase adsorbed onto the magnetic nanoparticles was
determined by measuring the initial concentration of lipase and its final concentration in
supernatant after immobilization using the Bradford protein assay method [37]. A calibration
curve constructed with lipase OF solution of known concentration (0.5-2 mg/mL) was used
in the calculation of protein in the initial solution and supernatant. All data used in this
formula are average of triplicate of experiments.
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
2.6. Assay of lipase activity
The enzymatic activities of free and immobilized lipase were measured by titration of
the fatty acid which came from the hydrolysis of olive oil [38, 39]. A 100 mL of olive oil
emulsion was prepared by mixing of olive oil (50 mL) and gum Arabic solution (50 mL, 7%
7
Page 9 of 28

260
261
262
263
264
265
266
267
268
269
w/v). The assay mixture consisted of emulsion (5 mL), phosphate buffer (2 mL, 100 mM, pH
7.4) and free enzyme (1 mL, 6.47 mg/mL) or immobilized lipase (50 mg nanoparticles in 1
mL buffer). Oil hydrolysis was carried out at 37ºC for 30 min. in a shaking water bath at 150
rpm. The reaction was stopped by the addition of 10 mL of ethanol-acetone solution (1:1).
The liberated fatty acid in the medium was determined by titration with 50 mM NaOH
solution using phenolphthalein indicator. One unit of lipase activity (U) was defined as the
amount of enzyme that hydrolyzed olive oil liberating 1 µmol fatty acid per minute under the
assay condition. Activity recovery (%) remaining after immobilization was the ratio
between the activity of immobilized lipase and the activity of the same amount of free
lipase in solution that has been immobilized onto magnetic nanoparticles.
270
271
2.7. Lipase-immobilized chitosan magnetic nanoparticles in the (R,S)-ibuprofen resolution
272
273
The reaction mixture was composed of cyclohexane (700 μL), racemic ibuprofen (8.25
mg, 0.04 mM) and one of the alcohols: methanol (4.88 μL), ethanol (7.04 μL), n-propanol
(9.02 μL), n-buthanol (11.04 μL) as an acyl acceptors. The reaction was started by adding this
solution to the magnetic chitosan nanoparticles with immobilized lipase (6.47 mg of lipase) in
a 1.5 mL tube (substrate/enzyme ratio – 1.27). The effect of water activity on the
esterification reaction was controlled through direct addition of a salt hydrate pair
Na2SO4/Na2SO4 · 10H2O (35 mg in total, with molar ratio of 1:1) and the molecular sieves
4Å. The suspension was incubated at 30°C, shaken (600 rpm) for 140 h in a thermomixer.
The samples were withdrawn after 50 h, 100 h and 140 h. The collected supernatant was
removed by evaporation at room temperature and the residue was dissolved in 0.7 mL mobile

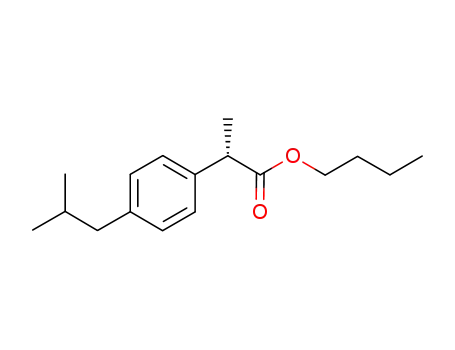

phase and injected (25 μL) into HPLC. The esterification reactions of racemic ibuprofen with
alcohols are shown in Scheme 2.
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
To investigate the reusability of immobilized lipase, after each catalytic cycle lipase-
immobilized magnetic nanoparticles were washed three times with cyclohexane and then were
air dried overnight to remove the organic solvent. Next, magnetic supports were placed into a
fresh medium containing a mixture of methanol (4.88 μL), (R,S)-ibuprofen (8.25 mg), salt
hydrate pair Na2SO4/Na2SO4 · 10H2O (35 mg in total) and molecular sieves 4Å in
cyclohexane (700 μL).
292
293
3. Results and discussion
8
Page 10 of 28

294
295
3.1. Characterization of chitosan – poly [N-benzyl-2-(methacryloxy)-N,N -dimethyl-
ethanaminium bromide] coated magnetic nanoparticles
296
297
Amphiphilic polymer
-
(poly [N-benzyl-2-(methacryloxy)-N,N-dimethylethan-
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
aminium bromide) (PQ) has been prepared from N-benzyl-2-(methacryloyloxy)-N,N-
dimethylethanaminium bromide (1) as a substrate via free radical polymerization with AIBN
as an initiator. Polymerization was performed in nitrogen atmosphere and poly [N-benzyl-2-
(methacryloxy)-N,N-dimethylethanaminium] was synthesized with 80% yield after 120 h
reaction.
Magnetite (Fe3O4)-chitosan (CS)
-
poly [N-benzyl-2-(methacryloxy)-N,N
–
dimethylethanaminium bromide] (PQ) nanoparticles with polymers weight ratio 1:1 were
prepared by co-precipitation method via epichlorohydrin CS cross-linking reaction (Figure 1).
Because of the surface of magnetite with a negative charge has an affinity toward chitosan,
protonated chitosan and quaternized amphiphilic polymer can coat the magnetic Fe3O4
nanoparticles via electrostatic interactions [40]. The cross-linking of chitosan via
epichlorohydrin made polymeric coating more stable without dilution of amino group content
onto the surface of nanoparticles.
The chemical structure of prepared magnetic nanoparticles has been characterized by
FTIR spectroscopy (Figure 2). The spectrum of nanoparticles shows peaks at 3439, 2936 and
1078 cm-1 and indicates the stretching vibrations of NH2 and partially OH group, aliphatic CH
and bending vibrations of CO respectively. The characteristic peak for the Fe-O group of
magnetite at 598 cm-1 was observed which indicated the successful generation of Fe3O4 – CS
– PQ particles. Peaks at 1720 cm-1 and at 1330 cm-1 increasing the stretching vibrations of
C=O groups and quaternized ammonium groups of polymer PQ. Peak at 1155 cm-1 increase
the C-O-C groups from cross-linked chitosan.
The surface morphology of prepared nanoparticles is shown in Figure 3. The average
size was 25-30 nm and the magnetic nanoparticles were physically aggregated.
321
322
3.2. Application of lipase-immobilized chitosan magnetic nanoparticles in the esterification of
323
324
325
326
327
(R,S)- ibuprofen with primary alcohols
The problem of the stability and recovery of commonly used and novel catalysts in
chemistry still exists. A new magnetic nanoparticle-based products were recently introduced
for immobilization of different enzymes. But up to date all studies have focused mainly on the
9
Page 11 of 28

328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
optimization of the immobilization process to characterize the size, structure, magnetic
activity and amount of the immobilized enzyme using the Bradford method.
Immobilization of commercially available lipase OF from Candida rugosa onto the
chitosan magnetic nanoparticles was performed by procedure via EDC/sulfo-NHS cross-
linking reaction. In order to address the issue of advantage of the magnetic nanoparticles
support for the biocatalyst, the optical purity of products, enantioselectivity, separation ability
of used magnetic tools, as well as amount of immobilized enzyme and lipolytic activity of
lipase were determined. Lipase-immobilized chitosan magnetic nanoparticles were applied in
the esterification reaction of (R,S)-ibuprofen with four primary alcohols: methanol, ethanol, n-
propanol and n-buthanol. Enantioselective activity of the used enzyme demonstrates the
ability to catalyzing the esterification of the S-enantiomer of ibuprofen. Depending on the
applied alcohols different effects on the enantioselctivity and conversion of the reactions were
observed. It is assumed that the accessibility of the alcohol to the acyl-enzyme intermediate
has significant impact on the final reaction yield. Therefore, nature of the alcohol moiety play
an important role in the development of the enantioselective esterification reaction catalyzed
by lipase. The influence of the alcohol moiety on the lipase activity were reported several
times in the literature [41-45]. Because of the fact, that active site of enzyme has hydrophobic
character, it is believed that the hydrophobic alcohols are the most appropriate for
esterification catalyzed by lipase. Furthermore, the polar alcohols, like methanol or ethanol
cause the low conversion, because they are able to dehydrate the enzyme [46]. Based on the
results (Table 1), it can be seen, that ethanol has detrimental impact on the enzyme activity,
contributing to decrease the enantioselectivity (E=6.2). However, what should be emphasized,
application of methanol allowed to obtained very high enantioselectivity (enantiomeric
excess of product (eep = 93.5%) and value of enantioselectivity (E=50.6) - higher than with n-
butanol (E=18). The comparison of the enantionselectivity of non- and immobilized forms of
lipase OF in similar reaction conditions demonstrates the lower enantioselectivity of lipase in
native form for all tested alcohols than for immobilized enzyme. These facts suggest that,
immobilization of lipase onto magnetic support affects on enzyme conformation, enabling
effective binding fast-reacting enantiomer to the active site of lipase with formation acyl-
enzyme intermediate.
The addition of a salt hydrate pair Na2SO4/Na2SO4 · 10H2O (35 mg in total, with molar
ratio of 1:1) and the molecular sieves 4Å in to the mixture containing (R,S)-ibuprofen, alcohol
and lipase-immobilized chitosan magnetic nanoparticles allowed to control the water activity.
Lipase acts at the interface between hydrophobic and hydrophilic regions, therefore water
10
Page 12 of 28

362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
content is one of the most important factors affecting the enantioselectivity of this enzyme.
The small amount of water is needed to retain their active three-dimensional conformation
state, stability and active site polarity. During reaction, salt hydrates adsorb water generated
as a by-product and simultaneously provide crystallization water to the components
maintaining appropriate water activity. Additional, the use of molecular sieves in the reaction
improve the adsorption of water.
The amount of lipase immobilized onto the support was found to be 129.4 mg/g
magnetic nanoparticles with a recovery activity yield of 78%. The high value of activity
recovery indicates, that much of the protein was immobilized in an active form. As
reported in the literature, the preference for catalyzing by lipase wide range organic acid chain
length can be modified by the application of different immobilization procedures and carriers
exhibiting different polarity [47-49]. Based on the results, it can be assumed, that application
of quaternary amphiphilic polymer in the synthesis of magnetic nanoparticles increases the
affinity between lipase and hydrophobic substrates and thereby affects on the lipolytic activity
of the immobilized lipase.
However, the main advantage of the proposed lipase-immobilized chitosan magnetic
nanoparticles is that the immobilized lipase is recoverable magnetically and can be effectively
separated from the reaction mixture with the use of magnet, faster than other classical
methods (Figure 4). From economic point of view, the reusability of immobilized lipase is an
important aspect in industrial applications. Moreover, the fast separation of catalysts (even up
to 5 sec.) from mixture of products allows to precisely optimize the esterification reaction of
ibuprofen. It should be also noted, that application of lipase-immobilized chitosan magnetic
nanoparticles enabled to obtain products with high enantioselectivity for selected alcohols.
What is important the “magnetic biocatalyst” has maintained enantioselective activity in
repeatedly use (Figure 5). Enantioselective activity of lipase expressed as an enantiomeric
excess of products (eep) demonstrated high value (eep= 90%) after the 5th cycle. The slight
decrease in enantioselective activity could be caused by the denaturation or leak of lipase
from magnetic nanoparticles. Summarizing the results, it could be concluded that immobilized
lipase has good durability and reusability.
3.3.Analysis of (R,S)-ibuprofen and its esters with the use of chiral stationary phases
After optimization of chromatographic parameters of the four commercial polysaccharide-
based CSPs: Lux Cellulose-1 (LC-1), Lux Cellulose-2 (LC-2), Lux Cellulose-3 (LC-3), Lux
Amylose-2 (LA-2) and based on the previously proposed method by Matthijs et al., the final
11
Page 13 of 28

396
397
398
399
400
401
402
403
404
405
406
chromatographic conditions for enantioselective separation of (R,S)-ibuprofen and its esters
with the use of Lux Cellulose-1 column in NPLC was selected (Figure 6) [49,50]. The main
aim of the optimization strategy for resolution of these compounds was the acceptable
baseline resolution (Rs > 1.5), time of analysis and peak shape. Only LC-1 stationary phase
allowed to obtain acceptable parameters of enantioseparation. The last three columns (LC-2,
LC-3, LA-2) demonstrated lower ability for resolution of (R,S)-ibuprofen and its esters
(Rs<1.5) or no resolution (Rs=0), long time of the elution and inappropriate peak shapes.
Optimized mobile phase for LC-1 was composed with n-hexane/2-propanol/ acetic acid
(99.6/0.4/0.15 v/v/v) at a flow rate of 1 mL/min. The NPLC analyses were performed at
temperature of 20°C. Tested compounds ((R,S)-ibuprofen and its esters) were eluted within 32
min. and showed appropriate peaks shapes and baseline resolution (Rs >1.5).
407
408
409
410
4. Conclusions
In this study the new synthesized chitosan – poly [N-benzyl-2-(methacryloxy)-N,N -
dimethyl-ethanaminium bromide] magnetic particles were used in the kinetic resolution of
(R,S)-ibuprofen by enantioselective esterification. Enzyme immobilized onto the new
magnetic support demonstrated high catalytic activity and allowed to obtain products of the
esterification of (R,S)-ibuprofen with high enantioselectivity. Additionally, lipolytic activity
assay proved high recovery activity (78%) of the immobilized lipase. What is crucial, the
presented “recovering” technique enables the magnetically separation of biocatalyst attached
to the nanoparticles from the reaction media and effectively reuse in other reaction (up to 5
catalytic cycles). From the commercial point of view the use of lipase-immobilized chitosan
magnetic nanoparticles is very important, because of the cost reduction of the reaction, what
might be of special importance for the industrial application. It should be noted, that
optimized of chromatographic conditions with the used of chiral stationary phases allowed for
a baseline resolution (Rs>1.5) of both substrates and products during one chromatographic
analysis.
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
Acknowledgement
We wish to express our sincere thanks to Meito Sangio Co. (Japan) for the supply of
lipase OF. We would also like to thank Bogumiła Kupcewicz, Ph.D., from Department of
Inorganic and Analytical Chemistry, Faculty of Pharmacy, Nicolaus Copernicus University
429
430
12
Page 14 of 28

431
432
433
434
435
436
(Poland) for performed FTIR analysis. The project was partially supported by research grants:
National Science Centre DEC-2011/03/D/NZ7/02296.
437
438
439
References
[1] D. Muñoz Solano, P. Hoyos, M.J. Harnáiz, A.R. Alcántara, J.M. Sánchez-Montero,
Biores. Technol. 115 (2012) 196-207.
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
[2] Y.-C. Xie, H.-Z. Liu, J.-Y. Chen, Biotechnol. Lett. 20 (5) (1998) 455-458.
[3] F.J. Contesini, P.O. Carvalho, Tetrahedron Asym. 17 (2006) 2069-2073.
[4] R.V. Muralidhar, R. Marchant, P. Nigam, J. Chem. Technol. Biotechnol. 76 (2001) 3-8.
[5] B.-S. Chen, U. Hanefeld, J. Mol. Catal. B: Enzym. 85-86 (2013) 239-242.
[6] E.A. Manoel, K.C. Pais, M.C. Flores, L.S. de M. e Miranda, M.A.Z. Coelho, A.B.C.
Simas, D.M.G. Freire, R.O.M.A. de Souza, J. Mol. Catal. B: Enzym. 87 (2013) 139-143.
[7] K.P. Dhake, K.M. Deshmukh, Y.S. Wagh, R.S. Singhal, B.M. Bhanage, J. Mol. Catal. B:
Enzym. 77 (2012) 15-23.
[8] G.D. Yadav, S. Devendran, J. Mol. Catal. B: Enzym. 81 (2012) 58-65.
[9] X. Liu, Y. Guan, R. Shen, H. Liu, J. Chromatogr. B. 822 (2005) 91-97.
[10] W. Xie, N. Ma, Energy Fuels 23 (2009) 1347-1353.
[11] J.C. Santos, P.D. Mijone, G.F.M. Nunes, V.H. Perez, H.F. Castro, Colloids Surf. B:
Biointerfaces 61 (2008) 229-236.
[12] M. Nasratun, H.A. Said, A. Noraziah, A.N. Abd Alla, Am. J. Appl. Sci. 6 (9) (2009)
1653-1657.
[13] V.C.F. da Silva, F.J. Contesini, P.O. Carvahlo, J. Ind. Microbiol. Biotechnol. 36
(2009) 949-954.
[14] G. Bayramoglu, B. Karagoz, B. Altintas, M.Y. Arica, N. Bicak, Bioprocess Biosyst.
Eng. 34 (2011) 735-746.
[15] M.P. Marszałł, T. Siódmiak, Catal. Comm. 24 (2012) 80-84.
[16] I. Belhaj-Ben Romdhane, Z. Ben Romdhane, A. Gargouri, H. Belghith, J. Mol. Catal. B:
Enzym. 68 (2011) 230-239.
[17] D.-H. Zhang, L.-X. Yuwen, C. Li, Y.-Q. Li, Biores. Technol. 124 (2012) 223-236.
[18] K.P. Dhake, A.H. Karoyo, M.H. Mohamed, L.D. Wilson, B.M. Bhanage, J. Mol. Catal. B
13
Page 15 of 28

465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
Enzym. 87 (2013) 105-112.
[19] Y. Liu, S. Jia, Q. Wu, J. Ran, W. Zhang, S. Wu, Catal. Commun. 12 (2011) 717-720.
[20] Y. Jiang, C. Guo, H. Xia, I. Mahmood, C. Liu, H. Liu, J. Mol. Catal. B: Enzym. 58
(2009) 103-109.
[21] E. Yilmaz, M. Sezgin, M. Yilmaz, J. Mol. Catal. B: Enzym. 69 (2011) 35-41.
[22] M.P. Marszałł, A. Buciński, K. Goryński, A. Proszowska, R. Kaliszan, J. Chromatogr. A
1218 (2011) 229-236.
[23] R. Moaddel, M.P. Marszałł, F. Bighi, Q. Yang, X. Duan, I.W. Wainer, Anal. Chem. 79
(2007) 5414-5417.
[24] M.P. Marszałł, R. Moaddel, S. Kole. M. Gandhari, M. Bernier, I.W. Wainer, Anal.
Chem. 80 (2008) 7571-7577.
[25] B. Sahoo, S.K. Sahu, P.Pramanik, J. Mol. Catal. B: Enzym. 69 (2011) 95-102
[26] C.-H. Kuo, Y.-C. Liu, C.-M. J. Chang, J.-W. Chen, C. Chang, C.-J. Shieh, Carbohydr.
Polym. 87 (2012) 2538-2545.
[27] E.I. Rabea, M.E.-T. Badawy, Ch.V. Stevens, G. Smagghe, W. Steurbaut W.
Biomacromolecules, 4 (2003) 1457-1464.
481
482
483
484
485
[28] A. Sánchez, F. Valero, J. Lafuente, C. Solá, Enzyme Microb. Technol. 27 (2000) 157-
166.
[29] R. Morrone, N. D’Antona, D. Lambusta, G. Nicolosi, J. Mol. Catal. B: Enzym. 65 (2010)
49-51.
[30] K. Kato, Y. Gong, T. Saito, H. Kimoto, J. Biosci. Bioeng. 90 (3) (2000) 332-334.
486
487
488
489
490
491
492
493
494
495
496
[31] Y. Liu, F. Wang, T. Tan, J. Mol. Catal. B: Enzym. 56 (2009) 126-130.
[32] D. Chávez-Flores, J.M. Salvador, Biotechnol. J. 4 (2009) 1222-1224.
[33] A. Ghanem, M.N. Aboul-Enein, A. El-Azzouny, M.F. El-Behairy, J. Chromatogr. A.
1217 (2010) 1063-1074.
[34] C.-S. Chen, Y. Fujimoto, G. Girdaukas, C.J. Sih, J. Am. Chem. Soc. 104 (1982)
7294-7299.
[35] A. Ghanem, H.Y. Aboul-Enein, Chirality 17 (2005) 1-15.
[36] The United States Pharmacopeia, USP 25, NF 20, United States Pharmacopeial
Convention, Rockville, MD, 2002, p. 1991.
[37] Bradford M. M., Anal. Biochem. 72 (1976) 248-254.
[38] G. Bayramoglu, M.Y. Arica, J. Mol. Catal. B: Enzym. 55 (2008) 76-83.
14
Page 16 of 28

497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
[39] D.-H. Zhang, L.-X. Yuwen, Y.-L. Xie, W. Li, X.-B. Li, Colloids Surf. B Biointerfaces 89
(2012) 73-78.
[40] D.L. Zhao, X.X. Wang, X.W. Zeng, Q.S. Xia, J.T. Tang, J. Alloys Compd. 477 (1-2)
(2009) 739-743.
[41] I.J. Colton, D.L.T. Yin, P. Grochulski, R.J. Kazlauskas, Adv. Synth. Catal. 353 (2011)
2529-2544.
[42] R.V. Muralidhar, R. Marchant, R. Nigam, J. Chem. Technol. Biotechnol.76 (2001) 3-8.
[43] A. Mustranta, Appl. Microbiol. Biotechnol. 38 (1992) 61-66.
[44] M.L Foresti, M. Galle, M.L. Ferreira, L.E. Briand, J. Chem. Technol. Biotechnol. 84
(2009) 1461-1473.
[45] X. Meng, G. Xu, Q.-L. Zhou, J.-P. Wu, L.-R. Yang, J. Mol. Catal. B: Enzym. 89 (2013)
86-92.
[46] Y. Liu, F. Wang, T. Tan, J. Mol. Catal. B: Enzym. 56 (2009) 126-130.
[47] L. Chronopoulou, G. Kamel, C. Sparago, F. Bordi, S. Lupi, M. Diociaiuti, C. Palocci,
Soft Matter 7 (2011) 2653-2662.
[48] J.C. Santos, T. Bueno, P.C. Molgero da Ros, H.F. de Castro, J. Chem. Technol.
Biotechnol. 82 (2007) 956-961.
[49] Y. Jiang, C. Guo, H. Xia, I. Mahmood, C. Liu, H. Liu, J. Mol. Catal. B: Enzym. 58
(2009) 103-109.
[50] T. Siódmiak, J.K. Rumiński, M.P. Marszałł, Curr. Org. Chem. 16 (2012) 972-977.
[51] N. Matthijs, C. Perrin, M. Maftouh, D.L. Massart, Y. Vander Heyden, J. Chromatogr. A
1041 (2004) 119-133.
15
Page 17 of 28

531
532
533
534
Figure legends
Scheme 1. Immobilization of lipase using EDC and sulfo-NHS onto the surface of chitosan
magnetic nanoparticles.
535
536
537
538
539
Scheme 2. The enantioselective esterification of racemic ibuprofen with alcohols (methanol,
ethanol, n-propanol, n-butanol) with the use of lipase-immobilized
superparamagnetic triiron tetraoxide nanoparticles.
540
541
Figure 1. Superparamagnetic triiron tetraoxide nanoparticle with chitosan and amphiphilic
polymer cross-linked by epichlorohydrin.
542
543
544
Figure 2. FTIR spectrum of the Fe3O4 – CS – PQ nanoparticles.
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
Figure 3. SEM image of magnetic nanoparticles: chitosan and amphiphilic polymer in
weight ratio 1:1 cross-linked by epichlorohydrin.
Figure 4. Magnetic nanoparticles with immobilized lipase dispersed in the reaction medium:
a) without magnet; b) attracted by magnet.
Figure 5. Effect of the reuse of lipase (OF)-immobilized chitosan magnetic nanoparticles on
the enantioselectivity of the esterification of (R,S)-ibuprofen. Reaction conditions:
(R,S)-ibuprofen (8.25 mg), methanol (4.88 μL), immobilized lipase OF (50 mg of
magnetic nanoparticles), salt hydrate pair Na2SO4/Na2SO4 · 10H2O (totally 35mg, with
molar ratio of 1:1), molecular sieves 4Å, cyclohexane (700 μL), temp. 30°C, after 140
h.
Figure 6. HPLC chromatograms of ibuprofen and its esters: A) R-enantiomer of methyl ester
(tR =5.518), S-enantiomer of methyl ester (tR =6.132), R-ibuprofen (tR =25.010) and
S-ibuprofen (tR =29.758); B) R-enantiomer of ethyl ester (tR =5.184), S-enantiomer
of ethyl ester (tR =5.600), R-ibuprofen (tR =25.026) and S-ibuprofen (tR =29.831); C)
R-enantiomer of n-propyl ester (tR =4.902), S-enantiomer of n-propyl ester (tR
=5.281), R-ibuprofen (tR =25.026) and S-ibuprofen (tR =29.920); D) R-enantiomer of
n-butyl ester (tR =4.798), S-enantiomer of n-butyl ester (tR =5.166), R-ibuprofen (tR
=24.992) and S-ibuprofen (tR =29.984);
16
Page 18 of 28

564
565
566
567
568
569
570
571
572
573
Resolution values (Rs): (R,S)- ibuprofen (Rs=5.45), (R,S)-ibuprofen methyl ester
(Rs=2.60), (R,S)-ibuprofen ethyl ester (Rs=1.94), (R,S)-ibuprofen n-propyl ester
(Rs=1.86), (R,S)-ibuprofen n-buthyl ester (Rs=1.78);
Chromatographic conditions: Lux Cellulose-1 (4.6mm x 250 mm x 5μm) column,
mobile phase: n-hexane/2-propanol/ acetic acid (99.6/0.4/0.15 v/v/v), F=1 mL/min.,
t = 20°C, UV= 254 nm.
574
575
576
577
578
579
580
17
Page 19 of 28

Table 1
Table 1. The influence of alcohols on the conversion and the enantioselectivty of the
esterification reaction of (R,S)-ibuprofen with the application of lipase OF-immobilized
superparamagnetic triiron tetraoxide nanoparticles.
Alcohol
Methanol
Ethanol
eep (%)
93.5
ees (%)
54.0
C (%)
36.7
39.3
44.2
50.8
E
50.6
6.2
61.7
40.0
n-Propanol
n-Butanol
68.3
54.1
9.1
76.5
79.1
18.0
Reaction conditions: racemic ibuprofen (8.25 mg, 0.04 mM), one of the alcohols: methanol
(4.88 μL), ethanol (7.04 μL), n-propanol (9.02 μL), n-buthanol (11.04 μL), lipase OF-
immobilized superparamagnetic triiron tetraoxide nanoparticles, cyclohexane (700 μL),
Na2SO4/Na2SO4 · 10H2O (35 mg in total, with molar ratio of 1:1), molecular sieves 4Å; temp.
30°C, shaking 600 rpm.; after 140 h; C-conversion, ees - enantiomeric excess of the substrate,
eep – enantiomeric excess of the product, E – enantioselectivity.
Page 20 of 28

Figure 1
Figure 1.
Page 21 of 28

Figure 2
Figure 2.
Page 22 of 28

Figure 3
Figure 3.
Page 23 of 28

Figure 4
Figure 4.
a)
b)
Page 24 of 28

Scheme 1
Scheme 1.
Amine-terminated chitosan magnetic nanoparticles
Page 25 of 28

Figure 5
Figure 5.
93,5
93
91,5
90
92
100
90
80
70
60
50
40
30
20
10
0
Enantiomeric
excess of
product (%)
1
2
3
4
5
Number of cycles
Page 26 of 28

Figure 6
Figure 6.
mV
Detector A Ch1:254nm
50
40
30
20
10
0
A
0.0
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
min
mV
Detector A Ch1:254nm
50
40
30
20
10
0
B
0.0
5.0
10.0
15.0
20.0
25.0
30.0
min
mV
Detector A Ch1:254nm
60
50
40
30
20
10
0
C
0.0
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0 min
mV
Detector A Ch1:254nm
80
D
70
60
50
40
30
20
10
0
0.0
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
min
Page 27 of 28

Scheme 2
Scheme 2.
Page 28 of 28
