Mixed Liga n d Meta llocen es a s Ca ta lysts for Ela stom er ic
P olyp r op ylen e
Christopher D. Tagge, Raisa L. Kravchenko, Tappan K. Lal, and
Robert M. Waymouth*
Department of Chemistry, Stanford University, Stanford, California 94305
Received September 22, 1998
A new synthesis of unbridged mixed ring zirconocenes was developed and a series of mixed
ligand zirconocenes with substituted 2-arylindenyl and 1-methyl-2-arylindenyl ligands have
been prepared. When activated with methylaluminoxane, the mixed ligand complexes
catalyze the polymerization of propylene to give elastomeric polypropylene. The propylene
polymerization behavior of the mixed ligand catalysts was compared to that of their bis-
(indenyl) analogues to determine the relative contribution of each ligand to the activity and
stereospecificity of the catalyst. The effects of 2-arylindenyl and 1-methyl-2-arylindenyl
ligands on the stereospecificity of the catalysts are essentially additive; the stereospecificity
of the mixed ring complex is intermediate to that of the bis(2-arylindene) analogues. However,
the effect of 1-methyl substitution on catalyst productivity is not additive; the productivities
exhibited by bis(2-arylindenyl)ZrCl2/MAO and (1-methyl-2-arylindenyl)(2-arylindenyl)ZrCl2/
MAO derived catalysts are similar and substantially higher than those of the bis(1-methyl-
2-phenylindenyl)ZrCl2/MAO catalysts.
In tr od u ction
Furthermore, Chien and Collins have shown that ho-
mogeneous catalysts with well-defined structures are
also capable of producing elastomeric polypropylene.19-25
Recently, our group reported a new strategy for
producing elastomeric polypropylene.26-31 The approach
is based on a fluxional bis(2-arylindenyl)zirconium
homogeneous catalyst system that can isomerize be-
tween stereospecific chiral and aspecific achiral geom-
etries during the course of the polymerization (Scheme
1). Investigations of these systems have shown that the
Natta’s discovery of thermoplastic elastomeric polypro-
pylene in the late 1950s1 prompted both industrial and
academic interest in producing and studying this mate-
rial. To explain the intriguing elastomeric properties,
Natta proposed that the material had a stereoblock
microstructure, consisting of alternating segments of
isotactic and atactic sequences, which resulted from a
dynamic mechanism in which the catalyst active site
altered its stereospecificity several times during the
formation of the polymer chain.2 Unfortunately, the
heterogeneous nature of the catalysts frustrated efforts
to investigate the mechanism and optimize these po-
lymerization reactions. Nevertheless, a number of in-
dustrial efforts have made substantial progress for the
synthesis of elastomeric polypropylenes with a wide
range of structures and mechanical properties.3-18
(15) Pellon, B. J .; Allen, G. C. (Rexene) Eur. Pat. Appl. 0 475 306
A1, 1992.
(16) Schrage, A. (Rexall) US Patent 3,329,741, 1967.
(17) Smith, C. A. (Himont) Eur. Pat. Appl. 423786 A2, 1991.
(18) Tullock, C. W.; Mulhaupt, R.; Ittel, S. D. Makromol. Chem.,
Rapid Commun. 1989, 10, 19-23.
(19) Mallin, D. T.; Rausch, M. D.; Lin, Y. G.; Dong, S.; Chien, J . C.
W. J . Am. Chem. Soc. 1990, 112, 2030-2031.
(20) Chien, J . C. W.; Llinas, G. H.; Rausch, M. D.; Lin, Y. G.; Winter,
H. H.; Atwood, J . L.; Bott, S. G. J . Polym. Sci. Part A: Polym. Chem.
1992, 30, 2601-2617.
(1) Natta, G.; Mazzanti, G.; Crespi, G.; Moraglio, G. Chim. Ind.
(Milan) 1957, 39, 275-283.
(2) Natta, G. J . Polym. Sci. 1959, 34, 531-549.
(3) Tullock, C. W.; Tebbe, F. N.; Mulhaupt, R.; Ovenall, D. W.;
Setterquist, R. A.; Ittel, S. D. J . Polym. Sci., Part A: Polym. Chem.
1989, 27, 3063-3081.
(4) Arnold, M.; Schmidt, V.; Frank, W. Plaste Kautsch. 1991, 38,
73-77.
(5) Collette, J . W.; Tullock, C. W. (E. I. du Pont de Nemours) U.S.
Pat. 4,298,722, 1981.
(6) Collette, J . W.; Tullock, C. W. (E. I. du Pont de Nemours) U.S.
Pat. 4,335,225, 1982.
(7) Collette, J . W.; Tullock, C. W.; MacDonald, R. N.; Buck, W. H.;
Su, A. C. L.; Harrell, J . R.; Mulhaupt, R.; Anderson, B. C. Macromol-
ecules 1989, 22, 3851-3858.
(8) Collette, J . W.; Ovenall, D. W.; Buck, W. H.; Ferguson, R. C.
Macromolecules 1989, 22, 3858-3866.
(9) Gobran, R. (3M) U.S. Patent 3,784,502, 1974.
(10) J ob, R. C. (Shell Oil Co.) U.S. Patent 5,118,649, 1992.
(11) J ob, R. C. (Shell Oil Co.) U.S. Patent 5,118,767, 1992.
(12) Kontos, E. G. US Patent 3,378,606, 1968.
(13) Kontos, E. G. U.S. Patent 3,853,969, 1974.
(14) Pellon, B. J .; Allen, G. C. (Rexene) Eur. Pat. Appl. 0 475 307
A1, 1992.
(21) Chien, J . C. W.; Llinas, G. H.; Rausch, M. D.; Lin, G. Y.; Winter,
H. H.; Atwood, J . L.; Bott, S. G. J . Am. Chem. Soc. 1991, 113, 8569-
70.
(22) Chien, J . C. W.; Rieger, B.; Sugimoto, R.; Mallin, D. T.; Rausch,
M. D. Stud. Surf. Sci. Catal. 1990, 56, 535-574.
(23) Gauthier, W. J .; Collins, S. Macromolecules 1995, 28, 3779-
3786.
(24) Gauthier, W. J .; Corrigan, J . F.; Taylor, N. J .; Collins, S.
Macromolecules 1995, 28, 3771-3778.
(25) Bravakis, A. M.; Bailey, L. E.; Pigeon, M.; Collins, S. Macro-
molecules 1998, 31, 1000-1009.
(26) Coates, G. W.; Waymouth, R. M. Science 1995, 267, 217-219.
(27) Hauptman, E.; Waymouth, R. M.; Ziller, J . W. J . Am. Chem.
Soc. 1995, 117, 11586-11587.
(28) Bruce, M. D.; Coates, G. W.; Hauptman, E. H.; Waymouth, R.
M.; Ziller, J . W. J . Am. Chem. Soc. 1997, 119, 11174-11182.
(29) Maciejewski-Petoff, J . L.; Bruce, M. D.; Waymouth, R. M.;
Masood, A.; Lal, T. K.; Quan, R. W.; Behrend, S. J . Organometallics
1998, 16, 55909-5916.
(30) Kravchenko, R.; Masood, A.; Waymouth, R. M. Organometallics
1997, 16, 3635-3639.
(31) Kravchenko, R. L.; Masood, M.; Waymouth, R. M.; Myers, C.
L. J . Am. Chem. Soc. 1998, 120, 2039-2046.
10.1021/om9807957 CCC: $18.00 © 1999 American Chemical Society
Publication on Web 12/31/1998

Mixed Ligand Metallocenes as Catalysts
Organometallics, Vol. 18, No. 3, 1999 381
Sch em e 1. P r op osed Mech a n ism for F or m a tion of
Ela stom er ic P olyp r op ylen e
solvents. However, the tribromide complexes 3b and 4b
exhibit sharp H NMR resonances, which are consistent
1
with a monomeric structure. Thus, relatively soluble
tribromides 3b and 4b were recrystallized from toluene
in good yield, while trichloride 3a and 4a could only be
purified by successive diethyl ether, toluene, and pen-
tane washes and were isolated in lower yields.
NMR analysis of 4 revealed residual signals from Me3-
Si and NMe2-containing impurities which could not be
removed by recrystallization. Nevertheless, the impuri-
ties did not have a detrimental effect on the subsequent
transformations of 4, and the complexes were used
without further purification.
productivity and stereospecificity of the catalysts (and
thus, the physical and mechanical properties of the
resulting polymers) can be significantly influenced by
utilizing different substituents in the 1- and 3′,5′-
positions of the 2-phenylindenyl ligand.27,30 To further
investigate the effects of ligand substituents on catalyst
behavior and produce a family of catalysts capable of
accessing a broader range of polypropylene structures,
we now report a new route to unbridged mixed ring
zirconocenes and describe the polymerization behavior
of mixed ring 2-arylindenyl zirconocenes.
Mixed ring zirconocene dihalide complexes were easily
prepared by reaction of half-sandwich zirconium triha-
lides 3 and 4 with the corresponding lithium 2-arylin-
denide in toluene. When optimized, the mixed ring
complexes were obtained in good yield (50-80%). To
identify the effect of the halogen ligands, bis(indenyl)
complexes (2PhInd)2ZrBr2 (5b) (2PhInd ) 2-phenylin-
denyl) and (BArf)2ZrBr2 (10b ) (BArf ) 2-(3′,5′-bistri-
fluoromethylphenyl)indenyl) were prepared from the
half-sandwich tribromides 3b and 4b, respectively. The
preparation of dichloride analogues 5a and 10a has been
previously described.26,27
Resu lts
All previously characterized bis(2-arylindenyl)zirco-
Syn th esis of Mixed Liga n d Bis(2-a r ylin d en yl)-
zir con iu m Com p lexes. The reaction of 2-arylindenes

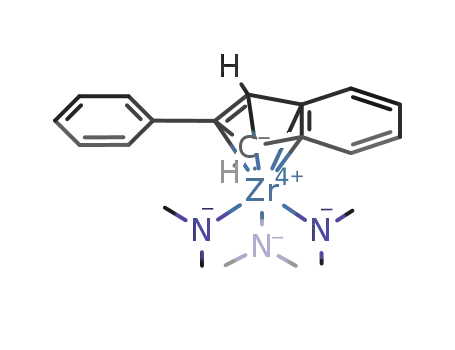

with zirconium tetrakis(dimethylamide) eliminates 1
