Article
Development of Thiazolidinedione-Based HDAC6
Inhibitors to Overcome Methamphetamine Addiction
Chiranjeev Sharma 1,†, Yong Jin Oh 1,†, Byoungduck Park 1, Sooyeun Lee 1,
Chul-Ho Jeong 1, Sangkil Lee 1, Ji Hae Seo 2 and Young Ho Seo 1,*
1
College of Pharmacy, Keimyung University, Daegu 42601, Korea; 1chiranjeevsharma1@gmail.com (C.S.);
ldp7899@naver.com (Y.J.O.); bdpark@kmu.ac.kr (B.P.); sylee21@kmu.ac.kr (S.L.);
chjeong75@kmu.ac.kr (C.-H.J.); skdavid@kmu.ac.kr (S.L.)
Department of Biochemistry, School of Medicine, Keimyung University, Daegu 42601, Korea;
2
seojh@kmu.ac.kr
* Correspondence: seoyho@kmu.ac.kr; Tel.: +82-053-580-6639
†
These authors contributed equally to this study.
Received: 7 November 2019; Accepted: 6 December 2019; Published: 9 December 2019
Abstract: Thiazolidinedione is a five-membered heterocycle that is widely used in drug discovery
endeavors. In this study, we report the design, synthesis, and biological evaluation of a series of
thiazolidinedione-based HDAC6 inhibitors. In particular, compound 6b exerts an excellent
inhibitory activity against HDAC6 with an IC50 value of 21 nM, displaying a good HDAC6
selectivity over HDAC1. Compound 6b dose-dependently induces the acetylation level of α-tubulin
via inhibition of HDAC6 in human neuroblastoma SH-SY5Y cell line. Moreover, compound 6b
efficiently reverses methamphetamine-induced morphology changes of SH-SY5Y cells via
regulating acetylation landscape of α-tubulin. Collectively, compound 6b represents a novel
HDAC6-isoform selective inhibitor and demonstrates promising therapeutic potential for the
treatment of methamphetamine addiction.
Keywords: HDAC6 inhibitors; thiazolidinedione; methamphetamine; drug addiction
1. Introduction
Methamphetamine (METH) is a widely abused illicit psychostimulant that causes euphoria,
hyperactivity, and wakefulness. METH abuse has dramatically risen over the last decade owing to
its readily accessibility and powerful euphoric effect [1]. Acute overdose of METH induces cardiac
arrhythmia, strokes, seizures, and hyperthermia, and repeated exposure to this substance leads to
severe addiction, altered cognitive function, and neurological damage [2–7]. This chronic METH
abuse is accompanied by significant changes in gene and protein expression within specific brain
subregions such as dorsal striatum in the reward circuitry, suggesting that there is a clear connection
between epigenetic mechanisms and METH addiction [8]. Therefore, a number of studies have been
conducted to elucidate the epigenetic mechanisms underlying METH addiction [9,10]. Interestingly,
it is reported that acute and chronic exposure to METH increases histone acetylation, implying that
epigenetic enzymes including histone deacetylases (HDACs) participate in the mechanisms of METH
addiction [11–13]. Moreover, it is known that administration of METH regulates cytoplasmic HDAC6
enzyme, altering epigenetic landscape of α-tubulin in endothelial cells [14]. Given the fact that HDAC
enzymes play an important role in METH addition, we decided to investigate the therapeutic
potential of HDAC inhibitors for the treatment of METH addiction.
HDAC is an enzyme that catalyzes the removal of acetyl groups from lysine residues at the N-
terminal tails of histones [15]. These enzymes also regulate the acetylation status of non-histone
Int. J. Mol. Sci. 2019, 20, 6213; doi:10.3390/ijms20246213
www.mdpi.com/journal/ijms

Int. J. Mol. Sci. 2019, 20, 6213
2 of 13
proteins such as α-tubulin, Hsp90, and p53 [16]. There are eighteen isoforms of HDAC enzymes,
further classified into four classes. These four identified classes are characterized by their distinct
functions, substrate specificities, and subcellular locations. Accordingly, there has been great effort
to develop isoform-selective HDAC inhibitors to elucidate the detailed functions of each isoform and
to avoid unwanted side effects in chemotherapy [17,18].
2. Results and Discussion
We previously performed a structure-based virtual screening and discovered a novel class of
anthraquinone-based HDAC6 inhibitors with a good HDAC6 selectivity over other HDAC isozymes
(Figure 1) [19]. We found out that two carbonyl oxygens of anthraquinone played a pivotal role in
exhibiting selective inhibition of HDAC6. These carbonyl groups recognized the unique rim and
surface area of HDAC6, which is different from other HDAC isozymes. Despite the fact that this
anthraquinone-based HDAC6 inhibitor displayed an excellent in vitro biological activity, its intrinsic
poor solubility hampered further study for in vivo application. Thiazolidinedione (TZD) is a five-
membered ring molecule containing two heteroatoms (nitrogen and sulfur) and two carbonyl groups.
Thiazolidinedione and its derivatives have diverse biological activities including anti-microbial, anti-
oxidant, anti-inflammatory, anti-diabetic, anti-cancer, and anti-tubercular activities, and a number of
thiazolidinedione-based drugs, such as troglitazone and rosiglitazone, have been clinically approved
for the treatment of type 2 diabetes [20,21]. The fact that thiazolidinedione is a privileged scaffold
from clinically approved drugs with two carbonyl groups prompted us to explore the
thiazolidinedione-based HDAC6 inhibitors.
Figure 1. Drug design of thiazolidinedione-based histone deacetylase 6 (HDAC6) inhibitors.

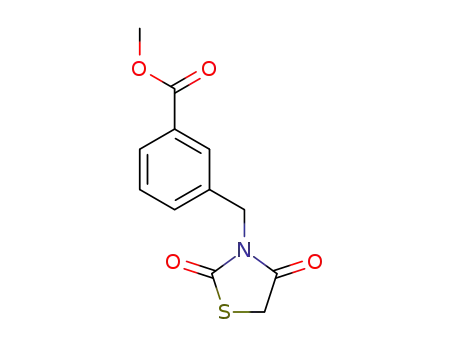

The synthesis of thiazolidinedione-based HDAC6 inhibitors 6a-b is illustrated in Scheme 1. The
key intermediate 3a-b were synthesized following the previously reported procedure [22]. Briefly,
the base-promoted N-alkylation reaction of thiazolidine-2,4-one (1) with methyl 3-
(bromomethyl)benzoate (2a) or methyl 4-(bromomethyl)benzoate (2b) successfully provided
compounds 3a-b in 53–55% yields. The initial attempt to directly convert ester 3a-b to hydroxamate
6a-b using hydroxylamine in the presence of sodium hydroxide in methanol was not fruitful due to
the instability of thiazolidine-2,4-one ring in this reaction condition. That led us to follow an
alternative synthetic route. Therefore, compound 3a-b were hydrolyzed into carboxylic acid 4a-b in
the aqueous acidic condition. Having prepared carboxylic acid 4a-b, we then performed amide
coupling reaction of 4a-b with NH OTHP using EDC, HOBt, and TEA in DCM, which provided
2
compound 5a-b in 43–57% yields. Finally, the removal of THP-protecting group from compound 5a-
b was accomplished by the acidic hydrolysis and successfully afforded compound 6a-b in 36–42%
yields.

Int. J. Mol. Sci. 2019, 20, 6213
3 of 13
Scheme 1. Synthesis of compounds 6a-ba. a Reagents and conditions: (a) K2CO3, acetone, reflux, 12 h,
53% for 3a, 55% for 3b; (b) 6N HCl reflux, 12 h, 76% for 4a, 89% for 4b; (c) EDC·HCl, HOBt, NH2OTHP,
TEA, rt, 18 h, 43% for 5a, 57% for 5b; (d) HCl, Et2O, DCM, rt, 2 h, 36% for 6a, 42% for 6b.
With compound 6a-b in hand, we first measured in vitro inhibitory activity of meta-analogue 6a
and para-analogue 6b against HDAC1 and HDAC6 enzymes. As shown in Table 1, para-analogue 6b
led to higher binding affinity to HDAC1 and HDAC6 than meta-analogue 6a, in that para-analogue
6b furnished IC50 values of 388 nM and 21 nM against HDAC1 and HDAC6, respectively. This result
directed us to synthesize more para-analogues derived from compound 6b.
Table 1. In vitro inhibitory activity against HDAC1 and HDAC6 isotypes.
HDAC1
(IC50; nM)
HDAC6
(IC50; nM)
Selectivity
index a
Compound
Structure
6a
>50,000
388
1961
21
NA
6b
8a
8b
18.5
>100,000
>100,000
79,290
1302
NA
NA
8c
>100,000
236
628
226
NA
1.0
SAHA
a Selectivity index: the ratio of HDAC1 over HDAC6 isotype. NA: not available.
The synthetic route to compounds 8a-c as shown in Scheme 2 started from the intermediate 5a.
Base-catalyzed alkylation reaction of 5a with allyl bromide, propyl iodide, and benzyl bromide in

Int. J. Mol. Sci. 2019, 20, 6213
4 of 13
DMF led to compounds 7a-c in 14–27% yields. Subsequently, the cleavage of THP-protecting group
from compounds 7a-c under acidic condition resulted in compounds 8a-c in 38–44% yields.
O
O
O
R
R
a
b
N
N
N
H
H
H
S
N
S
S
N
N
OTHP
OTHP
OH
O
O
O
O
O
O
5a
7a-c
8a-c
7a R =
7c
7b R =
8a R =
8c
8b R =
Ph
Ph
R =
R =
a
Scheme 2. Synthesis of compounds 8a-ca. Reagents and conditions: (a) R-Br, K
2
CO , DMF, rt, 18 h,
3
14% for 7a, 27% for 7b, 23% for 7c (d) HCl in Et O, DCM, rt, 2h, 38% for 8a, 40% for 8b, 44% for 8c.
2
Upon completion of synthesis, we examined inhibitory activities of 5-substituted
thiazolidinedione-based HDAC inhibitors 8a-c against HDAC1 and HDAC6 isotypes. As shown in
Table 1, 5-substituted thiazolidinedione-based HDAC inhibitors 8a-c led to a decrease in their
binding affinity to both HDAC1 and HDAC6 isotypes, compared with their non-substituted parent
compound 6b. The result indicated that the substitution of 2,4-thiazolidinedione at 5-position caused
a negative effect on their proper binding to HDAC1 and HDAC6 enzymes. Interestingly, compound
6b (HDAC6 IC50 = 21 nM) displayed an excellent inhibitory activity against HDAC6, even better than
FDA-approved drug SAHA (HDAC6 IC50 = 226 nM). Overall, compound 6b exhibited the most
excellent inhibitory activity against HDAC1 and HDAC6 among newly synthesized analogues with
a good HDAC6 selectivity over HDAC1. Accordingly, we chose compound 6b for further biological
evaluation.
We next evaluated the effect of compound 6b on the cell viability of SH-SY5Y, which is a human
neuroblastoma cell line (Figure 2). Although the exposure of SH-SY5Y cells with high concentrations
(50, 70, and 100 µM) of 6b decreased the cell viability of SH-SY5Y in a dose-dependent manner,
compound 6b exhibited no cytotoxic effect on cell viability up to 30 µM concentration. It has been
well-reported that selective inhibition of HDAC6 isoform did not produce a lethal effect on cell
viability, in contrast to inhibition of class I HDAC enzymes.
Figure 2. Effect of compound 6b on the cell viability of SH-SY5Y and the acetylation status of α-tubulin
and Histone H3. (A) SH-SY5Y cells were treated with the indicated concentrations of compound 6b
for 24 h and the cell viability was measured using the colorimetric MTS assay. Data are presented as
mean ± SD (n = 4). (B) SH-SY5Y cells were incubated with the indicated concentrations of compound
6b or Tubastatin A (Tub) for 24 h and the expression levels of α-tubulin, Ac-α-tubulin, Histone H3,
and Ac-Histone H3 were analysed by Western blot. Tubastatin A was employed as a positive control
and β-actin was used as a loading control. The p value was obtained by Student t-test. * p < 0.01 as
compared to vehicle.

Int. J. Mol. Sci. 2019, 20, 6213
5 of 13
We further explored the precise cellular mechanism of compound 6b. Histone H3 and α-tubulin
are well-known substrates of HDAC1 and HDAC6 [23,24]. Therefore, inhibition of HDAC1 and
HDAC6 enzymes promotes the accumulation of acetylated Histone H3 and α-tubulin, respectively.
Therefore, SH-SY5Y cells were incubated with compound 6b at various concentrations (0, 1, 5, 10,
and 20 µM) for 24 h and the expression levels of α-tubulin, Ac-α-tubulin, Histone H3, and Ac-Histone
H3 were analysed by Western blot. Highly selective HDAC6 inhibitor, Tubastatin A (Tub, 5 µM) was
employed as a reference drug. As expected, compound 6b dose-dependently induced the acetylation
of α-tubulin and Histone H3. The administration of 6b at relatively low concentration of 1 µM caused
the acetylation of α-tubulin via inhibition of HDAC6. In contrast, 10 µM concentration of 6b was able
to promote the acetylation of Histone H3 via inhibition of HDAC1, suggesting that compound 6b
more efficiently inhibited HDAC6 than HDAC1 in this cellular setting. It is also worth noting that the
protein level of Histone H3 increases in proportion to the concentration of compound 6b, implying
that compound 6b might have an impact on the transcription factors. The expression level of internal
standard, β-actin remained unchanged as expected. Taken together, the results indicated that
compound 6b more potently suppressed HDAC6 enzyme activity than HDAC1 in SH-SY5Y cells,
which is positively correlated with in vitro HDAC assay shown in Table 1.
There has been a report that methamphetamine promotes the acetylation of α-tubulin via the
modification of HDAC6 activity, impacting cytoskeleton stability, cell motility, and polarity [14]. This
cytoskeleton disarrangement is strongly associated with the disruption of blood brain barrier (BBB)
integrity, allowing harmful substances in the bloodstream to leak into the central nervous system
(CNS) [25]. This study prompted us to investigate the effect of methamphetamine on cell
morphology. We first examined whether methamphetamine exerted any cytotoxic effect on cell
viability prior to analysing the effect of methamphetamine (METH) on the cell morphology of SH-
SY5Y cells (Figure 3). SH-SY5Y cells were incubated with methamphetamine (0, 0.1, and 1 mM) for
24 h and then analysed the cell viability using MTS assay. The assay revealed that methamphetamine
exerted no toxicity up to 1 mM concentration for 24 h. We next investigated the effect of METH on
the cell morphology and the reverse effect of compound 6b in preventing METH-induced cell
morphology changes. Accordingly, SH-SY5Y cells were pretreated with 1 mM of METH for 4 h and
then incubated with compound 6b (5, 10, and 20 µM) for 24 h. As expected, untreated SH-SY5Y cells
(DMSO) had a normal elongated spindle morphology. Upon the treatment of cells with 1 mM of
METH, a majority of SH-SY5Y cells showed a rounded shape with a shrunken morphology.
Subsequently, the administration of compound 6b (5, 10, and 20 µM) led to a reversed effect on the
cell morphology change from a rounded shape back to a spindle shape in a dose-dependent manner.
Figure 3. Effect of methamphetamine (METH) and compound 6b on the cell morphology and viability
of SH-SY5Y cells. (A) Effect of methamphetamine on the cell viability of SH-SY5Y. Cells were
incubated with the indicated concentrations of methamphetamine (METH) for 24 h and cell viability
was measured using the colorimetric MTS assay. Data are presented as mean ± SD (n = 4). (B) Bright-

Int. J. Mol. Sci. 2019, 20, 6213
6 of 13
field images of SH-SY5Y cells. Cells were pretreated with methamphetamine (METH, 1 mM) for 4 h
and then incubated with the indicated concentrations of compound 6b for 24 h.
We next explored the underlying molecular and biochemical mechanisms behind the
morphological changes. α-Tubulin is the basic protein that constitutes the cytoskeleton and the
dynamic acetylation and deacetylation of α-tubulin play an important role in the morphology of cells.
SH-SY5Y cells were treated with methamphetamine at various concentrations (0, 0.5, 1, 2, and 3 mM)
for 24 h and the expression levels of α-tubulin and Ac-α-tubulin were measured by Western blot
(Figure 4). The result indicated that methamphetamine dose-dependently decreased the acetylation
of α-tubulin, while the expression level of α-tubulin remained unchanged. We next investigated if
compound 6b reversed the loss of the acetylation caused by methamphetamine. Therefore, SH-SY5Y
cells were treated with methamphetamine (METH, 3 mM) for 4 h, followed by incubation with
compound 6b for 24 h. As seen in Figure 4, treatment of cells with METH reduced the acetylation
status of α-tubulin. Interestingly, the subsequent treatment of cells with compound 6b led to a
significant increase in the acetylation of α-tubulin by reversing the METH-promoted loss of
acetylation. Collectively, the results indicated that METH promoted the morphological changes of
cells by disrupting the acetylation status of α-tubulin, which could be reversed by compound 6b
probably via the inhibition of HDAC6 enzymes.
Figure 4. Western blot analysis of α-tubulin acetylation status after the treatment with
methamphetamine (METH) and compound 6b. (A) SH-SY5Y cells were incubated with the
indicated concentrations of methamphetamine (METH) for 24 h and the expression levels
of Ac-α-tubulin and α-tubulin were analysed by Western blot. β-actin was used as a loading
control. (B) SH-SY5Y cells were pretreated with methamphetamine (METH, 3 mM) for 4 h
before exposure to compound 6b (1 µM) for 24 h. The expression levels of Ac-α-tubulin and
α-tubulin were analysed by Western blot. β-actin was used as a loading control.
To investigate the molecular basis of interactions between compound 6b and HDAC6 (PDB code:
5EF7), we performed in silico docking study (Figure 5 and supplementary Figure S1). The docking
simulation suggested that compound 6b well bound to the substrate binding pocket, validating its
2+
inhibitory potential to HDAC6. The hydroxamate group of compound 6b chelated the Zn ion in the
bottom of the pocket with its carbonyl oxygen (C=O) and hydroxyl oxygen (OH) in a bidentate
fashion.

Int. J. Mol. Sci. 2019, 20, 6213
7 of 13
Figure 5. Molecular docking pose of compound 6b in the binding pocket of HDAC6 (PDB
code: 5EF7). The carbon, oxygen, nitrogen, sulfur, and hydrogen atoms of compound 6b are
shown in lime, red, blue, yellow, and white, respectively. The side chains of the binding
pocket are colored by atom type (carbon, light blue; oxygen, red; nitrogen, red) and labeled
with their residue name. Water molecule is shown as a red sphere. The hydrogen bonds are
shown in dashed lines. Molecular docking simulations were performed by Autodock 4.2
and docking poses were visualized using PyMOL1.3.
Additionally, the carbonyl oxygen (C=O) of the hydroxamate formed two hydrogen bonds with
the side chain of His573 and His574, while the hydroxyl (OH) group and amine (NH) group of the
hydroxamate formed hydrogen bonds with Asp612 and Tyr745, respectively. The middle phenyl ring
of compound 6b were nicely positioned in the hydrophobic channel, forming π−π interactions with
the lipophilic side chains of Phe583 and Phe643 residues. Thiazolidinedione ring was located in the
rim of the substrate binding pocket, in that one carbonyl oxygen (C=O) of thiazolidinedione ring
formed a hydrogen bonding interaction with a conserved water molecule and the hydrophobic sulfur
and carbon atoms at the 1 and 5 position of the thiazolidinedione ring formed proximal Van der
Waals interactions with the lipophilic side chain of Leu712. Collectively, the docking study illustrated
that compound 6b well fitted into the active site of HDAC6 with diverse intermolecular interactions
such as zinc chelation, hydrogen bonds, π−π interactions, and Van der Waals interactions and the
estimated binding energy of compound 6b resulted in −7.02 kcal/mol.
3. Materials and Methods
3.1. Chemistry
3.1.1. General Methods and Materials
All reagents and solvents were purchased from commercial suppliers and used without further
purification. All experiments dealing with moisture-sensitive compounds were carried out under
argon atmosphere. Concentration or solvent removal under reduced pressure was carried out using
rotary evaporator. Analytical thin layer chroatography was performed on precoated silica gel F254
TLC plates (E, Merck) with visualization under UV light or by staining using iodine. Column
chromatography and medium pressure liquid chromatography (MPLC) was conducted on silica
(Merck Silica Gel 40–63 µm) or performed by using a Biotage SP1 flash purification system with
prepacked silica gel cartridges (Biotage). NMR analyses were carried out using a JNM-ECZ500R (500
MHz) manufactured by Jeol resonance. Chemical shifts are reported in parts per million (δ). The
deuterium lock signal of the sample solvent was used as a reference, and coupling constants (J) are
given in hertz (Hz). The splitting pattern abbreviations are as follows: s, singlet; d, doublet; t, triplet;
q, quartet; dd, doublet of doublet; td, triplet of doublet; m, multiplet. The LC-QTOF-MS analysis was
performed using an Agilent 6530 Accurate-Mass Q-TOF LC/MS System with Agilent 1290 Infinity LC

Int. J. Mol. Sci. 2019, 20, 6213
8 of 13
(Agilent Technologies, Palo Alto, CA, USA). The guard column and the analytical column were
Zorbax SB-C8 (3.5 µm, 2.1 × 30 mm, Agilent Technologies) and Zorbax SB-Aq (1.8 µm, 2.1 × 100 mm,
Agilent Technologies), respectively, and were maintained at 40 °C. The mobile phase consisted of
0.1% formic acid in water (A) and 0.1% formic acid in acetonitrile (B). The gradient conditions were
as follows: 0–30 min, 1–20% B; 30–40 min, 20–90% B; 40–45 min, 90% B; 45–47 min, 90–1% B; 47–52
min, 1% B at a flow rate of 400 µL/min. The MS system was operated using ESI in the positive and
the negative ionization mode. The optimized conditions of the QTOF-MS system for both ionization
modes were as follows: drying gas temperature, 300 °C; drying gas flow, 10 L/min; nebulization
pressure, 45 psi; sheath gas temperature, 350 °C; sheath gas flow, 10 L/min; capillary voltage, 3500 V;
nozzle voltage, 0 V; fragmentor voltage, 175 V; skimmer voltage, 65 V. The mass range was 50–1700
m/z and the scan rate was 2.00 spectra/sec for both MS and MS/MS analyses.
3.1.2. General Procedure for the Synthesis of Compounds 3a-b
The mixture of thiazolidine-2,4-one (10 mmol), methyl 4-(bromomethyl)benzoate or methyl 3-
(bromomethyl)benzoate (11 mmol), and anhydrous K2CO3 (15 mmol) was refluxed in acetone (50 mL)
overnight. The solid K2CO3 was filtered and the filtrate was evaporated to obtain the crude product,
which was purified by MPLC to afford compound 3a-b in 53–55%.
Methyl 3-((2,4-dioxothiazolidin-3-yl)methyl)benzoate (3a)
1
53% Yield. H-NMR (500 MHz, CDCl3) δ 8.04 (s, 1H), 7.99 (d, J = 7.4 Hz, 1H), 7.59 (d, J = 7.4 Hz,
1H), 7.41 (t, J = 7.7 Hz, 1H), 4.81 (s, 2H), 3.97 (s, 2H), 3.91 (s, 3H).
Methyl 4-((2,4-dioxothiazolidin-3-yl)methyl)benzoate (3b)
1
55% Yield. H-NMR (500 MHz, CDCl3) δ 7.99 (d, J = 8.6 Hz, 2H), 7.44 (d, J = 8.0 Hz, 2H), 4.81 (s,
2H), 3.97 (s, 2H), 3.91 (s, 3H).
3.1.3. General procedure for the synthesis of compounds 4a-b.
A suspension of compound 3a or 3b (2 mmol) in 6N HCl (25 mL) was stirred at reflux for 12 h.
The mixture was then cooled and kept at 4° C for 2 h. The desired product precipitated which was
filtered, washed with water (2× 20 mL) and dried in vacuo to afford compound 4a-b in 76–89%.
3-((2,4-Dioxothiazolidin-3-yl)methyl)benzoic acid (4a)
1
76% Yield. H-NMR (500 MHz, CD3OD) δ 7.99 (s, 1H), 7.95 (d, J = 7.4 Hz, 1H), 7.58 (d, J = 7.4 Hz,
1H), 7.44 (t, J = 7.4 Hz, 1H), 4.81 (s, 2H), 4.13 (s, 2H).
4-((2,4-Dioxothiazolidin-3-yl)methyl)benzoic acid (4b)
1
89% Yield. H-NMR (500 MHz, CD3OD) δ 7.98 (d, J = 8.0 Hz, 2H), 7.42 (d, J = 8.0 Hz, 2H), 4.81 (s,
2H), 4.15 (s, 2H)
3.1.4. General procedure for the synthesis of compounds 5a-b.
To a solution of compound 4a or 4b (1.1 mmol), EDC·HCl (4.4 mmol), HOBt (2.2 mmol) in dry
DCM was added triethylamine (7.7 mmol) and O-tetrahydropyran-2-ylhydroxylamine (1.4 mmol).
The reaction mixture was stirred at room temperature for 18 h. Then, DCM was washed with brine
solution. The organic layer was dried over Na2SO4, concentrated in vacuo. The product was purified
by MPLC to afford 5a-b in 43–57% yield.
3-((2,4-Dioxothiazolidin-3-yl)methyl)-N-((tetrahydro-2H-pyran-2-yl)oxy)benzamide (5a)
1
43% Yield. H-NMR (500 MHz, CDCl3) δ 9.20 (s, 1H), 7.71 (s, 1H), 7.69 (d, J = 8.0 Hz, 1H), 7.50 (d,
J = 7.4 Hz, 1H), 7.37 (t, J = 7.7 Hz, 1H), 5.06 (s, 1H), 4.76 (s, 2H), 3.98 (d, J = 11.5 Hz, 1H), 3.96 (s, 2H),
3.62 (t, J = 5.7 Hz, 1H), 1.81–1.87 (m, 3H), 1.56–1.65 (m, 3H).

Int. J. Mol. Sci. 2019, 20, 6213
9 of 13
4-((2,4-Dioxothiazolidin-3-yl)methyl)-N-((tetrahydro-2H-pyran-2-yl)oxy)benzamide (5b)
1
57% Yield. H-NMR (500 MHz, CDCl3) δ 8.86 (s, 1H), 7.71 (d, J = 8.0 Hz, 2H), 7.44 (d, J = 8.0 Hz,
2H), 5.06 (s, 1H), 4.79 (s, 2H), 3.99 (d, J = 8.6 Hz, 1H), 3.96 (s, 2H), 3.64 (dd, J = 6.3, 5.2 Hz, 1H), 1.83–
1.92 (m, 3H), 1.59–1.66 (m, 3H).
3.1.5. General procedure for the synthesis of compounds 7a-c
Compound 6a (0.22 mmol), alkyl halide (0.22 mmol) and anhydrous K2CO3 (0.22 mmol) were
added into dry DMF (5 mL) and the mixture was stirred at room temperature for 18 h. Then DMF
was evaporated in vacuo. The solid crude product was purified by MPLC to afford 7a-c in 14–27%
yield.
4-((2,4-Dioxo-5-propylthiazolidin-3-yl)methyl)-N-((tetrahydro-2H-pyran-2-yl)oxy)benzamide (7a)
1
14% yield. H-NMR (500 MHz, CDCl3) δ 8.74 (s, 1H), 7.71 (d, J = 8.0 Hz, 2H), 7.43 (d, J = 8.0 Hz,
2H), 5.06 (s, 1H), 4.77 (dd, J = 20.6, 14.3 Hz, 2H), 4.21 (q, J = 4.4 Hz, 1H), 3.97–4.01 (m, 1H), 3.65 (t, J =
5.4 Hz, 1H), 2.15 (td, J = 9.5, 5.3 Hz, 1H), 1.79–1.91 (m, 4H), 1.59–1.68 (m, 3H), 1.38–1.50 (m, 2H), 0.95
(t, J = 7.2 Hz, 3H).
4-((5-Allyl-2,4-dioxothiazolidin-3-yl)methyl)-N-((tetrahydro-2H-pyran-2-yl)oxy)benzamide (7b)
1
27% yield. H-NMR (500 MHz, CDCl3) δ 9.09 (s, 1H), 7.70 (d, J = 8.0 Hz, 2H), 7.35–7.39 (m, 2H),
5.66–5.75 (m, 1H), 5.13–5.18 (m, 2H), 5.05 (s, 1H), 4.75 (dd, J = 24.1, 14.3 Hz, 2H), 4.26–4.30 (m, 1H),
3.99 (q, J = 10.1 Hz, 1H), 3.62 (t, J = 5.4 Hz, 1H), 2.87–2.92 (m, 1H), 2.56–2.63 (m, 1H), 1.81–1.87 (m, 3H),
1.53–1.64 (m, 3H)
4-((5-Benzyl-2,4-dioxothiazolidin-3-yl)methyl)-N-((tetrahydro-2H-pyran-2-yl)oxy)benzamide (7c)
1
23% yield. H-NMR (500 MHz, CDCl3) δ 8.81 (s, 1H), 7.69 (d, J = 8.0 Hz, 2H), 7.31 (d, J = 8.0 Hz,
2H), 7.27 (s, 3H), 7.17 (q, J = 2.9 Hz, 2H), 5.08 (s, 1H), 4.74 (dd, J = 22.6, 14.6 Hz, 2H), 4.50 (q, J = 4.4 Hz,
1H), 3.98–4.02 (m, 1H), 3.67 (t, J = 5.7 Hz, 1H), 3.49 (dd, J = 14.3, 4.0 Hz, 1H), 3.14 (dd, J = 14.3, 9.2 Hz,
1H), 1.85–1.91 (m, 3H), 1.62–1.68 (m, 3H).
3.1.6. General procedure for the synthesis of compounds 6a-b and 8a-c
Compounds 5a-b or 7a-c (0.1 mmol) were dissolved in CH2Cl2 (4 mL). Then 2M HCl in diethyl
ether (4 mL) was added dropwise. The reaction mixture was stirred for 2h at room temperature. The
solvent was evaporated in vacuo. The crude was purified by MPLC to afford 6a-b and 8a-c in 36–44%
yield.
3-((2,4-Dioxothiazolidin-3-yl)methyl)-N-hydroxybenzamide (6a)
1
36% yield. H-NMR (500 MHz, CD3OD) δ 7.71 (s, 1H), 7.66 (d, J = 8.0 Hz, 1H), 7.52 (d, J = 8.0 Hz,
13
1H), 7.43 (t, J = 7.7 Hz, 1H), 4.80 (s, 2H), 4.13 (s, 2H) C-NMR (125 MHz, CD3OD) δ 173.96, 173.50,
+
167.80, 137.75, 132.73, 130.01, 127.98, 127.64, 45.55, 34.75. ESI MS (m/z) 267.04 [M+H] .
4-((2,4-Dioxothiazolidin-3-yl)methyl)-N-hydroxybenzamide (6b)
1
42% yield. H-NMR (500 MHz, CD3OD) δ 7.71 (d, J = 8.0 Hz, 2H), 7.42 (d, J = 8.0 Hz, 2H), 4.79 (s,
13
2H), 4.13 (s, 2H). C-NMR (125 MHz, CD3OD) δ 173.88, 173.43, 167.72, 140.76, 133.13, 129.44, 128.44,
+
45.48, 34.72. ESI MS (m/z) 267.04 [M+H] .
4-((2,4-Dioxo-5-propylthiazolidin-3-yl)methyl)-N-hydroxybenzamide (8a)
1
38% yield. H-NMR (500 MHz, CD3OD) δ 7.98 (d, J = 8.0 Hz, 2H), 7.41 (d, J = 8.6 Hz, 2H), 4.80 (s,
13
2H), 4.48–4.51 (m, 1H), 2.08–2.15 (m, 1H), 1.83–1.90 (m, 1H), 1.34–1.53 (m, 2H), 0.94–0.97 (m, 3H). C-

Int. J. Mol. Sci. 2019, 20, 6213
10 of 13
NMR (125 MHz, CD3OD) δ 176.20, 172.88, 169.34, 142.09, 131.57, 131.09, 129.17, 50.89, 45.51, 35.87,
+
20.97, 13.76 ESI MS (m/z) 309.09 [M+H] .
4-((5-Allyl-2,4-dioxothiazolidin-3-yl)methyl)-N-hydroxybenzamide (8b)
1
40% yield. H-NMR (500 MHz, CD3OD) δ 7.98 (d, J = 8.6 Hz, 2H), 7.41 (t, J = 7.7 Hz, 2H), 5.73–
5.81 (m, 1H), 5.11–5.19 (m, 2H), 4.77–4.83 (m, 2H), 4.59 (q, J = 4.0 Hz, 1H), 2.87–2.91 (m, 1H), 2.62–2.68
13
(m, 1H) C-NMR (125 MHz, CD3OD) δ 175.56, 172.79, 169.34, 142.04, 133.49, 131.55, 131.05, 129.22,
+
120.10, 50.33, 45.53, 37.38. ESI MS (m/z) 307.08 [M+H] .
4-((5-Benzyl-2,4-dioxothiazolidin-3-yl)methyl)-N-hydroxybenzamide (8c)
1
H-NMR (500 MHz, CD3OD) 44% yield. δ 7.92 (d, J = 8.0 Hz, 2H), 7.18–7.24 (m, 7H), 4.83 (q, J =
13
4.0 Hz, 1H), 4.73 (dd, J = 22.3, 14.9 Hz, 2H), 3.41 (dd, J = 14.0, 4.3 Hz, 1H), 3.26 (q, J = 7.3 Hz, 1H). C-
NMR (125 MHz, CD3OD) δ 175.37, 172.60, 169.39, 141.84, 136.97, 131.38, 131.03, 130.84, 129.54, 128.96,
+
128.44, 52.28, 45.47, 38.47. ESI MS (m/z) 357.09 [M+H] .
3.2. Biology
3.2.1. Materials
Dulbecco’s Modified Eagle’s medium (DMEM) with L-glutamine was purchased from
GenDEPOT (Barker, TX, USA) and fatal bovine serum (FBS) and penicillin and streptomycin were
purchased Gibco BRL (Gaithersburg, MD, USA). Antibodies for α-tubulin, Ac-α-tubulin (Lys40),
Histone H3, Ac-Histone H3 (Lys9), and β-actin were purchased from Cell Signaling Technology
(Boston, MA, USA). Goat anti-rabbit IgG horseradish peroxidase conjugate was purchased from
Santa Cruz Biotechnology (Santa Cruz, CA, USA). Cell Titer 96 Aqueous One Solution cell
proliferation assay kit was purchased from Promega (Madison, WI, USA). Amersham ECL select
Western blotting detection reagent was purchased from GE Healthcare. HDAC fluorogenic assay kits
(HDAC1, #50061; HDAC6, #50076) were purchased from BPS Bioscience (San Diego, CA, USA).
Tubastain A (Portland, OR, USA) was purchased from TCI chemicals. For in vitro studies,
Methamphetamine (METH) was purchased from the Ministry of Food and Drug Safety (Cheongju,
Korea).
3.2.2. Cell Culture
SH-SY5Y were grown in DMEM supplemented with streptomycin (500 mg/mL), penicillin (100
units/m), and 10% fetal bovine serum (FBS). The cells were incubated at 37 °C in a humidified
atmosphere containing 5% CO2.
3.2.3. Assessment of Cell Morphology
4
SH-SY5Y cells (1 × 10 cells/well) were seeded in 6-well plate, and the cells were allowed to attach
for 72 h. Culture medium was then changed to fresh medium containing METH (1 mM) for pretreat
4 h. After being preincubated for 4 h, add to compound 6b (5, 10, and 20 µM) for 24 h. Cell
morphology was observed with inverted phase contrast microscope (Olympus, Tokyo, Japan) at 20×
objective
3.2.4. HDAC Assay
Enzymatic HDAC assay was performed following manufacturer’s protocol (BPS Bioscience).
Briefly, HDAC assay buffer (35 µL) was mixed with 5 µL of BSA (1 mg/mL) and 5 µL of HDAC
substrate (200 µM) in 96-well black plate. Five microliters of HDAC1 enzyme (0.4 ng/ μL) and HDAC6
enzyme (7 ng/µL) were added to the each well, followed by various concentrations of compound 6a-
b, 8a-c and SAHA (5 µL), and then resulting mixture was incubated at 37 °C for 30 min. After
incubation, 50 µL of undiluted 2 × HDAC developer was added to each well. After the mixture was

Int. J. Mol. Sci. 2019, 20, 6213
11 of 13
incubated at RT for 15 min, fluorescence intensity was measured using a microplate reader at 360 nm
excitation and 460 nm emission wavelengths.
3.2.5. Cell Proliferation Assay
3
SH-SY5Y (1 × 10 cells/well) were seeded in 96-well plate, the medium volume was brought to
100 µL, and the cells were allowed to attach for 14 h. Various concentrations of compound 6b (1, 5,
10, 30, 50, 70, and 100 µM) and METH (0.1 and 1 mM) were then added to the wells. Cells were then
incubated at 37 °C for 24 h. Cell viability was determined using the Promega Cell Titer 96 Aqueous
One Solution cell proliferation assay. Absorbance at 490 nm was read on Tecan Infinite F200 Pro plate
reader, and values were expressed as percent of absorbance from cells incubated in DMSO alone.
3.2.6. Western Blot
The cells were washed and lysed in ice-cold lysis buffer (23 mM Tris-HCl pH 7.6, 130 mM NaCl,
1% NP-40, 1% sodium deoxycholate, 0.1% SDS) and 30 µg of lysate per lane was separated by SDS-
PAGE, followed by transferring to a PVDF membrane (Bio rad, Hercules, USA). The membrane was
blocked with 5% skim milk in TBST, and then incubated with primary antibody. After being treated
with goat-anti rabbit secondary antibody (Santa Cruz, CA, USA) coupled horseradish peroxidase,
proteins were visualized by ECL chemiluminescence according to the instructions of the
manufacturer’s instruction (GE healthcare, Chicago, IL. USA).
3.2.7. Statistical Analysis
Experiments were performed at least three times, with consistent results. The results are given
as mean ± standard derivation (SD). The p-value was assessed using Student t-tests. Results were
considered statistically significant at p < 0.01.
3.3. Docking Studies
In silico docking of compound 6b with the 3D coordinates of the X-ray crystal structure of
HDAC6 (PDB code: 5EF7) was accomplished using the AutoDock 4.2 program downloaded from the
Molecular Graphics Laboratory of the Scripps Research Institute. The AutoDock program was chosen
because it uses a genetic algorithm to generate the poses of the ligand inside a known or predicted
binding site utilizing the Lamarckian version of the genetic algorithm where the changes in
conformations adopted by molecules after in situ optimization are used as subsequent poses for the
offspring. In the docking experiments carried out, Gasteiger charges were placed on the X-ray
structure of HDAC6 along with 6b using tools from the AutoDock suite. A grid box centered on the
substrate binding pocket of HDACs enzyme with definitions of 50 × 50 × 50 points and 0.375 Å
spacing was chosen for ligand docking experiments. The docking parameters consisted of setting the
population size to 150, the number of generations to 27,000, and the number of evaluations to
2,500,000, while the number of docking runs was set to 100 with a cutoff of 1 Å for the root-mean-
square tolerance for the grouping of each docking run. The docking pose of HDAC6 with compound
6b was depicted in Figure 5 and rendering of the picture was generated using PyMol
(DeLanoScientific). Furthermore, we performed the self-docking experiment of the native ligand
HPOB into HDAC6 and assessed the effectiveness of the docking simulations. The estimated binding
energy of HPOB resulted in −7.85 kcal/mol and RMSD between the docked binding pose and the
native binding pose led to 1.8 Å.
4. Conclusions
In the current study, we designed and synthesized a new series of thiazolidinedione-based
HDAC6 inhibitors. Biological evaluation of these analogues illustrated that compound 6b furnished
the most potent HDAC6 inhibition activity with an IC50 value of 21 nM, which is approximately 10-
fold greater than FDA-approved drug, SAHA (HDAC6 IC50 = 226 nM). Exposure of SH-SY5Y cells
with compound 6b more efficiently promoted the acetylation of α-tubulin than Histone H3,

Int. J. Mol. Sci. 2019, 20, 6213
12 of 13
indicating that compound 6b suppressed the activity of HDAC6 enzyme more selectively than
HDAC1. Furthermore, compound 6b reversed methamphetamine-induced morphology changes of
SH-SY5Y cells in a dose-dependent manner. Western blot analysis revealed that biochemical
mechanisms underlying methamphetamine-induced morphology changes are associated with
disturbance of α-tubulin acetylation. Taken together, compound 6b represents a novel HDAC6-
selective inhibitor, demonstrating promising therapeutic potential in methamphetamine addiction.
Supplementary Materials: Supplementary materials can be found at www.mdpi.com/xxx/s1.
Author Contributions: Conceptualization, C.S., Y.J.O., B.P., S.L., C.J., S.L., J.H.S., and Y.H.S.; methodology, C.S.
and Y.J.O.; writing—original draft preparation, C.S., Y.J.O., and Y.H.S.; writing—review and editing, C.S., Y.J.O.,
B.P., S.L., C.J., S.L., J.H.S., and Y.H.S.; project administration, Y.H.S.; funding acquisition, B.P., S.L., C.J., S.L.,
J.H.S., and Y.H.S.
Acknowledgments: This research was supported by Basic Science Research Program through the National
Research Foundation of Korea (NRF) funded by the Ministry of Education (NRF-2016R1A6A1A03011325 and
2016R1D1A1B01009559).
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
Galbraith, N. The methamphetamine problem: Commentary on psychiatric morbidity and socio-
occupational dysfunction in residents of a drug rehabilitation centre. BJPsych Bull. 2015, 39, 218–220.
Courtney, K.E.; Ray, L.A. Methamphetamine: An update on epidemiology, pharmacology, clinical
phenomenology, and treatment literature. Drug Alcohol Depend. 2014, 143, 11–21.
Chauhan, H.; Killinger, B.A.; Miller, C.V.; Moszczynska, A. Single and binge methamphetamine
administrations have different effects on the levels of dopamine D2 autoreceptor and dopamine transporter
in rat striatum. Int. J. Mol. Sci. 2014, 15, 5884–5906.
4.
Huang, X.; Chen, Y.Y.; Shen, Y.; Cao, X.; Li, A.; Liu, Q.; Li, Z.; Zhang, L.B.; Dai, W.; Tan, T. et al.
Methamphetamine abuse impairs motor cortical plasticity and function. Mol. Psychiatry 2017, 22, 1274–
1281.
5.
6.
7.
Luo, Y.L.; Bian, J.W.; Zheng, Z.J.; Zhao, L.; Han, S.; Sun, X.H.; Li, J.F.; Ni, G.X. Effects of methamphetamine
abuse on spatial cognitive function. Sci. Rep. 2018, 8, 5502.
Groman, S.M.; Rich, K.M.; Smith, N.J.; Lee, D.; Taylor, J.R. Chronic Exposure to Methamphetamine
Disrupts Reinforcement-Based Decision Making in Rats. Neuropsychopharmacology 2018, 43, 770–780.
Kang, Y.; Lee, J.H.; Seo, Y.H.; Jang, J.H.; Jeong, C.H.; Lee, S.; Jeong, G.S.; Park, B. Epicatechin Prevents
Methamphetamine-Induced Neuronal Cell Death via Inhibition of ER Stress. Biomol. Ther. (Seoul) 2019, 27,
145–151.
8.
9.
Krasnova, I.N.; Cadet, J.L. Methamphetamine toxicity and messengers of death. Brain Res. Rev. 2009, 60,
379–407.
Anderson, E.M.; Penrod, R.D.; Barry, S.M.; Hughes, B.W.; Taniguchi, M.; Cowan, C.W. It is a complex issue:
Emerging connections between epigenetic regulators in drug addiction. Eur. J. Neuro. sci. 2019, 50, 2477–
2491.
10. Godino, A.; Jayanthi, S.; Cadet, J.L. Epigenetic landscape of amphetamine and methamphetamine addiction
in rodents. Epigenetics 2015, 10, 574–580.
11. Torres, O.V.; Ladenheim, B.; Jayanthi, S.; McCoy, M.T.; Krasnova, I.N.; Vautier, F.A.; Cadet, J.L. An Acute
Methamphetamine Injection Downregulates the Expression of Several Histone Deacetylases (HDACs) in
the Mouse Nucleus Accumbens: Potential Regulatory Role of HDAC2 Expression. Neurotox Res. 2016, 30,
32–40.
12. Cadet, J.L. Epigenetics of Stress, Addiction, and Resilience: Therapeutic Implications. Mol. Neurobiol. 2016,
53, 545–560.
13. Kalda, A.; Heidmets, L.T.; Shen, H.Y.; Zharkovsky, A.; Chen, J.F. Histone deacetylase inhibitors modulates
the induction and expression of amphetamine-induced behavioral sensitization partially through an
associated learning of the environment in mice. Behav. Brain Res. 2007, 181, 76–84.
14. Fernandes, S.; Salta, S.; Summavielle, T. Methamphetamine promotes alpha-tubulin deacetylation in
endothelial cells: The protective role of acetyl-l-carnitine. Toxicol. Lett. 2015, 234, 131–138.

Int. J. Mol. Sci. 2019, 20, 6213
13 of 13
15. Drazic, A.; Myklebust, L.M.; Ree, R.; Arnesen, T. The world of protein acetylation. Biochim. Biophys Acta.
2016, 1864, 1372–1401.
16. Glozak, M.A.; Sengupta, N.; Zhang, X.; Seto, E. Acetylation and deacetylation of non-histone proteins. Gene
2005, 363, 15–23.
17. Choi, M.A.; Park, S.Y.; Chae, H.Y.; Song, Y.; Sharma, C.; Seo, Y.H. Design, synthesis and biological
evaluation of a series of CNS penetrant HDAC inhibitors structurally derived from amyloid-β probes. Sci.
Rep. 2019, 9, 13187.
18. Lim, J.; Song, Y.; Jang, J.-H.; Jeong, C.-H.; Lee, S.; Park, B.; Seo, Y.H. Aspirin-inspired acetyl-donating
HDACs inhibitors. Arch. Pharm. Res. 2018, 41, 967–976.
19. Song, Y.; Lim, J.; Seo, Y.H. A novel class of anthraquinone-based HDAC6 inhibitors. Eur. J. Med. Chem. 2019,
164, 263–272.
20. Sucheta; Tahlan, S.; Verma, P.K. Biological potential of thiazolidinedione derivatives of synthetic origin.
Chem. Cent. J. 2017, 11, 130.
21. Saltiel, A.R.; Olefsky, J.M. Thiazolidinediones in the treatment of insulin resistance and type II diabetes.
Diabetes 1996, 45, 1661–1669.
22. Ma, L.; Pei, H.; Lei, L.; He, L.; Chen, J.; Liang, X.; Peng, A.; Ye, H.; Xiang, M.; Chen, L. Structural exploration,
synthesis and pharmacological evaluation of novel 5-benzylidenethiazolidine-2,4-dione derivatives as
iNOS inhibitors against inflammatory diseases. Eur. J. Med. Chem. 2015, 92, 178–190.
23. Zhang, Y.; Li, N.; Caron, C.; Matthias, G.; Hess, D.; Khochbin, S.; Matthias, P. HDAC-6 interacts with and
deacetylates tubulin and microtubules in vivo. EMBO J. 2003, 22, 1168–1179.
24. Li, F.; Wu, R.; Cui, X.; Zha, L.; Yu, L.; Shi, H.; Xue, B. Histone Deacetylase 1 (HDAC1) Negatively Regulates
Thermogenic Program in Brown Adipocytes via Coordinated Regulation of Histone H3 Lysine 27 (H3K27)
Deacetylation and Methylation. J. Biol. Chem. 2016, 291, 4523–4536.
25. Strebl, M.G.; Campbell, A.J.; Zhao, W.N.; Schroeder, F.A.; Riley, M.M.; Chindavong, P.S.; Morin, T.M.;
Haggarty, S.J.; Wagner, F.F.; Ritter, T. et al. HDAC6 Brain Mapping with [(18)F]Bavarostat Enabled by a
Ru-Mediated Deoxyfluorination. ACS Cent. Sci. 2017, 3, 1006–1014.
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons
Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
