Synthesis of TiO2 with hierarchical porosity for the photooxidation of propene

Article abstract of DOI:10.3390/molecules22122243

The elimination of volatile organic compounds (VOCs) at low concentration is a subject of great interest because these compounds are very harmful for the environment and human health. In this work, we have developed a synthesis methodology of TiO₂ that allows obtaining meso-macroporous materials with hierarchical porosity and with high thermal stability for their application as photocatalysts in the removal of VOCs, specifically propene. The materials synthesized in this work were characterized by Scanning electron microscope (SEM), Transmission electron microscopy (TEM), powder X-ray diffraction (XRD), Thermogravimetric Analysis (TG), and nitrogen adsorption. It is observed that the samples calcined at 250 °C and 500 °C present a high photoactivity for the photooxidation of propene, which is similar to the benchmark material P25 (commercial TiO₂). Moreover, the textural properties are better than those for P25, indicating that the samples are interesting for the preparation of photocatalysts with different conformations, such as in the form of coatings and fillings in different size scales.

Full text of DOI:10.3390/molecules22122243

molecules
Article
Synthesis of TiO2 with Hierarchical Porosity for the
Photooxidation of Propene
Javier Fernández-Catalá, Laura Cano-Casanova, María Ángeles Lillo-Ródenas,
ID
Ángel Berenguer-Murcia and Diego Cazorla-Amorós *
Inorganic Chemistry Department and Materials Institute, Alicante University, Ap. 99, E-03080 Alicante, Spain;
j.fernandezcatala@ua.es (J.F.-C.); laura.cano@ua.es (L.C.-C.); mlillo@ua.es (M.Á.L.-R.);
a.berenguer@ua.es (Á.B.-M.)
* Correspondence: cazorla@ua.es; Tel.: +34-96-590-3946
Received: 27 September 2017; Accepted: 13 December 2017; Published: 16 December 2017
Abstract: The elimination of volatile organic compounds (VOCs) at low concentration is a subject
of great interest because these compounds are very harmful for the environment and human
health. In this work, we have developed a synthesis methodology of TiO2 that allows obtaining
meso-macroporous materials with hierarchical porosity and with high thermal stability for their
application as photocatalysts in the removal of VOCs, specifically propene. The materials synthesized
in this work were characterized by Scanning electron microscope (SEM), Transmission electron
microscopy (TEM), powder X-ray diffraction (XRD), Thermogravimetric Analysis (TG), and nitrogen
◦
◦
adsorption. It is observed that the samples calcined at 250 C and 500 C present a high photoactivity
for the photooxidation of propene, which is similar to the benchmark material P25 (commercial
TiO2). Moreover, the textural properties are better than those for P25, indicating that the samples are
interesting for the preparation of photocatalysts with different conformations, such as in the form of
coatings and fillings in different size scales.
Keywords: TiO2; hierarchical porosity; photocatalytic activity; propene
1. Introduction
At present, the removal of volatile organic compounds (VOCs) at low concentrations is still
a hot topic, because these compounds are very harmful to the environment and human health.
These pollutants cause carcinogenic effects, problems in the central nervous system and climate change,
among several other adverse effects [1,2].
Among the different VOCs, the removal of propene is interesting because this contaminant
is considered a highly reactive volatile organic compound (HRVOC) which is involved in the
formation of ground-level and tropospheric ozone and, therefore, in photochemical smog [
This contaminant appears in vehicle emissions and in many industrial applications, such as
petrochemical plants, cigarette smoke, and others [ ]. There are several ways to eliminate propene, for
3,4].
5,6
example, incineration, adsorption, absorption, condensation, among others. However, heterogeneous
photocatalytic oxidation (PCO) is a novel way to eliminate this pollutant because it can be performed
at room temperature and at atmospheric pressures [7]. A wide variety of semiconductors has been
studied as photocatalysts, such as ZnO [8], CdS [9] and, most noticeably, TiO2 [10–12].
Titania (TiO2) has received significant attention in the last decades for its unique properties,
including photocatalytic activity, photo- and chemical stability, nontoxicity, and relatively low
production cost [13
such as inorganic pigment, photocatalyst, sunscreen, or in energy storage and electrochromism [16
From a structural point of view, titanium dioxide has three crystalline polymorphs: anatase, rutile,
–
15]. Moreover, TiO2 is an important industrial product in many applications
–
20].
Molecules 2017, 22, 2243; doi:10.3390/molecules22122243
www.mdpi.com/journal/molecules

Molecules 2017, 22, 2243
2 of 16
and brookite. Among the three crystalline phases, anatase shows a better photocatalytic behavior [21].
An interesting commercial TiO2 powder is P25 (EVONIK, Essen, Germany), which consists of 80% of
the anatase phase and 20% of the rutile phase of titanium dioxide. This commercial titania nanoparticle
is widely used as photocatalyst in photochemical reactions due to their very high photocatalytic
activity [22] and is often used as benchmark material to assess the potential of different photocatalysts.
Many factors influence the photocatalytic properties of TiO2, such as the particle size, morphology,
exposed lattice planes, and crystalline phase [23,24]. P25 has already been optimized in many of these
factors. Nevertheless, this material presents comparatively low surface area and this factor may be
important to improve the photooxidation of propene. For this reason, it is interesting to synthesize
new TiO2 materials that improve on factors, such as the surface area and the capacity to protoxidize
propene with respect to P25 [25–27]. Despite the fact that propene is a reasonably small molecule,
if its mineralization is not complete, deposition of carbon on the catalyst surface cannot be ruled
out and, thus, diffusional limitations may arise. Furthermore, the way TiO2 powders are usually
produced (in the form of nanoparticles, as we have already reported [26]), the use of the catalyst
in a bed configuration will likely result in compacting which will ultimately give rise to diffusional
limitations. In order to ensure a proper mass transfer, a hierarchical catalyst architecture with linked
macro-mesoporosity could be an interesting option.
In this work, we have synthesized several TiO2 samples with hierarchical porosity to obtain
materials with large accessible surface area to improve the results obtained using P25 TiO2.
These materials have been synthesized through modifications on the report by Zhu et al. [25] by
incorporating urea in the sol synthesis in order to develop a material with pores large enough to
warrant the absence of any diffusional limitations [28,29]. If this larger porosity can be enhanced by
producing an interconnected network of meso- and macropores (which would give to a so-called
hierarchical porosity) it would be of interest for the preparation of photocatalysts. It is of course also
promising if such materials could be prepared with different conformations, such as in the form of
coatings and fillings in different size scales for applications that need a robust continuous material
and a good mass transfer for a good photooxidation performance [28]. Moreover, removal of the
templates used during synthesis has been carried out by washing or calcination in order to check the
effect of these treatments. The prepared materials were studied in photooxidation of propene at low
concentrations at room temperatures and under UV irradiation, yielding promising results in terms of
photocatalytic performance.
2. Results and Discussion
2.1. Materials Characterization
2.1.1. XRD Analysis
The changes in crystal phase and crystallite size of all the samples were studied by ex situ
powder X-ray diffraction (XRD), and the corresponding patterns of the samples calcined at different
temperatures for 6 h are presented in Figure 1. The corresponding results regarding crystallite size and
phase composition are listed in Table 1. In the XRD patterns it is observed that the as-synthesized TiO2
(without treatment) is composed of anatase phase with very low crystallinity. Upon increasing the
◦
calcination temperature in the 250–700 C range the crystallinity of the samples increases (as evidenced
from the sharper, narrower characteristic peaks of anatase TiO2) while maintaining the same anatase
phase. As some authors have reported in the literature, the temperature up to which the anatase phase
is stable is around 500 ◦C [30]. Treating the sample at higher temperatures results in the formation of
the more stable rutile phase. In our case, the anatase-to-rutile transformation occurs in a significantly
◦
◦
higher temperature range, between 700 C and 900 C, which indicates a very high thermal stability for
the TiO2 samples prepared in this work. Given our modification of the reported protocol (see Sample
Characterization (Section 3.3.) for full details), it appears that urea favors the thermal stabilization of
the anatase phase in agreement with [29].

Molecules 2017, 22, 2243
3 of 16
With respect to the crystallite size of the samples shown in Table 1, the washing and
low-temperature calcination treatments did◦not affect the crystallite size, being 7 nm in three cases
(as-synthesized, washed, and calcined at 250 C). Nevertheless, increasing the calcination temperature
results in the sintering and growth of larger crystals. Rietveld analyses of the XRD patterns may yield
additional useful information, such as the microstrains in the particles as a result of the calcination
process as other authors have reported [31], but the resolution of our spectra was not suitable to
perform a reliable analysis.

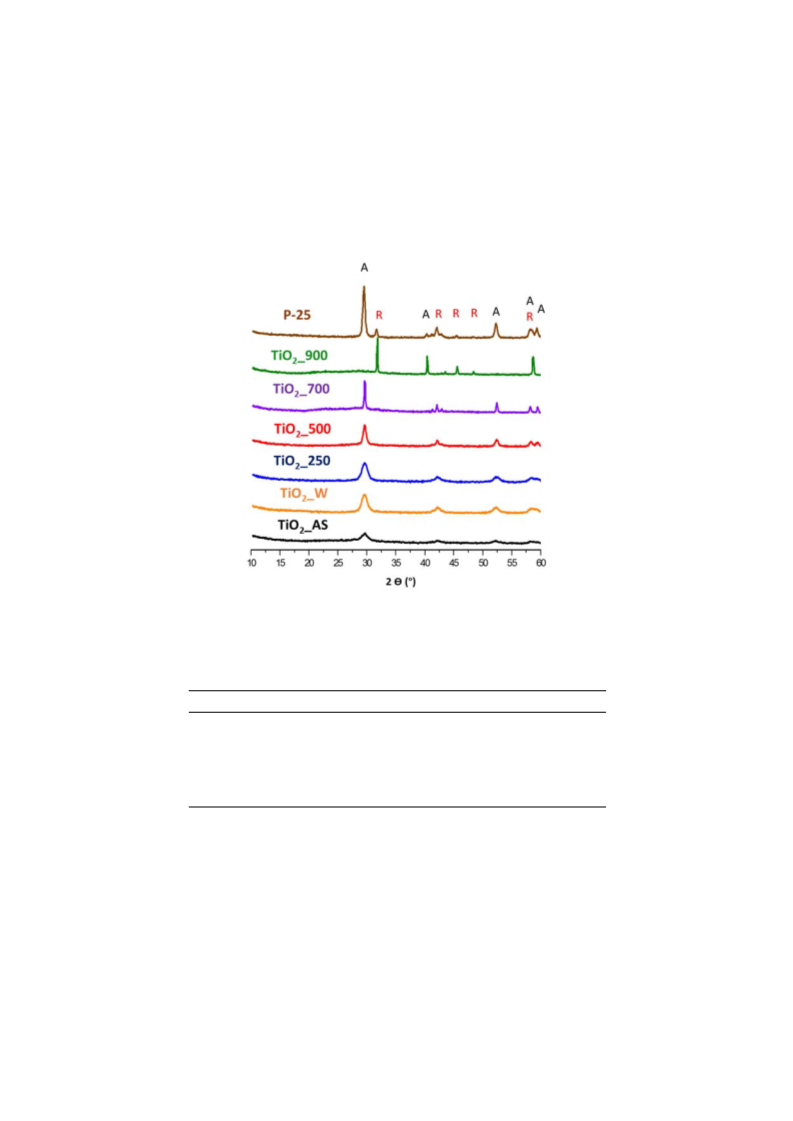

Figure 1. XRD patterns of TiO2 samples. Key: A = anatase; R = rutile.
Table 1. Crystallite size and phase composition of the TiO2 samples prepared in this study (see Sample
Characterization (Section 3.3) for full details).
Samples
Crystal Phase Composition
Crystallite Size (nm)
TiO2_AS
TiO2_W
TiO2_250
TiO2_500
TiO2_700
TiO2_900
100% Anatase
100% Anatase
100% Anatase
100% Anatase
100% Anatase
100% Rutile
6
7
7
13
26
48
2.1.2. Thermogravimetric Analysis
In order to quantify the amount of organic matter present in the prepared samples,
thermogravimetric analysis (TG) was done in all samples. The results of the performed TG experiments
are showed in Figure 2. The as-synthesized TiO2 samples had a weight loss of about 25.8%, but
samples TiO2_W and TiO2_250 already presented weight losses of around 9.0% and 6.0%, respectively,
which are indicative of the removal of a substantial part of the organic matter used during the synthesis.
The complete removal of the template requires higher temperatures and this is necessary since they
may block the porosity,◦affecting the (photo) catalytic performance. At calcination temperatures of
◦
◦
500 C, 700 C, and 900 C these values were 2.5%, 0.58%, and 0.25%. The weight loss detected for the
◦
sample calcined at 500 C could be due to the removal of traces of organic matter and weakly-adsorbed

Molecules 2017, 22, 2243
4 of 16
water at lower temperatures [32]. In order to corroborate this observation, FTIR experiments were
conducted for the prepared TiO2 samples (vide infra).

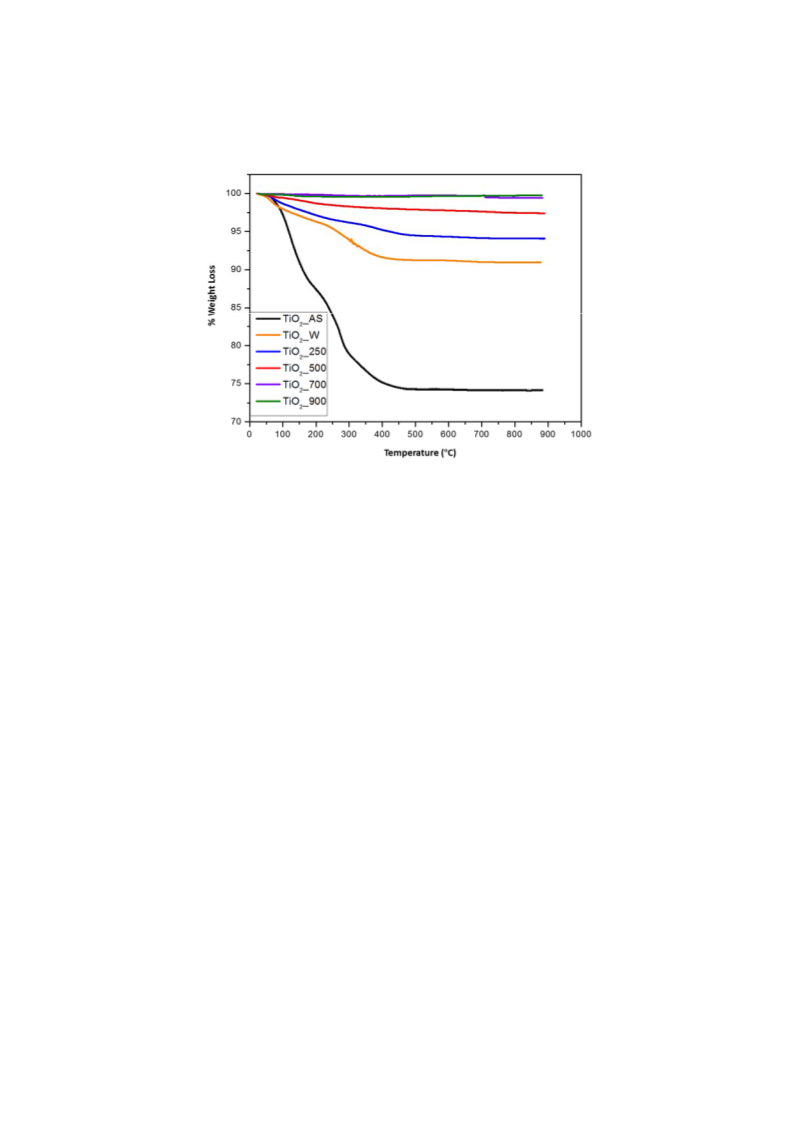

Figure 2. TG curves of the TiO2 samples prepared in this study.
2.1.3. FT-IR Spectroscopy
The analysis of the surface chemistry and the removal of reagents/templates (organic matter)
after heat treatment were analyzed by FTIR. The results are presented in Figure 3. The broad band at
about 3000–3500 cm−1 and 1600 is attributed to the OH stretching of physisorbed water on the TiO2
surfaces and hydrogen-bonded hydroxyl groups [33]. T◦he as-synthesized sample and the washed
sample show this broad band. After calcination at 250 C the bands at 3000–3500 and 1600 cm−1
decreased in intensity, indicating the loss of physisorbed water on the TiO2 surface. Moreover, when the
calcination temperature is further increased this adsorbed water is eliminated and the bands appearing
at 3000–3500 and 1600 cm−1 disappear. The remaining bands appearing at 3130 and 3220 cm−1 are
indicative of the presence of OH groups on the surface of the TiO2 [34]. This result agrees with the
TG analyses in which the samples washed and calcined at 250 ◦C presented noticeable weight losses
up to 500 ◦C, probably due to the removal of water and organic residues at lower temperature and
adsorbed water at higher temperatures. In this respect, as the FTIR results show, increasing the
calcination temperature not only removes the template molecules along with any remaining organic
reagents used (lower wavenumber region), but also removes the physisorbed water (both weakly
and strongly adsorbed water [32], higher wavenumber region) which might be detrimental towards
photocatalytic applications.

Molecules 2017, 22, 2243
5 of 16

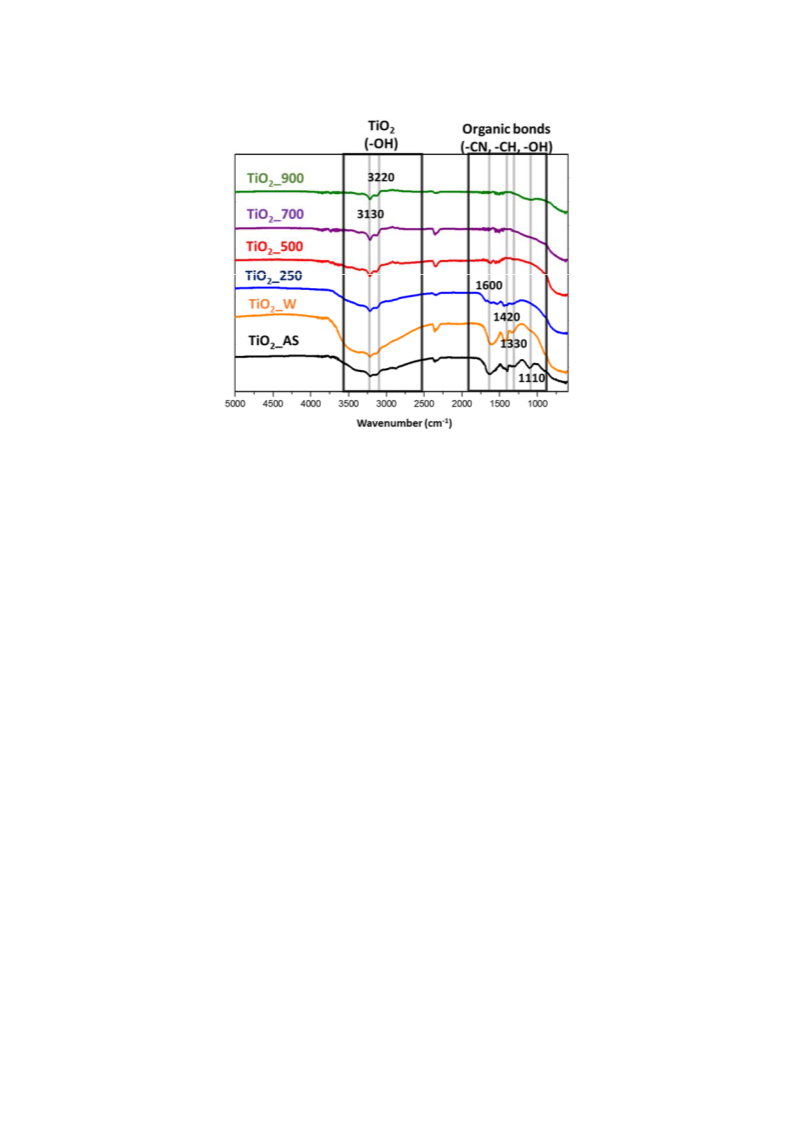

Figure 3. FTIR spectra of the TiO2 samples prepared in this study.
The bands at 1110 cm−1 and 1420 cm−1 in the as-synthesized sample are assigned to the stretching
vibration of C-N and the presence of the deformation mode of ammonium ions formed by the
decomposition of excess urea [29], respectively. Moreover, this sample also presents bands at 1420,
1330, and 1110 cm−1 corresponding to C–H [11] vibrations of surfactants and complexing agents.
In the sample washed with ethanol the band at 1110 cm−1 is not present because this step removed a
significant amount of organic reagents but, as indicated in the TG experiments (Figure 2), not all organic
matter was removed in the washing step. When the sample was calcined at low temperature (TiO2_250)
the bands corresponding to templates (organic matter) decreased. For this reason, and following up
◦
on the FTIR and TG results, it is necessary to calcine at 500 C or higher temperatures in order to
eliminate all reagents. Washing or calcination at lower temperatures may result in porosity blocking
and/or adverse effects in the surface chemistry of the final material. These results are consistent with
TG experiments, because the as-synthesized TiO2 has the higher loss of organic matter and presents
the relevant characteristic bands for the corresponding compounds, as discussed above.
2.1.4. UV–VIS Spectroscopy
The absorption of the TiO2 materials prepared in this work was evaluated by UV–VIS spectroscopy.
The results are presented in Figure 4 and in Table 2. The samples with the crystal phase anatase present
a similar absorption edge and band gap, which is typical for anatase. However, the as-synthesized
TiO2_sample shows a slightly smaller band gap. This might be attributed to the very low crystallinity
of the anatase phase and the presence of the templating agents used during the synthesis as shown in
the XRD analysis, TG experiments, and FTIR spectra experiments. Sample TiO2_900 (the pure rutile
phase from our XRD results) present a different absorption edge and band gap (414
λ and 2.99 eV,
respectively) with respect to the other samples, which is characteristic for the rutile phase.

Molecules 2017, 22, 2243
6 of 16

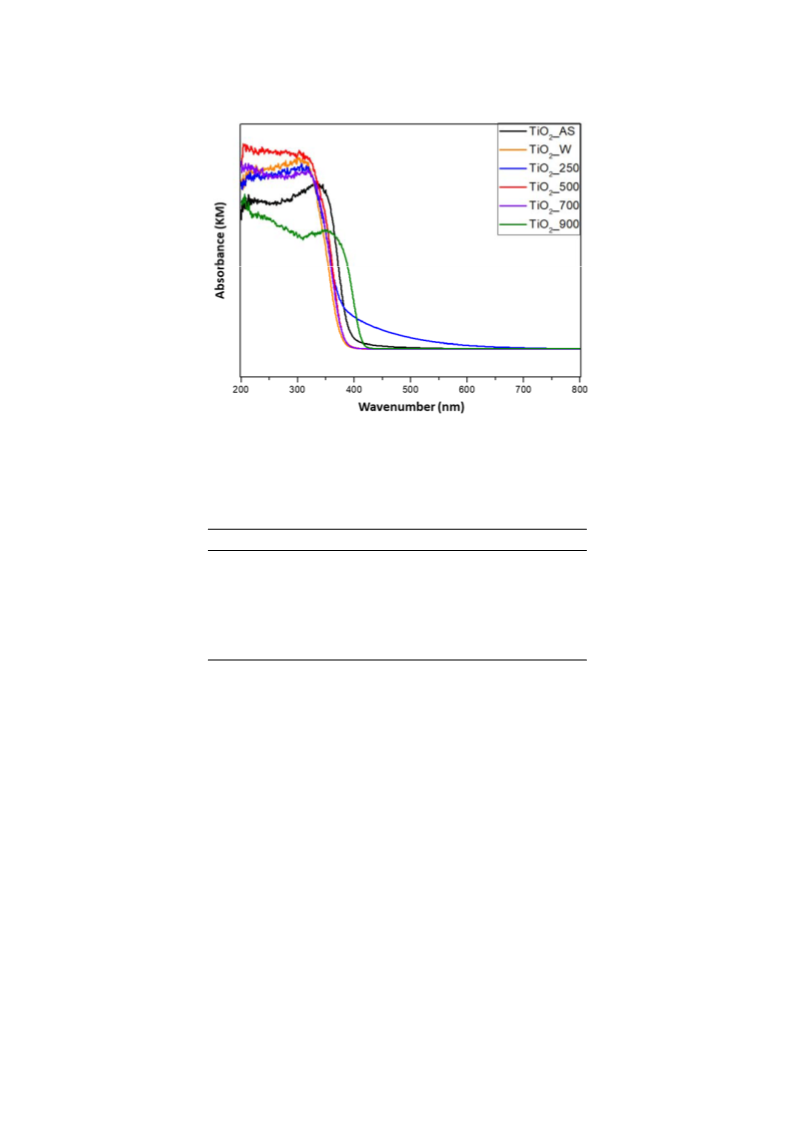

Figure 4. UV–VIS absorption spectra of the TiO2 prepared samples.
Table 2. Absorption edge wavelengths (nm), band gap (Eg) and crystal phase composition values of the
TiO2 samples prepared in this study. The data for benchmark material P25 are shown for comparison
purposes. Key: A = anatase; R = rutile.
Samples
λ (nm)
Eg (Ev)
Crystal Phase Composition
TiO2_AS
TiO2_W
TiO2_250
TiO2_500
TiO2_700
TiO2_900
P25
391
377
390
383
381
414
409
3.17
3.29
3.17
3.23
3.25
2.99
3.03
100% A
100% A
100% A
100% A
100% A
100% R
80% A + 20% R
2.1.5. Porosity Characterization
Nitrogen adsorption-desorption measurements were performed to determine textural properties
of the TiO2 samples. As revealed in Figure 5, the isotherms are of type IV with a hysteresis which is
typical of mesoporous materials. The N2 uptake and the size of the hysteresis loop is dependent on
the treatment applied. In this sense, samples TiO2_W and TiO2_250 exhibit the highest uptakes, but
present a small uptake at low relative pressures, which is indicative of a small amount of microporosity.
Thus, both washing and calcination at a low temperature are able to activate the samples almost
to a full extent, even if some organic moieties are still present (vide supra). Samples TiO2_700 and
TiO2_900 show a significant interparticle sintering and collapse of the porous structure, as evidenced
from their small surface areas. However, sample TiO2_500 presents an isotherm close to that of sample
TiO2_AS, but, as shown in the TG experiments (Figure 2), the presence of leftover template/chemicals
is very low.

Molecules 2017, 22, 2243
7 of 16

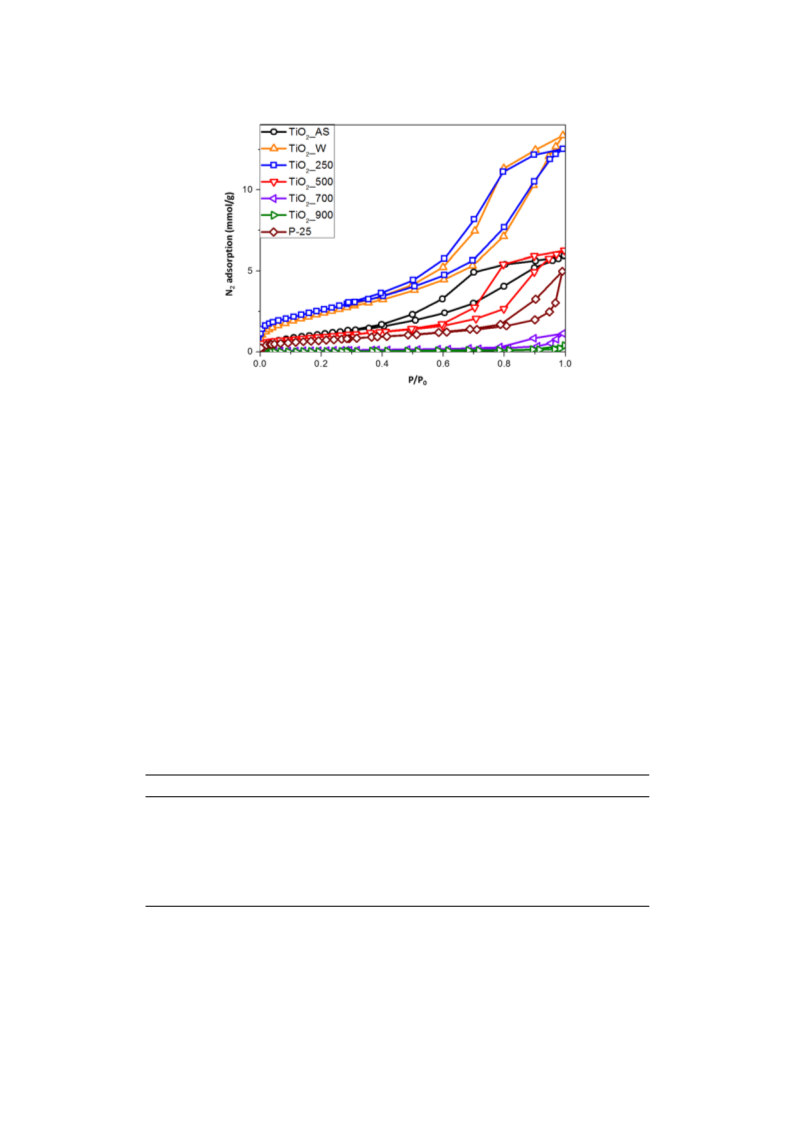

Figure 5. Isotherms of N2 at 77 K for the different TiO2 samples prepared in this study. The adsorption
isotherm of the benchmark material P25 is also shown for comparison purposes.
Concerning the textural properties shown in Table 3, as the calcination temperature is increased,
the BET surface area decreases from ~200 m2/g (samples TiO2_W and TiO2_250) to 4 m2/g (sample
TiO2_900). It, thus, appears that while sufficiently high calcination temperatures are needed in order
to completely remove the organic matter, the very small TiO2 crystallites have a strong tendency to
sinterize (even at reletively low te◦mperatures) given their high surface energy and the TiO2 structure
collapses at temperatures
≥
700 C. This, however does not compromise the thermal stability of
the anatase phase, which might be due to the synthesized samples being constituted by very small
crystallites (see below, TEM analysis) with a large population of defects (probably as a consequence
of the urea synthesis method employed) which block the anatase-to-rutile transition [30]. A similar
trend is also observed for the total pore volume and the total micropore volume calculated applying
the DR equation to the N2 adsorption data, which indicates the collapse of the structure as the sample
is heated to higher temperatures. If we compare the prepared samples with the benchmark solid P25,
as included in Table 3, it is shown how the samples calcined up to 500 ◦C possess higher surface area
and pore volume.
Table 3. Textural properties of the TiO2 samples prepared in this study derived from the analysis of the
N2 adsorption isotherms. The data for benchmark material P25 are shown for comparison purposes.
Samples
SBET (m2/g)
Vtotal,0.95 (cm3/g)
VN2DR (cm3/g)
Mean Pore Size (nm)
TiO2_AS
TiO2_W
TiO2_250
TiO2_500
TiO2_700
TiO2_900
P25
96
201
212
85
7
0.20
0.43
0.42
0.20
0.02
0.01
0.18
0.04
0.07
0.08
0.03
0.00
0.00
0.02
6.2
8.8
6.2
8.7
-
4
55
-
7.6
2.1.6. Electron Microscopy Characterization
The morphology of the TiO2 samples prepared in this study is shown in Figure 6 (SEM images)
and Figure 7 (TEM images). As shown in Figure 6, all samples present a heterogeneous morphology.
The rougher surface observed for the as-synthesized sample, as well as those for samples calcined at
◦
temperatures below 500 C, seems to become smoother upon calcination at higher temperatures,

Molecules 2017, 22, 2243
8 of 16
which might be indicative of the sintering of the crystallites and the collapse of the structure.
Upon observation under TEM the samples consist of the aggregation of nanoparticles synthesized
during the sol-gel process. Samples TiO2_AS, TiO2_W, and TiO2_250 have similar mean particle sizes,
which agrees very well with the crystallite sizes determined from XRD analyses. At higher calcination
temperatures, the mean particle size noticeably increases (Figure 7 and Table 4) in agreement with
the literature [26]. The insets in Figure 7 show higher magnification pictures taken for the samples
prepared in this study, in which a small surface amorphous layer is visible. This layer becomes
less noticeable as the calcination temperature is increased. Given our observations, this amorphous
layer might be similar to that previously reported [35] for inorganic-organic core-shell TiO2 materials
prepared by the combustion sol-gel method. It must be emphasized that, from the SEM and N2
adsorption results, the samples prepared in this work present a hierarchical structure, as it can be
evidenced by the large difference between the total pore volumes with respect to the values reported
in the literature for similar solids [26]. It must be noted that, differently from our previous studies, the
reported synthetic strategy did not rely on the precipitation of TiO2 nanoparticles based on a sol-gel
route, but on the transformation of a TiO2 hydrogel into a TiO2 hierarchical monolithic structure as
a continuation of our previous efforts in which we have prepared continuous SiO2 monoliths and
coatings following a very similar approach [28] for applications needing a robust continuous material.
In this respect, the materials prepared in this study are comprised of nanoparticles which have formed
from a gel and which are organized in two different levels: one around a nonionic surfactant, and the
other arising from the decomposition of urea during the second step of the hydrothermal treatment.
Comparing the particle size in TEM with the crystallite size obtained by XRD (Table 1), it is observed
that at high temperatures there are significant discrepancies between the observed crystallite size and
that determined by XRD. This is ascribed to the fact that the particles observed in TEM are not TiO2
single crystals, but aggregates comprised of several TiO2 smaller crystals which preserve their domains
upon sintering.

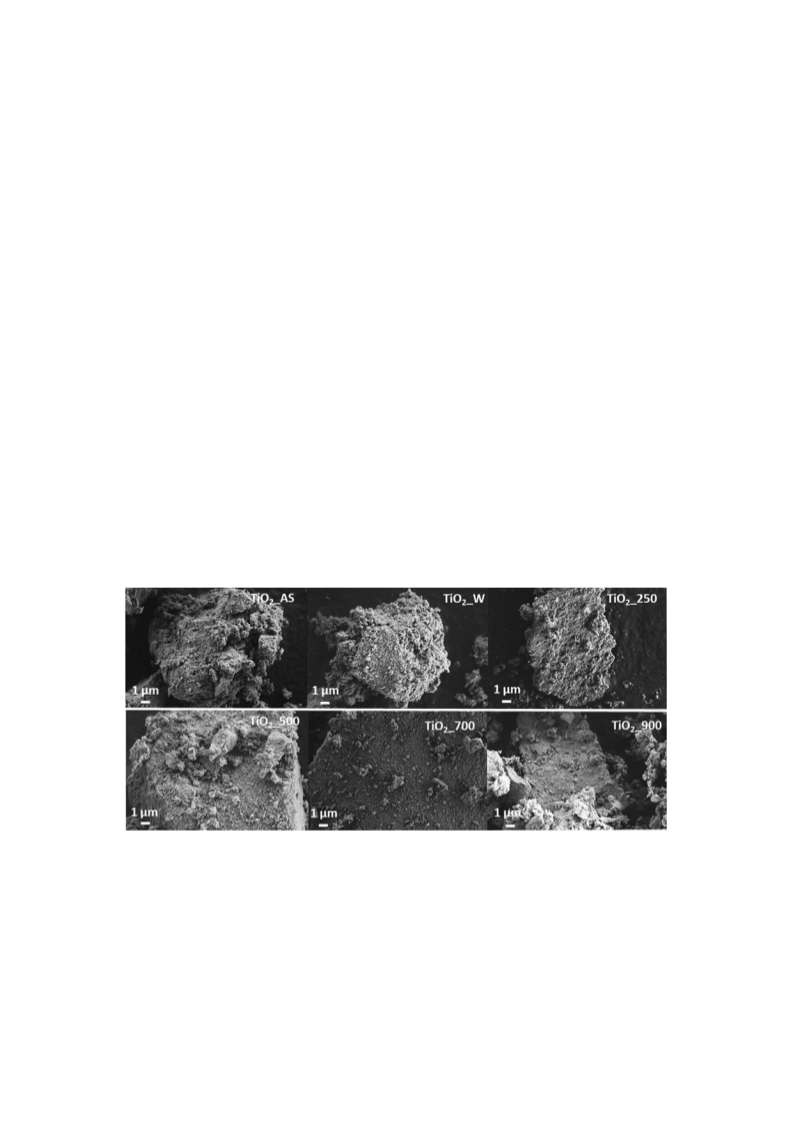

Figure 6. SEM of the different TiO2 samples prepared in this study. Scale bar: 1 µm.

Molecules 2017, 22, 2243
9 of 16

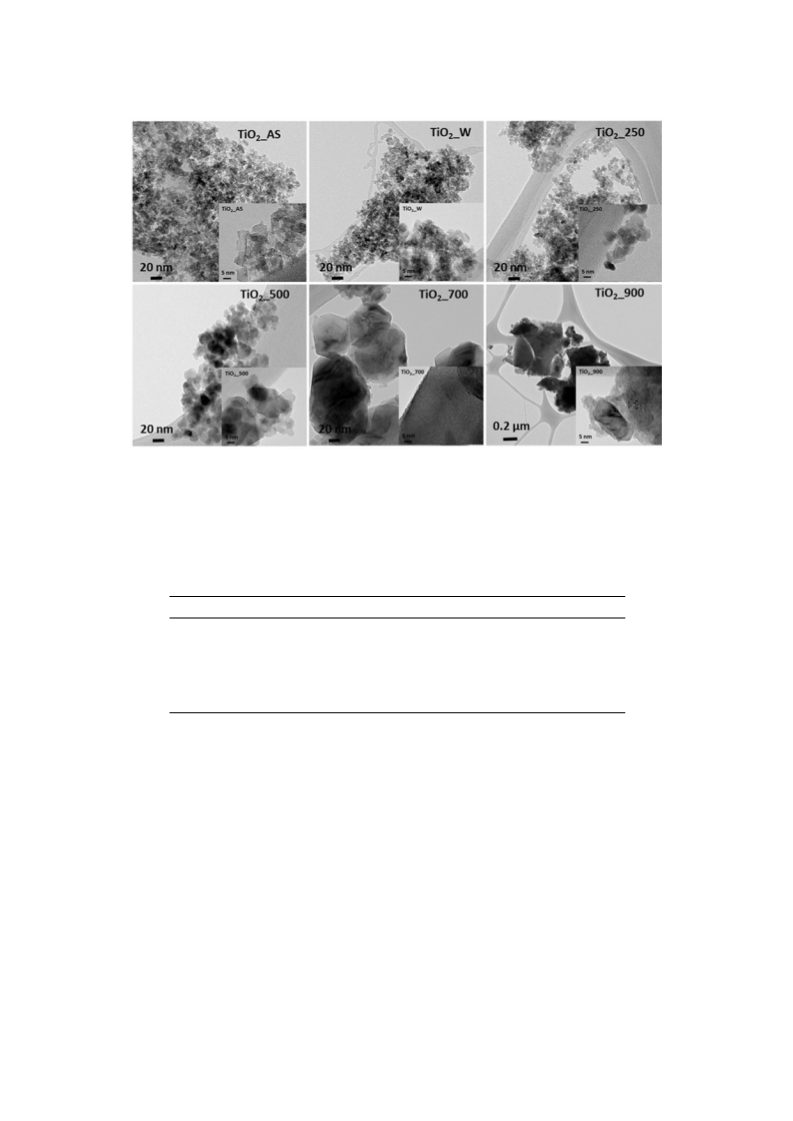

Figure 7. TEM of the different TiO2 samples prepared in this study. Insets: higher magnification images
for all samples. Scale bar for all images except TiO2_900: 20 nm; Scale bar for sample TiO2_900: 0.2 m.
Scale bars for insets: 5 nm.
µ
Table 4. Crystalline size with TEM and XRD of TiO2 samples. The mean crystallite size from TEM
analysis was performed by counting 100 separate particles (unless stated otherwise) and averaging
the results.
Samples
Crystallite Size (nm) “TEM”
Crystallite Size (nm) “XRD”
TiO2_AS
TiO2_W
TiO2_250
TiO2_500
TiO2_700
TiO2_900
6.4 ± 1.0
7.1 ± 0.9
6
7
7
13
26
48
7.2 ± 0.9
12.9 ± 1.5
80 ± 20 (50 part.)
270 ± 90 (30 part.)
2.1.7. In Situ XRD Analyses
In order to gain a better insight on the thermal stability of the prepared TiO2 samples, in situ
XRD measurements were carried out. Sample TiO2_AS (as-synthesized) was mounted in the holder
and a first scan was obtained at room temperature. The sample was then treated as described in the
Experimental section, collecting XRD spectra at the indicated temperatures and times. The results
corresponding to the regions where the two characteristic peaks for anatase and rutile appear are
presented in Figure 8. Table 5 shows the phase composition of the samples after each respective
treatment and the corresponding crystallite size. In Figure 8 it is observed that the only phase for the
starting sample TiO2_AS is pure anatase, whose crystallinity increases with increasing temperature.
The anatase to rutile transition takes place between 700 ◦C and 900 ◦C, which is a high temperature
compared with the literature [30
,
36]. Moreover, when heating at temperatures
≥
500 ◦C the size of the
crystallites grows over time, as it can be seen comparing the results from the spectra obtained at 0 and
60 min of dwelling time. In this respect, the calcination time is an important tool to control the final
crystallite size, as shown in Table 5.

Molecules 2017, 22, 2243
10 of 16

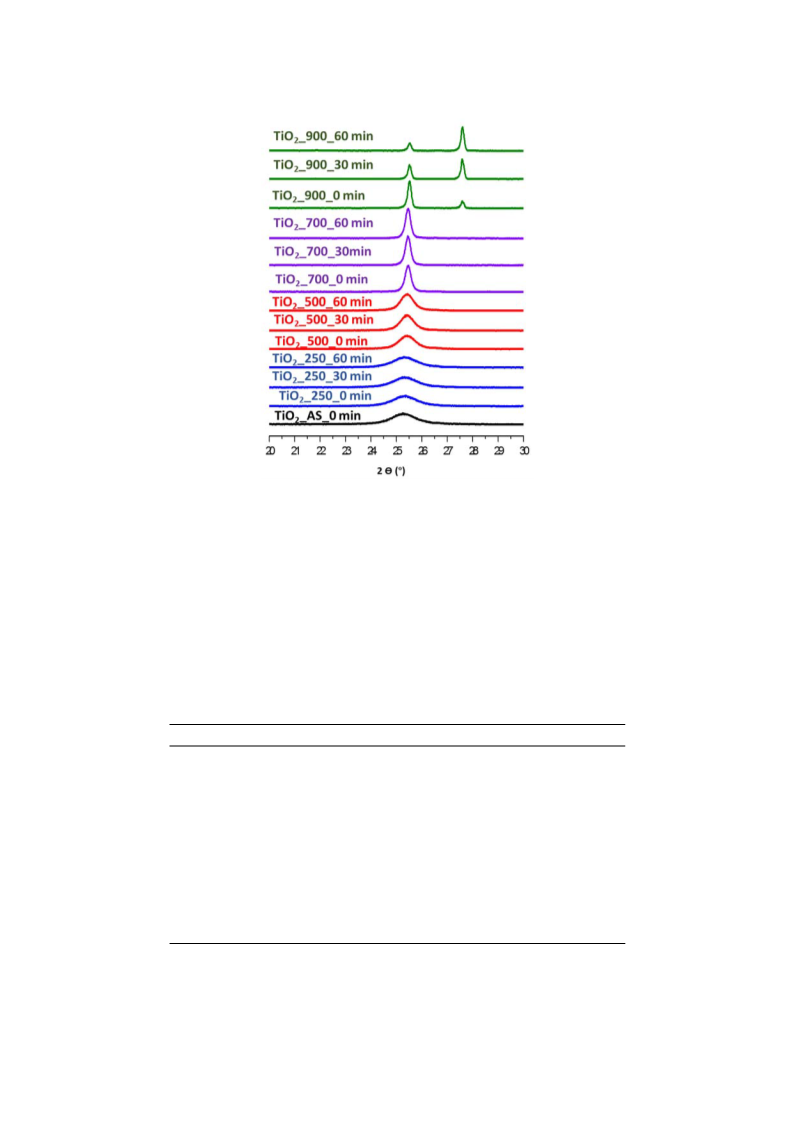

Figure 8. In situ XRD patterns at different temperatures of TiO2 samples.
◦
With respect to the phase composition, up to 700 C all samples with different dwelling time
present only the anatase phase. However, upon reaching 900 ◦C the phase composition of the sample
changes over time. Initially (no dwelling time) sample TiO2_900 is composed of 75% anatase and 25%
rutile (similar to P25, that presents 80% anatase and 20% rutile). Moreover, if one compares this XRD
in-situ at 900 ◦C with the XRD at 900 ◦C shown in Figure 1 it is clear that the same sample calcined at
900 ◦C for 6 h has completely undergone the anatase-to-rutile transition, indicating once again how
calcination time is an important parameter for the preparation of the samples in terms of both phase
composition and crystal size.
Table 5. Phase composition and crystallite size of TiO2 samples obtained in XRD in situ at different
temperatures and dwelling times. A = anatase; R = rutile.
Samples
Phase Composition
Anatase Crystallite Size (nm)
TiO2_AS_0 min
TiO2_250_0 min
TiO2_250_30 min
TiO2_250_60 min
TiO2_500_0 min
TiO2_500_30 min
TiO2_500_60 min
TiO2_700_0 min
TiO2_700_30 min
TiO2_700_60 min
TiO2_900_0 min
TiO2_900_30 min
TiO2_900_60 min
A (100%)
A (100%)
A (100%)
A (100%)
A (100%)
A (100%)
A (100%)
A (100%)
A (100%)
7
7
7
7
11
13
14
31
33
34
48
49
51
A (100%)
A (75%) + R (25%)
A (35%) + R (65%)
A (3%) + R (97%)
2.2. Photocatalytic Activity
The photocatalytic activity of TiO2 materials prepared in this work was evaluated by studying
the mineralization of propene in the gas phase (100 ppmv (parts per million by volume) in air) to CO2

Molecules 2017, 22, 2243
11 of 16
at room temperature, following the reaction shown in Equation (1) [37]. Given that the photocatalyst
used is no different from both a chemical and structural point of view, the mechanism responsible for
the photooxidation process is the one already reported in literature [15
,
38]. Additionally, P25 was also
used as a reference material. The results are summarized in Figure 9.
2C3H6 + 9O2 ↔ 6CO2 + 6H2O
(1)
The as-synthesized TiO2 sample did not show photooxidation of propene because the TiO2 active
sites were blocked to reactants due to the presence of urea and the templating agent and/or the
fact that the TiO2 structure was not consolidated. When the sample was washed with EtOH under
reflux the photoactivity increases noticeably, but the conversion is still below the performance of
the benchmark P25 catalyst. This might be due to the fact that the washing does not remove all the
organic matter (as evidenced by TG analysis) and does not increase the crystallinity (as shown by XRD).
The porosity of the sample is more accesible (BET surface are over 200 m2/g) but the structure is still
not sufficiently consolidated and the remaining organic matter may be affecting the catalytic activity.
The sample calcined at lower temperature (250 ◦C) presents a good conversion of propene (around
50%) which surpasses the conversion of propene observed for sample P25. However, this sample
has some residues from the template and a similar crystallinity to the washed sample. The main
difference between these two samples is adscribed to the presence of water in the washed sample,
◦
which is detrimental in the photocatalytic activity of the resulting TiO2. The sample calcined at 500 C
presents the best photocatalytic activity reported in this study. This sample present lower porosity
◦
compared to the samples washed or calcined at 250 C, and a noticeable sinterization of particles with
respect to sample TiO2_250 (from the TEM analysis). However, sample TiO2_500 presents an improved
crystallinity over these two samples and the absence of any organic impurities and adsorbed water
(FTIR). These factors can improve the photocatalytic activity. For the samples calcined at 700 ◦C and
900 ◦C, the propene conversion decreases sharply because of the sinterization of the particles and the
collapse of the porous structure.
Considering the results obtained in this study in terms of crystal size, porous texture, and surface
chemistry, it would appear that a compromise solution is mandatory in order to come up with the
sample displaying the best performance. The most promising outlook seems to be the following:
(1) large surface areas are beneficial for an enhanced access of reagents to the active sites of the
photoactive material; (2) water adsorbed on the surface of the TiO2 impoverishes the photocatalytic
activity since it may enhance the recombination rate of electron-hole pairs [39]; (3) high crystallinities
translate into improved photocatalytic activity. In this respect, the samples which show the highest
−1
surface area values do not present adequate surface chemistry (i.e., large bands in the 3000–3300 cm
region evidence a large amount of adsorbed water), have some organic matter or do not have a
sufficiently crystalline structure. Thus, the obtained results are below those expected for a high
surface area TiO2 sample. On the other hand, the samples calcined at higher temperatures present a
significantly more crystalline structure, but their surface area is greatly diminished, which undermines
their photocatalytic performance to a very large extent. In this respect, the sample calcined at 500 ◦C
presents the best interplay because it still possesses a BET surface area of around 85 m2/g together with
a structure showing sufficient crystallinity and appropriate surface chemistry without organic matter,
as shown by XRD, TG, and FTIR. This, in turn, results in a material which can be prepared by a simple,
reproducible, and cost-effective sol-gel method which displays a remarkable photocatalytic activity.

Molecules 2017, 22, 2243
12 of 16

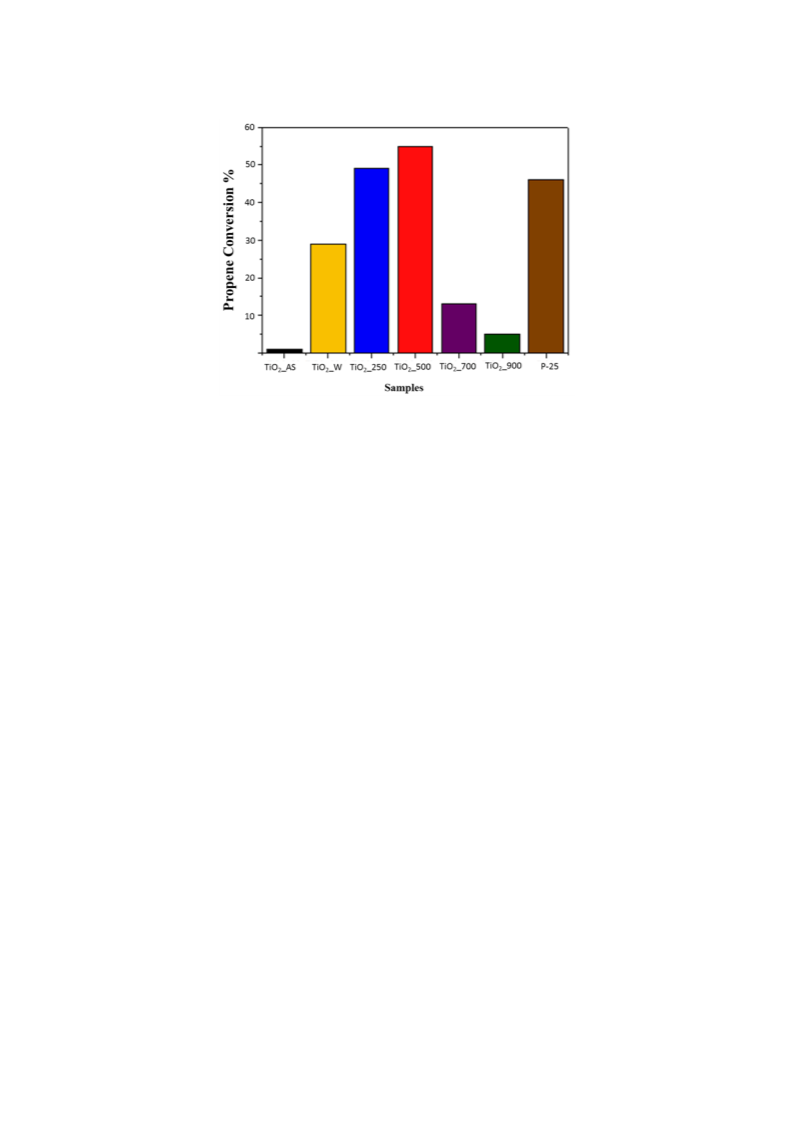

Figure 9. Conversion of propene for TiO2 samples and P25.
3. Materials and Methods
3.1. Materials
Titanium (IV) butoxide (TTB, 97%, Sigma-Aldrich, St. Louis, MO, USA), glacial acetic acid
(HAc, 99%, Sigma-Aldrich), Pluronic F-127 (F-127, Sigma-Aldrich), absolute ethanol (EtOH, 99.8%,
Fisher Scientific, Hampton, NH, USA), formamide (FA, 99.5%, Sigma-Aldrich), urea (99%, Merck,
Kenilworth, NJ, USA), and deionized water were used in the present work. All reactants were used as
received, without further purification.
3.2. Sample Preparation
The TiO2 samples were prepared adapting a previously reported synthesis performed by
Zhu et al. [25]. The main difference was the incorporation of urea in order to induce the desired
formation of mesoporosity, through the gradual decomposition of urea giving rise to a controlled and
homogeneous pH variation as reported by our research group which has successfully given rise to
robust hierarchical silica monoliths [28].
As an illustrative example, the synthesis of TiO2 samples was performed as follows: 5 g of
the titanium precursor (titanium tetrabutoxide, TTB) were weighed and dissolved in 7.9 g of EtOH.
This solution (“solution A”) was stirred vigorously for 10 min. Then, in this order 1.6 g of HAc, 0.3 g of
F-127, 1.6 g of deionized water, 7.9 g EtOH, 0.4 g of FA, and 0.4 g of urea were weighed and added in a
separate vessel. The mixture was stirred for 10 min (“solution B”). Solution B was added dropwise on
“solution A” under vigorous stirring. The resulting solution was rapidly transferred to an autoclave
◦
and◦heated at 60 C for 24 h to promote gel formation and the temperature was later increased to
120 C with a dwelling time of 24 h to promote the decomposition of urea. The samples obtained were
washed or calcined at different temperatures. The nomenclature of the samples used in this work were
TiO2_AS for sample without treatment (as-synthesized), TiO2_W for sample washed with ethanol for
9 h under reflux conditions and TiO2_250, TiO2_500, TiO2_700, and TiO2_900 for samples calcined at
250 ◦C, 500 ◦C, 700 ◦C, and 900 ◦C, respectively, for 6 h with a heating ramp rate of 1 ◦C/min.
3.3. Sample Characterization
Several techniques were employed for the characterization of the samples. The crystal phase
composition and crystallinity of TiO2 were determined by X-ray diffraction (XRD) analysis using a
SEIFERT 2002 equipment. Cu Kα
(1.54 Å) radiation was used. The scanning velocity was 2◦/min,

Molecules 2017, 22, 2243
13 of 16
and diffraction patterns were recorded in the angular 2
θ
range of 6–80◦. The crystallite size was
estimated by applying the Scherrer equation (Equation (2)) [40] using the full width at half-maximum
(FWHM) data of the major diffraction peak and a K factor of 0.93:
Kλ
β cos θ
B =
(2)
is
where B is the crystalline size (nm); K is the dimensionless shape factor whose value is 0.93;
λ
the wavelength of the radiation source used, which is 1.54056 Å for Cu K radiation; is the full
α
β
width at half maximum intensity (FWHM) (radians), and is the Bragg angle at the position of the
θ
peak maximum. We used an internal standard (Silicium carbide, SiC) to correct the effect of both the
equipment and the analysis temperature.
The surface chemistry of the TiO2 materials was analyzed by Fourier transform infrared (FTIR)
−1
spectroscopy (FTIR JASCO 4100, Pfungstadt, Germany) in transmission mode from 400 cm−1 to 4000 cm
.
The optical absorption properties were studied by UV-VIS/DR spectroscopy (Jasco V-670,
Pfungstadt, Germany, with an integrating sphere accessory and powder sample holder). BaSO4 was
used as the reference standard and the reflectance signal was calibrated with a Spectralon standard
(Labsphere SRS-99-010, North Sutton, NH, USA, 99% reflectance). The absorption edge wavelength
was estimated from the intercept at zero absorbance of the high slope portion of each individual
spectrum in the range 200–800 nm (absorbance method). Then, the band gap can be calculated [41] as:
1239.8
Eg =
(3)
λ
where Eg is the band gap energy (eV) and λ is the edge wavelength (nm).
The organic residue contained in the TiO2 samples (due to any template leftovers) was determined
by thermogravimetric analysis using a thermobalance (SDT 296◦0 instrument, TA, New Castle, DE,
◦
United States,). In these analyses, the sample was heated up at 900 C in air (heating rate of 5 C min−1).
Textural properties were determined by applying the Brunauer-Emmett-Teller (BET) equation,
◦
and the Dubinin-Raduskevich equation to the N2 adsorption data obtained at
−
196 C using an
Autosorb-6B apparatus from Quantachrome (Boynton Beach, FL, USA) [42], obtaining the BET surface
area (SBET) and total micropore volume (VN ), respectively. The as-synthesized and washed TiO2
2
samples were degassed at 110 ◦C for 11 h and the calcined TiO2 samples were degassed at 250 ◦C for
4 h prior to adsorption experiments. Pore volume and average pore size were determined by nitrogen
adsorption volume at a relative pressure of 0.99. Mesopore size distributions for all the samples were
obtained applying the Barrett-Joynet-Halenda (BJH) formula to the N2 desorption branch data from
the adsorption isotherms at −196 ◦C, using the software provided by Quantachrome.
The morphology of the samples was analyzed by transmission electron microscopy (TEM, JEOL
JEM 2010, Peabody, MA, USA) and field emission scanning electron microscope (FESEM, ZEISS Merlin
VP Compact, Jena, Germany). Average nanoparticle size was carried out by counting 100 particles
(except for samples TiO2_700, TiO2_900, for which 50 and 30 particles were counted, respectively) for
each sample. The evolution of crystal phase composition and crystallinity of TiO2 was determined by
X-ray diffraction (XRD) in situ, change the temperature using a Bruker D8-Advance equipment. Cu K
α
(0.15418 nm) radiation was used. The s◦canning velocity was 2◦/min, and diffraction patterns were
recorded in the angular 2θ range of 6–60 . SiC was used to correct the effect of temperature. The ramp
◦
◦
used in this experiment was the following, the sample was heated to 25 at 900 C (heating rate of 5 C
min−1) measuring at 25, 250, 500, 700, and 900 ◦C for dwelling times of 0, 30, and 60 min in these
temperatures. The crystallite size was estimated by applying the Scherrer Equation (2). The content of
anatase was also calculated by applying the Spurr-Myers equation, as shown in Equation (4) [43]:
1
WA
=
1+1.26IR/IA
(4)
WR(%) + WA(%) = 100

Molecules 2017, 22, 2243
14 of 16
where WA is the weight fraction of anatase in the mixture; WR is the weight fraction of rutile in the
mixture; IR is the intensity of the diffraction peak of rutile; and IA is the intensity of the diffraction
peak of anatase.
3.4. Catalytic Test
The photocatalytic performance of the different materials was studied using an experimental
system designed in our laboratory. The system consists of a vertical quartz reactor where the
photocatalyst bed is placed on a quartz wool bed. The reactor is 50 mm in height, its diameter
is 20 mm, and the quartz wool support height is around 10 mm. A UV lamp is placed parallel
to the quartz reactor, at a distance around 1 cm. The UV lamp radiation peak appears at 365 nm.
The commercial reference of this lamp is a TL 8W/05 FAM (Philips, Amsterdam, The Netherlands,
1W). Finally, the coupled quartz reactor lamp is surrounded by a cylinder covered with aluminum foil.
A scheme of this system is detailed elsewhere [35].
The weight of photocatalyst used in these experiments was 0.11 g for all the samples.
The photocatalysts were used for the oxidation of propene at 100 ppmv in air at room temperature,
25 ◦C. The calibrated gas cylinder was supplied by Carburos Metálicos, S.A. (Cornellà de Llobregat
Barcelona, Spain) The flow rate of the propene-containing stream was 30 (STP) mL/min in
all experiments.
The propene-containing stream was passed through the photocatalyst bed and, afterwards it was
injected in a GC chromatograph (Agilent 6890N, Santa Clara, CA, USA) working with a CTR-I column
(Alltech, Sabadell, Barcelona, Spain) at 30 ◦C. GC chromatograph permits to follow the evolution of the
concentration of propene in the outlet gas. Propene conversion was calculated using the flowing expression:
Cinitial
− Cstationary
C
H
6
C
H
6
3
3
Propene conversion(%) =
× 100
(5)
C
initialC3
H
6
where CinitialC H is the initial propene concentration, 100 ppmv and CstationaryC H is the propene
3
6
3
6
concentration at steady state conditions in the photocatalyst bed outlet gas when the UV light is switched on.
Additionally, blank tests were performed under the same experimental conditions as the catalytic
tests, but in the absence of the TiO2 photocatalysts, and no catalytic activity was detected.
4. Conclusions
In this study, a strategy of synthesis of TiO2 of hierarchical porosity has been developed
through modification of the synthesis of Zhu et al. The protocol allows obtaining meso-macroporous
materials which may be applied in the photocatalytic elimination of propene. Samples TiO2_250
and TiO2_500 prepared in this study have a high photocatalytic activity for propene photooxidation.
Their performance is similar, and even slightly higher, to P25 (commercial TiO2), indicating that the
TiO2_250 and TiO2_500 samples are interesting for the preparation of photocatalysts with different
conformations, such as in the form of coatings and fillings in different size scales furthermore show a
good photooxidation performance at low concentrations. Interestingly, the nanostructure generated
by this methodology delays the conversion of anatase to rutile to temperatures higher than 700 ◦C.
Probably, the mesoporosity induced by the presence of urea generates a large concentration of defects
that slows down the phase transition rate.
Acknowledgments: The authors thank MINECO (CTQ2015-66080-R, MINECO/FEDER, BES-2016-078079) and
Generalitat Valenciana (PROMETEOII/2014/010) for financial support.
Author Contributions: D.C.A., A.B.M., and M.A.L.R. conceived and designed the experiments; J.F.C., A.B.M.,
and L.C.C. performed the experiments; J.F.C., A.B.M., and D.C.A. analyzed the data; L.C.C. and M.A.L.R.
contributed with reagents/materials/analysis tools; and all authors have contributed to manuscript preparation.
Conflicts of Interest: The authors declare no conflict of interest.

Molecules 2017, 22, 2243
15 of 16
References
1.
2.
3.
Rafson Odor, H.J. VOC Control Handbook, 1st ed.; McGraw Hill: New York, NY, USA, 1998.
Manahan, S.E. Environmental Chemistry, 8th ed.; CRC Press: Boca Raton, FL, USA, 2004.
Barrefors, G.; Petersson, G. Assessment of ambient volatile hydrocarbons from tobacco smoke and from
vehicle emissions. J. Chromatogr. A 1993, 643, 71–76. [CrossRef]
4.
5.
6.
Murphy, C.F.; Allen, D.T. Hydrocarbon emissions from industrial release events in the Houston-Galveston
area and their impact on ozone formation. Atmos. Environ. 2005, 39, 3785–3798. [CrossRef]
Petit, A.; Montagne, X. Effects of the gasoline composition on exhaust emissions of regulated and speciated
pollutants. SAE Tech. Pap. 1993. [CrossRef]
Mühlberger, F.; Streibel, T.; Wieser, J.; Ulrich, A.; Zimmermann, R. Single photon ionization time-of-flight
mass spectrometry with a pulsed electron beam pumped excimer VUV lamp for on-line gas analysis: Setup
and first results on cigarette smoke and human breath. Anal. Chem. 2005, 77, 7408–7414. [CrossRef] [PubMed]
Kaneko, M.; Okura, I. Photocatalysis: Science and Technology, 1st ed.; Springer: Berlin, Germany, 2002.
Jang, Y.H.; Kochuveedu, S.T.; Cha, M.A.; Jang, Y.J.; Lee, J.Y.; Lee, J.; Lee, J.; Kim, J.; Ryu, D.Y.;
Kim, D.H. Synthesis and photocatalytic properties of hierarchical metal nanoparticles/ZnO thin films
hetero nanostructures assisted by diblock copolymer inverse micellar nanotemplates. J. Colloid Interface Sci.
2010, 345, 125–130. [CrossRef] [PubMed]
7.
8.
9.
Liu, B.-J.; Torimoto, T.; Yoneyama, H. Photocatalytic reduction of CO2 using surface-modified CdS
photocatalysts in organic solvents. J. Photochem. Photobiol. A Chem. 1998, 113, 93–97. [CrossRef]
10. Wei, M.; Peng, X.-L.; Liu, Q.-S.; Li, F.; Yao, M.-M. Nanocrystalline TiO2 composite films for the
photodegradation of formaldehyde and oxytetracycline under visible light irradiation. Molecules 2017
22, 950. [CrossRef] [PubMed]
,
11. Arconada, N.; Castro, Y.; Durán, A. Photocatalytic properties in aqueous solution of porous TiO2-anatase
films prepared by sol-gel process. Appl. Catal. A Gen. 2010, 385, 101–107. [CrossRef]
12. Yu, C.; Li, X.; Liu, Z.; Yang, X.; Huang, Y.; Lin, J.; Zhang, J.; Tang, C. Synthesis of hierarchically porous TiO2
nanomaterials using alginate as soft templates. Mater. Res. Bull. 2016, 83, 609–614. [CrossRef]
13. Hagfeldtt, A.; Gratzel, M.A. Light-Induced Redox Reactions in Nanocrystalline Systems. Chem. Rev. 1995, 95,
49–68. [CrossRef]
14. Mills, A.; Lee, S.K. A web-based overview of semiconductor photochemistry-based current commercial
applications. J. Photochem. Photobiol. A Chem. 2002, 152, 233–247. [CrossRef]
15. Schneider, J.; Matsuoka, M.; Takeuchi, M.; Zhang, J.; Horiuchi, Y.; Anpo, M.; Bahnemann, D.W. Understanding
TiO2 photocatalysis: Mechanisms and materials. Chem. Rev. 2014, 114, 9919–9986. [CrossRef] [PubMed]
16. Winkler, J. Titanium Dioxide: Production, Properties and Effective Usage, 2nd ed.; Vincentz Network: Hanover,
Germany, 2013.
17. Chen, X.; Mao, S.S. Titanium dioxide nanomaterials: Synthesis, properties, modifications, and applications.
Chem. Rev. 2007, 107, 2891–2959. [CrossRef] [PubMed]
18. Fujishima, A.; Zhang, X.; Tryk, D.A. TiO2 photocatalysis and related surface phenomena. Surf. Sci. Rep. 2008
,
63, 515–582. [CrossRef]
19. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor electrode. Nature 1972, 238,
37–38. [CrossRef]
20. Grätzel, M. Photoelectrochemical cells. Nature 2001, 414, 338–344. [CrossRef] [PubMed]
21. Zhang, J.; Zhou, P.; Liu, J.; Yu, J. New understanding of the difference of photocatalytic activity among
anatase, rutile and brookite TiO2. Phys. Chem. Chem. Phys. 2014, 16, 20382–20386. [CrossRef] [PubMed]
22. Ryu, J.; Choi, W. Substrate-specific photocatalytic activities of TiO2 and multiactivity test for water treatment
application. Environ. Sci. Technol. 2008, 42, 294–300. [CrossRef] [PubMed]
23. Yasmina, M.; Mourad, K.; Mohammed, S.H.; Khaoula, C. Treatment heterogeneous photocatalysis; Factors
influencing the photocatalytic degradation by TiO2. Energy Procedia 2014, 50, 559–566. [CrossRef]
24. Xu, H.; Liao, J.; Yuan, S.; Zhao, Y.; Zhang, M.; Wang, Z.; Shi, L. Tuning the morphology, stability and
photocatalytic activity of TiO2 nanocrystal colloids by tungsten doping. Mater. Res. Bull. 2014, 51, 326–331.
[CrossRef]
25. Zhu, W.; Yang, H.; Xie, Y.; Sun, S.; Guo, X. Hierarchically porous titania xerogel monoliths: Synthesis,
characterization and electrochemical properties. Mater. Res. Bull. 2016, 73, 48–55. [CrossRef]

Molecules 2017, 22, 2243
16 of 16
26. Ouzzine, M.; Lillo-Ródenas, M.A.; Linares-Solano, A. Photocatalytic oxidation of propene in gas phase at low
concentration by optimized TiO2 nanoparticles. Appl. Catal. B Environ. 2013, 134–135, 333–343. [CrossRef]
27. Ouzzine, M.; Maciá-Agulló, J.A.; Lillo-Ródenas, M.A.; Quijada, C.; Linares-Solano, A. Synthesis of high
surface area TiO2 nanoparticles by mild acid treatment with HCl or HI for photocatalytic propene oxidation.
Appl. Catal. B Environ. 2014, 154–155, 285–293. [CrossRef]
28. García-Aguilar, J.; Miguel-García, I.; Berenguer-Murcia, Á.; Cazorla-Amorós, D. Synthesis of robust
hierarchical silica monoliths by surface-mediated solution/precipitation reactions over different scales:
Designing capillary microreactors for environmental applications. ACS Appl. Mater. Interfaces 2014, 6,
22506–22518. [CrossRef] [PubMed]
29. Pillai, S.C.; Periyat, P.; George, R.; Mccormack, D.E.; Michael, K.; Hayden, H.; Colreavy, J.; Corr, D.; Hinder, S.
Synthesis of high temperature stable anatase TiO2 photocatalyst. J. Phys. Chem. C 2007, 111, 1605–1611.
[CrossRef]
30. Cao, L.; Chen, D.; Li, W.; Caruso, R. Hierarchically porous titania networks with tunable Anatase: Rutile ratios
and their enhanced photocatalytic activities. ACS Appl. Mater. Interfaces 2014, 6, 13129–13137. [CrossRef]
[PubMed]
31. Likodimos, V.; Chrysi, A.; Calamiotou, M.; Fernández-Rodríguez, C.; Dona-Rodríguez, J.M.; Dionysiou, D.D.;
Falaras, P. Microstructure and charge trapping assessment in highly reactive mixed phase TiO2 photocatalysts.
Appl. Catal. B Environ. 2016, 192, 242–252. [CrossRef]
32. Cano-Casanova, L.; Amorós-Pérez, A.; Ouzzine, M.; Lillo-Ródenas, M.A.; Román-Martínez, M.C.
One step hydrothermal synthesis of TiO2 with variable HCl concentration: Detailed characterization and
photocatalytic activity in propene oxidation. Appl. Catal. B Environ. 2018, 220, 645–653. [CrossRef]
33. Cheng, P.; Qiu, J.; Gu, M.; Jin, Y.; Shangguan, W. Synthesis of shape-controlled titania particles from a
precursor solution containing urea. Mater. Lett. 2004, 58, 3751–3755. [CrossRef]
34. Music´, S.; Gotic´, M.; Ivanda, M.; Popovic´, S.; Turkovic´, A.; Trojko, R.; Sekulic´, A.; Furic´, K. Chemical and micro
structural properties of TiO2 synthesized by sol-gel procedure. Mater. Sci. Eng. B 1997, 47, 33–40. [CrossRef]
35. Moustakas, N.G.; Kontos, A.G.; Likodimos, V.; Katsaros, F.; Boukos, N.; Tsoutsoua, D.; Dimoulas, A.;
Romanos, G.E.; Dionysiou, D.D.; Falaras, P. Inorganic–organic core–shell titania nanoparticles for efficient
visible light activated photocatalysis. Appl. Catal. B Environ 2013, 130–131, 14–24. [CrossRef]
36. Gribb, A.; Banfield, J.F. Particle size effects on transformation kinetics and phase stability in nanocrystalline
TiO2. Am. Mineral. 1997, 82, 717–728. [CrossRef]
37. Lillo-Ródenas, M.A.; Bouazza, N.; Berenguer-Murcia, A.; Linares-Salinas, J.J.; Soto, P.; Linares-Solano, A.
Photocatalytic oxidation of propene at low concentration. Appl. Catal. B Environ. 2007, 71, 298–309. [CrossRef]
38. Lin, L.; Chai, Y.; Zhao, B.; Wei, W.; He, D.; He, B.; Tang, Q. Photocatalytic oxidation for degradation of VOCs.
Open J. Inorg. Chem. 2013, 3, 14–25. [CrossRef]
39. Bouazza, N.; Lillo-Ródenas, M.A.; Linares-Solano, A. Photocatalytic activity of TiO2-based materials for the
oxidation of propene and benzene at low concentration in presence of humidity. Appl. Catal. B Environ. 2008
,
84, 691–698. [CrossRef]
40. Zhang, H.; Banfield, J.F. Understanding polymorphic phase transformation behavior during growth of
nanocrystalline aggregates: Insights from TiO2. J. Phys. Chem. B 2000, 104, 3481–3487. [CrossRef]
41. Oregan, B.; Gratzel, M. A low cost, high-efficiency solar cell based on dye sensitized colloidal TiO2 films.
Nature 1991, 353, 737–740. [CrossRef]
42. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W.
Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution
(IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [CrossRef]
43. Spurr, R.A.; Myers, H. Quantitative analysis of anatase-rutile mixtures with an X-ray Diffractometer.
Anal. Chem. 1957, 29, 760–762. [CrossRef]
Sample Availability: The samples prepared in this work are available, and if necessary, more of these samples
could be synthesized.
©
2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
