Y. Qian et al.
Dyes and Pigments 176 (2020) 108251
measurements were recrystallized from methanol and diethyl ether. 1H
NMR (400 MHz, (CD3)2SO): δH ppmÀ 1 ¼ 7.63 (dd, J ¼ 5.52, 6.83 Hz,
4H), 8.14 (dd, J ¼ 7.15, 15.27 Hz, 4H), 8.25 (d, J ¼ 8.35 Hz, 4H), 8.44
(d, J ¼ 8.35 Hz, 4H), 8.79(d, J ¼ 7.73 Hz, 4H), 8.83(d, J ¼ 4.14 Hz, 4H),
8.89 (s, 4H), 9.21 (d, J ¼ 6.42 Hz, 4H), 9.85(d, J ¼ 6.42 Hz, 4H). HRMS
(ESI): C52H36N8 calculated 772.3052, found 772.3051.
2.2.4. Synthesis of Fe-TPVþ2-BF4 supramolecular polymer
TPVþ2 2Cl- (169 mg, 0.2 mmol) was added in water (160 mL) and
refluxed under N2 for 0.5 h. Then ferrous acetate tetrahydrate (49 mg,
0.2 mmol) was added under stirring. The solution turned into a dark
purple immediately. It was further refluxed for 12 h, then cooled to room
temperature and filtered to remove trace solid. After addition of lithium
tetrafluoroborate 0.64 g to the filtration, the purple and flocculent
precipitate was formed and the solution gradually became clear. The
purple-black solid product was collected by centrifugation, then dried
under vacuo, TPVþ2-Fe-BF4, 148 mg, yield 68%.
Ru-TPVþ2-BF4 supramolecular polymer was similarly synthesized
with RuCl2(DMSO)4 (97 mg 0.2 mmol), yield 56%.
2.3. Preparation of Fe-and Ru-TPVþ2-BF4 film
The Fe-TPVþ2-BF4 or Ru-TPVþ2-BF4 film was prepared by the
following step: firstly, preparing 1.0 mg/mL solution of Fe-TPVþ2-BF4 in
acetonitrile, and then filtrated with a microporous membrane; secondly,
a 2 � 2 cm bare area on ITO glass sized 3 � 4 cm was taped with self-
adhesive tape and placed on a hot plate at 80 �C; thirdly about 2–4
mL of the Fe-TPVþ2-BF4 in acetonitrile solution was sprayed evenly onto
the bare area with a mini spray gun. The Fe-TPVþ2-BF4 film with size of
2 � 2 cm on ITO glass was obtained after peeling off the surrounding
protective tape.

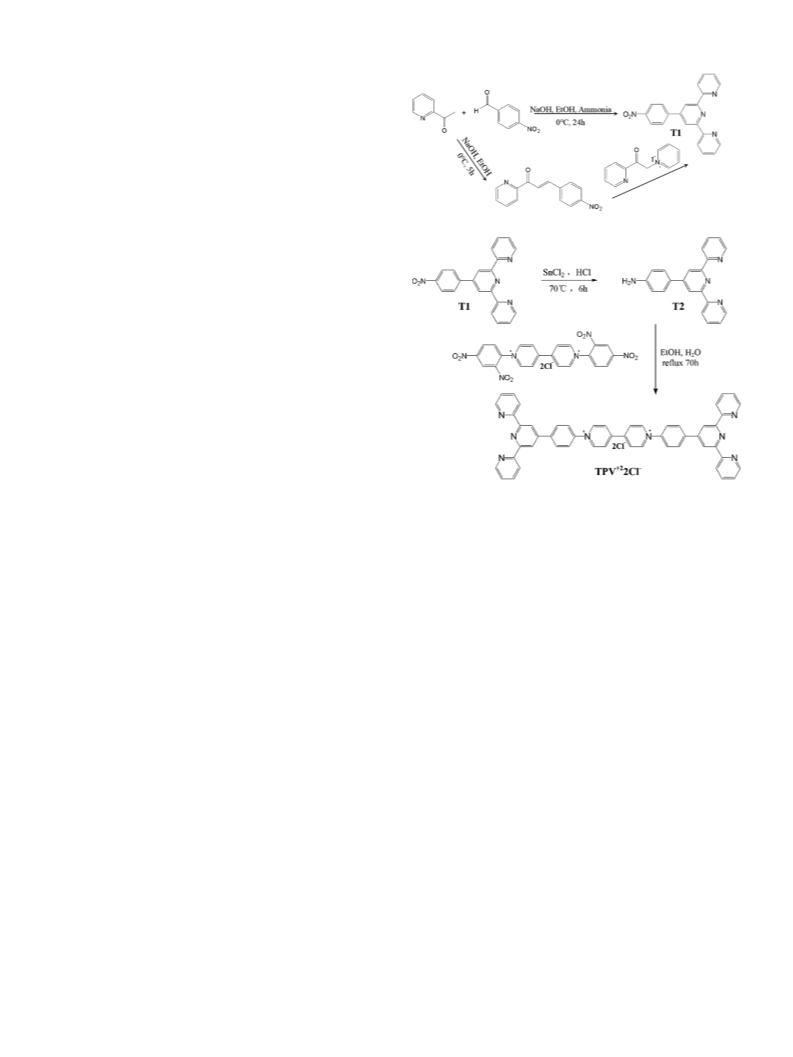

Scheme 2. Syntheses of the viologen conjugated bis(terpyridine), TPVþ2 2Cl-.
2.4. Preparation of Fe-TPVþ2-BF4 device
�C. When the reaction was carried out under reflux almost no T1 product
was obtained. Yield could be further improved by extending reaction
time.

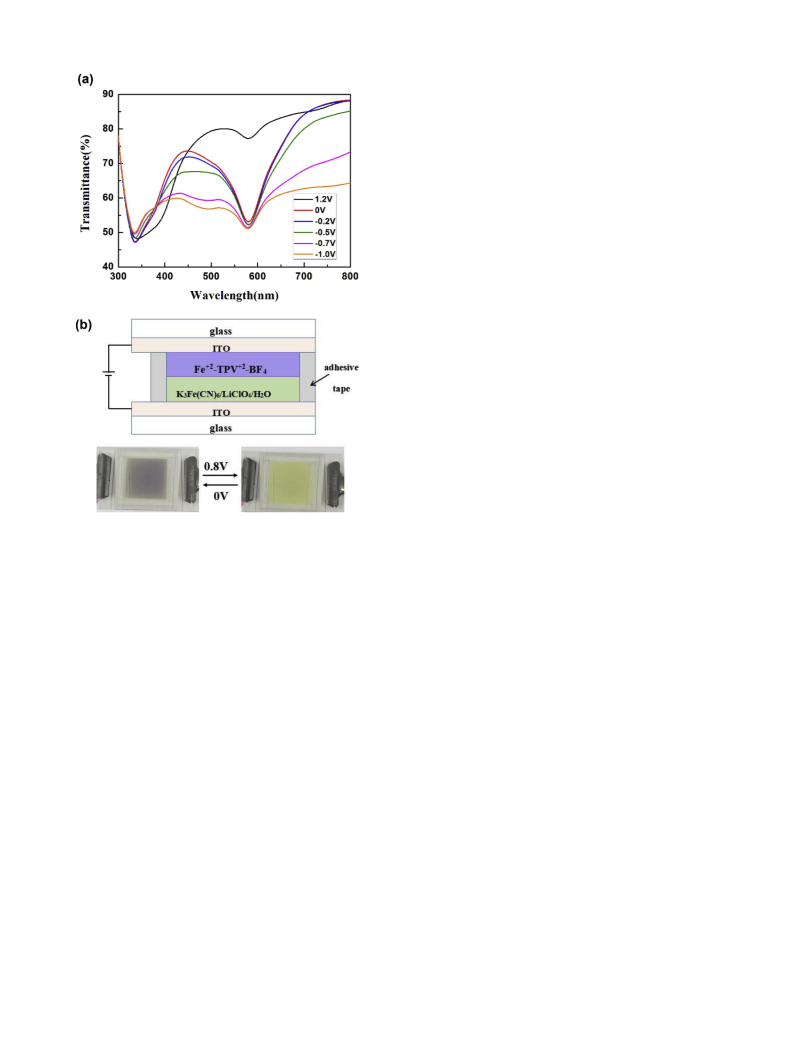

The device is assembled with the Fe-TPVþ2-BF4 film as working
electrode, 0.1 mol/L LiClO4 aqueous as electrolyte solution and 20 mg/
mL K3Fe(CN)6 as complementary material. The working area of the PV-
Fe-BF4 film was 2 � 2 cm with 0.2 mm thickness controlled by the
sealing strip.
T2 was synthesized by the reduction of T1 under mild condition as
the reported procedure [29]. Finally the TPVþ2 dichloride, TPVþ2 2Cl-,
was obtained by Zincke reaction of 4’-(4-aminophenyl)-2,2:60,200-ter-
pyridine with 1,10-bis(2,4-dinitrophenyl)-4,40-bipyridine-1,10- diium
dichloride. TPVþ2 2Cl- is soluble in methanol, DMSO and propylene
carbonate, but only slightly soluble in water and ethanol.
2.5. Electrochemical and electrochromic test

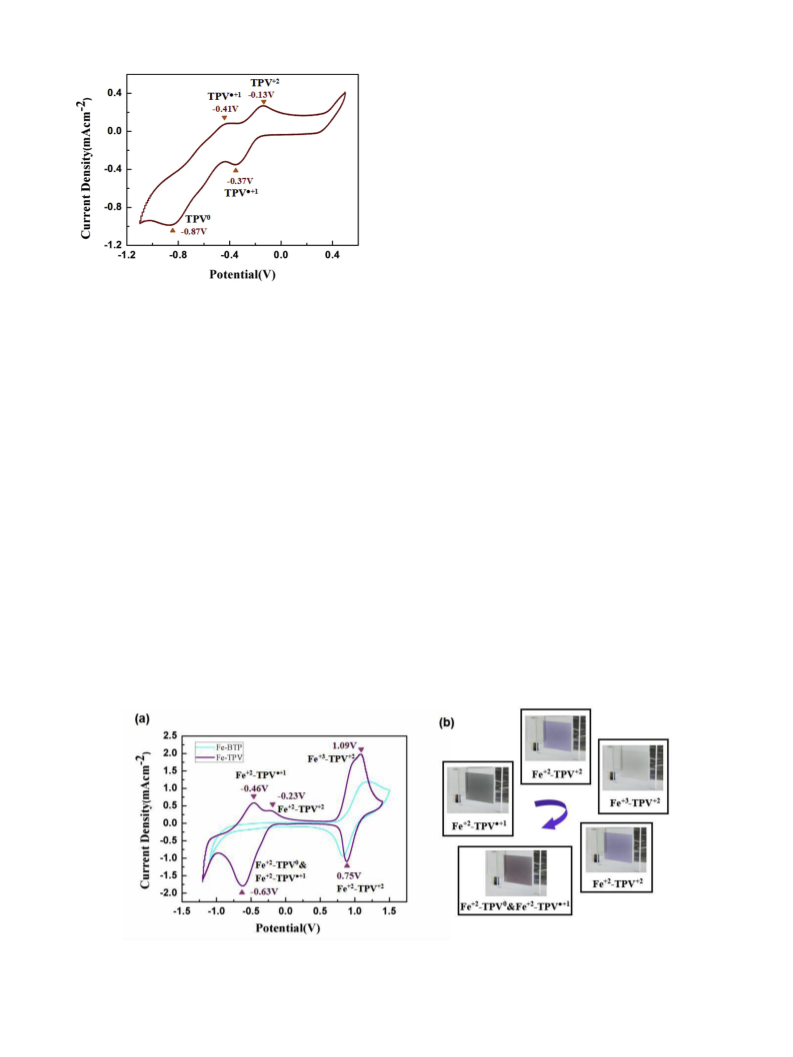

Spectroelectrochemical tests of Fe-TPVþ2-BF4 and Fe-BTPþ2-BF4 su-
pramolecular polymers were carried out in acetonitrile with LiClO4 as
the electrolyte, Pt as the counter electrode and Fe-TPVþ2-BF4 or Fe-
BTPþ2-BF4 as the working electrode, and cyclic voltammetrically scan-
ning between À 1.2 V and 1.5 V to obtain the redox curves.

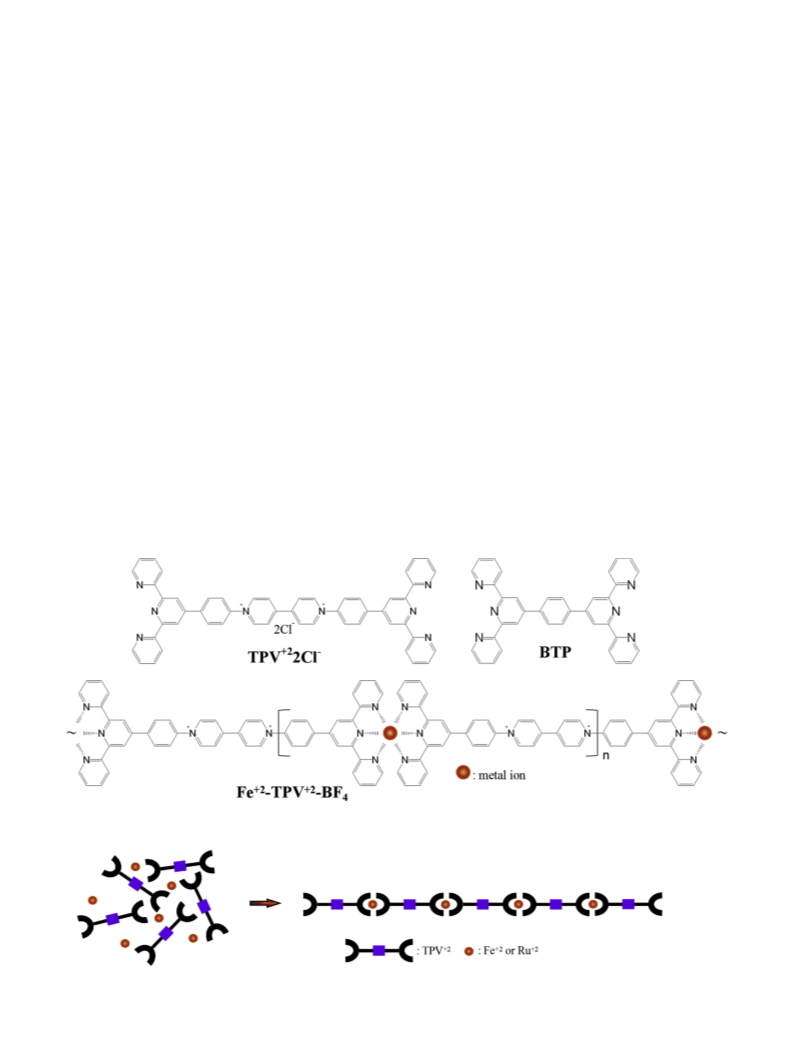

The Ru- and Fe-TPVþ2-BF4 supramolecular polymers were prepared
in water by the complexation reaction of TPVþ2 2Cl- with the Ruþ2 or
Feþ2 salt at 1:1mol ratio, followed by treating with LiBF4 to replace the
ClÀ counter anions with BFÀ4 . The resultant Fe- or Ru- supramolecular
polymer complex is soluble in acetonitrile, but not in water, DMSO,
methanol and propylene carbonate.

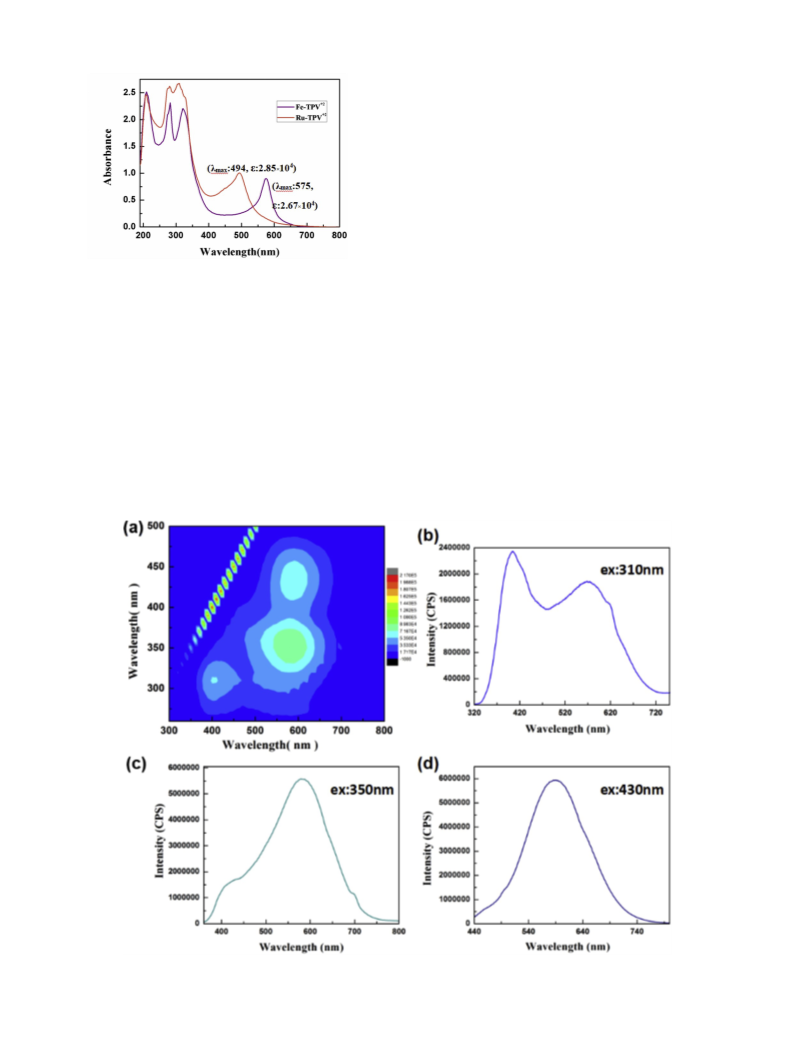

3D- and 2D-fluorescence spectroscopy of TPVþ2 was recorded with
the solution of 0.06 g/L of TPVþ2 in DMSO by a fluorescence spectro-
photometer set at 5 nm slit width, and excitation wavelength in
250–500 nm, emission in 300–800 nm with 10 nm interval wavelength.
The matrix assisted laser desorption ionization-mass spectrometry
TPVþ2 was characterized by 1H NMR and high resolution mass
spectrometer (HRMS). All the H-atoms of TPV were assigned in the
spectra, as showed in Fig. 1a. Under the soft Maldi-tof-MS condition for
HRMS the molecular ion of the TVP, Mþ ¼ C52H37N8þ, with the m/z
calculated as 772.3052 was found as m/z ¼ 772.3051, as showed in
Fig. 1b. The other ions above the Mþ include those ions as Mþþ H2O,
Mþ Hþ and M þ Naþ.
(Maldi-tof-MS) was performed with
α-Cyano-4-hydroxycinnamic acid
(CHCA) as matrix to obtain the spectra in a linear mode.
The Fe-TPVþ2-BF4 supramolecular polymer was also checked with
Maldi-tof-MS. There is a region of wide m/z distribution beyond m/z ¼
2500 in the Maldi-tof-MS, as shown in the inset of Fig. S1. The emerged
peak at m/z around 3000-6000D can not be easily explained, because
the m/z values of ions in MS depend on the number of charges on the
ions, which in turn depends on the degree of ionization of the metallo-
supramolecular polymers. The detected ions in the ESM processes may
also contain some anions. For metallo-supramolecular polymer it is still
not clear whether the molecular weight can be directly determined by
Maldi-tof-MS [32,33]. The smooth thin film made with the
3. Results and discussion
3.1. Synthesis and characterization of TPVþ2 2Cl-, and its Fe- or Ru-
supramolecular polymers
The viologen conjugated bis(terpyridine), TPVþ22ClÀ , was synthe-
sized, as showed in Scheme 2. The building block T1 was prepared in
one-step by slightly modifying the reported two-step reaction proced-
ures [29–31] with improved product yield. We found that for our
one-step reaction to T1, the reaction temperature greatly affected the
product yield, and the optimal temperature for the reaction is about 0
3
