Magnetic Susceptibility and Ground-State Zero-Field Splitting in
High-Spin Mononuclear Manganese(III) of Inverted N-Methylated
Porphyrin Complexes: Mn(2-NCH3NCTPP)Br#
Sheng-Wei Hung,† Fuh-An Yang,† Jyh-Horung Chen,*,† Shin-Shin Wang,‡ and Jo-Yu Tung*,§
Department of Chemistry, National Chung-Hsing UniVersity, Taichung 40227, Taiwan, Material
Chemical Laboratories, Hsin-Chu 300, Taiwan, and Department of Occupational Safety and
Health, Chung Hwai UniVersity of Medical Technology, Tainan 717, Taiwan
Received March 20, 2008

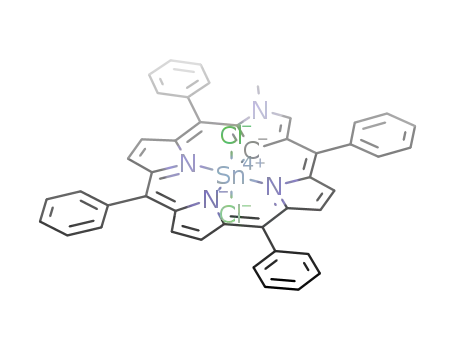

The crystal structures of diamagnetic dichloro(2-aza-2-methyl-5,10,15,20-tetraphenyl-21-carbaporphyrinato-N,N′,N′′)-
tin(IV) methanol solvate [Sn(2-NCH3NCTPP)Cl2 · 2(0.2MeOH); 6· 2(0.2MeOH)] and paramagnetic bromo(2-aza-2-
methyl-5,10,15,20-tetraphenyl-21-carbaporphyrinato-N,N′,N′′)-manganese(III) [Mn(2-NCH3NCTPP)Br; 5] were de-
termined. The coordination sphere around Sn4+ in 6· 2(0.2MeOH) is described as six-coordinate octahedron (OC-
6) in which the apical site is occupied by two transoid Cl- ligands, whereas for the Mn3+ ion in 5, it is a five-
coordinate square pyramid (SPY-5) in which the unidentate Br- ligand occupies the axial site. The g value of 9.19
(or 10.4) measured from the parallel polarization (or perpendicular polarization) of X-band EPR spectra at 4 K is
consistent with a high spin mononuclear manganese(III) (S ) 2) in 5. The magnitude of axial (D) and rhombic (E)
zero-field splitting (ZFS) for the mononuclear Mn(III) in 5 were determined approximately as -2.4 cm-1 and -0.0013
cm-1, respectively, by paramagnetic susceptibility measurements and conventional EPR spectroscopy. Owing to
weak C(45)-H(45A) · · · Br(1) hydrogen bonds, the mononuclear Mn(III) neutral molecules of 5 are arranged in a
one-dimensional network. A weak Mn(III) · · · Mn(III) ferromagnetic interaction (J ) 0.56 cm-1) operates via a
[Mn(1)-C(2)-C(1)-N(4)-C(45)-H(45A) · · · Br(1)-Mn(1)] superexchange pathway in complex 5.
Introduction
(NCP is also known as inverted porphyrin or 2-aza-21-
carbaporphyrin). Recently, essential progress has been observed
in the literature concerning the synthesis and characterization
of NCP and its derivatives. Hung et al.4 reported the X-ray
structure of a five-coordinate manganese(III) complex of
N-confused 5,10,15,20-tetraphenylporphyrin Mn(NCTPP)Br (1)
(NCTPP, dianion of 5,10,15,20-tetraphenyl-N-confused por-
phyrin) and Harvey and Ziegler5 described the structural
characterization of a six-coordinate Mn(III) complex of Mn(NCT-
PP)(py)2 (2). Krzystek and co-workers6 reported the high-
frequency and -field electron paramagnetic resonance (HFEPR)
study of complex 2. It turned out that the inversion of a single
pyrrole ring of 2 greatly changes the equatorial ligand field
exerted and leads to large magnitudes of both the axial and
rhombic ZFS (respectively, D ) -3.08 cm-1, E ) -0.61
cm-1), which are unprecedented in other Mn(III) porphyrinoids.6
In general, Electron Paramagnetic Resonance (EPR) spec-
troscopy at conventional microwave frequencies [X-band, ∼9
GHz (0.3 cm-1); Q-band, ∼35 GHz (1.2 cm-1)] is not
applicable to “EPR-silent” systems with integral-spin ground
states where the zero-field splitting (ZFS) is larger than the
microwave quantum, in particular, where the ZFS interaction
approaches axial symmetry.1–3 Thus, conventional EPR studies
of high-spin manganese(III) (d4, S ) 2) compounds are rather
limited especially for the N-confused porphyrin (NCP) complex
* To whom correspondence should be addressed. E-mail: jyhhchen@
dragon.nchu.edu.tw (J.H.C.), joyuting@mail.hwai.edu.tw (J.Y.T.).
# Dedicated to Prof. Rob Dunbar (Case Western Reserve University) on
the occasion of his 65th birthday.
†
National Chung-Hsing University.
Material Chemical Laboratories.
Chung Hwai University of Medical Technology.
‡
§
(1) Dexheimer, S. L.; Gohdes, J. W.; Chan, M. K.; Hagen, K. S.;
Armstreng, W. H.; Klein, M. P. J. Am. Chem. Soc. 1989, 111, 8923.
(2) Talsi, E. P; Bryliakov, K. P. MendeleeV Commun. 2004, 111.
(3) Bryliakov, K. P.; Bahushkin, D. E.; Talsi, E. P. MendeleeV Commun.
1999, 29.
(4) Bohle, D. S.; Chen, W. C.; Hung, C. H. Inorg. Chem. 2002, 41, 3334.
(5) Harvey, J. D.; Ziegler, C. J. Chem. Commun. 2003, 2890.
(6) Harvey, J. D.; Ziegler, C. J.; Telser, J.; Ozarowski, A.; Krzystek, J.
Inorg. Chem. 2005, 44, 4451.
7202 Inorganic Chemistry, Vol. 47, No. 16, 2008
10.1021/ic800490t CCC: $40.75  2008 American Chemical Society
Published on Web 07/23/2008

InWerted N-Methylated Porphyrin Complexes
Recently, Ziegler et al.7 reported an improved methodol-
ogy for the synthesis of 2-N-methyl-5,10,15,20-tetraphenyl-
21-carbaporphyrin, 2-NCH3NCTPPH (3). Compound 3 in
this work was prepared in the way described by the Ziegler
group using CH3I and p-xylene in 48.6% yield. Unlike the
NH tautomerism that exists in NCTPPH2 (4),8 the free base
3 has only one stable form. Thus, a placement of a Mn(III)
ion (I ) 5/2) with a paramagnetism and a Sn(IV) ion (I )
1/2) with a diamagnetism in a core of N-methylated
carbaporphyrin provides a promising route to synthesize a
paramagnetic complex, bromo(2-aza-2-methyl-5,10,15,20-
tetraphenyl-21-carbaporphyrinato-N,N′,N′′)-manganese(I-
II) [Mn(2-NCH3NCTPP)Br; 5] and a diamagnetic complex,
dichloro(2-aza-2-methyl-5,10,15,20-tetraphenyl-21-carbap-
orphyrinato-N,N′,N′′)-tin(IV) [Sn(2-NCH3NCTPP)Cl2; 6].
This new diamagnetic compound 6 is used as a diamagnetic
correction for 5 in the solid-state magnetic susceptibility
measurements.9 In this paper we focus on details of the
manganese(III) electronic structure. Studies of temperature
dependence of the magnetic susceptibility and of the effective
moment show that S ) 2 is the ground state for high-spin
mononuclear Mn3+ in 5 at 20 °C. Application of the
Bleaney-Bowers10 equation permits evaluation of D, |2J|,
and an average g value for powder samples. Measurement
of the ESR spectrum arising from 5 with the S ) 2 state
and application of the spin Hamiltonian (eq 1) permits
derivation of the rhombic ZFS parameter E.
3
3J(H-H) ) 7.2 Hz, o-H] and 7.61 [d, J(H-H) ) 7.2 Hz, o-H];
7.47-7.78 [m, meta and para protons]; 3.30 (s, N-CH3). FAB-MS
m/z (assignment. rel intensity): 154 ([NBA + H]+, 56.82), 761
([Sn(4-NCH3NCTPP)]+, 48.11), 796 ([Sn(4-NCH3NCTPP)Cl]+,
100). UV-vis spectrum, λ (nm) [ε × 10-3, M-1 cm-1] in CH2Cl2:
458 (126.1), 565 (29.8), 606 (31.4), 722 (23.3), 884 (32.2).
Mn(2-NCH3NCTPP)Br (5). A mixture of 2-NCH3NCTPPH (3)
(50 mg, 0.08 mmol) in CH2Cl2 (20 mL) and MnBr2 (52 mg, 0.24
mmol) in MeOH (1 mL) was refluxed for 3 h. After concentrating
it, the residue was dissolved in CH2Cl2 and filtered. The filtrate
was concentrated and the residue was purified by a silica gel column
using CH2Cl2/EA [20% EA (ethyl acetate)] as the eluent to yield
impure 5, which upon further recrystallization from CH2Cl2/EA
afforded 5 (37 mg, 0.049 mmol, 61%) as a pure green solid.
Compound 5 was redissolved in CH2Cl2 and layered with EA to
afford green crystals for single-crystal X-ray analysis. FAB-MS
m/z (assignment. rel intensity): 629 ([4-NCH3NCTPP]+, 27.35), 681
([Mn(4-NCH3NCTPP)]+, 100), 762 ([Mn(4-NCH3NCTPP)Br +
H]+, 4.67). UV-vis spectrum, λ (nm) [ε × 10-3, M-1cm-1] in
CH2Cl2: 396 (35.9), 416 (34.1), 459 (24.6), 508 (59.3), 582 (10.7),
752 (10.1), 815 (12.7), 884 (12.3). Anal. Calcd. for C45H30BrMnN4:
C, 70.90; H, 3.90; N, 7.30. Found: C, 70.49; H, 4.17; N, 7.22.
Magnetic Susceptibility Measurements. The solid-state mag-
netic susceptibilities were measured under helium on a Quantum
Design MPMS5 SQUID susceptometer from 2 to 300 K at a field
of 5 kG. The sample was held in a Kel-F bucket. The bucket had
been calibrated independently at the same field and temperature.
The raw data for 5 were corrected for the molecular diamagnetism.
The diamagnetic contribution of the complex 5 was measured from
an analogous diamagnetic metal complex, that is, 6. The details of
the diamagnetic corrections made can be found in ref 9.
