Preparation of 2-sulfonyl-1,2,3-triazoles by base-promoted 1,2-rearrangement of a sulfonyl group

Article abstract of DOI:10.3987/COM-09-S(S)44

1,2-Rearrangement of a sulfonyl group occurs on treatment of 1-sulfonyl-1,2,3-triazoles with a catalytic amount of 4-dimethylaminopyridine (DMAP) in acetonitrile to give an equilibrium mixture of 1-sulfonyl- and 2-sulfonyl derivatives, with considerable predominance of the latter. Subsequent acidic treatment of the mixture caused selective hydrolysis of the 1-sulfonyl derivative, which led to the isolation of the 2-sulfonyl-1,2,3-triazole in good total yield in a pure form.

Full text of DOI:10.3987/COM-09-S(S)44

HETEROCYCLES, Vol. 80, No. 1, 2010
177
HETEROCYCLES, Vol. 80, No. 1, 2010, pp. 177 - 181. © The Japan Institute of Heterocyclic Chemistry
Received, 28th June, 2009, Accepted, 10th August, 2009, Published online, 11th August, 2009
DOI: 10.3987/COM-09-S(S)44
PREPARATION OF 2-SULFONYL-1,2,3-TRIAZOLES BY
BASE-PROMOTED 1,2-REARRANGEMENT OF A SULFONYL GROUP
Motoshi Yamauchi, Tomoya Miura, and Masahiro Murakami*
Department of Synthetic Chemistry and Biological Chemistry, Kyoto University,
Katsura, Kyoto 615-8510, Japan. E-mail: murakami@sbchem.kyoto-u.ac.jp
Dedicated to Professor Akira Suzuki on the occasion of his 80th birthday
Abstract – 1,2-Rearrangement of a sulfonyl group occurs on treatment of
1-sulfonyl-1,2,3-triazoles with a catalytic amount of 4-dimethylaminopyridine
(DMAP) in acetonitrile to give an equilibrium mixture of 1-sulfonyl- and
2-sulfonyl derivatives, with considerable predominance of the latter. Subsequent
acidic treatment of the mixture caused selective hydrolysis of the 1-sulfonyl
derivative, which led to the isolation of the 2-sulfonyl-1,2,3-triazole in good total
yield in a pure form.
1,2,3-Triazoles are five-membered ring heterocycles containing three nitrogen atoms of mixed hybridized
forms in array, and substituted 1,2,3-triazoles constitute an important class of heterocyclic compounds of
a variety of utilities, the area of which covers from pharmaceutical chemistry to materials science.1 The
synthesis of C,N-disubstituted 1,2,3-triazoles often suffers from a regiochemical issue. Thus, it has been
the subject of particular interest in current heterocyclic chemistry to prepare them in a desired
regiochemical form.2 The 1,3-dipolar cycloaddition reaction of alkyl (or aryl) azide with terminal alkynes
is one of the most reliable procedures for the synthesis of C,N-disubstituted 1,2,3-triazoles. Either 1,4- or
1,5-disubstituted 1,2,3-triazoles could be regioselectively prepared by the use of copper3 or ruthenium4
catalysts, respectively (Figure 1).
N
2N
N
1
N
1
N
N
N
N
N
5
4
4
2,4-disubstituted
1,4-disubstituted
1,5-disubstituted
Figure 1. Spacial display of substituent in C,N-disubstituted 1,2,3-triazoles.

178
HETEROCYCLES, Vol. 80, No. 1, 2010
However, methods for the synthesis of 2,4-disubstituted 1,2,3-triazoles remain relatively undeveloped.5,6
A substitution reaction of 4-substituted 1,2,3-triazoles with electrophiles often produces a mixture of
regioisomers, i.e., 1,4-disubstituted and 2,4-disubstituted 1,2,3-triazoles.7 Higher electron density is
allocated on the N1 nitrogen atom, which reacts better with an electrophile giving 1,4-disubstituted
1,2,3-triazoles under conditions of kinetic control.8 On the other hand, 2,4-disubstituted 1,2,3-triazoles
experience less steric hindrance than 1,4-disubstituted 1,2,3-triazoles, and therefore, the
thermodynamically more stable 2,4-disubstituted 1,2,3-triazoles predominate under conditions of
equilibrium control.9 The thermodynamic preference for 2,4-disubstituted 1,2,3-triazoles was exploited by
Fokin and co-workers in the regioselective synthesis of 4-substituted 2-hydroxymethyl-1,2,3-triazoles by
a copper-catalyzed cycloaddition reaction of a terminal alkyne with sodium azide in the presence of
formaldehyde.10 During the course of our study on the nickel-catalyzed denitrogenative reaction of
4-substituted 1-sulfonyl-1,2,3-triazoles,11 we found that the sulfonyl group underwent rearrangement
from the N1 position to the N2 position to give 4-substituted 2-sulfonyl-1,2,3-triazoles,12 which is the
subject of the present communication.
4-Phenyl-1-tosyl-1,2,3-triazole (1a) could be readily prepared according to the literature procedure of the
copper-catalyzed azide/alkyne cycloaddition.13 The 1,2,3-triazole 1a thus obtained was treated with a
catalytic amount of 4-dimethylaminopyridine (DMAP, 10 mol%) in MeCN at room temperature for 12 h.
An extractive work-up afforded a regioisomeric mixture of 4-phenyl-2-tosyl-1,2,3-triazole (2a) and 1a
(2a:1a = 88:12), suggesting that the sulfonyl group migrated from the N1 position to the N2 position
(Table 1, entry 1).14
Table 1. Synthesis of 2-sulfonyl-1,2,3-triazoles.a
R1
O S O
N
R1
O
O
S
R1 10 mol% DMAP
N
O
S
N
N
N
N
N
N
N
O
MeCN, rt, 12–48 h
AcOH/H2O, 60 °C, 3–12 h
R2
R2
R2
1
2
N2+N1
Yieldc
Yieldc
85:15 2f 75%
R1
R2
R1
1f 4-MeC6H4 4-CF3C6H4
R2
N2:N1b
N2:N1b
2
Entry
Entry
1
2
1
1
2
3
4
5
1a
1b
1c
4-MeC6H4
4-FC6H4
Ph
Ph
88:12
2a
82%
6
7
1g 4-MeC6H4 4-MeOC6H4
1h 4-MeC6H4 2-Naphthyl
92:8
92:8
2g 86%
2h 78%
91:9
2b
2c
86%
4-MeOC6H4 Ph
87:13
73%d
8
1i 4-MeC6H4 1-Cyclohexenyl 89:11 2i 76%d
1j 4-MeC6H4 n-Hex
90:10 2j 78%e
9
1d 2-Naphthyl Ph
1e n-Bu Ph
88:12
86:14
2d
2e
80%
72%
10
a Reaction conducted on a 0.5 mmol scale. b Determined by 1H NMR analysis. c Isolated yield. d 20 mol%
e
of DMAP was used. The reaction was carried out with 50 mol% of DMAP at 60 °C, and then the
isomeric mixture was heated at 70 °C.

HETEROCYCLES, Vol. 80, No. 1, 2010
179
Unfortunately, the regioisomeric mixture failed to be separated with flash column chromatography on
silica gel. However, when the isomeric mixture was heated at 60 °C in AcOH/H2O (10/1), the N1 sulfonyl
group of 1a was selectively hydrolyzed in preference to the N2 sulfonyl group of 2a. Subsequent
chromatographic isolation readily afforded analytically pure 2a in 82% overall yield.15 The structure of 2a
was unambiguously confirmed by X-ray crystallographic analysis.
In order to gain a mechanistic insight, the isolated 2a was subjected to the identical reaction conditions
for the rearrangement [DMAP (10 mol%), acetonitrile, room temperature, 12 h] (eq 1). A regioisomeric
mixture of 2a and 1a was again formed with the former predominating by 90:10. This result indicated that
the sulfonyl group rearrangement was reversible under the reaction conditions and that 2a was the
thermodynamically more stable isomer. We presume that an N-sulfonyl(p-dimethylaminopyridinium) ion
intermediate is involved in the rearrangement process as the intermediate. A computational study at the
B3LYP/6-31G* level also suggested that 2a was more stable than 1a by 0.39 kcal/mol.16
Tol
O S O
N
Tol
O S O
N
O
Tol
N
10 mol% DMAP
MeCN, rt, 12 h
S
O
N
N
(1)
+
N
N
N
N
Ph
90:10
Ph
Ph
1a
2a
2a

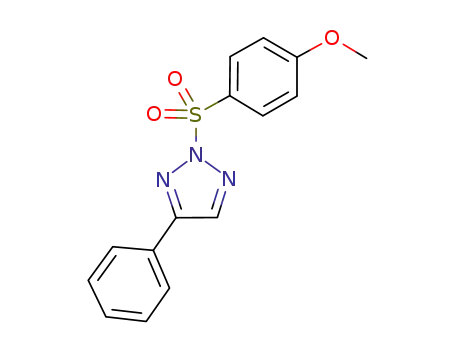

We examined the rearrangement reaction of 4-phenyl-1,2,3-triazoles 1b–1e having various sulfonyl
groups (R1) at the N1 position. Substituted benzenesulfonyl groups as well as a naphthalenesulfonyl
group rearranged from the N1 position to the N2 position (Table 1, entries 2–4). Even a butanesulfonyl
group successfully participated in the reaction (Table 1, entry 5). Variation of the substituent (R2) at the
C4 position was also examined. Aryl-and alkenyl-substituted substrates 1f–1i worked well to afford the
corresponding products 2f–2i in yields ranging from 75% to 86% (Table 1, entries 6–9). The reaction of
alkyl-substituted triazole 1j required more forcing conditions to afford the product 2j in 78% yield (Table
1, entry 10).
In summary, we have found a new base-promoted pathway starting from readily accessible 4-substituted
1-sulfonyl-1,2,3-triazoles leading to 4-substituted 2-sulfonyl-1,2,3-triazoles.
ACKNOWLEDGEMENTS
This work was supported in part by MEXT (Grant-in-Aid for Challenging Exploratory Research No.
21655033), the Mitsubishi Chemical Corporation Fund, the Sumitomo Foundation. T.M. acknowledges a
financial support by Astellas Award in Synthetic Organic Chemistry, Japan. M.Y. acknowledges a
financial support by the Global COE Program "Integrated Materials Science" (No. B-09).

180
HETEROCYCLES, Vol. 80, No. 1, 2010
REFERENCES AND NOTES
1. Reviews: J.-F. Lutz, Angew. Chem. Int. Ed., 2007, 46, 1018; J. E. Moses and A. D. Moorhouse,
Chem. Soc. Rev., 2007, 36, 1249; D. Fournier, R. Hoogenboom, and U. S. Schubert, Chem. Soc. Rev.,
2007, 36, 1369; Y. L. Angell and K. Burgess, Chem. Soc. Rev., 2007, 36, 1674.
2. Reviews: V. P. Krivopalov and O. P. Shkurko, Russ. Chem. Rev., 2005, 74, 339; P. Wu and V. V.
Fokin, Aldrichim. Acta, 2007, 40, 7.
3. V. V. Rostovtsev, L. G. Green, V. V. Fokin, and K. B. Sharpless, Angew. Chem. Int. Ed., 2002, 41,
2596; C. W. TornØe, C. Christensen, and M. Meldal, J. Org. Chem., 2002, 67, 3057.
4. L. Zhang, X. Chen, P. Xue, H. H. Y. Sun, I. D. Williams, K. B. Sharpless, V. V. Fokin, and G. Jia, J.
Am. Chem. Soc., 2005, 127, 15998.
5. For reports on the synthesis of 2-sulfonyl-1,2,3-triazoles, see: A. M. Abdel-Halim, R. M.
Abdel-Rahman, and E. A. Mohamed, Acta Pharm. Jugosl., 1985, 35, 89; I. A. Potapova, P. P.
Purygin, I. S. Lipatov, Z. P. Belousova, N. A. Yakimova, Y. V. Tezikov, and E. S. Selezneva,
Pharm. Chem. J., 2001, 35, 588; V. I. Meshcheryakov, B. A. Shainyan, L. L. Tolstikova, and A. I.
Albanov, Russ. J. Org. Chem., 2003, 39, 1517.
6. For reports on the pharmaceutical activity of 2,4-disubstituted triazoles, see; T. Balle, J. Perregaard,
M. T. Ramirez, A. K. Larsen, K. K. Søby, T. Liljefors, and K. Andersen, J. Med. Chem., 2003, 46,
265; J. Roppe, N. D. Smith, D. Huang, L. Tehrani, B. Wang, J. Anderson, J. Brodkin, J. Chung, X.
Jiang, C. King, B. Munoz, M. A. Varney, P. Prasit, and N. D. P. Cosford, J. Med. Chem., 2004, 47,
4645.
7. Y. Liu, W. Yan, Y. Chen, J. L. Petersen, and X. Shi, Org. Lett., 2008, 10, 5389 and references
therein.
8. The reaction of 4-phenyl-1,2,3-triazole with TsCl in the presence of NEt3 in CH2Cl2 afforded a
mixture of 1-tosyl and 2-tosyl triazoles (80%, 1-tosyl:2-tosyl = 82:18). See also: T. Horneff, S.
Chuprakov, N. Chernyak, V. Gevorgyan, and V. V. Fokin, J. Am. Chem. Soc., 2008, 130, 14972.
9. L. Birkofer and P. Wegner, Chem. Ber., 1967, 100, 3485; B. Iddon and M. Nicholas, J. Chem. Soc.,
Perkin Trans. 1, 1996, 1341; S. Kamijo, T. Jin, Z. Huo, and Y. Yamamoto, J. Am. Chem. Soc., 2003,
125, 7786; S. W. Kwok, J. E. Hein, V. V. Fokin, and K. B. Sharpless, Heterocycles, 2008, 76, 1141.
10. J. Kalisiak, K. B. Sharpless, and V. V. Fokin, Org. Lett., 2008, 10, 3171.
11. T. Miura, M. Yamauchi, and M. Murakami, Chem. Commun., 2009, 1470.
12. For sulfonyl group rearrangement of other heterocycles, see: K. Kohori, H. Kinoshita, and K.
Inomata, Chem. Lett., 1995, 799; Z. R. Woydziak, B. J. Frost, and D. A. Lightner, J. Heterocycl.
Chem., 2005, 42, 731; K. Inomata, Bull. Chem. Soc. Jpn., 2008, 81, 25.
13. E. J. Yoo, M. Ahlquist, S. H. Kim, I. Bae, V. V. Fokin, K. B. Sharpless, and S. Chang, Angew. Chem.

HETEROCYCLES, Vol. 80, No. 1, 2010
181
Int. Ed., 2007, 46, 1730.
14. Other amines such as NEt3, NHEt2, and NEt(i-Pr)2 were also effective for the rearrangement of
sulfonyl group.
15. Representative procedure: To an oven-dried, Ar-purged flask was added 1a (151 mg, 0.5 mmol),
DMAP (6.5 mg, 0.05 mmol), and MeCN (5 mL). The reaction mixture was stirred at room
temperature for 12 h, and then concentrated under reduced pressure. The residue was diluted with
EtOAc (30 mL). The organic solution was washed with 1 M HCl (10 mL) and brine (10 mL), dried
over Na2SO4, and evaporated. The residue was again dissolved in AcOH (5 mL) and H2O (0.5 mL).
The reaction mixture was stirred at 60 °C for 3 h, and then concentrated under reduced pressure. The
crude product was purified by flash column chromatography (hexane/EtOAc = 5/1) to yield 2a as a
1
white solid (124 mg, 0.41 mmol, 82%). 2a: IR (KBr): 1391, 1196, 1163, 1086 cm-1; H NMR:  =
2.41 (s, 3H), 7.34 (d, J = 8.7 Hz, 2H), 7.39–7.48 (m, 3H), 7.79–7.86 (m, 2H), 8.00 (d, J = 8.7 Hz,
2H), 8.08 (s, 1H); 13C NMR:  = 21.7, 126.6, 128.2, 128.6, 128.9, 129.9, 130.1, 132.9, 135.6, 146.6,
151.4; HRMS (FAB+): Calcd for C15H14N3O2S, M+H+ 300.0807. Found m/z 300.0801.
16. C. Foces-Foces, A. L. Llamas Saiz, and J. Elguero, Heterocycl. Commun., 1999, 5, 137.
