Vol. 26, No. 7 (2014)
Synthesis and Antitumor Activity of 1,2,4-Triazolo[1,5-a]quinazolines 2175
(25 µg/mL) anticancer assay against the previously mentioned
cell lines. The cytotoxic effect of the newly synthesized
compounds were evaluated by testing the capacity of the
reducing enzymes present in viable cells to convert MTT to
formazan crystals as previously described17, with some
modifications. Briefly, cells cultured in complete medium were
seeded into 96-well microtiter plates (in quintuplicates) with
2 × 104 cells per well and incubated at 37 °C under a humidified
atmosphere of 5 % CO2 for 24 h. The cell medium in test wells
were then changed to serum free medium (SFM) containing
25 µg/mL of the tested compounds, while the cell medium in
control wells were changed to serum free medium containing
an equivalent volume of solvent (dimethyl sulfoxide). After
incubation at 37 °C for 24 h, serum free medium in control
and test wells were replaced by 100 µL/well of MTT; 0.5 mg/
mL) in phosphate-buffered saline (PBS) and incubated at 37
°C for an additional 3 h. MTT solution were removed and the
purple formazan crystals formed at the bottom of the wells
were dissolved using 100 µL isopropyl alcohol/well with
shaking for 1 h at room temperature. The absorbance at 549
nm was read on a microplate reader (ELX 800; Bio-Tek Instru-
ments, Winooski, VT, USA). Cell death was estimated with
the following formula18:

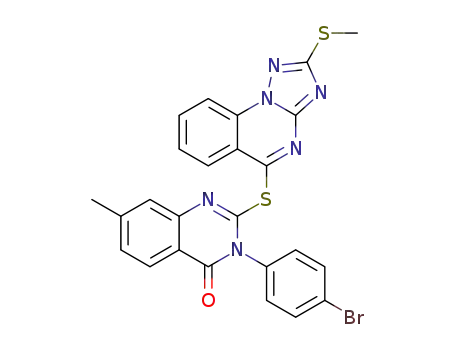

S-CH3 in the structures of 21 and 22 was proved by the singlet
at 2.73 and 2.65 ppm together with their own C-signals as
13
the most upfield characteristic position at 13.7 and 13.5.Another
key 13C-signal was C-5 that interpreted at δ ≈ 154 ppm due to
the presence of 5-S-quinazolin-4-one function (21, 22). As
well, methylquinazolin-4-one moiety was deduced from its
AMX-spin coupling system for H-7', H-5' and H-8' at about
8.3 (br d, J = 8 Hz), 8 (1H, br s), 7.5 (1H, d, J = 8.5 Hz), respec-
tively. This moiety was interpreted in the 13C-spectrum in the
form of nine resonances including three characteristic signals
at 170.5 (C-2'), 160.3 (C-4') and 20.7 (CH3-6') in case of 21,
which assigned at 164.6 (C-2'), 160.5 (C-4') and 20.9 (CH3-
6') in 22. The difference between the NMR spectra of both
compounds was summarized in the form of presence the
characteristic signals for N-p-bromophenyl in case of 21 and
N-benzyl in the structure of 22. Final confirmation of their
1
structures was obtained from the comparison of all H and
13C resonances with our assigned data for structural related
triazoloquinazoline derivatives14,24
.
The in vitro antitumor activity of compounds 1-22 was
evaluated by testing their cytotoxic effects using the MTT assay
against Medulloblastoma (Daoy), Hepatocellular carcinoma
(HepG2) and Melanoma (SK-MEL28) cells17. The IC50-values
represented the drug concentration (µg/mL) required to inhibit
cell growth by 50 %, are summarized in Table-1 as a common
parameter for cytotoxicity of the investigated compounds. As
indicated in Table-1, some target molecules have higher or
comparable cytotoxicity with that of Dasatinib against the
cancer cell lines examined, with IC50 values in the range of
1.29-14.96 µg/mL. Compounds 6, 10, 17, 18 and 21 have
shown the highest cytotoxicity against Medulloblastoma with
the IC50 values of 5.53, 1.29, 2.93, 6.14 and 6.59 µg/mL in
regards to the reference drug IC50 (7.26 µg/mL). For hepato-
cellular carcinoma(HepG2) cell line, the most active compound
(17) was investigated to exhibit higher inhibition concentration
and a lower IC50 with respect to Dasatinib. The target products
17, 18 and 21 were found to possess the highest activity against
Melanoma (SK-MEL28) with their IC50 values of 3.88, 13.85
and 14.96, respectively. Compound 19 was exhibited activity
against Medulloblastoma (Daoy), Hepatocellular carcinoma
(HepG2) cells but not more potent than the respected reference
drug. Similarly, compound 6 was less potent then Dasatinib
against hepatocellular carcinoma (HepG2) cell. Throughout
our study we have noticed that structure modifications in the
parent compounds (1-4) have led to remarkable cytotoxicity
depending on the structure change and examined cell lines. In
compounds 7-12, regioselective N-alkylation of lactam has
demonstrated noticeable activity such as compound 7 and 10
that displayed a significant IC50 values (Table-1) in comparison
with their parents and Dasatinib as well. However, 10 represents
one of the most populated compound obtained during this
study. Furthermore, conversion of lactam in compounds 2 and
4 into an imidoyl chloride function (17, 18) has influenced
positively cytotoxic effect and more significant on the activity
profiles, this may be attributed to the increase of the lipophi-
licity. Whereas, further chemical transformation of chlorine
in 16 into ethoxy (19) was offered advantageous in the activity.
The S-arylation of 17 with N-(4-bromophenyl)thioxoquina-
zoline to form 21 has led to decrease the activity and in case
% Specific death = A(untreated cells)-A(treated cells)/
A(untreated cells) × 100
The dose response curves of the compounds effecting
≥ 50 % inhibition in one-dose prescreening for each cell line
were established with concentrations of 25, 12.5, 6.25, 3.125,
1.56 and 0.78 µg/mL and the concentrations causing 50 %
cell growth inhibition (IC50) were calculated. The cytotoxic
activity of the anticancer drug dasatinib, a potent multi-targeted
kinase inhibitor of BCR-ABL and SRC family kinases19,
against the three cell lines was examined at the same concen-
trations of tested compounds and utilized as a standard for
comparative purposes.
RESULTS AND DISCUSSION
In previous papers20-24, we have described the synthetic
routes for the triazoloquinazoline derivatives 1-20 (Scheme-
I). The corresponding 21 and 22 were prepared by reaction of
compound 17 with appropriate 3-aralkyl(aryl)-thioxoquina-
zolin-4-ones in dimethylformamide at room temperature. The
structures of 21 and 22 were established on the basis of IR,
MS and confirmed by 1H- and 13C NMR spectral data (splitting
pattern, δ- and J-values and comparison with literature of
structural related compounds). As it was explained in previous
article24, the 1,2,4-triazolotricyclic main structural nucleus was
proved by the assignment of its four one proton 1H-signals as
two dd (or br d) resonances with Jortho(7.5-8.5 Hz) and Jmeta(1-
2 Hz) assignable for H-9 and H-6 and two td (or br t) resonances
with Jortho and Jmeta for H-8 and H-7, respectively. Moreover,
13C NMR spectra proved the main tricyclic moiety through
characteristic nine resonances including the most downfield
key signal of C-2 assigned at ≈ 165 ppm in 2-phenoxy deriva-
tives that was observed relatively upfield at ≈ 160-161 in case
of 2-methylsulfonyl function and in 20 and 21 at about 160.5
ppm due to the stronger -R and -I (deshielding) effect of O-
phenoxy than -SO2 or S-CH3 (20 & 21)24. The presence of one
