New Group 4 Organometallic and Imido Compounds of

Diamide-Diamine and Related Dianionic

O₂N₂-Donor Ligands

Michael E. G. Skinner, Thierry Toupance, David A. Cowhig, Ben R. Tyrrell, and

Philip Mountford*

Chemistry Research Laboratory, University of Oxford, Mansfield Road, Oxford OX1 3TA, U.K.

Received July 27, 2005

New group 4 compounds supported by the tetradentate diamide-diamine ligand N₂NN′

are reported (N₂NN′ ) (2-C₅H₄N)CH₂N(CH₂CH₂NSiMe₃)₂) along with some comparative

studies with the new bis(alkoxide)-diamine ligand O₂NN′ (O₂NN′ ) (2-C₅H₄N)CH₂N(CH₂-

CMe₂O)₂). Reaction of the previously described ZrCl₂(N₂NN′) (1) with 2 equiv of MeLi or

PhCH₂MgCl gave ZrR₂(N₂NN′) (R ) Me (2) or CH₂Ph (3)). Reaction of 1 with 1 equiv of

RCH₂MgCl gave the monoalkyl analogues ZrCl(R)(N₂NN′) (R ) CH₂Ph (6) or CH₂SiMe₃(7)).

Reaction of Zr(CH₂R)₄(R ) SiMe₃or CMe₃) with H₂N₂NN′ in C₆D₆gave the corresponding

Zr(CH₂R)₂(N₂NN′), but these decomposed over several hours. Reaction of 1 with allylmag-

nesium chloride gave ZrCl{(2-NC₅(6-C₃H₅)H₄)CH₂N(CH₂CH₂NSiMe₃)₂}, in which the pyridyl

group has undergone nucleophilic attack. Reaction of 2 with BAr^F₃(Ar^F) C₆F₅) in benzene

led to the cyclometalated cation [Zr{(2-NC₅H₄)CH₂N(CH₂CH₂NSiMe₃)(CH₂CH₂NSiMe₂CH₂-

)}]⁺via SiMe₃group C-H activation, but in the presence of THF the methyl cation [ZrMe-

(THF)(N₂NN′)]⁺was formed. Reaction of 6 with BAr^Fgave the chloride cation [ZrCl(N₂-

3

NN′)]⁺. Reaction of Li₂N₂NN′ with Ti(NR)Cl₂(py)₃gave the five-coordinate imides Ti(NR)(N₂NN′)

t

i

(R ) Bu or Ar (15), Ar ) 2,6-C₆H₃Pr₂). Zirconium imides Zr(NAr)(N₂NN′) and Zr(N^tBu)-

(py)(N₂NN′) (18) were prepared by sequential reaction of 1 with LiCH₂SiMe₃(2 equiv) and

the appropriate amine and pyridine for the latter. Reaction of 1 with LiNH^tBu (2 equiv)

gave Zr(NH^tBu)₂(N₂NN′). Reaction of 18 with piperidine gave Zr(NH^tBu)(NC₅H₁₀)(N₂NN′)

(19) via N-H bond activation. For comparative purposes the group 5 imides M(N^tBu)Cl-

(N₂NN′) (M ) Nb (20) or Ta (21)) were prepared from Li₂N₂NN′ and the corresponding M(N^t-

Bu)Cl₃(py)₂. Reaction of 2-aminomethylpyridine with an excess of isobutylene oxide afforded

H₂O₂NN′ (22). Reaction of H₂O₂NN′ (1 or 2 equiv) with Ti(NMe₂)₄gave Ti(O₂NN′)₂, which

reacted with TiCl₄(THF)₂to form TiCl₂(O₂NN′). Reaction of H₂O₂NN′ with Zr(CH₂SiMe₃)₂-

Cl₂(Et₂O)₂, Zr(NMe₂)₄, or Zr(CH₂SiMe₃)₄gave ZrX₂(O₂NN′) (X ) Cl, NMe₂, or CH₂SiMe₃(27)).

Reaction of 27 with BAr^Fin the presence of THF formed [Zr(CH₂SiMe₃)(THF)(O₂NN′)]⁺,

3

but in the absence of a Lewis base the µ-alkoxide-bridged dimer [Zr₂(CH₂SiMe₃)₂(O₂NN′)₂]²⁺

was formed. The compounds 3, 6, 15, 19, 21, 22, and 27 were crystallographically

characterized.

Introduction

manipulation of ligand topology (macrocylic or podand/

open-chain), chirality, and coordination number, as well

as the “tunability” of the associated steric factors. Many

of the developments in the area have been in the context

of Ziegler-Natta olefin polymerization^2,6,7and the sto-

ichiometric and catalytic activation and transformation

of small organic molecules.^1a,b,f,j,lDiamide ligands, in

particular those incorporating one or two additional

Lewis base donors (e.g., N, O, or P), have been widely

studied in all of these contexts.^{1a,b,f,g,h,2,3}

The development of polydentate ligand frameworks

containing anionic nitrogen or oxygen donors has ac-

companied many of the advances in early transition

metal organometallic and related chemistry over the

past ca. 15 years.^1-9The success of these supporting

ligands can be attributed to the hard nature of the N

and O donor atoms, the diversity and relative ease of

* To whom correspondence should be addressed. E-mail:

philip.mountford@chem.ox.ac.uk.

With the aim of developing the chemistry of diamide-

donor ligand chemistry, we recently reported the syn-

thesis of the diamide-diamine protio ligands (2-C₅-

H₄N)CH₂N(CH₂CH₂N(H)R)₂(R ) SiMe₃(H₂N₂NN′),

(1) Some reviews of polydentate amide and other anionic N-donor

ligand chemistry: (a) Odom, A. L. Dalton Trans. 2005, 225. (b) Fryzuk,

M. D. Chem. Rec. 2003, 3, 2. (c) Schmidt, J. A. R.; Giesbrecht, G. R.;

Cui, C.; Arnold, J. Chem. Commun. 2003, 1025. (d) Kempe, R. Eur. J.

Inorg. Chem. 2003, 791. (e) Bourget-Merle, L.; Lappert, M. F.; Severn,

J. R. Chem. Rev. 2002, 102, 3031. (f) Gade, L. H.; Mountford, P. Coord.

Chem. Rev. 2001, 216-217, 65. (g) Gade, L. H. Chem. Commun. 2000,

173. (h) Kempe, R. Angew. Chem., Int. Ed. 2000, 39, 468. (i) Mountford,

P. Chem. Soc. Rev. 1998, 27, 105. (j) Cummins, C. C. Prog. Inorg. Chem.

1998, 47, 685. (k) McKnight, A. L.; Waymouth, R. M. Chem. Rev. 1998,

98, 2587. (l) Schrock, R. R. Acc. Chem. Res. 1997, 30, 9. (m) Brand, H.;

Arnold, J. Coord. Chem. Rev. 1995, 140, 137. (n) Edelmann, F. T.

Coord. Chem. Rev. 1994, 137, 403. (o) Chisholm, M. C. Acc. Chem. Res.

1990, 23, 419.

t

SiMe₂Bu, or mesityl) and their corresponding lithiated

derivatives.^10a-cThese are precursors to new zirconium

(2) Reviews of olefin polymerization catalysis: (a) Gromada, J.;

Carpentier, J.-F.; Mortreaux, A. Coord. Chem. Rev. 2004, 248, 397.

(b) Gibson, V. C.; Spitzmesser, S. K. Chem. Rev. 2003, 103, 283. (c)

Coates, G. W. J. Chem. Soc., Dalton Trans. 2002, 467. (d) Hou, Z.;

Wakatsuki, Y. Coord. Chem. Rev. 2002, 231, 1. (e) Bolton, P. D.;

Mountford, P. Adv. Synth. Catal. 2005, 347, 355.

Publication on Web 10/11/2005

Group 4 Organometallic and Imido Compounds

Organometallics, Vol. 24, No. 23, 2005 5587

Chart 1

and hafnium coordination compounds such as ZrCl₂(N₂-

NN′) (1, Chart 1),^10bas well as to a range of organome-

tallic and coordination complexes of the group 3^10d(e.g.,

Sc(CH₂SiMe₃)(N₂NN′), Chart 1) and lanthanide^10cmet-

als. However, apart from the simple dichloride and bis-

(dimethylamide) coordination compounds MX₂(N₂NN′)

(M ) Zr or Hf; X ) Cl or NMe₂), no other group 4

chemistry of N₂NN′ has been described. Therefore we

report here new group 4 organometallic and related

compounds containing N₂NN′, together with comple-

mentary comparative studies with a bis(alkoxide) ana-

logue. In one instance studies have extended to some

isoelectronic group 5 imido systems. Part of this work

has been communicated.^10a

(Chart 1) and its lithiated derivative Li₂N₂NN′ were

prepared according to methods previously described.^10b

Although six-coordinate zirconium and hafnium com-

pounds MX₂(N₂NN′) (X ) Cl or NMe₂) could be

prepared,^10bthe titanium congeners could not, and only

complex mixtures of products were obtained. In explor-

ing the group 4 organometallic chemistry of N₂NN′ we

therefore focused on zirconium, starting either from the

protio ligand H₂N₂NN′ or the readily prepared dichlo-

ride ZrCl₂(N₂NN′) (1).

Scheme 1 summarizes the reactions of 1 with MeLi

and Grignard reagents. Reaction with MeLi (2 equiv)

in benzene afforded the dimethyl compound ZrMe₂(N₂-

NN′) (2) as a white solid in 88% isolated yield. It was

necessary to add the lithiating reagent in two stages,

otherwise a mixture of products (containing 2 as a minor

component) was obtained. PhCH₂MgCl (2 equiv) could

be added in one portion, and after stirring at room

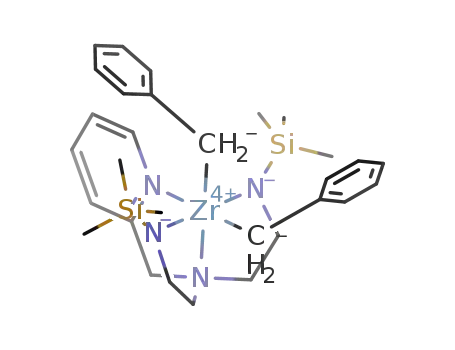

temperature for 18 h, Zr(CH₂Ph)₂(N₂NN′) (3) was
