Unveiling NIR Aza-Boron-Dipyrromethene (BODIPY) Dyes as Raman Probes: Surface-Enhanced Raman Scattering (SERS)-Guided Selective Detection and Imaging of Human Cancer Cells

Article abstract of DOI:10.1002/chem.201702626

The development of new Raman reporters has attracted immense attention in diagnostic research based on surface enhanced Raman scattering (SERS) techniques, which is a well established method for ultrasensitive detection through molecular fingerprinting an

Full text of DOI:10.1002/chem.201702626

A Journal of
Accepted Article
Title: Unveiling NIR Aza-BODIPY Dyes as Raman Probes: SERS-
Guided Selective Detection and Imaging of Human Cancer Cells
Authors: Kaustabh Kumar Maiti, Adarsh Nagappanpillai, Ramya A N,
and Ramaiah Danaboyina
This manuscript has been accepted after peer review and appears as an
Accepted Article online prior to editing, proofing, and formal publication
of the final Version of Record (VoR). This work is currently citable by
using the Digital Object Identifier (DOI) given below. The VoR will be
published online in Early View as soon as possible and may be different
to this Accepted Article as a result of editing. Readers should obtain
the VoR from the journal website shown below when it is published
to ensure accuracy of information. The authors are responsible for the
content of this Accepted Article.
To be cited as: Chem. Eur. J. 10.1002/chem.201702626
Link to VoR: http://dx.doi.org/10.1002/chem.201702626
Supported by

10.1002/chem.201702626
Chemistry - A European Journal
Article type: Full Paper
Unveiling NIR Aza-BODIPY Dyes as Raman Probes: SERS-Guided Selective Detection
and Imaging of Human Cancer Cells
[a],[b]
Nagappanpillai Adarsh,[a] Adukkadan N. Ramya,[a],[b] Kaustabh Kumar Maiti*
Danaboyina Ramaiah* [b],[c]
and
aChemical Sciences and Technology Division, CSIR-National Institute for Interdisciplinary
Science and Technology (CSIR-NIIST), Thiruvananthapuram-695 019, Kerala, India
bAcademy of Scientific and Innovative Research (AcSIR)
Thiruvananthapuram, India
–
CSIR-NIIST,
cCSIR-North East Institute of Science and Technology (CSIR-NEIST), Jorhat, Assam, India
E-mail: kkmaiti@niist.res.in and rama@neist.res.in
Development of novel Raman reporters attracted immense attention in diagnostic
research based on surface enhanced Raman scattering (SERS) techniques, a well established
modality for ultrsensitive detection through molecular fingerprinting and imaging. Herein, for
the first time, we report the unique and efficient Raman active features of the selected aza-
BODIPY dyes 1-6. These distinctive attribute could be extended at the molecular level
detection through SERS upon adsorption onto the nano-roughened gold surface. Among the
newly revealed Raman reporters, the amino substituted derivative, 4, showed significantly
high signal intensity at very low concentrations (ca. 0.4 µM for 4-Au). Interestingly, an
efficient nanoprobe has been constructed using gold nanoparticles as SERS substrate, and 4 as
the Raman reporter (4-Au@PEG), which unexpectedly showed efficient recognition of three
human cancer cells (lung: A549, cervical: HeLa, Fibrosarcoma: HT-1080) without any
specific surface marker. We observed well reflected and resolved Raman mapping and
characteristic signature peaks wherein, such recognition was not observed in a normal
fibroblast (3T3L1) cells. In addition, to reconfirm the fact, SERS nanoprobe was conjugated
1
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
with a specific tumour targeting marker, EGFR (Epidermal Growth Factor Receptor), a well
known targeted agent for Human Fibrosarcoma (HT1080). This nanoprobe efficiently targeted
to the surface marker of HT 1080 cells, and thus demonstrating its use as an ultrasensitive
Raman probe for the detection and targeted maging, leaving the normal cells unaffected.
1. Introduction
The sensitive detection of specific biomarkers for different oncological and non-
oncological diseases has attracted immense attention in the medical diagnostic field.[1-5] The
detection of multiple biomarkers from the complex biological matrices within the fastest
possible time frame for efficient disease diagnosis is one of the challenges in current
scenario.[6-7] Even though a vast variety of techniques exist for the detection and to monitor
the progress of treatment, many of them failed to provide a vivid explanation of the structural
consequence from its molecular perspectives during the treatment.[8-9] A sensitive method,
which is capable of providing an in-depth understanding of the changes at cellular level
during therapy, can provide new insights to optimize therapeutic efficiency.
Surface Enhanced Raman Spectroscopy (SERS) recently emerged as a well-
established detection modality for the disease diagnosis that could improve upon the
conventional methods.[10-13] It possesses single-molecule detection potentially accessible with
noble-metal structures or substrates (typically a gold or silver nanoparticle). It is evolved as a
versatile alternative to the common fluorescence techniques since it offers the potential to
minimize photobleaching, peak overlapping, and low signal-to-noise ratio in complex
biological systems.[14-16] In recent years, successful outcome have been noticed on cancer
biomarker detection in patient’s blood, saliva or serum samples or on target cells by means of
SERS fingerprinting.[17,18] Such an instance, a label-free blood test method based on SERS
was reported for nasopharyngeal, gastric and colorectal cancer detection.[19-21] The design,
preparation and characterization of SERS-active substrates and Raman reporters, are one of
2
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
the most prominent evolutionary areas in Raman spectroscopy. In addition to the frequently
used commercially available Raman reporters such as crystal violet (CV), malachite green
isothiocyanate (MGITC), 4-mercaptobenzoic acid (4-MBA), Rhodamine 6G, diethylthiatri-
carbocyanine (DTTC), there has been an increased interest in the development of novel
Raman signature molecules for the diverse diagnostic and imaging applications.[22-25]
We have recently reported squaraine based Raman reporters for the construction of
theranostic nanoprobe for photothermal-chemotherapy and an unique Raman probe by
tetraphenyl ethylene (TPE) derivatives to detect the prostate specific antigen in LnCaP cell
lines assisted by SERS fingerprinting.[26-28] Despite the diverse attempts made to discover new
Raman reporter molecules, most of the reported ones suffer from several disadvantages such
as low resolution, short wavelength absorption and high fluorescence background, which may
mask the Raman signals. The aza-BODIPY dyes, one of the closest analogues to the widely
used BODIPY dyes are characterized by their strong NIR absorption, high photostability and
low fluorescence quantum yields.[29-35] These dyes are familiar for their excellent triplet
excited state quantum yields and tuneable singlet oxygen generation efficiency.[36-38] The
synthetic flexibility of these dyes make them attractive for diverse applications such as
sensitizers for photooxygenation, photodynamic therapy as well as the probes for anions,
cations and neutral molecules.[39-41]
However, no aza-BODIPY dyes are reported till date as Raman signature molecules
may be due to their poor solubility in aqueous medium and difficulty to incorporate with
nanomaterial substrate such as gold or silver nanoparticles. Considering these in mind, we
have investigated the functionalized aza-BODIPY dyes 1-6 and unveiled their potential as
effective Raman reporters for the first time in presence and absence of gold nanoparticles
(Figure 1). Notably, the amino substituted aza-BODIPY, 4 showed surprisingly strong Raman
signal, even in the absence of a metallic substrate, which turned out as a new generation
Raman probe. Additionally, we have successfully demonstrated the potential of aza-BODIPY
3
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
dye, 4 to construct SERS nanotag for the selective detection and imaging of a set of human
cancer cell lines, and the targeted SERS imaging of the human fibrosarcoma cell lines by
tagging the monoclonal antibody against EGF receptor (EGFR).
<Insert Figure 1>
2. Results and Discussion
Synthesis of the halogenated aza-BODIPY derivatives 1-3 and the N-substituted
derivatives 4-6 was achieved in good yields starting from their corresponding chalcones by

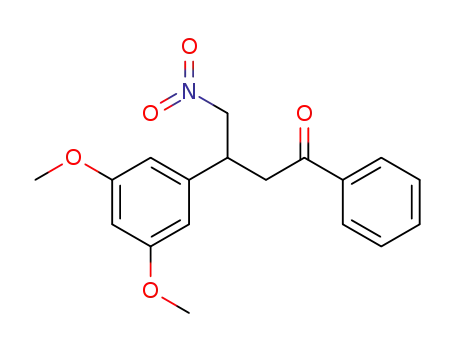

following previously reported procedures.[36-41] The chalcones undergo nitromethane addition
to get the nitro adduct, which upon reaction with ammonium acetate to form the aza-
dipyrromethene followed by complexation with BF3-OEt2 to yield the target aza-BODIPY
dyes (Schemes S1-S2, Supporting Information). The intermediates and target molecules were
characterized by spectral and analytical evidences.[36-41] The halogenated derivatives exhibited
strong absorption in the range of ca. 600-750 nm and fluorescence at ca. 700-850 nm,
whereas the N-substituted dyes showed much larger red shifted absorption at ca. 700-800 nm
(Figure 2A, Figure S1, Supporting Information). To investigate the efficiency of aza-BODIPY
dyes as Raman probes, we have recorded the Raman spectra of the bare reporter molecules 1-
6 in 1% DMSO-H2O under a WI-Tec Raman microscope with a wavelength of 633 nm laser
excitation and 20X objective. The single spectra were collected from the CCD detector with
an integration time of 0.5 s and 10 accumulations. The aza-BODIPY derivatives 1-6 showed
characteristic well resolved Raman spectra under similar experimental conditions with high
signal to noise ratio (Figure 2B, Figures S2-S6, Supporting Information).
<Insert Figure 2>
The amino substituted aza-BODIPY, 4 exhibited well resolved intense Raman spectral
profile with good signal to noise ratio and better hydrophilicity and photostability. Raman
peaks obtained from the dye, 4 and corresponding peak assignments were tabulated (Table S2,
4
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
Supporting Information). The aza-BODIPY dye 4 exhibited a strong signal in the range of
1600-1610 cm-1 attributing to the C=N-C stretching frequency of the azomethine bonds. The
lowest detectable limit of Raman intensity for the amino dye, 4 was determined from the
concentration dependent experiments which gave a very low value of 4 µM (Figure 2C).
Interestingly, the amino derivative, 4 showed enhanced Raman signal intensity, when
compared to the most commonly used Raman reporters, such as Rhodamine B, Crystal Violet,
which definitely mark the importance of the aza-BODIPY dyes as commercial Raman
signatures for bio-imaging applications (Figure 2D).
As the aza-BODIPY dyes, showed remarkable Raman intensity upon irradiating with
633 nm, it is of our interest to examine the SERS enhancement of these dyes in presence of
nanogold surface. The amino aza-BODIPY dye, 4 (30 M) was mixed with as prepared Au-
NPs (size ca. 40 nm) in 1:9 ratio (v/v) (See experimental section for the details of AuNP
preparation). The mixture was incubated for 10 min to get maximum adsorption of the aza-
BODIPY on Au-colloids through both chemisorption and physisorption. We observed that the
dye, 4 binds strongly with the Au surface through the amino groups as well as through the
electrostatic interactions. The formation of the gold colloid, 4-Au was confirmed through the
shift in the absorption spectra with respect to the parent aza-BODIPY dye as well as the
colloidal Au solution (Figure S7, Supporting Information). The SERS enhancement has been
investigated as described earlier, and reflected around ca. 10-fold increment in intensity as
compared to normal Raman intensity observed by the bare molecule, 4 (Figure 3A). The
SERS intensity was high enough when compared to the commercially available Raman
reporters (Figure S8, Supporting Information), which reveals the efficiency of the dye 4 as a
Raman signature molecule. The sensitivity of 4-Au was determined from the concentration
dependent SERS experiments and found to be as low as 0.4 µM (Figure 3B) which is higher
than that of Rhodamine B (1 µM) and Malachite green (2.3 µM) under similar conditions
(Table S1, Supporting Information).
5
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
<Insert Figure 3>
Further, we have constructed a straight forward biocompatible SERS nanotag with
aza-BODIPY and colloidal nano gold to promote SERS mapping (imaging) and spectral
demarcation of both cancer and normal cell lines. The biocompatibility of the colloids was
achieved by the efficient encapsulation with PEG (4-Au@PEG) and examined their signal
stability over days. We observed substantial stability of the nano-construct at 25 oC. The PEG
encapsulation was carried out by modifying the previously described protocols.[42,43] The
heterocyclic functional linker HS–PEG–COOH (M.W PEG: 3000 Da) was added to 4-Au
solution and then Au-colloid was exposed to excess of PEG-SH (M.W PEG: 5000 Da) for 15
min. Subsequently the aza-BODIPY reporter, 4 was efficiently incorporated into the thin PEG
layer and confirmed by UV–Vis absorption spectroscopy, which showed a shift in absorption
maxima ca. 4 nm compared with 4-Au (Figure 4A). The HR-TEM analysis of 4-Au@PEG
showed a thin layer of PEG of thickness ca. 2–3 nm around gold nanoparticle surface with the
increment in size from 43 nm to 46 nm after PEG encapsulation (Figure 4B). The DLS
measurements also support the observation of TEM experiments for bare gold nanoparticles
having diameter of ca. 40-45 nm. However, the PEG encapsulation leads to a much broader
distribution of the particles, which may be due to the effect of surrounding aqueous medium
(Figure S9, Supporting Information).
<Insert Figure 4>
The presence of Raman reporter molecule inside the PEGylated nanoconstruct was
further validated by the consistent SERS signals with enhanced spectral intensity (Figure 4C).
This was probably due to the better incubation of the molecule inside the PEG layers, which
generate more hot spots. The time course SERS study was conducted to grade the stability of
SERS intensity from the nano-construct and observed that SERS signal from the reporter
6
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
molecule remained stable over a period of one month (Figure 4D). It is expected that a strong
interaction occurred between the aza-BODIPY core and PEGylated nanoparticle, with a
superior molecular orientation of the Raman probe over the nanotag.
We have explored the targeted Raman imaging of PEGylated Raman probe, 4-
Au@PEG in cancer cell line and invented the specificity of the Raman probe in live cancer
cells. In vitro cellular detection and their imaging capability has been investigated in three
different cancer cell lines, HeLa (Human breast cancer), A549 (Human lung cancer) and
HT1080 (Human fibrosarcoma) and a normal cell line, 3T3L1 as a control with the aid of a
confocal Raman microscope. For cellular imaging, 20 μL of 4-Au@PEG was added to cells
in a chamber slide and was incubated at 37C for 1 h. Single spectral analysis and mapping
study was carried out after washing with PBS buffer to remove the unbound nanotags. SERS
mapping was recorded by focusing the laser beam on the cell surface mapping area along X
and Y directions. Figure 5A-C represents the bright field, Raman and cluster images of HeLa
cell lines and Figure 5D-F and Figure 5G-I are the corresponding bright field, Raman and
cluster images of A549 and HT1080 cancer cell lines. The cluster analysis performed based
on characteristic Raman spectral scan on each cancer cell lines where it is presumed that the
Raman nanotag's probable localization in the vicinity of the cell surface region. The
localization of 4-Au@PEG in the vicinity of cell surface is more evident from the three
dimensional Raman and single spectral analysis, which gives the characteristic SERS peaks of
the aza-BODIPY probe, 4-Au@PEG (Figure S10, Supporting Information). Further, we have
examined the potential localization of the Raman probe in normal 3T3L1 cells under similar
conditions where 4-Au@PEG was incubated as described previously. Interestingly, the
Raman spectral and imaging pattern mostly resembled the presence of nanotags only in the
buffer background and no such recognition has been observed in the cell surface or
intracellular region (Figure S11, Supporting Information). Therefore, we unfolded an
7
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
interesting observation that showed the selective recognition of 4-Au@PEG in different
cancer cells evidenced the merit of the Raman signature of the aza-BODIPY probe, 4.
<Insert Figure 5>
Finally, we have investigated and validated the selective recognition of the Raman
probe 4-Au@PEG for in vitro targeted cellular detection and imaging of human fibrosarcoma
(HT1080) cancer cells. In this direction, 4-Au@PEG has been conjugated with mouse
monoclonal antibodies against epidermal growth factor receptor, EGFR which shows an over
expression mostly in the cell surface of fibrosarcoma cancer cell lines. This antibody used to
recognize the external epitope on respective antigens. Successful antibody conjugation was
achieved by the well-documented EDC-NHS coupling strategy (See Experimental Section for
details).[42] The heterofunctional PEG was covalently conjugated with the free amine terminal
of the antibody, which was confirmed by UV-Vis absorption spectroscopy. The absorption
spectra of antibody conjugated nanotag showed a protein absorption peak nearly around 280
nm, which is a clear indication of the antibody conjugation of the SERS nanotag 4-
Au@PEG-EGFR (Figure 4A). Further, we examined the recognition of HT1080 cancer line
using antibody conjugated SERS nanotag, 4-Au@PEG-EGFR. The experiment was carried
out by incubating Raman tag with HT1080 cells in a chamber slide for 1 h and the SERS
spectral pattern and mapping was recorded after washing with PBS to remove unbound
nanotags. The presence of 4-Au@PEG-EGFR accumulation in the cell surface was evidently
observed through the single spectral analysis in which we observed the fingerprint SERS
peaks of the probe (Figure S12, Supporting Information). Bright field images of the
representative cells with the corresponding Raman image and color coded 3D Raman image
are shown in Figure 6A-C, which represents the efficient recognition of the antibody
conjugated aza-BODIPY probe, 4-Au@PEG-EGFR on the surface of HT1080 cells. The
cluster mapped image after the analysis of characteristic Raman image by two clusters (a & b)
8
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
are shown in Figure 6D. The spectra abstracted from the cluster image exhibited characteristic
fingerprint SERS peaks of the nanotag from the cell surface (a) and not from the nucleus (b)
which suggest their effective localization in the surface of HT1080 cells (Figures 6E). The
histogram image (Figure 6F) shows the statistical representation of the most intense peaks
coming from the Raman reporter (I1606/I1342) chemisorbed on the gold nanoparticle substrates.
It is clearly observed the recognition of the targeted nanotag reflecting strong mapping images,
wherein the 4-Au@PEG-EGFR is mostly localized on the cell surface demonstrating the
selectivity of the aza-BODIPY 4 based Raman probe for targeted recognition of cancer cells.
Further, we have confirmed the effective binding of 4-Au@PEG-EGFR in EGFR positve
HT1080 in comparison with normal cell line 3T3L1 which has a minimum expression of
EGFR. The comparative binding experiment was carried out by incubating the Raman probe
4-Au@PEG-EGFR with mouse fibroblast 3T3L1 cells where EGFR expression is quite
less[44] under the same experimental condition. Interestingly, there is no such recognition has
been observed in the cell surface or intracellular region (Figure S13, Supporting Information)
which proves that the probe is actually binding to EGFR receptors on the membrane surface.
<Insert Figure 6>
3. Conclusion
In summary, we have invented a series of NIR absorbing aza-BODIPY dyes with
varying substitution at the peripheral phenyl rings as Raman probes with multiplexing signal
pattern. The amino substituted derivative, 4 showed highest Raman signal intensity, with
sensitivity of 4 µM, having excellent signal to noise ratio. Interestingly, the aza-BODIPY-
gold nanoparticle conjugate, 4-Au exhibited enhanced Raman signals with extremely high
sensitivity reflecting the detection as low as 0.4 µM. Further we have identified the specific
recognition of 4-Au@PEG in different cancer cells such as HeLa, A549 and HT1080 over
9
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
normal 3T3L1 cells. An unique targeted SERS nanoprobe, 4-Au@PEG-EGFR has been
constructed in conjugation with target specific EGFR antibodies, which confirmed the
specific recognition on HT1080 cell lines. The nanoprobe, 4-Au@PEG-EGFR efficiently
recognized the human fibrosarcoma cell lines, leaving the normal cells unaffected, thereby
facilitating its ultrasensitive detection and targeted Raman mapping. Our results demonstrate
the potential of the functionalized aza-BODIPYs as Raman reporters, which can be used as a
marker bio-imaging and diagnostic detection modalities.
4. Experimental Section
Gold Nanoparticle Synthesis: For the synthesis 40 nm gold nanoparticles, water was heated
until boiling, then added chloroauric acid solution (HAuCl4) and boiled again for 10 min.
After 10 min, sodium citrate solution was added, resulting in the colour change from pale
yellow to dark purple. The colour change to red will take around 5 min and heating was
o
stopped to let the solution to cool for 90 min to 25 C. The whole reaction was accompanied
with constant stirring by a Teflon coated magnetic stir bar at 400 rpm. The as formed gold
nanoparticles were purified by centrifugation and characterized by the surface plasmon
resonance through UV visible spectroscopy.
Transmission Electron Microscopy (TEM) Analysis: TEM analysis was performed on JEOL
100 kV high resolution transmission electron microscope (HRTEM). The samples in aqueous
medium were drop casted on the top of carbon-coated Cu grid. The samples were dried by a
o
vacuum pump under reduced pressure for 1 h at 25 C. The accelerating voltage of the
transmission electron microscope was 100 kV and the beam current was 65 A. Samples were
imaged using a Hamamatsu ORCA CCD camera.
Dynamic Light Scattering (DLS) Analysis: The DLS studies were carried out on a Nano Zeta
Sizer, Malvern instruments. The samples were prepared in water/PBS buffer at required
10
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
concentrations. The light scattering experiments were performed under low polydispersity
index by using glass cuvettes. The hydrodynamic diameters and polydisperse indices of the
samples were determined using a Malvern Zeta Nano-ZS system.
Antibody Conjugation and In Vitro Raman Imaging: The antibodies were purified by filtration
using Amicon Ultra 3K centrifuge filters (Milipore) to remove sodium azide. The carboxylic
groups of the PEG encapsulated nanotag were activated by EDC N-(3-(dimethylamino)-
propyl)-N-ethylcarbodiimide (EDC, 25 mM) and N-hydroxysuccinimide (NHS, 25 mM).
After 30 min incubation, excess of EDC and NHS were removed by 3 rounds of
centrifugation (8000 rpm, 15 min), and re-suspended in PBS. The activated nanotag was
incubated with antibody EGFR (25 mL, 200 mg/ mL) at 25 °C for 2 h. The antibody
conjugated nanotag was stored at 4 °C overnight. Further unbound antibodies were removed
by a five round of centrifugation at 10000 rpm for 5 min. The pellet containing the antibody
conjugated nanotag was then again re-suspended in PBS and stored at 4 °C.
Evaluating the efficacy of a aza-BODIPY as a Raman reporter was done with the aid
of a confocal Raman microscope (WI-Tec, Inc., Germany) with a laser beam directed to the
sample through 20 X objective with a Peltier cooled CCD detector. For cellular imaging 20
μL (1mM) of 4-Au@PEG-EGFR was added to cancer and normal cells and was incubated at
37C for 1 h. SERS mapping was recorded by focusing the laser beam on the cell surface
selected at a position z = 0 µm using 0.5 as integration time, 150 x 150 as points per line and
50 × 50 μm mapping area along X and Y directions. The cellular mapping were acquired over
a motorized scan stage. Raman images were subsequently subjected to cluster mapping, a
statistical analysis where a set of similar objects are grouped for the better understanding
about the distribution of the Raman probe molecule in different sub cellular region.[45]
Supporting Information
Supporting Information is available from the Wiley Online Library or from the author.
11
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
Acknowledgements
DR wish to thank Council of Scientific and Industrial Research (CSIR) (BSC-0112)
and DBT (BMB/2015/53) and KKM wish to thank DBT (BT/PR14698/NNT/28/832/2015),
DST Nano Mission (SR/NM/NS-1152/2016 (G)), Government of India for research funding.
Authors NA and ANR thank University Grants Commission and CSIR Network project, for
research fellowships. The authors thank CSIR-NIIST, for the instrumental facilities.
References
[1] L. Wu, X. Qu, Chem. Soc. Rev. 2015, 44, 2963 and references therein.
[2] M. Li, J. W. Kang, S. Sukumar, R. R. Dasari, I. Barman Chem. Sci. 2015, 6, 3906.
[3] S. S. Agasti, M. Liong, C. Tassa, H. J. Chung, S. Y. Shaw, H. Lee, R. Weissleder, Angew.
Chem. Int. Ed. 2012, 51, 450.
[4] L. V. Nair, S. S. Nazeer, R. S. Jayasree, A. Ajayaghosh, ACS Nano 2015, 9, 5825.
[5] M.D. Wabuyele, H. Farquar, W. Stryjewski, R.P. Hammer, S.A. Soper, Y.W. Cheng, F.
Barany, J. Am. Chem. Soc. 2003, 125, 6937.
[6] J. Wanga, J. Longa, Z. Liua, W. Wub, C. Hua, Biosens. Bioelectron. 2017, 91, 53.
[7] B. Liu, Y. Li, H. Wan, L. Wang, W. Xu, S. Zhu, Y. Liang, B. Zhang, J. Lou, H. Dai, K.
Qian, Adv. Funct. Mater. 2016, 26, 7994.
[8] F. Y. Kong, B. Y. Xu, Y. Du, J. J. Xu, H. Y. Chen, Chem. Commun. 2013, 49, 1052.
[9] S. J. Kim, K. V. Gobi, H. Iwasaka, H. Tanaka, N. Miura, Biosens. Bioelectron. 2007, 23,
701.
12
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
[10] S. Schlucker, Angew. Chem. Int. Ed. 2014, 53, 4756.
[11] K. K. Maiti, U. S. Dinish, A. Samanta, M. Vendrell, K. S. Soh, S. J. Park, M. Olivo, Y. T.
Chang, Nano Today 2012, 7, 85.
[12] S. L. Kleinman, B. Sharma, M. G. Blaber, A. I. Henry, N. Valley. R. G. Freeman, M. J.
Natan, G. C. Schatz, R. P. Van Duyne, J. Am. Chem. Soc. 2013, 135, 301.
[13] J. Song, B. Duan, C. Wang, J. Zhou, L. Pu, Z. Fang, P. Wang, T. T. Lim, H. Duan, J. Am.
Chem. Soc. 2014, 136, 6838.
[14] T. Gong, Z. Y. Hong, C. H. Chen, C. Y. Tsai, L. D. Liao, K. V. Kong, ACS Nano 2017,
11, 3365.
[15] G. Han, C. C. You, B. J. Kim, R. S. Turingan, N. S. Forbes, C. T. Martin, V. M. Rotello,
Angew. Chem. Int. Ed. 2006, 45, 3165.
[16] N. M. S. Sirimuthu, C. D. Syme, J. M. Cooper, Anal. Chem. 2010, 82, 7369.
[17] S. Feng, D. Lin, J. Lin, B. Li, Z. Huang, G. Chen, W. Zhang, L. Wang, J. Pan, R. Chena,
H. Zeng, Analyst 2013, 138, 3967.
[18] A. Bonifacio, S. Cervo, V. Sergo, Anal. Bioanal. Chem. 2015, 407, 8265.
[19] D. Lin, J. Pan, H. Huang, G. Chen, S. Qiu, H. Shi, W. Chen, Y. Yu, S. Feng, R. Chen,
Sci. Rep. 2014, 4, 4751.
[20] S. Feng, R. Chen, J. Lin, J. Pan, G. Chen, Y. Li, M. Cheng, Z. Huang, J. Chen, H. Zeng,
Biosens.Bioelectron. 2010, 25, 2414.
[21] S. Feng, R. Chen, J. Lin, J. Pan, Y. Wu, Y. Li, J. Chen, H. Zeng, Biosens. Bioelectron.
2011, 26, 3167.
[22] Y. Zhang, H. Hong, W. B. Cai, Curr. Pharm. Biotechnol. 2010, 11, 654.
13
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
[23] Y. S. Huh, A. J. Chung, D. Erickson, Microfluid. Nanofluid. 2009, 6, 285.
[24] A. Samanta, K. K. Maiti, K.-S. Soh, X. Liao, M. Vendrell, U. S. Dinish, S. W. Yun, R.
Bhuvaneswari, H. Kim, S. Rautela, J. Chung, M. Olivo, Y. T. Chang, Angew. Chem. Int. Ed.
2011, 50, 6089.
[25] R. J. Stokes, A. Ingram, J. Gallagher, D. R. Armstrong, W. E. Smith, D. Graham, Chem.
Commun. 2008, 129, 567.
[26] N. Narayanan, V. Karunakaran, W. Paul, K. Venugopal, K. Sujathan and K. K. Maiti,
Biosens. Bioelectron. 2015, 70, 145.
[27] N. Narayananan, L. V. Nair, V. Karunakaran, M. M. Joseph, J. B. Nair, A. N. Ramya, R.
S Jayasree, K. K. Maiti, Nanoscale 2016, 8, 11392.
[28] A. N. Ramya, M. M. Joseph, J. B. Nair, V. Karunakaran, N. Narayanan, K. K. Maiti,
ACS Appl. Mater. Interfaces, 2016, 8, 10220.
[29] G. Ulrich, R. Ziessel, A. Harriman, Angew. Chem. Int. Ed. 2008, 47, 1184.
[30] A. T. Byrne, A. E. O'Connor, M. Hall, J. Murtagh, K. O'Neill, K. M. Curran, K.
Mongrain, J. A. Rousseau, R. Lecomte, S. McGee, J. J. Callanan, D. F. O'Shea, W. M.
Gallagher, Br. J. Cancer 2009, 101, 1565.
[31] A. Gorman, J. Killoran, C. O'Shea, T. Kenna, W. M. Gallagher, D. F. O'Shea, J. Am.
Chem. Soc. 2004, 126, 10619.
[32] W. Zhao, E. M. Carreira, Angew. Chem. Int. Ed. 2005, 44, 1677.
[33] S. Diring, F. Puntoriero, F. Nastasi, S. Champagna, R. Zeissel, J. Am. Chem. Soc. 2009,
131, 6108.
14
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
[34] S. Guo, L. Ma, J. Zhao, B. Küçüköz, A. Karatay, M. Hayvali, H. G. Yaglioglu, A. Elmali,
Chem. Sci. 2014, 5, 489.
[35] J. Tian, J. Zhou, Z. Shen, L. Ding, J.-S. Yu, H. Ju, Chem. Sci. 2015, 6, 5969.
[36] N. Adarsh, M. Shanmugasundaram, R. R. Avirah, D. Ramaiah, Chem. Eur. J. 2012, 18,
12655.
[37] N. Adarsh, M. S. Krishnan, D. Ramaiah, Anal. Chem. 2014, 86, 9335.
[38] Y. Gawale, N. Adarsh, S. K. Kalva, J. Joseph, M. Pramanik, D. Ramaiah, N. Sekar,
Chem. Eur. J. 2017, 23, 6570.
[39] N. Adarsh, R. R. Avirah, D. Ramaiah, Org. Lett. 2010, 12, 5720.
[40] N. Adarsh, M. Shanmugasundaram, D. Ramaiah, Anal. Chem. 2013, 85, 10008.
[41] D. Ramaiah, N. Adarsh, M. Shanmugasundaram, Patent No. PCT/IN2014/000067,
WO2014/115176, 2014.
[42] A. N. Ramya, A. Samanta, N. Nisha, Y. T. Chang, K. K. Maiti, Nanomedicine (Lond)
2015, 10, 561.
[43] X. Qian, X. H. Peng, D. O. Ansari, Q. Y.Goen, G. Z. Chen, D. M. Shin, L. Yang, A. N.
Young, M. D. Wang, S. Nie, Nat. Biotech. 2008, 26, 84.
[44] N. Xu, W. Fang, L. Mu, Y. Tang, L. Gao, S. Ren, D. Cao, L. Zhou, A. Zhang, D. Liu, C.
Zhou, K. Wong, L. Yu, L. Zhang, L. Chen, Oncotarget, 2015, 7, 3884.
[45] C. P. Shaw, M. Fan, C. Lanc, G. Barry, A. I. Jirasek, A. G. Brolo, J. Phys. Chem. C,
2013, 117, 16596.
15
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
Figure captions
Figure 1. A) Schematic representation of the targeted SERS imaging using aza-BODIPY
attached to NPs. B) Structures of the halogenated (first row) and N-substituted (second row)
aza-BODIPY derivatives 1-6 investigated.
Figure 2. A) Normalised absorption and fluorescence spectra of 4 in DMSO (10 µM). B)
Characteristic Raman spectra of the aza-BODIPY derivative, 4 in 1% DMSO-H2O mixture
(10 µM). C) Concentration dependent Raman signals of the bare aza-BODIPY, 4 for the
calculation of limit of detection D) Relative Raman signals of 4 with respect to the
commercially available Raman reporters Rhodamine B (Rh) and Crystal violet (CV) at 10
µM.
Figure 3. A) Comparative Raman spectra for the derivative 4, and 4-Au in 1% DMSO-H2O
mixture (10 µM). B) Concentration dependent SERS spectrum of 4-Au for the calculation of
limit of detection.
Figure 4. A) Absorption spectra of aza-BODIPY-Au colloid (4-Au), 4-Au@PEG and 4-
Au@PEG-EGFR in aqueous medium. B) TEM images of the AuNPs and 4-Au@PEG
colloids under similar conditions. C) Single spectral characterization of different constructs.
D) Stability measurements of the construct 4-Au@PEG for 5 weeks in 1% DMSO-H2O
mixture.
16
This article is protected by copyright. All rights reserved.

10.1002/chem.201702626
Chemistry - A European Journal
Figure 5. A) Bright field, B) Raman, C) cluster image of 4-Au@PEG incubated with HeLa
cells. D), E) and F) are the same in A549 cells after the incubation of 4-Au@PEG. G), H) and
I) correspond to HT1080 cells under similar experimental conditions.
Figure 6. A) Bright field image, B) Raman image, C) color coded 3D Raman image, D)
cluster mapped Image of 4-Au@PEG-EGFR incubation with HT1080 cell line, E) single
spectra abstracted from the cluster mapped region a and b in the cluster mapped image, F)
histogram corresponds to the most intense peak coming from the Raman reporter (I1606/I1342).
Table of contents
<Insert TOC Graphic>
We unfold the unique Raman activity of aza-BODIPY dyes at the molecular level as well as
their SERS upon adsorption onto nano-roughened gold surface. The nanoprobe successfully
target to HT1080 cell lines, thus facilitates its effective detection and Raman mapping.
Keywords: aza-BODIPY, SERS, cancer detection, cellular targeting, Raman mapping
17
This article is protected by copyright. All rights reserved.
