Synthesis, characterization, acetylcholinesterase inhibition, molecular modeling and antioxidant activities of some novel schiff bases derived from 1-(2-ketoiminoethyl)piperazines

Article abstract of DOI:10.3390/molecules16119316

Some novel Schiff bases derived from 1-(2-ketoiminoethyl)piperazines were synthesized and characterized by mass spectroscopy, FTIR, UV-Visible, ¹H and ¹³C-NMR. The compounds were tested for inhibitory activities on human acetylcholin

Full text of DOI:10.3390/molecules16119316

Molecules 2011, 16, 9316-9330; doi:10.3390/molecules16119316
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Synthesis, Characterization, Acetylcholinesterase Inhibition,
Molecular Modeling and Antioxidant Activities of Some Novel
Schiff Bases Derived from 1-(2-Ketoiminoethyl)piperazines
Saleh M. Salga 1,*, Hapipah M. Ali 1, Mahmood A. Abdullah 2, Siddig I. Abdelwahab 3,*,
Lam Kok Wai 4, Michael J. C. Buckle 3, Sri Devi Sukumaran 3 and A. Hamid A. Hadi 1
1
Department of Chemistry, University of Malaya, Kuala Lumpur, 50603, Malaysia
2
Department of Molecular Medicine, University of Malaya, Kuala Lumpur, 50603, Malaysia
3
Department of Pharmacy, University of Malaya, Kuala Lumpur, 50603, Malaysia
4
Faculty of Pharmacy, Universiti Kebangsaan Malaysia, Jalan Raja Muda Abdul Aziz,
Kuala Lumpur, 50300, Malaysia
* Author to whom correspondence should be addressed; E-Mail: salgamohd@yahoo.com (S.M.S.);
siddigroa@um.edu.my (S.I.A.); Tel.: +60126565990; Fax: +60379694906.
Received: 2 August 2011; in revised form: 22 October 2011 / Accepted: 24 October 2011 /
Published: 7 November 2011
Abstract: Some novel Schiff bases derived from 1-(2-ketoiminoethyl)piperazines were
synthesized and characterized by mass spectroscopy, FTIR, UV-Visible, 1H and 13C-NMR.
The compounds were tested for inhibitory activities on human acetylcholinesterase
(hAChE), antioxidant activities, acute oral toxicity and further studied by molecular
modeling techniques. The study identified the compound (DHP) to have the highest
activity among the series in hAChE inhibition and DPPH assay while the compound LP
revealed the highest activity in the FRAP assay. The hAChE inhibitory activity of DHP is
comparable with that of propidium, a known AChE inhibitor. This high activity of DHP
was checked by molecular modeling which showed that DHP could not be considered as a
bivalent ligand due to its incapability to occupy the esteratic site (ES) region of the 3D
crystal structure of hAChE. The antioxidant study unveiled varying results in 1,1-diphenyl-
1-picrylhydrazyl (DPPH) and ferric reducing antioxidant power (FRAP) assays. This
indicates mechanistic variations of the compounds in the two assays. The potential
therapeutic applications and safety of these compounds were suggested for use as human
acetylcholinesterase inhibitors and antioxidants.

Molecules 2011, 16
9317
Keywords: 1-(2-ketoiminoethyl)piperazines; AChE inhibition; molecular docking;
antioxidant study; acute toxicity
1. Introduction
The neurodegenerative disorder characterized by the nerve cell dysfunctions and loss of neurons in
the central nervous system was first discovered in 1907 by a German scientist, Alois Alzheimer, and
was named as Alzheimer’s disease (AD). Millions of people are reported to fall victims of this
traumatic problem worldwide [1]. At the early stages, the patient is faced with a decline in cognitive
functions, exclusively short-term memory, which later resulta in the incapability to read, speak and/or
think rationally [2]. Recent reports on curative approaches to this ailing disease are based on the
assumption of a cholinergic mechanism, with particular emphasis on acetylcholinesterase inhibition [2,3].
Indeed, many scientific trials have been conducted in order to discover typical and non-toxic drug for
the treatment of AD. The most commonly used drug for the treatment of AD is tacrine which is
recognized to have so many side effects that in most cases they lead to withdrawal of the medication.
Other drugs like donepezil, rivastigmine, galanthamine, caproctamine and memantine were also used
for the treatment of AD, but are known for their unfavorable effects like hepatotoxicity,
gastrointestinal disturbance, dizziness, diarrhea, vomiting and nausea [4-6]. The key factor liley
implicated in many diseases is oxidative stress caused by free radicals produced as a result of an
imbalance in antioxidants produced by the cells [7]. This suggests that treatment of AD should involve
acetylcholinesterase inhibitors and antioxidants that can scavenge the excess free radicals and
antagonize the consequences of oxidative stress [8,9]. In addition, the literature reports that many
standard drugs contain a polyamine backbone in their structures (Figure 1), and that the AChE gorge is
lined with various preserved aromatic residues which in principle can form cation-π bonds with a basic
polyamine counterpart [10,11]. This study therefore sought to synthesize and characterize some new
compounds capable of AChE binding site inhibition and compares their activity with that of standard
drugs like tacrin and propidium. These compounds have flexidentate behavior and contain secondary
and tertiary amines in their structures akin to the secondary amino function found in tacrine dimer [12]
and the tertiary amino group of donepezil [13]. Moreover, the compounds were tested for acute
toxicity and antioxidant activities using the FRAP and DPPH assays due to arising demands for
compounds that are safe and possess dual AChE inhibition and antioxidant activities [14,15].
Figure 1. Acetylcholinesterase inhibitors.
CH 3
N
N
OCH3
OH
O
OCH3
O
OCH
3
Donepezil
(−)-Galantamine

Molecules 2011, 16
9318
Figure 1. Cont.
CH
CH
NH
3
3
2
CH
H3C
N
3
O
N
O
CH
N
3
Rivastigmine
Tacrine
2. Results and Discussion
2.1. Chemistry
The reaction of 2-(piperazin-1-yl)ethanamine with selected ketones resulted in the formation of the
corresponding 1-(2-ketoiminoethyl)piperazines that exhibited NMR, IR and UV-Visible spectra
consistent with the proposed structures that allowed the synthesized compounds to be identified as

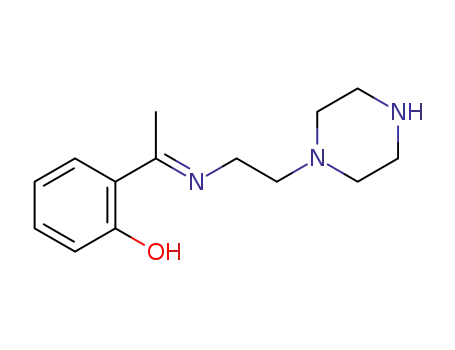

2-(piperazin-1-yl)-N-(1-(pyridin-2-yl)ethylidene)ethanamine (LP), 2-(1-(2-piperazin-1-yl)ethylimino)
ethyl)phenol (2HP) and 4-(1-(2-piperazin-1-yl)ethylimino)ethyl)benzene-1,3-diol (DHP), respectively
(Scheme 1).
Scheme 1. Reaction pathway.
NH
O
H2N
N
EtOH,Reflux, 75-85oC, Concentrate
N
N
N
N
NH
1-(pyridin-2-yl)ethanone
2-(piperazin-1-yl)ethanamine
(E)-2-(piperazin-1-yl)-N-(1-(pyridin-2-
yl)ethylidene)ethanamine
NH
H2N
N
O
N
N
EtOH,Reflux, 75-85oC, Concentrate
NH
2-(piperazin-1-yl)ethanamine
OH
OH
1-(2-hydroxyphenyl)ethanone
(E)-2-(1-(2-(piperazin-1-
yl)ethylimino)ethyl)phenol
NH
H2N
O
N
EtOH,Reflux, 75-85oC, Concentrate
N
N
HO
OH
NH
2-(piperazin-1-yl)ethanamine
1-(2,4-dihydroxyphenyl)ethanone
HO
OH
(E)-4-(1-(2-(piperazin-1-
yl)ethylimino)ethyl)benzene-1,3-diol
The IR spectra of all the compounds revealed complete absence of the characteristic ketonic
carbonyl and displayed absorptions at wavelengths of 1,654, 1,616, and 1,595 cm−1 for LP, 2HP and

Molecules 2011, 16
9319
DHP, respectively, which correspond to the characteristic iminic frequency [16,17], thus, confirming
the formation of Schiff bases. The broad bands observed at 3,394 cm−1 in the spectra of 2HP and DHP
could be attributed to the phenolic intra-molecular hydrogen bonding of their O–H groups [18]. Other
series of bands observed in the spectra of compounds LP, 2HP and DHP in the wavelength ranges
{2,823, 2,821, 2,833 cm−1}, {1,459, 1,302, 1,243 cm−1} {1,152, 1,152, 1,137cm−1} can be assigned to
υ(C-H) aliphatic, υ(C-C) aromatic and υ(C-N) stretching vibrations, respectively [19,20].
The proton NMR spectra of the Schiff bases revealed a singlet δ 1.13–2.01 which is due to a methyl
group shielded by the imine moiety. The compound LP did not show the presence of OH protons
which are observed in the spectra of 2HP and DHP at δ 6.74 ppm and δ 6.17 ppm, respectively, and
13
instead it shows triplet at δ.7.43–7.84. In the C-NMR spectra of the compounds LP, 2HP and DHP
the methylene group peak overlaps with DMSO solvent peak at δ 39–46, while the aromatic carbons
were observed at around δ 120 in all the spectra. In addition the compounds gave M+H ion peaks in
the mass spectra. The liquid chromatography electron spray ionization mass spectrum (LC-ESI-MS) of
compound LP gave a molecular ion peak of 232.07 Da which correlates to the calculated weight of
C13H20N4 (232.17), thus proving the purity of the compound. The compound 2HP also shows a
molecular ion peak at 247.11 Da, also very close to the calculated weight of C14H21N3O (247.17).
Finally, the mass spectrum of DHP gave a [M+H] molecular ion peak of 264.17 Da whereby the
calculated mass for C14H21N3O2 is 263.16. This is in complete agreement with the proposed structure
and also proves the purity of the compound (Figure 2). IR and UV-Visible spectral data were also all
in accordance with the assigned structures The UV-visible spectra of the compounds LP, 2HP and
DHP shows absorption bands at 284, 242 and 215 nm respectively, which may be assigned to benzene
ring π→π* transitions [21-25].
Figure 2. Mass spectra for the compounds LP, 2HP and DHP.

Molecules 2011, 16
9320
Figure 2. Cont.
2.2. Anti-AChE Assay
The inhibitory activities of the compounds LP, 2HP and DHP on human acetylcholinesterase were
9.9, −4.0, and 21.8% respectively (Table 1). The activities were only fair when compared to the
standard drugs tacrin and propidium used in this study which showed inhibitions of 76.6% and 28.2%,
respectively. The results indicated that the compound DHP had the highest activity which can be
ascribed to the increased resonance effect caused by the hydroxyl group of the aromatic ring.
Table 1. Human AChE inhibitory effects and anti-oxidant activities of LP, 2HP and DHP.
Molecular
AChE Inhibition
(Final concentration = 1 × 10−4 M)
DPPH
FRAP value
Compounds
Weight
(IC50, µg/mL) (Mean ± SD)
LP
232.3
9.9 ± 3.1
−4.0
-
1464.7 ± 5.2
293.3 ± 6.2
355.3 ± 5.8
-
2HP
247.3
-
DHP
263.3
21.8 ± 1.2
28.2 ± 2.4
76.6 ± 5.1
-
25 ± 1.24
Propidium
Tacrine
Ascorbic acid
BHT
-
-
-
-
-
-
-
1.4 ± 0.71
NA
1552.7 ± 4.2
187.3 ± 2.6
-
LP: Schiff base derived from 2-acetylpyridine, 2HP: Schiff base derived from 2-hydroxy-acetophenone;
DHP: Schiff base derived from dihydroxyacetophenone; BHT: Butylated hydroxytoluene (standard positive
antioxidant); NA: not applicable.
2.3. Molecular Docking
The crystal structure of hAChE (pdb id: 1B41) shows that this enzyme possesses a deep narrow
gorge which penetrates halfway into the enzyme, where the catalytic site resides [26]. Conversely,
hAChE shares a certain degree of similarity with both mAChE and TcAChE, especially the active-site
gorge due to their high degree of sequence identities of 87% and 53%, respectively. Generally, the
catalytic site of AChE consists of five regions, which are the peripheral anionic site (PAS), the acyl
pocket, the esteratic site (ES), the oxyanion hole (OH) and the anion subsite (AS). A similar catalytic

Molecules 2011, 16
9321
site is also observed in hAChE, PAS (Tyr 72, Tyr 124, Tyr 341, Asp 74 and Trp 286 residues), the acyl
pocket (Phe 297, Phe 295 and Phe 338 residues), CT (Ser 203, His 447 and Glu 202 residues), OH
(Gly 121, Gly 122 and Ala 204 residues) and AS (Trp 86 and Glu 202 residues). A molecular docking
simulation (Figure 3) showed that DHP is well positioned at the active-site gorge. The hydrophobic
interaction between DHP (the piperazine and the alkyl linker) and the rich aromatic contents (Tyr 124,
Tyr 341, Tyr 337, Phe 338, Phe 297 and Trp 286) along the gorge could potentially direct the phenyl
ring to penetrate deep into the anionic site and oxyanion hole regions in the choline-binding site. This
interaction is further intensified, where three hydrogen bonding were found between DHP and the
residues in the active site. This includes hydrogen bonding between the tertiary nitrogen of the
piperazine ring with Tyr 124 residue at a distance of 2.42 Å. Two hydrogen bonding interactions
between the imine group and two amino residues along the gorge which are Tyr 124 (3.05 Å) and Tyr
337 (2.91 Å) were also observed during the docking experiment (Figures 3A and 3C).
Figure 3. A close view of the potential interaction between DHP and the binding site of
hAChE (pdb id: 1B41). A: Binding interactions of DHP in the catalytic site of TcAChE
(green stick = compound 5). The most important residues involved in the interactions with
DHP including the peripheral anionic site (PAS) and anionic subsite (choline-binding
subsite); B: The 2D representation docking result of DHP with the residues in the active
site of hAChE; C: Interatomic contacts (yellow) of the ligand with the residues in the
active site of hAChE.
These interactions could possibly help to dock the phenyl moiety to the anionic site. We believe that
apart from the hydrophobic interactions, these hydrogen bonding effects are crucial for the AChE
inhibition activity shown by DHP. It was clearly observed that DHP exhibited much higher AChE
inhibition activity in comparison with LP and 2HP. It becomes visibly clear that the para-hydroxyl
group functionality plays an important role in the inhibition activity. Close inspection of the docking
results revealed that the para-hydroxyl group is in close proximity (within the range of 3.13 Å) to the
hydroxyl of the Tyr 124 side chain. This interaction could possibly aid the phenyl ring of DHP to
engage in a π-π stacking interaction with the indole ring of Trp 86 (Figure 3B). It is known that

Molecules 2011, 16
9322
inhibitors such as acridine exhibit such interactions with the conserved residue of Trp 86 [27]. Overall,
the binding of DHP is energetically favorable, with a predicted –CDOCKER energy of 19.148 and
–CDOCKER interaction energy of 40.816.
2.4. Antioxidant Assays
The antioxidant efficacies of the Schiff bases LP, 2HP, and DHP were tested and the results
obtained revealed different activities in the two assays. This indicates that two mechanisms operating
in different ways must be responsible for the observed activity. The color change from deep purple to
yellow at 515 nm observed in the DPPH assay has confirmed the radical scavenging activity of the
compounds. A reference curve of absorbance (A) against DPPH concentration in methanol was plotted
and used for the calculation of DPPH concentration at various reaction times (R2 = 0.9999). Only the
compound DHP shows IC50 values of 25 µg/mL among the series (Table 1). The positive control used
(ascorbic acid) showed an IC50 value of 1.4 ± 0.71 µg/mL. The high activity of the compound DHP in
the DPPH assay can be related to the resonance effect of the hydroxyl at the meta-position to the
phenolic group in the compound, whereupon electron donating substituents increase the electron
density into the aromatic ring making it more reactive towards electrophilic attack. This presumably
promotes the release of phenolic hydrogen to the (1,1-diphenyl-2-picrylhydrazyl) free radical indicated
by a color change from purple to yellow.
The second method used for testing the antioxidant activities of these compounds was the FRAP
assay. It is considered an accurate method for assessing “antioxidant power”. Ferric to ferrous ion
reduction at low pH causes a colored ferrous-tripyridyltriazine complex to form. FRAP values are
obtained by comparing the absorbance change at 593 nm in test reaction mixtures with those
containing ferrous ions at known concentrations. In this study, the compounds LP, 2HP and DHP
showed FRAP assay values of 1,464.7, 293.3, and 355.3, respectively (Table 1) which is above the
value of 187.3 shown by BHT, but below the value of 1,552.7 observed for ascorbic acid used as
standards. It was observed that DHP demonstrates the highest potential activities in the DPPH assay
while LP shows the highest in FRAP assay. The high activity of LP can seemingly be due to increased
in π-electron delocalization within the pyridine ring which increases the electron density and causes
ferric ion to change to ferrous [28].
2.5. Acute Toxicity
Oral administration of 1-(2-ketoiminoethyl)piperazines at doses lower than 5 g/kg causes no
apparent toxicity. However, above 5 g/kg the 1-(2-ketoiminoethyl)piperazines slowed animal
movement, decreased aggressiveness, and touch and pain sensibility were noticed. The animals did not
show gross negative behavioral changes such as excitement, respiratory distress, convulsions or coma.
All the observed signs appeared 2–3 h after 1-(2-ketoiminoethyl)piperazine administration and
disappeared dose-dependently. No mortality was observed up to 14 days. The biochemical data
showed no significant change in serum albumin, liver enzymes (AST, ALT and ALP), total protein
content, globulins, conjugated and total bilurubin. Blood concentrations of creatinine, urea, sodium,
potassium, chloride carbon dioxide and anion gap were analyzed. All the parameters checked were
found within the expected range in the animals treated with the compounds (P < 0.05–0.001) when
compared to the normal (control) group (Tables 2 and 3).

Molecules 2011, 16
Table 2. Renal function test of rats used in acute toxicity assessments of 1-(2-ketoiminoethyl)piperazine Schiff bases.
9323
Carbon
dioxide
(mmol/L)
Sodium
(mmol/L)
Potassium
(mmol/L)
Chloride
(mmol/L)
Anion gap
(mmol/L)
Urea
(mmol/L)
Creatinine
(µmol/L)
Animals
Control
132.9 ± 2.1
132.2 ± 3.5
133.1 ± 4.1
133.5 ± 0.9
134.1 ± 1.8
131.3 ± 2.2
133.1 ± 0.4
6.14 ± 2.5 111.30 ± 3.5 16.12 ± 2.6 32.80 ± 2.9
6.27 ± 4.1 108.24 ± 4.2 19.18 ± 0.8 29.60 ± 1.2
6.35 ± 3.2 106.31 ± 3.8 17.51 ± 2.7 29.50 ± 3.6
6.29 ± 0.4 109.71 ± 6.2 18.31 ± 0.4 28.70 ± 4.2
6.37 ± 0.7 108.19 ± 2.4 19.72 ± 0.8 30.40 ± 3.2
6.52 ± 0.9 110.32 ± 2.1 18.34 ± 1.3 31.20 ± 2.5
6.44 ± 1.2 107.82 ± 3.2 14.26 ± 1.5 33.10 ± 3.4
7.40 ± 2.5
7.10 ± 4.2
7.30 ± 3.7
6.90 ± 2.1
7.10 ± 1.4
7.01 ± 0.9
6.8 0± 2.1
29.45 ± 9.6
27.60 ± 6.4
25.91 ± 8.3
26.22 ± 2.1
28.47 ± 1.6
27.90 ± 1.3
30.13 ± 0.4
2HP (2 g/kg)
2HP (5 g/kg)
DHP (2 g/kg)
DHP (5 g/kg)
LP (2 g/kg)
LP (5 g/kg)
Values expressed as mean ± S.E.M. There are no significant differences between groups. Significant value at p < 0.05.
Table 3. Liver function test of rats used in acute toxicity assessments of 1-(2-ketoiminoethyl)piperazine Schiff bases.
Total protein Albumin
Globulin
(g/L)
TB
(µmol/L)
CB
AP
(IU/L)
ALT
(IU/L)
AST
(IU/L)
Animals
(g/L)
(g/L)
(µmol/L)
3.20 ± 0.6
4.30 ± 0.2
5.20 ± 0.4
6.40 ± 0.5
6.60 ± 0.4
7.10 ± 0.8
7.20 ± 0.8
Control
64.10 ± 2.2
65.00 ± 2.7
66.12 ± 2.2
64.21 ± 2.6
66.16 ± 2.1
65.32 ± 2.4
63.23 ± 2.3
18.40 ± 1.1 50.90 ± 2.3 6.20 ± 0.2
18.20 ± 1.2 51.60 ± 2.1 8.30 ± 0.3
19.20 ± 1.1 49.90 ± 2.5 9.50 ± 0.6
20.10 ± 1.2 52.10 ± 2.5 8.90 ± 0.6
20.30 ± 1.3 54.20 ± 2.6 9.10 ± 0.8
21.20 ± 1.8 50.10 ± 2.5 7.90 ± 0.9
18.40 ± 1.6 52.20 ± 2.6 8.80 ± 0.4
104.20 ± 12.4 56.20 ± 4.9 220.12 ± 4.9
110.10 ± 11.3 62.12 ± 4.4 236.23 ± 6.1
101.50 ± 10.8 6515 ± 4.6 232.18 ± 4.3
106.40 ± 11.2 71.15 ± 3.8 235.21 ± 4.7
115.30 ± 10.8 70.67 ± 4.3 242.16 ± 5.1
118.20 ± 10.5 69.45 ± 4.4 239.31 ± 4.8
114.50 ± 10.1 68.35 ± 4.1 234.17 ± 4.6
2HP (2 g/kg)
2HP (5 g/kg)
DHP (2 g/kg)
DHP (5 g/kg)
LP (2 g/kg)
LP (5 g/kg)
Values expressed as Mean ± S.E.M. There are no significant differences between groups. Significant value at p < 0.05 TB: Total bilirubin; CB: Conjugated
bilirubin; AP: Alkaline phosphatase; ALT: Alanine aminotransferase; AST: Aspartate aminotransferase.

Molecules 2011, 16
9324
3. Experimental
3.1. General
The compounds synthesized in this study were characterized by spectral methods. Mass spectra
were determined using a ABI 4800 Maldi TOF/TOF mass spectrophotometer (BIDMC Genomics,
Proteomics And Bioinformatics Core, Boston, MA, USA) (LC-MS, ESI, 125.0 V), IR spectra was
recorded at the wavelength range from 4,000–400 cm−1 using a Perkin Elmer 783 spectrophotometer,
NMR spectra were obtained on a ECA400 FT-NMR spectrophotometer using TMS as internal
standard, UV-visible spectra were recorded on a UV-1650PC model UV-visible spectrophotometer.
3.2. 2-(Piperazin-1-yl)-N-(1-(pyridin-2-yl) ethylidene)ethanamine (LP)
A stoichiometric amount of 2-(piperazin-1-yl)ethanamine (0.13 g, 1 mmol) in an absolute
ethanol (25 mL) was refluxed with 1-(pyridine-2-yl)ethanone (0.12 g, 1 mmol) also dissolved in
ethanol (25 mL) at a temperature of 75–85 °C for 3 h, to give an orange solution which after
evaporation gave a brownish-red oil. The oily product produced a hygroscopic solid after three days.
This was dissolved in methanol and heated to 55–60 °C with addition of a few drops of NaClO4 (0.1 g)
taken in methanol (1 mL). The product, after evaporating the solvent under reduced pressure, formed a
brown solid. Recrystallization from a 70:30 methanol/water mixture was performed to give 0.098 g of
the title compound (42.2% yield). IR (KBr, cm−1) 3,413 s υ (N-H), 2,838 s υ (C-H), 1,633 s υ (C=N),
1,271 s υ (C-C), 1,134 s, υ (C-N).1H-NMR (DMSO-d6), δ, ppm: 1.77 (s, 3H, CH3-iminic), 2.24 (s, 1H,
NH), 2.43 (d, 4H, 2CH2N), 2.63 (t, 4H, 2CH2NH), 7.43 (t, 1H, arH, CHCHN), 7.84 (t, 1H, arH,
CHCHCHN), 8.04 (d, 1H, arH, CHCHCHCHN), 8.60 (d, 1H, pyridinic). 13C-NMR (DMSO-d6), δ,
ppm: 14.12 (CH3), 29.24 (CH2), 39.99–46.10 (DMSO-d6 + CH2), 49.12 (CH2), arC: [121.65 (CH),
124.91 (CH), 136.97 (CH), 149.72 (CH), 166.8 (CH)]; UV: 284 nm (3075.25 mol−1Lcm−1),
351 nm (3313.43 mol−1Lcm−1). MS: calc. m/z 232.17, found 232.07.
3.3. 2-(1-(2-Piperazin-1-yl)ethylimino)ethyl)phenol (2HP)
An ethanolic solution (25 mL) containing 2-(piperazin-1-yl)ethanamine (0.13 g, 1 mmol) was
refluxed with 1-(2-hydroxyphenyl)ethanone (0.14 g, 1 mmol) in ethanol (25 mL) for 3 h at a
temperature of 75–85 °C. A golden yellow solution was formed which after evaporating the solvent
produced a yellow oil. This produces a hygroscopic solid after five days under vacuum. The solid
product was dissolved in methanol at 55–60 °C. Solid NaClO4 (0.1 g) was added to the solution while
it was hot and the suspension was immediately filtered. The filtrate was concentrated in air to give a
needle-like microcrystalline solid after three days. The yellowish crystals were collected by filtration,
washed with diethyl ether and recrystallized from a hexane-dichloromethane mixture (70:30), but the
quality of the crystals was not suitable for x-ray diffraction. Yield: 0.124 g (50.2%). IR (KBr, cm−1)
1
3,394 s υ (N-H), 2,821 s υ (C-H), 1,616 s υ (C=N), 1,302 s υ (C-C), 1,152 s υ (C-N). H-NMR
(DMSO-d6), δ, ppm: 1.13 (s, 3H, CH3-iminic), 2.38 (s, 1H, NH), 2.57 (d, 4H, 2CH2N), 2.60 (t, 4H,
2CH2NH), 6.78 (m, arH, CHCHCHCHCOH), 7.26 (m, arH, CHCHCOH), 7.28 (m, 1H, arH,
13
CHCHCHCOH), 7.59 (m, arH, CHCHCOH), 7.61 (d, 1H, phenolic) C-NMR (DMSO-d6), δ, ppm:

Molecules 2011, 16
9325
19.03 (CH3), 28.15 (CH2), 39.73–46.52 (DMSO-d6 + CH2), 54.80–59.08 (CH2), arC: [116.78 (CH),
118.88 (CH), 131.79 (CH), 132.84 (CH), 164.88 (CH), 172.92 (CH)]; UV: 262 nm (30490.97 mol−1Lcm−1),
318 nm (14590.03 mol−1Lcm−1). MS: calc. m/z 247.17, found 244.97 (M + H).
3.4. 4-(1-(2-Piperazin-1-yl)ethylimino)ethyl)benzene-1,3-diol (DHP)
A weighed amount of 2-(piperazin-1-yl)ethanamine (0.13 g, 1 mmol) in ethanol (25 mL) was mixed
with a stirred ethanolic solution (25 mL) of 1-(2,4-dihydroxyphenyl)ethanone (0.15 g, 1 mmol) at
room temperature and refluxed for 3 h to give a clear orange solution. This was evaporated a using
rotary evaporator to obtain an orange oil which after one week produces a white hygroscopic solid.
The solid product was dissolved in methanol and heated to 55–60 °C. Solid NaClO4 (0.1 g) was added
to the solution while hot and the suspension was filtered instantly. The filtrate produces a white solid
after cooling. which was filtered off, washed with an ethanol-water mixture and dried under vacuum.
Yield: 0.132 g (50.2%). IR (KBr, cm−1) 3,394 s υ (N-H), 2,833 s υ (C-H), 1,595 s υ (C=N), 1,243 s υ
(C-C), 1,137 s υ (C-N). 1H-NMR (DMSO-d6), δ, ppm: 2.01 (s, 3H, CH3-iminic), 2.32 (s, 1H, NH) 2.64
(d, 4H, 2CH2N), 3.55 (t, 4H, 2CH2NH) 6.15 (t, arH, CHCOHCHCOH), 7.31 (s, 1H, arH,
OHCCHCOH), 7.33 (d, arH, CHCHCOHCHCOH), 7.53 (s, 1H, arH, OHCCHCOH), 7.55 (s, 1H,
phenolic) 13C-NMR (DMSO-d6), δ, ppm: 18.96 (CH3), 26.27 (CH2), 39.46–40.09 (DMSO-d6 + CH2),
54.34–58.54 (CH2), arC: [104.62 (CH), 111.20 (CH), 131.02 (CH), 133.75 (CH), 163.09 (CH), 172.28
(CH)]; UV: 246 nm (8155.26 mol−1Lcm−1), 283 nm (29869.29 mol−1Lcm−1). MS: calc. m/z 263.34,
found 264.17 (M+H).
3.5. Anti-AChE Assay
The anti-cholinesterase activities of the compounds were evaluated by Ellmann’s method with
slight modifications, using acetylthiocholine as a substrate [29] and 5,5’-dithiobis[2-nitrobenzoic
acid](DTNB). Sodium phosphate buffer (pH 8.0, 110 μL) was added into the 96 wells followed by
sample solution (20 μL), DTNB (0.126 mM, 50 μL) and AChE enzyme (0.6 U/mL, 20 μL). The
mixture was incubated for 50 minutes at 37 °C. The reaction was then initiated by the addition of
acetylthiocholine iodide (0.120 mM, 50 μL). The hydrolysis of acetylthiocholine was monitored by
the formation of yellow 5-thio-2-nitrobenzoate anion as the result of the reaction of DTNB with
thiocholine, released by the enzymatic hydrolysis of acetylthiocholine, at a wavelength of 412 nm
every 30 s for 25 min using a 96-well microplate plate reader (TECAN Infinite M200, Mannedorf,
Switzerland). Test compounds were dissolved in analytical grade DMSO. Tacrine and propidium
iodide were used as reference standards [30]. The reactions were performed in triplicate and monitored
with a spectrophotometer. The percent inhibition of the enzyme activity due to the presence of
increasing test compound concentration was obtained from the expression; 100 − (vi/vo × 100), where
vi is the initial rate calculated in the presence of inhibitors and vo is the enzyme activity.
3.6. Molecular Modeling Evaluations
The pdb structure of human acetylcholinesterase (hAChE) (pdb ID: 1B41) was obtained from the
Protein Data Bank. Hydrogen atoms were added to the structure, and all ionizable residues were set at

Molecules 2011, 16
9326
their default protonation state at a neutral pH. The 3D structure of the ligand was constructed using
ChemBio Office 2008 and optimized according to the standard protocol in Accelrys Discovery Studio
2.1. Docking studies were then carried using CDOCKER protocol at the active site of hAChE based
on the Binding-Site module. CDOCKER is a grid based molecular docking method that employs
CHARMm. The receptor is held rigid while the ligands are allowed to flex during the refinement.
Random ligand conformations are generated from the initial ligand structure through high temperature
molecular dynamics, followed by random rotations followed by refinement by grid-based (GRID 1)
simulated annealing and a final grid-based or full force field minimization. In this experiment, the
ligand was heated to a temperature of 700 K in 2,000 steps. The cooling steps were set to 5,000 steps
with 300 K cooling temperature. The grid extension was set to 8 Å and ten conformations were set for
the ligand. The pose with the highest –CDOCKER energy was taken for further analysis [31].
3.7. Antioxidant Activity
3.7.1. FRAP Assay
The FRAP assay of the compounds performed using modified method as described by Benzie and
Strain [32]. The stock solutions contained 300 mM acetate buffer (3.1 g C2H3NaO2·3H2O and
16 mL C2H4O2), pH 3.6, 10 mM TPTZ (2,4,6-tripyridyl-s-triazine) solution in 40 mM hydrochloric
acid and 20 mM ferric chloride hexahydrate solution. The fresh working solution was prepared by
mixing acetate buffer (25 mL), TPTZ (2.5 mL), and ferric chloride hexahydrate solution (2.5 mL). The
temperature of the solution was raised to 37 °C before use and allowed to react with the FRAP solution
(300 μL) in the dark. The colored product (ferrous tripyridyltriazine complex) was monitored at a
wavelength of 593 nm. The standard curve was linear between 100 and 1,000 μM ferrous sulphate.
Results are expressed in μM ferrous/g dry mass and compared with that of ascorbic acid and butylated
hydroxytoluene.
3.7.2. DPPH (1,1-Diphenyl-2-picrylhydrazyl) Assay
The scavenging activities of the compounds on DPPH were recorded according to a reported
procedure [33]. The compounds showed final concentrations within the range of 0–25 µg/mL in
methanol. One milliliter of 0.3 mM DPPH ethanol solution was added to sample solution (2.5 mL) of
different concentrations and used as stock solutions for the test; meanwhile methanol (1 mL) was
added to samples (2.5 mL) to make the blank solutions. The negative control (blank) consisted of
DPPH solution (1 mL) plus methanol (2.5 mL). These solutions were allowed to react at room
temperature for 30 min in the dark. The absorbance was read at 518 nm and converted into percentage
antioxidant activity according to the following equation: % Inhibition = [(AB − AA)/AB] × 100. Where:
AB: absorption of blank sample, AA: absorption of tested samples. The kinetics of DPPH scavenging
activity was determined and the IC50 calculated using ascorbic acid as a positive control.
3.8. Acute Toxicity
The acute toxicity study was carried out using seventy healthy Sprague Dawley rats of either sex
weighing between 120–150 g. All animals were obtained from the Experimental Animal House,

Molecules 2011, 16
9327
Faculty of Medicine, University of Malaya, and were divided into seven groups of ten rats each (five
males and five females for each group) labeled as control/vehicle (distilled); high dose (5 g/kg) and
low dose (2 g/kg) of each of the compounds LP, 2HP and DHP in vehicle. Animals were fasted
overnight (food but not water) prior to dosing. Food was withheld for a further 3 to 4 h after dosing.
The animals were observed for general behavioral changes and mortality every four hours
for the period of two weeks and sacrificed on the 15th day. Serum biochemical parameters were
determined following standard methods [34]. The experimental animals received human care
according to the criteria outlined in the Guide for the Care and Use of Laboratory Animals prepared by
the National Academy of Sciences and published by the National Institutes of Health [35]. The
biochemical analysis was performed at the University Malaya Medical Center laboratory. The blood
was centrifuged at 4,000 rpm for 10 min, serum separated and stored at −20 °C until determination of
aspartate amino transferase (AST), alanine amino transferase (ALT), total cholesterol (TC), low density
lipoprotein (LDL), high density lipoprotein (HDL), triglyceride (TG), alkaline phosphatase (ALP), total
bilirubin (TB), conjugated bilirubin (CB), total protein (TP), globulins and albumin (ALB). Renal
function indices, such as the concentration of creatinine, urea, sodium, chloride, potassium and
inorganic phosphorus were also analyzed. Ethical approval was obtained from the Experimental
Scientific Committee, Faculty of Medicine, University of Malaya.
3.9. Statistical Analysis
Statistical analysis was carried out using SPSS software version 19.0 and the results expressed as
mean ± S.E.M. of the calculated value in each experiment using a one-way analysis of variance,
followed by least significance difference (LSD) test for multiple comparisons
4. Conclusions
The novel Schiff bases potentially useful for cholinesterase inhibition were synthesized and
characterized. The compounds were found to be safe in animal tests and showed good to moderate
AChE inhibition activities. The hydrophobic interaction between the Schiff base DHP and the rich
aromatic contents of the enzyme along the gorge directed the phenyl ring to penetrate deeply into the
anionic site and oxyanion hole regions in the choline-binding site. This interaction is further
intensified, whereby three hydrogen bonding were found between the Schiff base DHP and the
residues in the active site, as confirmed by molecular docking. The antioxidant study indicated fairly
good activities in the FRAP assay for all the compounds, while in the DPPH assay only the compound
DHP showed activity.
Acknowledgments
The authors would like to thank the University of Malaya for the grants ER009/2011A and
HIR-F000009-21001 provided. The contribution given by Departments of Chemistry and Pharmacy is
kindly appreciated.

Molecules 2011, 16
9328
Conflict of Interest
The authors declare no conflict of interest.
References
1. Akhtar, M.N.; Lam, K.W.; Abas, F.; Ahmad, M.S.; Shah, S.A.A.; Atta-ur-Rahman, M.;
Choudhary, I.; Lajis, N.H. New class of acetylcholinesterase inhibitors from the stem bark of
Knema laurina and their structural insights. Bioorg. Med. Chem. Lett. 2011, 21, 4097-4103.
2. Kennedy, D.O.; Dodd, F.L.; Robertson, B.C.; Okello, E.J.; Reay, J.L.; Scholey, A.B.;
Haskell, C.F. Monoterpenoid extract of sage (Salvia lavandulaefolia) with cholinesterase
inhibiting properties improves cognitive performance and mood in healthy adults.
J. Psychopharmacol. 2010, doi:10.1177/0269881110385594.
3. Camps, P.; Formosa, X.; Galdeano, C.; Gómez, T.; Munoz-Torrero, D.; Ramirez, L.; Viayna, E.;
Gomez, E.; Isambert, N.; Lavilla, R.; et al. Tacrine-based dual binding site acetylcholinesterase
inhibitors as potential disease-modifying anti-Alzheimer drug candidates. Chem. Biol. Interact.
2010, 187, 411-415.
4. Pisoni, D.S.; Costa, J.S.; Gamba, D.; Petzhold, C.L.; Borge, A.A.; Ceschi, M.A.; Lunardi, P.;
Goncalves, C.A.S. Synthesis and AChE inhibitory activity of new chiral tetrahydroacridine
analogues from terpenic cyclanones. Eur. J. Med. Chem. 2010, 45, 526-535.
5. Gholivand, K.; Hosseini, Z.; Farshadian, S.; Naderi-Manesh, H. Synthesis, characterization,
oxidative degradation, antibacterial activity and cetylcholinesterase/butyrylcholinesterase inhibitory
effects of some new phosphorus(V) hydrazides. Eur. J. Med. Chem. 2010, 45, 5130-5139.
6. Zarotsky, V.; Sramek, J.J.; Cutler, N.R. Galantamine hydrobromide: An agent for Alzheimer’s
disease. Am. J. Health-Syst. Pharm. 2003, 60, 446-452.
7. Filomena, C.; Silvio, S.; Mariangela, M.; Federica, M.; Giancarlo, A.S.; Dimitar, U.; Aurelia, T.;
Francesco, M.; Roberto, D.L. In vivo anti-inflammatory and in vitro antioxidant activities of
Mediterranean dietary plants. J. Ethnopharmacol. 2008, 116, 144-151.
8. Turiiski, V.I.; Krustev, A.D.; Sirakov, V.N.; Getova, D.P. In vivo and in vitro study of the
influence of the anticholinesterase drug galantamine on motor and evacuative functions of rat
gastrointestinal tract. Eur. J. Pharmacol. 2004, 498, 233-239.
9. Ndhlala, A.R.; Moyo, M.; Staden, J.V. Natural antioxidants: Fascinating or mythical
biomolecules? Molecules 2010, 15, 6905-6930.
10. Axelsen, P.H.; Harel, M.; Silman, I.; Sussman, J.L. Structure and dynamics of the active site
gorge of acetylcholinesterase: Synergistic use of molecular dynamics simulation and X-ray
crystallography. Protein Sci. 1994, 3, 188-197.
11. Bartolini, M.; Bertucci, C.; Cavrini, V.; Andrisano, V. β-Amyloid aggregation induced by human
acetylcholinesterase inhibition studies. Biochem. Pharmacol. 2003, 65, 407-416.
12. Da-Ming, D.; Paul, C.R. Development of bivalent acetylcholinesterase inhibitors as potential
therapeutic drugs for Alzheimer’s disease. Curr. Pharm. Des. 2004, 10, 3141-3156.

Molecules 2011, 16
9329
13. Bolognesi, M.L.; Andrisano, V.; Bartolini, M.; Banzi, R.; Melchiorre, C. Propidium-Based
Polyamine Ligands as Potent Inhibitors of Acetylcholinesterase and Acetylcholinesterase-Induced
Amyloid-β Aggregation. J. Med. Chem. 2005, 48, 24-27.
14. Aremu, O.A.; Amoo, S.O.; Ndhlala, A.R.; Finnie, J.F.; Staden, J.V. Antioxidant activity,
acetylcholinesterase inhibition, iridoid content and mutagenic evaluation of Leucosidea sericea.
Food Chem. Toxicol. 2011, 49, 1122-1128.
15. Loizzo, M.R.; Tundis, R.; Conforti, F.; Menichini, F.; Bonesi, M.; Nadjafi, F.; Frega, N.G.;
Menichini, F. Salvia leriifolia Benth (Lamiaceae) extract demonstrates in vitro antioxidant
properties and cholinesterase inhibitory activity. Nutr. Res. 2010, 30, 823-830.
16. El-Ansary, A.L.; Abdel-Fattah, H.M.; Abdel-Kader, N.S. Synthesis, spectral, thermal and
magnetic studies of Mn(II), Ni(II) and Cu(II) complexes with some benzopyran-4-one Schiff
bases. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2011, 79, 522-528.
17. Khan, T.A.; Naseem, S.; Khan, S.N.; Khan, A.U.; Shakir, M. Synthesis and Spectral
Characterization of 14- and 16-membered tetraazamacrocyclic Schiff base ligands and their
transition metal complexes and a comparative study of interaction of calf thymus DNA with
copper(II) complexes. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2009, 73, 622-629.
18. Nath, M.; Saini, P.K.; Kumar, A. New di- and triorganotin(IV) complexes of tripodal Schiff base
ligand containing three imidazole arms: Synthesis, structural characterization, anti-inflammatory
activity and thermal studies. J. Organomet. Chem. 2010, 695, 1353-1362.
1
19. Issa, R.M.; Khedr, A.M.; Rizk, H.F. UV-Vis, IR and H NMR spectroscopic studies of some
Schiff bases derivatives of 4-aminoantipyrine. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2005,
62, 621-629.
20. Pang, S.; Liang, Y. Studies on charge transfer properties from mixture of Schiff base and zinc
complex in Langmuir–Blodgett film by UV-vis absorption and Fourier transform infrared
spectroscopy. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2001, 57, 435-439.
21. Refat, M.S.; El-Korashy, S.A.; Kumar, D.N.; Ahmed, A.S. Syntheses and characterization of
Ru(III) with chelating containing ONNO donor quadridentate Schiff bases. Spectrochim. Acta A
Mol. Biomol. Spectrosc. 2008, 70, 898-906.
22. Boghaei, D.M.; Gharagozlou, M. Spectral characterization of novel ternary zinc(II) complexes
containing 1,10-phenanthroline and Schiff bases derived from amino acids and salicylaldehyde-5-
sulfonates. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2007, 67, 944-949.
23. Saghatforoush, L.A.; Aminkhani, A.; Ershad, S.; Karimnezhad, G.; Ghammamy, S.; Kabiri, R.
Preparation of Zinc (II) and Cadmium (II) Complexes of the Tetradentate Schiff Base Ligand
2-((E)-(2-(2-(pyridine-2-yl)-ethylthio)ethylimino)methyl)-4-bromophenol (PytBrsalH). Molecules
2008, 13, 804-811.
24. Surati, K.R.; Thaker, B.T. Synthesis, spectral, crystallography and thermal investigations of novel
Schiff base complexes of manganese (III) derived from heterocyclic β-diketone with aromatic and
aliphatic diamine. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2010, 75, 235-242.
25. Daneshvar, N.; Entezami, A.A.; Khandar, A.A.; Saghatforoush, L.A. Synthesis and
characterization of copper(II) complexes with dissymmetric tetradentate Schiff base ligands
derived from aminothioether pyridine. Crystal structures of [Cu(pytIsal)]ClO4·0.5CH3OH and
[Cu(pytAzosal)]ClO4. Polyhedron 2003, 22, 1437-1445.

Molecules 2011, 16
9330
26. Rouleau, J.; Iorga, B.I.; Guillou, C. New potent human acetylcholinesterase inhibitors in the
tetracyclic triterpene series with inhibitory potency on amyloid-β aggregation. Eur. J. Med. Chem.
2011, 46, 2193-2205.
27. Dong, C.Z.; Rocquigny, H.; Remy, E.; Mellac, S.; Fournie Zaluski, M.C.; Roques, B.P. Synthesis
and biological activities of fluorescent acridine containing HIV 1 nucleocapsid proteins for
investigation of nucleic acid NCp7 interactions. J. Peptide Res. 1997, 50, 269-278.
28. Stockdale, M.; Selwyn, M.J. Effects of ring substituents on the activity of phenols as inhibitors
and uncouplers of mitochondrial respiration. Eur. J. Biochem. 1971, 21, 565-574.
29. Guilhermino, L.; Lopes, M.C.; Carvalho, A.P.; Soares, A.M.V.M. Inhibition of
acetylcholinesterase activity as effect criterion in acute test with juvenile liaphnia magna.
Chemosphere 1996, 32, 721-738.
30. Laskwoski, R.A. PDBsum: Summaries and analyses of PDB structure. Nucleic Acids Res. 2001,
29, 221-222.
31. Hadd, A.G.; Jacobson, S.C.; Ramsey, J.M. Microfluidic Assays of Acetylcholinesterase
Inhibitors. Anal. Chem. 1999, 71, 5206-5212.
32. Benzie, I.F.F.; Strain, J.J. Ferric reducing/antioxidant power assay: Direct measure of total
antioxidant activity of biological fluids and modified version for simultaneous measurement of
total antioxidant power and ascorbic acid concentration. Meth. Enzymol. 1999, 299, 15-27.
33. Choi, W.C.; Kim, S.C.; Hwang, S.S.; Choi, B.K.; Ahn, H.J.; Lee, M.Y.; Park, S.H.; Kim, S.K.
Antioxidant activity and free radical scavenging capacity between Korean medicinal plants and
flavonoids by assay-guided comparison. Plant Sci. 2002, 163, 1161-1168.
34. Dixon W.J. Design and Analysis of Quantal Dose-Response Experiments (with Emphasis on
Staircase Designs); Dixon Statistical Associates: Los Angeles, CA, USA, 1991.
35. Abdullah, M.A.; Mariod, A.A.; Al-Bayaty, F.; Abdel-wahab, S.I. Anti-ulcerogenic activity of
Gynura procumbens leaf extract against experimentally-induced gastric lesions in rats. J. Med.
Plant. Res. 2010, 4, 685-691.
Sample Availability: Samples of the compounds are available from the authors.
© 2011 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
