The discovery of highly potent thp derivatives as octn2 inhibitors: From structure‐based virtual screening to in vivo biological activity

Article abstract of DOI:10.3390/ijms21197431

A mismatch between β‐oxidation and the tricarboxylic acid cycle (TCA) cycle flux in mitochondria produces an accumulation of lipid metabolic intermediates, resulting in both blunted metabolic flexibility and decreased glucose utilization in the affected cells. The ability of the cell to switch to glucose as an energy substrate can be restored by reducing the reliance of the cell on fatty acid oxidation. The inhibition of the carnitine system, limiting the carnitine shuttle to the oxidation of lipids in the mitochondria, allows cells to develop a high plasticity to metabolic rewiring with a decrease in fatty acid oxidation and a parallel increase in glucose oxidation. We found that 3‐(2,2,2‐ trimethylhydrazine)propionate (THP), which is able to reduce cellular carnitine levels by blocking both carnitine biosynthesis and the cell membrane carnitine/organic cation transporter (OCTN2), was reported to improve mitochondrial dysfunction in several diseases, such as Huntington’s disease (HD). Here, new THP‐derived carnitine‐lowering agents (TCL), characterized by a high affinity for the OCTN2 with a minimal effect on carnitine synthesis, were developed, and their biological activities were evaluated in both in vitro and in vivo HD models. Certain compounds showed promising biological activities: reducing protein aggregates in HD cells, ameliorating motility defects, and increasing the lifespan of HD Drosophila melanogaster.

Full text of DOI:10.3390/ijms21197431

International Journal of
Molecular Sciences
Article
The Discovery of Highly Potent THP Derivatives as
OCTN2 Inhibitors: From Structure-Based Virtual
Screening to In Vivo Biological Activity
Francesca Di Cristo 1, Anna Calarco 2,† , Filomena Anna Digilio 2 , Maria Stefania Sinicropi 3
,
Camillo Rosano 4 , Umberto Galderisi 5, Mariarosa Anna Beatrice Melone 6
,
Carmela Saturnino 7,
*
and Gianfranco Peluso 2,
*
1
Elleva Pharma S.R.L., via Pietro Castellino 111, 80131 Naples, Italy; francesca.dicristo@ellevapharma.com
Research Institute on Terrestrial Ecosystems (IRET)-CNR, Via Pietro Castellino 111, 80131 Naples, Italy;
anna.calarco@cnr.it (A.C.); filomenaanna.digilio@cnr.it (F.A.D.)
Department of Pharmacy, Health and Nutritional Sciences, University of Calabria, Via P. Bucci,
87036 Arcavacata di Rende, Italy; s.sinicropi@unical.it
2
3
4
5
6
Proteomics and Mass Spectrometry Unit, IRCCS Ospedale Policlinico San Martino, Largo R. Benzi 10,
16132 Genova, Italy; camillo.rosano@hsanmartino.it
Department of Experimental Medicine, Biotechnology and Molecular Biology Section, Luigi Vanvitelli
Campania University, Vico Luigi De Crecchio 1, 80138 Naples, Italy; umberto.galderisi@unicampania.it
Department of Advanced Medical and Surgical Sciences, 2nd Division of Neurology, Center for Rare
Diseases and InterUniversity Center for Research in Neurosciences, University of Campania “Luigi
Vanvitelli”, via Sergio Pansini 5, 80131 Naples, Italy; marina.melone@unicampania.it
Department of Science, University of Basilicata, Viale dell’Ateneo Lucano 10, 85100 Potenza, Italy
Correspondence: carmela.saturnino@unibas.it (C.S.); gianfranco.peluso@cnr.it (G.P.)
This author contributed to this work as senior author.
7
*
†
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 30 September 2020; Accepted: 6 October 2020; Published: 8 October 2020
Abstract: A mismatch between
β-oxidation and the tricarboxylic acid cycle (TCA) cycle flux in
mitochondria produces an accumulation of lipid metabolic intermediates, resulting in both blunted
metabolic flexibility and decreased glucose utilization in the affected cells. The ability of the cell
to switch to glucose as an energy substrate can be restored by reducing the reliance of the cell on
fatty acid oxidation. The inhibition of the carnitine system, limiting the carnitine shuttle to the
oxidation of lipids in the mitochondria, allows cells to develop a high plasticity to metabolic
rewiring with a decrease in fatty acid oxidation and a parallel increase in glucose oxidation.
We found that 3-(2,2,2-trimethylhydrazine)propionate (THP), which is able to reduce cellular carnitine
levels by blocking both carnitine biosynthesis and the cell membrane carnitine/organic cation
transporter (OCTN2), was reported to improve mitochondrial dysfunction in several diseases, such as
Huntington’s disease (HD). Here, new THP-derived carnitine-lowering agents (TCL), characterized by
a high affinity for the OCTN2 with a minimal effect on carnitine synthesis, were developed, and their
biological activities were evaluated in both in vitro and in vivo HD models. Certain compounds
showed promising biological activities: reducing protein aggregates in HD cells, ameliorating motility
defects, and increasing the lifespan of HD Drosophila melanogaster.
Keywords: carnitine system; carnitine/organic cation transporter (OCTN2); mitochondrial
β-oxidation; Huntington’s disease (HD); meldonium
1. Introduction
Carnitine is an important molecule that regulates mitochondrial long-chain fatty acid
β-oxidation
and enables the import of fatty acid intermediates from the cytosol to the mitochondria via the carnitine
Int. J. Mol. Sci. 2020, 21, 7431; doi:10.3390/ijms21197431
www.mdpi.com/journal/ijms

Int. J. Mol. Sci. 2020, 21, 7431
2 of 19
cycle [
1]. A mismatch between
β-oxidation and tricarboxylic acid cycle (TCA) flux, such as when a
dysregulated carnitine cycle increases the mitochondrial fatty acid supply to a level that exceeds the
demand and/or the enzymatic capacity, produces the accumulation of lipid metabolic intermediates,
resulting in both blunted metabolic flexibility and decreased glucose utilization. The ability of the cell
to switch to glucose as an energy substrate could be restored by reducing the reliance of the cell on
fatty acid oxidation [
enzyme of the carnitine carrier system, decreases fatty acid oxidation with a parallel increase in glucose
oxidation [ ]. Although CPT1 inhibition limits the carnitine shuttle for the oxidation of long-chain
2]. The inhibition of carnitine palmitoyltransferase 1 (CPT1), the key rate-limiting
3
lipids in the mitochondria, carnitine allows the system to work through the peroxisomal synthesis of
short- and medium-chain acylcarnitine. These carnitine derivatives can enter into the mitochondrial
matrix independently by CPT1, still leading to mitochondria oversupply and dysfunction. As carnitines
are important for mitochondrial β-oxidation, a disturbance in plasma membrane carnitine transport
and/or liver carnitine synthesis can significantly affect fatty acid oxidation.
Three-(2,2,2-trimethylhydrazine)propionate (THP; Meldonium), a structural analog of the carnitine
precursor γ-butyrobetaine, reduces the cellular carnitine levels by suppressing endogenous carnitine
biosynthesis via the inhibition of the
the cell membrane carnitine/organic cation transporter (OCTN2). In THP-induced low-carnitine cells,
THP diminishes -oxidation by inhibiting fatty acid (FA) transport into the mitochondrial matrix [
and modulates the energy metabolism by increasing glycolysis [ ]. Recently, we demonstrated that
THP was able to effectively restore the expression of peroxisome proliferator-activated receptor gamma
coactivator 1-alpha (PGC-1 ), a master regulator of mitochondria biogenesis, dynamics, and oxidative
γ-butyrobetaine hydroxylase (BBOX) enzyme [4] and by blocking
β
5]
6–8
α
metabolism, in cell and animal models of Huntington’s disease (HD) [9,10].
These biological properties make THP a potentially useful treatment for diseases characterized by
dysfunctional mitochondrial fatty acid oxidation and biogenesis, such as diabetes, angiocardiopathy,
and some types of neuropathy. However, the decrease in hepatic carnitine levels, mainly due to BBOX
inhibition, has been shown to give rise to fatty liver in animals [11,12]. A recent paper proposed a
novel mechanism by which 5-aminovaleric acid betaine (5-AVAB), a bioactive compound present in
diets rich in whole grains, can participate in the regulation of cellular energy metabolism. The study
demonstrated that 5-AVAB, a structural analogue of THP, was able to reduce β-oxidation of fatty acids
by decreasing the intracellular carnitine level via OCTN2 blocking, without affecting the biosynthesis
of l-carnitine via BBOX [13].
Here, we developed and investigated new THP-derived carnitine-lowering agents (TCL)
characterized by a high affinity for an OCTN2 carrier, with a minimal effect on BBOX activity.
Understanding the impact of the selected TCL on carnitine uptake has allowed us to characterize cell
metabolic adaptations induced by treatment with TCL. To test TCL, we used both cell and animal
models of HD as research has demonstrated that the expression of mutated huntingtin (mHtt) induces
mitochondrial dysfunction and metabolic remodeling [14–16].
A secondary aim of the study was to unravel the interplay between perturbations of the carnitine
system and the rewiring of the metabolic cell phenotype to identify specific bioenergetic signatures
to guide new approaches to therapeutic intervention. Our results revealed a shift toward the
higher oxidation of glucose in TCL-treated HD cells, an effect that is directly associated with the
inhibitory activity of the tested compound. Two compounds showed promising biological activity,
decreasing mHtt aggregates in striatal cells expressing mHtt and ameliorating the motility defects of
HD flies as well as increasing their lifespan.
2. Results
2.1. Molecular Docking Study of the Interactions between THP and OCTN2 and the Synthesis of THP
Structurally-Related Compounds (TLC)
To identify the interaction between THP (3-(2,2,2-trimethylhydrazine)propionate; Meldonium)
and new synthetized THP structurally-related compounds (TCL) with OCTN2, a computational

Int. J. Mol. Sci. 2020, 21, 7431
3 of 19
OCTN2 docking analysis was performed. As the crystal structure of the OCTN2 protein has not been
resolved, a computational model of human OCTN2 (hOCTN2) was developed to create a rational ligand
design. The carnitine binding site in the computational model of hOCTN2 was used to investigate the
interactions between the transporter and THP or TCL. The docking simulations for the validated model
of OCTN2 showed an interaction between Tyrosine 239 and the trimethylamine group of THP, as well
as between the carboxylic acid group and both Tryptophan 351 and Tyrosine 211, similar to l-carnitine
(Figure 1a). The docking simulations also highlight an interaction between the amine group (NH) of
THP and Tyrosine 239. Based on molecular modeling, the structural modifications carried out on THP
included the replacement of the functional groups more involved in the interactions with OCTN2
(Figure 1b). In particular, the –NH group was replaced with a –CH2 group, and the carboxyl group
was transformed in highly functionalized aliphatic and aromatic amides (Figure 1c, compounds 4a–t).
The quaternary nitrogen, bearing the three methyl groups, was kept unaltered.
Figure 1.
docking simulations. Residues involved in protein-ligand interactions are drawn as balls and
sticks; the receptor hOCTN2 is reported in tan ribbons; ( ) structural modifications carried out
on THP; ( ) synthesis of TCL 4a and
(a) HCOH 37%, HCOOH, 60 ◦C, 16 h; (b) for 3a

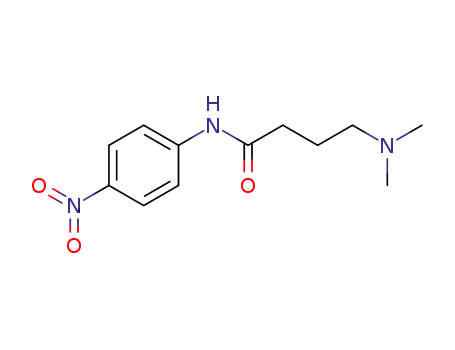

3l : amine, DCC, HOBT, Et3N, CH2Cl2, or THF, RT, 24 h, for 3k: 4-nitroaniline, PCl3, pyridine,
(A) Binding modes of l-carnitine (white sticks) THP (yellow sticks) resulting from
B
C
–
t.
-j
-
t
3 h, 40 ◦C; (c) CH3I, acetone, 18 h, RT. Abbreviations: 3-(2,2,2-trimethylhydrazine)propionate,
THP; THP structurally related compounds, TCL; hydroxymethylene, HCOH; formic acid, HCOOH;
N,N0- dicyclohexylcarbodiimide, DCC; hydroxybenzotriazole, HOBT; N,N-diethylethanamine, Et3N;
dichloromethane, CH2Cl2; tetrahydrofurane, THF; room temperature, RT; phosphorus trichloride,
iodomethane, PCl3.

Int. J. Mol. Sci. 2020, 21, 7431
4 of 19
Before testing their activity on both BBOX and OCTN2, adequate in vitro monitoring for
compound-related toxicity was carried out to exclude molecules affecting cell viability. All the
compounds at a concentration of 50
µM were non-toxic and did not affect cell viability, with the
exception of compound 4f (Figure S1).
2.2. Evaluation of OCTN2-Mediated TCL Cellular Uptake and Their Carnitine Uptake Inhibition
To reliably measure the transport activity, the stable hOCTN2 overexpression was obtained in
STHdhQ111/111 (Figure 2a,b). An initial analysis of the OCTN2 expression on STHdhQ111/111 and
the cognate STHdh cells expressing wild-type Htt (STHdhQ7/7 cells) demonstrated that striatal cells
with Htt mutations showed a significant increase in OCTN2 compared with a wild-type counterpart
(Figure 2a). The carnitine accumulation between STHdhQ111/111 with and without heterologous OCTN2
transporter expression depended on whether the cells were transfected with either hOCTN2 (100%) or
the expression vector pCMV6-XL5 alone (18%). In the latter case, the carnitine uptake derived from
the constitutive expression of OCTN2 in STHdhQ111/111. The carnitine uptake at pH 7.4, expressed as
the cell-to-medium ratio, increased time-dependently in STHdhQ111/111 OCTN2-transfected cells for
2 min and attained steady-state uptake by 10 min, whereas the uptake by STHdhQ111/111 transfected
with pCMV6-XL5 vector alone exhibited a significantly lower increase of uptake over 10 min. Thus,
the uptake at 1 min was routinely used for the initial uptake rate measurement in the subsequent studies.
The total uptake of TCL into STHdhQ111/111 with and without the overexpression of hOCTN2
was then evaluated. The transporter-mediated uptake was calculated as the difference in the total
uptake between cells with and without carrier overexpression. Figure 2c depicts the widely different
levels of the accumulation of carnitine, THP, and several TCL in target cells. Transport efficiency
relative to carnitine (100%) demonstrates that some tested TCL qualify as optimal substrates for
hOCTN2, significantly better than THP itself (Figure 2d). The other TCL cannot be considered hOCTN2
substrates as their carrier-mediated uptake was mostly not significantly different from zero or was
relative to carnitine. Data concerning TCL with low cell uptake are reported only for certain compounds.
In addition, the intracellular accumulation of selected TCL, as well as carnitine and THP, was abolished
◦
almost entirely (<3% of control) at 4 C (Figure 2e) or when extracellular Na+ was replaced with
N-methyl-d-glucamine (NMG) at an equimolar concentration.
Finally, carnitine uptake by cultured STHdhQ111/111 was significantly inhibited by TCL substrates,
including 4i, 4j, and 4k (p < 0.01), and, to a lesser extent, by 4t and THP (p < 0.05) (Figure 2f).
Accordingly, 4i, 4j, 4k, and 4t were chosen for the subsequent experiments.
2.3. Evaluation of TCL’s Ability to Modulate Energetic Metabolism by a Targeted Drug Screen
To understand if selected TCL were able to reprogram STHdhQ111/111 to use glycolytic metabolites
as an alternative fuel, the STHdhQ111/111 energetic metabolism was evaluated in the presence of
TCL. STHdhQ111/111 treatment with TCL (4i
, 4j, 4k, and 4t) significantly increased both the glycolytic
capacity and glucose-induced response, while THP treatment resulted in a non-significant increase
in the extracellular acidification rate (ECAR) (Figure 3a). The oxygen consumption rate (OCR) of
cultured STHdhQ111/111 demonstrated the cellular dependence on pyruvate to fuel mitochondrial
respiration and the capacity for utilizing this substrate when the others (i.e., FA and glutamine) are
blocked (Figure 3b). The reliance of untreated STHdhQ111/111 on pyruvate to fuel oxygen consumption
was lower. The treatment with TCL had a very strong impact on the STHdhQ111/111 mitochondrial
dependence on pyruvate importation into the mitochondria and the capacity for import when fatty
acid oxidation and glutaminolysis were both inhibited (Figure 3c,d).

Int. J. Mol. Sci. 2020, 21, 7431
5 of 19
Figure 2.
(
a
,
b
) Western blot analysis of hOCTN2 expression in STHdhQ7/7, STHdhQ111/111
,
§§
and transfected STHdhQ111/111 (STHdhQ111/111/hOCTN2).
p < 0.01 vs. STHdhQ7/7. (
c) The total
accumulation of carnitine (10
heterologous expression of hOCTN2. (
STHdhQ111/111 cells with the heterologous expression of hOCTN2. (
4 ◦C of carnitine, THP, or TCL in STHdhQ111/111 cells with or without the heterologous expression of
hOCTN2. ( µM
) Carnitine uptake in OCTN2-transfected STHdhQ111/111 cells in the presence of 50
µ
M), THP, or TCL (50
) The efficiency of the transport of drugs by hOCTN2 in
) Accumulation at 37 ◦C or at
µ
M) in STHdhQ111/111 cells with or without the
d
e
f
THP, and the newly synthesized compound. The bars represent the mean
Statistical significance: * p < 0.05, ** p < 0.01, *** p < 0.001 vs. CTL.
±
standard deviation (n = 3).

Int. J. Mol. Sci. 2020, 21, 7431
6 of 19
Figure 3. (a,b µM of THP or selected TCL; (c,d) Bioenergetics studies
) STHdhQ111/111 treated with 50
of STHdhQ111/111 cultured in the presence of pyruvate as a specific energetic substrate. The percent
capacity to use pyruvate for respiration as well as the percent dependence on pyruvate was calculated
as described in the Materials and Methods Section 4.9. Each experiment was independently repeated at
least three times, in separate 24-well plates with each treatment in 4–12 replicate wells.
The dependence of the STHdhQ111/111 on pyruvate as a metabolic substrate doubled after TCL
treatment (Figure 3d). We concluded that TCL treatment increased the ability of STHdhQ111/111 to use
the cellular dependence on glucose and pyruvate to fuel metabolism, suggesting a recovery of the
metabolic flexibility—seen as the ability of the cell to switch to glucose as an energy substrate when
other energy substrates are quantitatively inadequate.
2.4. Evaluation of BBOX Inhibition by TCL
Endogenous carnitine synthesis plays an important role in carnitine physiological homeostasis.
The rate-limiting step in this pathway involves the hydroxylation of BBOX to yield carnitine.
Interaction studies between TCL and BBOX were conducted to establish if the molecular modifications
carried out to THP interfere with BBOX activity. As reported in Table 1, TCL display negligible BBOX
inhibition relative to THP due to the profound modifications made to its carboxyl group. In particular,
the replacement of the carboxylate in the four selected TCL produced inactive compounds without an
inhibitory effect on BBOX.

Int. J. Mol. Sci. 2020, 21, 7431
7 of 19
Table 1. The inhibitory effect of TCL on γ-butyrobetaine hydroxylase (BBOX).
Substance
Human BBOX IC50 (µM)
THP
4i
4j
4k
4t
61 ± 10
89 ±12
97 ± 17
78 ± 16
76 ± 13
2.5. Computational Docking Studies of Interactions between OCTN2 and TCL Selected on the Basis of Their
Inhibitory Effect on the Carnitine Uptake
To investigate the interactions between 4i
, 4j, 4k, and 4t and OCTN2, as well as the
structure activity relationship, in silico docking studies were performed. Molecular modeling
−
and docking simulations allowed us to identify the ligand’s binding site as a deep cavity encompassed
by transmembrane helices TM1, TM4, TM5, TM7, TM10, and TM11 (Figure 4). The different hOCTN2
protein residues involved in ligand binding are reported in Table S3.
Figure 4. The binding modes of the different ligands tested, resulting from docking simulations.
The receptor hOCTN2 is depicted by tan ribbons, and all the ligands are sticks. The residues involved
in protein-ligand interactions are drawn as shapes and sticks. (a,b) The binding mode for 4i (pink
sticks) and 4j (light blue sticks); 4k is in green in (c); (d) molecule 4t is shown in orange.
All of the selected compounds exhibited a higher binding affinity to OCTN2 compared to THP;
this could be due to the replacing of COOH with longer fragments containing an aromatic ring,
which allows for hydrophobic interactions with the residues Val 153, Ile 208, and Ser 470. This space
remains empty in the case of THP, with a consequent lowering of the binding constants. On the other
hand, the substitution of the amine with a -CH group did not seem to cause relevant variations because
the hydrogen bond occurring between Tyr239 and the -NH group of THP is rather long (about 3 Å)
and is, therefore, a weak link.

Int. J. Mol. Sci. 2020, 21, 7431
8 of 19
2.6. Cell Treatment with TCL Decreased mHtt Aggregation
Previous studies demonstrated that, in striatal cells expressing mHtt, compensatory shifts to
generate energy from FAs may exacerbate mitochondrial dysfunction, leading to an increase of reactive
oxygen species (ROS) production, which promotes, directly or indirectly, mHtt aggregation [17
Emerging evidence has shown that mHtt aggregates induce cytotoxicity, which is closely related to
neuronal death in HD [19 20], while the reduction in mHtt aggregates has been proven to rescue
,18].
,
HD-related phenotypes [21]. Since the clearance of mHtt aggregates has become a promising strategy
for HD therapy, we evaluated the effect of treatment with selected TCL on the level of mHtt aggregates
in STHdhQ111/111
.
Western blot analysis of STHdhQ111/111 incubated in the presence of the selected TCL for 72 h at a
concentration of 50 M demonstrated that cell treatment with the selected TCL significantly (p < 0.001)
µ
reduced mHtt aggregates (Figure 5). The results obtained are in agreement with the hypothesis that
decreasing fatty acid oxidation (FAO) by modulating the carnitine system has beneficial effects on the
expression of the pathological phenotype. In particular, the choice of OCTN2 as a druggable target is
in line with our previous results, which demonstrated that the Na+-dependent carnitine transporter
OCTN2 is overexpressed in STHdhQ111/111, thus contributing, through the import of carnitine into the
cell, to FAO increase.
Figure 5. Representative western blot of mHtt aggregates in the STHdhQ111/111 cell line incubated for
72 h in the presence of of 50 µM 4i, 4j, 4k, or 4t. Densitometric quantification was performed on three
different experiments, and the results are expressed as the mean of the values obtained (mean
** p < 0.01 and *** p < 0.001 versus control.
±
SD).
Certain studies offered more indirect evidence of the pathogenic role played by OCTN2 in HD.
A recent paper reported that amino acids 14–22 and 447–454 of the OCTN2 sequence were involved
in the interaction with caveolin-1, which directs this carrier to rafts [22]. The loss of caveolin-1
expression in a knock-in mouse model of Huntington’s disease suppresses the pathophysiology
in vivo—a protective effect that might also be related to a decrease in the OCTN2 plasma membrane
expression [23].
2.7. Selected TCL Rescue Neuronal Deficits in HD Flies
To confirm the efficacy of newly synthesized compounds in vivo, the selected compounds were
tested in a Drosophila model of HD, with transgenic flies that express full-length human pathogenic
cDNA, encoding a mutated HTT protein [9,24]. The expression of this construct in the transgenic fly
recapitulated the majority of the pathological hallmarks of HD, including early death and locomotor
dysfunction. In a recent previous work, Di Cristo et al. reported that THP significantly improved the
lifespan and motor function in this HD fly and that the srl gene (DmPGC1-alpha) was involved in those

Int. J. Mol. Sci. 2020, 21, 7431
9 of 19
effects [9]. In this work, we wanted to evaluate the lifespan and motor dysfunction of Q128HD-FL flies
after treatment with the THP-derived molecules.
Transgenic flies were fed with six different foods: a control diet with a standard cornmeal
Drosophila medium, and five media supplemented with THP or one of the four derived molecules.
As shown in Figure 6, our results indicated that all the THP-derived molecules significantly extended
the lifespans of the Q128HD-FL flies compared with THP-treated sibling flies. In particular, 4i and
4j dramatically extended the mean lifespan by as much as 44.95% and 20.6% respectively and the
maximum lifespan by 88.13% and 42.37% compared to THP (Figure 6a,b). All four tested molecules
significantly (p < 0.001) improved the survival rate of Q128HD-FL flies with respect to THP. After an
initial overlap period of 21 days, the respective curves diverged as a function of the increased survival
of the different fly groups. The survival curves of all four groups declined slowly compared to the
curve of the THP group, at between 18 and 57 days, without a quick drop.
In addition, the influence of these molecules on the locomotion of the flies was assessed, as a
parameter of improved health. Due to damaged motor neuronal function, the HD flies showed
progressive movement disorders that can be evaluated by the climbing test, which takes advantage
of the natural tendency of flies to climb a vial wall. Our results indicate that all four THP-derived
molecules significantly ameliorated the climbing ability of transgenic flies (Figure 6e). For all the
molecules, motor dysfunction appeared later, with a higher percentage of flies that achieved the target
(10 s) over time with respect to the THP-treated flies (p < 0.001). In terms of lifespan, better results
were obtained after treatment with 4i and 4j as shown in Figure 6e.
The beneficial effects of metabolic reprogramming in HD flies, with a shift toward glucose as an
energy source, has already been reported. The overexpression of glucose-6-phosphate dehydrogenase,
the major enzyme for the pentose phosphate pathway (PPP) [25], or overexpression of a glucose
transporter [26], extended the lifespan in flies expressing 93 glutamine repeats.
Several other active compounds able to modulate the carnitine system have been proposed for
the treatment of pathologies characterized by mitochondrial dysfunction. Here, we focused on one of
the most important components of the carnitine shuttle, the OCTN2 carnitine carrier, as a possible
druggable target. Selected TCL were able to reduce the negative impact of mHtt expression in cell
and animal models of Huntington’s disease. This could occur through the inhibitory effect of TCL on
OCTN2-mediated carnitine uptake, which negatively influenced the contribution of fatty acids to the
overall ATP production, thus, reducing FA mitochondrial overloading and, in turn, breaking the futile
FAO-ROS cycle, a harbinger of pathological events. This suggestion is corroborated by studies on other
THP structural analogs, such as 5-aminovaleric acid betaine (5-AVAB), which reduced the oxygen
consumption caused by the β-oxidation of fatty acids in cultured cardiomyocytes by inhibiting OCTN2.
THP, the parent structure of TCL, was recently added to a list of prohibited drugs by the
World Anti-Doping Agency, although there is not a full scientific consensus on its efficacy as
a performance-enhancing agent. In addition, some authors have questioned the safety of THP,
arguing that a reduction in
β-oxidation might be detrimental to those tissues that rely on a
fatty-acid-derived energy metabolism. These questions need to be addressed in future studies,
although the loss of BBOX inhibition from TCL should reduce the side effects in the liver.

Int. J. Mol. Sci. 2020, 21, 7431
10 of 19
Figure 6. The effects of THP-derived molecules 4i, 4j, 4k, and 4t on fly lifespan and motor dysfunction.
(a–d) Lifespan curves of transgenic UAS-Q128HD-FL/Elav-GAL4 flies fed with diets supplemented with
the tested molecules. For each molecule, the comparison of age-dependent survival curves was done
both with respect to the solvent alone and to THP. All treated groups had increased lifespans compared
to both the control group and the THP group. (
was observed in response to 4i, (p < 0.001), with a 44.95% increase in the mean lifespan. (
comparable increase was obtained after treatment with 4j (p < 0.001), with an increase in the mean
lifespan of 25.3%. ( ) A moderate but highly significant increase in survival was observed in response
to 4k (p < 0.001; mean lifespan +16.96%). ( ) A minor increase in survival, although highly significant,
was observed in response to 4t (p < 0.01; mean lifespan +9.18%). n = 100 flies. ( ) The climbing ability of
a
) A longer extension in survival with respect to THP
b
) A dramatic
c
d
e
UAS-Q128HD-FL/Elav-GAL4 transgenic flies fed with different media supplemented with one of four
different derived-THP molecules, with THP, or with vehicle alone for control, was evaluated. All the
tested THP-derived molecules improved the climbing ability of transgenic flies. The data are given as
the mean ± SD. n = 60. p < 0.001 compared with THP for 4j, 4i, 4k, and 4t.

Int. J. Mol. Sci. 2020, 21, 7431
11 of 19
3. Discussion
Metabolic flexibility is an essential attribute for the maintenance of cell homeostasis and relates
to the plasticity of the cell to adapt its metabolism to nutrients present in the microenvironment to
oxygen availability and to hormonal input. Generally speaking, the cell may utilize both glucose and
FA to meet its high energy demands [27], but normally high glycolytic flux and FA oxidation do not
simultaneously occur (the glucose fatty-acid cycle or Randle cycle). Flux through these metabolic
pathways is influenced by different factors, such that, at different physiologic conditions, glucose and
FA are used in different proportions and neither are over-accumulated. The dysregulation of the
Randle cycle may contribute to the dysregulation of mitochondria and induce cytotoxic effects [28].
In particular, full oxidation of FA generates certain metabolites that inhibit glycolysis. In the case of
mitochondrial dysfunction by a dysregulated FA catabolism, high rates of fatty acid oxidation increase
the mitochondrial acetyl-CoA/free CoA and NADH/NAD+ ratio, that, in turn, activates pyruvate
dehydrogenase (PDH) kinase causing the phosphorylation and inhibition of PDH. PDH inhibition
blocks the conversion of pyruvate to acetyl-CoA, decreases the influx of acetyl-CoA from glycolysis into
the TCA cycle, and thereby reduces the cell metabolic flexibility with overreliance of the FA substrate.
In these pathological conditions, inhibitors of FA
dysfunction and cell survival.
β-oxidation appear to improve mitochondrial
Recently, the inhibition of OCTN2-mediated carnitine entry into the cells by THP was shown to
improve the control of diseases characterized by mitochondrial dysfunction, including neurodegenerative
disease [29].
OCTN2 is the plasma membrane transporter involved in the absorption, distribution, and excretion
of carnitine, and is also responsible for the traffic (absorption and secretion) of carnitine derivatives
and analogs [30]. THP was first reported as a competitive inhibitor of OCNT2 [17] and, only later,
was demonstrated to be an excellent substrate of OCTN2. The efficiency of THP transport by OCTN2 is
even higher than that of carnitine. Cellular accumulation, transporter affinity, and sodium dependence
indicate that THP mimics carnitine, although it lacks the hydroxyl group and contains a hydrazinium
residue [13]. In addition, while inhibiting the absorption of carnitine, THP simultaneously competes
with γ-butyrobetaine (γ-BB) for γ-butyrobetaine hydroxylase (BBOX) binding to inhibit carnitine
endogenous synthesis, thus, exacerbating the carnitine deficiency and promoting the formation of liver
steatosis [18].
This study reports the design and synthesis of new THP-related compounds, characterized by
an increased ability to bind OCTN2 with a negligible effect on BBOX activity by in silico docking
simulations. Other studies reported the synthesis of THP-related compounds by studying the crystal
structures of BBOX complexed with γ-BB or THP steatosis. In this case, the target was to select
improved inhibitors of BBOX, even if some molecules also displayed OCTN2 inhibition activity [18].
To confirm the efficacy of the new synthesized compounds both in vitro and vivo, in our study,
the THP-related compounds were tested in STHdhQ111/111 cells and in a Drosophila model of HD.
The choice of these models derives from the fact that we demonstrated, in a previous study, the
benefit of THP treatment on reducing both mHtt aggregation and the severity of the disease. To date,
the experimental results provided evidence that, in the HD brain, glycolytic striatal cells reprogrammed
their fuel use and switched to FA oxidation as an alternative energy source. These metabolic changes
were linked to mitochondrial dysfunction and neuronal cell death [31]. Accordingly, while an increase
in fatty acid oxidation (FAO) maintains the bioenergetic capacity of striatal mitochondria, escalating
β-oxidation creates a futile FAO-ROS (reactive oxygen species) cycle in which the energy-producing
FAO pathway becomes the primary source of ROS-dependent damage. Intriguingly, the increased
ROS production leads to increased mHtt aggregation [32].
The results reported demonstrated that only cells treated with selected THP-related compounds
showed a significant recovery of the glycolytic capacity accompanied by a concomitant decrease of
FAO addiction. The rewiring of the metabolism by THP-related compounds was associated with
a significant reduction of mHtt aggregation in STHdhQ111/111 cells. This last effect is of interest as

Int. J. Mol. Sci. 2020, 21, 7431
12 of 19
convincing evidence has demonstrated that decreasing mHtt by many different approaches can rescue
HD-associated phenotypes [33].
Consistent with the cell experiments, we observed an improvement of motor function-related
deficits as well as the lifespan of Q128HD-FL flies after the treatment with selected THP-related
compounds. The beneficial effects of metabolic reprogramming in HD flies, with a shift toward
glucose as an energy source, was previously reported. The overexpression of glucose-6-phosphate
dehydrogenase, the major enzyme for the pentose phosphate pathway (PPP) [25], or overexpression of
a glucose transporter [26], was shown to extend the lifespan in flies expressing 93 glutamine repeats.
4. Materials and Methods
4.1. Reagents and Equipment
All reactions were performed using commercially available compounds without further
purification. All reagents used were of analytical grade and were purchased from Sigma-Aldrich
(Milan, Italy). The column chromatographic purification of products was carried out using silica gel 60
(70–230 mesh, Merck, Milan, Italy). The NMR spectra were recorded on Bruker (Karlsruhe, Germany)
DRX 400, 300, 250 spectrometers (400 MHz, 300 MHz, 250 MHz, 1H; 100 MHz, 75 MHz, 62.5 MHz 13C).
The spectra were referenced to residual CHCl3 (7.26 ppm, 1H, 77.23 ppm, 13C). The coupling constants
J are reported in Hz. Yields are given for isolated products that showed one spot on a thin-layer
chromatography plate and no impurities detectable in the NMR spectrum. Mass spectral analyses were
carried out using an electrospray spectrometer Waters 4 micro quadrupole. l-(methyl-3H)Carnitine
hydrochloride (65 Ci/mmol) was purchased from Moravec Biochemicals (Brea, CA, USA).
Dulbecco’s modified Eagle’s medium (DMEM), fetal bovine serum (FBS), streptomycin–penicillin,
l-glutamine, and sodium pyruvate were purchased from EuroClone (Milan, Italy). The Cell Proliferation
Kit I (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT)) was obtained from
Sigma-Aldrich. The following western blot antibodies were used in this study: anti-OCTN2
(1:1000, TA327136, Origene, Milan, Italy), anti-polyglutamine-expansion (1:2000, MAB1574, Merck,
Milan, Italy), anti-vinculin (1:25000, AB129002, Abcam, Milan, Italy), and anti-mouse and anti-rabbit
peroxidase-conjugated secondary antibodies (Biorad, Rome, Italy). Other reagents, including those for
cell culture, membrane preparation, and transport experiments, were obtained from Sigma-Aldrich,
Wako Pure Chemical Industries (Osaka, Japan), and Life Technologies (Milan, Italy).
4.2. General Method for the Preparation of THP-Derived Carnitine-Lowering Agents (TCL)
4.2.1. 4-(Dimethylamino) Butanoic Acid Hydrochloride 2
A mixture of γ-amino butyric acid 1 (1 g, 9.71 mmol), 1.94 mL of formaldehyde (59 mmol,
six 6 equivalents), and 2.52 mL of formic acid (67 mmol, 8.9 equivalents) was refluxed at 60 ◦C for 16 h.
After cooling the solution, 1.2 mL of concentrated hydrochloric acid was added, and the water was
removed under reduced pressure. Crystallization with acetonitrile produced a white solid. Yield: 71%.
m.p. 97–98 ◦C (acetonitrile). MS (ESI) m/z: 132.2 (M + H) + 1H NMR (D2O, 300 MHz)
δ
: 3.05–2.99
(m, 2H), 2.73 (s, 6H), 2.34 (t, 2H, J = 7.2), 1.90–1.79 (m, 2H). 13C NMR (D2O, 75 MHz)
δ: 177.3, 58.5, 45.9,
33.8, 23.2.
4.2.1. General Procedure for the Synthesis of Amides 3a–t
To a solution of
2 (50 mg, 0.31 mmol) in dichloromethane or tetrahydrofuran (1 mL) under
magnetic stirring, dicyclohexylcarbodiimide (0.31 mmol), 1-hydroxybenzotriazole (0.31 mmol),
triethylamine (0.45 mmol), and suitable amine (0.25 mmol) were added. The reaction was stirred
overnight at room temperature. The residue, rinsed with dichloromethane, was extracted with 1 N
HCl; the acidic phase was basified with NaOH 1N and extracted three times with dichloromethane.
Step-by-step synthetic process can be found in Section 1 in the Supplementary Materials.

Int. J. Mol. Sci. 2020, 21, 7431
13 of 19
4.2.2. General Procedure for the Synthesis of Ammonium Salts 4a–t
A solution of compounds 3a–t (1 equiv.) in acetone (1 mL) was reacted with two equivalents of
iodomethane overnight. Crystallization with diethyl ether produced the desired products with good
yields. Step-by-step synthetic process can be found in Section 1 in the Supplementary Materials.
4.3. Molecular Modeling and Docking Simulations
A computational model of hOCTN2 was built using the web server Phyre2 [34], and its
three-dimensional structure was used as a target for the subsequent docking simulations. To evaluate
the binding modes and calculated affinities between the newly synthesized THP analogues and
hOCTN2, we used a “blind-docking approach” (no a priori information about the binding site was
provided to the system). Molecular docking studies were performed using the programs Autodock
and ADT [35,36] using a searching box encompassing the whole internal cavity of the protein (i.e.,
the whole protein, excluding the surface, was embedded in the lipidic membrane). All the ligand
atomic structures were built and their three-dimensional coordinates’ energy minimized using the
program MarvinSketch (ChemAxon Ltd., Budapest, Hungary). The docking experiment consisted
of 100 cycles of Lamarckian Genetic Algorithm. The resulting poses were ranked according to their
docking energy values and further clustered on the basis of a root-mean-square deviation (RMSD)
cutoff value of 2.0 Å. Such a procedure allowed us to define the binding modes and calculate the
binding energy with precision. All the figures were drawn with the program Chimera [37].
4.4. Cell Cultures
Conditionally immortalized wild-type STHdhQ7/7 and mutant STHdhQ111/111 striatal neuronal cell
lines (kind gifts of Elena Cattaneo, Milan, Italy) were derived from striata of wild-type HdhQ7/7 and
homozygous HdhQ111/111 littermate embryos [38]. The cells expressed endogenous levels of normal
and mutant full-length huntingtin protein with seven (wild-type STHdhQ7/7) and 111 (STHdhQ111/111
glutamines, respectively. Striatal cells were grown as described by Di Cristo et al. [9].
)
4.5. Cell Viability
The cell viability was assessed using the (3-(4,5-Dimethylthiazol-2-yl)-2,5-Diphenyltetrazolium
Bromide) MTT Cell Proliferation Assay. Briefly, cells (5
103/well) were seeded in 96-well plates
and treated with increasing concentrations of THP or structurally related compounds (50 M) in the
×
µ
presence of DMEM containing 10% FBS. The absorbance was read at 550 nm on a Cytation 3 Imaging
Reader (ASHI, BioTek Instruments, Milan, Italy), after 24, 48, and 72 h. The cell survival in the presence
of 4a–t compounds was compared to nontreated cells.
4.6. Western Blotting
Protein lysates from striatal cell lines were used for sodium dodecyl sulfate-polyacrylamide gel
electrophoresis (SDS-PAGE) and western blot analyses. SDS-PAGE and western blots were carried
out according to standard procedures and in triplicate. Relative expressions, normalized to the
housekeeping protein, were quantified densitometrically using ImageJ Software (ImageJ; NIH).
4.7. Uptake Studies
To obtain STHdhQ111/111 cells (STHdhQ111/111) overexpressing OCTN2, STHdhQ111/111 were
transfected with plasmid DNA (solute carrier family 22 member 5 (SLC22A5) (NM_003060) Human
Untagged Clone) containing hOCTN2 cDNA (pCMV6-XL5/hOCTN2, Origene), and then selected
following a procedure already described [39]. STHdhQ111/111/hOCTN2 was used for uptake experiments
at a confluence of at least 70%. The uptake was measured at 37 ◦C and 4 ◦C in the presence of an
uptake buffer (125 mM NaCl, 25 mM HEPES pH 7.4, 5.6 mM glucose, 4.8 mM KCl, 1.2 mM KH2PO4,
1.2 mM CaCl2, and 1.2 mM MgSO4) containing 50 µM unlabeled THP, TCL, or (N-methyl-3H)-carnitine

Int. J. Mol. Sci. 2020, 21, 7431
14 of 19
(at 0.1 µ
M). A sodium-free transport medium was also used to assess the Na+-dependent uptake of the
tested compounds. A sodium-free transport medium was prepared by replacing 125 mM NaCl in the
transport medium with 125 mM N-methyl-d-glucamine (NMG) Cl; this was used to assess the cellular
uptake in the absence of Na+.
To evaluate the inhibitory effect of THP or TCL on the L-carnitine cell uptake, the
STHdhQ111/111/hOCTN2 monolayers were washed with uptake buffer and pre-incubated with THP
or TCL (10 or 100
addition of unlabeled carnitine (10
60 min incubation at 37 C. After STHdhQ111/111/hOCTN2 incubation with the different mixtures,
the culture medium or uptake buffer was removed and the cells were washed with ice-cold PBS.
Labeled carnitine was determined after cell lysis with 0.1% v/v Triton X-100 in 5 mM Tris-HCl, pH 7.4,
by liquid scintillation counting. For THP and TCL determination, the cells were solubilized with 4 mM
µ
M) for 15 min at 37 ◦C. The carnitine uptake was initiated by the simultaneous
µM) and (N-methyl-3H)-carnitine (0.1 µM; 12 kBq/mL) for a
◦
HClO4 or methanol and stored at
−
20◦ C. After centrifugation (1 min, 16,000 g, 20 ◦C) of the thawed
×
lysates, the supernatant was analyzed by ultra-performance liquid chromatography-tandem mass
spectrometry (UPLC/MS/MS) to determine the l-carnitine amount (given as the ratio to the control).
The protein concentration was determined by a BCA protein assay.
4.8. Evaluation of BBOX Inhibition by TCL
The assay procedure for the evaluation of BBOX activity, which has been described in detail
previously [40–42], was performed, measuring the formation of carnitine from gamma-butyrobetaine
(GBB). Human recombinant BBOX was used as an enzyme source. The reaction mixture (20 mM
potassium phosphate, pH 7.0, 20 mM potassium chloride, 3 mM 2-oxoglutarate, 0.25 mM ferrous
ammonium sulfate, 10 mM sodium ascorbate, 0.16 mg of catalase, 200
µM GBB, and 0.6
µg of BBOX)
was preincubated for 15 min in the presence or absence (control) of the tested inhibitor (100 or 1000
µM).
The reaction was initiated by adding GBB, and, to ensure the linear rate range, the mixture was
◦
incubated at 37 C for 30 min (human BBOX). The reaction was stopped with 0.8 mL of ice-cold
acetonitrile:methanol (1:3 v/v). The determination of carnitine was performed by ultraperformance
liquid chromatography−tandem mass spectrometry (UPLC/MS/MS) in a positive-ion electrospray.
4.9. Metabolic Fuel Flux Assays
Seahorse Glycolysis Stress and Mito Fuel Flex tests were carried out on a Seahorse XF24 Analyzer
(Agilent, Milan, Italy). All assays were performed following the manufacturer’s protocols at 24 h
post-incubation with medium alone, THP, or selected TCL. For the Glycolysis Stress Test, untreated
or treated STHdhQ111/111 were washed and equilibrated in the glycolysis stress test medium with
glutamine (2 mM) for 1 h. The experimental groups were also supplemented with the respective selected
compounds during the assay. The basal extracellular acidification rate (ECAR) was determined first.
Then, 10 mM glucose was injected, followed by 1 µM oligomycin (to inhibit oxidative phosphorylation),
with the glycolytic capacity calculated by subtracting the basal ECAR from the maximal rate following
both injections. The glucose-induced response was calculated by subtracting the basal ECAR from
the maximal ECAR after glucose injection. The resulting decrease in ECAR after the final injection of
2-deoxy-glucose, a glycolysis inhibitor, confirmed that the ECAR produced in the experiment was due
to glycolysis.
The oxygen consumption rate (OCR) in cultured STHdhQ111/111 was measured with Mito Fuel
Flex Tests on a Seahorse XF24 Analyzer following the manufacturer’s protocols. Briefly, the percent
capacity to use pyruvate for respiration was calculated by dividing the OCR from pyruvate alone by
the OCR with pyruvate, FA, and glutamine import inhibited. The Seahorse Mito Fuel Flex Test Kits
contains all three pathway inhibitors (UK5099, BPTES, and Etomoxir) for glucose, glutamine, and fatty
acids, respectively. The percent dependence on pyruvate was estimated from the difference in basal
OCR and pyruvate-blocked OCR divided by the basal OCR less the OCR after all FA and glutamine

Int. J. Mol. Sci. 2020, 21, 7431
15 of 19
importation was blocked with sequential injections of 2 µM UK5099, followed by a combined 4 µM
etomoxir and 3 µM bis-2(5-phenylacetamido-1,2,4-thiadiazol-2-yl)ethylsulfide (BPTES), respectively.
4.10. Drosophila Stocks
Flies were reared on standard corn meal agar with a 12 h on–off light cycle at 25 ◦C.
Fly stocks used in the current study were obtained from the Bloomington Stock Center
(Bloomington, IN, USA): 33808 w*; P{UAS-HTT.128Q.FL}f27b-8765 w;P{GAL4-elav.L}2-1521 w[*];
P{w[ + mC] = UAS-GFP.S65T}Myo31DF[T2].
4.11. THP Treatment and Crosses
THP-derived molecules (4i, 4j, 4k, and 4t) were added into the surface of the assay fly food (AF:
2% agar, 10% powdered yeast, 10% sucrose, and 0.1% Nipagin), and left under gentle agitation for 3 h
at room temperature until dried. This food was used for growing experimental flies, while the controls
were reared in AF supplemented with the vehicle alone. Water was supplemented in equal amounts
in all the food conditions. Based on the bipartite expression system upstream activator sequence
(UAS)-GAL4 [43] the expression of the UAS-HTT.128Q. FL gene was obtained by crossing females
carrying the pan-neural driver elav-Gal4 to males from the UAS HTT128QFL strain. The parental
strains elav/+ as well as UAS HTT128QFL and P{w[ + mC] = UAS-GFP.S65T}T2/P{GAL4-elav.L}2) were
used as controls. For all assays, only one sex was used in the study.
4.12. Lifespan Assay
Lifespan assay was carried out as previously described [44]. Briefly, newly emerged adult flies with
the desired genotype (P{UASHTT.128Q.FL}f27b/P{GAL4-elav.L}2) were collected under cold-induced
anesthesia, sorted by sex, grouped into five cohorts of 20 individuals in vials containing 3.5 mL of
AF supplemented or not with the different molecules, and reared at 28 ◦C. Subsequently, flies were
transferred to new vials, with fresh food once every three days. The lifespan was measured by recording
the number of dead flies at each transfer, until no living flies remained in the vials. Each lifespan
measurement used 100 flies, and this was repeated in three independent experiments per treatment.
The values obtained were used to calculate the mean lifespan (the mean survival days of all flies for
each group) and maximum lifespan (the maximum number of days needed to reach 90% mortality).
4.13. Negative Geotaxis Assay
Briefly, 20 sex-matched flies were placed in a graduated empty plastic vial (18 Å, 2.5 cm),
and allowed to recover for at least 60 min. Negative geotaxis was measured by recording the number
of flies that climbed above the 10 cm mark within 10 s after a tap-down of the flies to the bottom of the
vial. This assay was repeated for the same group two times, allowing for a 1 min rest period between
each trial. The number of flies per group that passed the 10 cm mark was recorded as a percentage of
total flies. Each trial was performed three times at each time point, and the data were expressed as an
average of the replicates (n = 300).
4.14. Statistical Analyses
All quantitative data were presented as the mean
±
SD, and the statistical significance was
evaluated using one-way ANOVA analysis, followed by a post hoc Bonferroni’s test for multiple
comparisons to determine any statistical differences between groups. Each experiment was performed
at least three times. Asterisks were used to indicate a significant difference from the controls (* p < 0.05,
** p < 0.01, and *** p < 0.001). All the data were analyzed with the GraphPad Prism v. 5.01 statistical
software package (GraphPad, La Jolla, CA, USA).

Int. J. Mol. Sci. 2020, 21, 7431
16 of 19
5. Conclusions
There is increasing experimental evidence that mutant Htt (mHtt) aggregates play an important
role in the pathogenesis of HD in human and model organisms [45 46]. Indeed, a key pathological
,
feature of HD is the aberrant accumulation of mHtt protein into high molecular weight complexes.
An increase of mHtt aggregates in mouse brain extracts concomitantly with the appearance of symptoms,
suggests that this quantitatively tracks disease progression. Mechanistic studies with an inducible
Drosophila model of HD indicated a correlation between the appearance of mHtt aggregates in adult
neurons and the reduced survival of HD flies, again supporting the hypothesis that mHtt aggregate
formation is a disease-relevant process [47].
Other studies indicated that mHtt is a druggable target as antagonizing mHtt protein aggregations
in HD cell and animal models can inhibit severe downstream phenotypic changes [48]. Many further
steps are needed to develop selected compounds for clinical use. Once a high-efficacy compound
has been identified by optimizing the structure of THP, additional screenings must be carried
out. For example, the compounds must be tested for their penetration of the blood–brain barrier,
the pharmacokinetic/pharmacodynamic properties, and the safety profiles for further drug discovery
purposes. Finally, we intend to continue our study on the selected molecules and to assess their ability
to affect PGC1α levels and activity.
Supplementary Materials: Supplementary materials can be found at http://www.mdpi.com/1422-0067/21/19/
7431/s1. Section 1 describes step-by-step synthetic process of TCL. Table S1. Amines used for the preparation
of 4a–t. Table S2. Ammonium salts 4a-t. Table S3. The different hOCTN2 protein residues involved in ligand
binding. Figure S1. Cell viability of STHdhQ7/7 and STHdhQ111/111 cell lines incubated for 72 h in presence of
50 µ
M of compounds. Figure S2. Kinetic profile of ECAR in STHdhQ111/111 cells treated with THP or selected TCL.
Author Contributions: Conceptualization, G.P. and C.S.; methodology, F.D.C., F.A.D., M.S.S., and C.R.;
investigation F.D.C., F.A.D., and C.R.; writing—original draft preparation, F.D.C., F.A.D., and A.C.; data curation
A.C., U.G., C.R, and M.A.B.M.; writing—review and editing, G.P. and A.C.; supervision, C.S., G.P., and A.C.;
funding acquisition, G.P. All authors have read and agreed to the published version of the manuscript.
Funding: This work was financially supported by the Italian Ministry of University and Research, PON 03
PE_00110_1/ptd1_000410 Titolo: Sviluppo di nanotecnologie Orientate alla Rigenerazione e Ricostruzione tissutale,
Implantologia e Sensoristica in Odontoiatria/oculistica (SORRISO) (approval date 02/01/2019); POR Campania
FESR 2014_2020 “Tecnologie abilitanti per la sintesi eco-sostenibile di nuovi materiali per la restaurativa
dentale”—ABILTECH (approval date 29 October 2018).
Acknowledgments: The authors gratefully acknowledge Orsolina Petillo and Daniela Cavaliere (IRET-CNR) for
their excellent technical support.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
Valentino, A.; Calarco, A.; Di Salle, A.; Finicelli, M.; Crispi, S.; Calogero, R.A.; Riccardo, F.; Sciarra, A.;
Gentilucci, A.; Galderisi, U.; et al. Deregulation of MicroRNAs mediated control of carnitine cycle in prostate
cancer: Molecular basis and pathophysiological consequences. Oncogene 2017, 36, 6030–6040. [CrossRef]
Karwi, Q.G.; Uddin, G.M.; Ho, K.L.; Lopaschuk, G.D. Loss of Metabolic Flexibility in the Failing Heart.
Front Cardiovasc. Med. 2018, 5, 68.
2.
3.
4.
Melone, M.A.B.; Valentino, A.; Margarucci, S.; Galderisi, U.; Giordano, A.; Peluso, G. The carnitine system
and cancer metabolic plasticity. Cell Death Dis. 2018, 9, 228. [CrossRef]
Simkhovich, B.Z.; Shutenko, Z.V.; Meirena, D.V.; Khagi, K.B.; Mezapuke, R.J.; Molodchina, T.N.; Kalvins, I.J.;
Lukevics, E. 3-(2,2,2-Trimethylhydrazinium)propionate (THP)–a novel gamma-butyrobetaine hydroxylase
inhibitor with cardioprotective properties. Biochem. Pharmacol. 1988, 37, 195–202. [CrossRef]
Zhvavyi, N.F.; Kozlov, A.I.; Kudriashov, S.I. Topographic and quantitative characteristics of adipose tissue in
various aborigines of Siberia (women). Arkh. Anat. Gistol. Embriol. 1989, 97, 85–89.
Liepinsh, E.; Vilskersts, R.; Zvejniece, L.; Svalbe, B.; Skapare, E.; Kuka, J.; Cirule, H.; Grinberga, S.; Kalvinsh, I.;
Dambrova, M. Protective effects of mildronate in an experimental model of type 2 diabetes in Goto-Kakizaki
rats. Br. J. Pharmacol. 2009, 157, 1549–1556. [CrossRef]
5.
6.

Int. J. Mol. Sci. 2020, 21, 7431
17 of 19
7.
8.
9.
Liepinsh, E.; Vilskersts, R.; Skapare, E.; Svalbe, B.; Kuka, J.; Cirule, H.; Pugovics, O.; Kalvinsh, I.; Dambrova, M.
Mildronate decreases carnitine availability and up-regulates glucose uptake and related gene expression in
the mouse heart. Life Sci. 2008, 83, 613–619. [CrossRef] [PubMed]
Liepinsh, E.; Kuka, J.; Svalbe, B.; Vilskersts, R.; Skapare, E.; Cirule, H.; Pugovics, O.; Kalvinsh, I.; Dambrova, M.
Effects of long-term mildronate treatment on cardiac and liver functions in rats. Basic Clin. Pharmacol. Toxicol.
2009, 105, 387–394. [CrossRef] [PubMed]
Di Cristo, F.; Finicelli, M.; Digilio, F.A.; Paladino, S.; Valentino, A.; Scialo, F.; D’Apolito, M.; Saturnino, C.;
Galderisi, U.; Giordano, A.; et al. Meldonium improves Huntington’s disease mitochondrial dysfunction by
restoring peroxisome proliferator-activated receptor gamma coactivator 1alpha expression. J. Cell. Physiol.
2019, 234, 9233–9246. [CrossRef]
10. Singh, S.P.; Schragenheim, J.; Cao, J.; Falck, J.R.; Abraham, N.G.; Bellner, L. PGC-1 alpha regulates HO-1
expression, mitochondrial dynamics and biogenesis: Role of epoxyeicosatrienoic acid. Prostaglandins Other
Lipid. Mediat. 2016, 125, 8–18. [CrossRef]
11. Spaniol, M.; Brooks, H.; Auer, L.; Zimmermann, A.; Solioz, M.; Stieger, B.; Krahenbuhl, S. Development and
characterization of an animal model of carnitine deficiency. Eur. J. Biochem. 2001, 268, 1876–1887. [CrossRef] [PubMed]
12. Hayashi, Y.; Muranaka, Y.; Kirimoto, T.; Asaka, N.; Miyake, H.; Matsuura, N. Effects of MET-88,
a gamma-butyrobetaine hydroxylase inhibitor, on tissue carnitine and lipid levels in rats. Biol. Pharm. Bull.
2000, 23, 770–773. [CrossRef] [PubMed]
13. Karkkainen, O.; Tuomainen, T.; Koistinen, V.; Tuomainen, M.; Leppanen, J.; Laitinen, T.; Lehtonen, M.; Rysa, J.;
Auriola, S.; Poso, A.; et al. Whole grain intake associated molecule 5-aminovaleric acid betaine decreases
beta-oxidation of fatty acids in mouse cardiomyocytes. Sci. Rep. 2018, 8, 13036. [CrossRef] [PubMed]
14. Weydt, P.; Pineda, V.V.; Torrence, A.E.; Libby, R.T.; Satterfield, T.F.; Lazarowski, E.R.; Gilbert, M.L.; Morton, G.J.;
Bammler, T.K.; Strand, A.D.; et al. Thermoregulatory and metabolic defects in Huntington’s disease transgenic
mice implicate PGC-1alpha in Huntington’s disease neurodegeneration. Cell. Metab. 2006, 4, 349–362. [CrossRef]
15. Melone, M.A.; Jori, F.P.; Peluso, G. Huntington’s disease: New frontiers for molecular and cell therapy.
Curr. Drug Targets 2005, 6, 43–56. [CrossRef]
16. Melone, M.A.; Calarco, A.; Petillo, O.; Margarucci, S.; Colucci-D’Amato, L.; Galderisi, U.; Koverech, G.;
Peluso, G. Mutant huntingtin regulates EGF receptor fate in non-neuronal cells lacking wild-type protein.
Biochim. Biophys. Acta 2013, 1832, 105–113. [CrossRef]
17. Grube, M.; Meyer zu Schwabedissen, H.E.; Prager, D.; Haney, J.; Moritz, K.U.; Meissner, K.; Rosskopf, D.; Eckel, L.;
Bohm, M.; Jedlitschky, G.; et al. Uptake of cardiovascular drugs into the human heart: Expression, regulation,
and function of the carnitine transporter OCTN2 (SLC22A5). Circulation 2006, 113, 1114–1122. [CrossRef]
18. Dambrova, M.; Makrecka-Kuka, M.; Vilskersts, R.; Makarova, E.; Kuka, J.; Liepinsh, E. Pharmacological
effects of meldonium: Biochemical mechanisms and biomarkers of cardiometabolic activity. Pharmacol. Res.
2016, 113, 771–780. [CrossRef]
19. Lu, B.; Palacino, J. A novel human embryonic stem cell-derived Huntington’s disease neuronal model
exhibits mutant huntingtin (mHTT) aggregates and soluble mHTT-dependent neurodegeneration. FASEB J.
2013, 27, 1820–1829. [CrossRef]
20. Xi, W.; Wang, X.; Laue, T.M.; Denis, C.L. Multiple discrete soluble aggregates influence polyglutamine
toxicity in a Huntington’s disease model system. Sci. Rep. 2016, 6, 34916. [CrossRef]
21. Yu, M.; Fu, Y.; Liang, Y.; Song, H.; Yao, Y.; Wu, P.; Yao, Y.; Pan, Y.; Wen, X.; Ma, L.; et al. Suppression of
MAPK11 or HIPK3 reduces mutant Huntingtin levels in Huntington’s disease models. Cell Res. 2017, 27,
1441–1465. [CrossRef] [PubMed]
22. Choi, J.Y.; Jang, H.M.; Park, J.; Kim, Y.S.; Kang, S.W.; Yang, C.W.; Kim, N.H.; Cho, J.H.; Park, S.H.;
Kim, C.D.; et al. Clinical Research Center for End Stage Renal Disease, I., Survival advantage of peritoneal
dialysis relative to hemodialysis in the early period of incident dialysis patients: A nationwide prospective
propensity-matched study in Korea. PLoS ONE 2013, 8, e84257. [CrossRef] [PubMed]
23. Trushina, E.; Canaria, C.A.; Lee, D.Y.; McMurray, C.T. Loss of caveolin-1 expression in knock-in mouse
model of Huntington’s disease suppresses pathophysiology in vivo. Hum. Mol. Genet. 2014, 23, 129–144.
[CrossRef] [PubMed]
24. Romero, N.M.; Irisarri, M.; Roth, P.; Cauerhff, A.; Samakovlis, C.; Wappner, P. Regulation of the Drosophila
hypoxia-inducible factor alpha Sima by CRM1-dependent nuclear export. Mol. Cell. Biol. 2008, 28, 3410–3423. [CrossRef]

Int. J. Mol. Sci. 2020, 21, 7431
18 of 19
25. Legan, S.K.; Rebrin, I.; Mockett, R.J.; Radyuk, S.N.; Klichko, V.I.; Sohal, R.S.; Orr, W.C. Overexpression of
glucose-6-phosphate dehydrogenase extends the life span of Drosophila melanogaster. J. Biol. Chem. 2008
283, 32492–32499. [CrossRef]
,
26. Besson, M.T.; Alegria, K.; Garrido-Gerter, P.; Barros, L.F.; Lievens, J.C. Enhanced neuronal glucose transporter
expression reveals metabolic choice in a HD Drosophila model. PLoS ONE 2015, 10, e0118765. [CrossRef]
27. Randle, P.J.; Garland, P.B.; Hales, C.N.; Newsholme, E.A. The glucose fatty-acid cycle. Its role in insulin
sensitivity and the metabolic disturbances of diabetes mellitus. Lancet 1963, 1, 785–789. [CrossRef]
28. Lundsgaard, A.M.; Fritzen, A.M.; Nicolaisen, T.S.; Carl, C.S.; Sjoberg, K.A.; Raun, S.H.; Klein, A.B.;
Sanchez-Quant, E.; Langer, J.; Orskov, C.; et al. Glucometabolic consequences of acute and prolonged
inhibition of fatty acid oxidation. J. Lipid Res. 2020, 61, 10–19. [CrossRef]
29. Grigat, S.; Fork, C.; Bach, M.; Golz, S.; Geerts, A.; Schomig, E.; Grundemann, D. The carnitine transporter
SLC22A5 is not a general drug transporter, but it efficiently translocates mildronate. Drug Metab. Dispos.
2009, 37, 330–337. [CrossRef]
30. Pochini, L.; Galluccio, M.; Scalise, M.; Console, L.; Indiveri, C. OCTN: A Small Transporter Subfamily
with Great Relevance to Human Pathophysiology, Drug Discovery, and Diagnostics. SLAS Discov. 2019
24, 89–110. [CrossRef]
,
31. Polyzos, A.A.; Lee, D.Y.; Datta, R.; Hauser, M.; Budworth, H.; Holt, A.; Mihalik, S.; Goldschmidt, P.;
Frankel, K.; Trego, K.; et al. Metabolic Reprogramming in Astrocytes Distinguishes Region-Specific Neuronal
Susceptibility in Huntington Mice. Cell. Metab. 2019, 29, 1258–1273. [CrossRef] [PubMed]
32. Pinho, B.R.; Reis, S.D.; Hartley, R.C.; Murphy, M.P.; Oliveira, J.M.A. Mitochondrial superoxide generation
induces a parkinsonian phenotype in zebrafish and huntingtin aggregation in human cells. Free Radic.
Biol. Med. 2019, 130, 318–327. [CrossRef] [PubMed]
33. Yu, M.; Li, X.; Wu, S.; Shen, J.; Tu, J. Examination of Huntington’s disease in a Chinese family. Neural Regen. Res.
2014, 9, 440–446. [PubMed]
34. Kelley, L.A.; Mezulis, S.; Yates, C.M.; Wass, M.N.; Sternberg, M.J. The Phyre2 web portal for protein modeling,
prediction and analysis. Nat. Protoc. 2015, 10, 845–858. [CrossRef]
35. Goodsell, D.S.; Morris, G.M.; Olson, A.J. Automated docking of flexible ligands: Applications of AutoDock.
J. Mol. Recognit. 1996, 9, 1–5. [CrossRef]
36. Sanner, M.F.; Duncan, B.S.; Carrillo, C.J.; Olson, A.J. Integrating computation and visualization for
biomolecular analysis: An example using python and AVS. In Biocomputing ’99, Proceedings of the Pacific
Symposium on Biocomputing, Mauna Lani, HI, USA, 4–9 January 1999; Altman, R.B., Lauderdale, K., Dunker, A.K.,
Hunter, L., Klein, T.E., Eds.; World Scientific Publishing: Singapore, 1999; pp. 401–412.
37. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF
Chimera–a visualization system for exploratory research and analysis. J. Comput. Chem. 2004, 25, 1605–1612.
[CrossRef] [PubMed]
38. Gines, S.; Ivanova, E.; Seong, I.S.; Saura, C.A.; MacDonald, M.E. Enhanced Akt signaling is an early
pro-survival response that reflects N-methyl-d-aspartate receptor activation in Huntington’s disease knock-in
striatal cells. J. Biol. Chem. 2003, 278, 50514–50522. [CrossRef] [PubMed]
39. Tamai, I.; China, K.; Sai, Y.; Kobayashi, D.; Nezu, J.; Kawahara, E.; Tsuji, A. Na(+)-coupled transport
of l-carnitine via high-affinity carnitine transporter OCTN2 and its subcellular localization in kidney.
Biochim. Biophys. Acta 2001, 1512, 273–284. [CrossRef]
40. Tars, K.; Leitans, J.; Kazaks, A.; Zelencova, D.; Liepinsh, E.; Kuka, J.; Makrecka, M.; Lola, D.; Andrianovs, V.;
Gustina, D.; et al. Targeting carnitine biosynthesis: Discovery of new inhibitors against gamma-butyrobetaine
hydroxylase. J. Med. Chem. 2014, 57, 2213–2236. [CrossRef] [PubMed]
41. Lindstedt, G.; Lindstedt, S. Cofactor requirements of gamma-butyrobetaine hydroxylase from rat liver.
J. Biol. Chem. 1970, 245, 4178–4186.
42. Leung, I.K.; Krojer, T.J.; Kochan, G.T.; Henry, L.; von Delft, F.; Claridge, T.D.; Oppermann, U.;
McDonough, M.A.; Schofield, C.J. Structural and mechanistic studies on gamma-butyrobetaine hydroxylase.
Chem. Biol. 2010, 17, 1316–1324. [CrossRef] [PubMed]
43. Brand, A.H.; Perrimon, N. Targeted gene expression as a means of altering cell fates and generating dominant
phenotypes. Development 1993, 118, 401–415. [PubMed]
44. Bovier, T.F.; Cavaliere, D.; Colombo, M.; Peluso, G.; Giordano, E.; Digilio, F.A. Methods to Test Endocrine
Disruption in Drosophila melanogaster. J. Vis. Exp. 2019, e59535. [CrossRef]

Int. J. Mol. Sci. 2020, 21, 7431
19 of 19
45. Babcock, D.T.; Ganetzky, B. Transcellular spreading of huntingtin aggregates in the Drosophila brain.
Proc. Natl. Acad. Sci. USA 2015, 112, 5427–5433. [CrossRef]
46. Pecho-Vrieseling, E.; Rieker, C.; Fuchs, S.; Bleckmann, D.; Esposito, M.S.; Botta, P.; Goldstein, C.; Bernhard, M.;
Galimberti, I.; Muller, M.; et al. Transneuronal propagation of mutant huntingtin contributes to non-cell
autonomous pathology in neurons. Nat. Neurosci. 2014, 17, 1064–1072. [CrossRef] [PubMed]
47. Ast, A.; Buntru, A.; Schindler, F.; Hasenkopf, R.; Schulz, A.; Brusendorf, L.; Klockmeier, K.; Grelle, G.;
McMahon, B.; Niederlechner, H.; et al. mHTT Seeding Activity: A Marker of Disease Progression and
Neurotoxicity in Models of Huntington’s Disease. Mol. Cell. 2018, 71, 675–688. [CrossRef] [PubMed]
48. Kim, S.; Kim, K.T. Therapeutic Approaches for Inhibition of Protein Aggregation in Huntington’s Disease.
Exp. Neurobiol. 2014, 23, 36–44. [CrossRef] [PubMed]
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
