Molecules 2013, 18, 11783-11796; doi:10.3390/molecules181011783
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Communication
Design and Synthesis of a Biotinylated Chemical Probe for
Detecting the Molecular Targets of an Inhibitor of the Production
of the Pseudomonas aeruginosa Virulence Factor Pyocyanin
Ysobel R. Baker, Warren R. J. D. Galloway, James T. Hodgkinson and David R. Spring *
Department of Chemistry, University of Cambridge, Lensfield Road, Cambridge CB2 1EW, UK;
E-Mails: yrb20@cam.ac.uk (Y.R.B.); wrjdg2@cam.ac.uk (W.R.J.D.G.); jth26@cam.ac.uk (J.T.H.)
* Author to whom correspondence should be addressed; E-Mail: spring@ch.cam.ac.uk;
Tel.: +44-(0)-1223-336-498; Fax: +44-(0)-1223-336-362.
Received: 5 August 2013; in revised form: 9 September 2013 / Accepted: 17 September 2013 /
Published: 25 September 2013
Abstract: Pseudomonas aeruginosa is a human pathogen associated with a variety of
life-threatening nosocomial infections. This organism produces a range of virulence factors
which actively cause damage to host tissues. One such virulence factor is pyocyanin,
known to play a crucial role in the pathogenesis of P. aeruginosa infections. Previous
studies had identified a novel compound capable of strongly inhibiting the production of
pyocyanin. It was postulated that this inhibition results from modulation of an intercellular
communication system termed quorum sensing, via direct binding of the compound with
the LasR protein receptor. This raised the possibility that the compound could be an
antagonist of quorum sensing in P. aeruginosa, which could have important implications
as this intercellular signaling mechanism is known to regulate many additional facets of
P. aeruginosa pathogenicity. However, there was no direct evidence for the binding of the
active compound to LasR (or any other targets). Herein we describe the design and
synthesis of a biotin-tagged version of the active compound. This could potentially be used
as an affinity-based chemical probe to ascertain, in a direct fashion, the active compound’s
macromolecular biological targets, and thus better delineate the mechanism by which it
reduces the level of pyocyanin production.
Keywords: quorum sensing; Pseudomonas aeruginosa; anti-bacterial; target identification;
virulence factor

Molecules 2013, 18
11784
1. Introduction
Pseudomonas aeruginosa is an opportunist Gram-negative human pathogen responsible for a
variety of nosocomical infections and life-threatening diseases in immunocompromised and debilitated
patients [1,2]. P. aeruginosa infections are notoriously difficult to eradicate, which has been attributed
to the predilection of P. aeruginosa cells to form antibiotic-resistant biofilms, and high levels of
intrinsic antibiotic resistance [1–3]. Indeed, multi-drug resistance P. aeruginosa nosocomical
infections are increasingly being detected across the globe [4]. Thus the exploration of new strategies
for tackling infections caused by this notorious pathogen is urgently warranted [1,2,5]. The ability of
P. aeruginosa to cause disease is dependent upon the production of agents called ‘virulence factors’
that actively cause damage to host tissues [1,6–8]. The targeting of virulence factors (for example,
inhibition of their production) has been identified as a potential new therapeutic approach to treating
P. aeruginosa infections; in principle, this would attenuate the pathogenicity of the bacterium,
increasing the likelihood that the host immune system can clear the infection before too much tissue
damage is caused [1,7,9–11]. One of the many virulence factors produced by P. aeruginosa is
pyocyanin (Figure 1) [12]. There is a large body of evidence that this low molecular weight redox-active
phenazine dye is important to the pathogenesis of P. aeruginosa infections [1,5,12–14]. Unsurprisingly
therefore, the inhibition of pyocyanin production has been identified as a potential antivirulence
strategy against this organism [1,5,14,15]. Indeed, there has been much interest in the discovery of
compounds with the ability to inhibit pyocyanin biosynthesis in recent years [1,16–20].
Figure 1. BHL and OdDHL are two natural AHL autoinducers used by P. aeruginosa in
quorum sensing. Pyocyanin is a virulence factor produced by P. aeruginosa. Compound 1,
an abiotic OdDHL-mimic, is capable of strongly inhibiting the production of pyocyanin in
cultures of wild type P. aeruginosa [1].
Pyocyanin production in P. aeruginosa is regulated by an intercellular signaling process known as
quorum sensing [21,22]. Many species of bacteria use quorum sensing systems, which allows for
concerted interactions between the cells comprising a population [9]. This communication process is
mediated by small diffusible signaling molecules termed autoinducers [9,20,23]. In the majority of
Gram-negative species, N-acylated-L-homoserines (AHLs) serve as the autoinducers [20,23]. These are
produced by LuxI-type synthase enzymes and bind to cyctoplasmic LuxR-type receptors to initiate the
expression of genes associated with bacterial group processes [1,20,23–25]. In general, each bacterial
species responds specifically to its own unique AHL(s), and uses different LuxI-type synthases and

Molecules 2013, 18
11785
LuxR-type receptors [23,26]. Two AHL-based quorum sensing systems are present in P. aeruginosa.
One employs N-butanoyl-L-homoserine lactone (BHL, Figure 1) as the signaling molecule (generated
by RhlI and detected by RhlR) and the other uses N-(3-oxododecanoyl)-L-homoserine lactone
(OdDHL, Figure 1, generated by LasI with LasR as the cognate receptor). There is a third quorum
sensing system in P. aeruginosa which employs a chemically distinct autoinducer (termed the
Pseudomonas quinolone signal, PQS). The PQS system is interlinked with the two AHL-based systems,
forming an intricate hierarchical quorum sensing network, with the las system generally regarded as
standing at the apex [1,23,27,28]. The production of pyocyanin is regulated by RhlR and transcription
of the rhlR gene itself is regulated by LasR [1,21]. Thus, inhibitors of LasR would be expected to attenuate
the biosynthesis of pyocyanin [1,20,23,29–31]. The structure of OdDHL, the natural LasR agonist, has
often been used as a template to guide the design and synthesis of abiotic LasR antagonists [1,11,16,20,23].
We recently reported the synthesis of OdDHL analogues containing non-native head groups in place of
the natural homoserine lactone moiety [1]. These compounds were evaluated for their ability to inhibit
the production of pyocyanin in cultures of wild type P. aeruginosa, with 1 (Figure 1) found to be the
most potent (note that compound 1 was not screened in any LasR-based reporter systems).
Given that 1 is closely related in structure to OdDHL (which is known to interact with the LasR
receptor) and the fact that pyocyanin production is generally considered to be regulated by LasR-based
quorum sensing, it was postulated that 1 reduces the level of pyocyanin production by disrupting
OdDHL-dependent activation of LasR [1]. Experimental evidence suggested that 1 is capable of
binding to LasR and it was inferred that 1 might be an antagonist of the LasR receptor and an inhibitor
of LasR-based quorum sensing in P. aeruginosa. This could have important implications; quorum
sensing is known to regulate many additional facets of P. aeruginosa pathogenicity [15,32–34] and
there is tremendous interest in finding small molecules that can disrupt AHL-mediated signaling in this
organism [9,20,23]. However, our previous studies did not provide any direct evidence for an
interaction between compound 1 and the LasR receptor, or indeed any other molecular targets. We
were therefore interested in examining the molecular basis for the activity of 1 in more detail. Such
information should assist in the design of next-generation agents with improved potency. Towards this
end, we envisaged the design and synthesis of an affinity-based (“pull down”) chemical probe
incorporating 1. This could potentially be employed in affinity-based (“pull down”) proteomic assays
in order to directly detect the biological target(s) of 1 and thus better delineate the mechanism by
which it reduces the level of pycocyanin production in P. aeruginosa [35–41].
2. Results and Discussion
2.1. Probe Design
Typically, affinity-based probes are composed of the biologically active molecule of interest
tethered via a chemical linker to an insoluble support [38]. Usually, the probe is then incubated with
the cell lysate of the relevant organism [42]. The small molecule’s macromolecular targets can then be
extracted by virtue of specific binding; washing steps are used to remove non-binding proteins, and the
remaining high affinity binders can be eluted from the support, separated using polyacrylaminde gel
electrophoresis and identified using various mass spectrometry techniques [35–37,42]. Biotin is often used

Molecules 2013, 18
11786
as an equivalent of an insoluble support (“tag”) in affinity probes, since immobilization on streptavidin
beads (either before or after incubation with the biological system) is possible by virtue of the strong
non-covalent biotin-streptavidin interaction [35,37,42]. Indeed, biotinylated probes have been widely used
for the identification of many small molecule biological targets [38]. An advantage of biotinylated
probes over solid-phase supports in that they are often cell permeable. Thus in addition to carrying out
experiments using cell lysates, it is also possible for such probes to be incubated with live cells and
interact with target protein(s) in their native environment inside a living cell or organism [37]. After cell
lysis the probe can be pulled out of solution with streptavidin resin, which will also pull out any bound
protein(s) [37]. Based on these considerations, we targeted the synthesis of 2 (Figure 2), a biotinylated
affinity probe that could potentially be used for detecting the molecular targets of the active compound 1.
Figure 2. The target biotinylated affinity probe.
It was decided to use a polyethylene glycol (PEG)-based chain as the linker. PEG chains are
commonly employed in this regard; they are usually long enough to mitigate undesired steric
interactions steric hindrance between the support and small molecule-biomolecule interactions [38]
and flexible enough to allow the target molecule to adopt multiple orientations in three-dimensions
(and so access a favorable macromolecular binding pose). Furthermore, PEG linkers are also hydrophilic,
increasing the solubility of molecules in aqueous solution [38]. A crucial consideration when preparing
an affinity-based probe is where on the molecule of interest the linker should be introduced, as it is
important that its’ biological activity is not affected significantly [38]. Our previous studies [1]
indicated that further substitution of the aromatic ring portion would not be appropriate, as the nature
of the aromatic head group was found to have a profound effect upon the ability of OdDHL-mimics of the
type of 1 to inhibit pyocyanin production (with strongest inhibition associated with the meta-methoxy
aromatic ring of 1). There exists a subtle interplay between the structural and electronic properties of
the aromatic ring group governing compound activity, meaning that the impact of further substitution
could not be reliably predicted. Furthermore, evidence suggests that the natural 3-oxo-dodecanoyl tail
group of OdDHL is important for the inhibition of pyocyanin production by compounds which mimic
the structure of AHLs. We therefore decided to retain the dicarbonyl unit and the nine-carbon alkyl
chain, and attach the linker at the end of the alkyl chain.
2.2. Probe Synthesis
The synthesis of compound 2 (Scheme 1) began with the reaction of 2-(2-(2-chloroethoxy)ethoxy)-
ethanol and sodium azide, which furnished azide 3 in quantitative yield. The desired nine-carbon
alkyl chain was installed by reaction deprotonation of the hydroxyl group and treatment with
10-bromodecanoic acid.

Molecules 2013, 18
Scheme 1. The synthesis of biotin-tagged affinity probe 2. rt = room temperature.
11787

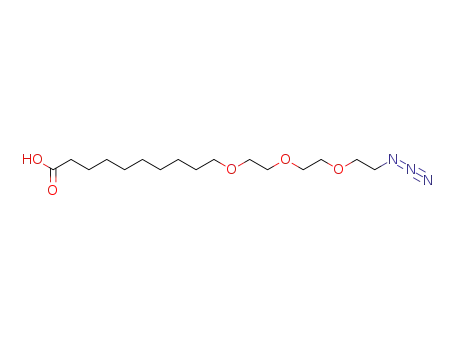

The resulting acid 4 was converted to the corresponding acid chloride and reacted with Meldrum’s
acid to generate adduct 5. Subsequent treatment of this crude material with methanol yielded β-ketoester 6.
Acetal protection to form 7 was followed by reduction of the azide group to yield 8. Subsequent
HATU-mediated coupling with D-biotin proceeded smoothly to generate the protected ester 9.
Hydrolysis using lithium hydroxide provided the carboxylate 10. HATU-mediated coupling of 10 with
m-anisidine furnished the protected precursor 11 in reasonable yield. Finally, acid-catalyzed
deprotection provided the desired compound 2.
Typical affinity-based pull down assays involve the use of one-dimensional (1D) gel electrophoresis
to separate proteins binding to the bioactive molecule under investigation. However, this method can
suffer from a lack of sensitivity. We have previously proposed a strategy to address this issue based

Molecules 2013, 18
11788
around combining biotin-mediated affinity capture from cell lysates with 2D difference gel
electrophoresis (DIGE) [42]. This method of electrophoresis should allow a greater sensitivity
compared to 1D techniques and thus facilitate the identification of weak binding-protein targets [42].
Conceivably, such an approach could be used with the affinity probe 2 in order to elucidate molecular
targets for the anti-pyocyanin compound 1.
3. Experimental
3.1. General
Reactions were performed using oven-dried glassware under an atmosphere of nitrogen with
anhydrous, freshly distilled solvents unless otherwise stated. Dichloromethane, ethyl acetate,
methanol, n-hexane, acetonitrile and toluene were distilled from calcium hydride. Diethyl ether was
distilled over a mixture of lithium aluminium hydride and calcium hydride. Petroleum ether was
distilled before use and refers to the fraction between 40–60 °C. All other reagents were used as
obtained from commercial sources. Room temperature (rt) refers to ambient temperature.
Temperatures of 0 °C were maintained using an ice-water bath. Reaction times are given either in
hours (h) or minutes (min) or overnight (approximately 12 h) Yields refer to chromatographically and
spectroscopically pure compounds unless otherwise stated. All flash chromatography was carried out
using slurry-packed Merck 9325 Keiselgel 60 silica gel. Where possible, reactions were monitored by
thin layer chromatography (TLC) performed on commercially prepared glass plates pre-coated with
Merck silica gel 60 F254 or aluminium oxide 60 F254. Visualisation was by the quenching of UV
fluorescence (νmax = 254 nm) or by staining with potassium permanganate. Infrared spectra were
recorded neat or as a solution in the designated solvent on a Perkin-Elmer Spectrum One spectrometer
with internal referencing. Selected absorption maxima (νmax) are reported in wavenumbers (cm−1).
Proton magnetic resonance spectra were recorded using an internal deuterium lock at ambient probe
temperatures (unless otherwise stated) on the following instruments: Bruker DPX-400 (400 MHz),
Bruker Avance 400 QNP (400 MHz) Bruker Avance 500 BB ATM (500 MHz) and Bruker Avance
500 Cryo Ultrashield (500 MHz). Chemical shifts (δH) are quoted in ppm, to the nearest 0.01 ppm, and
are referenced to the residual non-deuterated solvent peak. Coupling constants (J) are reported in
Hertz. Data are reported as follows: chemical shift, integration, multiplicity [br, broad; s, singlet; d,
doublet; t, triplet; q, quartet; quint, quintet; sext, sextet; sept, septet; m, multiplet; or as a combination
of these (e.g., dd, dt, etc.)], coupling constant(s) and assignment. Proton assignments were determined
either on the basis of unambiguous chemical shift or coupling pattern, by patterns observed in 2D
experiments (1H-1H COSY, HMBC and HMQC) or by analogy to fully interpreted spectra for related
compounds. Carbon magnetic resonance spectra were recorded by broadband proton spin decoupling
at ambient probe temperatures (unless otherwise stated) using an internal deuterium lock on the
following instruments: Bruker DPX-400 (100 MHz), Bruker Avance 400 QNP (100 MHz) and Bruker
Avance 500 BB ATM (125 MHz) and Bruker Avance 500 Cryo Ultrashield (125 MHz). Chemical
shifts (δC) are quoted in ppm, to the nearest 0.1 ppm, and are referenced to the residual non-deuterated
solvent peak. Assignments were supported by DEPT editing and determined either on the basis of
unambiguous chemical shift or coupling pattern, by patterns observed in 2D experiments (HMBC and

Molecules 2013, 18
11789
HMQC) or by analogy to fully interpreted spectra for related compounds. The ionisation technique
used was electron ionisation (EI). High resolution mass spectroscopy measurements were recorded
in-house using a Waters LCT Premier Mass Spectrometer or a Micromass Quadrapole-Time of Flight
(Q-ToF) spectrometer. Mass values are reported within the error limits of ±5 ppm mass units. The
ionisation technique used was electrospray ionization (ESI). Optical rotations were measured in MeOH
on a Perkin Elmer 343 Polarimeter; [α]D values are reported in 10−1 degrees cm2 g−1 at 589 nm.
3.2. Experimental Procedures
2-(2-(2-Azidoethoxy)ethoxy)ethanol (3). To a solution of NaN3 (2.06 g, 32.7 mmol, 1.4 eq.) in DMF
(10 mL) was added 2-(2-(2-chloroethoxy)ethoxy)ethanol (4 g, 23.8 mmol 1 eq.). The reaction mixture was
stirred at 100 °C for 5 h and evaporated to dryness. The resulting residue was partitioned between CH2Cl2
(20 mL) and water (20 mL). The aqueous phase was extracted twice more with CH2Cl2 (2 × 50 mL), the
organic layers combined, dried over MgSO4 and evaporated to dryness to give 3 as a pale yellow oil
(4.21 g, 24 mmol, 100%) which was used without further purification. Rf 0.16 (70% EtOAc/bp
1
40–60 petroleum ether); νmax (neat)/cm−1: 3400 (broad, O-H), 2869 (C-H), 2099 (N3); H-NMR
(400 MHz, CDCl3) δH 3.73 (2H, t, J = 5.5 Hz, CH2OH), 3.69-3.65 (6H, m, 3 × CH2O), 3.61 (2H, t,
J = 4.6 Hz, CH2O), 3.30 (2H, t, J = 5.0 Hz, CH2N3), 2.36 (1H, t, J = 6.2 Hz, CH2OH); 13C-NMR
(101 MHz, CDCl3) δC 72.6 (CH2O), 70.7 (CH2O), 70.5 (CH2O), 70.2 (CH2O), 61.9 (CH2OH), 50.8 (CH2N3).
10-(2-(2-(2-Azidoethoxy)ethoxy)ethoxy)decanoic acid (4). A solution of bromodecanoic acid (909 mg,
5.2 mmol, 1 eq.), NaI (78 mg, 0.52 mmol, 0.1 eq.) and compound 3 (1.3 g, 5.2 mmol, 1 eq.) in dry
DMF (10 mL) was cooled to 0 °C and NaH (60% dispersion in mineral oil, 520 mg, 13 mmol, 2.5 eq.)
was added piecewise. After 20 min the reaction mixture was heated to 55 °C and stirred overnight
forming an orange gel. The solvent was removed under reduced pressure and the residue was
partitioned between HClaq (100 mL) and Et2O (100 mL). The aqueous phase was extracted with Et2O
(2 × 100 mL), the combined organic layers dried over MgSO4 and evaporated to dryness. The resulting
residue was purified by column chromatography (stepwise gradient, 0%–40% Et2O/bp 40–60
petroleum ether with 1% acetic acid) to yield 4 (0.789 g, 1.78 mmol, 44%) as a colourless oil. Rf: 0.34
(40% EtOAc/bp 40–60 petroleum ether, 1% acetic acid); νmax (neat)/cm−1: 3400 (O-H), 2927 (C-H),
1
2856 (C-H), 2100 (N3), 1708 (C=O); H-NMR (500 MHz, CDCl3) δH 3.70–3.64 (8H, m, 4 × OCH2),
3.59 (2H, app dd, J = 6.0, 3.8 Hz, OCH2), 3.45 (2H, t, J = 6.8 Hz, OCH2), 3.39 (2H, t, J = 5.1 Hz,
CH2N3), 2.34 (2H, t, J = 7.5 Hz, HOOCCH2), 1.80–1.50 (4H, m, HOOCCH2CH2 and CH2CH2CH2O),
1.31 (10H, d, J = 18.8 Hz, 5 × CH2); 13C-NMR (126 MHz, CDCl3) δC 178.3 (HOOCCH2) 71.7
(CH2O), 70.9 (CH2O), 70.9 (CH2O), 70.8 (CH2O), 70.2 (CH2O), 70.2(CH2O), 50.9 (CH2N3), 33.9
(HOOCCH2), 29.7 (CH2), 29.5 (CH2), 29.4 (CH2), 29.2 (CH2), 29.1 (CH2), 26.2 (CH2), 24.8
(HOOCCH2CH2); HRMS (ESI+) m/z found [M+H]+ 346.2354, [C16H32N3O5]+ calculated 345.2342.
Methyl 12-(2-(2-(2-azidoethoxy)ethoxy)ethoxy)-3-oxododecanoate (6) To a solution of compound 4
(242 mg, 0.70 mmol, 1 eq) in dry CH2Cl2 (1.5 mL) at rt was added oxalyl chloride (100 μL,
1.19 mmol, 1.7 eq.) and DMF (10 μL). After stirring at rt for 1 h TLC indicated complete turnover
(small samples of the reaction mixture were quenched with MeOH), the solvent was removed under
reduced pressure and the acid chloride was used without further purification. A solution of Meldrum’s

Molecules 2013, 18
11790
acid (101 mg, 0.7 mmol, 1 eq.) in dry CH2Cl2 (1.6 mL) was cooled to 0 °C and pyridine (114 μL,
1.4 mmol, 2 eq.) was added dropwise over 20 min. The acid chloride in CH2Cl2 (1 mL) was then added
and the mixture was stirred at 0 °C for a further 2 h. The reaction mixture was allowed to warm to rt
diluted with CH2Cl2 (10 mL) and poured into ice HCl (2N, 15 mL). The organic layer was washed
with NaClaq (25 mL), dried over MgSO4 and evaporated to dryness. The resultant crude product
material was dissolved in methanol (2.5 mL) and heated to reflux with stirring for 5 h. The solvent was
removed under reduced pressure and the resulting residue was purified by column chromatography
(40% Et2O/bp 40–60 petroleum ether) to yield 6 (176 mg, 0.416 mmol, 63%) as a pale yellow oil.
Rf 0.22 (40% Et2O/bp 40–60 petroleum ether); νmax (neat)/cm−1: 2925 (C-H), 2857 (C-H), 2101 (N3),
1
1747 (C=O), 1717 (C=O); H-NMR (400 MHz, CDCl3) δH 3.74 (3H, s, CH3), 3.70–3.62 (8H, m,
4 × OCH2), 3.60–3.55 (2H, m, OCH2CH2N3), 3.45 (2H, t, J = 6.77 Hz, CH2CH2CH2O), 3.44 (2H, s,
COCH2CO) 3.39 (2H, t, J = 5.10 Hz, CH2N3), 2.52 (2H, t, J = 7.37 Hz, COCH2CH2), 1.65–1.51 (4H,
app. m (also H2O), COCH2CH2CH2 and CH2CH2CH2O), 1.39–1.23 (10H, m, 5 × CH2); 13C-NMR
(101 MHz, CDCl3) δC 203.0 (CH2COCH2), 167.8 (H3CCO), 71.6 (CH2CH2CH2O), 70.9 (CH2O), 70.9
(CH2O), 70.8 (CH2O), 70.2 (CH2O), 70.2 (CH2O), 52.5 (H3C), 50.8 (COCH2CO), 49.2 (CH2N3), 43.2
(COCH2CH2), 29.7 (CH2), 29.5 (CH2), 29.5 (CH2), 29.4 (CH2), 29.1 (CH2), 26.2 (CH2), 23.6
23
(COCH2CH2CH2); HRMS (ESI+) m/z found [M+H]+ 424.2411 [C19H35N3O6 Na1]+ calculated 424.2418.
Methyl 2-(2-(9-(2-(2-(2-azidoethoxy)ethoxy)ethoxy)nonyl)-1,3-dioxolan-2-yl)acetate (7). To a solution
of the β keto ester 6 (100 mg, 0.24 mmol, 1 eq.) in toulene (5 mL) at rt was added tosic acid (12.2 mg,
0.1 eq.), trimethylorthoformate (0.21 mL, 1.2 mmol, 5 eq.) and ethylene glycol (0.119 mL, 2.13 mmol,
8.9 eq.) sequentially with stirring. The reaction was left to stir overnight at rt. The toluene was
removed under reduced pressure and the resulting reside was disolved in CH2Cl2 (10 mL), washed
with saturated aqueous sodium bicarbonate solution (3 × 10 mL), dried over MgSO4 and evaporated to
dryness. The resulting crude product was purrified by column chromatography (stepwise gradient,
10%–40% Et2O/bp 40-60 petroleum ether) to yield 7 (69 mg, 0.148 mmol, 62%) as a colourless oil. Rf:
0.42 (70% Et2O/bp 40-60 petroleum ether); νmax (neat)/cm−1: 2924 (C-H), 2855 (C-H), 2103 (N3), 1738
(C=O); 1H-NMR (500 MHz, CDCl3) δH 4.01–3.94 (4H, m, OCH2CH2O (actetal)), 3.69 (3H, s, OCH3),
3.68–3.65 (8H, m, 4 × CH2O), 3.58 (2H, app dd, J = 3.60, 5.90 Hz, OCH2), 3.45 (2H, t, J = 6.82 Hz,
CH2CH2CH2O), 3.39 (2H, t, J = 5.12 Hz, CH2N3), 2.66 (2H, s, CH3OOCCH2), 1.85–1.74 (2 H, app. M,
CCH2), 1.55 (2H, dt, J = 22.0, 11.2 Hz, CH2CH2CH2O), 1.45–1.18 (12H, m, 6 × CH2); 13C (126 MHz,
CDCl3) δC 170.2 (CH3OOC), 109.6 (CH3OOCCH2CO), 71.7 (CH2CH2CH2O), 70.9 (OCH2), 70.9 (OCH2),
70.8 (OCH2), 70.2 (OCH2), 70.2 (OCH2), 65.3 (OCH2CH2O acetal), 51.9 (CH3O), 50.9 (CH2N3), 42.6
(CH3OOCCH2), 37.9 (CCH2), 29.8 (CH2), 29.8 (CH2), 29.6 (CH2), 29.6 (CH2), 29.6 (CH2), 26.2 (CH2),
23
23.6 (CCH2CH2). HRMS (ESI+) m/z found [M+H]+ 468.2675 [C21H39N3O7 Na1]+ calculated 468.2680.
Methyl 2-(2-(9-(2-(2-(2-aminoethoxy)ethoxy)ethoxy)nonyl)-1,3-dioxolan-2-yl)acetate (8) To a solution
of compound 7 (62.0 mg, 0.133 mmol, 1 eq.) in degassed EtOAc (2 mL) under an inert N2 atmosphere
was added Pd (5% on carbon, 7.8 mg, 0.0037 mmol, 0.028 eq.). The reaction vessel was then purged
with H2 before being stirred under an atmosphere of H2 for overnight at rt. The reaction mixture was
filtered through celite (washed with EtOAc) and evaporated to dryness to give compound 8 (52.2 mg,
0.124 mmol, 94%) as a yellow oil which was used without further purification. νmax (neat)/cm−1: 3373

Molecules 2013, 18
11791
1
(N-H), 2925 (C-H), 2855 (C-H), 1738 (C=O), 1739 (C=O), 1672; H-NMR (500 MHz, CDCl3)
δH 4.02–3.93 (4H, m, OCH2CH2O (acetal)), 3.69 (3H, s, OCH3), 3.68–3.53 (10H, m, 5 × CH2O), 3.45
(2H, t, J = 6.84 Hz, CH2CH2CH2O), 2.91 (2H, dt, J = 10.57, 5.16 Hz, CH2NH2), 2.66 (2H, s,
CH3OOCCH2), 2.36 (2H, br s, CH2NH2), 1.81–1.72 (2 H, app. m, CCH2), 1.55 (2H, m, CH2CH2CH2O),
1.41–1.23 (12H, m, 6 × CH2); 13C (126 MHz, CDCl3) δC 170.2 (CH3OOC), 109.6 (CH3OOCH2C),
72.4 (OCH2CH2NH2), 71.7 (CH2CH2CH2O), 70.8 (OCH2), 70.7 (OCH2), 70.4 (OCH2), 70.2 (OCH2),
65.3 (OCH2CH2O acetal), 51.9 (CH3O), 42.6 (CH3OOCCH2), 41.5 (CH2NH2), 37.9 (CCH2), 29.8
(CH2), 29.7 (CH2), 29.6 (CH2), 29.6 (CH2), 29.6 (CH2), 26.2 (CH2), 23.6 (CCH2CH2); HRMS (ESI+)
m/z found [M+H]+ 420.2947 [C21H42N3O7]+ calculated 420.2956.
Methyl 2-(2-(5-oxo-1-((3aS,4S,6aR)-2-oxohexahydro-1H-thieno[3,4-d]imidazol-4-yl)-9,12,15-trioxa-
6-azatetracosan-24-yl)-1,3-dioxolan-2-yl)acetate (9) To a solution of D-biotin (31.2 mg, 0.128 mmol,
1.16 eq.) in DIPEA (1.77 mL) at rt was added HATU (41.7 mg, 0.110 mmol, 1 eq.) with stirring.
The solution was stirred for a further 15 min before the addition of compound 8 (46 mg, 0.110 mmol,
1 eq.). This was stirred at rt overnight. The reaction was quenched by the addition of MeOH (1 mL),
the solvent removed under reduced pressure and the resulting residue purified by column
chromatography (stepwise gradient, 1%–10% MeOH/CH2Cl2) to give 9 (50.9 mg, 0.079 mmol, 72%)
as a sticky pink syrup. Rf: 0.21 (5% MeOH/CH2Cl2); νmax (neat)/cm−1: 3294 (N-H amide), 2926 (C-H),
1
2854 (C-H), 1739 (C=O), 1700 (C=O), 1645 (C=O); H-NMR (500 MHz, CDCl3) δH 6.56 (1H, br s,
OCH2CH2NHCO), 5.99 (1H, br s, NHCONH), 5.17 (1H, br s, NHCONH), 4.49–4.43 (1H, m,
CONHCHCH2S), 4.30–4.23 (1H, m, NHCHCHS), 3.94–3.86 (4H, m, OCH2CH2O acetal), 3.62 (3H, s,
CH3O), 3.59–3.54 (6H, m, 3 × OCH2), 3.53–3.47 (4H, m, OCH2 and OCH2CH2NH), 3.37 (4H, m,
CH2CH2CH2O and OCH2CH2NH), 3.09 (1H, dd, J = 11.10, 6.89 Hz, NHCHCHS), 2.85 (1H, dd,
J = 12.75, 4.47 Hz, CONHCHCHHS), 2.85 (1H, d, J = 12.77 Hz, CONHCHCHHS), 2.59 (2H, s,
CH3OOCCH2), 2.22–2.11 (2H, m, NHCOCH2CH2CH2), 1.74–1.68 (2H, app. m, CCH2), 1.67–1.54
(4H, m, NHCOCH2CH2CH2), 1.50 (2H, dt, J = 13.94, 6.83 Hz, CH2CH2CH2CH2O), 1.38 (2H, dt,
J = 14.93, 7.52 Hz, NHCOCH2CH2CH2), 1.34–1.27 (2H, m, CCH2CH2), 1.27–1.16 (10H, m, 5 × CH2);
13C-NMR (126 MHz, CDCl3) δC 173.4 (CH2NHCOCH2), 170.2 (CH3OOC), 163.6 (NHCONH), 109.6
(CH2CCH2), 71.7 (CH2CH2CH2O), 70.7, (OCH2), 70.6 (OCH2), 70.3 (OCH2), 70.2 (OCH2), 70.0
(OCH2), 65.3 (OCH2CH2O acetal), 62.0 (NHCHCHS), 60.4 (NHCHCH2S), 55.4 (NHCHCHS), 51.9
(CH3O), 42.6 (COCH2C), 40.7 (NHCHCH2S), 39.4 (OCH2CH2NH), 37.9 (COCH2CCH2), 35.9
(NHCOCH2CH2CH2), 29.8 (CH2), 29.8 (CH2), 29.7 (CH2), 29.7 (CH2), 29.6 (CH2), 28.2 (CH2), 28.1
(CH2), 26.2 (CH2), 25.6 (CH2), 23.6 (CCH2CH2); HRMS (ESI+) m/z found [M+H]+ 646.3278
[C31H56N3O9S]+ calculated 646.3732; [α]2D6.7 +28 (c = 0.917 mmol in MeOH).
Lithium 2-(2-(5-oxo-1-((3aS,4S,6aR)-2-oxohexahydro-1H-thieno[3,4-d]imidazol-4-yl)-9,12,15-trioxa-
6-azatetracosan-24-yl)-1,3-dioxolan-2-yl)acetate (10) Compound 9 (48 mg, 0.074 mmol, 1 eq.) was
dissolved in 66% aqueous MeOH (5 mL), lithium hydroxide monohydrate (21 mg, 0.5 mmol, 6.8 eq.)
was added and the reaction stirred overnight at rt. The solvent was removed under reduced pressure to
give a mixture of compound 10 and LiOH (69 mg) which was used without further purification.
1
νmax (neat)/cm−1: 3277 (N-H amide), 2924 (C-H), 2854 (C-H), 1686 (C=O), 1593 (C=O); H-NMR
(500 MHz, CD3OD) δH 4.46 (1H, ddd, J = 7.85, 4.94, 0.73 Hz, NHCHCH2S), 4.27 (1H, dd, J = 7.88,

Molecules 2013, 18
11792
4.47 Hz, NHCHCHS)), 4.03–3.80 (4H, m, OCH2CH2O acetal), 3.65–3.57 (6H, m, 3 × OCH2), 3.55
(2H, m, OCH2), 3.51 (2H, t, J = 5.46 Hz, OCH2CH2NH), 3.44 (2H, t, J = 6.65 Hz, CH2CH2CH2O),
3.33 (2H, t, J = 5.33 Hz, OCH2CH2NH), 3.20–3.14 (1H, m, NHCHCHS), 2.90 (1H, dd, J = 12.75, 5.00
Hz, CONHCHCHHS), 2.67 (1H, d, J = 12.72 Hz, CONHCHCHHS), 2.43 (2H, s, CH3OOCCH2), 2.19
(2H, t, J = 7.40 Hz, NHCOCH2CH2CH2), 1.82–1.76 (2H, app. m, CCH2), 1.75–1.49 (6H, m, 3 × CH2),
13
1.45–1.34 (m, 4H, 2 × CH2), 1.34–1.19 (10H, m, 5 × CH2); C-NMR (126 MHz, CD3OD) δC 178.3
(CO), 176.2 (CO), 166.1 (NHCONH), 111.6 (CH2CCH2), 72.4 (CH2CH2CH2O), 71.6 (OCH2), 71.6
(OCH2), 71.3 (OCH2), 71.1 (OCH2), 70.6 (OCH2), 65.8 (OCH2CH2O acetal), 63.4 (NHCHCHS), 61.6
(NHCHCH2S), 57.0 (NHCHCHS), 47.0 (COCH2CO), 41.1 (NHCHCH2S), 40.4 (OCH2CH2NH), 38.7
(COCH2CCH2), 36.7 (NHCOCH2CH2CH2), 31.0 (CH2), 30.7 (CH2), 30.7 (CH2), 30.7 (CH2), 30.6
(CH2), 29.8 (CH2), 29.5 (CH2), 27.2 (CH2), 26.9 (CH2), 24.6 (CCH2CH2); HRMS (ESI+) m/z found
[M+H]+ 632.3584 [C30H59N3O9S]+ calculated 632.3575.
N-(2-(2-(2-((9-(2-(2-((3-Methoxyphenyl)amino)-2-oxoethyl)-1,3-dioxolan-2-yl)nonyl)oxy)ethoxy)ethoxy)
ethyl)-5-((3aS,4S,6aR)-2-oxohexahydro-1H-thieno[3,4-d]imidazol-4-yl)pentanamide (11) To a solution
of m-anisidine (16 µL, 0.142 mmol, 2 eq.) in a solution of DIPEA (12.2 µL) and DMF (1 mL) at rt was
added HATU (27 mg, 0.071 mmol, 1 eq.) with stirring. The solution was stirred for a further 15 min
before the addition of the crude compound 10 (65.3 mg, ≈0.071 mmol, 1 eq.). This was stirred at rt
overnight. The reaction was quenched by the addition of MeOH (1 mL), the solvent removed under
reduced pressure and the resulting residue purified by column chromatography (stepwise gradient,
1%–7% MeOH/CH2Cl2) to give 11 (18.4 mg, 0.025 mmol, 35% over two steps) as a sticky pale orange
residue. Rf: 0.5 (10% MeOH/CH2Cl2); νmax (neat)/cm−1: 3647 (N-H amide) 3437 (N-H amide) 2926
1
(C-H), 2853 (C-H), 1662 (C=O), 1609 (C=O), 1544 (C=O); H-NMR (400 MHz, CD3OD) δH 9.53
(1H, br s, CNHCO), 7.30 (1H, dd, J = 4.27, 2.09 Hz, CH3OCCHCNH), 7.23 (1H, t, J = 8.15 Hz,
CCHCHCHC), 7.08 (1H, ddd, J = 8.07, 1.76, 0.76 Hz, CCHCHCHC), 6.70 (1H, ddd, J = 8.28, 2.48,
0.73 Hz, CCHCHCHC), 4.52 (1H, dd, J = 7.90, 4.33 Hz, NHCHCH2S), 4.33 (1H, dd, J = 7.90, 4.40 Hz,
NHCHCHS), 4.14–3.88 (4H, m, OCH2CH2O acetal), 3.81 (3H, s, CH3O), 3.71–3.59 (8H, m, 4 × OCH2),
3.57 (2H, t, J = 5.45 Hz, OCH2CH2NH), 3.50 (2H, t, J = 6.63 Hz, CH2CH2CH2O), 3.39 (2H, t, J = 5.41 Hz,
OCH2CH2NH), 3.22 (1H, dt, J = 27.40, 11.44 Hz, NHCHCHS), 2.96 (1H, dt, J = 12.74, 4.17 Hz,
CONHCHCHHS), 2.73 (1H, d, J = 13.8 Hz, CONHCHCHHS), 2.71 (2H, s, NHCOCH2CO), 2.25 (2H,
t, J = 7.38 Hz, NHCOCH2CH2CH2), 1.84–1.54 (8H, m, 4 × CH2), 1.54-1.42 (4H, m, 2 × CH2), 1.43–1.28
13
(10H, m, 5 × CH2); C-NMR (126 MHz, CD3OD) δC 176.1 (CO), 170.7 (CO), 167.6 (NHCONH),
166.1 (CH3OC), 140.9 (CHCNH), 130.5 (CH-Ar), 117.0 (COCH2C), 113.4 (CH-Ar), 110.7 (CH-Ar),
107.1 (CH-Ar), 72.4 (CH2CH2CH2O), 71.6 (OCH2), 71.6 (OCH2), 71.3 (OCH2), 71.1 (OCH2), 70.6
(OCH2), 64.3 (OCH2CH2O acetal), 63.4 (NHCHCHS), 61.7 (NHCHCH2S), 57.0 (NHCHCHS), 55.7
(CH3O), 43.9 (NCOCH2CO), 41.0 (CONHCHCH2S), 40.4 (OCH2CH2NH), 39.1 (COCH2CCH2), 36.7
(NHCOCH2CH2CH2), 30.7 (CH2), 30.5 (CH2), 30.5 (CH2), 30.5 (CH2), 30.4 (CH2), 29.8 (CH2), 29.5
(CH2), 27.2 (CH2), 26.9 (CH2), 24.5 (CCH2CH2); HRMS (ESI+) m/z found [M+H]+ 737.4138
[C37H61N4O9S]+ calculated 737.4154; [α]2D6.7 +27 (c = 2.183 mmol in MeOH).
N-(3-Methoxyphenyl)-3-oxo-12-(2-(2-(2-(5-((3aS,4S,6aR)-2-oxohexahydro-1H-thieno[3,4-d]imidazol-
4-yl)pentanamido)ethoxy)ethoxy)ethoxy)dodecanamide (2) Compound 11 (11.0 mg, 0.015 mmol, 1 eq.)

Molecules 2013, 18
11793
was dissolved in CH2Cl2 (0.5 mL) with TFA (160 µL, 2.09 mmol, 139 eq.) in a flask open to the air
and stirred for 3 h at rt. The solvent was removed under reduced pressure and the resulting residue
purified by column chromatography (stepwise gradient, 1%–7% MeOH/CH2Cl2) to yield the
final compound 2 (10.1 mg, 0.146 mmol, 97%) as a colourless sticky residue. Rf: 0.51 (10%
MeOH/CH2Cl2); νmax (neat)/cm−1: 3641 (N-H amide) 3294 (N-H amide) 2926 (C-H), 2853 (C-H),
1
1682 (C=O), 1629 (C=O), 16411 (C=O), 1544 (C=O); H-NMR (500 MHz, CD3OD) δH 7.30 (1H, t,
J = 2.20 Hz, CH3OCHCNH), 7.22 (1H, t, J = 8.16 Hz, CCHCHCHC), 7.07 (1H, ddd, J = 8.04, 1.91,
0.85 Hz, CCHCHCHC), 6.70 (1H, ddd, J = 8.27, 2.49, 0.79 Hz, CCHCHCHC), 4.54–4.46 (1H, m,
CONHCHCH2S), 4.32 (1H, dd, J = 7.86, 4.50 Hz, NHCHCHS), 3.80 (3H, s, CH3O), 3.70–3.58 (8H,
m, 4 × CH2O), 3.56 (2H, t, J = 5.5 Hz, OCH2CH2NH2), 3.52–3.44 (2H, m,CH2CH2CH2O), 3.42–3.36
(m, 4H, OCH2CH2NH and COCH2CO), 3.24–3.16 (1H, m, NHCHCHS), 2.94 (1H, dt, J = 12.76, 4.97
Hz, CONHCHCHHS), 2.72 (1H, d, J = 12.72 Hz, CONHCHCHHS), 2.63 (2H, t, J = 7.28 Hz,
COCH2COCH2), 2.24 (2H, t, J = 7.35 Hz, NHCOCH2CH2), 1.82–1.52 (8H, m, 4 × CH2), 1.53–1.10
(14H, m, 7 × CH2); 13C-NMR (126 MHz, CD3OD) δC 206.8 (NHCOCH2CO), 176.1 (CNHCOCH2CO)
167.6 (OCH2CH2NHCO), 166.1 (NHCONH), 161.6 (CH3OC), 140.7 (CHCNH), 130.6 (CH Ar),
113.31 (CH Ar), 110.9 (CH Ar), 107.0 (CH Ar), 72.4 (CH2CH2CH2O), 71.6 (OCH2), 71.6 (OCH2),
71.3 (OCH2), 71.1 (OCH2), 70.6 (OCH2), 63.4 (NHCHCHS), 61.6 (NHCHCH2S), 57.0 (NHCHCHS),
55.7 (CH3O), 49.9 (COCH2CO) 43.9 (COCH2COCH2), 41.5 (CONHCHCH2S), 40.4 (OCH2CH2NH),
36.7 (NHCOCH2CH2CH2) 30.7 (CH2), 30.5 (CH2), 30.5 (CH2), 30.4 (CH2), 30.10 (CH2), 29.8 (CH2),
29.5 (CH2), 27.2 (CH2), 26.9 (CH2), 24.5 (COCH2CH2); HRMS (ESI+) m/z found [M+H]+ 693.11
[C35H57N4O8S]+ calculated 693.3892; [α]2D6.8 +28 (c = 2.183 mmol in MeOH).
4. Conclusions
We have reported the efficient synthesis of 2, a biotin-tagged derivative of a potent inhibitor 1 of the
production of the virulence factor pyocyanin in the pathogenic bacterium P. aeruginosa. Compound 2
could potentially be used as a chemical probe in affinity “pull-down” assays in order to identify the
biological target(s) of 1 and thus help to elucidate the mechanism by which it exerts this biological
effect. Such information should prove useful in the design of more potent compounds. If 2 is found to
bind to LasR, this would strongly suggest that 1 is a direct antagonist of quorum sensing in
P. aeruginosa and, as such, it would represent a valuable molecular tool for the study and
manipulation of this signaling pathway. The binding studies are currently in progress and the results of
these investigations will be reported in due course [43].
Acknowledgments
The authors thank Bayer Schering and GSK, the EU, EPSRC, BBSRC, MRC and Wellcome Trust
for funding.
Conflicts of Interest
The authors declare no conflict of interest.

Molecules 2013, 18
11794
References and Notes
1. Morkunas, B.; Galloway, W.R.J.D.; Wright, M.; Ibbeson, B.M.; Hodgkinson, J.T.; O'Connell,
K.M.; Bartolucci, N.; Valle, M.D.; Welch, M.; Spring, D.R. Inhibition of the production of the
Pseudomonas aeruginosa virulence factor pyocyanin in wild-type cells by quorum sensing
autoinducer-mimics. Org. Biomol. Chem. 2012, 10, 8452–8464.
2. Mesaros, N.; Nordmann, P.; Plesiat, P.; Roussel-Delvallez, M.; Van Eldere, J.; Glupczynski, Y.;
van Laethem, Y.; Jacobs, F.; Lebecque, P.; Malfroot, A.; et al. Pseudomonas aeruginosa:
Resistance and therapeutic options at the turn of the new millennium. Clin. Microbiol. Infect.
2007, 13, 560–578.
3. Antunes, L.C.M.; Ferreira, R.B.R.; Buckner, M.M.C.; Finlay, B.B. Quorum sensing in bacterial
virulence. Microbiology 2010, 156, 2271–2282.
4. Zaborina, O.; Kohler, J.E.; Wang, Y.; Bethel, C.; Shevchenko, O.; Wu, L.; Turner, J.R.; Alverdy, J.C.
Identification of multi-drug resistant Pseudomonas aeruginosa clinical isolates that are highly
disruptive to the intestinal epithelial barrier. Ann. Clin. Microbiol. Antimicrob. 2006, 5, 14.
5. Kipnis, E.; Sawa, T.; Wiener-Kronish, J. Targeting mechanisms of Pseudomonas aeruginosa
pathogenesis. Med. Maladies Infect. 2006, 36, 78–91.
6. Strateva, T.; Mitov, I. Contribution of an arsenal of virulence factors to pathogenesis of
Pseudomonas aeruginosa infections. Ann. Microbiol. 2011, 61, 717–732.
7. Clatworthy, A.E.; Pierson, E.; Hung, D.T. Targeting virulence: A new paradigm for antimicrobial
therapy. Nat. Chem. Biol. 2007, 3, 541–548.
8. Barczak, A.K.; Hung, D.T. Productive steps toward an antimicrobial targeting virulence. Curr.
Opin. Microbiol. 2009, 12, 490–496.
9. Galloway, W.R.J.D.; Hodgkinson, J.T.; Bovvden, S.; Welch, M.; Spring, D.R. Applications of
small molecule activators and inhibitors of quorum sensing in Gram-negative bacteria.
Trends Microbiol. 2012, 20, 449–458.
10. Deep, A.; Chaudhary, U.; Gupta, V. Quorum sensing and Bacterial Pathogenicity: From
Molecules to Disease. J. Lab. Physicians 2011, 3, 4–11.
11. Whitehead, N.A.; Barnard, A.M.L.; Slater, H.; Simpson, N.J.L.; Salmond, G.P.C.
Quorum-sensing in gram-negative bacteria. FEMS Microbiol. Rev. 2001, 25, 365–404.
12. O'Malley, Y.Q.; Reszka, K.J.; Spitz, D.R.; Denning, G.M.; Britigan, B.E. Pseudomonas aeruginosa
pyocyanin directly oxidizes glutathione and decreases its levels in airway epithelial cells. Am. J.
Physiol. Lung Cell. Mol. Phys. 2004, 287, L94–L103.
13. Lau, G.W.; Ran, H.M.; Kong, F.S.; Hassett, D.J.; Mavrodi, D. Pseudomonas aeruginosa
pyocyanin is critical for lung infection in mice. Infect. Immun. 2004, 72, 4275–4278.
14. Lau, G.W.; Hassett, D.J.; Ran, H.; Kong, F. The role of pyocyanin in Pseudomonas aeruginosa
infection. Trends Mol. Med. 2004, 10, 599–606.
15. Garner, A.L.; Struss, A.K.; Fullagar, J.L.; Argawal, A.; Moreno, A.Y.; Cohen, S.M.; Janda, K.D.
3-Hydroxy-1-alkyl-2-methylpyridine-4(1H)-thiones: Inhibition of the Pseudomonas aeruginosa
Virulence Factor LasB. ACS Med. Chem. Lett. 2012, 3, 668–672.

Molecules 2013, 18
11795
16. Hodgkinson, J.T.; Galloway, W.R.J.D.; Wright, M.; Mati, I.K.; Nicholson, R.L.; Welch, M.;
Spring, D.R. Design, synthesis and biological evaluation of non-natural modulators of quorum
sensing in Pseudomonas aeruginosa. Org. Biomol. Chem. 2012, 10, 6032–6044.
17. Chong, Y.M.; Yin, W.F.; Ho, C.Y.; Mustafa, M.R.; Hadi, A.H.; Awang, K.; Narrima, P.; Koh, C.L.;
Appleton, D.R.; Chan, K.G. Malabaricone C from Myristica cinnamomea exhibits anti-quorum
sensing activity. J. Nat. Prod. 2011, 74, 2261–2264.
18. Krishnan, T.; Yin, W.F.; Chan, K.G. Inhibition of quorum sensing-controlled virulence factor
production in Pseudomonas aeruginosa PAO1 by Ayurveda spice clove (Syzygium Aromaticum)
Bud Extract. Sensors 2012, 12, 4016–4030.
19. Tan, L.Y.; Yin, W.F.; Chan, K.G. Silencing quorum sensing through extracts of melicope
lunu-ankenda. Sensors 2012, 12, 4339–4351.
20. Geske, G.D.; O'Neill, J.C.; Blackwell, H.E. Expanding dialogues: From natural autoinducers to
non-natural analogues that modulate quorum sensing in Gram-negative bacteria. Chem. Soc. Rev.
2008, 37, 1432–1447.
21. Dekimpe, V.; Deziel, E. Revisiting the quorum-sensing hierarchy in Pseudomonas aeruginosa:
The transcriptional regulator RhlR regulates LasR-specific factors. Microbiology 2009, 155, 712–723.
22. Pukatzki, S.; Kessin, R.H.; Mekalanos, J.J. The human pathogen Pseudomonas aeruginosa
utilizes conserved virulence pathways to infect the social amoeba Dictyostelium discoideum.
Proc. Natl. Acad. Sci. USA 2002, 99, 3159–3164.
23. Galloway, W.R.J.D.; Hodgkinson, J.T.; Bowden, S.D.; Welch, M.; Spring, D.R. Quorum sensing
in gram-negative bacteria: Small-molecule modulation of AHL and Al-2 quorum sensing pathways.
Chem. Rev. 2011, 111, 28–67.
24. Stevens, A.M.; Queneau, Y.; Soulere, L.; von Bodman, S.; Doutheau, A. Mechanisms and
synthetic modulators of AHL-dependent gene regulation. Chem. Rev. 2011, 111, 4–27.
25. Ng, W.L.; Bassler, B.L. Bacterial quorum-sensing network architectures. Annu. Rev. Genet. 2009,
43, 197–222.
26. McInnis, C.E.; Blackwell, H.E. Design, synthesis, and biological evaluation of abiotic,
non-lactone modulators of LuxR-type quorum sensing. Bioorg. Med. Chem. 2011, 19, 4812–4819.
27. Williams, P.; Winzer, K.; Chan, W.C.; Camara, M. Look who’s talking: Communication and
quorum sensing in the bacterial world. Philos. Trans. R. Soc. B Biol. Sci. 2007, 362, 1119–1134.
28. Hodgkinson, J.T.; Galloway, W.R.J.D.; Saraf, S.; Baxendale, I.R.; Ley, S.V.; Ladlow, M.;
Welch, M.; Spring, D.R. Microwave and flow syntheses of Pseudomonas quinolone signal (PQS)
and analogues. Org. Biomol. Chem. 2011, 9, 57–61.
29. Taha, M.O.; Al-Bakri, A.G.; Zalloum, W.A. Discovery of potent inhibitors of pseudomonal
quorum sensing via pharmacophore modeling and in silico screening. Bioorg. Med. Chem. Lett.
2006, 16, 5902–5906.
30. Smith, K.M.; Bu, Y.G.; Suga, H. Library screening for synthetic agonists and antagonists of a
Pseudomonas aeruginosa autoinducer. Chem. Biol. 2003, 10, 563–571.
31. Ishida, T.; Ikeda, T.; Takiguchi, N.; Kuroda, A.; Ohtake, H.; Kato, J. Inhibition of quorum sensing
in Pseudomonas aeruginosa by N-acyl cyclopentylamides. Appl. Environ. Microbiol. 2007, 73,
3183–3188.

Molecules 2013, 18
11796
32. Popat, R.; Crusz, S.A.; Diggle, S.P. The social behaviours of bacterial pathogens. Br. Med. Bull.
2008, 87, 63–75.
33. Skindersoe, M.E.; Alhede, M.; Phipps, R.; Yang, L.; Jensen, P.O.; Rasmussen, T.B.; Bjarnsholt, T.;
Tolker-Nielsen, T.; Hoiby, N.; Givskov, M. Effects of antibiotics on quorum sensing in
pseudomonas aeruginosa. Antimicrob. Agents Chemother. 2008, 52, 3648–3663.
34. Brint, J.M.; Ohman, D.E. Synthesis of multiple exoproducts in Pseudomonas-Aeruginosa is under
the control of RhlR-RhlI, another set of regulators in strain pao1 with homology to the
autoinducer-responsive LuxR-LuxI family. J. Bacteriol. 1995, 177, 7155–7163.
35. Ziegler, S.; Pries, V.; Hedberg, C.; Waldmann, H. Target identification for small bioactive
molecules: Finding the needle in the haystack. Angew. Chem. Int. Ed. 2013, 52, 2744–2792.
36. Praneenararat, T.; Palmer, A.G.; Blackwell, H.E. Chemical methods to interrogate bacterial
quorum sensing pathways. Org. Biomol. Chem. 2012, 10, 8189–8199.
37. Leslie, B.J.; Hergenrother, P.J. Identification of the cellular targets of bioactive small organic
molecules using affinity reagents. Chem. Soc. Rev. 2008, 37, 1347–1360.
38. Matsuyama, A.; Yashiroda, Y.; Yoshida, M. Chemical Proteomics: A Global Study of
Protein-Small Molecule Interactions. In Chemical Genomics; Fu, H., Ed.; Cambridge University
Press: Cambridge, UK, 2012; Chapter 3, p 26.
39. Praneenararat, T.; Beary, T. M. J.; Breitbach, A. S.; Blackwell, H. E. Synthesis and application of
an N-acylated L-homoserine lactone derivatized affinity matrix for thte isolation of quourm
sensing signal receptors. Bioorg. Med. Chem. Lett. 2011, 5054–5057.
40. Seabra, R.; Brown, A.; Hooi, D.; Kerkhoff, C.; Chhabra, S.R.; Harty, C.; Williams, P.; Pritchard, D.I.
A eukaryotic binding protein for the immune modulatory bacterial quorum sensing molecule
N-(3-oxododecanoyl)-L-homoserine lactone. Calcium Bind. Proteins 2008, 3, 31–37.
41. Karlsson, T.; Turkina, M.V.; Yakymenko, O.; Magnusson, K., Vikström, E. The Pseudomona
aeruginosa N-acylhomoserine lactone quorum sensing molecules target IQGAP1 and modulate
epithelial cell migrations. PLoS Pathog. 2012, 8, e1002953.
42. Spandl, R.J.; Nicholson, R.L.; Marsden, D.M.; Hodgkinson, J.T.; Su, X.B.; Thomas, G.L.;
Salmond, G.P.C.; Welch, M.; Spring, D.R. Synthesis of a biotin-labeled quorum-sensing
molecule: Towards a general method for target identification. Synlett 2008, 2008, 2122–2126.
43. Most successful applications of affinity probes involve active parent compounds with nanomolar
activities. The active compound 1 can block pyocyanin production by approximately 75% at
mid-micromolar levels (approximately 50 μM, see reference 1). This was also the concentration at
which this compound was tested in a LasR ligand binding domain production assay, which
provided indirect evidence that 1 can directly bind to LasR (see reference 16). Given this activity
level, the identification of targets for compound 1 using affinity probe 2 is likely to be quite a
challenging (though not implausible) endeavor.
Sample Availability: Samples of the compounds 1–11 are available from the authors.
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
