2D- and 3D-QSAR modelling, molecular docking and in vitro evaluation studies on 18β-glycyrrhetinic acid derivatives against triple-negative breast cancer cell line

Article abstract of DOI:10.1080/07391102.2019.1570868

Triple-negative breast cancers (TNBCs) are one of the most aggressive and complex forms of cancers in women. TNBCs are commonly known for their complex heterogeneity and poor prognosis. The present work aimed to develop a predictive 2D and 3D quantitative structure–activity relationship (QSAR) models against metastatic TNBC cell line. The 2D-QSAR was based on multiple linear regression analysis and validated by Leave-One-Out (LOO) and external test set prediction approach. QSAR model presented regression coefficient values for training set (r²), LOO-based internal regression (q²) and external test set regression (pred_r²) which are 0.84, 0.82 and 0.75, respectively. Five properties, Epsilon4 (electronegativity), ChiV3cluster (valence molecular connectivity index), chi3chain (retention index for three-membered ring), TNN5 (nitrogen atoms separated through 5 bond distance) and nitrogen counts, were identified as important structural features responsible for anticancer activity of MDA-MB-231 inhibitors. Five novel derivatives of glycyrrhetinic acid (GA) named GA-1, GA-2, GA-3, GA-4 and GA-5 were semi-synthesised and screened through the QSAR model. Further, in vitro activities of the derivatives were analysed against human TNBC cell line, MDA-MB-231. The result showed that GA-1 exhibits improved cytotoxic activity to that of parent compound (GA). Further, atomic property field (APF)-based 3D-QSAR and scoring recognise C-30 carboxylic group of GA-1 as major influential factor for its anticancer activity. The significance of C-30 carboxylic group in GA derivatives was also confirmed by molecular docking study against cancer target glyoxalase-I. Finally, the oral bioavailability and toxicity of GA-1 were assessed by computational ADMET studies. Communicated by Ramaswamy H. Sarma.

Full text of DOI:10.1080/07391102.2019.1570868

Journal of Biomolecular Structure and Dynamics
ISSN: 0739-1102 (Print) 1538-0254 (Online) Journal homepage: https://www.tandfonline.com/loi/tbsd20
2D and 3D QSAR modelling, molecular docking and
in-vitro evaluation studies on 18β-glycyrrhetinic
acid derivatives against triple negative breast
cancer cell line
Aparna Shukla, Rekha Tyagi, Sanjeev Meena, Dipak Datta, Santosh Kumar
Srivastava & Feroz Khan
To cite this article: Aparna Shukla, Rekha Tyagi, Sanjeev Meena, Dipak Datta, Santosh Kumar
Srivastava & Feroz Khan (2019): 2D and 3D QSAR modelling, molecular docking and in-vitro
evaluation studies on 18β-glycyrrhetinic acid derivatives against triple negative breast cancer cell
line, Journal of Biomolecular Structure and Dynamics, DOI: 10.1080/07391102.2019.1570868
To link to this article: https://doi.org/10.1080/07391102.2019.1570868
Accepted author version posted online: 28
Jan 2019.
Submit your article to this journal
View Crossmark data
Full Terms & Conditions of access and use can be found at
https://www.tandfonline.com/action/journalInformation?journalCode=tbsd20

2D and 3D QSAR modelling, molecular docking and in-vitro
evaluation studies on 18β-glycyrrhetinic acid derivatives against
triple negative breast cancer cell line
Aparna Shukla1, Rekha Tyagi2, Sanjeev Meena3, Dipak Datta3, Santosh Kumar Srivastava2,
Feroz Khan1,*
1Metabolic and Structural Biology Department, CSIR-Central Institute of Medicinal and Aromatic Plants, P.O.-
CIMAP, Kukrail Picnic Spot Road, Lucknow, 226015, UP, India
2Medicinal Chemistry Division, Central Institute of Medicinal and Aromatic Plants, P.O. CIMAP, Lucknow
226015, India
3Biochemistry Division, CSIR-Central Drug Research Institute (CDRI), Lucknow, 226031, India,
*Corresponding Author:
Dr. Feroz Khan
Metabolic & Structural Biology Department,
Plant Biology Division,
CSIR-Central Institute of Medicinal and Aromatic Plants
P.O. CIMAP, Kukrail Picnic Spot Road,
Lucknow-226015 (Uttar Pradesh), INDIA
Phone: +91 522 2718668 (Lab); +91 522 2342666 (Fax)
Email: f.khan@cimap.res.in
1

Abstract
Triple negative breast cancers (TNBC) are one of the most aggressive and complex forms of
cancers in women. TNBCs are commonly known for their complex heterogeneity and poor
prognosis. The present work aimed to develop a predictive 2D and 3D quantitative structure
activity relationship (QSAR) models against metastatic TNBC cell line. The 2D-QSAR was
based on multiple linear regression analysis and validated by Leave-One-Out (LOO) and
external test set prediction approach. QSAR model presented regression coefficient values for
training set (r2), LOO based internal regression (q2) and external test set regression (pred_r2)
are 0.84, 0.82 and 0.75 respectively. Five properties, Epsilon4 (electronegativity),
ChiV3cluster (valence molecular connectivity index), chi3chain (retention index for three
membered ring), TNN5 (nitrogen atoms separated through 5 bond distance) and nitrogen
counts were identified as important structural features responsible for anticancer activity of

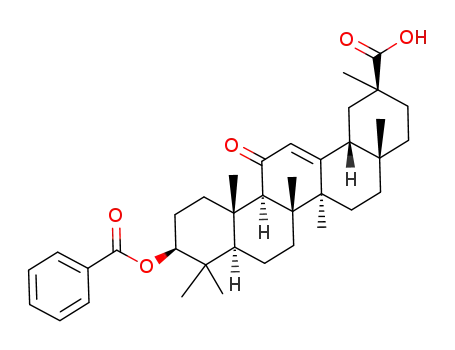

MDA-MB-231 inhibitors. Five novel derivatives of Glycyrrhetinic acid (GA) named GA-1,
GA-2, GA-3, GA-4 and GA-5 were semi-synthesised and screened through the QSAR model.
Further, in-vitro activities of the derivatives were analysed against human TNBC cell line,
MDA-MB-231. The result showed GA-1 exhibit improved cytotoxic activity to that of parent
compound (GA). Further, Atomic Property Field (APF) based 3D QSAR and scoring
recognise C-30 carboxylic group of GA-1 as major influential factor for its anticancer
activity. The significance of C-30 carboxylic group in GA derivatives were also confirmed by
molecular docking study against cancer target Glyoxalase-I. Finally, the oral bioavailability
and toxicity of GA-1 was assessed by computational ADMET studies.
Keywords: QSAR, Breast cancer, Triple négative breast cancer, Glycyrrhetinic acid, MDA-
MB-231, Glyoxalase-I
2

Introduction
Breast cancer is most frequently diagnosed cancer and second leading cause of female deaths
worldwide. In majority of cases mortality is due to its metastatic dissemination to distant sites
(Polyak, et al., 2011). Despite the enormous medical importance of metastasis, its molecular
underpinning remains insufficiently understood because of its intertumor and intratumor
heterogeneity (Ovcaricek, et al., 2011 & Bianchini, et al., 2016). Breast carcinomas,
demarcated as triple negative breast cancers (TNBC), are highly aggressive and do not
express progesterone receptor (PR), estrogen receptor (ER), and human epidermal growth
factor receptor2 (HER2) (Thike, et al., 2010). Consequently, it is resistant to hormone
targeted therapies and only 20% of TNBC respond well to standard chemotherapy using
anthracycline-based (doxorubicin plus cyclophosphamide) or paclitaxel chemotherapy etc.
(Zardavas, et al., 2013). Thus, in current breast cancer research, developing improved
treatment for metastatic TNBC is one of the highest priorities. Several researches have been
carried out to understand metastatic TNBC cells sensitivity towards plant based different
chemical scaffolds (Iqbal, et al., 2018). Recent prognosis work on TNBC focusing on targets
PARP1, mTOR, TGF-β from Notch signalling, Wnt/β-catenin and Hedgehog pathways
(Jamdade, et al., 2015; Wein, et al., 2018 & Badve, et al., 2011).
Glycyrrhiza glabra, an Indian medicinal herb, also known as licorice, contains biologically
active triterpenoid glycyrrhizic acid. Glycyrrhizic acid is a diglucopyranosiduronic acid of the
glycyrrhetinic acid (GA) (Tewari, et al., 2017). Substantial research has been carried out on
human liver metabolism of Glycyrrhizic acid. Reto Karpf in year 1994 revealed Glycyrrhizic
acid transformed into its aglycone form GA through intestinal bacteria when orally
administered (Krähenbühl, et al., 1994). In cancer research GA is mostly explored for its
activity against human hepatocellular carcinoma (HCC) cells since an earlier work revealed
the existence of GA receptor on rat and human hepatocytes surface (Negishi, et al., 1991). It
has been reported that anti-HCC response of GA is mediated through inhibition of immune
response by regulating T cells, cell cycle arrest, induction of cell apoptosis and autophagy
(Cai, et al., 2017). Evidently, GA has been identified to exhibit remarkable anticancer
activities. Therefore, over the past decade, GA has been serving as a good structural template
for more potent anticancer agents. Many groups have studied the effects of structural
modification in GA on the cytotoxicity of various human cancer cell lines (Xu, et al., 2017).
Despite these capabilities, the mechanisms of action of GA in metastatic TNBC has not been
investigated so far.
Notably, our earlier work on GA and its novel derivatives against breast cancer MCF-7
displayed good anticancer potency (Yadav, et al., 2014, Yadav, et al., 2013). Therefore, the
present work was designed to combat metastatic TNBC cell lines using biological effects of
GA and its novel derivatives. The work includes chemical feature identification of metastatic
TNBC cell inhibitors through regression based quantitative structure activity relationship
(QSAR) model (Yadav, et al., 2013). Further, five novel GA derivatives were semi-
synthesised and screened through the prepared QSAR model. The derivatives were further
investigated for in-vitro activity in metastatic breast cancer cell line MDA-MB-231.
Subsequently, atomic property field (APF) based 3D QSAR model was generated to explore
atomic property field (APF) and structure activity relationship of synthesised derivatives. The
3

anticancer mechanism of action of GA derivatives on TNBC drug targets were explored
through molecular docking studies. In TNBC cells enzyme Glyoxalase-I (GLO-I) inhibition
leads to increased level of alpha-oxoaldehydes that cause increase in apoptosis, supress
migration and invasion of metastatic breast cancer. Therefore, GLO-I is considered as one of
the promising TNBC target. Here, molecular docking and 3D-QSAR modelling was
performed considering Glyoxalase-I as a promising TNBC drug target. The oral
bioavailability and possible toxicity were also assessed through computational ADMET
(absorption, distribution, metabolism, excretion and toxicity) analysis.
Materials and Method
Computational 2D QSAR modelling for GA derivative designing
Dataset collection and structure preparation
The modelling set comprising 144 compounds, metastatic TNBC cell line, MDA-MB-231
inhibitors (Table S1; training set and Table S2; test set compounds, Supplementary materials)
collected from the ChEMBL database and reported literatures (Goldbrunner, et al., 1997;
Gao, et al., 2014; He, et al., 2015; Yang, et al., 2016 & Motiwala, et al., 2013). The
modelling set exhibits plant-product inspired scaffolds, comprises with 2-5 fused rings
skeleton (Table S3, Supplementary materials).
The structural drawing and geometry cleaning of the modelling set compounds were
performed through, ChemBioOffice suite Ultra v12.0 (2015) software (CambridgeSoft Corp.,
UK). Further, each compound subjected to energy minimization to get optimized bond
distance, bond angles and set dihedrals by applying MMFF force field. Moreover, the method
adds additional properties to the compounds including initial potential energy, RMS gradient,
MMFF energy and minimization criteria.
Chemical descriptors calculation
For QSAR model generation, the compounds were denoted by structural descriptors or
physico-chemical properties. Computation for descriptors were done by using VLife MDS
v4.4 (2014) software (VLife Technologies, NovaLead Pharma Pvt. Ltd. India). Software
Vlife, calculate structural descriptors, belonging to major classes viz., (a) physicochemical
descriptors, (b) extended topochemical descriptors and (c) alignment independent descriptors.
QSAR model generation
Primarily, the dataset of 144 compounds was divided into 70% as training set and 30% as
external test set applying random selection technique using Vlife. The PIC50 (µM) value was
assigned as dependent variable. PIC50 is a negative logarithm of IC50 value, expressed in
molar concentration. The physicochemical properties or structural descriptors were
considered as independent variables. Invariable descriptors with zero or equal values were
deleted. The regression coefficient for training set (100 compounds) was calculated by using
equation 1. Where, yi and ŷi signify the actual and predicted PIC50 of ith compound
respectively. Whereas ymean is the average/mean value of actual PIC50 of training set
compounds.
4

(Equation 1)
QSAR model generation criteria and parameter used for feature selection
The 2D QSAR model was developed by applying multiple linear regression (MLR) approach.
A stepwise forward-backward selection criterion was applied for feature/descriptor
extraction. Continuous multiple variable based MLR model was generated, step by step
depending on Fischer coefficient values (F values). The F test gives the statistical
significance of the descriptor. The Ftest in and Ftest out values were set at 4 and 3. The
predictor descriptors were identified by these stepping criteria. The search is terminated when
addition of additional variables is no longer needed. Before model development, inter-
correlated descriptors (Correlation >0.70) were discarded.
2D QSAR model validation
To scrutinise the predictability of developed model, leave-one-out (q2, LOO), external set
predictions (r2pred) and r2m matrix were calculated (Cramer III, et al., 1988; Golbraikh, et al.,
2002 & Ojha, et al., 2011). A LOO based cross-validated regression coefficient (q2) was
calculated based on equation 2 (Shen et al., 2002). Where yi and ŷi signify the actual and
predicted PIC50 value for ith compound. Whereas ymean is the average/mean value of actual
PIC50 of training set compounds.
(Equation 2)
The regression for external test set (r2pred) was calculated by using equation 3 (Kier, et al.,
1977& Golbraikh, et al., 2002). r2
validate the model predictability for external
pred
compounds and verify the model predicted result’s reliability.
(Equation 3)
Randomization test
The robustness of generated model was also assessed by calculating Z score values using
equation 4. Where h, µ and σ signifies r2 of original dataset, average values of r2s for random
datasets and standard deviation for random dataset. The calculated Z score should be higher
5

than the tabulated value Zc as reported by Zheng et al., (2000). The higher Z score indicate
the null hypothesis is rejected and the model generated from actual dataset is statistically
significant.
(Equation 4)
r2m matrix for QSAR model validation
The external predictability of developed model was also checked by using matrix method
̅̅̅
calculating ,
, and (Ojha, et al., 2011). The matrix is measured by
, ,
and signify correlation between observed and predicted values
using
and . Where,
̅̅̅
with and without intercept for the regression line. Statistical parameters ,
, ,
,
were computed as mentioned by Roy, et al., 2018. The equation used for parameter
calculation is given in equation 5.
( |√ |)
(Equation 5)
Applicability domain (AD) assessment of 2D-QSAR model
A statistically validated model predicted results are considered to be reliable only when the
query set compound falls within its applicability domain (AD). Here, three most important
criteria were adopted to check the AD of developed model viz., (i) the biological space cover
of whole dataset, (ii) the chemical space cover by training set and test set, (iii) distance-based
distribution of training and test set in structure and activity space (Jaworska, et al., 2005). A
3D principal component analysis (PCA) was applied to compute projection of chemical space
of test set within training set (Adhikari, et al., 2017 & Amin, et al., 2018). A structure
similarity based hierarchical cluster analysis was done to assess structure relatedness of
training, test and query set compounds (Figure S1, Supplementary material).
Atomic property field (APF) based 3D-QSAR modelling study
An APF based 3D-QSAR was also performed on congeneric series of 42 GA derivatives. An
APF based 3D-QSAR thoroughly describe, the spatial arrangement of structural features that
bestow specific activity to the molecule. Since, a 3D-QSAR model reliability is highly
depend upon the structural filed alignment. Therefore, for 3D-QSAR studies a congeneric
series of 42 GA derivatives were taken instead of using total 144 compounds so as to get
more homogenous structure space.
A series of 42 GA derivatives with known inhibition activity against MDA-MB-231 were
collected from 2D QSAR dataset and reported literatures (Yang, et al., 2016, Yadav, et al.,
2014 & Gao, et al., 2014). Their structures were drawn and converted to 3D ICM object
using ICM-Chemist v3.8-6a 2018, (Molsoft L.L.C, San Diego, USA) software (Abagyan
2018, http://www.molsoft.com/icm-chemist-pro.html, Totrov, 2008, 2011). The set of 42 GA
derivatives were randomly split into 37 training and 5 test set using DS v3.5. The crystal
structure of enzyme Glyoxalase-I (GLO-I) bound with GA (2.3 resolution) was retrieved
from protein database (PDB: 4PV5). The GLO-I bound conformation of GA was taken as
rigid templet structure to which training set structures were aligned based on their APF
6

energy fields. The APF fields of co-crystallised GA is depicted in figure S5 under
supplementary materials. Afterward, for each molecule a 3D based continuous atomic
potentials were generated and approximated based on regular space grid. These, continuous
potentials represent seven physicochemical properties viz., hydrogen bond donor (blue blob)
and acceptors (red blob), sp2 hybridised carbon atoms, molecules lipophilicity (yellow blobs),
charge, molecule size and electronegativity or positivity.
Therefore, the training set of 37 compounds can be represented by 259 descriptors. The
training and test set molecules were aligned on generated APF fields of co-crystallised GA.
For quantitative prediction of novel compound, a partial least square (PLS) based optimal
weight distribution was assigned to each molecule based on their APF components. The
optimal number of latent vectors for PLS was established by LOO cross-validation on the
training set. Then the weighted contributions of each APF components were added together.
For external validation randomly selected five compounds were assigned predicted binding
values by calculating their fit within the combined QSAR-APF score. The model further
utilised to design and screen novel GA derivatives GA-1, GA-2, GA-3, GA-4 and GA-5
based on their APF alignment.
Chemistry
Extraction and chemical synthesis
Five novel 18β-glycyrrhetinic acid derivatives were designed and synthesised modifying C-3
and C-30 positions. Figure 4a represents compound preparation scheme-1 i.e., Synthesis of 3-
O-acyl derivatives of GA and 5b). Figure 4b compound preparation scheme-2 i.e., Synthesis
of amide derivatives of 3-O-acetyl GA.
Isolation of 3β-Hydroxy-11-oxoolean-12-en-29-oic acid (Glycyrrhetinic acid) from
Glycyrrhiza glabra:
Extraction and fractionation of Glycyrrhiza glabra roots
The roots of Glycyrrhiza glabra were air dried under shade and then powdered. This
powdered material (2.04 Kg) was extracted with methanol (4 X 5L) at room temperature. The
combined methanol extract was subjected for complete solvent removal at 40oC under
vacuum. This dried methanolic extract was dissolved in distilled water (2L) and successively
extracted with dichloromethane, ethyl acetate and n-butanol (4 x 400 ml). The combined
dichloromethane, ethyl acetate and n-butanol extracts were separately subjected under
vacuum distillation at 40oC to yield dichloromethane (99.0g), ethyl acetate (100.0g) extracts
and n-butanol (56.0g) as given in Figure 1.
Isolation of Glycyrrhizic acid from n-BuOH Extract of Glycyrrhiza glabra by Flash
chromatography
A glass flash column with internal diameter 3 cm and length 23 cm was used. The Flash
column was packed with silica gel-H of TLC grade (without binder). The column was tightly
packed using vacuum followed by elution of the column with a non-polar solvent (hexane) to
make sure nice packing of column. Before loading the extract, glass column was completely
7

dried and then 1.00 gm of BuOH extract of Glycyrrhiza glabra was dissolved in small
amount of methanol and with the help of a pipette it was spread onto the glass column
without using vacuum, to form a uniform band. The above step was followed by complete
drying of the glass column under vacuum. Gradient elution of flash was carried out with a
mixture of CHCl3: MeOH in increasing order (up to 50 % MeOH). Fractions of 50ml each
were collected. A total of 149 fractions were collected and pooled based on their TLC profile.
Excellent separation was achieved due to fine particle size (average size 10 µm) of silica gel-
H. The pooled fractions 42-58 (650mg) eluted with CHCl3: MeOH (85:15) was homogeneous
1
and characterized as glycyrrhizic acid (GL) based on its H and 13C NMR spectroscopic data
(Figure 2).
Acidic hydrolysis of Glycyrrhizic acid (GL) to glycyrrhetinic acid (GA)
Glycyrrhizic acid (650.0 mg obtained from from Flash chromatographic fractions 42-58) was
dissolved in 25 ml of 10% H2SO4 solution in MeOH and reaction mixture was refluxed for 3-
4 hrs, which was further diluted with water and neutralized with 10% NaOH solution and
then it was extracted thrice with CHCl3. The combined CHCl3 extract was dried under
vacuum, which afforded aglycone (450mg). This aglycone was purified over flash using
Silica gel H. A total of 148 fractions were collected and pooled based on their TLC profile.
The fractions 29-46 eluted with CHCl3 MeOH (99:1) afforded homogeneous product (GA,
1
250mg) characterized as glycyrrhetinic acid (GA) on the basis of its H and 13C NMR
spectroscopic data.18β-glycyrrhetinic acid (Figure 3).
Semi-Synthesis of Glycyrrhetinic Acid (GA) derivatives
The chemical reactions for the synthesis of 3-O-acyl derivatives and 3-O-acetyl amide
derivatives are depicted in schemes-1&2 respectively. All the acyl derivatives were
synthesized by taking GA and corresponding acyl chloride (2 equivalent) and a catalytic
amount of 4-(N, N-dimethyl) aminopyridine (DMAP) into dry pyridine as solvent and
refluxing the reaction mixture for 8 hours up to 80oC (Figure 4a). Reaction mixture was then
neutralised with 5% HCl solution and extracted thrice with ethyl acetate. The combined ethyl
acetate fraction was washed with water, dried over anhydrous Na2SO4 and solvent removed
under vacuum to yield the crude product. Further, the crude product was purified by column
chromatography which afforded the desired products.
All the 3-O-acetyl amide derivatives were semi-synthesized by treating 3-O-acetyl GA with
oxalyl chloride (2equiv) in dry dichloromethane (DCM) for three hours followed by adding
corresponding amines (1.5 equivalent) and triethylamine under nitrogen atmosphere (Figure
4b). The reaction mixture was stirred for four hours at room temperature. The reaction was
quenched with H2O (10 mL), and the organic phase was separated. The aqueous phase was
extracted with CH2Cl2 (3x30 mL). The combined organic phase was dried over Na2SO4,
filtered, and evaporated under vacuum to give the crude product. The products were purified
by column chromatography, which afforded the desired derivatives. All the GA derivatives
were characterized on the basis of their 1H and 13C NMR spectroscopic data.
8

Characterization of GL, GA and GA derivatives (GA1–GA5)
All the GA derivatives were characterized on the basis of their
spectroscopic data as given below.
1H and
13C
NMR
GL:
1H NMR (300 MHz, C5H5N ): δ 0.76 – 1.32 (3H each all s, 7 x tert.CH3), 2.32 (s, 1 H; 9H),
1.97 (3H, s, C-32), 4.2 (1H, dd, J= 6.8 & 8.7 Hz, 3 α-H), 5.56 (1H, s, H-12), 5.20 (1H,d, H-
1’), 3.23 (1H, m, H-2’), 3.62 (1H, m, H 3’ & H-4’), 4.45 (1H, d, H-5’), 12.22 (1H, s, H-6’),
4.86 (1H,d, H-1”), 3.53 (1H, m, H-2”, H-3” & H-4”), 4.5 (1H, d, H-5”), 12.3 (1H, s, H-6”)
13C NMR (C5H5N, 75MHz): 39.9 (C-1), 27.0 (C-2), 88.7 (C-3), 37.8 (C-4), 55.5 (C-5), 18.1
(C-6), 33.2 (C-7), 43.7 (C-8), 62.4 (C-9), 37.6 (C-10), 199.9 (C-11), 128.9 (C-12), 169.9 (C-
13), 45.8 (C-14), 28.3 (C-15), 26.8 (C-16), 32.4 (C-17), 48.9 (C-18), 41.9 (C-19), 44.3 (C-
20), 31.8 (C-21), 38.6 (C-22), 28.0 (C-23), 16.8 (C-24), 17.0 (C-25), 19.0 (C-26), 23.7 (C-
27), 28.7 (C-28), 28.9 (C-29), 179.4 (C-30), 104.1 (C-1’), 83.1 (C-2’), 75.8 (C-3’), 71.7 (C-
4’), 76.5 (C-5’), 170.5 (C-6’), 105.2 (C-1”), 75.4 (C-2”), 76.9 (C-3”), 71.8 (C-4”),
75.9 (C-5”), 170.6 (C-6”).
GA:
1H NMR (300 MHz, CDCl3): δ 0.76 – 1.32 (3H each all s, 7 x tert.CH3) 2.32 (s, 1 H, 9H),
3.36 (1H, dd, J= 6.8 & 8.5 Hz, 3 α-H) 5.62 (1H, m, H-12).
13C NMR: 39.9 (C-1), 27.0 (C-2), 78.1 (C-3), 37.8 (C-4), 55.5 (C-5), 18.1 (C-6), 33.2 (C-7),
43.7 (C-8), 62.4 (C-9), 37.5 (C-10), 199.1 (C-11), 128.9 (C-12), 169.9 (C-13), 45.8 (C-14),
28.3 (C-15), 26.8 (C-16), 32.4 (C-17), 48.9 (C-18), 41.9 (C-19), 44.3 (C-20), 31.8 (C-21),
37.5 (C-22), 27.8 (C-23), 16.8 (C-24), 17.0 (C-25), 19.0 (C-26), 23.7 (C-27), 28.8 (C-28),
28.9 (C-29), 179.4 (C-30).
GA-1:
1H NMR (CDCl3, 300 MHz): δ 0.86-1.35 (3H each, all s, 7 x tert CH3), 4.32 (1H, m, H-3),
5.61 (1H, s, H-12), 2.04 (3H, s, H-2’).
13C NMR (CDCl3, 75MHz): δC 39.2 (C-1), 26.8 (C-2), 81.6 (C-3), 38.5 (C-4), 55.4 (C-5),
17.8 (C-6), 33.1 (C-7), 43.6 (C-8), 62.1 (C-9), 37.3 (C-10), 200.8 (C-11), 128.8 (C-12), 169.9
(C-13), 45.9 (C-14), 28.4 (C-15), 26.8 (C-16), 32.3 (C-17), 48.6 (C-18), 41.2 (C-19), 44.2 (C-
20), 31.6 (C-21), 38.1 (C-22), 28.9 (C-23), 16.8 (C-24), 17.1 (C-25), 19.1 (C-26), 23.7 (C-
27), 28.9 (C-28), 29.8 (C-29), 182.2 (C-30), 171.5 (C-1’), 21.7 (C-2’).
GA-2:
1H NMR (CDCl3, 300 MHz): δ 0.83-1.34 (3H each, all s, 7 x tert CH3), 4.48 (1H, m, H-3),
5.60 (1H, s, H-12), 2.00 (3H, s, H-2’), 3.24 (2H, m, H-1”), 0.86 (3H, t, J = 7.5 Hz, H-3”).
13C NMR (CDCl3, 75MHz): δ 39.2 (C-1), 26.9 (C-2), 81.0 (C-3), 37.9 (C-4), 55.4 (C-5), 17.8
(C-6), 33.1 (C-7), 43.6 (C-8), 62.1 (C-9), 37.3 (C-10), 200.3 (C-11), 128.8 (C-12), 169.7 (C-
13), 45.8 (C-14), 28.4 (C-15), 26.9 (C-16), 32.3 (C-17), 48.6 (C-18), 41.6 (C-19), 43.9 (C-
9

20), 31.9 (C-21), 38.4 (C-22), 28.9 (C-23), 16.7 (C-24), 17.0 (C-25), 19.1 (C-26), 23.7 (C-
27), 28.9 (C-28), 30.0 (C-29), 176.0 (C-30), 171.3 (C-1’), 21.6 (C-2’), 42.3 (C-1”), 23.9 (C-
2”), 11.8 (C-3”).
GA-3:
1H NMR (CDCl3, 300 MHz): δC 0.85-1.37 (3H each, all s, 7 x tert CH3), 4.46 (1H, m, H-3),
5.62 (1H, s, H-12), 2.02 (3H, s, H-2’), 3.29 (2H, m, H-1”), 0.85 (3H, t, J = 7.5 Hz, H-4”).
13C NMR (CDCl3, 75MHz): δC 39.2 (C-1), 26.8 (C-2), 81.0 (C-3), 37.9 (C-4), 55.4 (C-5),
17.8 (C-6), 33.1 (C-7), 43.6 (C-8), 62.1 (C-9), 37.3 (C-10), 200.4 (C-11), 128.8 (C-12), 169.8
(C-13), 45.8 (C-14), 28.4 (C-15), 26.8 (C-16), 32.3 (C-17), 48.6 (C-18), 42.3 (C-19), 43.9 (C-
20), 31.9 (C-21), 38.4 (C-22), 28.9 (C-23), 16.8 (C-24), 17.0 (C-25), 19.1 (C-26), 23.7 (C-
27), 28.9 (C-28), 30.0 (C-29), 176.0 (C-30), 171.4 (C-1’), 21.7 (C-2’), 39.8 (C-1”), 33.1 (C-
2”), 20.4 (C-3”), 14.0 (C-4”).
GA-4:
1H NMR (CDCl3, 300 MHz): δ 0.84-1.40 (3H each, all s, 7 x tert CH3), 4.79 (1H, dd, J = 6.3
& 8.9 Hz, H-3), 5.74 (1H, s, H-12), 7.47-8.13 (5H, m, Ar-H).
13C NMR (CDCl3, 75MHz): δC 39.2 (C-1), 26.8 (C-2), 81.7 (C-3), 38.2 (C-4), 55.5 (C-5),
17.8 (C-6), 32.3 (C-7), 43.6 (C-8), 62.2 (C-9), 37.4 (C-10), 200.6 (C-11), 128.9 (C-12), 172.5
(C-13), 45.9 (C-14), 28.6 (C-15), 26.8 (C-16), 31.3 (C-17), 48.6 (C-18), 38.9 (C-19), 45.9 (C-
20), 30.1 (C-21), 37.4 (C-22), 28.9 (C-23), 16.8 (C-24), 17.4 (C-25), 19.1 (C-26), 23.8 (C-
27), 28.9 (C-28), 29.8 (C-29), 176.0 (C-30), 172.5 (C-1’), 130.0 (C-2’), 130.6 (C-3’& C-7’),
128.9 (C-4’&C-6’), 133.1 (C-5’).
GA-5:
1H NMR (CDCl3, 300 MHz): δ 0.99-1.35 (3H each, all s, 7 x tert CH3), 4.48 (1H, m, H-3),
5.67 (1H, s, H-12), 2.04 (3H, s, H-2’), 3.82 (2H, t, J = 6.6 Hz, H-1”), 2.95 (2H, t, J = 6.6 Hz,
H-2”).
13C NMR (CDCl3, 75MHz): δC 39.2 (C-1), 26.8 (C-2), 80.6 (C-3), 38.0 (C-4), 55.4 (C-5),
17.8 (C-6), 33.1 (C-7), 43.7 (C-8), 62.2 (C-9), 37.4 (C-10), 201.0 (C-11), 128.7 (C-12), 171.4
(C-13), 45.9 (C-14), 28.4 (C-15), 26.8 (C-16), 32.2 (C-17), 48.6 (C-18), 41.9 (C-19), 44.1 (C-
20), 30.1 (C-21), 38.4 (C-22), 29.0 (C-23), 16.8 (C-24), 17.1 (C-25), 19.1 (C-26), 23.7 (C-
27), 28.4 (C-28), 29.9 (C-29), 177.0 (C-30), 171.4 (C-1’), 21.7 (C-2’), 45.9 (C-1”), 41.9 (C-
2”).
In-vitro cytotoxicity evaluation
Preparation of test sample solutions
The test samples 18β-glycyrrhetinic acid and its derivatives GA-1, GA-2, GA-3, GA-4 and
GA-5 were weighed in micro centrifuge tubes and stock solutions of 20mM were made by
dissolving the samples in DMSO. Stocks are stored at -20ºC. A working solution of 12.5, 25,
50, 100 and 200µM concentration was made by diluting the stock solution in culture medium.
10

Cell Culture
The MDA-MB-231 (Organism: Homo sapiens, Tissue/site: breast metastatic, Cell type:
epithelial, TNBC) were procured from American Type Culture Collection (ATCC) and
cultured as per manual instructions. The cells were cultured and maintained in RPMI-1640
medium at 37 ˚C and 5% CO2/95% air in a humidified incubator and were regularly
examined microscopically for stable phenotype.
SRB Assay
Addition of cells: The cells were dispensed in a flat bottom 96-well plate. To each well, 100
µl of the cell suspension containing 10,000-15,000 ells were added. Further, the cells were
incubated at 37 ºC in 5% CO2/95% air concentration for 24 h, prior to the addition of test
samples.
Test samples addition: A working solution of 100 µl of test sample was added to the cell
monolayer to give a final concentration 200μM. A series of four dilutions 12.5μM, 25μM,
50μM and 100μM for each derivative in three replicates were included.
Negative (Vehicle) Controls: In every assay plate DMSO was added in 0.1% concentration as
vehicle control. The final concentration of DMSO was 0.1% in all assay wells. Finally, the
plates were incubated at 37 ºC in 5% CO2 concentration for 48 h.
Addition of Sulphorhodamine B ass and colorimetric reading: Once the treatment period was
done. After 48 h incubation, cold 50% trichloroacetic acid (TCA Sigma Aldrich, 50 µl/well)
were added on top of the medium to fix the cells attached to substratum and incubated for one
h at 4ºC. After that a five times gentle wash was given to the plate with slow running tap
water to remove dead cells, culture medium and TCA. After washing, the plates were air
dried. Further, 50 µl/well of SRB solution was added to the dried plate and left at room
temperature for 30 min. After incubation, unbound SRB dye was removed by 4-5 times
washing with 1 % (v/v) glacial acetic acid. Plates were allowed to air-dry at room
temperature. Further, 150 µl of 10 mM Tris base solution was added to each well to
solubilize the protein-bound dye, and plate is shaken for 15 min on a gyratory shaker. Finally,
the absorbance was taken at 510 nm using a plate reader.
Data analysis
Percentage of cell growth inhibition in presence of the test sample is calculated as follows:
Identification of therapeutic targets for GA in MDA-MB-231
Based on recently published report, a 48 hours treatment of MDA-MB-231 cells with 20µM/l
GA attenuate cellular glutathione (GSH) level and cause apoptosis in TNBC cancers (Cai, et
al., 2017). The cellular GSH level is controlled by GLO-I and Topoisomerase-II as reported
by Silva, et al., 2013 & Cameron et al., 1999. However, a web based target identification
tools viz., Stitch-DB (http://stitch.embl.de.) and Swiss target prediction identified,
hydroxysteroid 11-beta-dehydrogenase-1(1HSD1) as possible binding targets for GA (Figure
11

S8, Supplementary information). Therefore, an approach of molecular docking based
screening was applied for GA and derivatives to rank possible MDA-MB-231 targets viz.,
GLO-I, TOPO-II and 11HSD1 based on their degree of binding energies.
Molecular docking and atomic property field (APF) based scoring
The crystal structure of GLO-I (PDB: 4PV5) bound with glycyrrhetinic acid (2.3 resolution)
was retrieved from protein database (Zhang, et al., 2015). The GA derivatives structures were
converted to ICM object using ICM Molsoft–chemist v3.8-6, (2018) (Molsoft LLC, San
Diego, USA). It uses Monte Carlo minimization in the atomic property field's potentials in
conjunction with standard MMFF94 force-field energies. The method was developed by
Totrov, 2008, 2011 & Grigoryan et al., 2010. Protein-ligand docking tool FlexX provided by
LeadIT software v2.1.6, 2017, (BioSolveIT GmbH, Sankt FeAugustin, Germany,
www.biosolveit.de/LeadIT) was used to perform molecular interaction study as proposed
procedure by Kramer, et al., 1999. The amino acids within 10 Å region from GA active site
of enzyme GLO-I were selected to get more flexibility in interaction study. Number of pose
generation was set at 10 and computed pose with minimum energy (RMSD) was selected for
comparative study.
Computational assessment for oral bioavailability and toxicity
All the five GA derivatives were also studied for their oral bioavailability by calculating
various pharmacokinetic parameters such as plasma protein binding, blood brain barrier
penetration capacity, intestinal absorption, hepatotoxicity, oral bioavailability. Furthermore,
the derivatives were evaluated for toxicity risk screening using Discovery Studio v3.5
TOPKAT (Toxicity Prediction by Komputer Assisted Technology) tool. TOPKAT is a
Quantitative Structure Toxicity Relationship (QSTR) based tool developed by Accelrys Inc.
USA (http://accelrys.com) licensed to CSIR-CIMAP, Lucknow (www.cimap.res.in). The
module utilizes highly robust and cross-validated QSTR models to predict toxicity. The
module applies patented Optimal Predictive Space (OPS) which is a unique multivariate
descriptor space for result interpretation (Enslein, et al., 1988, 1987). The module computes
the toxic and environmental effects of compounds exclusively from their chemical structures.
DS-TOPKAT module search fragments within query molecule based on molecular
fingerprint similarity with the training set compounds. The TOPKAT toxicity prediction
results for unknown compound are calculated based on Probability score, Bayesian scores
and Mahalanobis distance (structure similarity) from the centre of the training set
compounds. DS-TOPKAT gives predictions for a range of toxicological endpoints, including
mutagenicity, developmental toxicity, rodent carcinogenicity, rat chronic Lowest Observed
Adverse Effect Level (LOAEL), rat Maximum Tolerated Dose (MTD) and rat oral LD50
(Table S6, Supplementary material).
Results and Discussion
2D-QSAR model development and validation results
The developed quantitative structure–activity relationship model (QSAR) identifies activity
inducing features of 144 MDA-MB-231 inhibitors selected in the model development (Table
S1 and S2, Supplementary material). The developed QSAR model was validated through
12

various statistical approaches viz., leave-one-out (LOO), external test set prediction (r2pred), Z-
scores and matrix calculation. The results of statistical parameters are summarized in
Table 1.
QSAR multiple linear regression equation
PIC50 (µM) = 0.0016 +7.2421 (Epsilon4) +1.2894 (chiV3Cluster) -0.7603 (T_N_N_5)
+0.1635 (Nitrogen count) +2.3425 (chi3chain)
(Equation 6)
Where, N (training set, 70% of 144 MDA-MB-231 inhibitors) = 100, n (test set, 30% of 144
MDA-MB-231 inhibitors) =44, r2 (Regression coefficient for training set) =0.8442,
R2se=0.3063, q2 (Regression coefficient for leave one out (LOO) validation) =0.8282, q2se=
0.3214, Fisher test = 101.6555, predicted r2 (Regression coefficient for external test set)
=0.7532, pred r2se= 0.3659, Z score R2= 14.76689, Z score q2 = 14.61679 and Z score pred r2
= 4.11170
The QSAR model attain good correlation coefficient of 0.84 for training set of 100 inhibitors.
The fitness plot between observed and predicted PIC50 values is presented in Figure 5. The
high value of cross validation (LOO) regression (q2), 0.82 indicates training set compounds
(blue dots) exhibit less statistical noise. Regression coefficient for random selected 44
external test set (Pred R2) was found 0.75. The test set regression infers the good
predictability of model for unknown compounds (red dots), a small measure of error (0.0016)
indicate data comprehensiveness. Additionally, an even distribution of residual values around
the axis line indicate good model quality (Figure S3, Supplementary material). Furthermore,
high value for Fishers test, F= 101.65, again verified robustness of the model. Also, a high Z
scores of 14.76689, 14.61679 and 4.11170 for r2, q2 and pred r2 respectively, supported the
good model quality. The computed statistical qualities for training and test sets are
summarized in Table 1 and Table 2 with their reported cut off values.
Based on Ojha, et al., 2011 the r2pred is not a true evidence for model prediction ability. Since,
r2pred depends on training set mean and therefore greatly influenced by training set and test set
selection. However, matrix shows the predictability of the model for whole dataset. For
’2
test set the acceptable range for parameters, r2pred, and r m is 0.5, Δ should be less than
0.2 and r2mbar should be more than 0.5 (Ojha, et al., 2011). In the present case the r2, r2 (LOO),
’2
r m, r2
and Δ values for training set are 0.84, 0.82, 0.83, 0.71, 0.77 and 0.11
mbar
respectively (Table 1). All statistical parameters for training set were found within their cut
off limits (Table 1). For test set, r2pred, and r’2 were found 0.75, 0.67 and 0.63
m
respectively. The calculated values of r2
and Δ for test set are 0.65 and 0.03
m (bar)
respectively that are within their cut off limits (Table 2). The computed r2 matrix validate
m
13

the reliability and robustness of developed QSAR model for anticancer activity prediction of
unknown compounds. Also, the model identified features help to explore the structure based
inhibition mechanism of MDA-MB-231inhibitors.
QSAR model identified 2D structural properties and description
Generated equation 6 explains the model extracted out five important descriptors that
determine the cytotoxic potential of MDA-MB-231 inhibitors are (i) Epsilon4 that signified
measure of electronegativity count, (ii) ChiV3cluster indicate valence molecular connectivity
index, (iii) chi3chain represents retention index for three membered ring, (iv) TNN5 stands
for nitrogen atoms separated through 5 bond distances and (v) nitrogen counts i.e., number of
nitrogen atoms in the molecule.
The topochemical descriptor Epsilon4 signifies measure of electronegativity count and
contributing 11% to the biological activity (PIC50). The descriptor chiV3Cluster, belong to
valence molecular connectivity index of 3rd order cluster (Shen, et al., 2002). It is known that
molecular connectivity indices are most successful among other topological properties in
compound property estimation. Since these indices are based on contingent chemical,
structural and mathematical ground. The important advantage of the molecular connectivity
model comprises its flexibility, to quantify general as well as local structural properties. The
percentage contribution for identified descriptors are presented in figure S4 under
supplementary material. Figure S4 describes descriptor chiV3Cluster contribute 30% to
biological activity of training set compounds. Whereas, TNN5 descriptor that define two
nitrogen atoms separated through 5 bond distances, showed inverse relationship to the
biological activity. However, descriptor nitrogen count is showing positive effect and
contributing 21% to the activity (PIC50). Additionally, the equation 6 indicate nitrogen
containing functional groups may increase the biological activity. Though chemical
fragments containing nitrogen atoms departed by long chain (TNN5) might not be very
favourable. Overall, the model suggests maximum contribution hail from the descriptors
chiV3Cluster, Epsilon4 and nitrogen count (Figure S4, supplementary material).
2D-QSAR model AD assessment results
A PCA analysis indicates 44 test set compounds fall within the structure space of training set
compounds. Figure 6 shows generated PCA graph for training set (blue sphere) and test set
(yellow sphere). The figure illustrates a uniform distribution of test set within the vector
space of training set compounds. The figure defines the test set as a true representative of
training set. Also, a broad biological activity space of 10-1 to 101 µM for training and test set
indicate the data was comprehensive. A correlation matrix for PIC50 and extracted descriptor
(Epsilon4, chiV3Cluster, T_N_N_5, Nitrogen count and chi3chain) was also generated
(Table S4, Supplementary materials). It showed that the developed model based on the
selected descriptors is well established.
A UPGMA based hierarchical cluster analysis (Tanimoto structure similarity distance 0-0.7)
of 144 dataset compounds indicate that training set, test and five GA derivatives come within
the applicability domain of QSAR model. Also, the heat map generation for chemical
properties viz., molecular weight, logP, polar surface area, maximum ring size, minimum ring
14

size, maximum fused rings, and number of rotatable bonds also indicate the optimal chemical
property range (Figure S1, Supplementary material).
Identified 3D structural property fields through 3D-QSAR studies
At this point, an attempt was made to generate APF based 3D-QSAR analysis to
systematically describe the structural atomic field level of novel GA derivatives. The 3D-
QSAR analysis performed by Atom Property Fields (APF) methods was developed by
Totrov, et al., 2008. For this purpose, a set of congeneric series of 42 GA derivatives, with in-
vitro inhibition activity against MDA-MB-231 cell line were selected. The dataset structures
were flexibly aligned to the generated property fields of co-crystallised GA on GLO-I. The
co-crystallised GA on GLO-I binding site is depicted in Figure 7. The generated model
presented a good regression coefficient of 0.96 for training set compounds. Also, the external
test set based regression reverted a good predictive regression coefficient of 0.82 (Table 3,
Table 4). The regression plot between observed and predicted PIC50 for training and test sets
are showed in figure 8 and figure 9. The calculated results of statistical parameters training
and test sets are compiled in Table 3 and Table 4 respectively. All statistical properties were
found within their cut off limit. The results indicate generated model is robust enough to give
consistent prediction for novel GA derivatives. Henceforth, novel GA compounds namely
GA-1, GA-2, GA-3, GA-4 and GA-5 were aligned on training and their PIC50 values were
predicted through developed 3D-QSAR model. The model presented IC50 for GA derivatives
ranges from 44.26 µM to 103.75 µM. Based on 3D-QSAR model predicted results it has been
expected that designed derivatives may show moderate activity against TNBC cell line.
Semi-synthesis and SRB based in-vitro cytotoxicity assay results for GA
derivatives GA-1, GA-2, GA-3, GA-4 and GA-5 against metastatic TNBC cell
line MDA-MB-231
Our design concept for GA derivatives, GA-1, GA-2, GA-3, GA-4 and GA-5 was to
introduce structural variations at C-3 and C-30 positions to improve the anticancer efficiency.
The 2D QSAR model extracted descriptor Epsilon4 indicate electronegativity on GA cause
favourable effects on biological activities. A positive correlation with electronegativity was
also found in 3D-QSAR studies (Figure 10). 2D-QSAR descriptor ChiV3cluster suggested
less branching at GA scaffold is favourable. Hence, small fragments viz., propyl amide, butyl
amide and amino ethyl amide were substituted at C-30 carbon (GA-1, GA-2, GA-3 and GA-
5). The structures of prepared derivative are given in Figure 4a and Figure 4b. However, 3D
QSAR based property fields suggest lipophilicity and electronegativity are playing governing
role in anticancer properties of GA derivatives. Therefore, a derivative with benzoate group
substitution at C-3 position was also prepared (GA-4). The detailed analysis of 2D and 3D
QSAR based structure activity relationship is illustrated in Figure 10. Based on QSAR model
studies five novel derivatives of GA named GA-1, GA-2, GA-3, GA-4 and GA-5 were semi-
synthesised with modifications at C-3 and C-30 positions and screened through the developed
model (Figure 4a, 4b).
15

Further, a dose dependent in-vitro cytotoxicity of GA and derivatives were investigated
against metastatic TNBC cell line MDA-MB-231. The 48 hours exposure of derivatives GA-
1, GA-3 and GA-4 inhibit MDA-MB-231 cells with IC50 76.5 µM, 91.79 µM and 116.07 µM
respectively (Table 5). Derivative GA-1 was found most active as it showed most cytotoxic
activity against MDA-MB-231 cells. However, GA-2 and GA-5 were found least effective as
they indicated 35.56% and 25.63% cancer cells inhibition at maximum concentration of
200µM. GA-3 and GA-4 showed moderate inhibition potentials of 91.79 µM and 116.07 µM
respectively.
2D and 3D-QSAR model results and their correlation with in-vitro activity of
GA-1, GA-2, GA-3, GA-4 and GA-5
In order to prospectively validate the generated 2D and 3D QSAR models the anticancer
activities of the novel GA derivatives were calculated and compared with the in-vitro activity.
Relevance for 2D-QSAR was based on the data homogeneity constructed using natural
scaffold-based training set with fused rings structures (2-5 rings) (Figure S3, supplementary
material). The GA derivatives are pentacyclic triterpene. The 2D QSAR model predicted IC50
was in the range of 49 µM to 18 µM. No much difference in activities between GA-1, GA-2
and GA-3 was predicted because of their high topological similarity. Hence, an Atomic
potential field based 3D QSAR was applied to recognize biologically significant structural
features of GA derivatives. The dataset for 3D-QSAR was based on congeneric series of GA
derivatives. Consequently, it has been expected that APF based 3D QSAR model might
present more specific results for derivatives. The model presented IC50 for GA derivatives
ranges from 44.26 µM to 103.75 µM. The 3D QSAR prediction provided more variations in
PIC50 of GA derivative. Also, a positive correlation between APF scores and in-vitro activity
indicate correlation between atomic property fields score in negative and cytotoxic activity
(Figure 11).
The results of 2D and 3D QSAR models and in-vitro activities on GA derivatives indicate 3-
O-acyl derivative named GA-1 was more significant in terms of biological activity. It has
been found that modification at C-30 carboxylic group with amide group in GA-2, GA-3,
GA-4 and GA-5 resulted decrease in cytotoxic potential against MDA_MB-231. Moreover,
APF 3D QSAR based predicted activities for derivatives were found comparable to their in-
vitro IC50 values. Therefore, the results indicate APF based 3D QSAR performed well in
predicting the biological activities of studied compounds.
Mode of action study, binding energy and APF scores of GA-1, GA-2, GA-3,
GA-4 and GA-5 with anticancer target GLO-I
Breast cancer majorly depends on glycolysis as energy source based on Warburg effect
(Sullivan, et al., 2016; Fonseca-Sánchez, et al., 2012). During glycolysis a highly reactive
compound known as methyl glyoxalases are formed. GLO-I metabolize and inactivate
methylglyoxlase produced through glycolysis, making GLO-I inhibitors as potential anti-
tumor agents (Cai, et. al., 2016, Silva, et. al., 2013). Inhibition of GLO-I resulted in the
accumulation of α-oxoaldehydes at cytotoxic levels and reverse multi drug resistance (MDR).
RT-PCR, western blot analysis of metastatic breast cancer MDA-MB-231 often show high
expression of GLO-I. Additionally, knockdown study on GLO-I enzyme supress migration,
16

invasion and promote apoptosis in metastatic breast cancer cells (Guo, et al., 2016).
Conventional and most considered GLO-I inhibitors are coenzyme GSH analogs, which
exhibits efficient inhibition in-vitro (Silva, et. al., 2013) and reverse MDR, thus GLO-I
inhibitors have been proposed as efficient anti-tumor agents. However, these GSH based
inhibitors suffer from poor pharmacokinetic properties and are difficult to use as lead
structure for the further design of small molecule. Alternatively, non-GSH analog natural
inhibitors include flavonoids, methylgerfelin (MGI), indomethacine, zopolrestat and
curcumin and its derivatives showed good pharmacokinetic properties (Zhang, et al., 2015).
Notably the carboxylic group of these molecules mimic, glycyl and γ-glutamyl residue
moieties of GSH to form hydrogen bonds with the glycyl and glutamyl sites, respectively, in
the GSH binding site (Figure S5, Supplementary material). Recently, Cai, et al., (2017) has
reported MDA-MB-231 treatment with 20 µM/l of GA for 48 hour which causes apoptosis by
inducing GSH inhibition.
Here, a docking based screening of GA derivatives presented good binding energy with
predicted target GLO-I in comparison to other two targets 11HSD1 and TOPO-II (Table S5,
Supplementary material). Therefore, a non GSH based ligand namely GA-1, GA-2, GA-3,
GA-4 and GA-5 were analysed for their binding affinity towards GLO-I enzyme.
The mammalian GLO-I exhibit two binding sites with zinc as a cofactor at its catalytic
binding site. One of the binding sites is glycyl site specific for GSH binding as presented in
Figure 7. The key amino acid residues for glycyl site are LYS150A, GLY155A, LYS156A,
and LEU160A AND PHE162A. However, glutamyl site exhibited key amino acids,
ARG37B, ASN103B and ARG122A. While the Zn2+ catalytic site coordinating residues
include GLN32, HIS126 and GLU172. As reported by Zhang, et al. (2015) for a non-GSH
analogs GA doesn’t require metal Zn2+ coordination. Therefore, in the present work Zinc ion
was excluded while docking process as GA is a pentacyclic triterpenoid. From the APF based
alignment and scoring, it is evident that carboxylic group at C-30 position plays a critical role
in GA-GLO-I binding. The C-30 carboxylic group hydrogen atom is highly polar and cause
negative charge over oxygen after ionization. This leads to hydrogen bonding between C-30 -
RCOO‾ with polarized hydrogen atoms present in amino acid residues ARG-38 (1.8 Å) and
ASN-104 (2.3 Å) (electrophilic centres) of GLO-I binding pocket.
In accordance with the results the most active GA derivative GA-1 (IC50 = 76.5 µM) showed
highest APF score of -425.82 (Figure 11). For this purpose, the parent compound GA with
APF -219.67 (IC50 = 82.29) was taken as positive control to identify structure-activity
relationship based on their APF score. The least active derivatives GA-2 (IC50 >200 µM) and
GA-5 (IC50 >200 µM) showed minimum APF score of -402.047 and -402.14. Likewise,
derivative GA-3 and GA-4 with moderate IC50 of 91.79 µM and 116.07 µM accordingly
presented a moderate APF score of -401.18 and -415.68. Consequently, the APF alignment
score and IC50 values indicated that the carboxylic group at C-30 in GA-1 and GA-4 in some
way play a major role in enzyme receptor binding.
Footnote: *Atomic property field (APF) based score calculated through ICM-Chemist v3.-6a
(Molsoft L.L.C., USA, licensed to CSIR-CIMAP, Lucknow, India)
17

Correspondingly, the FlexX based binding energy calculation of GA derivatives on GLO-I
was also found in close agreement with APF guided structure-based screening results (Table
6). The results of molecular docking of GA and its derivatives against GLO-I approved that
GA-1 exhibited highest binding affinity of -16.997 kJ/mol in comparison to derivatives GA-2
(-9.7 kJ/mol), GA-3 (-7.293 kJ/mol), GA-5 (-10.419 kJ/mol). However, GA-4 also showed
good binding affinity (-21.232 kJ/mol). The binding pose analysis of active GA-1 showed
amino acid residues ARG-38 and ARG-123 form hydrogen bonds with C-30 carboxylic
group of GA-1. The proposed binding pose of GA-1 on GSH binding site of GLO-I is
represented in figure 13.
Oral bioavailability and toxicity risks assessment results
Rodent (mouse/rat) carcinogenic probability based on data from National Toxicological
programme (NTP) showed GA and its derivatives as non-carcinogen. Conversely, the US
Food and Drug Administration (FDA) based data predicted GA and its derivatives as
carcinogenic compounds. This contraindication was resolved by considering Weight Of
Evidence (WOE) prediction that indicate GA and its derivatives may possess carcinogenic
character. Many anticancer compounds often possess carcinogenic characters since they
target proliferating cells and cause developmental toxicity in developing embryos. However,
Ames mutagenic prediction showed derivatives as non-mutagenic. Here, GA-1, GA-2 and
GA-3 were also found non-toxic for developmental mutagenicity. Additionally, GA-1
showed moderate to severe skin effect and ocular irritancy. Detail compliance for
computational toxicity analysis are provided in supplementary table S6. Lastly, the
computational results showed that GA and its derivatives have good aerobic biodegradability,
hence they are non-persistent and safe to the environment.
Conclusions
In this study the QSAR model predicted IC50 and SRB assay based biological activities of
GA derivatives, GA-2, GA-3, and GA-4 were found comparable against triple negative breast
cancer cell line MDA-MB-231. This indicated that the model extracted structural features
viz., Epsilon4 (measure of electronegativity count), ChiV3cluster (valence molecular
connectivity index), chi3chain (retention index for three membered ring), TNN5 (nitrogen
atoms separated through 5 bond distances) and nitrogen counts had significant contribution to
the biological activity. The results also signify that OH group substitution with acyl group at
C-3 position increases the compound lipophilicity thereby increasing the cytotoxicity
potential against TNBC breast cancer cell line MDA-MB-231. Conversely, substitution at C-
30 position with propyl amide, butyl amide and amino ethyl amide resulted in decreased
cytotoxicity. However, C-30 substitution with butyl amide did not cause any significant
difference. Whereas the cytotoxicity was decreased due to addition of benzoate group at C-3
position. Over all the results suggested that C-30 carboxylic group is crucial for GA based
cytotoxic activity. Therefore, an addition of 3-O-acetyl group at C-3 increases GA
lipophilicity thereby improves the cytotoxicity.
Additionally, APF based scoring and FlexX based binding affinity with GLO-I, a highly
expressing enzyme in metastatic TNBC breast cancers confirmed that GA and GA-1
exhibited maximum binding affinity. APF based flexible alignment of GA-1 with co-
crystallized GA again established the significance of C-30 carboxyl group as it serves to
18

make three hydrogen bonds with GLO-I key amino acids ARG-38, ARG-123 and ASN-104.
Thus, it’s a novel work reporting active natural leads screened virtually using different
molecular modelling approaches and in-vitro validation of predicted results tested on triple
negative breast cancer cell lines. This study will be helpful in early lead discovery against
metastatic breast cancers.
Author’s contribution
AS, FK and SKS designed the detailed experiments, performed the study, and collected and
analyzed the data. RK and SKS synthesised and characterised the derivatives. SM and DD
performed in-vitro SRB assay. All authors analysed the results and approved the final
manuscript.
Acknowledgment
AS acknowledges the Department of Science & Technology (DST), Govt. of India, New
Delhi for financial assistance through WOS-B fellowship (GAP-339; S.No.
DST/KIRAN/SoRF-PM/007/2015/CG) at CSIR-CIMAP. SKS acknowledges the Indian
Council of Medical Research (ICMR), New Delhi for the Emeritus Medical Scientist at
CSIR-CIMAP, Lucknow. We are also thankful to the Director, CSIR-CIMAP, Lucknow,
India for rendering essential research facilities and support. We acknowledges Jawaharlal
Nehru University (JNU), New Delhi for Ph.D registration and administrative support. The
CIMAP communication number is CIMAP/PUB/2018/40.
Conflict of interest
All authors declare no conflict of interest.
References
Polyak, K. (2011) Heterogeneity in breast cancer. The Journal of clinical investigation,
121(10), 3786-3788. DOI: 10.1172/JCI60534.
Ovcaricek, T.; Frkovic, S.; Matos, E.; Mozina, B.; & Borstnar, S. Triple negative breast
cancer-prognostic factors and survival. Radiology and oncology, 2011, 45(1), 46-52. DOI:
10.2478/v10019-010-0054-4.
Bianchini, G., Balko, J. M., Mayer, I. A., Sanders, M. E., & Gianni, L. (2016). Triple-
negative breast cancer: Challenges and opportunities of a heterogeneous disease. Nature
Reviews Clinical Oncology, 13(11), 674-690. DOI: 10.1038/nrclinonc.2016.66.
Thike, A. A., Cheok, P. Y., Jara-Lazaro, A. R., Tan, B., Tan, P., & Tan, P. H. (2010). Triple-
negative breast cancer: clinicopathological characteristics and relationship with basal-like
breast cancer. Modern pathology, 23(1), 123. DOI: 10.1038/modpathol.2009.
Zardavas, D.; Baselga, J.; Piccart, M. (2013) Emerging targeted agents in metastatic breast
cancer. Nature reviews Clinical oncology, 2013, 10(4), 191. DOI: 10.1038/nrclinonc.2013.29.
Iqbal, J.; Abbasi, B.A.; Batool, R.; Mahmood, T.; Ali, B.; Khalil, A.T.; Kanwal, S.; Shah,
S.A.; Ahmad, R. (2018) Potential phytocompounds for developing breast cancer therapeutics:
19

Nature’s healing touch. European Journal of Pharmacology, 827: 125-148. DOI:
10.1016/j.ejphar.2018.03.007.
Jamdade, V. S.; Sethi, N.; Mundhe, N. A.; Kumar, P.; Lahkar, M.; Sinha, N. (2015)
Therapeutic targets of triple‐negative breast cancer: a review. British journal of
pharmacology, 172(17), 4228-4237. DOI: 10.1111/bph.13211.
Wein, L.; Luen, S. J.; Savas, P.; Salgado, R.; Loi, S. (2018) Checkpoint blockade in the
treatment of breast cancer: current status and future directions. British journal of cancer,
119(1). DOI: 10.1038/s41416-018-0126-6.
Badve, S.; Dabbs, D. J.; Schnitt, S. J.; Baehner, F. L.; Decker, T.; Eusebi, V.; Fox, S.B.;
Ichihara, S.; Jacquemier, J.; Lakhani, S.R.; Palacios, J. (2011) Basal-like and triple-negative
breast cancers: a critical review with an emphasis on the implications for pathologists and
oncologists. Modern Pathology, 24(2), 157. DOI: 10.1038/modpathol.2010.200.
Tewari, D.; Mocan, A.; Parvanov, E. D.; Sah, A. N.; Nabavi, S. M.; Huminiecki, L.; Ma,
Z.F.; Lee, Y.Y.; Horbańczuk, J.O.; Atanasov, A.G. (2017) Ethnopharmacological
Approaches for Therapy of Jaundice: Part II. Highly Used Plant Species from Acanthaceae,
Euphorbiaceae, Asteraceae, Combretaceae, and Fabaceae Families. Frontiers in
Pharmacology, 8, 519. DOI: 10.3389/fphar.2017.00519.
Krähenbühl, S.; Hasler, F.; & Krapf, R. (1994) Analysis and pharmacokinetics of glycyrrhizic
acid and glycyrrhetinic acid in humans and experimental animals. Steroids, 59(2), 121-126.
DOI: org/10.1016/0039-128X (94)90088-4.
Negishi, M.; Irie, A.; Nagata, N.; Ichikawa, A. (1991) Specific binding of glycyrrhetinic acid
to the rat liver membrane. Biochimica et Biophysica Acta (BBA)-Biomembranes, 1066(1),
77-82. DOI:org/10.1016/0005-2736(91)90253-5.
Cai, Y.; Xu, Y.; Chan, H. F.; Fang, X.; He, C.; Chen, M. (2016) Glycyrrhetinic acid mediated
drug delivery carriers for hepatocellular carcinoma therapy. Molecular pharmaceutics, 13(3),
699-709. DOI: 10.1021/acs.molpharmaceut.5b00677.
Yadav, D.K.; Kalani, K., Singh, A.K.; Khan, F.; Srivastava, S.K.; Pant, A.B. (2014), Design,
synthesis and in vitro evaluation of 18β-glycyrrhetinic acid derivatives for anticancer activity
against human breast cancer cell line MCF-7. Current medicinal chemistry, 21(9), 1160-
1170. DOI: 10.2174/1573406411309080009.
Yadav, D.K.; Kalani, K.; Khan, F., & Kumar Srivastava, S. (2013). QSAR and docking based
semi-synthesis and in vitro evaluation of 18 β-glycyrrhetinic acid derivatives against human
lung cancer cell line A-549. Medicinal Chemistry, 9(8), 1073-1084. DOI:
10.2174/1573406411309080009
Yadav, D. K.; & Khan, F. (2013). QSAR, docking and ADMET studies of camptothecin
derivatives as inhibitors of DNA topoisomerase‐ I. Journal of chemometrics, 27(1-2), 21-33.
DOI: org/10.1002/cem.2488.
20

Goldbrunner, M.; Loidl, G.; Polossek, T.; Mannschreck, A.; von Angerer, E. (1997)
Inhibition of tubulin polymerization by 5, 6-dihydroindolo [2, 1-a] isoquinoline derivatives.
Journal of medicinal chemistry, 40(22), 3524-3533. DOI: 10.1021/jm970177c.
Gao, C.; Dai, F. J.; Cui, H. W.; Peng, S. H.; He, Y.; Wang, X.; Qiu, W. W. (2014) Synthesis
of Novel Heterocyclic Ring‐Fused 18β‐Glycyrrhetinic Acid Derivatives with Antitumor and
Antimetastatic Activity. Chemical biology & drug design, 84(2), 223-233. DOI:
10.1111/cbdd.12308.
He, S.; Dong, G.; Wang, Z.; Chen, W.; Huang, Y.; Li, Z.; Zhang, W. (2015) Discovery of
novel multiacting topoisomerase I/II and histone deacetylase inhibitors. ACS medicinal
chemistry letters, 6(3), 239-243. DOI: 10.1021/ml500327q.
Li, Y.; Feng, L.; Song, Z. F.; Li, H. B.; & Huai, Q. Y. (2016). Synthesis and anticancer
activities of glycyrrhetinic acid derivatives. Molecules, 21(2), 199. DOI:
10.3390/molecules21020199
Motiwala, H. F.; azzill, J.; amadi, A.; Zhang, H.; Timmermann, . N.; Cohen, M. .;
Aub , J. (2013) ynthesis and cytoto icity of semisynthetic withalongolide A analogues.
ACS medicinal chemistry letters, 4(11), 1069-1073. DOI: 10.1021/ml400267q.
Cramer III, R. D., Bunce, J. D., Patterson, D. E., & Frank, I. E. (1988). Crossvalidation,
bootstrapping, and partial least squares compared with multiple regression in conventional
QSAR studies. Quantitative Structure‐ Activity Relationships, 7(1), 18-25. DOI:
org/10.1002/qsar.19880070105.
Golbraikh, A.; Tropsha, A. Beware of q2!. Journal of molecular graphics and modelling,
2002, 20(4), 269-276. DOI: org/10.1016/S1093-3263 (01)00123-1.
Ojha, P. K..; Mitra, I.; Das, R. N.; & Roy, K. (2011). Further exploring rm2 metrics for
validation of QSPR models. Chemometrics and Intelligent Laboratory Systems, 107(1), 194-
205. DOI.org/10.1016/j.chemolab.2011.03.011.
Shen, M.; LeTiran, A.; Xiao, Y.; Golbraikh, A.; Kohn, H.; Tropsha, A. (2002) Quantitative
structure− activity relationship analysis of functionalized amino acid anticonvulsant agents
using k nearest neighbor and simulated annealing PLS methods. Journal of medicinal
chemistry, 45(13), 2811-2823. DOI: 10.1021/jm010488u.
Kier, L.B.; Hall, L.H. (1977) Nature of structure-activity-relationships and their relation to
molecular connectivity. European Journal of Medicinal Chemistry, 12 (4), 307-312.
Zheng, W.; Tropsha, A. (2000) Novel variable selection quantitative structure− property
relationship approach based on the k-nearest-neighbor principle. Journal of chemical
information and computer sciences, 40(1), 185-194. DOI: 10.1021/ci980033m.
Roy, K.; Ambure, P.; Kar, S. & Ojha, P. K. (2018). Is it possible to improve the quality of
predictions from an “intelligent” use of multiple Q AR/Q PR/Q TR models? Journal of
Chemometrics, 32(4), e2992. DOI.org/10.1002/cem.2992.
Jaworska, J.; Nikolova-Jeliazkova, N.; & Aldenberg, T. (2005). QSAR applicability domain
estimation by projection of the training set descriptor space: a review. ATLA-NOTTINGHAM-
, 33(5), 445.
21

Adhikari, N.; Amin, S. A.; Jha, T., & Gayen, S. (2017). Integrating regression and
classification-based QSARs with molecular docking analyses to explore the structure-
antiaromatase activity relationships of letrozole-based analogs. Canadian Journal of
Chemistry, 95(12), 1285-1295. DOI.org/10.1139/cjc-2017-0419.
Amin, S. A.; Bhargava, S.; Adhikari, N.; Gayen, S., & Jha, T. (2018). Exploring pyrazolo [3,
4-d] pyrimidine phosphodiesterase 1 (PDE1) inhibitors: a predictive approach combining
comparative validated multiple molecular modelling techniques. Journal of Biomolecular
Structure and Dynamics, 36(3), 590-608. DOI: org/10.1080/07391102.2017.1288659.
Abagyan R (2018) http://www.molsoft.com/icm-chemist-pro.html
Totrov, M. (2008) Atomic property fields: generalized 3D pharmacophoric potential for
automated ligand superposition, pharmacophore elucidation and 3D QSAR. Chemical
biology & drug design, 71(1), 15-27. DOI: org/10.1111/j.1747-0285.2007.00605.x.
Totrov, M. (2011) Ligand binding site superposition and comparison based on Atomic
Property Fields: identification of distant homologues, convergent evolution and PDB-wide
clustering of binding sites. BMC bioinformatics, 12(1), S35. DOI: 10.1186/1471-2105-12-S1-
S35.
Cai, Y.; Zhao, B.; Liang, Q.; Zhang, Y.; Cai, J.; & Li, G. (2017). The selective effect of
glycyrrhizin and glycyrrhetinic acid on topoisomerase IIα and apoptosis in combination with
etoposide on triple negative breast cancer MDA-MB-231 cells. European journal of
pharmacology, 809, 87-97. DOI: org/10.1016/j.ejphar.2017.05.026.
Silva, M. S.; Gomes, R. A.; Ferreira, A. E.; Freire, A. P.; Cordeiro, C. (2013) The glyoxalase
pathway: the first hundred years and beyond. Biochemical Journal, 453(1), 1-15. DOI:
10.1042/BJ20121743.
Cameron, A.D.; Ridderström, M.; Olin, B.; Kavarana, M.J.; Creighton, D.J.; Mannervik, B.
(1999) Reaction mechanism of glyoxalase I explored by an X-ray crystallographic analysis of
the human enzyme in complex with a transition state analogue. Biochemistry. 38: 13480–90.
DOI: 10.1021/bi990696c
Zhang, H.; Huang, Q.; Zhai, J.; Zhao, Y. N.; Zhang, L. P.; Chen, Y. Y.; Hu, X. P. (2015)
Structural basis for 18-β-glycyrrhetinic acid as a novel non-GSH analog glyoxalase I
inhibitor. Acta Pharmacologica Sinica, 36(9), 1145. DOI:10.1038/aps.2015.59.
Grigoryan, A. V.; Kufareva, I.; Totrov, M.; Abagyan, R. A. (2010) Spatial chemical distance
based on atomic property fields. Journal of computer-aided molecular design, 24(3), 173-182.
DOI: 10.1007/s10822-009-9316-x.
Kramer, B.; Rarey, M.; Lengauer, T. (1999) Evaluation of the FLEXX incremental
construction algorithm for protein–ligand docking. Proteins: Structure, Function, and
Bioinformatics, 37(2), 228-241. DOI: org/10.1002/(SICI)1097-0134(19991101).
Enslein, K. (1988). An overview of structure-activity-relationships as an alternative to testing
in animals for carcinogenicity, mutagenicity, dermal and eye irritation, and acute oral
toxicity.
Toxicology
and
Industrial
Health,
4,479-498.
DOI:
org/10.1177/074823378800400407.
22

Enslein, K.; Borgstedt, H. H.; Blake, B. W.; Hart, J. B. (1987) Prediction of rabbit skin
irritation severity by structure activity relationships. In Vitro. Toxicology, 1, 129-147.
Sullivan, L. B.; Gui, D. Y.; Vander Heiden, M. G. (2016). Altered metabolite levels in
cancer: implications for tumour biology and cancer therapy. Nature Reviews Cancer, 16(11),
680. DOI:.org/10.1038/nrc.2016.85.
Fonseca-Sánchez, M.A.; Rodríguez Cuevas, S.; Mendoza-Hernández, G.; Bautista-Piña, V.;
Arechaga Ocampo, E.; Hidalgo Miranda, A.; Quintanar Jurado, V.; Marchat, L.A.; Álvarez-
Sánchez, E.; Pérez Plasencia, C.; López-Camarillo, C. (2012). Breast cancer proteomics
reveals a positive correlation between glyoxalase 1 expression and high tumor grade.
International journal of oncology, 41(2), pp.670-680. DOI: org/10.3892/ijo.2012.1478.
Guo, Y.; Zhang, Y.; Yang, X.; Lu, P.; Yan, X.; Xiao, F.; Zhou, H.; Wen, C.; Shi, M.; Lu, J.;
Meng, Q.H. (2016). Effects of methylglyoxal and glyoxalase I inhibition on breast cancer
cells proliferation, invasion, and apoptosis through modulation of MAPKs, MMP9, and Bcl-
2. Cancer biology & therapy, 17(2), pp.169-180. DOI: 10.1080/15384047.2015.1121346.
23

Glycyrrhiza glabra roots (2.04 Kg)
Extracted with MeOH
MeOH extract*
Marc
Dissolved in distilled. H2O
Aqueous extract
Extracted with DCM
DCM extract (99.0gm)$*
Aqueous extract
Extract with EtOAc
Aqueous extract
EtOAc extract(100gm)$*
Extract with n-butanol saturated with H2O
n-Butanol extract(56.0gm)#
$Washed with H2O and dried over anhydrous Na2SO4. *Solvent was completely removed under vacuum
at 60℃ on Buchi Rota Vapour. # Solvent removed under vacuum by making azeotrop with H2O.
Figure 1: A schematic procedure for extraction and
fractionation of Glycyrrhiza glabra roots
24

30
COOH
29
20
21
22
19
18
O
12
17
16
H
11
9
13
14
28
25
26
1
4
15
H
10
6'
HOOC
8
7
2
27
4'
3
5
O
6
HO
HO
6''
5'
O
H
2'
23
3'
1'
24
HOOC
O
O
4''
HO
5''
2''
HO
1''
OH
3''
Figure 2: Structure of glycyrrhizic acid
25

OH
H3C
O
CH3
O
CH3
CH3
H
CH3
HO
H
H3C
CH3
Figure 3: Structure of glycyrrhetinic acid (GA)
26

COOH
COOH
O
O
Pyridine/DMAP
+
RCOCl
Reflux, 8h
80oC
O
HO
O
R
GA
GA-1
CH3
GA-4
R =
Ph
Figure 4a: Scheme-1. Synthesis of 3-O-acyl derivatives of GA.
27

COOH
+
COCl
+
CONHR
O
O
O
DCM, Et3N
RT, 4h
COCl
COCl
DCM
RNH2
RT, 3h
O
O
O
O
O
O
GA-2
GA-3
GA-5
R =
NH2
Figure 4b: Scheme-2. Synthesis of amide derivatives of 3-O-acetyl GA.
28

Figure 5. Regression curve (MLR model) for actual and predicted PIC50 of 144 natural
scaffold-based inhibitors of metastatic TNBC cell line MDA-MB-231. Training and test set
compounds are highlighted with blue and red dots respectively.
29
