Synthesis, characterization, and catalytic activity of a new series of Ni(II), Cu(II), and Zn(II) complexes of N,N-O,O mixed-bidentate ligands for C–C cross-coupling reactions

Article abstract of DOI:10.1080/00958972.2018.1540779

A new series of air stable transition metal(II) complexes [M(II)(L)(Phen)], [M(II)(L)(Pip)] (M = Ni, Cu, and Zn) (H₂L = 2,2′-methylenebis(4-nitrophenol)) (Phen =1,10-phenanthroline) (Pip = Piperazine) has been synthesized by incorporating the metal ion with bisphenol and 1,10-phenanthroline/piperazine ligands. The prepared metal complexes were characterized by FT-IR, UV–vis, ¹H NMR, EPR, and mass spectrometry. The metal(II) complexes were potent catalysts for Suzuki–Miyaura and Kumada–Corriu coupling of various aryl halides under optimized conditions.

Full text of DOI:10.1080/00958972.2018.1540779

Journal of Coordination Chemistry
ISSN: 0095-8972 (Print) 1029-0389 (Online) Journal homepage: http://www.tandfonline.com/loi/gcoo20
Synthesis, characterization and catalytic activity
of a new series of Ni(II), Cu(II) and Zn(II) complexes
of N,N-O,O mixed-bidentate ligands for C-C cross-
coupling reactions
Vinoth Govindasamy, Indira Sekar, Bharathi Madheswaran, Nandhakumar
Arumugam, Sathishkumar Kannappan & Shanmuga Bharathi Kuppannan
To cite this article: Vinoth Govindasamy, Indira Sekar, Bharathi Madheswaran, Nandhakumar
Arumugam, Sathishkumar Kannappan & Shanmuga Bharathi Kuppannan (2018): Synthesis,
characterization and catalytic activity of a new series of Ni(II), Cu(II) and Zn(II) complexes of N,N-
O,O mixed-bidentate ligands for C-C cross-coupling reactions, Journal of Coordination Chemistry,
DOI: 10.1080/00958972.2018.1540779
To link to this article: https://doi.org/10.1080/00958972.2018.1540779
Accepted author version posted online: 19
Nov 2018.
Submit your article to this journal
Article views: 2
View Crossmark data
Full Terms & Conditions of access and use can be found at
http://www.tandfonline.com/action/journalInformation?journalCode=gcoo20

Synthesis, characterization and catalytic activity of a new series of Ni(II),
Cu(II) and Zn(II) complexes of N,N-O,O mixed-bidentate ligands for
C-C cross-coupling reactions
GOVINDASAMY VINOTH, SEKAR INDIRA, MADHESWARAN BHARATHI,
ARUMUGAM NANDHAKUMAR, KANNAPPAN SATHISHKUMAR and
KUPPANNAN SHANMUGA BHARATHI*
Department of Chemistry, Periyar University, Periyar Palkalai Nagar, Salem-636011, Tamil Nadu, India
A new series of air stable transition metal(II) complexes [M(II)(L)(Phen)], [M(II)(L)(Pip)] (M =
Ni, Cu and Zn) (H2L = 2,2’-methylenebis(4-nitrophenol)) (Phen = 1,10-phenanthroline) (Pip =
Piperazine) has been synthesized by incorporating the metal ion with bisphenol and 1,10-
phenanthroline / piperazine ligands. The prepared metal complexes were characterized by FT-IR,
1
UV-Visible, H NMR, EPR and mass spectrometry. The metal(II) complexes were potent
catalysts for Suzuki-Miyaura and Kumada-Corriu coupling of various aryl halides under
optimized conditions.
Keywords: Transition metal complexes; Mixed bidentate ligands; Spectroscopic studies;
Catalytic activity; C-C Cross-coupling
1. Introduction
Ligands containing oxygen and nitrogen donors with transition metals are important in physical,
chemical, biological [1, 2] and catalysis research areas [3-5]. Mixed-monodentate and mixed-
bidentate ligand systems have been used for enantioselective [6], chemoselective [7] and
stereoselective [8] cross coupling reactions. However, reports on mixed-bidentate ligand systems
are less frequent than mixed-monodentate ligand systems [9]. Cross coupling reactions such as
C-C, C-N, C-O and C-S catalyzed by transition metals open a variety of synthetic organic
compounds for pharmaceutical and material chemistry [10, 11]. Procedures for C-C coupling
reactions viz., Suzuki [12], Heck [13], Negishi [14], Meyers [15], Lipshutz [16], Kharasch [17],
Semmelhack [18], Ullmann [19], Hiyama [20], Stille [21] and Kumada-Corriu [22] have been
reported. Among these protocols, Suzuki-Miyaura and Kumada-Corriu are powerful strategies
*Corresponding author. Email: nksbharathi@periyaruniversity.ac.in

that emerged for generation of C-C skeleton due to the utilization of inexpensive starting
reagents, mild reaction conditions, thermal stability, functional group tolerance, low toxicity,
eco-friendly and with high turnover numbers [23, 24]. There are several synthetic methods
available for the Suzuki-Miyaura and Kumada-Corriu (Grignard reagent) cross-coupling
reactions using aryl halides catalyzed by various transition metal complexes derived from
N-heterocyclic carbene [25], thiosemicarbazide [26-28], amine bis(phenol) [29-31], Schiff bases
[32], pincer type [33] as well as cyclometallated ligands containing nitrogen, oxygen,
phosphorus and sulphur donor [34] ligands. Transition metal(II) complexes containing bidentate
ligands are customarily used as catalysts in C-C [35, 36] cross-coupling reaction and nitrogen
containing ligands might enhance the catalytic activity [37]. Complexes derived from cobalt,
nickel, copper and zinc have been used as catalysts in many organic transformations [38].
Herein, we describe the synthesis and characterization of Ni(II), Cu(II) and Zn(II)
complexes of mixed-bidentate ligand systems (N,N-O,O) incorporated with 2,2’-methylenebis(4-
nitrophenol) and 1,10-phenanthroline / piperazine. Complexes 1 and 2 have been employed as
catalysts in carbon-carbon bond formation with and without use of K2CO3 as base in Suzuki-
Miyaura and Kumuda-Corriu reactions, respectively. The catalytic efficiency of our catalysts is
comparable or better than that of the others in literature.
2. Experimental
2.1. Chemicals and reagents
Commercial nickel acetate tetrahydrate [Ni(OAc)2·4H2O], copper acetate monohydrate
[Cu(OAc)2·H2O] and zinc acetate dihydrate [Zn(OAc)2·2H2O] have been purchased from Merck.
Formaldehyde, 4-nitrophenol, 1,10-phenanthroline and piperazine are from SRL Pvt. Ltd., India.
The phenyl boronic acid, phenyl magnesium chloride and their corresponding aryl halides,
utilized in the catalytic research, were received from Aldrich and Merck. Solvents of AR quality
were purified and dried according to standard techniques [39].
2.2. Physical measurements
Carbon, hydrogen and nitrogen analyses were performed on a VarioEL III CHNS analyzer. IR
spectra were carried out on a Bruker 783 spectrometer. Electronic spectra were recorded on a
JASCO V-570 spectrophotometer. 1H NMR spectra of the complexes were recorded on a Bruker

400 MHz spectrometer using TMS as an internal standard. EPR spectra in liquid state were
recorded inside the X-band frequency on an EPR-JEOL / 82 spectrometer with a microwave
energy of 1 mW and a modulation amplitude of 20 G at liquid nitrogen temperature. Electrospray
ionization mass spectra (ESI) have been recorded on an ES-MS Q-TOF mass spectrometer.

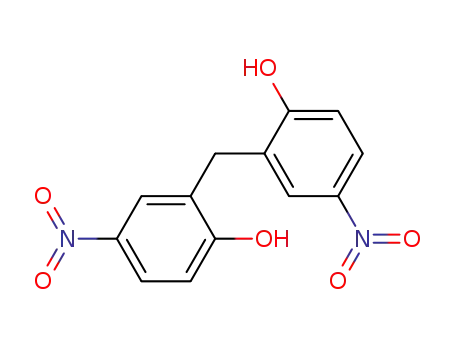

2.3. Synthesis of 2,2’-methylenebis(4-nitrophenol) (H2L)
2,2’-Methylenebis(4-nitrophenol) (H2L) was synthesized according to a published procedure
[40].
2.4. Synthesis of metal complexes
2.4.1. Synthesis of [Ni(L)(Phen)] (1). To a stirred methanolic solution of 2,2’-methylenebis(4-
nitrophenol) (0.2902 g, 1 mmol), 1,10-phenanthroline (0.180 g, 1 mmol) in methanol was added.
Then a concentrated methanolic solution of Ni(OAc)2·4H2O (0.248 g, 1 mmol) and a few drops
of triethylamine were added. The solution was refluxed for 8 h in inert (N2) atmosphere. The
nickel complex was obtained as yellow solid. Anal. Yield 77%; m.p. 211 C; C25H16N4O6Ni;
Calcd: C, 56.96; H, 3.06; N, 10.63. Found: C, 56.90; H, 3.02; N, 10.58 %. ESI-MS: m/z 527;
1H NMR (300 MHz, 295K, DMSO): δ 8.49-7.54 (m, ArH, 12H); 6.87 (s, ArH, 2H); 3.82 (s,
ArCH2, 2H). FT-IR: ArCH2 1487 cm-1; Ar(C-O) 1282 cm-1. The Ni(II) (0.248 g, 1 mmol), Cu(II)
(0.210 g, 1 mmol) and Zn(II) (0.219 g, 1 mmol) complexes were prepared by following the
above procedure using 2,2’-methylenebis(4-nitrophenol) (0.2902 g, 1 mmol) (H2L) and 1,10-
phenanthroline (0.180 g, 1 mmol) / piperazine (0.086 g, 1 mmol).
2.4.2. Synthesis of [Cu(L)(Phen)] (2). Yield 69%; color: green solid; m.p. 270 C;
C25H16N4O6Cu; Calcd: C, 56.45; H, 3.03; N, 10.53. Found: C, 56.39; H, 3.00; N, 10.48 %.
ESI-MS: m/z 531; FT-IR: ArCH2 1477 cm-1; Ar(C-O) 1289 cm-1.
2.4.3. Synthesis of [Zn(L)(Phen)] (3). Yield 67%; color: green solid; m.p. 288 C;
C25H16N4O6Zn; Calcd: C, 56.25; H, 3.02; N, 10.50. Found: C, 56.21; H, 3.00; N, 10.46 %.
1
ESI-MS: m/z 533; H NMR (300 MHz, 295K, DMSO): δ 8.36-7.72 (m, ArH, 12H); 6.90 (s,
ArH, 2H); 3.86 (s, ArCH2, 2H). FT-IR: ArCH2 1486 cm-1; Ar(C-O) 1287 cm-1.

2.4.4. Synthesis of [Ni(L)(Pip)] (4). Yield 71%; color: yellow solid; m.p. 220 C;
C17H18N4O6Ni; Calcd: C, 47.15; H, 4.19; N, 12.94. Found: C, 47.11; H, 4.16; N, 12.91 %.
ESI-MS: m/z 432; 1H NMR (300 MHz, 295K, DMSO): δ 8.31-7.64 (m, ArH, 4H); 6.76 (s, ArH,
2H); 3.85 (s, ArCH2, 2H); 2.51 (br s, (CH2)4 8H). FT-IR: (CH2)2 N-H 3217 cm-1; ArCH2
1486 cm-1; Ar(C-O) 1285 cm-1.
2.4.5. Synthesis of [Cu(L)(Pip)] (5). Yield 81%; color: green solid; m.p. 278 C;
C17H18N4O6Cu; Calcd: C, 46.63; H, 4.14; N, 12.79. Found: C, 46.60; H, 4.12; N, 12.75 %.
ESI-MS: m/z 438; FT-IR: (CH2)2 N-H 3223 cm-1; ArCH2 1486 cm-1; Ar(C-O) 1282 cm-1.
2.4.6. Synthesis of [Zn(L)(Pip)] (6). Yield 48%; color: green solid; m.p. 277 C;
C17H18N4O6Zn; Calcd: C, 46.43; H, 4.13; N, 12.74. Found: C, 46.39; H, 4.12; N, 12.71 %.
ESI-MS: m/z 440; 1H NMR (300 MHz, 295K, DMSO): δ 8.20-7.82 (m, ArH, 4H); 6.72 (s, ArH,
2H); 3.85 (s, ArCH2, 2H); 2.50 (br s, (CH2)4 8H). FT-IR: (CH2)2N-H 3225 cm-1; ArCH2
1484 cm-1; Ar (C-O) 1289 cm-1.
2.5. General procedure for Suzuki-Miyaura cross-coupling reactions
Suzuki-Miyaura cross-coupling reactions were achieved with a procedure described [41]. An
oven dried 25 mL flask equipped with a stir bar was charged with 1 (0.05 mmol) in DMF
(1 mL). Phenylboronic acid (0.75 mmol), aryl halide (0.5 mmol) and K2CO3 (1.5 mmol) were
dissolved separately each in 2 mL of methanol and added with the catalyst in the flask. The
ensuing mixture was reacted at 65 C for 9 h. Then the solvent was evaporated from the reaction
mixture and the product was separated from the impurities using a mixture of diethyl ether
(3×10 mL) and water (10 mL). The organic layer was collected, dried over anhydrous Na2SO4
and filtered. Then the solvent was removed under reduced pressure and the desired catalyst was
confirmed using 1H NMR.
2.6. General procedure for aryl Grignard coupling reactions
Kumada-Corriu cross-coupling reactions were carried out using the procedure described [42].
Catalyst 2 (0.05 mmol) in DMF (1 mL) was taken to a 50 mL round bottom flask. Aryl halide
(1.0 mmol) and Grignard reagent (1.0 mmol) were dissolved separately each in 3 mL of Et2O and

added dropwise under vigorous stirring. After stirring the resulting mixture at room temperature
for 30 min, the reaction was quenched with HCl (aq) (2.0 M, 5 mL). The organic phase was
extracted with ethyl acetate (5 mL) and dried using anhydrous MgSO4. The crude mixture
obtained was analyzed by thin layer chromatography and then purified by column
chromatography on silica gel. Further, the isolated product was characterized by 1H NMR.
3. Results and discussion
Ni(II), Cu(II) and Zn(II) complexes were synthesized using mixed-bidentate ligand systems
(N,N-O,O) of 2,2’-methylenebis(4-nitrophenol) and 1,10-phenanthroline / piperazine (schemes 1
and 2). These metal(II) complexes were obtained as colored solids in 48-81% yield. The
elemental analysis data is in agreement with the theoretical value for the synthesized complexes.
Metal ions usually bind to 2,2’-methylenebis(4-nitrophenol), through dissociation of the
bisphenolic protons, as bidentate oxygen-oxygen donors and 1,10-phenanthroline / piperazine as
bidentate nitrogen-nitrogen donors forming eight-membered and five-membered chelate rings,
respectively [43, 44].
Scheme 1. Synthesis of 2,2’-methylenebis(4-nitrophenol).
Scheme 2. Synthesis of transition metal(II) complexes with mixed ligands.

The synthesis of methylene bis(4-nitrophenolate) is easy and it is stable in air. There are
several aminobis(phenolate) ligand based complexes used for this kind of carbon-carbon cross
coupling reactions [45, 46]. Rigidity of the complex favors these reactions [47]. Our goal was to
increase the yield of the catalytic product by increasing the rigidity of the complex. Hence we
used a bisbidentate ligand along with 1,10-phenanthroline / piperazine instead of small ligands
viz., chloride or acetate; we have found that the complexes with phenanthroline have more
activity than the others.
3.1. IR spectra
Infrared spectra of the complexes show several bands from 400-4000 cm-1. The spectrum of the
uncoordinated ligand shows the phenolic O-H stretch at 3316 cm-1 and phenolic C-O stretch at
1279 cm-1; the ligand also displays a band at 1486 cm-1 corresponding to the ArCH2 stretch,
indicating the formation of bisphenol through a CH2 linkage. The coordination of metal ion
through bisphenolic oxygens is affirmed by the disappearance of phenolic O-H band [43] with an
increase in C-O stretching frequency from 1279-1282 cm-1 for the Ni(II) complex (1). There is a
band at 1487 cm-1 corresponding to methylene (CH2) stretch consistent with the methylene
bridge [48]. The same trend is observed in 2-6. The appearance of N-H stretch at 3217 cm-1
indicates the non-deprotonation of the piperazine protons in 4-6 [49]. All the complexes show
strong bands at 400-450 cm-1 and 500-550 cm-1 corresponding to M-N and M-O, respectively
[50, 51].
3.2. Electronic spectra
The complexes are soluble in DMSO and DMF, sparingly soluble in dichloromethane, ethyl
acetate, acetonitrile, ethanol, methanol, chloroform and benzene and slightly soluble in
petroleum ether and hexane. Electronic spectra of the complexes have been recorded in DMSO
solution. The complexes show intense absorptions in the ultraviolet region attributed to
transitions within the ligand orbitals and those in the visible region are due to ligand to metal
charge transfer transition and d-d transition. The electronic spectra of the complexes are shown
in figure 1. All the complexes exhibit an intense absorption at 275-260 nm assigned to π-π*
transitions and another band at 345-320 nm due to n-π* transitions of the ligand. They show an
intense absorption at 450-360 nm due to LMCT. Ni(II) complexes (1 and 4) show a band at 515,

1
575 nm which may be assigned to d-d transitions A1g→1A2g which supports square planar
geometry around Ni(II). Spectra of 2 and 5 show a band at 545, 517 nm which is assigned to
2B1g→2A1g transition affirming square planar geometry of Cu(II) [51]. The Zn(II) complexes
(3 and 6) do not show d-d transitions.
3.3. 1H-NMR spectra
The 1H-NMR spectrum of 2,2’-methylenebis(4-nitrophenol) (H2L) support the assigned
structure. The NMR spectrum of the free ligand shows singlets at 11.26, 3.72 and 6.98-8.24 ppm
which are due to phenolic protons (O-H), benzylic protons (ArCH2) and aromatic protons (ArH),
respectively. The peak due to phenolic O-H proton is absent in the NMR spectra of nickel(II) and
zinc(II) complexes. This indicates coordination of phenolic oxygen. The NMR spectra of the
nickel(II) and zinc(II) complexes showed peaks at 2.51, 3.85 and 6.72-8.49 ppm, indicating the
presence of piperazine moiety, benzylic proton and aromatic moiety, respectively. The Ni(II)
(1 and 4) and Zn(II) (3 and 6) complexes are diamagnetic [52].
3.4. EPR spectra
The solution EPR spectra of the mononuclear copper(II) complexes were recorded in the X-band
region using DMSO at liquid nitrogen temperature. The copper(II) complexes display an
anisotropic (S=1/2) signal with hyperfine splitting into four lines in the low field components
[53]. This pattern arises from the interaction of the electron spin with the copper(II) nucleus
(ICu=3/2). The observed g value for 2 and 5 are 2.04 and 2.00, indicating that the unpaired
electron is in a d 2 orbital of d9 Cu(II) in a ground state doublet. The spectral features of these
2
x -y
complexes are characteristics of axial symmetry [54]. The EPR spectral data are given in table 1
and the spectrum of 2 is shown in figure 2. EPR data reveal a square planar geometry for the d9
Cu(II) in the complexes [53].
3.5. Mass spectra
The expected mass value of the ligand is in agreement with the experimental M+ = 289 m/z value
of the molecular ion peak. The mass spectra of the metal complexes (1-6) show a molecular ion
peak M+ at m/z = 527, 531, 533, 515, 438 and 440, respectively. The mass spectrum of 6 is
exhibited in figure 3.

3.6. Catalytic studies
In this paper, we report six new complexes and examined all as catalysts in C-C cross-coupling
reactions. Two of these catalysts are quite active in the catalytic reactions. In both cases, the
catalyst is dissolved in DMF. Then, the substrates are dissolved separately in methanol for
Suzuki-Miyaura cross-coupling reaction and in diethyl ether for Kumuda-Corriu cross-coupling
reactions. The substrate solutions are added slowly to the catalyst under optimized conditions.
DMF is a well-known reductant for transition metals [55, 56]. Initially, the catalyst is reduced by
DMF for 1 and 2 while undergoing oxidative addition with aryl halide under normal reaction
conditions at or below room temperature. Our complexes have good stability against air,
moisture and temperature. We used K2CO3 along with 2 in the Kumadu-Corriu catalytic reaction
for activation of the catalyst and to increase the yield of the product [46]. The mechanism for the
Suzuki-Miyaura coupling using 1 and Kumada-Corriu coupling using 2 (schemes 3a and 3b)
includes three steps: oxidative addition (OA), transmetallation (TM), and reductive elimination
(RE) [57, 58].
Scheme 3. Plausible mechanism for the catalytic conversion of C-C cross-coupling (a) and (b).
3.6.1. Suzuki-Miyaura cross-coupling catalytic studies. We have explored the reactions of a
series of aryl halides with phenylboronic acid under different reaction conditions. Initially,

complexes 1-6 were used as catalysts for this reaction. From these observations, Ni(II) complex
(1) showed better catalytic activity. Furthermore, we screened the above reaction with various
solvents, acetonitrile, methanol and benzene, along with 1 mL dimethylformamide solution of
catalyst. Methanol was the best solvent with better activity of electron-donating agents and
providing more steric crowding compared to the piperazine group. The reactions using 1 as a
catalyst furnished excellent yields, given in table 2. Among the various substrates used for
catalytic activity, 4-bromoanisole, 2,6-dibromo pyridine and benzyl bromide have excellent
activity in this coupling reaction (entries 2, 5 and 3). With 4-chlorophenol and 4-bromoaniline
the conversions are good (entries 4 and 6) whereas the reaction of 4-chlorobenzaldehyde has
moderate yield (entry 7). Reactions of chlorobenzene and 2-chloroaniline provided poor yields
(entries 1 and 8). Complex 1 has comparable or better activity against previous reports as given
in table 3.
3.6.2. Kumada-Corriu cross-coupling catalytic studies. All the complexes were used as
catalysts for the reaction of aryl halides with Grignard reagent; copper(II) complex 2 is better
than the other complexes. We used various solvents, tetrahydrofuran, acetonitrile, diethyl ether
and benzene, along with 1 mL dimethylformamide solution of the catalyst; diethyl ether was
best. The catalytic conditions, substrates and their products are given in table 4. The coupling
with benzyl bromide has excellent conversion (entry 3) whereas bromobenzene, 2,6-
dibromopyridine and 4-bromoanisole have good yields (entries 1, 4 and 5). 2-Bromopyridine and
α,α’-meta dibromoxylene have moderate yields (entries 8 and 7) while 4-chlorobenzoic acid and
chlorobenzene give poor yields (entries 6 and 2). Catalyst 2 has better or comparable activity to
previous literature reports (table 5).
4. Conclusion
We reported a new series of (N,N-O,O) complexes of Ni(II), Cu(II) and Zn(II) using bisphenol
and 1,10-phenanthroline / piperazine. Complexes 1 and 2 have good activity for Suzuki-Miyaura
and Kumuda-Corriu C-C cross-coupling reactions. Overall, 1 has more activity than 2 in the C-C
coupling reactions. As the catalytic activity of our complexes are competitive with others, new
complexes of mixed ligands may provide a path to C-C cross-coupling reactions.

Acknowledgements
The authors are grateful for the financial support from the University Grants Commission,
(UGC-BSR) Government of India, New Delhi, India. The first author acknowledges Periyar
University, Salem, Tamil Nadu for providing University Research Fellowship (URF).
References
[1]
[2]
K.N. Kumar, R. Ramesh, Y. Liu. J. Mol. Catal. A: Chem., 265, 218 (2007).
M. Ramesh, M. Kalidass, M. Jaccob, M. Kaleeswaran, G. Venkatachalam. J. Organomet.
Chem., 830, 33 (2017).
[3]
[4]
[5]
N. Raja, M.U. Raja, R. Ramesh. Inorg. Chem. Commun., 19, 51 (2012).
F. Ding, Y. Sun, F. Verpoort. Eur. J. Inorg. Chem., 10, 1536 (2010).
P. Pattanayak, S.P. Parua, D. Patra, C.K. Lai, P. Brandao, V. Felix, S. Chattopadhyay.
Inorg. Chim. Acta, 429, 122 (2015).
[6]
[7]
[8]
[9]
S. Lou, G.C. Fu. J. Am. Chem. Soc., 132, 1264 (2010).
Y. Ikoma, K. Ando, Y. Naoi, T. Akiyama, A. Sugimori. Syn. Commun., 21, 481 (1991).
A. Furstner, A. Leitner, M. Mendez, H. Krause. J. Am. Chem. Soc., 124, 13856 (2002).
(a) C. Liu, S. Tang, D. Liu, J. Yuan, L. Zheng, L. Meng, A. Lei. Angew. Chem., 124,
3698 (2012). (b) Angew. Chem. Int. Ed., 51, 3638 (2012).
[10] L.J. Gooben, G. Deng, L.M. Levy. Science, 313, 662 (2006).
[11] B. He, H. Nie, W. Luo, R. Hu, A. Qin, Z. Zhao, B. Tang. Org. Chem. Front., 3, 1091 (2016).
[12] N. Miyaura, A. Suzuki. Chem. Rev., 95, 2457 (1995).
[13] R.F. Heck, J.P. Nolley. J. Org. Chem., 37, 2320 (1972).
[14] (a) S. Baba, E. Negishi. J. Am. Chem. Soc., 98, 6729 (1976). (b) A.O. King, N. Okukado,
E. Negishi. J. Chem. Soc., Chem. Commun., 19, 683 (1977). (c) E. Negishi, A.O. King,
N. Okukado. J. Org. Chem., 42, 1821 (1977).
[15] G.T. Gant, A.I. Meyers. Tetrahedron, 50, 2297 (1994).
[16] B.H. Lipshutz, F. Kayser, Z.P. Liu. Angew. Chem., 106, 1962 (1994).
[17] (a) M.S. Kharasch, E.V. Jensen, W.H. Urry. Science, 102, 128 (1945). (b) M.S. Kharasch,
E.V. Jensen, W.H. Urry. J. Am. Chem. Soc., 69, 1100 (1947). (c) M.S. Kharasch, B.M.
Kuderna, W. Urry. J. Org. Chem., 13, 895 (1948).

[18] M.F. Semmelhack, P. Helquist, L.D. Jones, L. Keller, L. Mendelson, L.S. Ryono, J.
Gorzynski Smith, R.D. Stauffer. J. Am. Chem. Soc., 103, 6460 (1981).
[19] F. Ullmann, J. Bielecki. Ber. Dtsch. Chem. Ges., 34, 2147 (1901).
[20] Y. Hatanaka, T. Hiyama. J. Org. Chem., 53, 918 (1988).
[21] (a) J.K. Stille. Angew. Chem. Int. Ed. Engl., 25, 508 (1986). (b) V. Farina, V.
Krishnamurthy, W.J. Scott. Org. React., 50, 1 (1997).
[22] (a) Y. Kiso, K. Yamamoto, K. Tamao, M. Kumada. J. Am. Chem. Soc., 94, 4374 (1972).
(b) R.J.P. Corriu, J.P. Masse. J. Chem. Soc., Chem. Commun., 144a (1972).
[23] A. Suzuki. J. Organomet. Chem., 653, 83 (2002).
[24] C.E. Tucker, J.G. de Vries. Top. Catal., 19, 111 (2002).
[25] M. Henrion, V. Ritleng, M.J. Chetcuti. ACS Catal., 5, 1283 (2015).
[26] S. Muthumari, N. Mohan, R. Ramesh. Tetrahedron Lett., 56, 4170 (2015).
[27] P. Anitha, R. Manikandan, P. Vijayan, G. Prakash, P. Viswanathamurthi, R.J. Butcher.
J. Chem. Sci., 127, 597 (2015).
[28] E. Sindhuja, R. Ramesh, Y. Liu. Dalton Trans., 41, 5351 (2012).
[29] X. Qian, L.N. Dawe, C.M. Kozak. Dalton Trans., 40, 933 (2011).
[30] E.F. Chard, L.N. Dawe, C.M. Kozak. J. Organomet. Chem., 737, 32 (2013).
[31] R.R. Chowdhury, A.K. Crane, C. Fowler, P. Kwong, C.M. Kozak. Chem. Commun., 94
(2008).
[32] J. Cui, M. Zhang, Y. Zhang. Inorg. Chem. Commun., 13, 81 (2010).
[33] Q. Luo, J. Tan, Z.F. Li, Y. Qin, L. Ma, D.R. Xiao. Dalton Trans., 40, 3601 (2011).
[34] (a) J. Dupont, C.S. Consorti, J. Spencer. Chem. Rev., 105, 2527 (2005). (b) A. Zapf, M.
Beller. Chem. Commun., 431 (2005).
[35] E.F. Chard, L.N. Dawe, C.M. Kozak. J. Organomet. Chem., 737, 32 (2013).
[36] D. Pandiarajan, R. Ramesh. J. Organomet. Chem., 708, 18 (2012).
[37] F. Fache, E. Schulz, M.L. Tommasino, M. Lemaire. Chem. Rev., 100, 2159 (2000).
[38] B. De Clercq, F. Verpoort. Tetrahedron Lett., 42, 8959 (2001).
[39] A.I. Vogel, Text Book of Practical Organic Chemistry, Fifth Edn., Longman, London
(1989), pp. 43.
[40] A. Dhiman, K. Wadodkar, S. Patai. J. Ind. Chem. 40, 636 (2001).
[41] C.L. Chen, Y.H. Liu, S.H. Peng, S.T. Liu. Organometallics, 24, 1075 (2005).

[42] (a) E.F. Chard, L.N. Dawe, C.M. Kozak. J. Organomet. Chem., 737, 32 (2013). (b) X.
Qian, L.N. Dawe, C.M. Kozak. Dalton Trans., 40, 933 (2011).
[43] U. Russo, B. Zarli, P. Zanonato, M. Vidali. Polyhedron, 10, 1353 (1991).
[44] K. Suia, S.M. Peng, S. Bhattacharya. Polyhedron, 18, 631 (1999).
[45] R.R. Chowdhury, A.K. Crane, C. Fowler, P. Kwong, C.M. Kozak. Chem. Commun., 94
(2008).
[46] Z. Zhou, M. Liu, X. Wu, H. Yu, G. Xu, Y. Xie. Appl. Organomet. Chem., 27, 562 (2013).
[47] C.M. Lavoie, P.M. MacQueen, N.L. Rotta-Loria, R.S. Sawatzky, A. Borzenko, A.J.
Chisholm, B.K.V. Hargreaves, R. McDonald, M.J. Ferguson, M. Stradiotto. Nat.
Commun., 7, 11073 (2016).
[48] S. Kannan, K. Naresh Kumar, R. Ramesh. Polyhedron, 27, 701 (2008).
[49] W.M. Al-Asbahy, M. Usman, F. Arjmand, M. Shamsi, S. Tabassum. Inorg. Chim. Acta,
445, 167 (2016).
[50] K. Nakamato, Wiley Interscience, New York (1971).
[51] (a) P. Byabartta, P.K. Santra, T.K. Mishra, C. Sinha, C.H.L. Kennard. Polyhedron, 20,
905 (2001). (b) S. Goswami, R. Mukherjee, A. Chakravorty. Inorg. Chem., 22, 2825
(1983).
[52] P. Jeslin Kanaga Inba, B. Annaraj, S. Thalamuthu, M.A. Neelakantan. Bioinorg. Chem.
Appl., vol. 2013, Article ID 439848, 11 pages (2013).
[53] K. Shanmuga Bharathi, S. Sreedaran, A. Kalilur Rahiman, K. Rajesh, V. Narayanan.
Polyhedron, 26, 3993 (2007).
[54] G. Nirmala, A. Kalilur Rahiman, S. Sreedaran, R. Jegadeesh, N. Raaman, V. Narayanan.
J. Mol Struct., 989, 91 (2011).
[55] J. Muzart. Tetrahedron, 65, 8313 (2009).
[56] (a) A.Y.S. Malkhasian, M.E. Finch, B. Nikolovski, A. Menon, B.E. Kucera, F.A. Chavez.
Inorg. Chem., 46, 2950 (2007). (b) J.J. Teo, Y. Chang, H.C. Zeng. Langmuir, 22, 7369
(2006).
[57] P.-A. Payard, L.A. Perego, I. Ciofini, L. Grimaud. ACS Catal., 8, 4812 (2018).
[58] R. Jana, T.P. Pathak, M.S. Sigman. Chem. Rev., 111, 1417 (2011).
[59] M.G. Speziali, A.G. Marques da Silva, D. Michelini Vaz de Miranda, A.L. Monteiro,
P.A. Robles-Dutenhefner. Appl. Catal. A: Gen., 46, 239 (2013).

[60] Y. Yu, T. Hu, X. Chen, K. Xu, J. Zhang, J. Huang. Chem. Commun., 47, 3592 (2011).
[61] S. Handa, E.D. Slack, B.H. Lipshutz. Angew. Chem. Int. Ed., 54, 11994 (2015).
[62] M. Mastalir, B. Stoger, E. Pittenauer, G. Allmaier, K. Kirchner. Org. Lett., 18, 3186
(2016).
[63] A. Dadras, M.R. Naimi-Jamal, F.M. Moghaddam, S.E. Ayati. Appl. Organomet. Chem.,
3993 (2017).
[64] H. Khojasteh, V. Mirkhani, M. Moghadam, S. Tangestaninejad, I.M. Baltork. J. Iranian
Chem. Soc., 14, 1139 (2017).
[65] W. Fu, Z. Zhang, P. Zhuang, J. Shen, M. Ye. J. Colloid Interface Sci., 497, 83 (2017).
[66] M. Nirmala, G. Prakash, R. Ramachandran, P. Viswanathamurthi, J.G. Malecki, W.
Linert. J. Mol. Catal. A: Chem., 397, 56 (2015).
[67] E. Sindhuja, R. Ramesh, Y. Liu. Dalton Trans., 41, 5351 (2012).
[68] P. Anitha, P. Manikandan, P. Vijayan, G. Prakash, P. Viswanathamurthi, R. Butcher.
J. Chem. Sci., 127, 597 (2015).
[69] J. Zeng, K.M. Liu, X.F. Duan. Org. Lett., 15, 5342 (2013).
[70] S. Gu, W. Chen. Organometallics, 28, 909 (2009).
[71] Z. Xi, B. Liu, C. Lu, W. Chen. Dalton Trans., 7008 (2009).
[72] Z. Liu, Y. Xu, L. Xie, H. Sun, Q. Shen, Y. Zhang. Dalton Trans., 40, 4697 (2011).
[73] T.L. Mako, J.A. Byers. Inorg. Chem. Front., 3, 766 (2016).
[74] J. Berding, T.F. Van Dijkman, M. Lutz, A.L. Spek, E. Bouwman. Dalton Trans., 6948
(2009).
[75] R. Ghosh, A. Sarkar. J. Org. Chem., 75, 8283 (2010).

Figure 1. Electronic spectra of 1-4.

Figure 2. EPR spectrum of 2.

Figure 3. Mass spectrum of 6.

Table 1. EPR data of the Cu(II) complexes with mixed ligands.
Complexes
gxx
gyy
gzz
<g>
2.04
2.03
2.01
2.06
1.95
2.04
2.00
2
2.03
5
2
2
<g> = [1/3gx + 1/3gy + 1/3gz2]1/2

Table 2. Cross-coupling of substituted aryl halides with aryl boronic acida.
Entry 1
Entry 2
55b, 6c,72%d
70b, 8c, 92%d
Entry 3
Entry 4
69b, 8c, 90%d
66b, 7c, 87%d
Entry 6
Entry 5
63b, 7c, 82%d
70b, 23c, 91%d
Entry 7
Entry 8
60b, 7c, 79%d
48b, 5c, 63%d
a. General conditions: arylboronic acid (1 mmol), aryl halide (1 mmol),
catalyst (complex 1) (0.05 mmol) (5 mol %), K2CO3; X = Br and Cl; R =
OCH3, OH, NH2 and CHO; b. Turnover number (TON) = (mmol of
product) / (mmol of catalyst) after time t; c. Turnover frequency (TOF) =
TON/time (h-1); d. Isolated yield

Table 3. Comparison of catalytic efficiency of 1 against the literature reports in Suzuki-Miyaura C-C
coupling reactionsa.
b
Yield (%)References
85[59]
Entry Catalyst
Conditions
1
2
3
Pd/MCM-41 (1 mol %)
KOH, H2O, 80 C, 4 h
Na2CO3, H2O, 100 C, 2 h
Pd(OAC)2/PIC (0.01 mol %)
[NiCl2{(anisyl)3P}2] (5 mol %)
>99[60]
86[61]
Et3N, aqueous TPGS-750-M, 45 C,
overnight
4
5
[Ni(II)PNP] (2 mol %)
92[62]
90[63]
t-BuoK, Toluene, 120-135 C, 16 h
K2CO3, H2O, 80 C, 3 h
Fe3O4/Pd (Nps) (1 mol %)
Fe3O4/SiO2-NH2/PC-PD (1.5 mol%)
Pd-Fe3O4/rGO (0.5 mol %)
[Ni(NHCS)] (1 mol %)
6
90[64]
K2CO3, MeOH-H2O (2:1), 65 C, 0.75 h
K2CO3, C2H5OH-H2O (1:1), 80 C, 1 h
K3PO4, Toluene, 110 C, 4 h
7
89[65]
8
95[66]
9
[PdCl(PPh3)(L1)] (0.1 mol %)
[Ni(L)(Phen)] (5 mol %)
85[67]
K2CO3, Toluene, 80 C, 5 h
10
92This work
K2CO3, DMF-MeOH, 65 C, 9 h
a. Reaction conditions: arylboronic acid (1 mmol), 4-bromoanisole (1 mmol), catalyst (complex 1)
(0.05 mmol) (5 mol %), K2CO3; b. Previous reports

Table 4. Cross-coupling of substituted aryl halides with aryl
Grignard reagentsa.
Entry 1
Entry 2
63b, 126c, 85%d
40b, 80c, 53%d
Entry 3
68b, 136c, 90%d
Entry 4
65b, 130c, 86%d
Entry 5
Entry 6
63b, 126c, 83%d
46b, 92c, 59%d
Entry 1
Entry 1
59b, 118c, 78%d
48b, 96c, 64%d
a. General conditions: ArMgCl (1 mmol), aryl halide (1 mmol),
catalyst (complex 2) (0.05 mmol) (5 mol %); X = Br and Cl; R =
OCH3 and COOH; b. Turnover number (TON) = (mmol of product)
/ (mmol of catalyst) after time t; c. Turnover frequency (TOF) =
TON/time (h-1); d. Isolated yield

Table 5. Comparison of catalytic efficiency of our [Cu(L)(Phen)] catalyst (2) against the
literature reports in Kumada-Corriu C-C coupling reactionsa.
b
Yield (%)References
81[68]
Entry
Catalyst
Conditions
1
2
3
4
5
6
7
8
9
Ni(L)2 (0.2 mole %)
Ether, RT, 4 h
CoCl2/Ti(OC2H4) (7.5 mol %)
NiCl2(CNN) (1 mol %)
CoCl2(L1)2(PF6) (0.01 mol %)
Ni(iPr)Cl2 (1.0 mol %)
FeCl2 (5 mole %)
THF, RT, 0.5 h
THF, RT, 24 h
56[69]
20[70]
THF, RT, 2 h
71[71]
88[72]
Et2O-THF, 45 C, 12 h
Xylene, 140 C, 12 h
THF, RT, 0.5 h
THF, -20 C, 10 h
DMF:Et2O, RT, 0.5 h
90[73]
NiBr2 (L) (0.03 mol %)
Ni(CH3CN)2Cl2 (2 mol %)
[Cu(L)(Phen)] (5 mol %)
>99[74]
75[75]
83This work
a. Reaction conditions: phenylmagnesium chloride (1 mmol), 4-bromoanisole (1 mmol),
catalyst (complex 2) (0.05 mmol) (5 mol %); b. Previous reports
