Physica Status Solidi (A) Applied Research p. 389 - 394 (1996)
Update date:2022-08-24
Topics:
Keckes
Ortner
Cerven
Jakabovic
Kovac
Srnanek
Novotny
Tvarozek

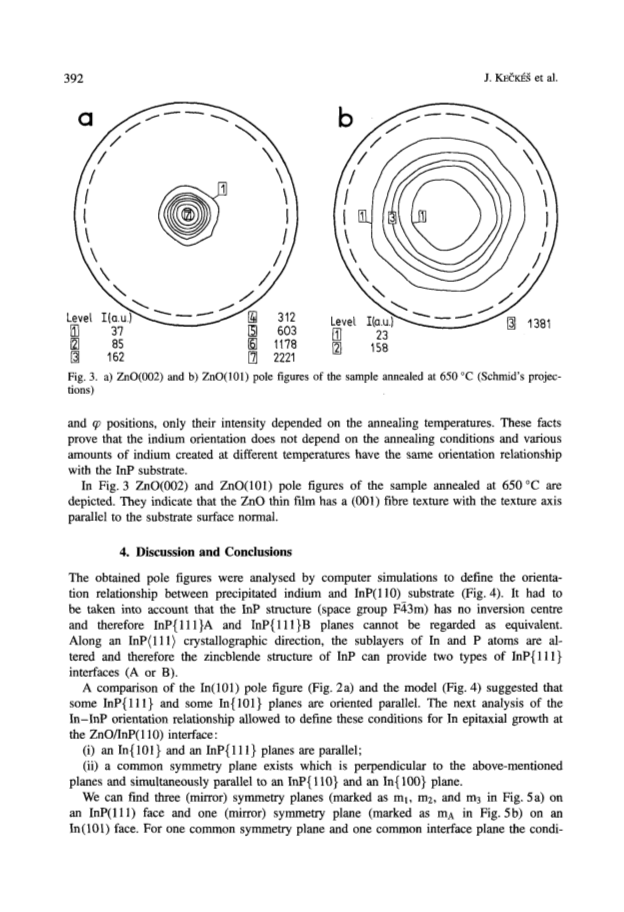

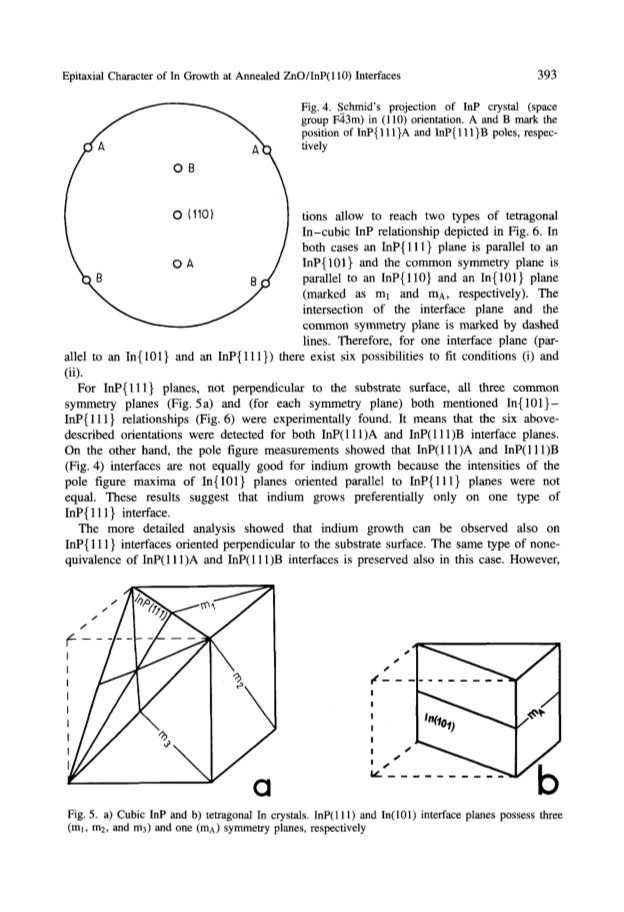

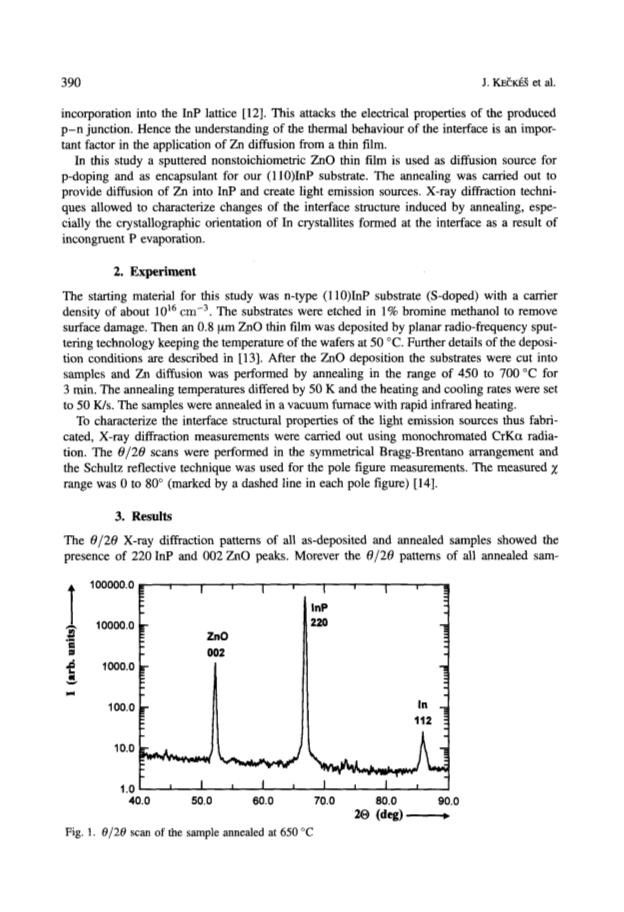

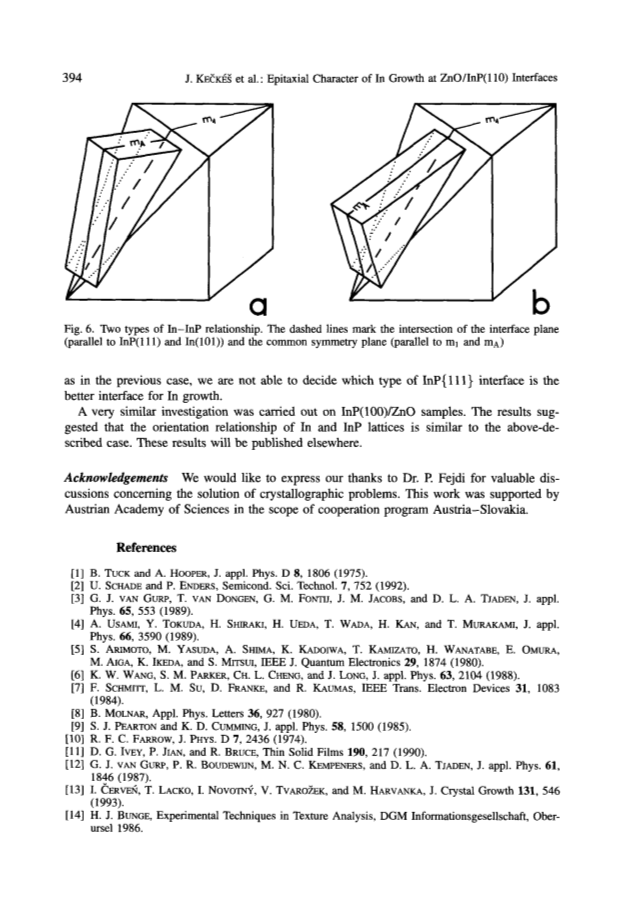

ZnO/InP(110) samples prepared as light emission sources are explored by X-ray diffraction to characterize structural changes induced by annealing in the range of 450 to 700°C for 3 min. Metallic indium is created between the ZnO thin film and the InP substrate as a result of annealing. Pole figure measurements reveal that the most densely populated planes In{101} and InP{111} are oriented parallel and a common symmetry plane exists being perpendicular to the above-mentioned planes and simultaneously parallel to an InP{110} and an In{100} plane. Moreover, the two types of InP{111} interface (In or P) are not found equally good for In growth.
website:http://www.truewingroup.com
Contact:86-311-66699812
Address:NO.600 ZHONGSHAN EAST ROAD SHIJIAZHUANG
website:http://www.lonwinchem.com
Contact:Tel: 86-21-59858395
Address:No#966,Huaxu Road,Shanghai 201702,P.R.China
Changsha Goomoo Chemical Technology Co.Ltd
Contact:+86-731-82197655
Address:No.649,Chezhan Rd.(N),Changsha,Hunan,China
Hangzhou TJM Chemical Trade Co., Ltd
Contact:86-571-88223276 86-13388481653
Address:2221#,Boyuexuan,1860# Binsheng Road,Binjiang District, Hangzhou CityZhejiang Province, 310051, P. R. China
website:http://www.greenutra.cn
Contact:0086-411-39553357
Address:No. 7-1-1802, Huizhi Garden,Ocean Square,Dalian, 116033, China
Doi:10.1007/BF02154559
(1947)Doi:10.1039/c5nj01592h
(2015)Doi:10.1016/j.tetlet.2016.03.006
(2016)Doi:10.1016/j.bmcl.2017.09.042
(2017)Doi:10.1007/BF00959408
(1987)Doi:10.1002/aoc.3376
(2015)
