Catalytic Reduction of Graphene Oxide Nanosheets
FULL PAPER
noticed a rapid evolution of a gas from the reaction mixture,
which was confirmed as CO2 by gas chromatographic analy-
sis (Figure S7, the Supporting Information). The decrease in
the carboxyl functionalities is also observed in the C1s
X-ray photoelectron spectra (XPS) (Figure 4b) of the mate-
rial obtained after reduction. These observations suggest
that the GPx mimics not only reduce GO, but also act as an
efficient decarboxylase to remove the carboxylate function-
alities on GO at ambient temperature. The proposed mecha-
nism for the decarboxylation is given in Figure 4a (Path B).
When a similar experiment was carried out using dithio-
threitol (DTT) as a co-substrate instead of GSH, an immedi-
ate reduction of GO was observed. This is due to the stron-
ger reducing ability of DTT that can effectively reduce the

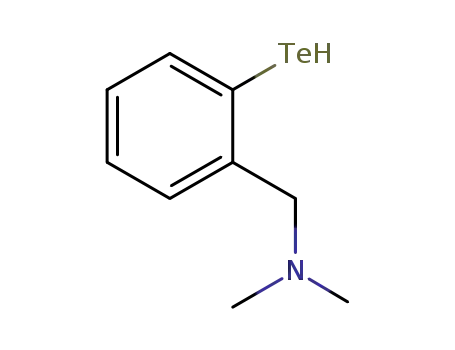

ditelluride bond in compound 1 to produce the tellurol (8).
Extremely slow reactions were observed with DTT or GSH
in the absence of 1. In both the control reactions, no materi-
al separated out in the reaction vials even after 10 days, indi-
cating that the reduction is ineffective. To understand
whether compound 1 is regenerated during the catalytic
cycle, we carried out the reduction of GO with a catalytic
amount of 1 under a nitrogen atmosphere. However, a rapid
reduction of GO was observed, indicating that the regenera-
tion of compound 1 is not required for the catalytic activity.
In addition to the demonstration of the new reactivity for
the GPx mimics, this method can also be used to prepare
RGO, which is a chemically generated form of graphene. It
is well-known that graphene is a 2D and atomically thin
sheet, which has interesting properties such as high mechan-
ical strength, high surface area, high conductivity, and so on.
Owing to the extraordinary properties, graphene finds re-
markable applications in nanoelectronics, photonics, cataly-
sis, biology, and so on.[32–34] To confirm the formation of
RGO under our experimental conditions, we further charac-
terized this material thoroughly by using spectroscopic and
microscopic methods and conductivity data.
band and broad G bands in the Raman spectra (Figure 5a).
Pristine graphite exhibits a G band as the only characteristic
feature of the first order scattering of the E2g mode at
1570 cmÀ1.[35] Treatment of GO by using 1-GSH mixture re-
sulted in an increase in the intensity of ID/IG ratio to a lower
extent compared with that of GO, indicating the restoration
of the sp2 conjugated network and formation of small aro-
matic domains. The ID/IG ratio (Table S1 in the Supporting
Information) obtained from other methods are higher than
that obtained from the reduction mediated by 1-GSH (ID/
IG =1.11). Recently, we reported that the GO reduced at
higher temperature by a thiol-based reducing agent, dithio-
threitol, shows an ID/IG ratio of about 1.06.[22]
From the powder X-ray diffraction (XRD) patterns (Fig-
ure 5b), it is evident that the GO is exfoliated due to the in-
troduction of oxygen-containing functional groups. Removal
of these functional groups through reduction by 1-GSH
shifted the peak to 2q=248, similar to the one observed for
the pristine graphite with an increase in the d-spacing of
0.38 nm. This indicates the formation of exfoliated RGO.
The reduction of GO was studied further with the help of
X-ray photoelectron spectroscopy (XPS). The deconvoluted
C1s XPS spectra of GO and RGO are given in Figure 4b.
À
The appearance of strong peaks corresponding to the C O
and C=O groups reveals that the GO is highly oxygenated.
On the other hand, the RGO produced after the reaction
À
exhibits weaker peaks for C O and C=O, indicating the ef-
fective reduction by 1-GSH at the ambient temperature.
The C/O ratio of the produced RGO was found to be 13.07.
A comparison of the C/O ratios of RGO material obtained
by various reduction methods is given in Table 1.
To illustrate the thermal stabilities of GO, RGO, and pris-
tine graphite, thermogravimetric analysis (TGA) was carried
out (Figure 5c). GO exhibits 11% decrease in weight due to
the removal of intercalated and adsorbed water molecules
between the layers of GO. At higher temperature (2008C),
a rapid decrease in the weight indicates the removal of
oxygen-containing functional groups in GO. Interestingly,
the TGA profile shows the higher thermal stability as the
observed weight loss for RGO at 2008C is only 4% under
Ar gas flow. However, at a higher temperature (6008C), the
bulk pyrolysis of carbon skeleton is responsible for a further
decrease in the weight, which is consistent with the TGA
profile of GO and graphite. It should be mentioned that the
reduction of GO with GSH alone at a higher temperature
shows a weight loss of ꢀ10% at 2008C,[44] which is signifi-
cantly higher than that observed for the reduction by 1-
GSH.
The dispersion of GO changed its color gradually from
brown to dark-brown and then finally to black within initial
30 min of reaction time (Figure S2, the Supporting Informa-
tion). In the UV/Vis absorption spectra (Figure S8, the Sup-
porting Information), GO exhibits the wavelength maxima
at 230 nm due to p–p* transition originating from C=C. The
broad band observed at 310 nm is attributed to the n–p*
transition resulting from the C=O groups. The reduction of
GO leads to a shift in the wavelength (to 265 nm), indicating
a bathochromic shift, which is also associated with a hyper-
chromic effect. The FTIR spectra (Figure S9, the Supporting
Information) also confirmed the formation of reduced
graph
ene oxide (RGO). The signature frequencies due to
Microscopic characterization of RGO by using SEM (Fig-
ure 5d) shows the randomly oriented exfoliated sheets of
few microns. The TEM image (Figure 5e) indicates the for-
mation of a silk-veil/wave-like structural morphology.[35]
Corrugation and scrolling, the intrinsic properties of graph-
the oxygen-containing functionalities such as carboxylic
acid, hydroxyl and epoxide/peroxide groups in GO are sig-
nificantly diminished upon reduction. This clearly indicates
that the distorted conjugation in GO is restored in RGO
after the reduction.
AHCTUNGTREGeNNUN ne, are responsible for the observed wave-like structure of
It is known that the oxidation of graphite by strong oxi-
dizing reagents introduces a large amount of oxygen-con-
taining functionalities as defects in GO, which exhibit D
the RGO nanosheets. It has been shown that these two in-
trinsic properties render the thermodynamic stability to the
nanosheets by bending.[45] The AFM image (Figure 5 f) with
Chem. Eur. J. 2013, 19, 16699 – 16706
ꢀ 2013 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
16703
