Novel Ni2P/zeolite catalysts for naphthalene hydrocracking to BTX

Article abstract of DOI:10.1016/j.catcom.2013.11.010

Ni₂P catalysts supported on ZSM-5, Beta, and USY zeolites were prepared by temperature-programmed reduction (TPR), applied for the hydrocracking of naphthalene, and characterized by BET, CO uptake, NH ₃-TPD, TEM, X-ray diffraction (XRD), and extended X-ray absorption fine structure (EXAFS). The catalytic activity was tested at 673 K and 3.0 MPa in a three-phase fixed bed reactor for hydrocracking of naphthalene. The Ni ₂P/Beta exhibited best activity with a naphthalene conversion of 99%, and a BTX yield of 94.4%. Well-dispersed Ni₂P particles combined with moderate acidity and porosity of zeolite Beta contributed to the enhanced hydrocracking activity of naphthalene into BTX.

Full text of DOI:10.1016/j.catcom.2013.11.010

Novel Ni2P/Zeolite Catalysts for Naphthalene Hydrocracking to BTX
Yong-Su Kim, Gwang-Nam Yun, Yong-Kul Lee
PII:
DOI:
Reference:
S1566-7367(13)00437-8
doi: 10.1016/j.catcom.2013.11.010
CATCOM 3713
To appear in:
Catalysis Communications
Received date:
Revised date:
Accepted date:
23 August 2013
7 October 2013
8 November 2013
Please cite this article as: Yong-Su Kim, Gwang-Nam Yun, Yong-Kul Lee, Novel
Ni2P/Zeolite Catalysts for Naphthalene Hydrocracking to BTX, Catalysis Communica-
tions (2013), doi: 10.1016/j.catcom.2013.11.010
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

ACCEPTED MANUSCRIPT
Novel Ni P/Zeolite Catalysts for Naphthalene Hydrocracking to BTX
2
Yong-Su Kim, Gwang-Nam Yun, and Yong-Kul Lee*
Laboratory of Advanced Catalysis for Energy and Environment,
Department of Chemical Engineering, Dankook University,
1
26 Jukjeondong, Yongin 448-701, South Korea
*
To whom all correspondence should be addressed. Email: yolee@dankook.ac.kr
1

ACCEPTED MANUSCRIPT
Abstract
Ni P catalysts supported on ZSM-5, Beta, and USY zeolites were prepared by temperature-
2
programmed reduction (TPR), applied for the hydrocracking of naphthalene, and characterized
by BET, CO uptake, NH -TPD, TEM, X-ray diffraction (XRD), and extended X-ray absorption
3
fine structure (EXAFS). The catalytic activity was tested at 673 K and 3.0 MPa in a three-phase
fixed bed reactor for hydrocracking of naphthalene. The Ni P/Beta exhibited best activity with a
2
naphthalene conversion of 99%, and a BTX yield of 94.4%. Well-dispersed Ni P particles
2
combined with moderate acidity and porosity of zeolite Beta contributed to the enhanced
hydrocracking activity of naphthalene into BTX.
.
Keywords: Ni P/Beta, Hydrocracking, Naphthalene, BTX, EXAFS
2
2

ACCEPTED MANUSCRIPT
1
. Introduction
Polyaromatic hydrocarbon compounds (PAH) of naphthalene, anthracene and phenanthrene
are highly required to upgrade into lighter oil fractions such as benzene, toluene and xylene

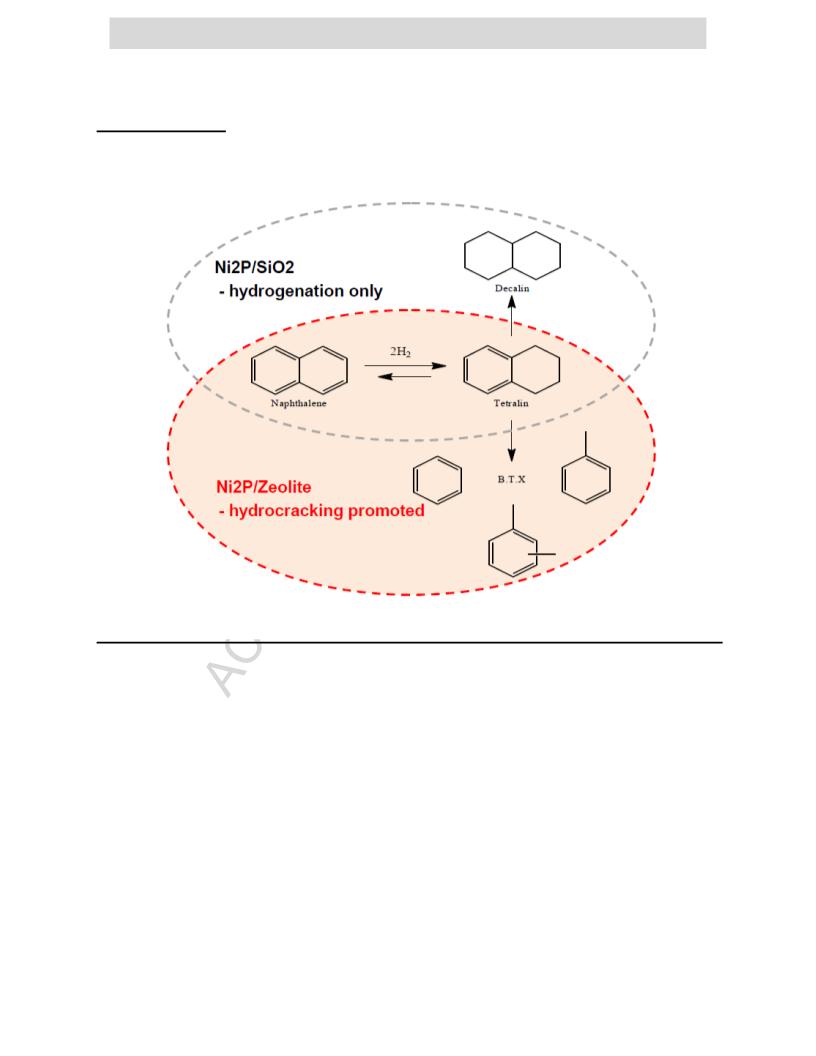

BTX) [1-2]. Catalytic hydrocracking is the most effective option to break up the PAHs into
(
BTX over bifunctional catalysts via hydrogenation and cracking [3-5]. Accordingly, partial
hydrogenation of the polyaromatic rings and cracking of the resulting naphthenic rings are key
steps in the hydrocracking reaction, so that bifunctional catalysts such as metals supported on
acid catalysts have mostly been applied [5-9]. In this regard, the effect of metal catalysts on the
hydrocracking of two or three-ring aromatic compounds and alkyl aromatic compounds has been
investigated by a number of investigators [4-5, 10-13]. According to the previous studies,
transition or noble metal catalysts such as Mo, W, Co-Mo, Ni-Mo, Ni-W, Pt, or Pt-Pd metals
supported on SiO -Al O or zeolites have been adopted for the hydrocracking at relatively high
2
2
3
temperatures around 773-1073 K and at high H pressures 8-15 MPa, however, the BTX yield,
2
less than 50% in most cases, should be enhanced for the commercial application.
A new hydroprocessing catalyst group of transition metal phosphides has recently been
introduced [14-17]. Among the transition metal phosphide catalysts, Ni P catalyst is known to
2
show best activity in hydrotreating [15-17]. Moreover, the Ni P catalysts have shown superior
2
hydrogenation activity, even under the presence of nitrogen compounds [17-19]. In the present
study, we have thus applied Ni P catalysts supported on various zeolites to examine the effect of
2
acidity and porosity of different types of zeolite supports on the bifunctional catalytic activity for
naphthalene hydrocracking into BTX.
3

ACCEPTED MANUSCRIPT
2
. Experimental
The supports used in this study were Zeolite Beta (CP814E, Zeolyst), USY(CBV780, Zeolyst),
ZSM-5(CBV3024E, Zeolyst), and SiO (Cab-O-Sil M5, Cabot). Supported Ni P catalysts were
2
2
prepared by incipient wetness impregnation of aqueous metal phosphate precursors, followed by
temperature programmed reduction (TPR) in flowing hydrogen. The initial Ni/P ratio in the
precursors was fixed at 1/2. The amount of Ni loading was fixed at 1.5 mmol/g of support. The
supported nickel phosphate precursor was prepared by incipient wetness impregnation of a
solution of nickel nitrate Ni(NO ) 6H O (Alfa Aesar, 98 %) and ammonium phosphate
3
2
2
(
NH ) HPO (Samchun, 99 %), followed by drying at 393 K for 7 h and calcination at 673 K for
4 2 4
4
h.
The resulting precursor phosphates were reduced to the corresponding phosphides by TPR
-1
from 298 to 873 K (at 5 Kmin ). The prepared catalysts were characterized by X-ray diffraction
(
XRD), N adsorption, CO chemisorption, temperature programmed desorption of NH (NH -
2
3
3
TPD), and HR-TEM. Also, X-ray absorption spectroscopy (XAS) at the Ni K edge (8.333 keV)
of reference and catalyst samples was carried out in the energy range 8.233 to 9.283 keV at the
beamline 8C of the Pohang Light Source (PLS).
Hydrocracking was carried out at 3.0MPa and 673K in a continuous-flow reactor using a
model feed mixture containing aromatic and aliphatic compounds. The feed liquid was prepared
by combining 5 wt% naphthalene (Aldrich, 99%) in tridecane (TCI, 99%). The liquid mixture
3
−1
3
was delivered at 0.05 cm min using a liquid pump (Laballiance series II) along with 100 cm
-1
3
min of hydrogen flow. Quantities of catalysts loaded in the reactor were 1.0 cm for the Ni P
2
-1
catalysts with corresponding liquid hourly space velocity (LHSV) of 3.0 h . Liquid product
4

ACCEPTED MANUSCRIPT
compositions were determined with a Hewlett Packard 5890A gas chromatograph, equipped with
a 60 m dimethylsiloxane column having 0.32 mm i.d. (Hewlett Packard, HP-1), on samples
collected at 3 to 4 h intervals. The conversion of naphthalene was calculated using Eq. (1) where
NAPHinitial and NAPHfinal were moles of naphthalene before and after the reaction, respectively.
The yield of BTX was calculated using Eq. (2) from the moles of naphthalene in feed and BTX
in product. Tridecane also underwent hydrocracking to give lower aliphatic species C5, C6, and
C7 of 95wt% and gaseous species of C2 and C3 of less than 5wt %. Carbon balance confirmed
that the alkylation from the solvent fragments was negligible and BTX formation was fully
dependent upon the hydrocracking of naphthalene.
NAPHinitial  NAPH final
Naphthaleneconversion (%) 
100
(1)
(2)
NAPHinitial
Benzene Toluene Xylenes
BTX yield (%) 
100
NAPHinitial
3
. Results and Discussion
Table 1 summarizes the physical properties of the zeolite supports and catalyst samples. As
for the zeolite supports, the surface area followed the order USY>Beta>ZSM-5. It was observed
that Beta and USY retained mesoporosity, originated from inter-particulate pore system in Beta
and intra-crystalline mesoporous feature in USY, as also reported in previous studies [18-21]. It
can be seen that the BET surface area of supported Ni P catalyst samples decreased due to a
2
reduction in the pore volume with the loadings of Ni P. The spent samples exhibited a partial
2
reduction in the surface area due to the retention of reaction products on the catalysts.
Chemisorption quantities of CO were reported to correlate closely with dispersion of Ni2P
5

ACCEPTED MANUSCRIPT
catalyst sine CO species could effectively titrate active centers of Ni P via the formation of 
2
back-bonding of higher-electron density Ni species [19]. The amount of CO uptake for the
catalyst samples followed the order Ni P/USY > Ni P/Beta > Ni P/ZSM-5> Ni P/SiO , with a
2
2
2
2
2
significant reduction in CO uptake amount being observed for Ni P/ZSM-5, indicating the loss of
2
active sites, probably due to the agglomeration of Ni P particles or coke deposition in the course
2
of reaction. Table 1 also lists the elemental analysis results of the molar ratios of P/Ni in the
fresh and spent Ni P samples, as determined by ICP-AES. Although the samples were prepared
2
with an initial P/Ni ratio of 2/1, the freshly prepared samples were found to contain lower
phosphorus amounts than the initial value, with P/Ni ratios ranging from 0.8 to 2.0. A previous
work has shown that phosphorus is removed as PH during the reduction procedure [17]. After
3
reaction, the samples underwent further loss in P to give reduced P/Ni ratios, ranging from 0.59
to 1.50 closed to the stoichiometric value of 0.5 for Ni P.
2
Figure 1 shows the powder XRD patterns of the fresh and spent Ni P catalysts, as well as a
2
o
o
o
Ni P reference. The diffraction pattern for Ni P shows three main peaks at 40.5 , 44.8 and 47.5
2
2
corresponding to lattice planes (111), (201), and (210) of Ni P. The XRD patterns confirm that a
2
Ni P phase is formed on the Beta, USY, ZSM-5, and SiO support. After reaction the peaks for
2
2
zeolite and Ni P phase were virtually retained with little changes in the peak positions.
2

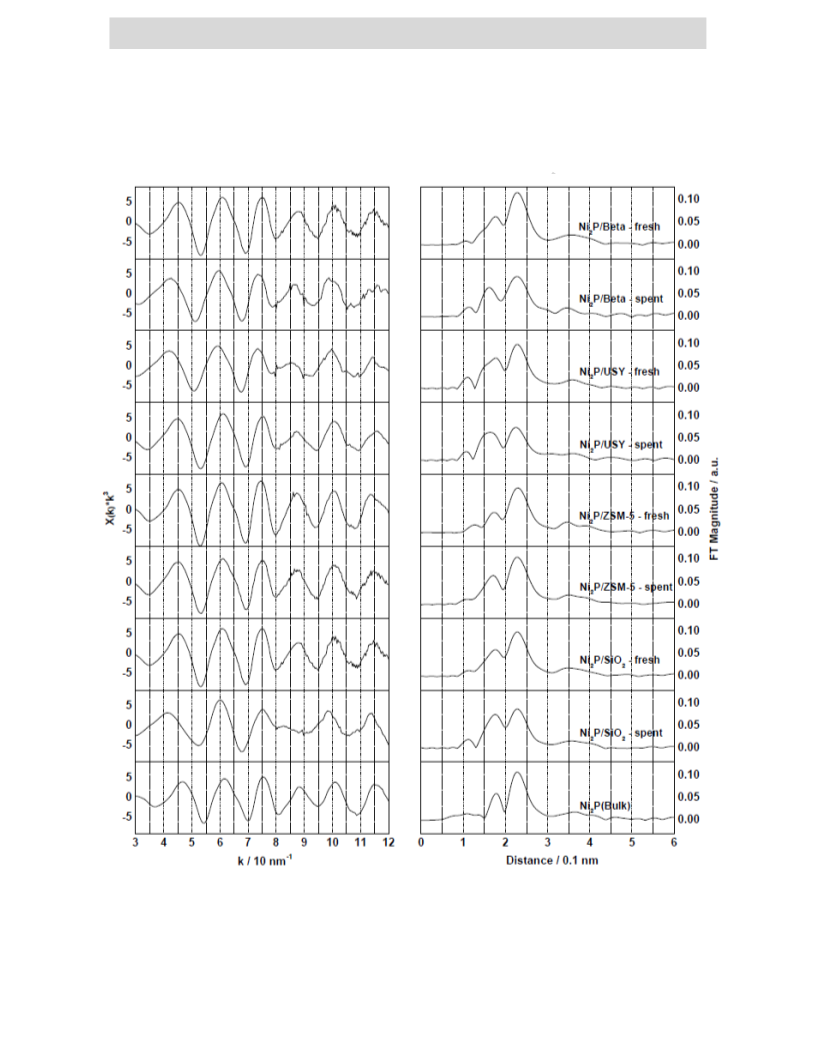

Figure 2 shows comparison of the Ni K-edge and EXAFS spectra for the fresh and spent Ni2P
catalyst and bulk Ni P samples. The EXAFS spectrum for Ni P comprises a little wider
2
2
−
1
oscillation region in 30.0–80.0 nm due to Ni–P contribution and a narrower oscillation region
−
1
in 80.0–140.0 nm due to Ni–Ni contribution, which gives rise to two distinct peaks in the
Fourier transforms, centered at 0.175 nm and 0.240 nm, corresponding to Ni–P and Ni–Ni,
respectively [19]. For the supported Ni P samples there were also two main peaks located at
2
6

ACCEPTED MANUSCRIPT
almost the same positions as those of the bulk Ni P reference, indicating the presence of Ni P
2
2
phase on the Beta, USY, ZSM-5, and SiO support. As for the spent samples almost similar
2
EXAFS spectra were observed with only a little decrease in Ni–Ni peak intensity of Fourier
transforms, indicating that the Ni P phase is not significantly altered during the reaction. These
2
results are well correlated with the XRD results shown in Fig. 1.

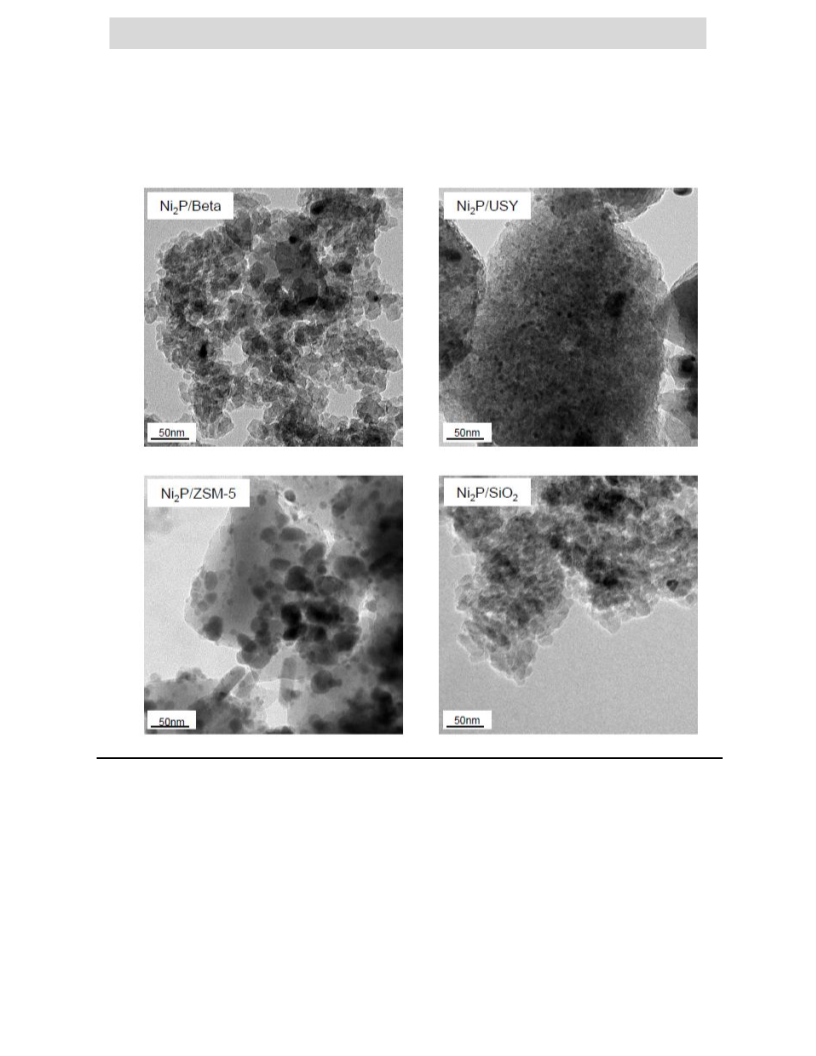

Figure 3 shows TEM micrographs of the fresh Ni P catalyst samples. The zeolite supports
2
showed different crystallite sizes of 20 nm for Beta, 0.2 m for ZSM-5, and 0.5 m for USY.
Zeolite Beta (CP814E, Zeolyst) is known to consist of nano-crystallites with sizes between 15
and 20 nm, that are clustered into agglomerates of about 60-100 nm [20]. The supported Ni2P
catalysts appeared to have relatively wide particle size distributions of 1 to 20 nm of Ni2P
depending on the supports. The Ni P/USY had smaller particles in the ranges of 1 to 7 nm,
2
indicating better dispersion, as also proved by CO uptake results in Table 1. Similar results were
observed in a previous study [21], in which Ni P particles were well dispersed in K-USY
2
supports with size ranges less than 5 nm. The Ni P/Beta gave a little wider particle size
2
distributions of 5 to10 nm of Ni P. On the other hand, the Ni P/ZSM-5 had even larger Ni P
2
2
2
particles of 10-30 nm on the support. These results can be explained by the different structural
properties of the zeolite supports. The USY has well developed mesopores in size ranges of 4-40
nm, which could render high dispersion of Ni P particles [21]. Although the zeolite Beta does
2
not have mesopores within the zeolite crystal, the mesopore volume can be developed by inter-
crystalline particulate system, as also observed in a previous study [18]. In contrast, the ZSM-5
has mostly micropores on relatively large crystallites, resulting in low and unstable dispersion of
Ni P particles. These are in good accordance with CO uptake results for the fresh and spent
2
catalysts with following the order: Ni P/USY > Ni P/Beta > Ni P/ZSM-5.
2
2
2
7

ACCEPTED MANUSCRIPT

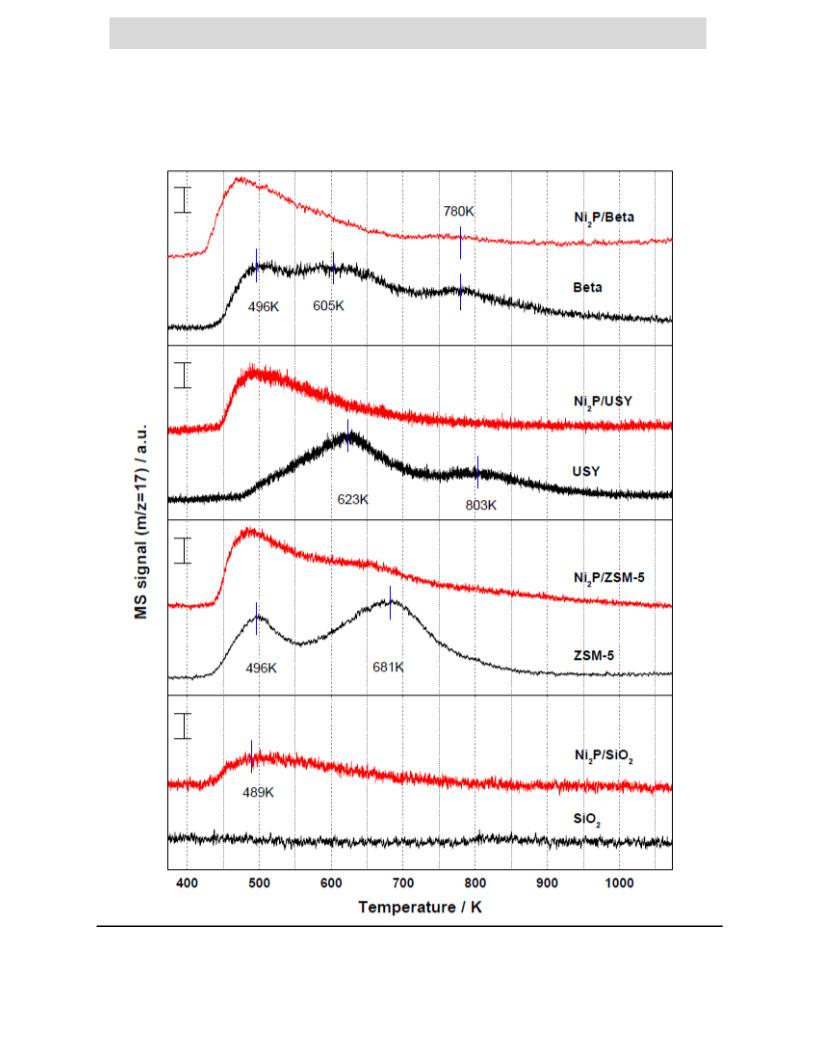

Figure 4 shows the NH -TPD profiles of the ZSM-5, USY, Beta, and SiO supports, and the
3
2
supported Ni P catalyst samples. In a typical NH -TPD profile of H-zeolites, peaks are generally
2
3
observed in two temperatures regions. The regions below and above about 650K are referred to
as low-temperature (LT) and high-temperature (HT) region, corresponding to weak and strong
acid sites, respectively [22-23]. The NH -TPD pattern for ZSM-5 gave two distinct peaks
3
centered at 496 and 681K, and in the similar manner USY exhibited two peaks but at even higher
temperatures of 623 and 803K, implying strong acidity of USY over ZSM-5. Differently from
the NH -TPD patterns for ZSM-5 and USY, Beta gave three peaks at around 496, 605, and 780K,
3
with the two peaks at lower temperatures being overlapped [24]. Although SiO did not give any
2
NH desorption, Ni P/SiO gave a NH desorption peak at 489K, indicating a low acidity of the
3
2
2
3
Ni P catalyst. Oyama et al. also confirmed the weak acidity of Ni P catalyst with pyridine-
2
2
adsorbed in situ FTIR study, where the P-OH group developed on Ni P surface exhibited a weak
2
acidity enough to protonate pyridine [19]. As for the Ni P/zeolites catalysts, the NH -TPD
2
3
profiles showed substantial reduction of NH desorption particularly at high temperature region,
3
indicating the loss of strong acid sites upon the Ni P loadings. The loss of strong acid sites was
2
found more pronounced for USY than the cases for Beta or ZSM-5.

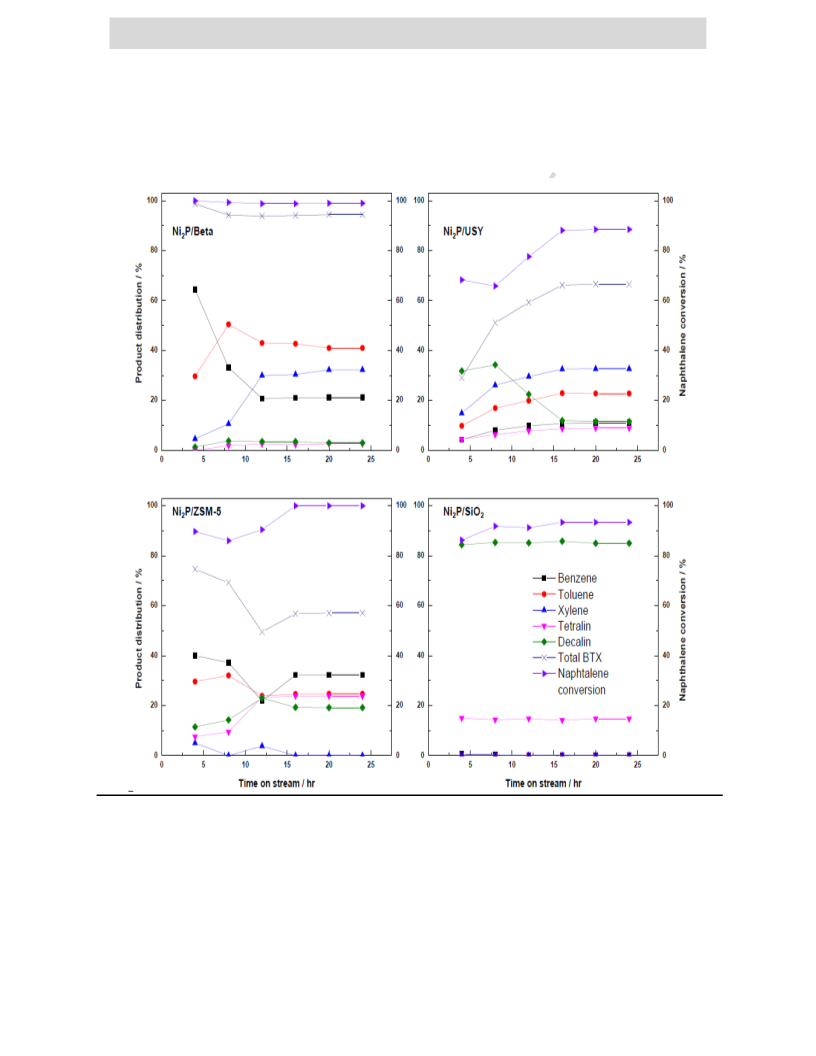

Figure 5 shows the product distributions of the naphthalene hydrocracking over the Ni2P
-1
catalysts at 673K, 3.0MPa, and LHSV of 3.0 hr . It was found that naphthalene was well
converted at the given reaction condition over the Ni P catalysts, with following the order
2
Ni P/SiO ~Ni P/USY (90%) < Ni P/Beta ~Ni P/ZSM-5 (99 %), where the numbers in
2
2
2
2
2
parenthesis indicate the conversion of naphthalene. As for the reaction products, the Ni P/SiO
2
2
gave only hydrogenated species like tetralin and decalin with traces of BTX formation less than
0
.1 %, indicating high activity in hydrogenation over hydrocracking at the reaction condition. It
8

ACCEPTED MANUSCRIPT
was noteworthy that the zeolite-supported Ni P catalysts showed the remarkable formation of
2
BTX, where the BTX yield followed the order Ni P/ZSM-5 (57.5%) < Ni P/USY (76.4%) <
2
2
Ni P/Beta (94.4%). Considering the high activity of Ni P for the naphthalene hydrogenation over
2
2
9
0% conversion in all cases, the difference in BTX yield can be more related with the nature of
supports in terms of acidity and porosity. The low BTX formation together with tetralin and
decalin in the product over Ni P/ZSM-5 can be explained by the pore structure of ZSM-5 which
2
adopts 10-MR system, smaller than 12-MR based USY or Beta, inducing a restriction of the
accessibility of the hydrogenated species to the acid sites in the pore structure. As for the
Ni P/USY, the BTX formation was found a little lower than that on Ni P/Beta, which is probably
2
2
due to the lack of strong acidity and relatively larger crystallite, resulting in slow cracking
activity in comparison with Ni P/Beta catalyst.
2
Overall, the Ni P plays a major role in hydrogenation of naphthalene, resulting in tetralin,
2
and indeed the acid sites on zeolite supports function effectively in cracking the hydrogenated
species into BTX. In particular, optimized acidity and pore structure of zeolite significantly
promoted the bifunctional activity of Ni P catalyst in facilitating the naphthalene hydrocracking
2
into BTX. Therefore, it can be proposed that the Ni P/Beta, having the unique bifunctional
2
nature, will offer great potential in the hydrocracking of polyaromatic hydrocarbon into BTX.
4
. Conclusions
The hydrocracking of naphthalene into BTX has been studied over Ni P catalysts supported on
2
SiO , Beta, USY, or ZSM-5. The Ni P/SiO catalyst was found active only for the hydrogenation
2
2
2
of naphthalene with producing tetralin and decalin at 3.0MPa and 673K. On the other hand, the
9

ACCEPTED MANUSCRIPT
zeolite supported Ni P catalysts have shown remarkable activity in hydrocracking with
2
producing BTX in the order Ni P/Beta > Ni P/USY > Ni P/ZSM-5, demonstrating the
2
2
2
bifunctional catalytic activity. The Ni P/Beta gave the highest BTX yield of 94.4%, which was
2
attributed to its unique catalytic nature of moderate acidity and porosity combined with
hydrogenation activity of well-dispersed Ni P phase. Moreover, the Ni P/Beta maintained the
2
2
local and bulk structure stable during the reaction as confirmed by EXAFS and XRD analysis.
Overall, the Ni P/Beta can be a potential hydrocracking catalyst for upgrading polyaromatic
2
hydrocarbons into BTX.
10

ACCEPTED MANUSCRIPT
References
[
[
[
1] M. Chareonpanich, Z. G. Zhang, A. Nishijima, A. Tomita, Fuel 74 (1995) 1636-1640.
2] M. Chareonpanich, T. Boonfueng, J. Limtrakul, Fuel Process. Technol. 79 (2002) 171-179.
3] A. Ishihara, T. Itoh, H. Nasu, T. Hashimoto, T. Doi, Fuel Process. Technol. 116 (2013) 222-
2
27.
4] J. I. Park, J. K. Lee, J. Miyawaki, Y.-K Kim, S.-H. Yoon, I. Mochida, Fuel 90 (2011) 182-
89.
5] A. T. Lapinas, M. T. Klein, B. C. Gates, A. Macris, J. E. Lyons, Ind. Eng. Chem. Res., 30
1991) 42-50.
[
[
1
(
[
[
[
[
6] C. L. Russell, M. T. Klein, R. J. Quann, J. Trewella, Energy Fuels 8 (1994) 1394-1400.
7] A. Corma, P. J. Miguel, A.V. Orchilles, G. S. Koermer, J. Catal. 135 (1992) 45-59.
8] F. N. Guerzoni, J. Abbot, J. Catal. 139 (1993) 289-303.
9] M. Santikunaporn, J. E. Herrera, S. Jongpatiwut, D. E. Resasco, W. E. Alvarez, E. L.
Sughrue, J. Catal. 228 (2004) 100-113.
[
[
[
[
[
[
[
[
10] J. L. Lemberton, M. Touzeyidio, M. Guisnet, Appl. Catal. 79 (1991) 115-126.
11] F. N. Guerzoni, J. Abbot, J. Catal. 139 (1993) 289-303.
12] H. Matsui, K. Akagi, S. Murata, M. Nomura, Energy Fuels 9 (1995) 435-438.
13] L. Leite, E. Benazzi, N. M. George, Catal. Today 65 (2001) 241-247.
14] T. I. Korányi, Appl. Catal. A 239 (2003) 253-267.
15] P. Clark, S. T. Oyama, J. Catal. 218 (2003) 78-87.
16] P. Clark, X. Wang, S. T. Oyama, J. Catal. 207 (2002) 256-265.
17] S. T. Oyama, X. Wang, Y.-K. Lee, K. Bando, F.G. Requejo, J. Catal. 210 (2002) 207-217.
11

ACCEPTED MANUSCRIPT
[
18] A. N. C. van Laak, S. L. Sagala, J. Zecevic , H. Friedrich, P. E. de Jongh, K. P. de Jong, J.
Catal. 276 (2010) 170–180.
[
[
19] Y.-K. Lee, S. T. Oyama, J. Catal. 239 (2006) 376-389.
20] A. N. Parvulescu, P. J. C. Hausoul, P. C. A. Bruijnincx, R. J. M. K. Gebbink, B. M.
Weckhuysen, Catal. Today, 158 (2010) 130–138.
[
[
[
[
21] Y.-K. Lee, Y. Shu, S. T. Oyama, Appl. Catal. A 322 (2007) 191-204.
22] M. Sawa, M. Niwa, Y. Murakami, Zeolites 10 (1990) 532-538.
23] H. Sato, Catal. Rev.-Sci. Eng. 39 (1997) 395-424.
24] F. Lonyi, J. Valyon, Thermochim. Acta 373 (2001) 53-57.
12

ACCEPTED MANUSCRIPT
List of Table
Table 1 Physical properties of the supports and Ni P catalysts.
2
List of Figures
Figure 1. XRD patterns of catalyst samples: (a) Ni P/Beta - fresh, (b) Ni P/Beta - spent, (c)
2
2
Ni P/USY -fresh, (d) Ni P/USY - spent, (e) Ni P/ZSM-5 - fresh, (f) Ni P/ZSM-5 -
2
2
2
2
spent, (g) Ni P/SiO - fresh, and (h) Ni P/SiO - spent.
2
2
2
2
Figure 2. Ni K-edge EXAFS spectra and Fourier transforms for fresh and spent Ni P catalyst
2
samples : (a) Ni P/Beta - fresh, (b) Ni P/Beta - spent, (c) Ni P/USY -fresh, (d) Ni P/U
2
2
2
2
SY - spent, (e) Ni P/ZSM-5 - fresh, (f) Ni P/ZSM-5 - spent, (g) Ni P/SiO - fresh and (
2
2
2
2
h) Ni P/SiO – spent, and (i) Ni P(bulk)
2
2
2
Figure 3. TEM micrographs for fresh catalyst sample : (a) Ni P/Beta, (b) Ni P/USY, (c) Ni P
2
2
2
/
ZSM-5, and (d) Ni P /SiO
2 2
Figure 4. NH -TPD profiles : (a) Ni P/Beta, (b) Beta, (c) Ni P/USY, (d) USY, (e) Ni P/ZSM-5,
3
2
2
2
(
f) ZSM-5, (g) Ni P/SiO , and (h) SiO
2 2 2
-1
Figure 5. Activity tests for naphthalene hydrocracking at 3.0MPa, 673K, and LHSV of 3 h : (a)
Ni P/Beta, (b) Ni P/USY, (c) Ni P /ZSM-5, and (d) Ni P /SiO
2
2
2
2
2
13

ACCEPTED MANUSCRIPT
Table 1 Physical properties of the supports and Ni P catalysts.
2
2
-
BET surface area(m g
Pore volume
(cm g )
1
3 -1
)
CO
uptake
Molar
ratio
P/Ni
d)
Samples
Condition
(
μmol
−1
g )
Sto
S
bS) m
V
V
m
a)
a)
c)
tal
icro
eso
micro
meso
6
0
3
3
8
48
4.2
45
7.6
28
12
18
0.
0.
0.
0.
0.
0.
0.
0.
-
-
-
Beta
USY
-
-
-
5
1
.
.3
24
19
13
01
39
24
05
38
9
.6
6
.9
As
calcined
9.6
3
47
ZSM-5
SiO2
8
3
6
.3
5.4
1
0.
18
-
5
.7
10
.3
10
1.4
14
.8
10
9.5
.3
40
7.4
38
7.5
61
9.6
56
3.5
26
4.1
23
1.9
3
Ni P/B
30
7.3
28
6.0
47
1.5
45
3.5
21
8.6
20
0.4
0.
0.
0.
0.
0.
0.
0.
0.
0.
0.
0.
0.
0.
0.
0.
0.
2
2
Fresh
Spent
Fresh
Spent
Fresh
Spent
Fresh
Spent
2.0
1.5
1.5
1.3
1.5
1.0
0.8
0.5
0
17
16
17
17
11
10
01
01
31
45
23
17
07
05
82
67
5.3
4.2
1.3
2.4
3.3
eta
Si/Al =
2.5)
(
2
4
3
2
1
Ni P/U
2
8
SY
Si/Al =
0)
(
4
Ni P/Z
45
31
12
2
.
2
SM-5
Si/Al=1
(
5.
1
5
)
.1
5
1
.4
74
2
0.
Ni P/Si
2.9
2
.
2
1
7.4
3.1
2
O2
0.
74
1
5
.9
a)
b)
c)
d)
Calculated by t-plot method.
Stotal -Smicro
Vtotal -Vmicro
Measured by ICP elemental analysis.
14

ACCEPTED MANUSCRIPT
Figure 1
15

ACCEPTED MANUSCRIPT
Figure 2
16

ACCEPTED MANUSCRIPT
Figure 3
17

ACCEPTED MANUSCRIPT
Figure 4
18

ACCEPTED MANUSCRIPT
Figure 5
19

ACCEPTED MANUSCRIPT
Graphical abstract
20

ACCEPTED MANUSCRIPT
Highlights




Ni P/zeolite catalysts were active for naphthalene hydrocracking into BTX.
2
Ni P/Beta exhibited best activity and selectivity in naphthalene hydrocracking into BTX.
2
Bifunctional activity of Ni P/Beta facilitated the hydrocracking of naphthalene.
2
Pore structure of zeolite support significantly affected BTX yield.
21
